Product Type	Inflatable pool with slide and play accessories
Brand	Playtive
Model	IAN 385205
Inflated dimensions (L x W x H)	Approximately 297 x 162 x 21 cm
Maximum water capacity	300 liters (without sprayer)
Maximum user weight (slide)	50 kg
Recommended age	From 2 years
Main material	PVC (coated fabric)
Delivery contents	Adventure wading pool, slide, slide cushion, parrot on tree trunk, ball track, snake, monkey, 2 throwing rings, 6 balls, adapter, 2 repair pieces, 3 deflation tubes, instruction manual
Power / Energy	None (manual inflation; pump not included)
Use	Outdoor, family water play
Assembly	By an adult; progressive inflation of chambers in the order indicated
Safety	Constant adult supervision; drowning hazard; empty after use; do not use on hard ground; distance of at least 2 m from obstacles
Care and cleaning	Clear water or soapy water; regular water changes; no harsh products
Storage	Uninflated, dry, clean, at room temperature; valves closed; winter: without sharp objects, no talc
Repair	Repair pieces included; do not inflate for 20 minutes after repair; do not use on seams
Warranty	3 years (material and workmanship defects)
Minimum inflation temperature	15 °C
Air pressure	Do not overinflate; firm to the touch; thumb slightly indents
IAN number	385205
Manufacturing date	01/2022

Frequently Asked Questions - IAN 385205 Playtive

How to inflate the Playtive IAN 385205 pool?

Use a foot or piston pump (compressor not allowed). Inflate each chamber in order: main chamber (1a), then slide (1b), cushion (1c), parrot (1d), track (2), snake (3), monkey (4), rings (5). Close the valves firmly after inflation.

How much water to put in the pool?

Fill up to the indicated mark, with a maximum of 300 liters if you do not use the sprayer. Use only clean tap water.

How to empty and deflate the pool?

Open the drain opening to remove water. To deflate, open the valve caps or insert the provided deflation tubes to speed up air release.

What are the essential safety instructions?

Never leave the child unsupervised (drowning hazard). Empty the pool after each use. Set up on a flat and grassy surface, at least 2 meters from any obstacles. No jumping or sharp objects.

How to repair a leak or hole?

Use the provided repair pieces. Completely deflate, clean and dry the area. Cut a piece that extends 1.3 cm around the hole, apply and press firmly. Wait 20 minutes before re-inflating.

What is the minimum age to use this product?

The recommended age is 2 years and up. The product is a toy for family outdoor use.

Can the pool be left in the sun?

Yes, but monitor the pressure: under strong sun, air expands. Release some air if needed to avoid damaging the seams. Avoid alcohol-containing sunscreens that deteriorate the coating.

How to clean and maintain the pool?

Clean with clear water or soapy water (no harsh products). Change the water regularly, especially in high heat or dirty water. Dry completely before storing.

What is the maximum weight supported by the slide?

The maximum user weight for the slide is 50 kg.

Is the pool under warranty?

Yes, the warranty is 3 years from the date of purchase, for defects in materials and workmanship. Keep the receipt. Contact customer service at 0800 919270 (France).

USER MANUAL IAN 385205 Playtive

Instructions for use

NL BE

KINDERZWEMBAD JUNGLE WERELD

Gebruiksaanwijzing

CZ

BAZÉNOVÉ HRACÍ CENTRUM "DŽUNGLE"

Návod k použití

ES

PISCINA INFLABLE INFANTIL «LA JUNGLA»

A 1 1b 1c 1d 4 3 2 1c 5 6 7 2×38x 9

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram showing three stages of a mechanical or fluidic device with arrows indicating motion, no text or symbols present.

D 7 1e

Diagram of a mechanical or electrical component with two loops and bidirectional arrows indicating rotation (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

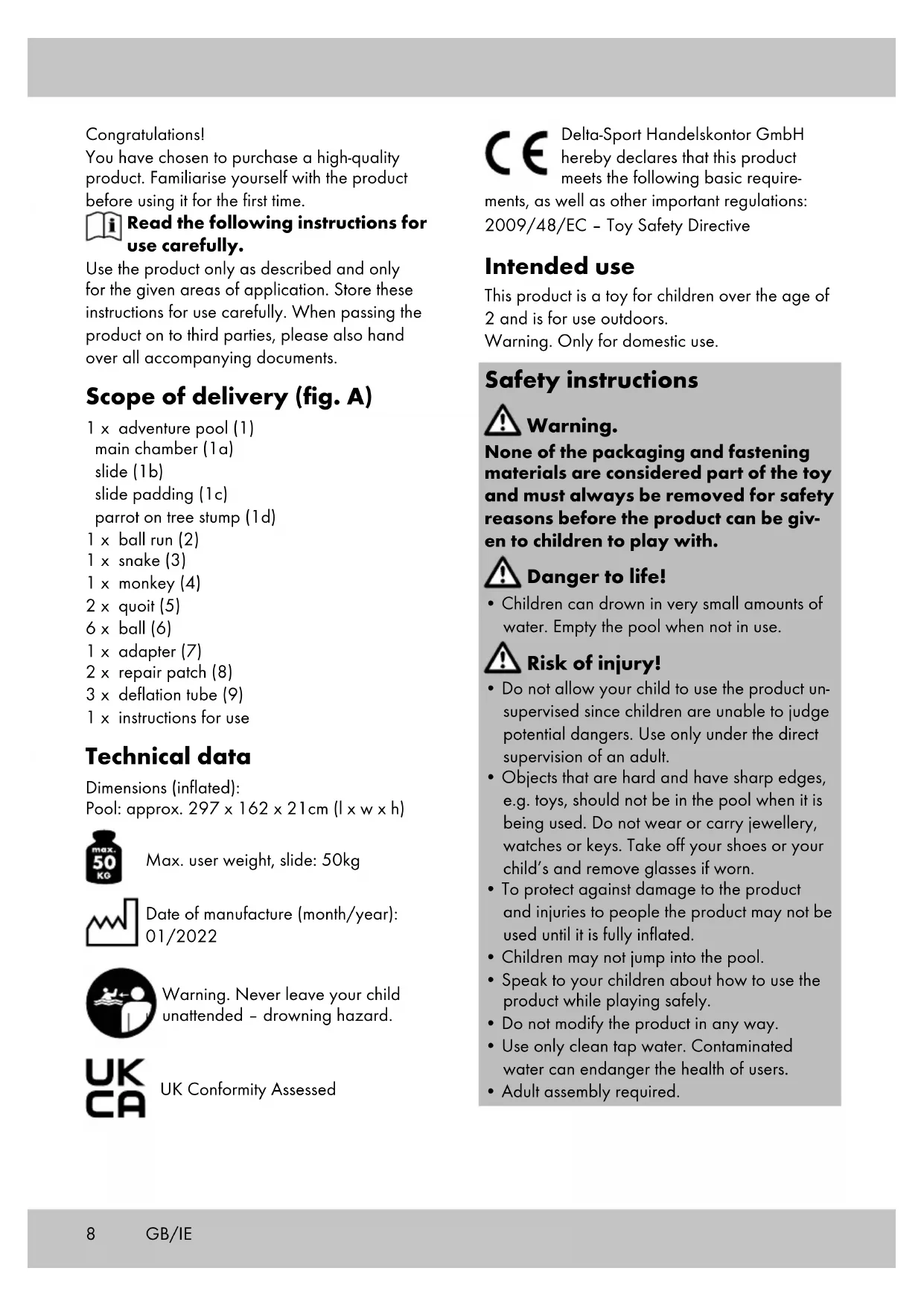

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (fig. A)

1 x adventure pool (1)
main chamber (1a)
slide (1b)
slide padding (1c)
parrot on tree stump (1d)
1 x ball run (2)
1 x snake (3)
1 x monkey (4)
2 x quoit (5)
6 x ball (6)
1 x adapter (7)
2 x repair patch (8)
3 x deflation tube (9)
1 x instructions for use

Technical data

Dimensions (inflated):

Pool: approx. 297 x 162 x 21cm (l x w x h)

Max. user weight, slide: 50kg

Date of manufacture (month/year): 01/2022

Warning. Never leave your child unattended - drowning hazard.

UK Conformity Assessed

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

2009/48/EC - Toy Safety Directive

Intended use

This product is a toy for children over the age of 2 and is for use outdoors.

Warning. Only for domestic use.

Safety instructions

Warning.

None of the packaging and fastening materials are considered part of the toy and must always be removed for safety reasons before the product can be given to children to play with.

Danger to life!

- Children can drown in very small amounts of water. Empty the pool when not in use.

Risk of injury!

• Do not allow your child to use the product unsupervised since children are unable to judge potential dangers. Use only under the direct supervision of an adult.
• Objects that are hard and have sharp edges, e.g. toys, should not be in the pool when it is being used. Do not wear or carry jewellery, watches or keys. Take off your shoes or your child's and remove glasses if worn.
• To protect against damage to the product and injuries to people the product may not be used until it is fully inflated.
  • Children may not jump into the pool.
• Speak to your children about how to use the product while playing safely.
• Do not modify the product in any way.
• Use only clean tap water. Contaminated water can endanger the health of users.

• Adult assembly required.

• Do not install the paddling pool over concrete, asphalt or any other hard surface.

• The product should be assembled on a flat lawn without any stones, sticks, bumps or hollows.
  Please ensure that the product is at an appropriately safe distance of at least two metres away from buildings, steps, fences, walls, waterways, overhanging branches, washing lines, electrical cables, and any other obstacles.
• Check the product for damage and wear before each use. The product may only be used in good order and condition!
• Do not use the product if air is leaking.
• Do not use the product without the slide inflated.

Avoiding material damage!

• All inflatables are susceptible to cold. For this reason never unfold and inflate the product at a temperature lower than 15^ !
• Warning. Avoid the use of sunscreen and skin care products containing alcohol. Sunscreen and skin care products containing alcohol may dissolve the colour coating of the inflatable PVC items. This can lead to discolouration on your body, your clothing, or on other objects which come into contact with the product.
• In the event that the air pressure increases in the hot sun, it must be balanced accordingly by letting out air.
• Make sure that the product, especially when inflated, does not come into contact with stones, gravel, or sharp objects and does not rub or scrape against anything as this can cause damage to the plastic foil.
• Use only the correct pump adapters to insert into the safety valves. The valves might otherwise be damaged.
• Do not over-inflate because you then risk tearing open the welded seams. Close the valves properly after inflating.
• Avoid contact with sharp-edged, hot, pointed, or dangerous objects.

Assembly

An adult should always assemble the product. Please follow the individual assembly steps in the order indicated.

1. Selecting the location

Choose a suitably flat and clean surface with plenty of space to unpack and unfold the product. Spread the product out in the place where it will later be used. Check that all individual parts are present and in good order and condition.

2. Inflation

Warning!

• Always inflate the air chambers fully!
- Avoid inflating the air chambers too much because there is the risk of over-stretching the welded seams or even tearing them open.
- Use standard commercial foot pumps or double-stroke piston pumps with matching adapter attachments to inflate the product.
- Do not use a compressor or compressed air bottles to inflate the product. This can lead to damage to the product.
• Make sure that the chambers are filled with air uniformly.
- Inflate each air chamber until it feels firm to the touch. When you press with your thumb against the air chamber it should still give a little.

Sequence

WARNING!

Follow the correct sequence when inflating the air chambers. Always inflate all air chambers fully.

1. Main chamber (1a)
2. Slide with side walls (1b)
3. Slide padding (1c)
4. Tree stump with parrot (1d)
5. Ball run (2)
6. Snake (3)
7. Monkey (4)
8. Quoit (5)

3. Inflation

1. Inflate the main chamber (1a) and close the cap (fig. B) Inflate the air chamber until it feels firm to the touch. When you press with your thumb against each air chamber it should still give a little. Close the valve seal.
2. To inflate components (1b) - (5) open the valve seal and inflate the air chambers. Close the valve seal and push in the valve by pressing lightly (fig. C).

Note: For better positioning first fill the bases of the snake (3) with water and then inflate them.

4. Garden hose connection

Screw the adapter (7) onto the product's water connection (1e). Connect a garden hose using a suitable hose coupling (not supplied) and attach this to the water connection with the product's adapter (fig. D).

Filling the product with water

Fill the product slowly and do not leave it unattended while filling.

Note: Fill the product up to, at most, the printed mark.

Important! Do not exceed the filling capacity of 300l without water sprayer attached!

Emptying the product

Open the drainage hole and allow the water to run out (fig. E).

Note: Please follow the local regulations regarding specific requirements for disposing of water from swimming pools.

Disassembly

Allow the product to dry completely before folding it up. Remove the garden hose. Take off all individual removable parts.

Deflate the product as follows:

1. To deflate the main chamber rapidly, open the seal (fig. F).

2. To deflate the other components pull out the valve and squeeze the valve stem lightly so that the air can escape or insert the deflation tube into the seal to allow the air to escape rapidly.

Repairs

Minor leaks or holes can be repaired with the repair patch supplied.

Important!

Do not inflate the product for 20 minutes after repair! Do not use the patch for leaks or holes on the seam.

1. Let the air out of the product completely.
2. Clean the area around the leak thoroughly. The area must be dry and free from grease.
3. Cut out a piece of the repair material that is big enough for its edges to overlap the damaged area by about 1.3cm.
4. Peel the patch off the paper, place it on the damaged area and press tight.

Storage, cleaning

Exchange the water in the product frequently, especially in hot weather and if it is soiled. When not in use, always store the product clean, dry and uninflated at room temperature. The valves should always be closed during storage. Clean the product only with water or soapy water, never with abrasive detergents. When storing for the winter do not put any sharp objects on the product and do not apply talcum powder.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which

is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 385205_2107

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
