USER MANUAL IAN 351982 Playtive

Illustration of a colorful seashell with sheep, swirls, and pandas (no text or symbols)

PDF ONLINE www.lidl-service.com

KINDERPLANSCHBECKEN SEEPFERDCHEN SEAHORSE PADDLING POOL PISCINE GONFLABLE « HIPPOCAMPE »

DE AT CH

KINDERPLANSCHBECKEN SEEPFERDCHEN

Gebrauchsanweisung

FR BE

Instructions for use

NL BE

KINDER ZWEMBADJE ZEEPAARDJE

Gebruiksaanwijzing

CZ

DĚTSKÝ BAZÉN SE SKLUZAVKOU "PODMOŘSKÝ SVĚT"

Návod k použití

ES

PISCINA INFLABLE INFANTIL «CABALLITOS DE MAR»

Technical line drawing of a mechanical component with a pulley and lever mechanism (no text or symbols)

Diagram showing three stages of a mechanical or fluidic device with arrows indicating motion, no text or symbols present.

Diagram showing two connected pipe fittings with a directional arrow indicating assembly (no text or symbols)

Diagram of a mechanical linkage or connector with bidirectional rotation arrows (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

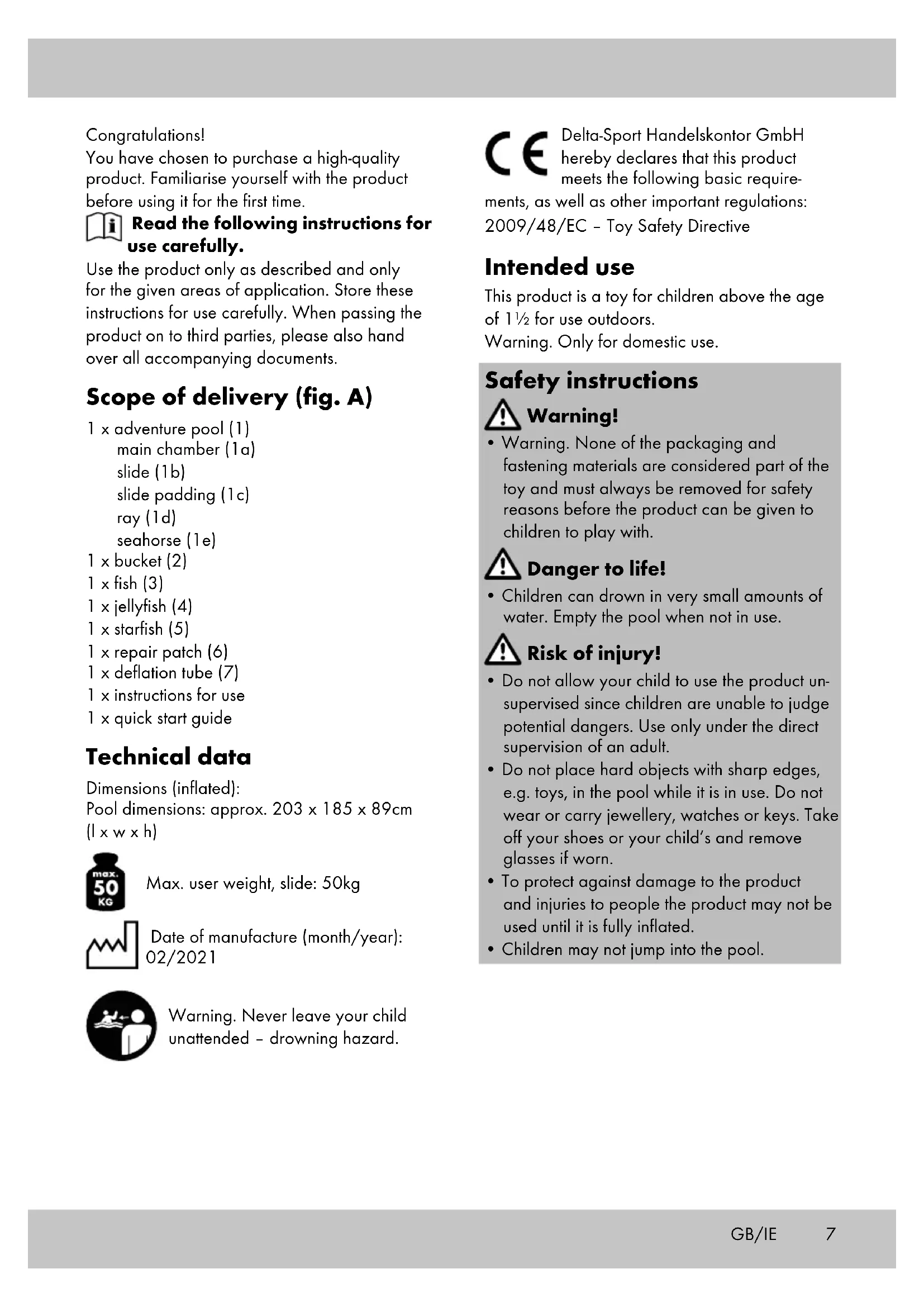

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (fig. A)

1 x adventure pool (1) main chamber (1a) slide (1b) slide padding (1c) ray (1d) seahorse (1e)
1 x bucket (2)
1 x fish (3)
1 x jellyfish (4)
1 x starfish (5)
1 x repair patch (6)
1 x deflation tube (7)
1 x instructions for use
1 x quick start guide

Technical data

Dimensions (inflated):

Pool dimensions: approx. 203 x 185 x 89cm (l x w x h)

Max. user weight, slide: 50kg

Date of manufacture (month/year): 02/2021

Warning. Never leave your child unattended - drowning hazard.

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

2009/48/EC - Toy Safety Directive

Intended use

This product is a toy for children above the age of 1½ for use outdoors.

Warning. Only for domestic use.

Safety instructions

Warning!

- Warning. None of the packaging and fastening materials are considered part of the toy and must always be removed for safety reasons before the product can be given to children to play with.

Danger to life!

- Children can drown in very small amounts of water. Empty the pool when not in use.

Risk of injury!

• Do not allow your child to use the product unsupervised since children are unable to judge potential dangers. Use only under the direct supervision of an adult.
• Do not place hard objects with sharp edges, e.g. toys, in the pool while it is in use. Do not wear or carry jewellery, watches or keys. Take off your shoes or your child's and remove glasses if worn.

• To protect against damage to the product and injuries to people the product may not be used until it is fully inflated.
  • Children may not jump into the pool.

• Speak to your children about how to use the product while playing safely.

• Do not modify the product in any way.
• Use only clean tap water. Contaminated water can endanger the health of users.
• Adult assembly required.
• Do not install the paddling pool over concrete, asphalt or any other hard surface.
• The product should be assembled on a flat lawn without any stones, sticks, bumps or hollows. Please ensure that the product is at an appropriately safe distance of at least two metres away from buildings, steps, fences, walls, waterways, overhanging branches, washing lines, electrical cables, and any other obstacles.
• Check the product for damage and wear before each use. The product may only be used in good order and condition!
• Do not use the product if air is leaking.
• Do not use the product without the slide inflated.
  • Children may only play with the product under adult supervision.

Avoiding material damage!

• All inflatables are susceptible to cold. For this reason never unfold and inflate the product at a temperature lower than 15^ !
• Warning. Avoid the use of sunscreen and skin care products containing alcohol. Sunscreen and skin care products containing alcohol may dissolve the colour coating of the inflatable PVC items. This can lead to discolouration on your body, your clothing, or on other objects which come into contact with the product.

• In the event that the air pressure increases in the hot sun, it must be balanced accordingly by letting out air.

• Make sure that the product, especially when inflated, does not come into contact with stones, gravel, or sharp objects and does not rub or scrape against anything as this can cause damage to the plastic foil.

• Use only the correct pump adapters to insert into the safety valves. The valves might otherwise be damaged.
• Do not over-inflate because you then risk tearing open the welded seams. Close the valves properly after inflating.
• Avoid contact with sharp-edged, hot, pointed, or dangerous objects.

Assembly

An adult should always assemble the product. Please follow the individual assembly steps in the order indicated.

1. Selecting the location

Choose a suitably flat and clean surface with plenty of space to unpack and unfold the product. Spread the product out in the place where it will later be used. Check that all individual parts are present and in good order and condition.

2. Inflation

Warning!

• Always inflate the air chambers fully!
- Avoid inflating the air chambers too much because there is the risk of overstretching the welded seams or even tearing them open.
- Use standard commercial foot pumps or double-stroke piston pumps with matching adapter attachments to inflate the product.
- Do not use a compressor or compressed air bottles to inflate the product. This can lead to damage to the product.
• Make sure that the chambers are filled with air uniformly.

- Inflate each air chamber until it feels firm to the touch. When you press with your thumb against the air chamber it should still give a little.

Sequence

WARNING!

Follow the correct sequence when inflating the air chambers. Always inflate all air chambers fully.

1. Main chamber (1a)
2. Slide with side walls (1b)
3. Slide padding (1c)
4. Ray (1d)
5. Seahorse (1e)
6. Bucket (2)
7. Fish (3)
8. Jellyfish (4)
9. Starfish (5)

3. Inflation

1. Fill the main chamber (1a) with air and close the cap (fig. B). Inflate the air chamber until it feels firm to the touch. When you press with your thumb against each air chamber it should still give a little. Close the valve seal.
2. To fill components 1b-1e and 2-5 open the valve seal and inflate the air chambers. Close the valve seal and push in the valve by pressing lightly (fig. C).

4. Garden hose connection

To connect a garden hose use a suitable hose coupling and attach it to the product's water connection (fig. D).

Filling the product with water

Fill the product slowly and do not leave it unattended while filling.

Note: Fill the product up to, at most, the printed mark.

Important! Do not exceed the filling capacity of 165l without water sprayer attached!

Emptying the product

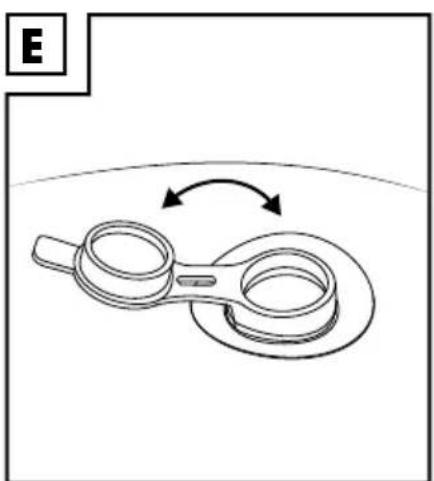

Open the drainage hole and allow the water to run out (fig. E).

Note: Please follow the local regulations regarding specific requirements for disposing of water from swimming pools.

Disassembly

Allow the product to dry completely before folding it up.

Remove the garden hose. Take off all individual removable parts.

Deflating the product

1. To deflate the main chamber rapidly, open the seal (fig. F).
2. To deflate the other components pull out the valve and squeeze the valve stem lightly so that the air can escape or insert the deflation tube into the seal to allow the air to escape rapidly.

Repairs

Minor leaks or holes can be repaired with the repair patch supplied.

Important!

Do not inflate the product for 20 minutes after repair! Do not use the repair patch for leaks or holes on the seam.

1. Let the air out of the product completely.

2. Clean the area around the leak thoroughly. The area must be dry and free from grease.

3. Cut out a piece of the repair material that is big enough for its edges to overlap the damaged area by about 1.3cm.

4. Peel the repair patch off the paper, place it on the damaged area and press tight.

Storage, cleaning

Exchange the water in the product frequently, especially in hot weather and if it is soiled. When not in use, always store the product clean, dry and uninflated at room temperature. The valves should always be closed during storage. Clean the product only with water or soapy water, never with abrasive detergents. When storing for the winter do not put any sharp objects on the product and do not apply talcum powder.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling.

The code consists of the recycling symbol

- which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 351982_2007

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
