The appliance is intended for use in private households to prepare coee beverages and to heat milk and water. Any other use is regarded as improper and may lead to per- sonal injury and material dam- age.

1.2 Danger from electric current

Only use the appliance if it is in a technically awless condition. If the appliance or the power cable is damaged, there is a risk of fatal electric shock. You may not use the appliance in this case, but instead you need to have it repaired by the manufacturer, the customer services or a service partner. You must not immerse the appli- ance in water or let the power cable come into contact with water. Disconnect the appliance from the power supply when left unsu- pervised for a long time.

1.3 Risk of burns and scalds

Escaping uids and steam may be very hot. The nozzles on the outlet can also become very hot.

Do not operate the appliance in a cabinet or at altitudes above 2000m. Do not reach into the interior of the appliance during operation. You may not open the housing or manipulate the appliance or the accessories in any other way.

Children must not play with the appliance. You must keep children who are younger than 8years away from the appliance. This appliance may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowl- edge, but only if they are super- vised or have been instructed in using the appliance safely and understand the resulting risks. Cleaning and maintenance must not be undertaken by children younger than 8years of age. Children older than 8years of age must be supervised during cleaning and maintenance.Appliance at a glance

2 Appliance at a glance

1 "Coee Quantity" regulator 2 Buttons 3 Displays 4 "On/O" button 5 Cup rest 6 "Grinding Fineness Adjustment" lever (inner) 7 Cover 8 Brewing unit (inner) 9 Coee grounds container (inner) 10 Milk hose 11 Float 12 Drip tray 13 Cup plate 14 Height-adjustable outlet for coee beverages with milk 15 Bean container 16 Water tank 17 Power cable

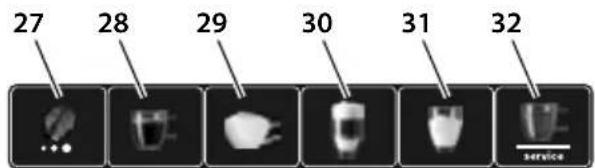

Display Function in service mode 1/2 18 Ready display 19 2× Automatic switch-o/factory settings 20 Water Water hardness/ – 21 Drip tray Switch-o rinsing/ – 22 Coee beans Status display/ – 23 Filters Filter program/ – 24 Cleaning Cleaning program/ – 25 Descaling Descaling program/ – 26 Steam dispensing Brewing temperature/drying out Buttons 27 "Brewing Strength" button 28 "Coee" direct key 29 "Cappuccino" direct key 30 "Latte Macchiato" direct key 31 "Milk Froth" direct key 32 "Water/Service" buttonFirst steps

Switch on the appliance by briey pressing the "On/O" button. The appliance per- forms automatic rinsing while it heats up. Place a vessel under the outlet if possible. You can switch o the appliance by press- ing the "On/O" button for approximately 2seconds. If you do not switch o the appliance, it will switch o automatically after a dened o time.

The appliance has two service modes. The service modes allow you to congure your appliance and use care and maintenance functions. Calling up service mode

Press the "Water/Service" button for longer than 2seconds to access Service mode1.

Simultaneously press the "Water/Service" and "Brewing Strength" buttons for longer than 2seconds to access Service mode2.

The Ready display ashes rapidly when the service mode is active.

Press the "Water/Service" but- ton once or several times to select a function. » The display for the active function is lit up. If no further input is made within 1minute, the appliance returns to Ready mode. Ending service mode

Press the "Water/Service" button for more than 2seconds to save the setting and exit service mode. Press any direct key to exit service mode without saving the setting. 3 First steps

3.1 Unpacking the appliance

Remove the packaging material, the adhe- sive strips and the protective lms from the appliance. Please keep the original packaging. The appliance has been tested in the factory to ensure that it functions perfectly. Therefore, the appliance may still contain traces of coee and water. Included in delivery Milk hose Screwing aid for the water lter Test strip for determining the water hardness

3.2 Setting up the appliance

Set up the appliance in a dry room. Set up the appliance on a stable, at and dry surface. The surface may not be hot. The appliance may not be placed in the vicinity of sinks or the like. Set up the appliance at a sucient distance (approx. 10cm) from the wall and other objects. The space above the appliance should be at least 20cm. Route the power cable so it does not lie over edges or cannot be damaged by hot surfaces.

3.3 Connecting the appliance

Only connect the appliance to a properly installed earthing contact socket. The earthing contact socket must be protected by a fuse with a rating of at least 10 A.

3.4 Switching on the appliance

1. Place a vessel under the height-adjust-

able outlet. The distance between the outlet and the vessel should be as small as possible.

2. Switch on the appliance with the "On/

The Water display lights up.

3. Remove the water tank. Rinse out the

water tank with clean tap water.

4. Fill the water tank with fresh, cold tap

water and insert it. Observe the instruc- tions in section4.1, page23.Preparing to make beverages

The Steam dispensing display ashes rapidly.

Water ows from the milk outlet and the Ready display ashes. » The appliance heats up and hot water ows out of the outlet. » Once no more water ows out of the outlet, the appliance has been vented.

The Ready display and the Coee beans display light up.

6. Fill the bean container with coee

beans. Observe the instructions in sec- tion4.2, page23.

7. Prepare the rst two beverages and

pour them away. Observe the instruc- tions in section5, page24. 4 Preparing to make beverages

4.1 Filling with tap water

The Water display lights up. The quality of the tap water largely deter- mines the avour of the coee. Fill the water tank only with fresh, cold tap water that has not been carbonated. Change the tap water on a daily basis. Please observe the maximum lling level.

4.2 Filling with coee beans

The Coee beans display ashes. Important! Do not use freeze-dried or caramelised coee beans as they can clog the grinder. Coee powder and instant products can also damage the grinder. Roasted coee beans lose their aroma after a few days. Therefore, do not ll too many coee beans into the bean container. Caution! When you switch bean variety, a small amount of the other coee beans will remain in the grinder. The next two coee beverages will be pre- pared still with remains of the previous variety. Persons with caeine intoler- ance should only consume the third coee beverage.

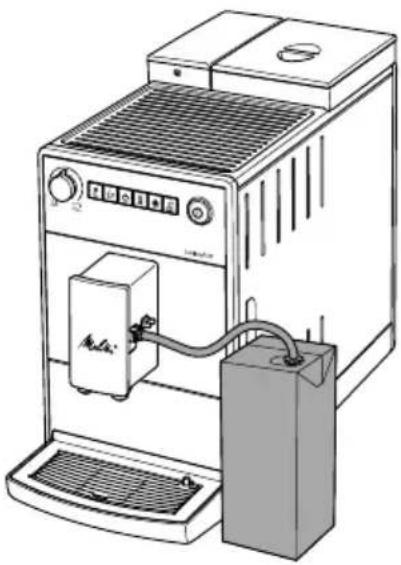

To prepare milk froth or hot milk, insert the milk hose into a conventional milk pack. In addition, you can use a milk lance or a milk container. The milk lance and milk container are not included in the delivery. Always use cold milk.

4.4 Emptying the drip tray and

coee grounds container

The Drip tray display lights up. After a set number of dispensing opera- tions, the appliance will ask you to drain the drip tray and the coee grounds con- tainer. The protruding oat also shows you when it is time to empty the drip tray.Preparing beverages

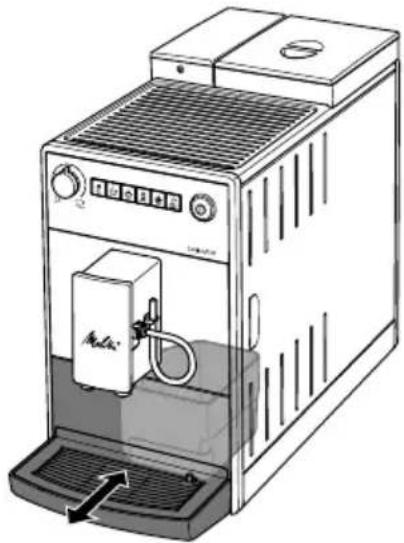

The drip tray can be pulled forwards out of the appliance. Always empty both the drip tray and also the coee grounds container. Then, make sure you push the drip tray into the appliance up to the stop. Information If you empty the drip tray while the appliance is switched o, the appliance does not register this process. Therefore, it is possible that you are asked to empty the containers even though the drip tray and the coee grounds container are not yet full. 5 Preparing beverages Observe the following instructions during preparation: The water tank should be suciently full. If the lling level is too low, the appliance will ask you to rell it. There should be sucient coee beans in the bean container. The appliance asks you to rell only if there are no more coee beans in the bean con- tainer and the grinder has ground itself empty. When you prepare a beverage with milk, you need to connect a vessel lled with milk. The appliance does not indicate a lack of milk. The vessels for the beverages should be suciently large. The beverage quantity varies according to the beverage.

The Ready display should be lit up. Start the preparation by pressing the corresponding direct key. Observe the displays during preparation. Set the required beverage quantity with the "Coee Quantity" regulator. Press the direct key again to end prepa- ration. The preparation ends automatically. You should clean the milk system after preparing milk beverages. This prevents the formation of bacteria that are harmful to health.

The illuminated Clean and Steam dispensing displays indicate that you need to clean the milk system. You can, however, prepare more milk beverages and then clean the milk system.

1. Immerse the hose in a vessel lled with

clear tap water (approx. 150 ml).

Press the "Milk froth" direct key for longer than 2seconds. Also observe the instructions in section7.3, page27 and section7.4, page27.

5.1 Preparing two beverages

simultaneously You can prepare two cups at the same time with all of the beverages. To do so, you sim- ply need to press the respective direct key briey twice in succession. The 2× display lights up during preparation. The Steam dispensing display ashes in addition for milk beverages.

5.2 Changing settings

You can still change the brewing strength and the beverage quantity before and during preparation. You can set the brewing strength by press- ing the "Brewing Strength" button. After the grinding process, you can no longer change the brewing strength. The changed brewing strength will also be used for subsequent coee preparation processes. You can change the beverage quantity by turning the "Coee Quantity" regulator.

5.3 Setting the grinding

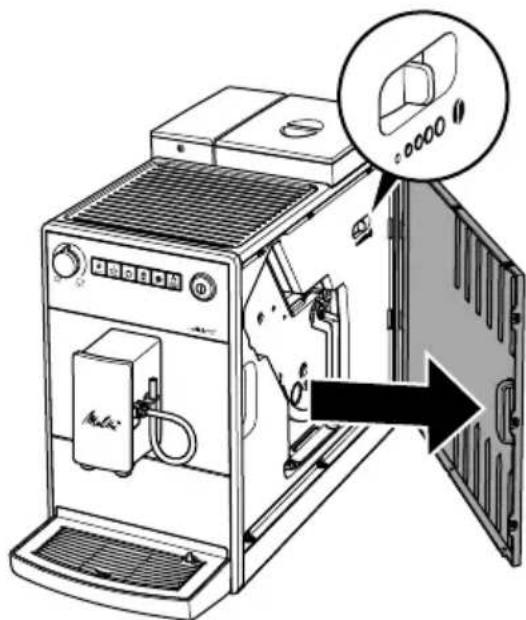

neness The grinding neness of the coee beans inuences the avour of the coee. The ner you set the grinding neness, the stronger the coee. The grinding neness has been optimally set at the factory. Change the grinding neness setting at the earliest after about 100coee dispensing processes (after approx.1month, depending on coee consumption). You can set the grinding neness optimally with the "Grinding Fineness Adjustment" lever. Adjust the grinding neness only during the grinding process.Basic settings

Information Do not set the grinding neness too ne. The optimum grinding neness is set when the coee ows evenly out of the outlet producing a ne, dense crema. 6 Basic settings You will nd the basic settings in Service mode1. The number of illuminated coee beans indicates the set value.

6.1 Setting switch-o time

If you do not operate the appliance for a long time, it initially switches to energy save mode. The appliance switches o completely later on. If the appliance is in energy save mode, you can wake it up by pressing any button briey.

Press the "Water/Service" button for longer than 2seconds.

Press the "Water/Service" button repeatedly until the 2x display lights up.

Press the "Brewing Strength" button repeatedly until the desired time is set.

Press the "Water/Service" button for more than 2seconds to save the setting and exit service mode. Press any direct key to exit service mode without saving the setting. Display Energy save mode after: Switch o after: 3 minutes 30 minutes

ashing 30 minutes 8 hours

6.2 Setting the water hardness

The hardness of the tap water inu- ences how often you have to descale the appliance. The harder the tap water, the more frequently you have to descale the appliance. Determine the water hardness with the enclosed test strip. Observe the instruc- tions on the test strip and the information in the following table. Water hardness °d °e °f Soft 0to10 0to13 0to18 Medium 10to15 13to19 18to27 Hard 15to20 19to25 27to36 Very hard > 20 > 25 > 36

Press the "Water/Service" button for longer than 2seconds.

Press the "Water/Service" but- ton repeatedly until the Water display lights up.

Press the "Brewing Strength" but- ton repeatedly until the required water hardness is set.

Press the "Water/Service" button for more than 2seconds to save the setting and exit service mode. Press any direct key to exit service mode without saving the setting.Care and maintenance

ashing very hard, descale after 30litres

coee beans A water lter is used. Adjustment is not possible.

6.3 Setting switch-o rinsing

The appliance performs rinsing when switched on and o. We recommend that you do not perma- nently deactivate the switch-o rinsing function.

Press the "Water/Service" button for longer than 2seconds.

Press the "Water/Service" button repeatedly until the Drip tray display lights up.

Press the "Brewing Strength" button to activate or deactivate the switch-o rinsing.

Press the "Water/Service" button for more than 2seconds to save the setting and exit service mode. Press any direct key to exit service mode without saving the setting. Display Switch-o rinsing activated no coee beans deactivated

6.4 Setting the brewing

temperature The brewing temperature inuences the avour of the coee beverage.

Press the "Water/Service" button for longer than 2seconds.

Press the "Water/Service" but- ton repeatedly until the Steam Dispens- ing display lights up.

Press the "Brewing Strength" button repeatedly until the desired brewing temperature is set.

Press the "Water/Service" button for more than 2seconds to save the setting and exit service mode. Press any direct key to exit service mode without saving the setting. Display Brewing temperature Low

High 7 Care and maintenance Regular cleaning and maintenance of the appliance ensures the consistent high quality of your beverages. Important! Unsuitable cleaning agents can damage the appliance. Only use the recommended cleaning agents.

7.1 Cleaning surfaces

Use a soft, damp cloth and a little washing up liquid to clean the surfaces. Remove external soiling immediately. After you have emptied the drip tray and the coee grounds container, rinse them and, if necessary, also clean them with a soft, damp cloth and a little washing-up liquid. You can remove residue from the coee beans in the bean container with a soft cloth. The cloth needs to be dry.

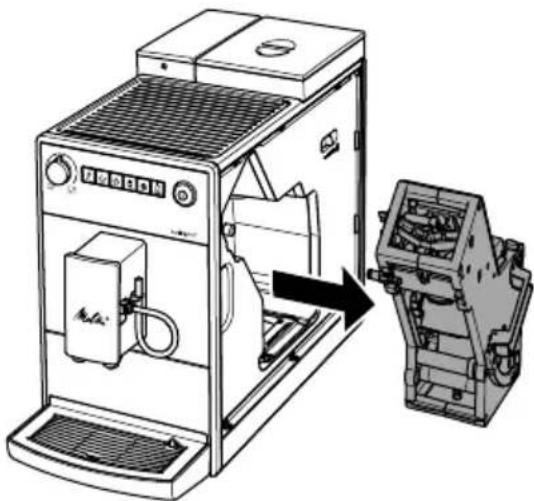

7.2 Cleaning the brewing unit

You should clean the brewing unit every week.

1. Remove the cover by reaching into the

handle recess and pulling the cover to the side.

2. Press and hold the red lever on the

brewing unit handle and turn the handle clockwise until it engages at the stop.

3. Pull the brewing unit out by the handle.Care and maintenance

Alternating ashing of the Ready display and the Clean display indi- cates that the brewing unit is missing.

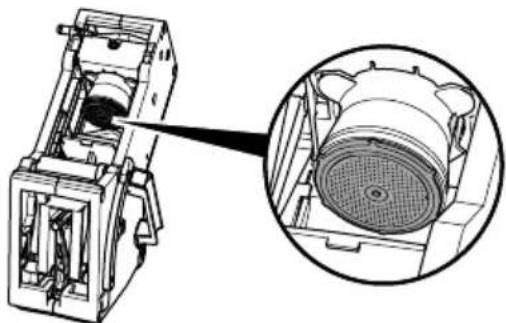

4. Rinse the entire brewing unit thor-

oughly from all sides under running water. In particular, make sure that coee residues are removed from the sieve.

5. Allow the brewing unit to drip dry.

6. Use a soft, dry cloth to remove coee

residues from the surfaces inside the appliance.

7. Insert the brewing unit into the appli-

ance. Press and hold the red lever on the handle of the brewing unit and turn the handle anticlockwise until it engages at the stop.

8. To do this, insert the cover again until it

7.3 Cleaning milk system

You should clean the milk system after approximately 100 milk beverages. This appliance does not prompt you to clean the milk system. Only use Melitta® Perfect Clean milk sys- tem cleaning agent for automatic coee- makers. Use a vessel with a capacity of at least 500ml as a collecting container.

1. Fill a second vessel with cleaning solu-

tion. Observe the instructions on the packaging of the milk system cleaning agent.

2. Immerse the hose in the cleaning

Turn the "Coee Quantity" regulator to the maximum position.

Press the "Milk Froth" direct key. » The appliance rinses itself.

5. Press the "Milk Froth" direct key repeat-

edly until the vessel is emptied.

6. Fill the second vessel with 500ml of

7. Press the "Milk Froth" direct key again

repeatedly until the vessel is emptied.

7.4 Cleaning the milk unit

Bacteria that are harmful to health can form in milk residue within a few days. Therefore, we recommend cleaning the milk unit and the milk hose on a regular basis.

1. Pull the milk hose o the outlet.

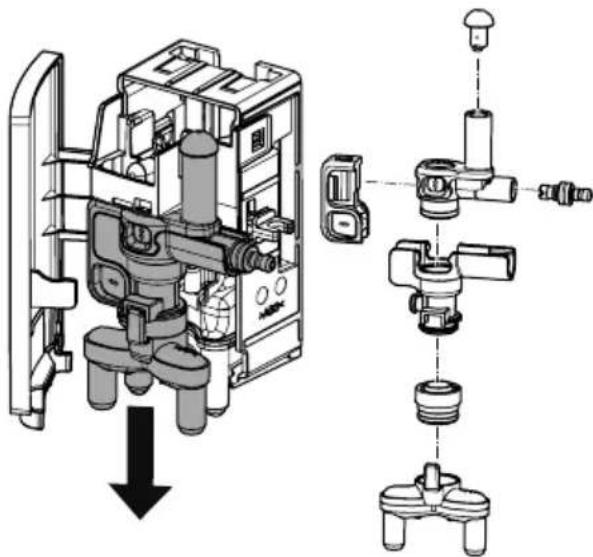

2. Dismantle the milk unit.

3. Clean all individual parts with warm

water. Use a soft, damp cloth and wash- ing up liquid for this.Care and maintenance

4. Reassemble the milk unit properly.

Make sure that you push the milk unit upwards to the end stop when assem- bling it.

7.5 Cleaning program

This cleaning program is used to remove residues and coee oil residues. You should run the program every two months or when the appliance asks you to do so. Only use Melitta® Perfect Clean cleaning tabs for automatic coeemakers. Observe the instructions on the packaging of the cleaning tabs. Caution! Cleaning agent causes eye irritation. If it accidentally comes into contact with your eyes, you should rinse them with clear water for several minutes. Consult a doctor if symptoms persist. The program takes approximately 15min- utes and should not be interrupted. The program runs in several stages. Progress is indicated by the number of coee beans displayed. The Clean display light tells you to clean the appliance.

1. Fill the water tank with tap water up

Press the "Water/Service" button for longer than 2seconds to access Service mode1.

Press the "Water/Service" button repeatedly until the Cleaning display lights up.

Press the "Water/Service" button for longer than 2seconds.

The cleaning program starts. The Cleaning display ashes for the duration of the program.

The Drip tray display lights up.

5. Empty the drip tray and the coee

6. Insert the drip tray without the coee

grounds container and place the coee grounds container under the outlet. The rst stage starts. » The appliance rinses twice.

The Cleaning display ashes rapidly.

7. Remove the brewing unit. Do not

switch o the appliance.

8. Rinse the brewing unit under running

water (see section7.2, page26).

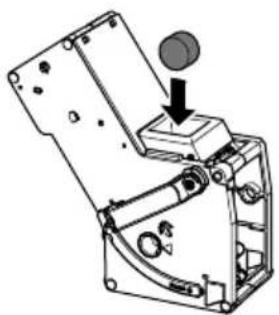

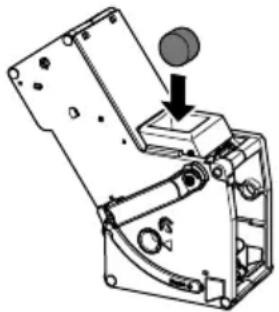

9. Place a cleaning tab in the brewing

unit. Insert the brewing unit into the appliance. The second stage starts. » The appliance performs several rins- ing operations.

The Drip tray display lights up. The third stage starts

10. Empty the drip tray and the coee

11. Insert the drip tray without the coee

grounds container and place the coee grounds container under the outlet. The fourth stage starts. The three coee beans ash. » The appliance performs several rins- ing operations.

The Drip tray display lights up.

12. Empty the drip tray and the coee

13. Insert the drip tray with the coee

grounds container. » The appliance is ready for operation. If the cleaning program has been inter- rupted, e.g. because you unintentionally switched o the appliance, you must switch the appliance on again and follow the instructions from step 10. The appli- ance is then ready for operation, even if it has not been completely cleaned. For com- plete cleaning, you must start the cleaning program again.Care and maintenance

The descaling program is used to remove limescale deposits. You should run the program every three months or when the appliance asks you to do so. There must not be a water lter in the water tank during descaling. If you use a water lter, you need to remove it before descaling (see section7.7, page29). Only use Melitta® Anti Calc liquid descaling agent for automatic coeemakers. Caution! Descaling agent causes eye irritation. If it accidentally comes into contact with your eyes, you should rinse them with clear water for several minutes. Consult a doctor if symptoms persist. The program takes approximately 15min- utes and should not be interrupted. The program runs in several stages. Progress is indicated by the number of coee beans displayed. The Descaling display light tells you to descale the appliance.

Press the "Water/Service" button for longer than 2seconds to access Service mode1.

Press the "Water/Service" button repeatedly until the Descale display lights up.

Press the "Water/Service" button for longer than 2seconds.

The descaling program starts. The Descale display ashes for the duration of the program. The rst stage starts.

The Drip tray display lights up.

4. Empty the drip tray and the coee

5. Insert the drip tray without the coee

grounds container and place the coee grounds container under the outlet.

The Water display lights up.

6. Fill 0.5 litres of descaling uid into the

water tank. Observe the instructions on the packaging of the descaling agent.

7. Insert the water tank.

The second stage starts. » The appliance performs several rins- ing operations.

The Drip tray display lights up.

8. Empty the drip tray and the coee

9. Insert the drip tray without the coee

grounds container and place the coee grounds container under the outlet.

The Water display lights up.

10. Thoroughly rinse out the water tank

and ll it with fresh tap water.

11. Insert the water tank.

» The appliance rinses itself. The third stage starts

» The appliance rinses itself.

The Drip tray display lights up.

12. Empty the drip tray and the coee

13. Insert the drip tray with the coee

grounds container. » The appliance is ready for operation. If the descaling program has been inter- rupted, e.g. by unintentionally switch- ing the appliance o, you must switch the appliance on again and follow the instructions from step 8. The appliance is then ready for operation, even if it has not been completely descaled. For complete descaling, you need to start the descaling program again.

The use of a water lter extends the service life of your appliance. The water lter lters calcium and pollutants out of the tap water. If you use a water lter and change it on a regular basis, you will need to descale the appliance only once per year. This informa- tion is based on an average of six 120ml coee beverages per day and six lter changes per year. Only use Melitta® Pro Aqua lter cartridges for automatic coeemakers. Observe the instructions on the packaging of the lter cartridge.Care and maintenance

Use the screwing aid to screw the water lter into and out of the water tank. Inserting/changing water lter Place a new water lter in a vessel lled with fresh tap water for a few minutes.

The Filter display light asks you to change the water lter.

Press the "Water/Service" button for longer than 2seconds to access Service mode1.

Press the "Water/Service" button repeatedly until the Filter display lights up.

Press the "Brewing Strength" button repeatedly until one coee bean is lit.

Press the "Water/Service" button for longer than 2seconds.

The lter program starts. The Filter display ashes for the duration of the program.

The Drip tray display lights up.

5. Empty the drip tray and the coee

6. Insert the drip tray without the coee

grounds container and place the coee grounds container under the outlet.

The Water display lights up.

7. Empty the water tank.

8. Insert a new lter in the water tank.

9. Fill the water tank with fresh tap water.

10. Insert the water tank.

» The lter is rinsed.

11. Empty the coee grounds container.

12. Insert the drip tray with the coee

grounds container. » The appliance is ready for operation. Removing the water lter

1. Remove the water lter from the water

2. Fill the water tank with fresh tap water.

Press the "Water/Service" button for longer than 2seconds to access Service mode1.

Press the "Water/Service" button repeatedly until the Filter display lights up.

Press the "Brewing Strength" button repeatedly until no coee beans are lit.

Press the "Water/Service" button for more than 2seconds to save the setting and exit service mode. » The water lter is de-registered.

8. Set the water hardness (see section6.2,

The appliance can be reset to the factory settings. In this case, all personal settings are lost.

Simultaneously press the "Water/Service" and "Brewing Strength" buttons for longer than 2seconds to access Service mode2.

Press the "Water/Service" button repeatedly until the 2x display ashes.

Press the "Brewing Strength" button repeatedly until one coee bean is lit.

Press the "Water/Service" button for more than 2seconds to reset the appliance to the factory settings and exit service mode. Press any direct key to exit service mode without resetting the factory settings.Transport

During drying out, residual water is removed from the appliance. You should dry out the appliance whenever you do not use it for longer periods, if you want to transport it or if there is a risk that it could freeze. If the water lter is inserted, you will need to remove it from the water tank before- hand.

Simultaneously press the "Water/Service" and "Brewing Strength" buttons for longer than 2seconds to access Service mode2.

Press the "Water/Service" but- ton repeatedly until the Steam Dispens- ing display ashes.

Press the "Water/Service" button for longer than 2seconds.

The Water display lights up.

4. Remove the water tank.

The drying out process begins. » The appliance switches o.

5. Insert the empty water tank.

Keep the water lter in a vessel containing tap water in the refrigerator so that it does not stand dry over a longer period. 8 Transport Transport the appliance in the original packaging if possible. You may not fasten loose parts with adhesive tape or parcel tape because the adhesive residue is dicult to remove. When you send the appliance to Melitta's service centres, you do not need to send in the cup plate. This prevents scratches during transport. Before transporting the appliance, you must carry out the following activities: Dry out the appliance (see section7.9, page31). Empty the drip tray and the coee grounds container. Empty the water tank. Empty the bean container. Clean the appliance (see section7, page26). Package the appliance. 9 Disposal Appliances marked with this sym- bol are subject to the European Directive 2012/19 / EC for WEEE (Waste Electrical and Electronic Equipment). Electrical appliances do not belong in domestic waste. Dispose of the appliance in an environmentally friendly way via suitable collection systems. 10 Technical data Technical data Operating voltage 220 V to 240 V, 50 Hz to 60Hz Power consumption Maximum 1450 W Pump pressure Static, max. 15 bar Dimensions Width Height Depth 200 mm 352 mm 459 mm Holding capacity Bean container Water tank 250 g

Weight (empty) 7.7 kg Ambient conditions Temperature Relative humidity 10°C to 32°C 30% to 80% (non-condensing) 11 Troubleshooting Contact our hotline if the actions listed in the table fail to rectify the problems or if other problems not listed here occur. You will nd the telephone numbers (local rates) in the lid of the water tank or in the Service section on our website.Troubleshooting

Problem Cause Action Coee only emerges from the outlet in drips. Grinding neness is too ne. Set a coarser grinding neness (see section5.3, page24). Appliance is soiled. Clean the brewing unit (see section7.2, page26). Run the cleaning program (see section 7.5, page28). Appliance is covered inside with limescale. Run the descaling program (see section7.6, page29). Coee does not ow. Water tank is not lled or is not correctly inserted. Fill the water tank and ensure it is positioned correctly (see section4.1, page23). Brewing unit is clogged. Clean the brewing unit (see section7.2, page26). Although the bean container is full, the appliance indicates that coee beans must be lled. Coee beans do not drop into the grinder. Press a direct key. Tap lightly on the bean container. Clean the bean container. Coee beans are too oily. Use dierent coee beans. Loud grinder noise. Foreign objects in the grinder. Contact the hotline. Brewing unit cannot be inserted after removing. Handle for the locking mechanism of the brewing unit is not in the correct position. Check that the handle for the locking mechanism is correctly engaged (see section7.2, page26). Drive is not in the correct position. Press the "Coee" and the "Cappuccino" direct keys simultaneously for more than 2seconds. The appliance initialises. Rapid alternate ashing of the displays:

The appliance does not heat up. Switch the appliance o and on again. Contact the hotline if the problem persists. Rapid alternate ashing of the displays:

Problem with temperature sensor The appliance switches o automatically after 10seconds. Switch the appliance on again. Contact the hotline if the problem persists. Rapid alternate ashing of the displays:

Problem with brewing unit drive The appliance switches o automatically after 10seconds. Switch the appliance on again. Contact the hotline if the problem persists. Rapid alternate ashing of the displays:

Brewing unit is not inserted. Insert and lock the brewing unit. The display ashes rapidly without having been activated: Appliance is not fully vented. Vent the appliance, press any button to do this. Clean the brewing unit (see section7.2, page26).33 Sommaire

6.3 Stille inn spyling
