Product type	Bluetooth Headset (earbuds)
Brand	Hama
Model	Freedom Athletics 00184119
Bluetooth Technology	Bluetooth® v5.0
Supported Bluetooth Profiles	A2DP V1.3, AVRCP V1.6, HFP V1.7, SPP V1.2
Bluetooth Frequency	2 402 - 2 480 MHz
Bluetooth Range	< 10 m
Battery Type	Lithium-polymer 3.7 V
Battery Capacity	57 mAh (min)
Charging Voltage	5 V, 45 mA
Charging Time	2 hours
Standby Time	180 days
Music Playback Time	6 hours
Talk Time	5.5 hours
Weight	12 g
Multipoint Function	Yes (simultaneous connection to two devices)
Voice Assistant	Siri / Google Assistant (long press on MFB)
Hands-free Functions	Answer/reject/end call, redial
Music Control	Play/pause, next/previous track, volume +/-
Charging Port	Micro-USB
LED Indicator	Blue (connected/flashing), red (charging)
Included Accessories	3 pairs of ear tips (S/M/L), USB cable, manuals
Care and Cleaning	Slightly damp lint-free cloth, no harsh detergents
Safety	Protect from moisture, shocks, extreme temperatures; do not open
Spare Parts and Repairability	Integrated non-replaceable battery; no spare parts available

Frequently Asked Questions - Freedom Athletics 00184119 HAMA

How to turn the headset on and off?

Press the MFB (multifunction) button for about 3 seconds to turn on (announcement "Power on", blue LED flashing). To turn off, press for about 5 seconds (announcement "Power off", red LED then off).

How to pair the headset with a smartphone?

Ensure the headset is on and in pairing mode (blue LED flashing). On your phone, enable Bluetooth and select "Hama Freedom Athletics" from the list. If a code is requested, enter "0000".

How long does it take to fully charge the headset?

The charging time is approximately 2 hours. During charging, the LED is solid red, then turns blue when complete.

What is the battery life of the headset?

The battery life is 6 hours of music playback, 5.5 hours of talk time, and up to 180 days standby.

Can I use the headset with two devices at the same time?

Yes, the headset supports multipoint. First connect the first device, disable its Bluetooth, connect the second, then re-enable Bluetooth on the first device for simultaneous connection.

How to make or answer a call?

To answer, press the MFB button once. To reject, press twice. To end, press once during a call. The last number redial function is activated by double-pressing the MFB.

How to use the voice assistant (Siri/Google)?

Press and hold the MFB button for about 2 seconds until you hear a beep. Your smartphone's voice assistant (Siri or Google Assistant) will then activate.

How to adjust volume and change tracks?

Press the + button once to increase volume, press the - button once to decrease. To skip to the next track, hold + (2 s); for the previous track, hold - (2 s).

What to do if the headset does not turn on?

Check if the battery is discharged. Connect it to the charger via the micro-USB cable. If the LED does not light up after 15-30 minutes of charging, the headset may be in deep discharge. Let it charge longer.

How to clean and maintain the headset?

Clean it with a slightly damp lint-free cloth. Do not use harsh detergents. Protect it from moisture, shocks, and extreme temperatures.

USER MANUAL Freedom Athletics 00184119 HAMA

Line drawing of earbuds and a charging plug device (no text or symbols)

GB Operating Instructions D Bedienungsanleitung F Mode d'emploi E Instrucciones de uso

NL Gebruiksaanwijzing I Istruzioni per l'uso PL Instrukcja obsługi H Használati útmutató

RO Manual de utilizare CZ Návod k použití SK Návod na použitie P Manual de instruções

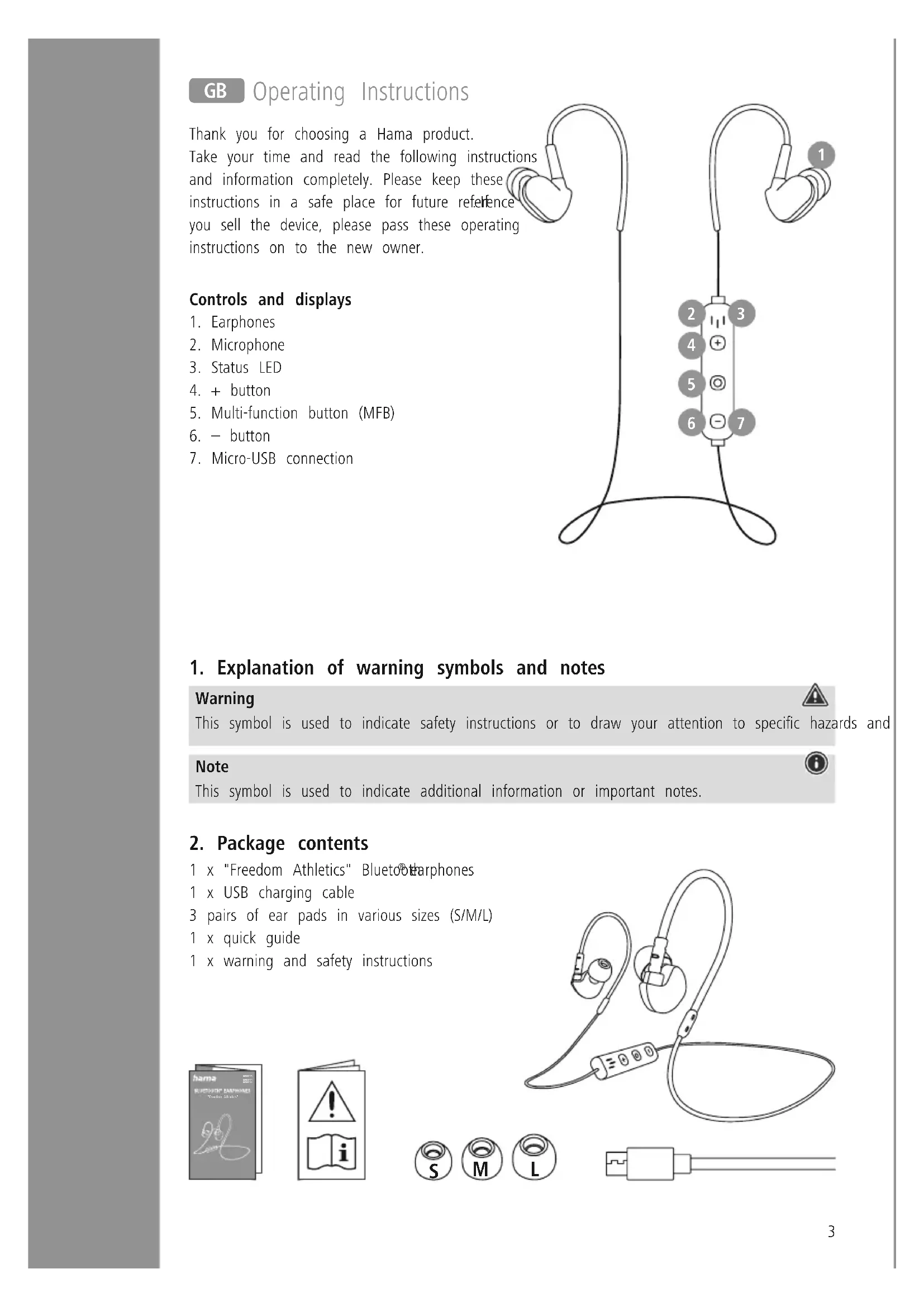

GB Operating Instructions

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference you sell the device, please pass these operating instructions on to the new owner.

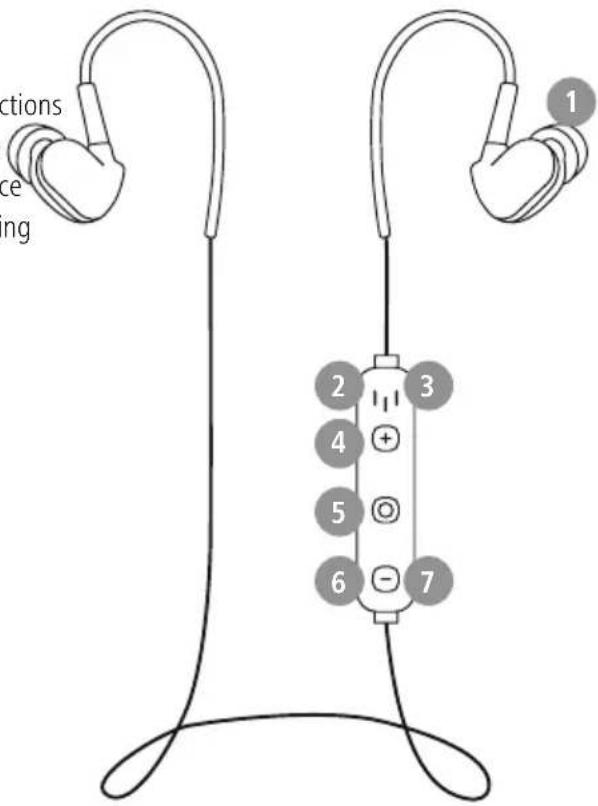

Controls and displays

1. Earphones
2. Microphone
3. Status LED
4. • button
5. Multi-function button (MFB)
6. • button
7. Micro-USB connection

actions ce ing 1 2 3 4 + 5 - 6 7

1. Explanation of warning symbols and notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and

Note

This symbol is used to indicate additional information or important notes.

2. Package contents

1 x "Freedom Athletics" Bluetooth earphones
1 x USB charging cable
3 pairs of ear pads in various sizes (S/M/L)
1 x quick guide
1 x warning and safety instructions

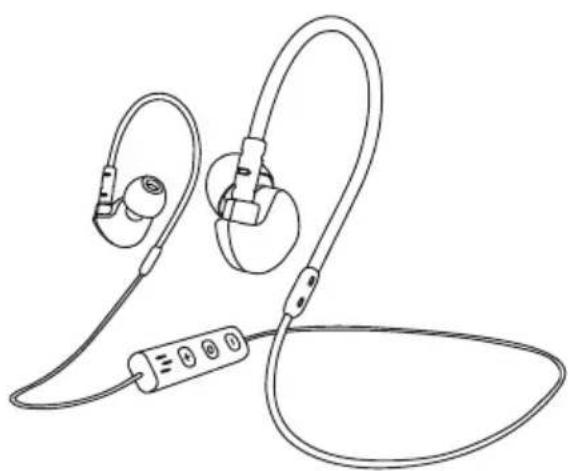

Line drawing of a pair of earbuds with attached cables, no text or symbols present

3. Safety instructions

• The product is intended for private, non-commercial use only
• Use the product only for the intended purpose.
  • Children should be supervised to ensure that they do not play with the product
• Do not use the product in areas in which electronic products are not permitted
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts
• Do not open the device or continue to operate it becomes damaged
• Do not bend or crush the cable.
• Do not drop the product and do not expose any major shocks.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the product in any way. Doing voids the warranty
• Protect the product from dirt, moisture and overheating and use it in dry environments only
• Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight
• Only use the article under moderate climatic conditions.
  • As with all electrical products, this device should be kept out of the reach of children
• Do not operate the product outside the power limits specified in the technical data
• Do not use the product in a damp environment and avoid splashing water
• While driving a car or using sports equipment, do not allow yourself to be distracted by your product and keep an eye on the traffic situation and your surroundings.
• The battery is permanently installed and cannot be removed; dispose of the product as a whole accordance with the statutory regulations
• Do not incinerate the battery or the product.
• Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries
• Do not use the product during the charging process!

Warning - rechargeable battery

• Only use suitable charging devices or USB ports to charge the product.
• Do not use defective chargers or USB ports by and do not attempt to repair .them
• Do not overcharge the product or allow the battery to completely discharge.
• Avoid storing, charging and using in extreme temperatures and at extremely low atmospheric pressures (such as at high italiftitudes).
• Charge regularly (at least quarterly) during periods of prolonged storage.

Warning - magnets

• This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, so as the pacemaker's proper function could be affected.
• Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted

Warning - high volume

• High sound pressure!
• There is a risk of hearing damage.
• To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
- Always keep the volume at a sensible level. doLoud volumes, even over short periods, can act cause hearing loss.

• Using this product limits your perception of

ambient noise You should there in not drive or operate machinery while using them.

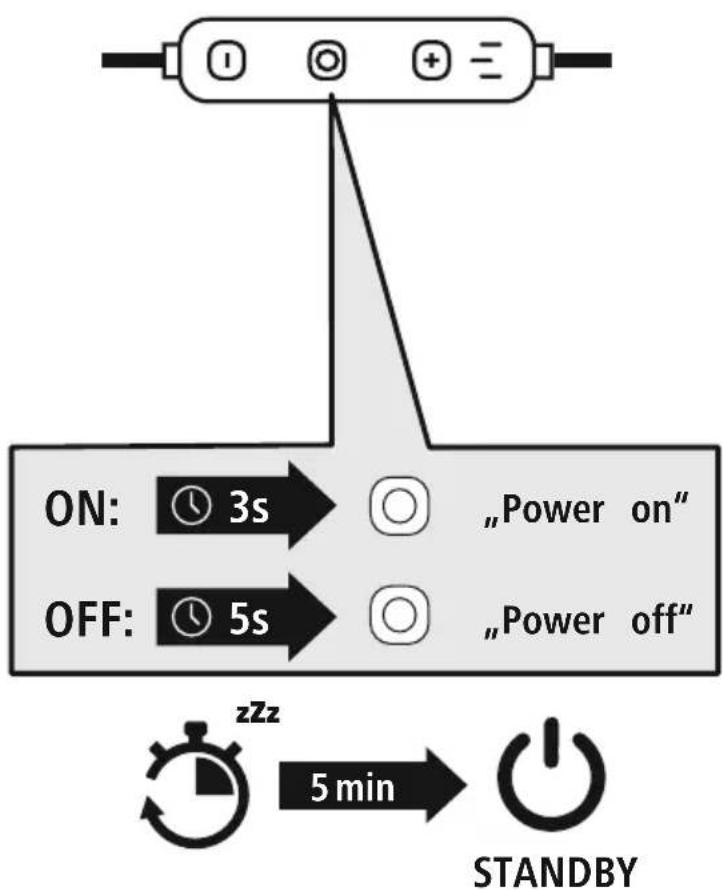

4. Switching on/off

Press the MFB key (5) for approx. 3 seconds until the announcement "Power on" is heard and the LED (5) flashes blue.

To switch off, press the MFB key (5) for approx. 5 seconds until the announcement "Power off" is heard and the LED (5) flashes red and then goes out.
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

Note - Automatic switch-off of the product

The product is equipped with an automatic switch-off mechanism. There is no connection to your device within 5 minutes, it switches itself off automatically.

5. Charging

Fully charge the earphones once before using them for the .first time

1 Switching off the earphones and connecting them

micro USB

Ensure that the earphones are switched off before charging.

Connect the USB charging cable included to the charging socket (7). Connect the free plug on the micro-USB charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

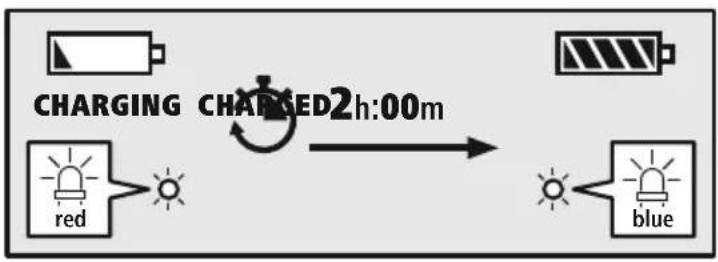

2 Earphones charging process

The LED (3) lights up solid red during the charging process.

Once the charging process is complete, the LED (3) lights up blue.

It can take up to 2 hours for the battery to be fully charged.

3 Battery capacity

When the earphones' battery capacity is low, the LED (3) flashes red and the announcement "Battery Low" is heard

The actual battery life will vary depending on how you use the device, the settings and the an temperatures (rechargeable batteries have a limited life).

Note

If you have not used the product for a few months, it can take up to 15 - 30 minutes until status LED (3) lights up red during the charging process

6. Bluetooth® pairing

Note - Pairing

• Make sure that your Bluetooth capable device is switched on and that Bluetooth is activated.
• For more information, please refer to the operating instructions of your device.

The earphones and the device should not be more than 1 metre apart. The shorter the distance, the better.

Ensure that the earphones are switched on.

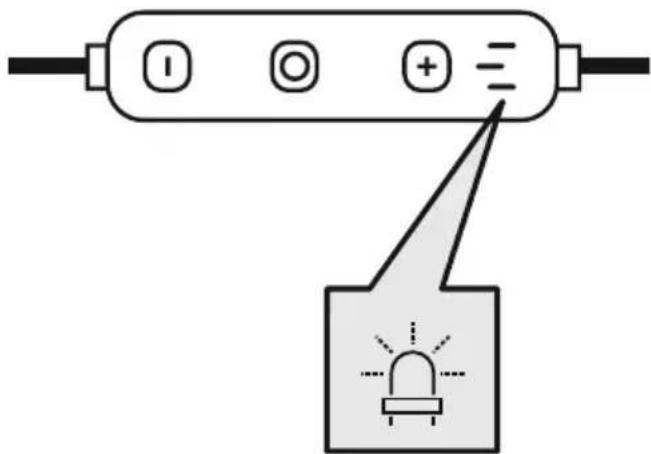

1 Check the status of the status LED (3)

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

If the status LED (3) is flashing alternately and the announcement is:

the earphones are searching for a Bluetooth connection.

If the status LED (3) is flashing and the announcement:

the earphones are already paired with a Bluetooth device.

2

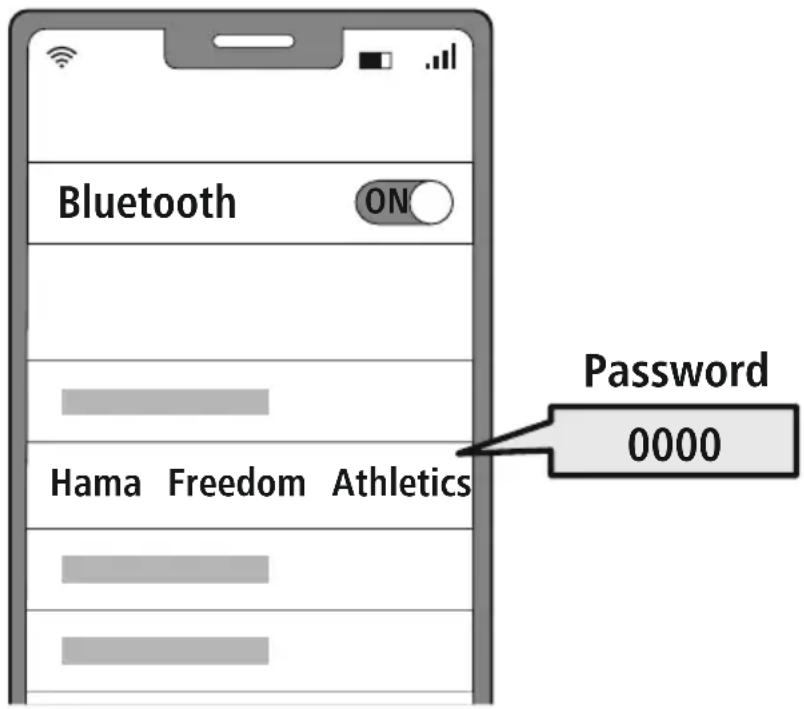

Search using your device for the earphones (only required on the first connection)

Open the Bluetoothsettings on your device and wait until the list of found Bluetooth shows Hama Freedom Athletics

Select Hama Freedom Athletics and wait until the earphones are shown as connected in you device's Bluetooth® settings. You will hear a brief signal tone.

Bluetooth ON Password 0000 Hama Freedom Athletics

Note - Bluetooth@password

Some devices require a password in order to connect to another ^® device through • If your device requests a password to connect to the product, enter 0000.

3

Multi-point technology

These headphones can connect to two Bluetooth enabled devices simultaneously (multi-point).

Two smartphones with sound waves between them, no text or symbols present

• First connect the first device to the headphones.
• Then deactivate the Bluetooth® function on this device.
• Then connect the second device to the headphones.
• Activate the Bluetooth® function on the first device again. The headphones then connect to this device too

7. Controls

Note

• Please be aware that your terminal device must support some functions if they are to be used.
• For more information, please refer to the operating instructions of your device.

7.1 Voice assistant function

Siri/Google

Press and hold the MFB key (5) for around 2 seconds to start communication with your Siri or Google Assistant. As soon as you hear a signal tone, your voice assistant is ready to assist you.

Note - Siri

Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.

Note - Google Assistant

• The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory and a minimum screen resolution of 720P.
• The Google Assistant App must be available on your device and be set as the default voice assistant.

7.2 Hands-free function

It is possible to use the earphones like a hands-free facility for your device.

1 Make a call

Dial the number directly via your device to make a call.

2 Accept a call

Press the MFB key (5) to accept an incoming call.

3 Reject a call

Press and hold the MFB button (5) twice or use your device to reject an incoming call.

End a call

During the call, press the MFB key (5) once to end the call.

5 Last number redial

Press the MFB key (5) twice to redial the last number.

Note

The "Last number redial" function is only available for the device which was paired first in a multi-pairing situation

7.3 Audio playback

1 Start playback on your device.

2 Play / Pause

Press the MFB button (5) once to pause or start audio playback.

3 Next track

Press and hold the + key (4) for around 2 seconds to skip the next track.

4 Previous track

Press and hold the - button (6) for around 2 seconds to skip to the previous track.

7.4 Volume control

1 Increase volume

+ 1x +

Press the + button (4) once to increase the volume. Once the maximum volume is reached, the announcement "Maximum volume" is heard

2 Reduce volume

- 1x -

Press the -button (6) once to reduce the volume. Once the minimum volume is reached, you will hear "beep . beep"

1. Technical data

Bluetooth® earphones
Bluetooth technology Bluetooth	® v5.0
Profiles supported A2DP V1.3	/ AVRCP V1.6 / HFP V1.7 / SPP V1.2
Frequency for Bluetooth transmissions	2402 - 2480 MHz
Range < 10 m
Rechargeable battery
Battery type 3	.7V Li polymer
Min. capacity 57 mAh
Power consumption max	. 5 ≈ 45 mA
Charging time 2	h
Standby * 180 d
Music playing * 6 h
Call time * 5	.5 h
Weight 12g

* Once fully charged

9. Care and maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agen

10. Warranty disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from imprint installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes

11. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here:.haw.com

12. Declaration of Conformity

CE Hama GmbH & Co KG hereby declares that the radio equipment type [00184118, 001841100184120] is in compliance with Directive 2014/53/EU. The full text of the EU declaration conformity is available at the following Internet address:

www.hama.com->00184118, 00184119, 00184120->Downloads.

Frequency band(s) 2402MHz - 2480MHz

Maximum radio-frequency power transmitted 2.5mW E.I.R.P.

Line drawing of a pair of earbuds with attached cables, no text or symbols present
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of earbuds with attached cables, no text or symbols present
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Bluetooth ON Password 0000 Hama Freedom Athletics

Remarque – Mot de passe Bluetooth®

Two smartphones with sound waves between them, no text or symbols present

Remarque - Assistant Google
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, connected to a connector.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of earbuds with attached cables, no text or symbols present

ON: 3s OFF: 5s "Power on" "Power off" zzz 5 min STANDBY

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

S/M/L 32.0Ω
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "5 min"
    note bottom of E "zzz"

micro USB

Diagram showing a device with three labeled buttons and a warning icon, likely representing a control or status indicator.

10s blue "Connected"

Bluetooth ON Password 0000 Hama Freedom Athletics

Nota – password Bluetooth®

Two smartphones with sound waves between them, no text or symbols present

"rach (S/M/L) a
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, connected to a connector.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of earphones with attached cables, no text or symbols present
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

3 Akkukapacitás

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Căștile sunt deja conectate la un terminal Bluetooth®.

2

Bluetooth ON Password 0000 Hama Freedom Athletics

Indicatie – Parola Bluetooth®

Two smartphones with sound waves between them, no text or symbols present

Indicatie – Google Assistant

Line drawing of a pair of audio earchairs with a cord and connector (no text or symbols)

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

micro USB

3 Kapacita batérie

Diagram showing a device with three labeled buttons and an icon of a warning light inside a box.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

tics" amanhos

ON: 3s OFF: 5s "Power on" "Power off" zzz 5 min STANDBY

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of earbuds with attached cables, no text or symbols present
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

3 Batterikapacitet

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

Bluetooth ON Password 0000 Hama Freedom Athletics

Information – Bluetoothlösenord

Two smartphones with sound waves between them, no text or symbols present

Line drawing of an earless audio headset with a cord and connector (no text or symbols)

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

оповещении:

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

устройство.
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, connected to a connector.

Bluetooth ON Password 0000 Hama Freedom Athletics

Указание – Bluetoothпарола

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of earbuds with attached cables, no text or symbols present

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light symbol below it.

10s blue "Connected"

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a dolgusu earless device with attached microphone and cord (no text or symbols on the device itself)
    note right of B "Power on"
    note right of D "Power off"
    note left of A "ON"
    note right of C "OFF"
    note bottom of E "STANDBY"
    note right of E "zzz"
    note right of E "5 min"

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a system or control interface.

Bluetooth ON Password 0000 Hama Freedom Athletics

Two smartphones with sound waves between them, no text or symbols present

Line drawing of a pair of earphones connected via a cord, with a battery partially visible (no text or symbols)

micro USB

Diagram showing a device with three labeled buttons and an icon of a warning light, likely representing a control or emergency signal.

Bluetooth ON Password 0000 Hama Freedom Athletics

Huomautus Bluetooth®-salasanasta

Two smartphones with sound waves between them, no text or symbols present
