USER MANUAL Astro NEBULA

Simple line drawing of a spherical object with internal circular components and a small mechanical component attached (no text or symbols)

User Manual

Nebula Astro

01 English
22 Deutsch
41 Español
59 Français
77 Italiano
95 Nederlands
114 Português
133 日本語
152 한국어
171 لعربيّة

Table of Contents

Safety Instructions 02

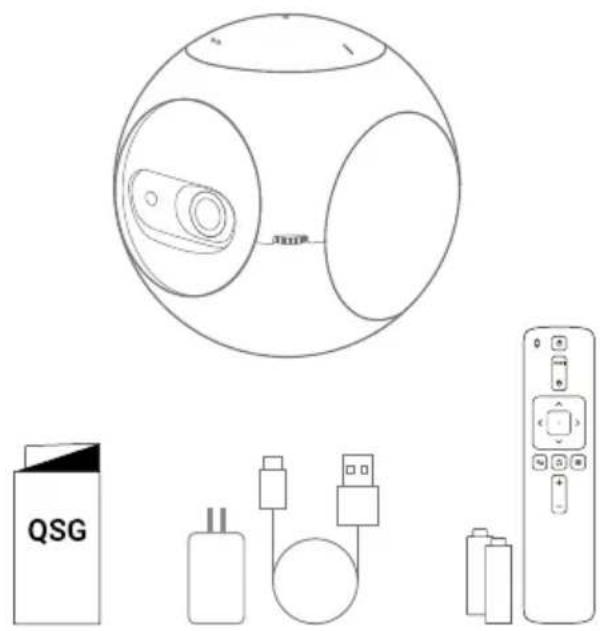

What's Included 05

Overview 05

Getting Started 09

Nebula Connect App 11

Settings 12

Using the Nebula Astro 15

Specifications 17

Troubleshooting 18

Notice 19

Trademarks 21

Warranty 21

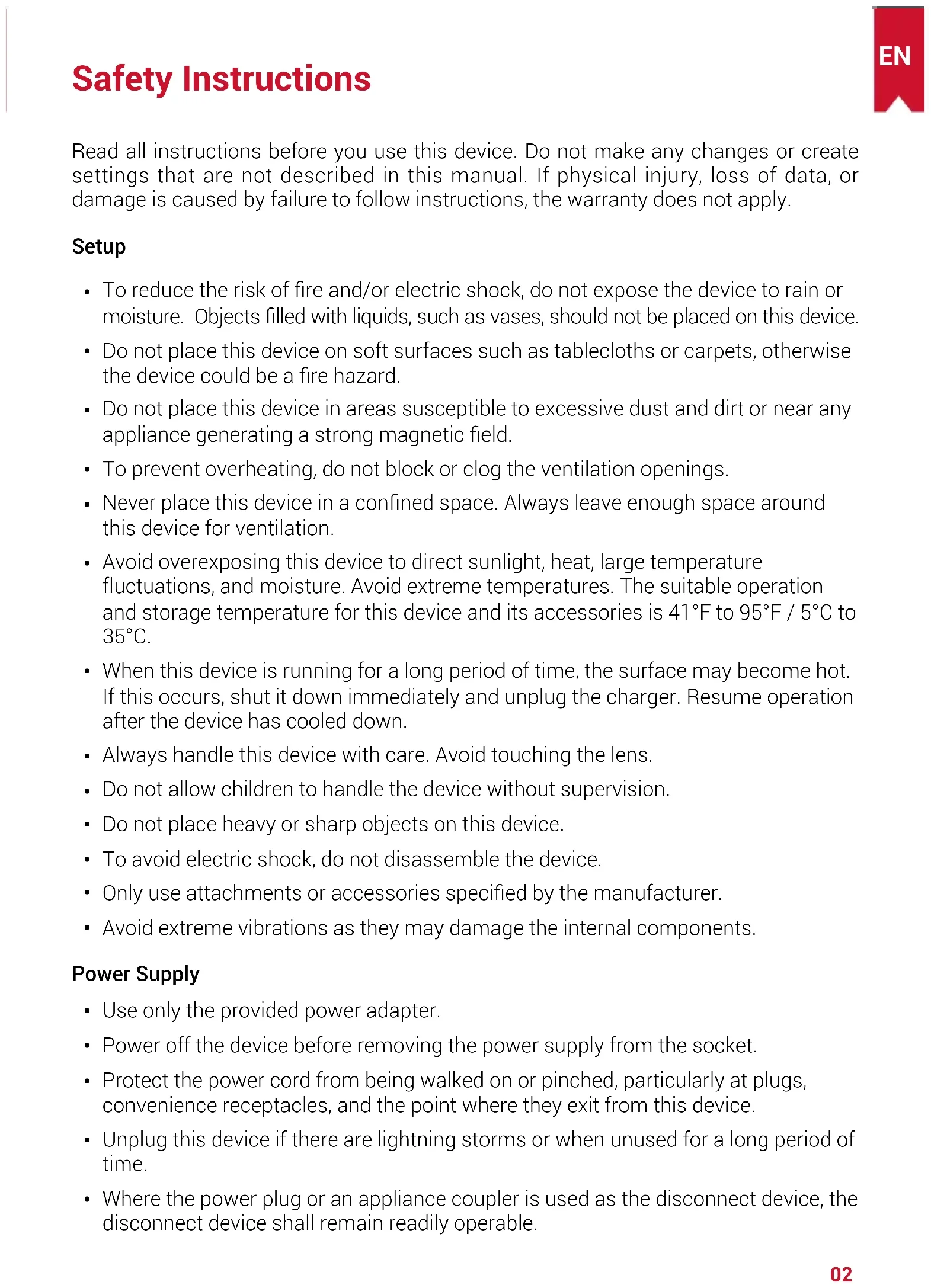

Safety Instructions

Read all instructions before you use this device. Do not make any changes or create settings that are not described in this manual. If physical injury, loss of data, or damage is caused by failure to follow instructions, the warranty does not apply.

Setup

• To reduce the risk of fire and/or electric shock, do not expose the device to rain or moisture. Objects filled with liquids, such as vases, should not be placed on this device.
• Do not place this device on soft surfaces such as tablecloths or carpets, otherwise the device could be a fire hazard.
• Do not place this device in areas susceptible to excessive dust and dirt or near any appliance generating a strong magnetic field.
• To prevent overheating, do not block or clog the ventilation openings.
• Never place this device in a confined space. Always leave enough space around this device for ventilation.
• Avoid overexposing this device to direct sunlight, heat, large temperature fluctuations, and moisture. Avoid extreme temperatures. The suitable operation and storage temperature for this device and its accessories is 41°F to 95°F / 5°C to 35°C.
• When this device is running for a long period of time, the surface may become hot. If this occurs, shut it down immediately and unplug the charger. Resume operation after the device has cooled down.
• Always handle this device with care. Avoid touching the lens.
• Do not allow children to handle the device without supervision.
• Do not place heavy or sharp objects on this device.
• To avoid electric shock, do not disassemble the device.
• Only use attachments or accessories specified by the manufacturer.
• Avoid extreme vibrations as they may damage the internal components.

Power Supply

• Use only the provided power adapter.
• Power off the device before removing the power supply from the socket.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from this device.
• Unplug this device if there are lightning storms or when unused for a long period of time.

• Where the power plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Before you make or change any connections, ensure that all devices are disconnected from the power outlet.

• Never touch the power cable or the power connector with wet hands.

Hearing Safety

- To prevent hearing damage, do not listen for extended periods at high volume. Set the volume to a safe level.

Charging

• The charger type is DST451-150300W-K with output voltage / current of USB-C 5V / 2A. The charger should be installed near this product and should be easily accessible.
• This charger is for indoor use only.
• When charging, place this device in an environment that has a normal room temperature (ranges from 41°F to 77°F / 5°C to 25°C) and good ventilation.
• Due to the enclosure material, this device must only be connected to a USB 2.0 or higher.

Battery

• Do not replace the built-in battery yourself. Contact an authorized service center to replace it.
• The remote control contains batteries which can be swallowed. Keep the remote control out of the reach of children.
• Risk of explosion! Keep batteries away from heat, direct sunlight, or fire. Never dispose of batteries by burning.
• Remove the batteries when the remote control has not been used for a long period of time.
• Replace the remote control batteries only with the same or an equivalent type.
• Batteries contain chemical substances and they should be disposed of properly.
• Charge this device regularly. Do not store this device with a completely discharged battery.

Cleaning

• Use a soft, lint-free cloth. Never use liquid, gaseous, or easily flammable cleansers to clean.
• Do not use any liquid cleaning agents to clean the lens to avoid damaging the coating film on the lens.
• Wipe the surfaces gently. Be careful that you do not scratch the surface.
• Use lens cleaning paper to clean the lens.

Repairs

• Do not make any repairs to this device yourself. Only have your device repaired by an authorized service center.
• Improper maintenance can result in injuries to persons or damage to this device.
  • Refer all servicing to qualified service personnel.

Caution

• Possibly hazardous optical radiation emitted from this device.
• Do not stare directly at the operating beam. The bright light may damage your eyes

Disclaimer

• Make sure you place Nebula Astro on a flat, hard surface, which enables the Eye Guard function to be activated more precisely.
• The distance range set to activate the Eye Guard function is for reference purposes only.
• Keep the lens clean and free from grease, or it may affect the sensitivity of the lens.
• The Eye Guard function is designed for protection only in case that your children accidentally turn the projector towards themselves. DO NOT intentionally turn the projector towards your eyes.

Line drawing of a QSG remote control device with battery, switch, and cable (no text or symbols)

Overview

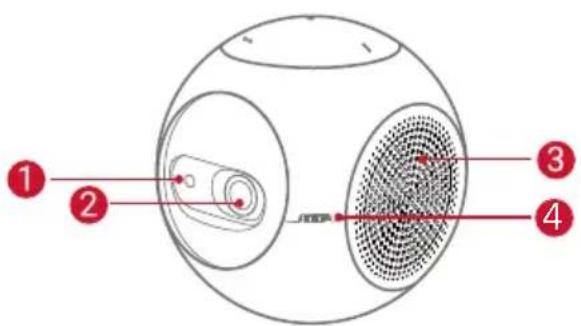

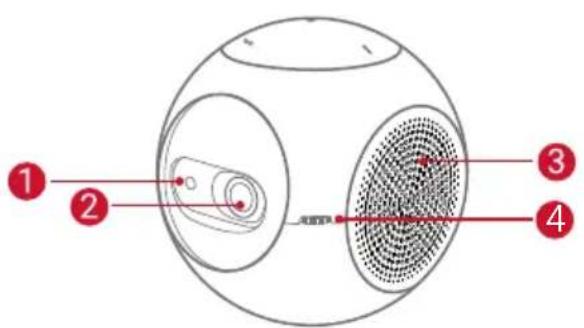

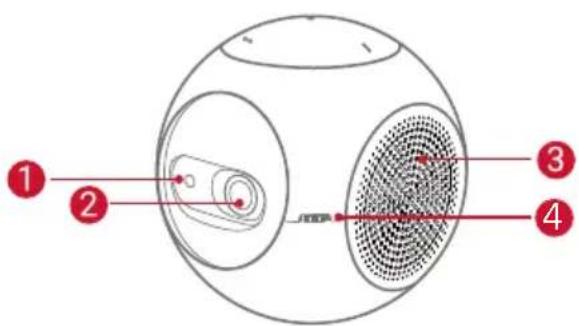

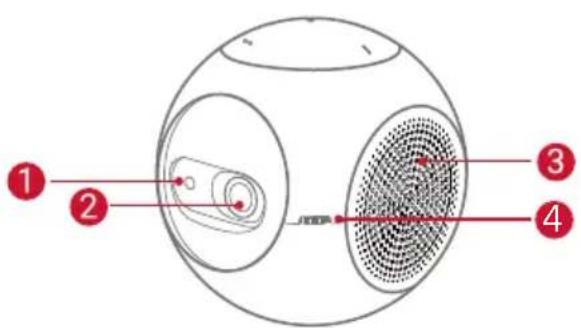

1. Front View

Diagram of a human eye with numbered parts labeled 1 to 4, showing internal structures and focal points.

1 TOF motion ensor
• The sensor will be triggered when Eye Guard is activated
② Lens
③ Ventilation outlet / inlet
4 Focus adjusting knob

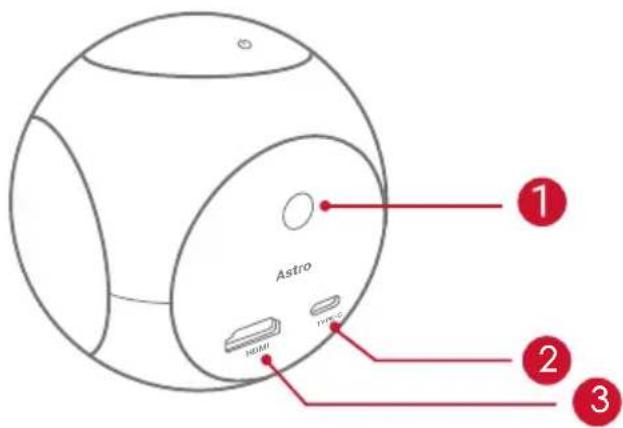

2. Rear View

Astro HDMI DDR ① ② ③

1 Infrared receiver
② USB-C port

- Connect to power supply

③ HDMI

- Connect to a playback device via HDMI output

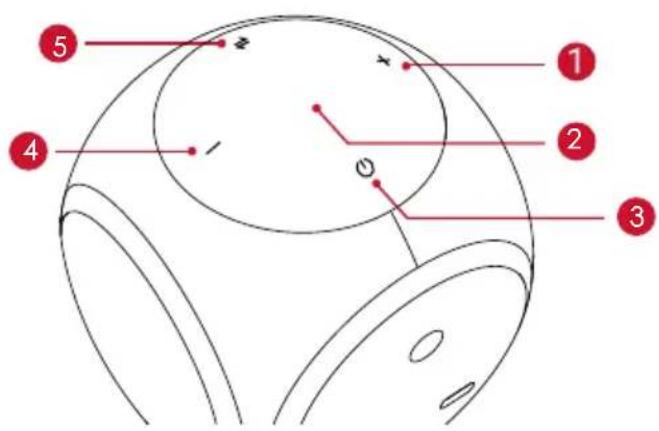

3. Top View

Diagram of a device with numbered components and labeled parts, including a central circular component and surrounding curved surfaces.

1 Volume up

- Press to turn the volume up

② LED indicator

3 Power button

- Press and hold for 2 seconds to power on / off

4 Volume down

- Press to turn the volume down

5 ⇌ button

- Press to switch between Bluetooth speaker mode and projector mode

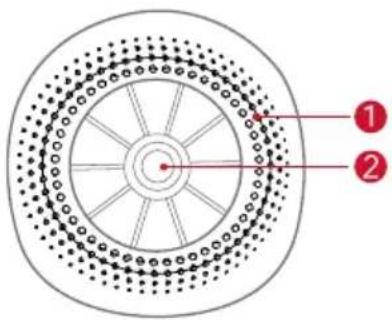

4. Bottom View

Diagram of a circular mechanical or electrical component with numbered annotations pointing to specific parts.

1 Speaker

② Tripod socket

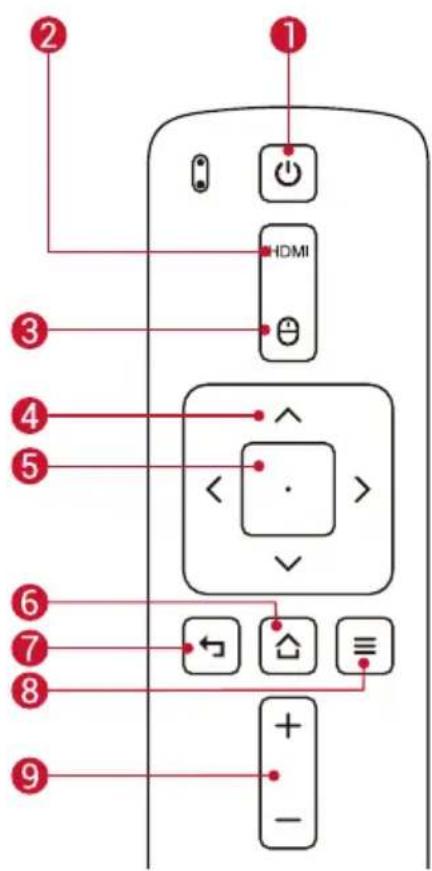

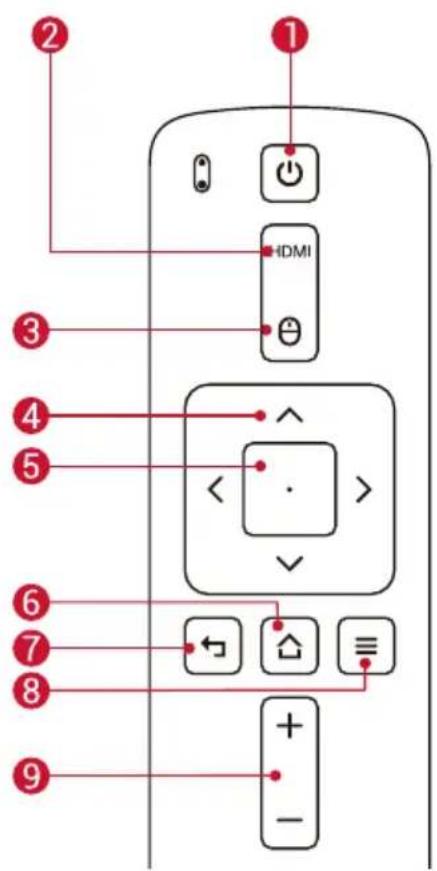

5. Remote Control

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ + - ⑩ HDMI

1 Power on / off
② Switch to HDMI connection
3 Mouse mode
4 Navigation
5 Confirm the selected content
6 Home
7 Back
8 View more options
9 Volume up / down

6. LED Indicator

LED Status Description

Breathing orange Eye Guard function is activated

Solid red Charging

Solid green Fully charged

Flashing red Low battery (< 20%) / Fault occurs

Solid blue Power on in projector or Bluetooth speaker mode

Solid orange Standby in projector mode

Flashing blue

Ready to pair / Bluetooth disconnected (Bluetooth speaker mode)

Getting Started

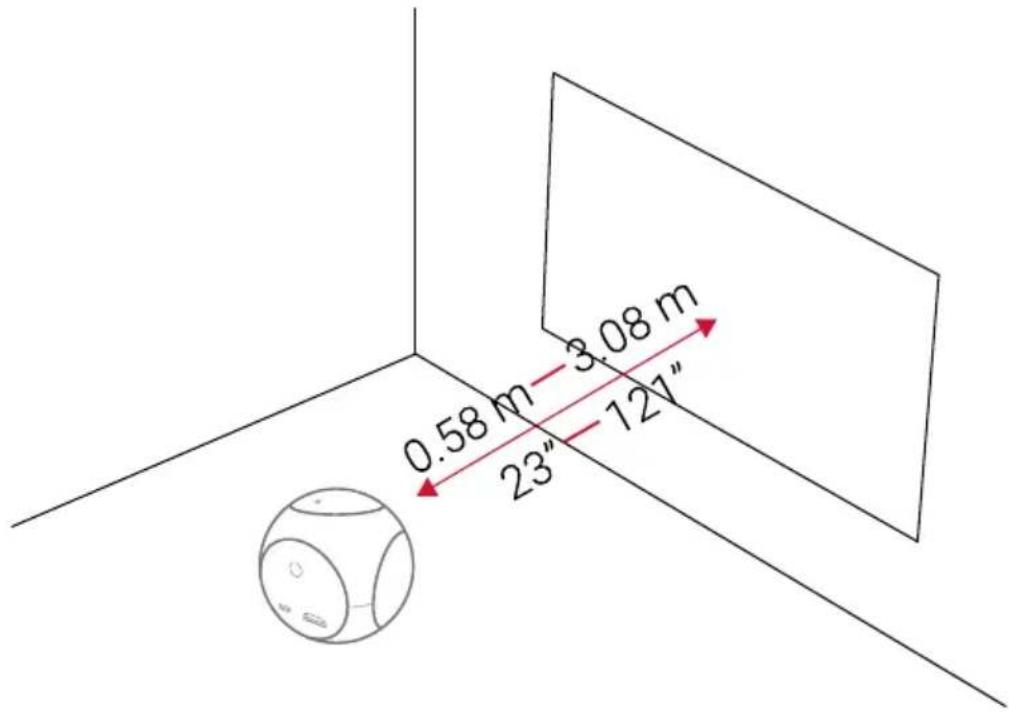

1. Placement

Place Nebula Astro on a stable, flat surface in front of the projection surface. For the best results, the projection surface should be white and flat. The distance between Nebula Astro and the projection surface must be a minimum of 0.58 meters (23 inches) and a maximum of 3.08 meters (121 inches) to get a projection image between 20 and 100 inches.

0.58 m 3.08 m 23" 127"

- It is unnecessary to tilt Nebula Astro towards the projection surface. You can correct the projection image with the built-in keystone correction.

- The distance between Nebula Astro and the projection surface determines the projection image size. For the best result, position it between 40 and 80 inches away from the projection surface.

2. Prepare the Remote Control

The remote control comes with two AAA batteries.

① Slide down to open the battery compartment.
② To replace the batteries, slide to open the battery compartment, insert new batteries (matching the polarity (+/-) indicated), and close the battery compartment.

3. Get Started

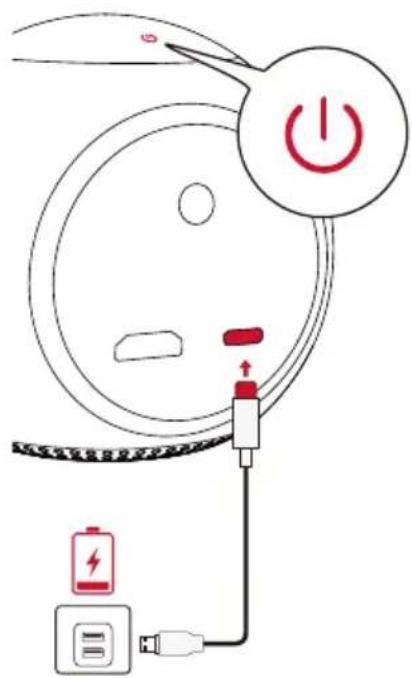

① For first-time use, fully charge the built-in battery using the provided cable and adapter.

Diagram showing a power switch connected to a battery and USB cable, with a power button icon labeled 'Power Supply'.

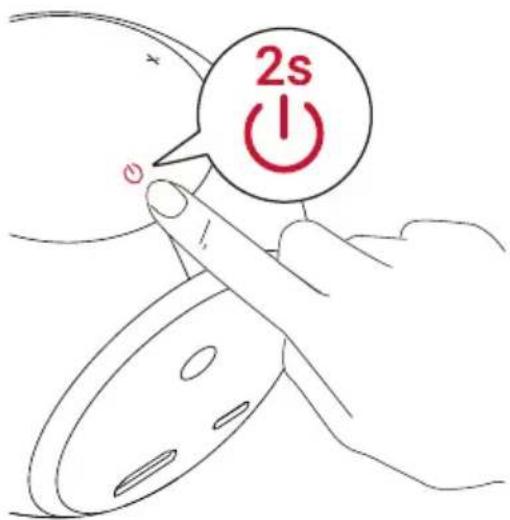

② Hold ⏻ for 2 seconds on the projector to turn it on.

2s 0

③ Turn the device towards a suitable projection surface or wall.

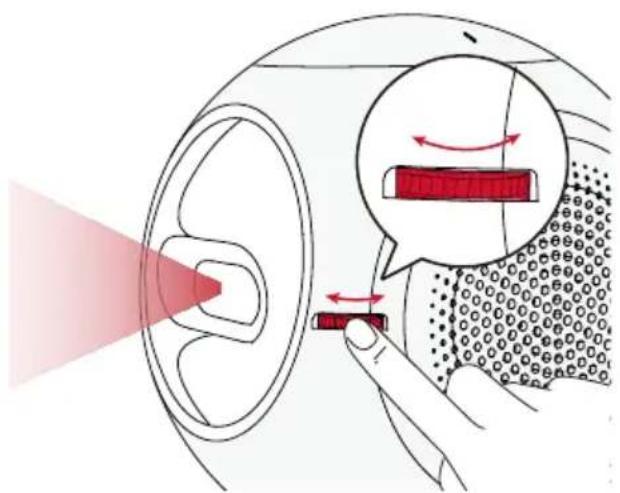

④ Rotate the knob to adjust the focus.

Diagram illustrating a car wheel with red light beam and magnified view showing motion direction

⑤ For first-time use, follow the on-screen instructions to complete the basic setup.

To give your Nebula Astro the fastest, safest charge, only use the provided adapter.

Nebula Connect App

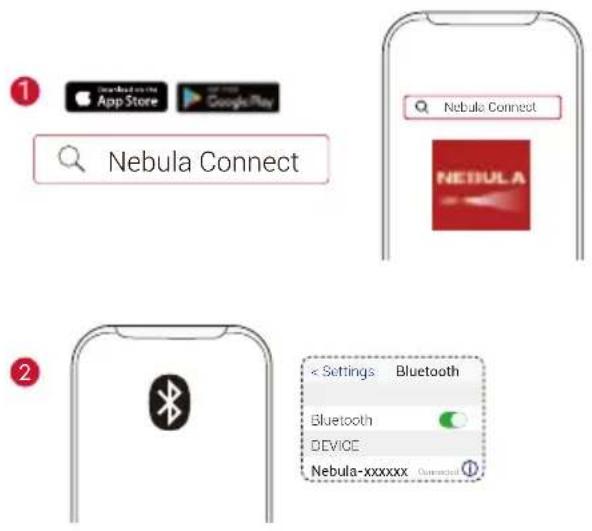

To easily control Nebula Astro, we recommend downloading the Nebula Connect app. With this app, you can operate your mouse using your phone screen.

① Download the Nebula Connect app from the App Store (iOS devices) or Google Play (Android devices).

Nebula Connect Nebula Connect < Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connection

② Enable Bluetooth on your smartphone.
③ Open the Nebula Connect app and select [Nebula-XXXXXX] as the device to be connected.
④ Follow the on-screen instructions to complete the connection setup.

To make your experience more enjoyable, we recommend you use the Nebula Connect app instead of remote control.

Settings

Go through the setup process when you power on Nebula Astro for the first time. Determine the distance range to trigger Eye Guard, set your name, birthday, and password.

1. Network

This projector can be connected to the Internet via a wireless (Wi-Fi) connection.

① Select ⚙ to access the Settings page. Select [Network] and press □.

② Follow the on-screen instructions to complete the network connection.

2. Bluetooth

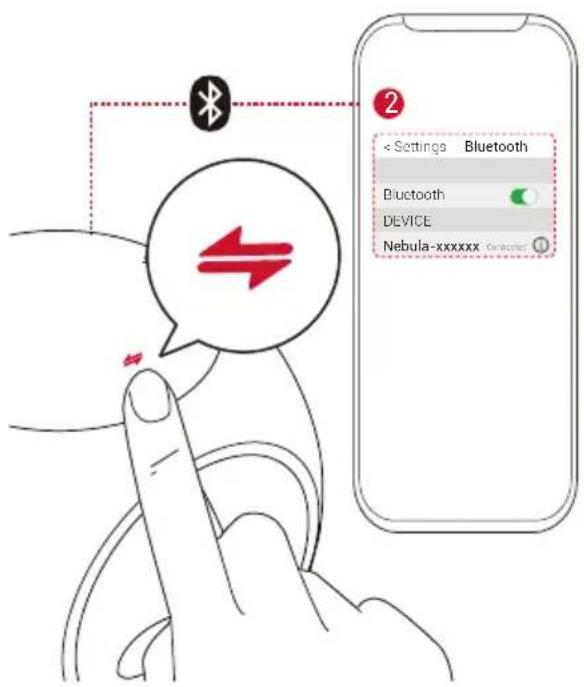

Bluetooth Speaker Mode

You can use this projector as a standalone Bluetooth speaker.

① Press to switch to Bluetooth speaker mode.

② Enable Bluetooth on your smartphone and select [Nebula-XXXXXX] as the device to be connected.

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connected

Projector Mode

You can connect a Bluetooth speaker or pair of headphones to Nebula Astro while in projector mode.

① On the home menu, select 🔊 to access the Settings page. Select [Bluetooth] and press □. Enter the password if needed.

② Follow the on-screen instructions to complete the Bluetooth connection.

3. Projector

On the home menu, select the Settings icon to access the Settings page. Select [Projector], and press ☐.

[Image Mode] [Auto] / [Standard Mode] / [Battery Mode]
[Eye Comfort Mode]	[On] / [Off]Enable or disable eye comfort mode.
[Eye Guard Tech]	[Off]: The Eye Guard function is disabled. It is set to Off by default.[< 20cm] / [< 40cm] / [< 60cm]: When the projector is set to < 20cm / < 40cm / < 60cm, Eye Guard Tech will be activated and your projector will be disabled within a certain distance.
[Auto Keystone Correction]	Enable / disable auto keystone correction.
[Projector Mode]	[Front Projection]: The projector is located in front of the projection surface.[Rear Projection]: The projector is located behind the projection surface.[Inverted Front Projection]: The projector is hanging from the ceiling in an upside down position. The image is rotated by 180 degrees.[Inverted Rear Projection]: The projector is hanging from the ceiling in an upside down position behind the projection surface. The image is rotated by 180 degrees and horizontally mirrored.

4. Parental Controls

On the home menu, select ⚙ to access the Settings page. Select [Parental Controls], and press 📄

[Settings Password] [[On] / [Off]
[Change Password]	When Settings Password is set to On, Change Password is enabled. This option enables you to change and reset your password. If you forget your password, try the master code. The master code is case-sensitive and includes serial number + Nebula by default.(eg.:XXXXXXXXXXNebula)
[Time Limit]	Set the time limit or time duration when your child is allowed to access the projector daily.

5. Apps Control

The Apps Control enables you to show, hide or sort the app in the desired order on the Home screen in Kids mode.

① On the home menu, select 🔒 to access the Settings page. Select [Apps Control], and press ☐.
② Press and hold □ to relocate the selected app.

6. App Manager

① On the home menu, select ⚙ to access the Settings page. Select [App Manager], and press □.
② Select an app and check the current version, open or force stop the app, check the storage used or clear data, or uninstall the app.

7. Others

On the home menu, select ⚙ to find more setting options.

[General]

[Language] Select an on-screen display language.

[Keypad Tone] Turn on / off the keypad tone.

[Automatic Sleep Interval] 5 min / 15 min / 30 min

[Background] Select a background.

[Clear Cache] Clear the cached data stored on the projector.

[Screen Mirroring] Activate screen mirroring.

[Date & Time]

[Automatic Date & Time] Enable / disable automatic date and time.

[Select Time Zone] Select time zone.

[Use 24-Hour Format] Select 24-hour format or 12-hour format.

[Upgrade]

[Check Update]

Check if it is the latest version. Follow the on-screen instructions to upgrade the firmware version.

[About]

[Recovery] All data on the built-in storage will be erased.

Using the Nebula Astro

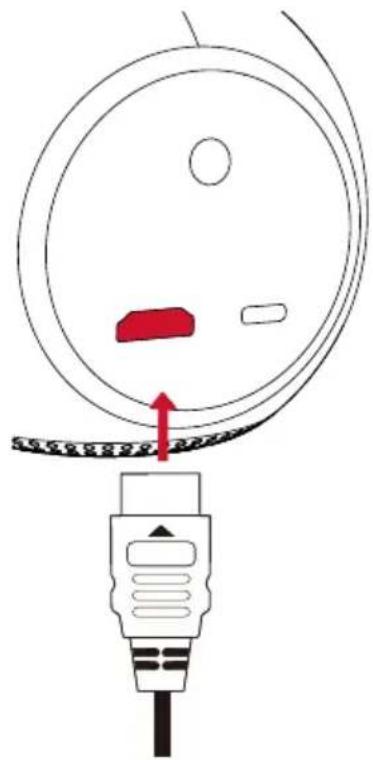

1. Play from HDMI Playback Devices

Nebula Astro can be connected to various HDMI playback devices such as a TV box, TV stick, DVD player, set-top box (STB), gaming consoles, or other devices.

To play content from HDMI playback devices:

① Connect Nebula Astro to an HDMI playback device with an HDMI cable (not provided).

② Press ⬆ to access the home menu, select [HDMI], and press □.

- It will automatically start HDMI playback once connected to an HDMI playback device for the first time.

Diagram of a connector with a red arrow pointing to a circular component, no text or symbols present

2. Install Apps

Once connected to a wireless network, you can access online services, enjoy movies, music and pictures, and browse online. Aside from the pre-installed apps, you can also install additional apps from the Nebula App Store.

① Press to access the home menu.

② Select an Internet service, and press □.

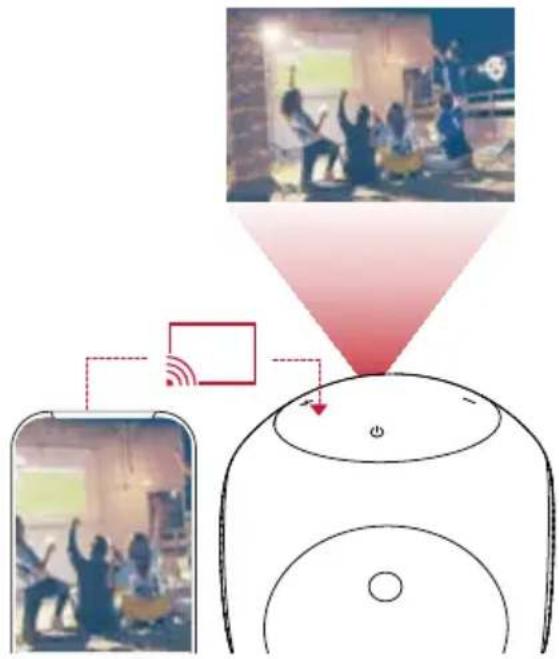

3. Screen Mirroring

You can wirelessly cast the screen of your smartphone or tablet onto the projection surface.

Diagram showing a device with a power button connected to a screen, accompanied by two photos of people in a classroom setting.

For Android users:

To use screen mirroring:

① Press ⬇ to access the home menu, select ⚙ > [General] > [Screen Mirroring], and press □.
② Follow the on-screen instructions to complete the process.

- Nebula Astro will mirror the screen of your smartphone phone or tablet.

For iOS users:

① Open Control Center.

• On iPhone X or later or iPad with iOS 12 or later: Swipe down from the upper-right corner of the screen.
• On iPhone 8 or earlier or iOS 11 or earlier: Swipe up from the bottom edge of any screen.

② Tap Screen Mirroring.
③ Select Nebula-xxxxxx from the list. Nebula Astro will mirror the screen of your iPhone or iPad.

• Make sure Nebula Astro and your phone are connected to the same network.
- Certain content cannot be cast on Nebula Astro due to copyright restrictions. In this case, you can stream the content via the same app installed on your Nebula Astro.

Specifications and design are subject to change without notice.

Power supply: DC 5V---2A

Power consumption: < 10W

Standby power consumption: < 0.5W

Display technology: 0.2 in 854 x 480p DLP

Light source: RGB LED

Projection image size: 20-100 in

Resolution: 854 x 480p

Brightness: 100 ANSI Lumens

Contrast ratio: 400:1

Throw ratio: 1.3

Throw distance: 0.58 m to 3.08 m

CPU: Quad core A7

OS: Android 7.1

RAM: 1GB DDR

ROM: 8GB eMMC

Speaker drivers: 3W

Wi-Fi: IEEE802.11a/b/g/n Dual Frequency 2.4G / 5G

Bluetooth version: 4.2

USB file system: FAT32

Built-in battery type: Li-Polymer

Capacity: 3250 mAh 3.63V

Movie playtime: approximately 2.5 hours in battery mode

Music playtime: approximately 14 hours in Bluetooth speaker mode

Remote control batteries: AAA x 2

Recommended ambient temperature: 41°F to 95°F / 5°C to 35°C

Relative humidity: 15% \~ 85% (non-condensing)

Storage temperature and humidity: < 149°F / 65°C, < 90% humidity

Dimensions (H × L × W): 91.2 × 82 × 89.2 mm / 3.6 × 3.2 × 3.5 in

Weight: 370 g / 13.1 oz

Troubleshooting

① Could not turn on the projector with the remote control?

• Hold ① for 2 seconds on the projector to turn it on.
• When powered off, you cannot use the remote control to turn it on.

② The remote control doesn't work?

• Make sure the batteries are already installed in the remote control.
• Replace the batteries.

③ Blurred image?

- Rotate the focus adjusting knob.

④ Cannot connect to a Wi-Fi network?

• Refresh the list of available networks and retry.
• Reboot the wireless router or the projector and retry.

⑤ How do I update the firmware?

- When a new version is detected you will be asked to reboot and update.

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the Declaration of Conformity, visit the Web site www.SeeNebula.com.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

BT Maximum output power: 6.23 dBm; BT Frequency band: 2402\~2480 MHz;

Wi-Fi Max Output Power: 17.42 dBm (2.4G); 17.70 dBm (5G);

Wi-Fi Frequency Band: 2412\~2472 MHz (2.4G); 5150\~5250 MHz, 5725\~5850 MHz (5G).

5150\~5250 MHz can be used indoor only.

	AT	BE	BG	HR	CY	CZ	DK
	EE	FI	FR	DE	EL	HU	IE
	IT	LV	LT	LU	MT	NL	PL
	PT	RO	SK	SI	ES	SE	UK

Anker Technology (UK) Ltd | Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

FCC Notice

This device complies with the FCC rules, Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This

device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the partly responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party.

Company Name: Fantasia Trading LLC

Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764

Telephone: [phone]

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device."

This Class B digital apparatus complies with Canadian ICES-003.

When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Trademarks

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, and HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Anker Innovations Limited is under license. Other trademarks and trade names are those of their respective owners.

Warranty

30-Day Money-Back Guarantee for Any Reason

You may return your undamaged product and packaging within 30 days of purchase to receive a FULL REFUND for any reason. If the reason for return isn't quality-related, the customer must pay for the return shipping.

12-Month Warranty for Quality-Related Issues

Nebula's products are warranted to be free from material and workmanship defects for 12 months from the date of purchase. Within this period, Nebula will provide a replacement and cover any return shipping costs for products that fail in normal use.

Please note: Any provided shipping labels must be used within 20 days from the date they're issued by Nebula Support.

Inhaltsverzeichnis

Nebula Connect App 32

Einstellungen 33

Line drawing of a QSG remote control device with battery, charging cable, and power cord (no text or symbols)

Übersicht

1. Vorderseite

Diagram of a human eye with numbered anatomical parts labeled 1 to 4

⑤ ① ② ③ ④ 0

Diagram of concentric circles with radial lines and a red arrow pointing to the center (no text or symbols)

1 Stativgewinde

5. Fernbedienung

② ① HDMI ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ + - ①

Diagram showing a power button connected to a battery and USB via cable, with a switch labeled 'Power' and a battery icon.

Diagram illustrating a car wheel with red light beam and magnified inset showing red beam motion

Nebula Connect Nebula Connect < Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connect

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx

Projektor-Modus

Diagram of a cable connector with a red arrow pointing to its cable (no text or symbols present)

2. Apps installieren

Diagram showing a device with a red laser beam projecting onto a screen, alongside two photos of people in a classroom setting.

Line drawing of a QSG remote control device with battery, switch, and cable (no text or symbols on main elements)

Descripción general

1. Vista frontal

Diagram of a human eye with numbered parts labeled 1 to 4, showing internal structure and focal point.

Diagram of a device with numbered parts and labeled points, likely illustrating a mechanical or electronic component layout.

Diagram of concentric circles with radial lines and a numbered label (1) pointing to the center point, no text or symbols present.

1 Toma para trípode

Diagram showing a power switch connected to a battery and USB cable, with a power button icon labeled 'Power Supply'.

Diagram illustrating a car wheel with red light beam and magnified view showing motion direction

Nebula Connect Nebula Connect < Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connects

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx

Modo de proyector

Diagram of a cable connector with a red arrow pointing to a circular component (no text or symbols)

Diagram illustrating a smart home control system with a device, screen, and video player interface showing signal transmission.

Application Nebula Connect 69

Paramètres 70

Utiliser le Nebula Astro 73

Spécifications 75

Dépannage 76

Line drawing of a QSG remote control device with battery, switch, and cable (no text or symbols)

Présentation

1. Vue avant

Diagram of a human eye with numbered parts labeled 1 to 4, showing internal structure and focal point.

Diagram of a device with numbered components and labeled parts, including a central circular component and surrounding curved surfaces.

Diagram of concentric circles with radial lines and a numbered label (1) pointing to the center point, no text or symbols present.

Diagram showing a power switch connected to a battery and USB cable, with a power button icon labeled 'Power Supply'.

Diagram illustrating a car steering wheel with red motion arrows and a magnified inset showing the wheel's rotation.

Application Nebula Connect

1 App Store Google Play Nebula Connect 2 < Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connected

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Covered

Mode projecteur

Diagram showing a cable connector with a red arrow pointing to a circular component (no text or symbols)

2. Installer des applications

Diagram illustrating a smart home control system with a device, a screen showing a virtual room scene, and signal transmission from the screen to the main display.

Alimentation: CC 5 V --- 2 A

Consommation: < 10 W

App Nebula Connect 87

Impostazioni 88

Line drawing of a QSG remote control device with battery, switch, and cable (no text or symbols on main elements)

Panoramica

1. Vista anteriore

Diagram of a human eye with numbered parts labeled 1 to 4, showing internal structures and focal points.

Diagram of a device with numbered parts and labeled points, likely illustrating a mechanical or electronic component layout.

Diagram of concentric circles with radial lines and a numbered label (1) pointing to the center point, no text or symbols present.

Diagram showing a power switch connected to a battery and USB, with a circular component labeled 'Power' and a battery icon.

Diagram illustrating a car wheel with red light beam and magnified inset showing red beam motion direction

Nebula Connect Nebula Connect < Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connected

Modalità proiettore

Diagram of a cable connector with a red arrow pointing to a circular component (no text or symbols)

2. Installa app

Diagram illustrating a smart home control system with devices, a screen, and a speaker, showing signal transmission and interaction.

Line drawing of a QSG remote control device with battery, switch, and cable (no text or symbols)

Overzicht

1. Vooraanzicht

Diagram of a human eye with numbered parts labeled 1 to 4, showing internal structure and focal point.

⑤ ① ② ③ ④ O

1 Volume omhoog

Diagram of a circular mechanical or electrical component with numbered annotations pointing to specific parts.

Diagram showing a power switch connected to a battery and USB cable, with a power button icon labeled 'Power Supply'.

Diagram illustrating a car wheel with red light beam and magnified view showing motion direction

1 App Store Google Play Nebula Connect 2 < Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Onset Nebula Connect

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx

Projectormodus

Diagram of a connector with a red arrow pointing to a circular component and a white plug inserted (no text or symbols)

2. Apps installeren

Diagram illustrating a smart home control system with a device, screen, and camera setup, showing signal transmission and interaction.

Line drawing of a QSG remote control device with battery, charging cable, and connected ports (no text or symbols)

Descrição geral

1. Vista frontal

Diagram of a human eye with numbered anatomical parts labeled 1 to 4

⑤ ① ② ③ ④ 0

Diagram of concentric circles with radial lines and a numbered label (1) pointing to the center point (no text or symbols beyond the label)

1 ficha para tripé

5. Controlo remoto

② ① HDMI ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ + - ①

Diagram showing a power switch connected to a battery and USB, with a circular component labeled 'Power' and a battery icon.

Diagram illustrating a car steering wheel with red motion arrows and a magnified inset showing the wheel's rotation.

Nebula Connect Nebula Connect < Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connected

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connected ①

Modo de projetor

Diagram of a device with a red component inserted into a circular component, connected to a plug (no text or symbols present)

Diagram showing a device with a sensor signal and two photos of people in a meeting room, likely illustrating a surveillance or monitoring system.

Para os utilizadores de Android:

Line drawing of a QSG remote control device with battery, switch, and cable (no text or symbols)

概要

1. 正面図

Diagram of a human eye with numbered parts labeled 1 to 4, showing internal structures and focal points.

⑤ ① ② ③ ④ O

① 音量アップ

・押すと音量が大きくなります

② LED インジケーター

電源ボタン

Diagram of concentric circles with radial lines and a numbered label (1) pointing to the center point (no text or symbols beyond the number)

① 三脚用ソケット

5. リモコン

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ + - HDMI

Diagram showing a power switch connected to a battery and USB cable, with a power button icon labeled 'Power Supply'.

Diagram illustrating a car wheel with red light beam and magnified view showing motion direction

1 Download to the App Store Google Play Nebula Connect Nebula Connect

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx

プロジェクトターモード

Diagram of a connector with a red arrow pointing to a circular component, no text or symbols present

2. アプリのインストール

Diagram showing a device with a power button connected to a classroom scene, including a close-up of students and a red laser beam.

Android 機器の場合:

画面ミラーリングを使用するには:

Line drawing of a QSG remote control device with battery, plug, and cable connections (no text or symbols)

개요

1. 정면

Diagram of a human eye with numbered anatomical parts labeled 1 to 4

① TOF 동작 센서

⑤ ① ② ③ ④ 0

1 볼륨 높이기

·볼륨을 높이려면 누르십시오.

② LED 표시등

전원 버튼

Diagram of a circular mechanical or electrical component with numbered annotations pointing to features.

1 삼각대 소켓

5. 리모컨

Diagram of a mobile phone control panel with labeled buttons and function keys

Diagram showing a power button connected to a battery and USB via cable, with a switch labeled 'Power' and a battery icon.

Diagram illustrating a car steering wheel with red motion arrows and a magnified inset showing the wheel's rotation.

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connected ①

프로젝터 모드

Diagram showing a device with a red component inserted into a circular housing, connected to a plug (no text or symbols present)

2. 앱 설치

Diagram showing a device connected to a screen with a red signal icon and a target image, likely illustrating a system or monitoring setup.

Android 사용자의 경우:

화면 미러링 사용하기:

치수 (H × L × W): 91.2 × 82 × 89.2 mm/3.6 × 3.2 × 3.5 인치

무게:370g/13.1oz

문제 해결

Line drawings of a QSG remote control device, battery pack, and connected devices (no text or symbols)

Diagram of a human eye with numbered parts and internal structure, labeled in Chinese.

⑤ ① ② ③ ④ O

Diagram showing a power switch connected to a battery and USB, with a circular component labeled 'Power' and a battery icon.

Diagram illustrating a car wheel with red light beam and magnified inset showing motion direction of a component

1 Download on the App Store Google Play Nebula Connect Nebula Connect NEBULA

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Connects ①

< Settings Bluetooth Bluetooth DEVICE Nebula-xxxxxx Compted

وضع جهاز العرض

Diagram of a cable connector with a red arrow pointing to a circular component (no text or symbols)

Diagram illustrating a smart home control system with a device, a smartphone, and two video feeds showing people celebrating.

:Android لمستخدمي
