Product Type	Electric Soup Kettle (soup maker)
Brand	Buffalo
Model	G107 (also L714 / L715)
Dimensions (h x w x d)	375 x 330 x 330 mm
Weight	4.3 kg
Power Supply	230 V ~ 50 Hz
Power	400 W
Current	1.9 A
Capacity	10 litres
Thermostat	Setting from 1 (min) to 12 (max), position 0 to turn off
Removable Container	Yes, dishwasher safe
Lid	Magnetic, with central hinge, dishwasher safe
Main Functions	Reheating and keeping soup or other liquids warm
Water in Outer Casing	Approximately 600 ml required for operation
Content Labels	13 labels included, magnetic attachment
Cleaning and Maintenance	Clean exterior with a damp cloth; container and lid in dishwasher
Safety	Do not immerse, do not use without water, do not move while powered, automatic shut-off via thermostat at 0
Electrical Connection	Must be earthed via a dedicated circuit
Compliance	CE marking, conforms to European standards
Intended Use	Indoor, reserved for trained persons

Frequently Asked Questions - G107 BUFFALO

How much water should I put in the outer casing?

About 600 ml of water. Adjust if the container floats: remove a little water until it no longer floats.

How long does it take to reheat cold soup?

Up to 90 minutes at full power (thermostat at maximum). For keeping warm, reduce the thermostat to minimum.

How do I adjust the temperature?

Turn the thermostat from 1 (lowest temperature) to 12 (highest). Position 0 turns off the appliance.

Can I clean the container and lid in the dishwasher?

Yes, the removable container and magnetic lid are dishwasher safe.

What should I do if the soup is not heating?

Check that the thermostat is not at position 0 or too low. Increase the setting. If that doesn't work, check the power supply and appliance condition.

Can I move the appliance while it is on?

No, never move or transport the soup kettle when powered or full of hot liquid. Turn off and unplug first.

How do I install the lid?

Slide the lid onto the top of the pot. The center of the lid is a hinge: lift one half to access the contents.

What should I do if the appliance does not turn on?

Make sure it is plugged in and the thermostat is not at 0. Check the outlet and cord. If damaged, contact a Buffalo technician.

Can I use custom labels?

Yes, write the product name on the back of a provided blank label. Place it in the magnetic holder on the side.

What are the essential safety precautions?

Never immerse the appliance, do not use without water in the outer casing, do not clean with a jet, and always unplug before cleaning.

USER MANUAL G107 BUFFALO

Three black and silver portable food containers labeled 'TOMATO SOUP' with 'BUFFALC' branding, shown without any additional text or symbols.

NL Soepketel

Handleiding

Cleaning, Care & Maintenance 2

Troubleshooting 3

Technical Specifications 3

Electrical Wiring 3

Compliance 3

NL

Inhoudsopgave

Veiligheidstips 4

Inleiding 4

Verpakkingsinhoud 4

Installatie 4

Colocar as etiquetas 20

Funcionamento 20

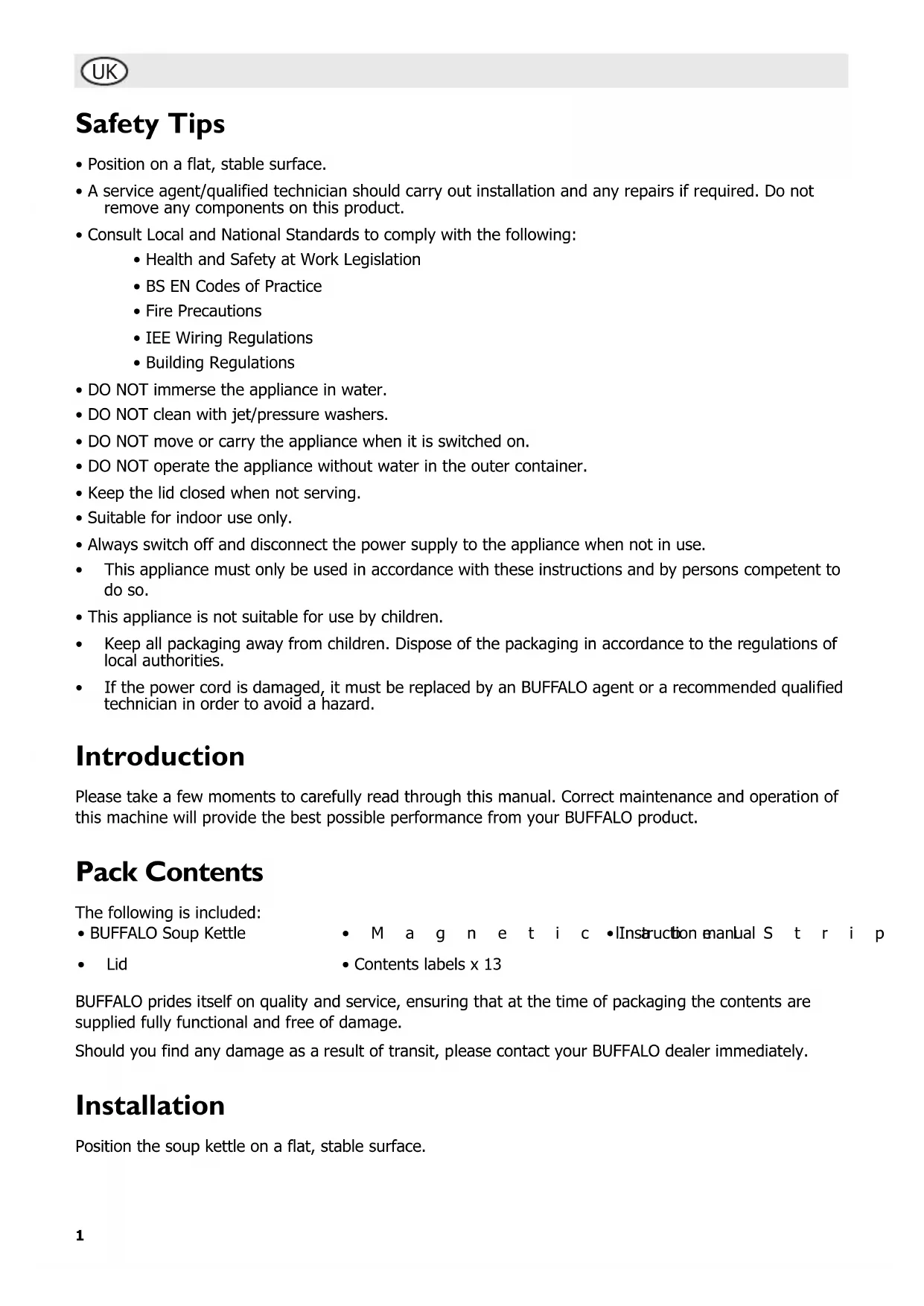

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation
• BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
• Building Regulations

• DO NOT immerse the appliance in water.
• DO NOT clean with jet/pressure washers.
• DO NOT move or carry the appliance when it is switched on.
• DO NOT operate the appliance without water in the outer container.
• Keep the lid closed when not serving.
• Suitable for indoor use only.
• Always switch off and disconnect the power supply to the appliance when not in use.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
• This appliance is not suitable for use by children.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

- BUFFALO Soup Kettle

- M a g n e t i c • Instruction manual S t r i p

- Lid

- Contents labels x 13

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Position the soup kettle on a flat, stable surface.

Fit the Lid

I. Slot the lid on top of the appliance

Note: The lid is hinged in the middle. Lift one half of the lid to access the container.

Attaching Labels

1. Slide the relevant label into the magnetic label holder.
2. Attach the holder to the side of the appliance.

Note: If the desired label is not included, simply write the name of the product on the reverse of one of the labels.

Operation

I. Connect the appliance to the mains power supply.
2. Fill the outer container with approximately 600ml of water.
3. Carefully place the inner container into the appliance.

Note: The inner container must NOT float, even when empty. If the container floats reduce the amount of water in the outer container.

1. Fill the inner container with hot soup and close the lid.

Note: If necessary, remove any excess water from the outer container.

1. Set the temperature control. The temperature ranges from 1 (lowest) to 12 (highest).
2. The Power light will come on and the kettle will begin to heat up.

Note: Kettle is not designed to heat food from cold.

1. Reduce the temperature to maintain heat levels. To maintain temperature, BUFFALO recommend the lowest heat setting possible.
2. Use a suitable implement to remove the contents of the kettle. DO NOT tip the kettle to remove the contents.
3. To turn the appliance Off, set the Temperature Control to '0'.

WARNING: Never move or carry the appliance when it is switched on or contains hot liquid.

Cleaning, Care & Maintenance

• Always turn off and disconnect the appliance from the power supply before cleaning.
- Clean any spilt food on the appliance immediately.
- Use soapy water and a damp cloth to clean the exterior of the appliance.
- The inner container and lid are machine washable.
- Dry thoroughly after cleaning.

Troubleshooting

Fault Probable Cause Action
The unit is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
Soup not heating up	Insufficient temperature setting Increase temperature setting

Technical Specifications

Model	Voltage	Power	Current	Capacity (litres)	Weight	Dimensions w x d x h mm
G107 / L714 / L715	230V 50Hz	400W	1,9A	10	4,3 kgs	375 x 330 x 330

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

C E

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Symbolic image showing a trash bin with crossed lines and a crossed-out letter 'C' with an exclamation mark, likely representing a copyright or compliance requirement.

Symbolic image showing a trash bin with crossed-out crosses above and the letters 'C' and 'E' below, likely representing a recycling or certification icon.

Symbolic image showing a trash bin with crossed lines and the letters 'C' and 'E' below, likely representing a waste sorting or recycling concept.

Colocar as etiquetas

Symbolic image showing a trash bin with crossed-out lines and the letters 'C' and 'E' below, likely representing a recycling or certification icon.

Symbolic image showing a trash bin with crossed-out lines and the letters 'C' and 'E' below, likely representing a recycling or rejection concept.

Symbolic image showing a trash bin with crossed lines and the letters 'C' and 'E' below, likely representing a recycling or certification icon.

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

• Declaración de conformidad • Declaração de conformidade • Överensstämmelseförsäkran •
  • Overensstemmelseserklæring • Konformitetserklæring • Selvitys vaatimustenmukaisuudesta •

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento • 10 litre Soup Kettle Enhetstyp • Udstyrstype • Type utstyr • Laitteen tyyppi:

Low Voltage Directive 2006/95/EC EMC Directive 93/68/EEC

EN 55014-1:2000+A1:2001+A2:2002
EN 55014-2:1997+A1:2001, EN61000-3-2:2000,
EN 61000-3-3:1995+A1:2001, EN 60335-2-15:2002+A1:2005
EN 60335-1:2002+A1:2004+A11:2004+A12:2006+A2:2006

BUFFALO

Fourth Way Avonmouth Bristol BS11 8TB United Kingdom
