USER MANUAL L715 BUFFALO

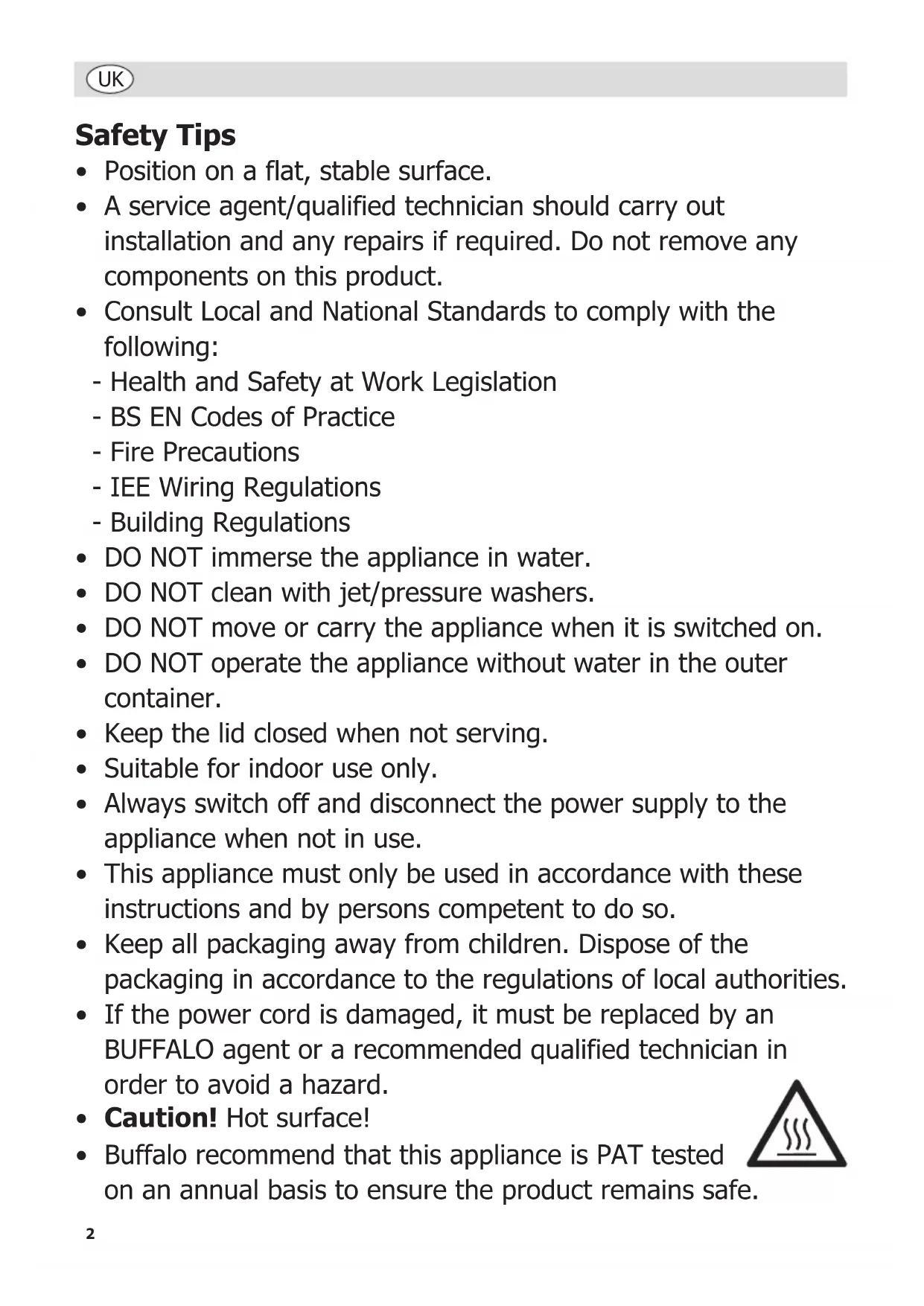

• Position on a flat, stable surface.

• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations
• Building Regulations

DO NOT immerse the appliance in water.
DO NOT clean with jet/pressure washers.
- DO NOT move or carry the appliance when it is switched on.
- DO NOT operate the appliance without water in the outer container.
- Keep the lid closed when not serving.
- Suitable for indoor use only.
- Always switch off and disconnect the power supply to the appliance when not in use.
- This appliance must only be used in accordance with these instructions and by persons competent to do so.
- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
- Caution! Hot surface!
- Buffalo recommend that this appliance is PAT tested on an annual basis to ensure the product remains safe.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

BUFFALO Soup Kettle

• Magnetic label Strip x 1

• Instruction manual

Lid

• Contents labels x 13

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Fit the Lid

• Slot the lid on top of the appliance.

Note: The lid is hinged in the middle. Lift one half of the lid to access the container.

Attaching Labels

1. Slide the relevant label into the magnetic label holder.
2. Attach the holder to the side of the appliance.

Note: If the desired label is not included, simply write the name of the product on the reverse of one of the labels.

Operation

1. Connect the appliance to the mains power supply.
2. Fill the outer container with approximately 600ml of water (MIN / MAX WATERLINE). Do not exceed the MAX marking.
3. Carefully place the inner container into the appliance.

Note: The inner container must NOT float, even when empty. If the container floats reduce the amount of water in the outer container.

1. Fill the inner container with hot soup and close the lid.

Note: If necessary, remove any excess water from the outer container.

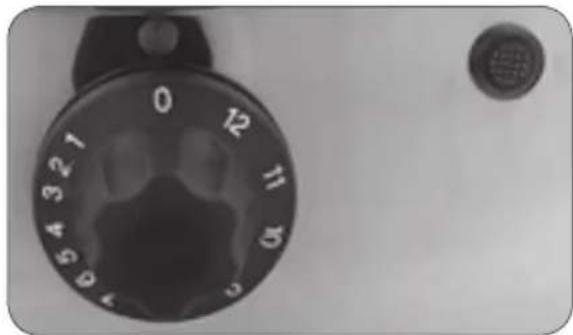

1. Set the temperature control. The temperature ranges from 1 (lowest) to 12 (highest).
2. The Power light will come on and remain on and the kettle will begin to heat up.

Note: Kettle is not designed to heat food from cold.

1. Reduce the temperature to maintain heat levels. To maintain temperature, BUFFALO recommend the lowest heat setting possible.
2. Use a suitable implement to remove the contents of the kettle. DO NOT tip the kettle to remove the contents.
3. To turn the appliance Off, set the Temperature Control to '0'.

WARNING: Never move or carry the appliance when it is switched on or contains hot liquid.

Cleaning, Care & Maintenance

• Always turn off and disconnect the appliance from the power supply before cleaning.
• Clean any spilt food on the appliance immediately.
• Use soapy water and a damp cloth to clean the exterior of the appliance.
• The inner container and lid are machine washable.
• Dry thoroughly after cleaning.

Technical Specifications

Model Voltage	age Power Current			Capacity (litres)	Weight	Dimensions w x d x h mm
G107 / L714	230V 50Hz 400W 1.9A 10	4.3kg 375	x 330 x 330
L715 / CP851

Troubleshooting

Fault Probable Cause Solution
The unit is not working	The unit is not switched on Check the	unit is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified Technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
Soup not heating up	Insufficient temperature setting Increase temperature setting

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

- Attention! Surface chaude!

Colocar as etiquetas

DECLARATION OF CONFORMITY

Conformiteitsverklaring · DeclaratiOn de conformite · Konformitatserklarung · Dichiarazione di conformità

• Declaración de conformidad - Declaração de conformidade

Equipment Type · Uitrustingtype · Type d'equipement

Geratotyp

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) · Application de la/des directive(s) du Conseil · Anwendbare EU-Richtlinie(n)

Applicazione delle Direttive · Aplicacion de la(s) directiva(s) del consejo · Aplicacao de directiva(s) do Conselho

Producer Name • Naam fabrikant • Nom du produitur • Name des Herstellers • Nome del produttore • Nombre del fabricante • Nome do fabricante

Producer Address · Adres fabrikant · Adresse du producteur · Anschrift des Herstellers · Indirizzo del produttore · Dirección del fabricante · Endereço do fabricante

Soup Kettle

L714 L715 G107 CP851

Low Voltage Directive (LVD) 2014/35/EU - recast of 2006/95/EC

EN 60335-1:2012 +AC:2014 +A11:2014

EN 60335-2-15:2002 +AC:2005 +A1:2005 +AC:2006

+A2:2008 +A11:2012 +A11:2012/AC:2013

Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/EC

EN 55014-1:2006 +A1:2009 +A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Restriction of Hazardous Substances Directive (RoHS) 2011/65/EU

EN 50581:2012

Energy-related Products Directive (ERP) 2009/125/EC

Commission Regulation (EC) 1275/2008 - ecodesign requirements standby and off mode electrical power consumption

Buffalo

Fourth Way,

Avonmouth,

Bristol,

BS11 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

Technical & Quality Manager
