CP851 - Soup maker BUFFALO - Free user manual and instructions

Product Type	Electric Soup Kettle
Brand	Buffalo
Model	CP851
Height	375 mm
Width	330 mm
Depth	330 mm
Weight	4.3 kg
Supply Voltage	230 V
Frequency	50 Hz
Power	400 W
Current	1.9 A
Capacity	10 L
Temperature Range	1 (min) to 12 (max)
Package Contents	Soup kettle, lid, magnetic labeling strip, 13 labels, instruction manual
Exterior Cleaning	Damp cloth with soapy water
Cleaning of container and lid	Dishwasher
Safety	Hot surface, do not immerse, grounding required
Certifications	EN 60335-1, EN 60335-2-15

Frequently Asked Questions - CP851 BUFFALO

How to use the Buffalo CP851 Soup Kettle?

Fill the outer shell with approximately 600 ml of water between the MIN and MAX marks. Place the removable container, add hot soup, close the lid, and set the thermostat from 1 (minimum) to 12 (maximum). The power light turns on. To keep warm, use the lowest possible setting.

How much water to put in the outer shell?

Pour approximately 600 ml of water, respecting the MIN and MAX marks inside the outer shell. Do not exceed the MAX mark.

Can I wash the container and lid in the dishwasher?

Yes, the removable container and the lid can be washed in the dishwasher. The exterior of the appliance must be cleaned with a damp cloth and soapy water.

What to do if the appliance does not heat?

Check that the thermostat is set to a value above 0 and that the appliance is plugged in. If the problem persists, the cord or plug may be damaged. Contact a qualified technician or a Buffalo agent.

Is it possible to heat cold food with this appliance?

No, the appliance is not designed to heat cold food. It is intended to keep warm already hot soups.

How to set the temperature?

Turn the thermostat to the desired value, from 1 (lowest temperature) to 12 (highest temperature). For optimal holding, use the lowest possible setting.

Is the appliance safe to use?

Yes, but follow the instructions: never immerse the appliance, do not move while powered, do not use without water in the shell, and allow to cool before cleaning. The appliance is grounded and must be used on a stable surface.

How to clean the exterior of the appliance?

Unplug the appliance and clean the exterior with a damp cloth moistened with soapy water. Do not use a pressure washer and do not immerse the appliance in water.

What to do in case of malfunction?

First consult the troubleshooting table in the manual. If the problem persists (e.g., the appliance does not turn on, the soup does not heat), contact a qualified technician or a Buffalo agent. Do not attempt to repair yourself.

How to install the lid?

Slide the lid onto the top of the kettle. The center of the lid is hinged: lift one half to access the container. The lid should remain closed when the appliance is not in use.

USER MANUAL CP851 BUFFALO

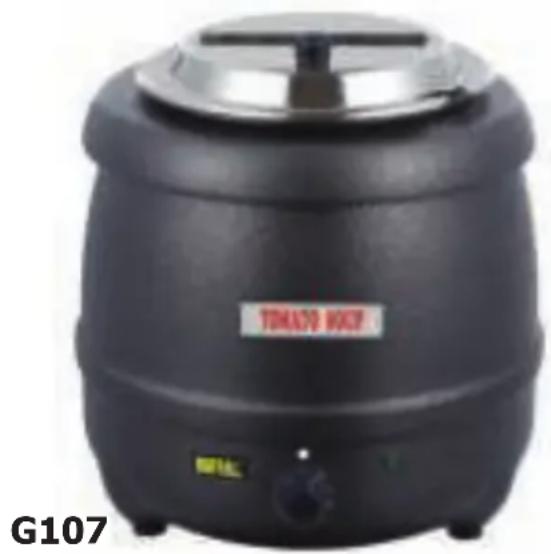

Black industrial food pot with a lid and label, no visible text or symbols on the device itself.

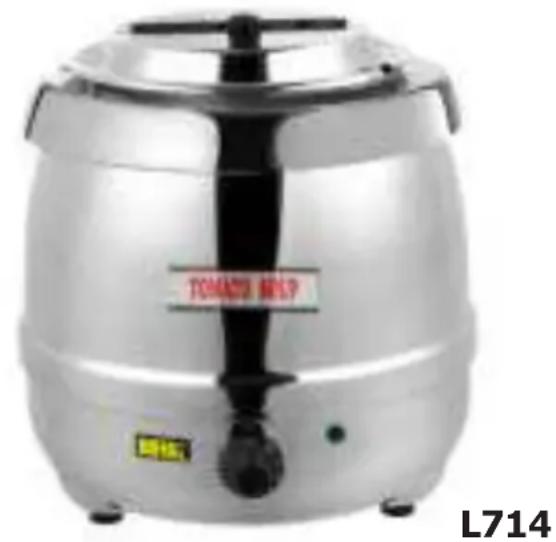

TOMATO BRI5P L714

TOMATO BICEP G107

Exterior view of a copper-colored industrial water heater (no visible text or symbols)

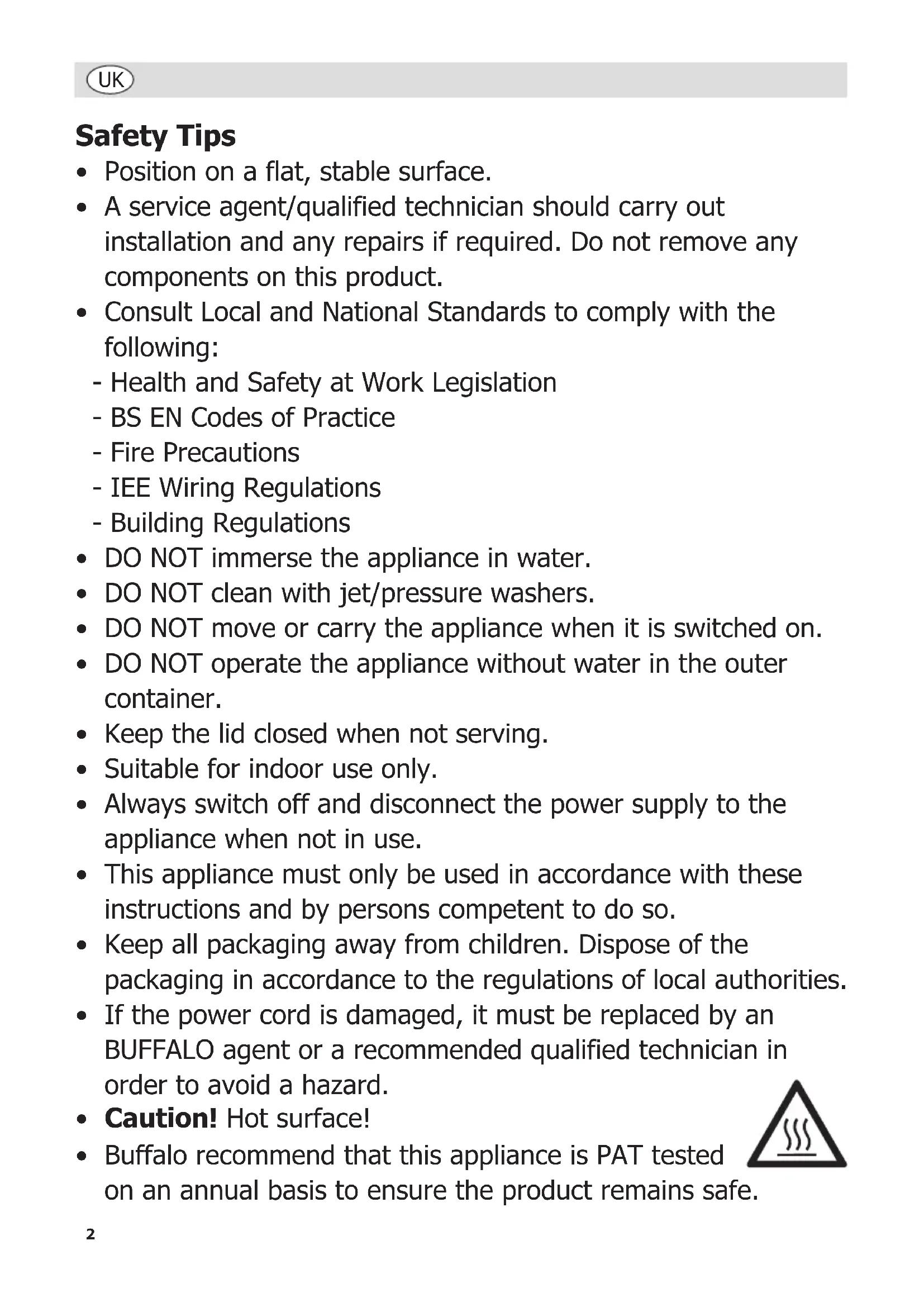

- Position on a flat, stable surface.

- A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.

- Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation
• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations
• Building Regulations

• DO NOT immerse the appliance in water.

• DO NOT clean with jet/pressure washers.

• DO NOT move or carry the appliance when it is switched on.

- DO NOT operate the appliance without water in the outer container.

- Keep the lid closed when not serving.

- Suitable for indoor use only.

- Always switch off and disconnect the power supply to the appliance when not in use.

- This appliance must only be used in accordance with these instructions and by persons competent to do so.

- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.

- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

- Caution! Hot surface!

- Buffalo recommend that this appliance is PAT tested on an annual basis to ensure the product remains safe.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Soup Kettle

• Magnetic label Strip x 1

- Instruction manual

- Lid

- Contents labels x 13

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Fit the Lid

- Slot the lid on top of the appliance.

Note: The lid is hinged in the middle. Lift one half of the lid to access the container.

Attaching Labels

1. Slide the relevant label into the magnetic label holder.

2. Attach the holder to the side of the appliance.

Note: If the desired label is not included, simply write the name of the product on the reverse of one of the labels.

Operation

1. Connect the appliance to the mains power supply.

2. Fill the outer container with approximately 600ml of water (MIN / MAX WATERLINE). Do not exceed the MAX marking.

3. Carefully place the inner container into the appliance.

Note: The inner container must NOT float, even when empty. If the container floats reduce the amount of water in the outer container.

1. Fill the inner container with hot soup and close the lid.

Note: If necessary, remove any excess water from the outer container.

1. Set the temperature control. The temperature ranges from 1 (lowest) to 12 (highest).
2. The Power light will come on and remain on and the kettle will begin to heat up.

Note: Kettle is not designed to heat food from cold.

Close-up of a black circular dial with numbers 0 to 40, next to a small circular button (no visible text or symbols)

1. Reduce the temperature to maintain heat levels. To maintain temperature, BUFFALO recommend the lowest heat setting possible.
2. Use a suitable implement to remove the contents of the kettle. DO NOT tip the kettle to remove the contents.
3. To turn the appliance Off, set the Temperature Control to '0'.

WARNING: Never move or carry the appliance when it is switched on or contains hot liquid.

Cleaning, Care & Maintenance

• Always turn off and disconnect the appliance from the power supply before cleaning.
- Clean any spilt food on the appliance immediately.
- Use soapy water and a damp cloth to clean the exterior of the appliance.
- The inner container and lid are machine washable.
• Dry thoroughly after cleaning.

Technical Specifications

Model Voltage	Power Current			Capacity (litres)	Weight	Dimensions w x d x h mm
G107 / L714L715 / CP851	230V 50Hz 400W 1.9A 10	4.3kg 375	x 330 x 330

Troubleshooting

Fault Probable Cause Solution
The unit is not working	The unit is not switched on Check the	unit is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified Technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
Soup not heating up	Insufficient temperature setting Increase temperature setting

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Close-up of a black circular dial with numbers 0 to 12, next to a small circular button (no visible text or symbols)

Close-up of a black rotary dial with numbers 0 to 4 and a small circular button on the right (no visible text or symbols)

Close-up of a black circular dial with numbers 0 to 50, next to a small circular button (no visible text or symbols)

Close-up of a black circular dial with numbers 0 to 40, next to a small circular button (no visible text or symbols)

Close-up of a black rotary dial with numeric markings and a small circular button on the right (no readable text or symbols)

Colocar as etiquetas

Close-up of a black circular dial with numbers 0 to 12, next to a small circular button (no visible text or symbols)

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/EC

EN 55014-1:2006 +A1:2009 +A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Restriction of Hazardous Substances Directive (RoHS) 2011/65/EU

EN 50581:2012

Energy-related Products Directive (ERP) 2009/125/EC

Commission Regulation (EC) 1275/2008 - ecodesign requirements standby and off mode electrical power consumption

Buffalo

Fourth Way,

Avonmouth,

Bristol,

BS11 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

Technical & Quality Manager

BUFFALC

http://www.buffalo-appliances.com/

G107_L714-L715_CP851_ML_A5_v5_170524
