Product type	Soup maker (electric soup warmer)
Brand	Buffalo
Model	L714
Voltage	230 V, 50 Hz
Power	400 W
Current	1.9 A
Capacity	10 liters
Weight	4.3 kg
Dimensions (H x W x D)	375 x 330 x 330 mm
Thermostat	Setting from 1 (minimum) to 12 (maximum)
Functions	Keep warm, reheating
Package contents	Electric soup warmer, label strip, 13 content labels, magnetic lid, instruction manual
Cleaning	Removable container and lid dishwasher safe
Safety	Do not immerse, do not clean with jet, do not move while powered on, use indoors only
Electrical connection	Must be grounded
Use	Fill the outer shell with approximately 600 ml of water; do not let the container float
Instructions	Read the manual before use

Frequently Asked Questions - L714 BUFFALO

How to use the Buffalo L714 soup warmer?

Plug in the appliance, fill the outer shell with approximately 600 ml of water, place the removable container, pour hot soup, close the lid, set the thermostat from 1 to 12, and wait for the indicator light. Never move the appliance while powered on or with hot liquid.

How much water should I put in the outer shell?

Approximately 600 ml of water. Adjust if the container floats: reduce the amount of water.

How to adjust the temperature?

Use the rotary thermostat: from 1 (minimum) to 12 (maximum). To keep warm, set to the lowest possible setting.

How to clean the appliance?

Always unplug the appliance before cleaning. Clean the exterior with a damp cloth. The removable container and lid can be washed in the dishwasher. Never immerse the appliance.

What to do if the appliance does not heat up?

Check that the appliance is plugged in and turned on, and that the temperature is not set too low. If the problem persists, the cord or plug may be damaged: contact a qualified technician.

Can the soup warmer be moved with hot liquid?

No, never move or transport the soup warmer while powered on or full of hot liquid. Wait for it to cool down.

What accessories are supplied?

The soup warmer comes with a label strip, 13 content labels, a magnetic lid, and an instruction manual.

What is the capacity of the soup warmer?

The capacity is 10 liters.

Can I wash the container in the dishwasher?

Yes, the removable container and lid are dishwasher safe. Wipe them dry after washing.

Is the appliance suitable for professional use?

Yes, this appliance is designed for professional use, reserved for trained personnel. Follow safety instructions and local regulations.

USER MANUAL L714 BUFFALO

UK Table of Contents

Safety Tips 1

Introduction

Pack Contents 1

Installation 1

Fit the Lid 2

Attaching Labels 2

Operation 2

Cleaning, Care & Maintenance 2

Troubleshooting 3

Technical Specifications 3

Electrical Wiring 3

Compliance 3

NL Inhoudsopgave

Veiligheidstips 4

Inleiding 4

Verpakkingsinhoud 4

Installatie 4

De dekselplaatsen 5

Labels aanbrengen 5

Bediening 5

Spcifications techniques 9

Raccordement electrique 9

Conformité 9

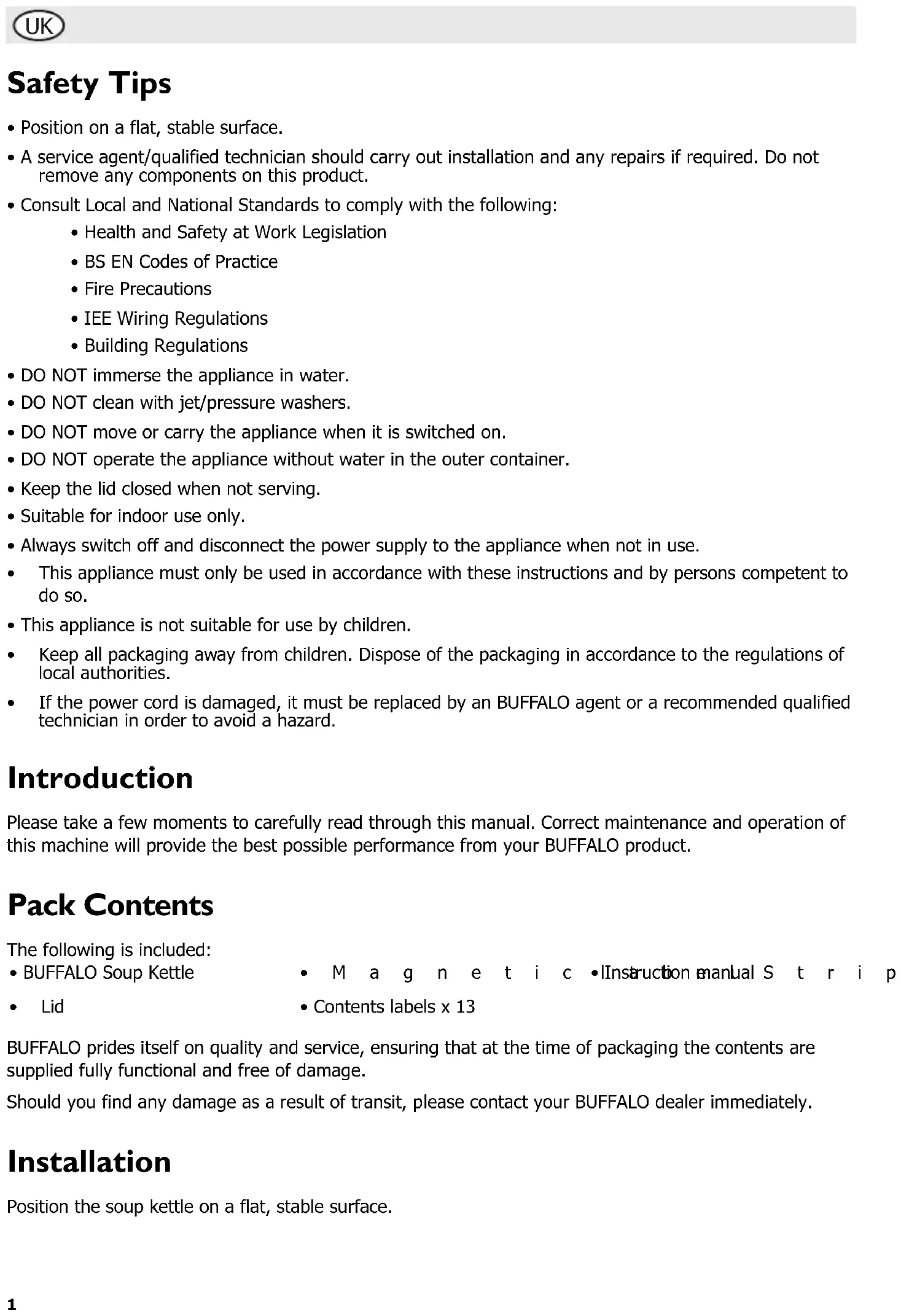

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
DO NOT clean with jet/pressure washers.
DO NOT move or carry the appliance when it is switched on.
DO NOT operate the appliance without water in the outer container.
- Keep the lid closed when not serving.
- Suitable for indoor use only.
- Always switch off and disconnect the power supply to the appliance when not in use.
This appliance must only be used in accordance with these instructions and by persons competent to do so.
- This appliance is not suitable for use by children.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by an BUFFALO agent or a recommended qualified technician in order to avoid a hazard.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Soup Kettle

• Mag n e t i c -Instruction manual S t r i p

Lid

• Contents labels x 13

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Position the soup kettle on a flat, stable surface.

Fit the Lid

1. Slot the lid on top of the appliance

Note: The lid is hinged in the middle. Lift one half of the lid to access the container.

Attaching Labels

1. Slide the relevant label into the magnetic label holder.
2. Attach the holder to the side of the appliance.

Note: If the desired label is not included, simply write the name of the product on the reverse of one of the labels.

Operation

1. Connect the appliance to the mains power supply.
2. Fill the outer container with approximately 600ml of water.
3. Carefully place the inner container into the appliance.

Note: The inner container must NOT float, even when empty. If the container floats reduce the amount of water in the outer container.

1. Fill the inner container with hot soup and close the lid.

Note: If necessary, remove any excess water from the outer container.

1. Set the temperature control. The temperature ranges from 1 (lowest) to 12 (highest).
2. The Power light will come on and the kettle will begin to heat up.

Note: Kettle is not designed to heat food from cold.

1. Reduce the temperature to maintain heat levels. To maintain temperature, BUFFALO recommend the lowest heat setting possible.
2. Use a suitable implement to remove the contents of the kettle. DO NOT tip the kettle to remove the contents.
3. To turn the appliance Off, set the Temperature Control to '0'.

WARNING: Never move or carry the appliance when it is switched on or contains hot liquid.

Cleaning, Care & Maintenance

• Always turn off and disconnect the appliance from the power supply before cleaning.
• Clean any spilt food on the appliance immediately.
• Use soapy water and a damp cloth to clean the exterior of the appliance.
• The inner container and lid are machine washable.
• D r y t h o r o u g h l y after cleaning.

Troubleshooting

Fault Probable Cause Action
The unit is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
Soup not heating up	Insufficient temperature setting Increase temperature setting

Technical Specifications

Model	Voltage	Power	Current	Capacity (litres)	Weight	Dimensions w x d x h mm
G107 / L714 / L715	230V 50Hz	400W	1,9A	10	4,3 kgs	375 x 330 x 330

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Specifications techniques

Colocar as etiquetas

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

• Declaración de conformidad • Declaração de conformidade • Überensstämmlseförsakran
  Overensstemmelseserklaering · Konformitetserklaering · Selvitys vaatimustenmukaisuudesta ·

Low Voltage Directive 2006/95/EC

EMC Directive 93/68/EEC

EN 55014-1:2000+A1:2001+A2:2002

EN 55014-2:1997+A1:2001, EN61000-3-2:2000,

EN 61000-3-3:1995+AI:2001, EN 60335-2-15:2002+AI:2005

EN 60335-1:2002+A1:2004+A11:2004+A12:2006+A2:2006

BUFFALO

Fourth Way

Avonmouth

Bristol

BS118TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
