Product type	Cylindrical soup pot
Brand	Buffalo
Model	GH227
Capacity	5.7 litres
Power supply	230 V / 50 Hz
Power	300 W
Current	1.3 A
Dimensions (height x diameter)	348 x 255 mm
Weight	3.4 kg
Interior container material	Stainless steel
Adjustable thermostat	Yes, with indicator light
Heating indicator	Yes (lights up during temperature rise)
Care and cleaning	Wash the inner container, top ring and lid with soapy water; wipe the main body without immersing it
Safety	Do not use outdoors; do not clean with water jet; grounding required
Spare parts and repairability	Contact a qualified BUFFALO technician for any repairs
Package contents	Main body, inner container, top ring, lid
Use	Keeping soups and hot foods warm
Warranty	Consult an authorized dealer

Frequently Asked Questions - GH227 BUFFALO

How to use the Buffalo GH227 soup pot?

Place the metal collar on the body, insert the inner container, pour in hot soup, place the lid, plug in the appliance, turn the control knob clockwise to heat. The indicator light stays on until the selected temperature is reached.

What is the capacity of the GH227 soup pot?

The capacity is 5.7 litres.

How to clean the Buffalo soup pot?

Unplug and let cool. Wash the inner container, top ring and lid in hot soapy water. Wipe the inside and outside of the main body with a damp cloth. Never immerse the main body in water.

What should I do if the indicator light does not come on and the pot does not heat?

Check that the appliance is plugged in and powered on. If the socket fuse is defective, replace it. If the cable or thermostat is damaged, contact your BUFFALO dealer.

The indicator light comes on but the pot does not heat, what should I do?

This may indicate a defective heating element or thermostat. Contact your BUFFALO dealer for repair by a qualified technician.

Can I use the pot outdoors?

No, the appliance is designed for indoor use only. Do not use outdoors.

What are the materials of the inner container?

The inner container is made of stainless steel.

How to set up the pot for the first time?

Remove all packaging, wash the inner container, top ring and lid in hot soapy water, rinse and dry. Plug the appliance into a suitable outlet.

What is the power of the appliance?

The power is 300 watts.

Where can I find spare parts for the Buffalo GH227 soup pot?

For any spare parts or repairs, contact an authorized BUFFALO dealer or a qualified technician.

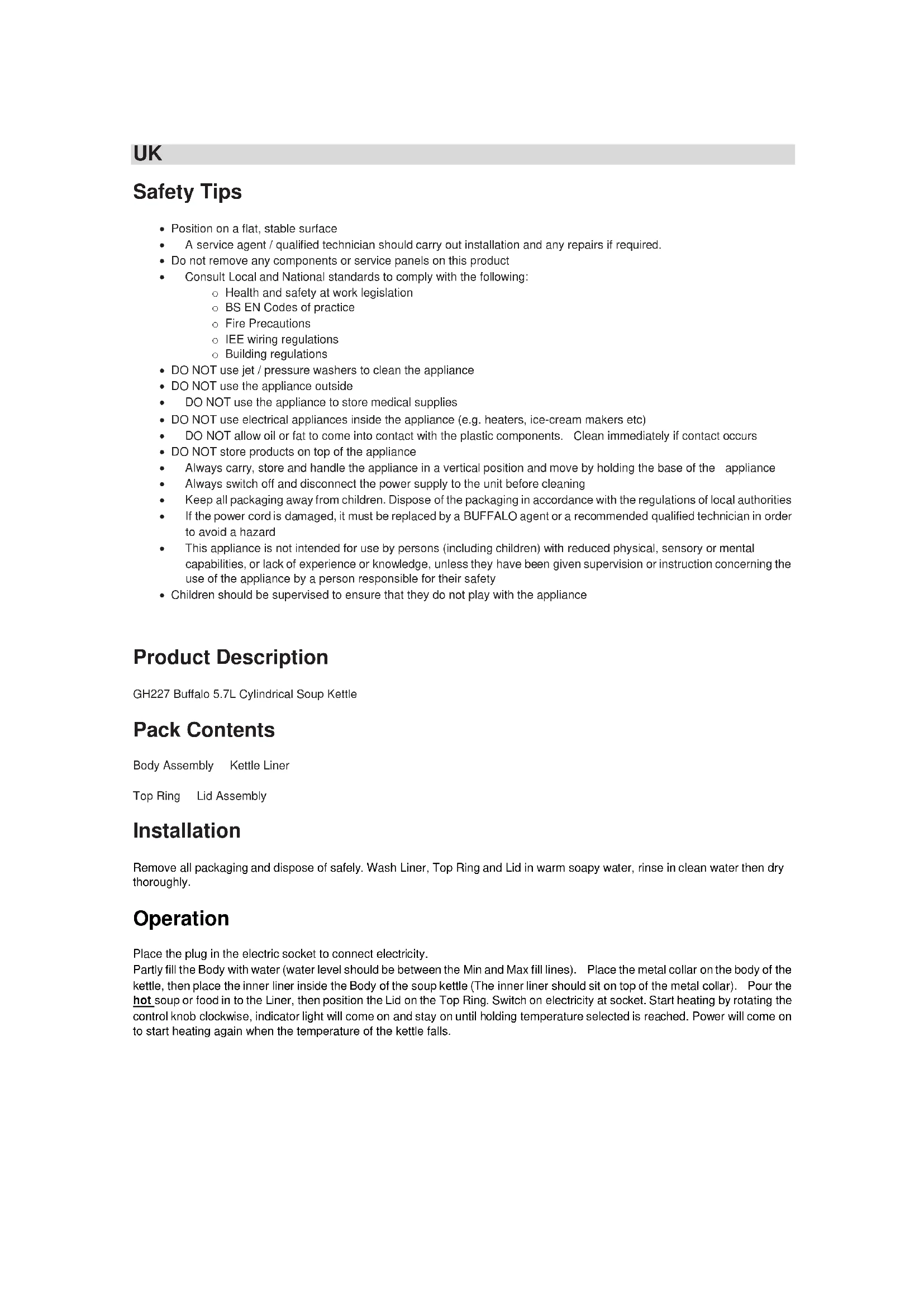

USER MANUAL GH227 BUFFALO

Red industrial rice cooker with stainless steel lid and control knob (no visible text or symbols)

NL Soup Kele Handleiding

• Position on a flat, stable surface
• Do not remove any components or service panels on this product
• Consult Local and National standards to comply with the following:
  o Health and safety at work legislation
• BS EN Codes of practice
• Fire Precautions
• IEE wiring regulations
  ○ Building regulations

• A service agent / qualified technician should carry out installation and any repairs if required.

• DO NOT use jet / pressure washers to clean the appliance

• DO NOT use the appliance outside

• DO NOT use the appliance to store medical supplies

- DO NOT use electrical appliances inside the appliance (e.g. heaters, ice-cream makers etc)

• DO NOT allow oil or fat to come into contact with the plastic components. Clean immediately if contact occurs

- DO NOT store products on top of the appliance

• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance

• Always switch off and disconnect the power supply to the unit before cleaning

- Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities

- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety

- Children should be supervised to ensure that they do not play with the appliance

Product Description

GH227 Buffalo 5.7L Cylindrical Soup Kettle

Pack Contents

Body Assembly Kettle Liner

Top Ring Lid Assembly

Installation

Remove all packaging and dispose of safely. Wash Liner, Top Ring and Lid in warm soapy water, rinse in clean water then dry thoroughly.

Operation

Place the plug in the electric socket to connect electricity.

Partly fill the Body with water (water level should be between the Min and Max fill lines). Place the metal collar on the body of the kettle, then place the inner liner inside the Body of the soup kettle (The inner liner should sit on top of the metal collar). Pour the hot soup or food in to the Liner, then position the Lid on the Top Ring. Switch on electricity at socket. Start heating by rotating the control knob clockwise, indicator light will come on and stay on until holding temperature selected is reached. Power will come on to start heating again when the temperature of the kettle falls.

Cleaning, Care & Maintenance

Disconnect from electricity supply, allow to cool before emptying the water from the Body, always use fresh water when the kettle is to be used.

Always wash the Kettle Liner, Top Ring and Lid after every use. Wipe both exterior and interior of the Body to remove any food residues, do not immerse the Body in water or clean with a pressure washer.

Trouble Shoong

Fault	Probable Cause	Action Required
Indicator Light does not come on & Warmer does not heat up	Power is not switched at socket	Turn power on at socket
	Plug fuse has failed	Change fuse
	Power cable is damaged	Call BUFFALO dealer for repair service
	Thermostat has failed	Call BUFFALO dealer for repair service
Indicator Light comes on but Warmer does not heat up	Heating element has failed	Call BUFFALO dealer for repair service
	Thermostat has failed	Call BUFFALO dealer for repair service

Technical Specicaons

Code	Voltage	Power Watts	Current Amps	Dimensions mm	Weight Kgs
GH227	230V/50Hz	300	1.3	348 x 255∅	3.4kg

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 3 amp fuse as standard. The plug is to be connected to a suitable mains socket. The appliance is wired as follows:

Live wire(coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit. If in doubt, consult a qualified electrician. Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible

Disposal

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area

UK

Compliance

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent and federal authorities

BUFFALO products have been approved to carry the following symbol:

Veiligheidstips

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento	Soup Kettle
Model • Modèle • Modell • Modello • Modelo • Malli	GH227
Application of Council Directives(s)Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho	LVD 2006/95/ECEMC 2004/108/ECROHS 2011/65/EU
StandardsStandaarden • Normes • Normen • Standard • Estándares • Normas	EN 60335-1:2002+A12:2006EN 60335-2-15:2002+A1:2005EN 55014-1:2006EN 55014-2:1997+A1:2001EN 61000-3-2:2006EN 61000-3-3:1995+A2:2005EN 62321:2008
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers • Nome del produttore • Nombre del fabricante • Nome do fabricante	Buffalo
Producer Address • Adres fabrikant • Adresse du producteur • Anschrift des Herstellers • Indirizzo del produttore • Dirección del fabricante • Endereço do fabricante	Fourth Way,Avonmouth,Bristol,BS11 8TBUnited Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
