USER MANUAL DDA450RTE MAKITA

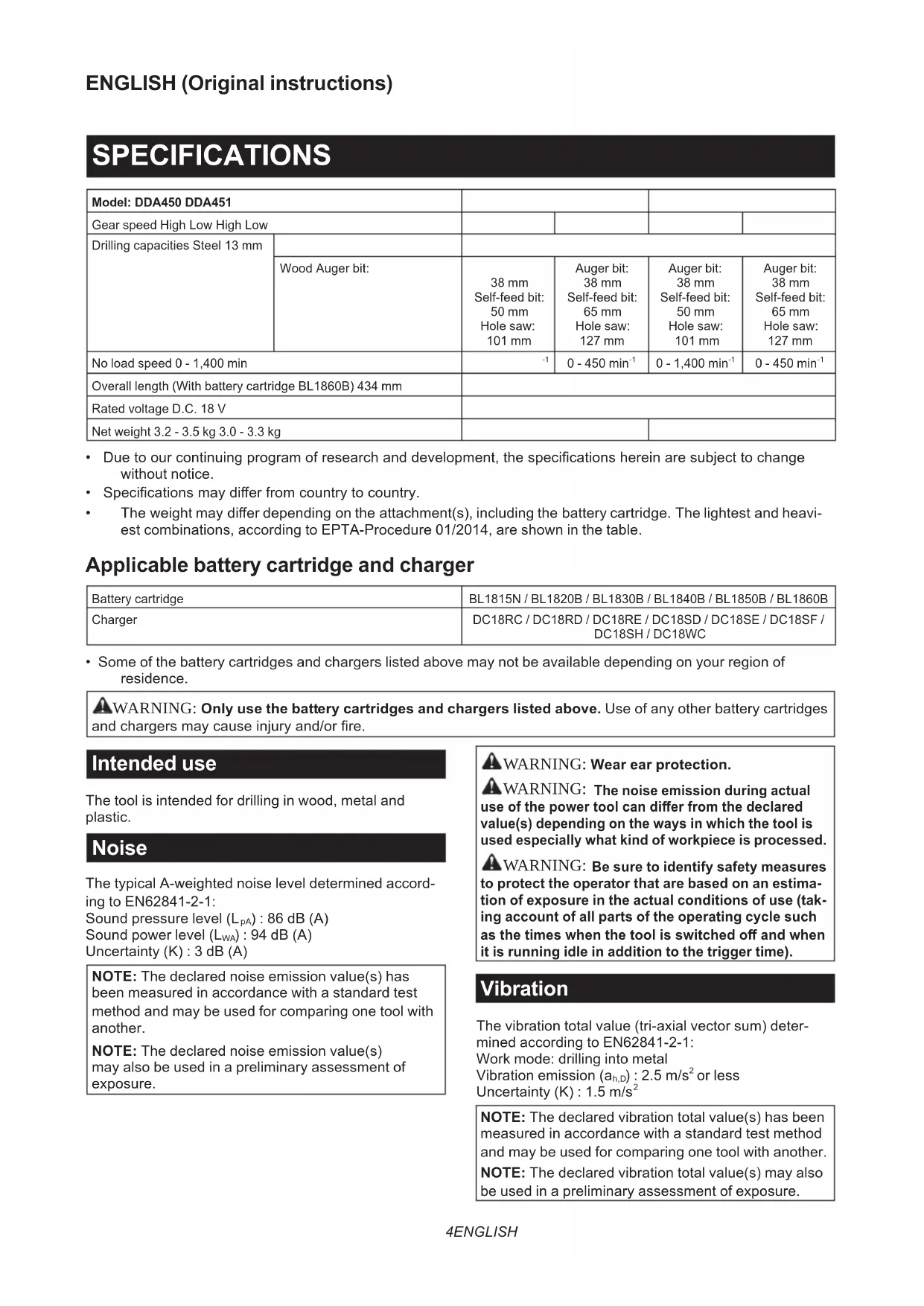

Overall length (With battery cartridge BL1860B) 434 mm Rated voltage D.C. 18 V Net weight 3.2 - 3.5 kg 3.0 - 3.3 kg

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange without notice.

• Specicationsmaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combinations, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH / DC18WC

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

andchargersmaycauseinjuryand/orre. Intended use The tool is intended for drilling in wood, metal and plastic. Noise The typical A-weighted noise level determined accord- ing to EN62841-2-1: Sound pressure level (L

) : 94 dB (A) Uncertainty (K) : 3 dB (A) NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

The noise emission during actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

Be sure to identify safety measures to protect the operator that are based on an estima- tion of exposure in the actual conditions of use (tak- ing account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter- mined according to EN62841-2-1: Work mode: drilling into metal Vibration emission (a h,D ) : 2.5 m/s

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.5 ENGLISH

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Declarations of Conformity For European countries only The Declarations of conformity are included in Annex A to this instruction manual. SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listedbelowmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Cordless drill safety warnings Safety instructions for all operations

1. Use the auxiliary handle(s). Loss of control can

causepersonalinjury.

Hold the power tool by insulated gripping sur- faces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

3. Always be sure you have a rm footing. Be

sure no one is below when using the tool in high locations.

4. Hold the tool rmly.

5. Keep hands away from rotating parts.

6. Do not leave the tool running. Operate the tool

only when hand-held.

7. Do not touch the drill bit or the workpiece

immediately after operation; they may be extremely hot and could burn your skin.

8. Some material contains chemicals which may

be toxic. Take caution to prevent dust inhala- tion and skin contact. Follow material supplier safety data.

9. If the drill bit cannot be loosened even you

open the jaws, use pliers to pull it out. In such a case, pulling out the drill bit by hand may result in injurybyitssharpedge.

10. If something wrong with the tool such as

abnormal sounds, stop operating immediately and ask your local Makita Service Center for repair.

11. Before operation, make sure that there is no

buried object such as electric pipe, water pipe or gas pipe in the ground. Otherwise, the tool may touch them, resulting an electric shock, elec- trical leakage or gas leak. Safety instructions when using long drill bits

1. Never operate at higher speed than the max-

imum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting inpersonalinjury.

2. Always start drilling at low speed and with the

bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting inpersonalinjury.

3. Apply pressure only in direct line with the bit

and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting inpersonalinjury. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain.6 ENGLISH A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tapeormasko󰀨opencontactsandpackupthe battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmaycauseheating,catchingre, burst and malfunction of the tool or battery car- tridge,resultinginburnsorpersonalinjury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causingres,personalinjuryanddamage.Itwill also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridgermlymaycausethemtoslipo󰀨yourhands and result in damage to the tool and battery cartridge andapersonalinjury. ►Fig.1: 1. Red indicator 2. Button 3. Battery cartridge To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as showninthegure,itisnotlockedcompletely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthetool,causinginjuryto you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.7 ENGLISH Indicating the remaining battery capacity Only for battery cartridges with the indicator ►Fig.2: 1. Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly from the actual capacity. NOTE:Therst(farleft)indicatorlampwillblinkwhen the battery protection system works. Tool / battery protection system The tool is equipped with a tool/battery protection sys- tem.Thissystemautomaticallycutso󰀨powertothe motor to extend tool and battery life. The tool will auto- matically stop during operation if the tool or battery is placed under one of the following conditions: Overload protection When the tool/battery is operated in a manner that causes it to draw an abnormally high current, the tool stopsautomatically.Inthissituation,turnthetoolo󰀨 and stop the application that caused the tool to become overloaded. Then turn the tool on to restart. Overheat protection When the tool/battery is overheated, the tool stops automatically and the lamp will blink. In this situation, let the tool cool down before turning the tool on again. Overdischarge protection When the battery capacity is not enough, the tool stops automatically. In this case, remove the battery from the tool and charge the battery. Switch action CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. ►Fig.3: 1. Switch trigger To start the tool, pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. NOTE: The tool automatically stops if you keep pull- ing the switch trigger for about 6 minutes. Lighting up the front lamp CAUTION: Do not look in the light or see the source of light directly. ►Fig.4: 1. Lamp Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out approximately 10 seconds after releasing the switch trigger. NOTE: When the tool is overheated, the tool stops automaticallyandthelampstartsashing.Inthis case,releasetheswitchtrigger.Thelampturnso󰀨in 1 minute(s). NOTE:Useadryclothtowipethedirto󰀨thelensof the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. Reversing switch action CAUTION: Always check the direction of rotation before operation. CAUTION: Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may dam- age the tool. CAUTION: When not operating the tool, always set the reversing switch lever to the neu- tral position. This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for coun- terclockwise rotation. When the reversing switch lever is in the neutral posi- tion, the switch lever cannot be pulled. ►Fig.5: 1. Reversing switch lever8 ENGLISH Speed change NOTICE: Use the speed change knob only after the tool comes to a complete stop. Changing the tool speed before the tool stops may damage the tool. NOTICE: Always set the speed change knob carefully into the correct position. If you operate the tool with the speed change knob positioned half- way between the position 1 and the position 2, the tool may be damaged. NOTICE: If the rotation speed signicantly decreases during operation in the high speed mode, stop the tool and change the mode to the low speed mode. Otherwise, the motor may get overloadedandcauseamalfunctionorre. Two speed ranges can be preselected with the speed change knob. To change the speed, turn the speed change knob so that the pointer points to the position 1 for low speed mode or the position 2 for high speed mode. ►Fig.6: 1. Pointer 2. Speed change knob Electronic function Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly cease to function after the switch trigger is released, have the tool serviced at a Makita service center. Soft start feature This function allows the smooth start-up of the tool by limiting the start-up torque. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. Installing side grip (auxiliary handle) CAUTION: Always be sure that the side grip is installed securely before operation. Screw the side grip on the tool securely. The side grip can be installed on either side of the tool, whichever is convenient. ►Fig.7: 1. Side grip Installing key holder (Country specic) CAUTION: Always be sure that the key holder is installed securely before operation. Screw the key holder on the tool securely. Then place the chuck key in position. ►Fig.8: 1. Key holder 2. Screw 3. Chuck key Installing or removing drill bit For model DDA450 To install the drill bit, place it in the chuck as far as it will go. Tighten the chuck by hand. Place the chuck key in each of the three holes and tighten clockwise. Be sure to tighten all three chuck holes evenly. To remove the drill bit, turn the chuck key counterclock- wiseinjustonehole,thenloosenthechuckbyhand. ►Fig.9: 1. Chuck key After use, return the chuck key to the key holder on the tool as illustrated. ►Fig.10: 1. Key holder For model DDA451 Use only the drill bit designed with dimensions shown inthegure. A=11.2mm(7/16″) ►Fig.11 To install the drill bit, pull the sleeve in the direction of the arrow and insert the drill bit into the sleeve as far as it will go. Then release the sleeve to secure the drill bit. To remove the drill bit, pull the sleeve in the direction of the arrow and pull the drill bit out. ►Fig.12: 1. Drill bit 2. Sleeve NOTE: If the drill bit is not inserted deep enough into the sleeve, the sleeve will not return to its original position and the drill bit will not be secured. In this case, try re-inserting the drill bit according to the instructions above. NOTE: After inserting the drill bit, make sure that it is rmlysecured.Ifitcomesout,donotuseit. Hook CAUTION: Always remove the battery when hanging the tool with the hook. CAUTION: Never hook the tool at high loca- tion or on potentially unstable surface. The hook is convenient for temporarily hanging the tool. To use the hook, simply lift up hook until it snaps into the open position. When not in use, always lower hook until it snaps into the closed position. ►Fig.13: 1. Hook ►Fig.149 ENGLISH Connecting lanyard (tether strap) to the hook CAUTION: Do not use damaged hook and screws. Before use, always check for damages, cracks or deformations, and make sure that the screws are tightened. CAUTION: Make sure that the hook is securely installed with the screws. CAUTION: Do not install or remove any accessory while hanging the tool. The tool may fall if the screws are not tightened. CAUTION: Always use a locking carabiner (multi-action and screw gate type) and be sure to attach the lanyard (tether strap) to the double looped portion of the hook. Improper attachment may cause tool drop from the hook and result in personalinjury. The hook is also used for connecting the lanyard (tether strap). Be sure to connect the lanyard (tether strap) to the double looped portion of the hook. ►Fig.15: 1. Double looped portion of the hook

2. Lanyard (tether strap) 3. Locking cara-

biner (multi-action and screw gate type) OPERATION CAUTION: Always insert the battery cartridge all the way until it locks in place. If you can see the red indicator on the upper side of the button, it is not locked completely. Insert it fully until the red indicator cannot be seen. If not, it may accidentally fall out of thetool,causinginjurytoyouorsomeonearound you. CAUTION: When the speed comes down extremely, reduce the load or stop the tool to avoid the tool damage. CAUTION: Hold the tool rmly when operat- ing the tool. Holding tool CAUTION: This is a powerful tool. High torque is developed and it is important that the tool should be securely held and properly braced. Grasp the handle with one hand and the front handle with the other hand. ►Fig.16: 1. Front handle 2. Handle Drilling operation Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the drill bit into the workpiece. Drilling in metal To prevent the drill bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the drill bit in the indentation and start drilling. Use a cutting lubricant when drilling metals. The excep- tions are iron and brass which should be drilled dry. CAUTION: Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your drill bit, decrease the tool performance and shorten the service life of the tool. CAUTION: Hold the tool rmly and exert care when the drill bit begins to break through the workpiece. There is a tremendous force exerted on the tool/drill bit at the time of hole break through. CAUTION: A stuck drill bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it rmly. CAUTION: Always secure workpieces in a vise or similar hold-down device. CAUTION: Avoid drilling in material that you suspect contains hidden nails or other things that may cause the drill bit to bind or break. CAUTION: If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery. Lanyard (tether strap) connection Safety warnings specic for use at height Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in seriousinjury.

Always keep the tool tethered when working "at height". Maximum lanyard length is 2 m (6.5 ft). The maximum permissible fall height for lan- yard (tether strap) must not exceed 2 m (6.5 ft).

2. Use only with lanyards appropriate for this tool

type and rated for at least 5.0 kg (11.0 lbs).

3. Do not anchor the tool lanyard to anything on

your body or on movable components. Anchor the tool lanyard to a rigid structure that can withstand the forces of a dropped tool.

4. Make sure the lanyard is properly secured at

each end prior to use.

5. Inspect the tool and lanyard before each use

for damage and proper function (including fabric and stitching). Do not use if damaged or not functioning properly.

6. Do not wrap lanyards around or allow them to

come in contact with sharp or rough edges.

7. Fasten the other end of the lanyard outside

the working area so that a falling tool is held securely.

8. Attach the lanyard so that the tool will move

away from the operator if it falls. Dropped tools willswingonthelanyard,whichcouldcauseinjury or loss of balance.10 ENGLISH

9. Do not use near moving parts or running

machinery. Failure to do so may result in a crush or entanglement hazard.

10. Do not carry the tool by the attachment device

11. Only transfer the tool between your hands

while you are properly balanced.

12. Do not attach lanyards to the tool in a way that

keeps guards, switches or lock-o󰀨s from oper- ating properly.

13. Avoid getting tangled in the lanyard.

14. Keep lanyard away from the cutting area of the

15. Use multi-action and screw gate type cara-

bineers. Do not use single action spring clip carabineers.

16. In the event the tool is dropped, it must be

tagged and removed from service, and should be inspected by a Makita Factory or Authorized Service Center. MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
