Product type	Cordless drill/driver
Brand	Scheppach
Model	CID3020Li
Nominal voltage	20 V
Rotation speed (1st gear)	0 - 350 rpm
Rotation speed (2nd gear)	0 - 1300 rpm
Chuck clamping range	Up to 10 mm
Max torque	30 Nm
Battery type	Lithium-Ion (Li-Ion)
Battery voltage	20 V
Battery capacity	1.5 Ah (30 Wh)
Number of batteries included	2
Fast charger	Input: 220-240 V, 50-60 Hz; Output: 20 V, 2 A
Sound power level (L_WA)	80.48 dB(A)
Sound pressure level (L_pA)	69.48 dB(A)
Vibration (a_b)	2.08 m/s²
Weight	Not specified (estimated ~1.5 kg with battery)
Dimensions	Not specified
Main functions	Drilling, screwdriving, 2 speeds, torque adjustment, LED light, spindle lock
Chuck type	Keyless chuck
Protection	Hearing protection, dust mask, safety glasses
Maintenance and cleaning	Clean with a damp cloth, no harsh chemicals; remove battery before cleaning
Wear parts	Carbon brushes
Repairability	Repairs by a qualified electrician; use original parts
Warranty	Legal warranty, defective parts replaced free of charge

Frequently Asked Questions - CID3020Li SCHEPPACH

How to change the rotation direction of the drill?

Use the direction switch located above the handle. Push it to the right for forward rotation (tightening) or to the left for reverse rotation (loosening). To lock the appliance, set the switch to the middle position.

What is the battery capacity and how to charge it?

The battery is a Lithium-Ion 20 V, 1.5 Ah type. Use the supplied fast charger: plug it into a 220-240 V outlet, insert the battery. Charging takes a few hours; a green LED indicates the end of charge. Avoid charging below 10°C or above 40°C.

How to adjust the torque?

Turn the torque presetting ring (located behind the chuck) to the desired number (1-20). A low setting suits small screws and soft materials, a high setting for large screws and hard materials. For drilling, set it to the drill symbol.

Can I use this drill for drilling metal?

Yes, with a metal drill bit (HSS). Use 2nd gear (1300 rpm) and lubricate the bit with cutting oil. Start at low speed to start the hole.

What to do if the drill does not start?

First check if the battery is charged and correctly inserted. If empty, recharge it. If the problem persists, the switch or motor may be defective; contact customer service.

How to maintain the drill?

Clean it after each use with a damp cloth (no solvents). Check that the ventilation slots are not blocked. Always remove the battery before cleaning. No internal maintenance required.

What accessories are compatible?

Use original accessories or equivalent quality. The chuck accepts bits and drill bits up to 10 mm. Drilling stands and belt adapters are compatible.

How to store the drill and battery?

Store the appliance in a dry, dark, and frost-free place (5-30°C). The battery should be stored at around 15°C with a charge of at least 40%. Avoid deep discharge.

What safety equipment is recommended?

Wear safety glasses, a dust mask, and hearing protection (noise can exceed 85 dB). Use a residual current device outdoors.

How to dispose of the used battery?

Do not dispose of the battery with household waste. Take it to a collection point for batteries and accumulators (store, recycling center). Respect the symbols Cd, Hg, Pb if present.

USER MANUAL CID3020Li SCHEPPACH

Black and white photo of a 20V power tool with a mounted base (no visible text or symbols on the device body)

DE	AKKU-SCHLAGBOHRSCHRAUBEROriginalbedienungsanleitung	4
GB	CORDLESS IMPACT DRILLTranslation of original instruction manual	16
FR	PERCEUSE-VISSEUSE SANS FILTraduction des instructions d'origine	26
PL	WIERTARKO-WKRĘTARKAAKUMULATOROWAPrzekład z oryginału instrukcji obsługi	38
CZ	AKU VRTACÍ ŠROUBOVÁKPřekład originálního návodu k obsluze	50
SK	AKU VŘTACÍ SKRUTKOVAČPreklad originálu návodu na obsluhu	61
HU	AKKUS FÚRÓ-CSAVAROZÓAz eredeti használati utasítás fordítása	72

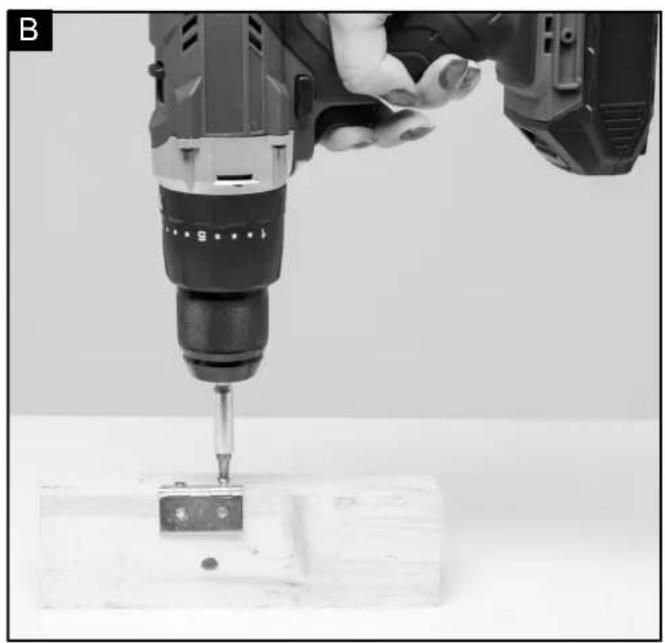

Close-up of a hand using a drill bit to drill on a workbench (no visible text or symbols)

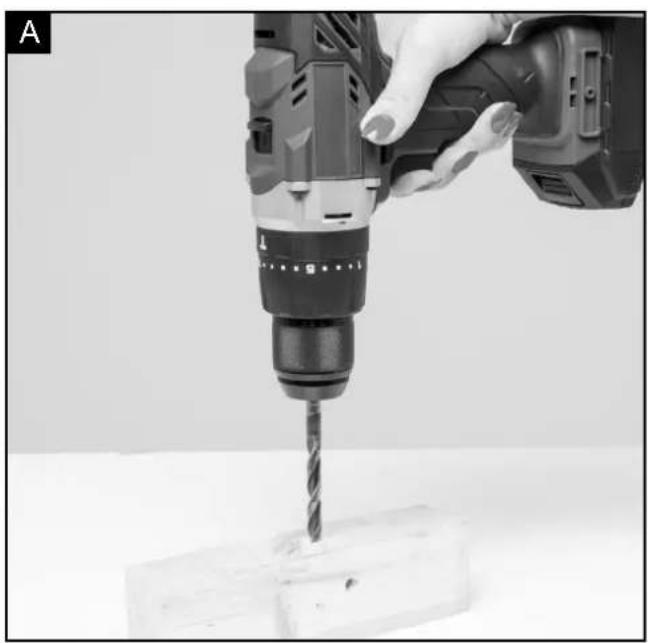

Close-up of a hand using a drill bit to work on a wooden block (no text or symbols visible)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Explanation of the symbols on the equipment

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.

	Caution - Read the operating instructions to reduce the risk of inquiry
	Wear ear-muffs! The impact of noise can cause damage to hearing.
	Wear a breathing mask! Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
	Wear safety goggles! Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
MAX 40°C	Protect rechargeable batteries from temperatures over 40°C
Li-Ion	Do not throw rechargeable batteries away with household waste

Table of contents: Page:

1. Introduction...... 18
2. Device description.... 18
3. Technical data 18
4. Scope of delivery.... 18
5. Unpacking 18
6. Construction....19
7. Safety information 19
8. Additional Safety Warnings 21
9. Intended use....23
10. Installation 23
11. Cleaning 24
12. Storage....24
13. Maintenance....24
14. Troubleshooting....25
15. Disposal and recycling 25

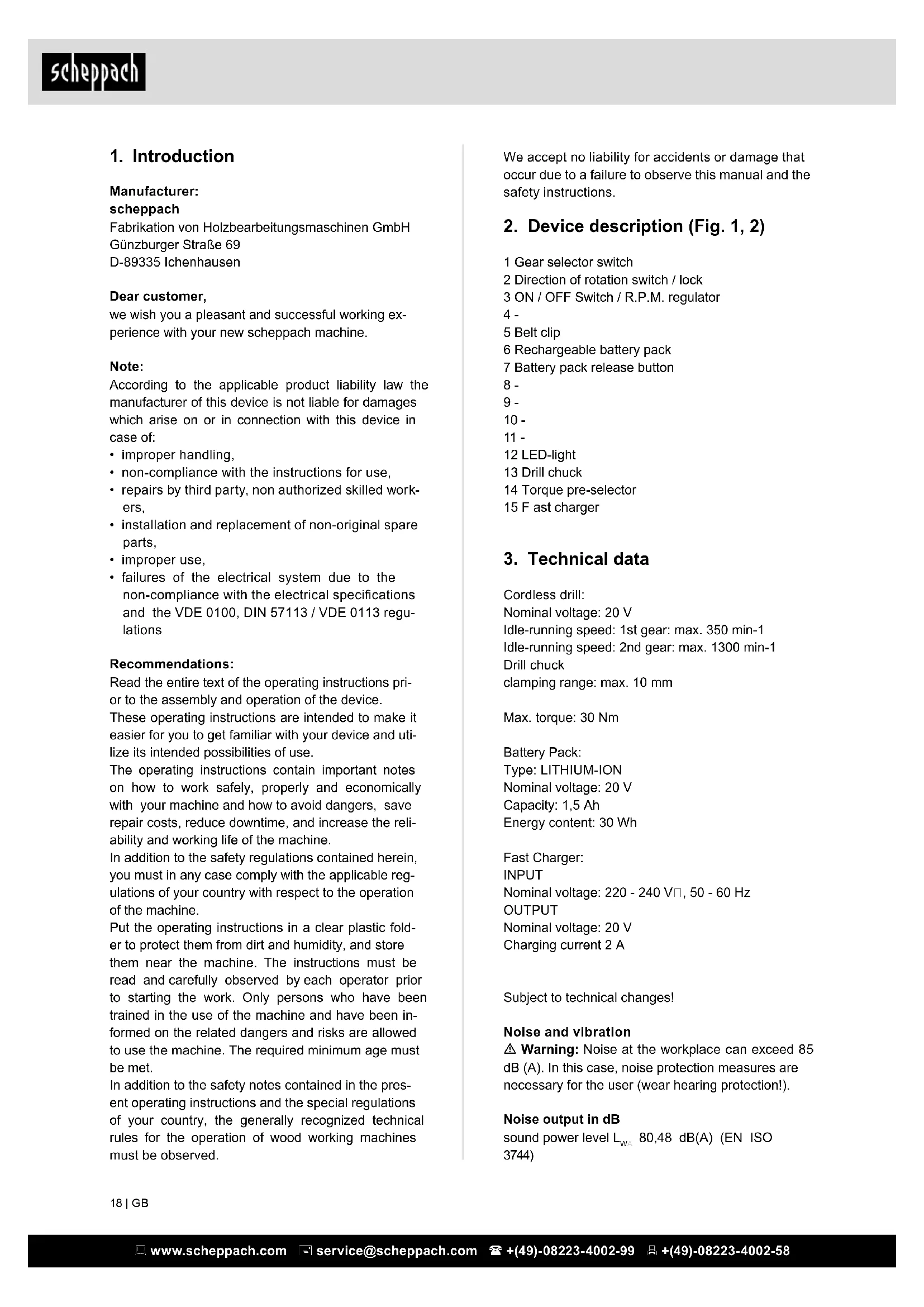

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

we wish you a pleasant and successful working experience with your new scheppach machine.

Note:

According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this device in case of:

• improper handling,
  • non-compliance with the instructions for use,
• repairs by third party, non authorized skilled workers,
• installation and replacement of non-original spare parts,
• improper use,
• failures of the electrical system due to the non-compliance with the electrical specifications and the VDE 0100, DIN 57113 / VDE 0113 regulations

Recommendations:

Read the entire text of the operating instructions prior to the assembly and operation of the device.

These operating instructions are intended to make it easier for you to get familiar with your device and utilize its intended possibilities of use.

The operating instructions contain important notes on how to work safely, properly and economically with your machine and how to avoid dangers, save repair costs, reduce downtime, and increase the reliability and working life of the machine.

In addition to the safety regulations contained herein, you must in any case comply with the applicable regulations of your country with respect to the operation of the machine.

Put the operating instructions in a clear plastic folder to protect them from dirt and humidity, and store them near the machine. The instructions must be read and carefully observed by each operator prior to starting the work. Only persons who have been trained in the use of the machine and have been informed on the related dangers and risks are allowed to use the machine. The required minimum age must be met.

In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of wood working machines must be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

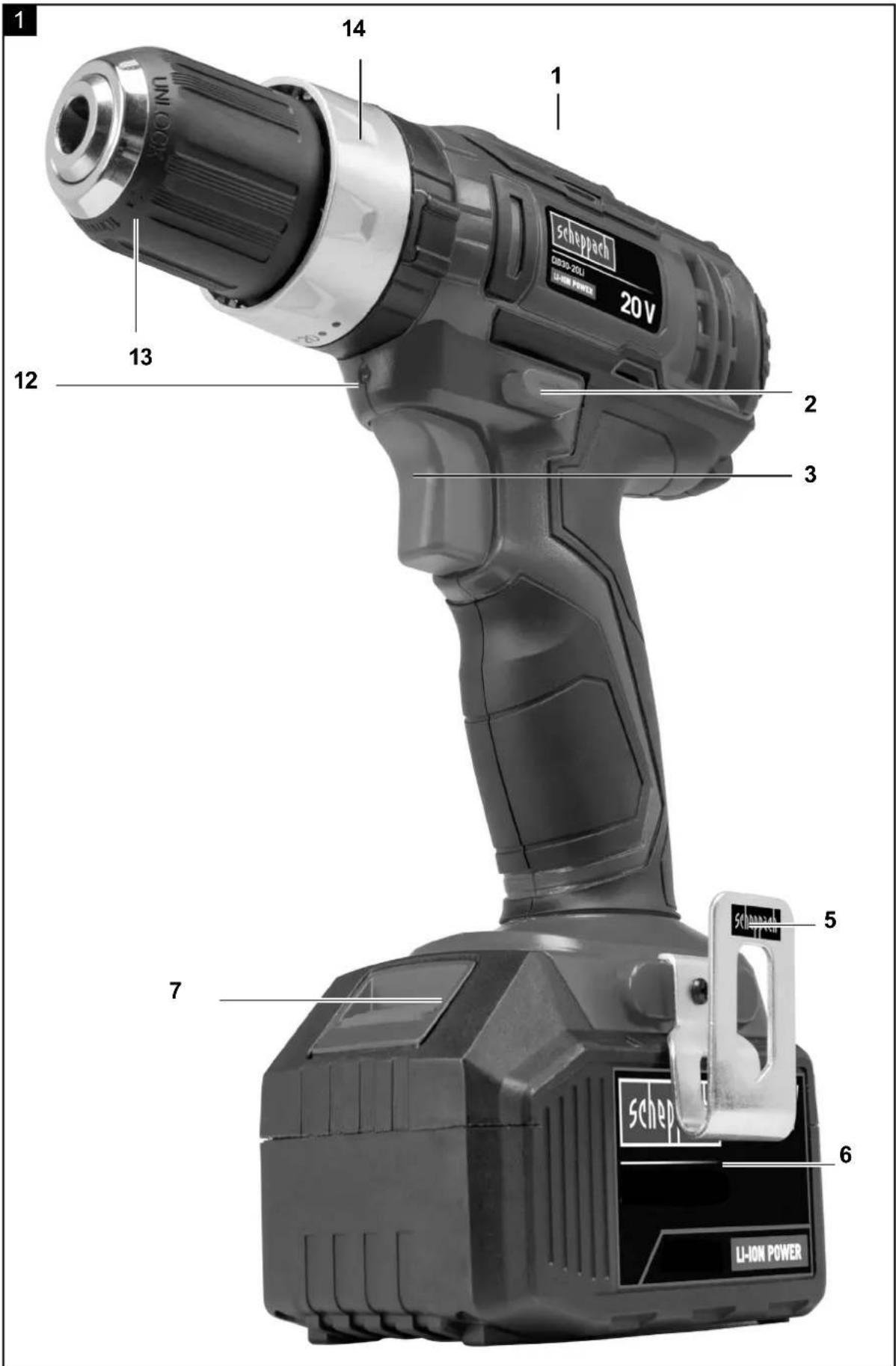

2. Device description (Fig. 1, 2)

1 Gear selector switch
2 Direction of rotation switch / lock
4 -
5 Belt clip

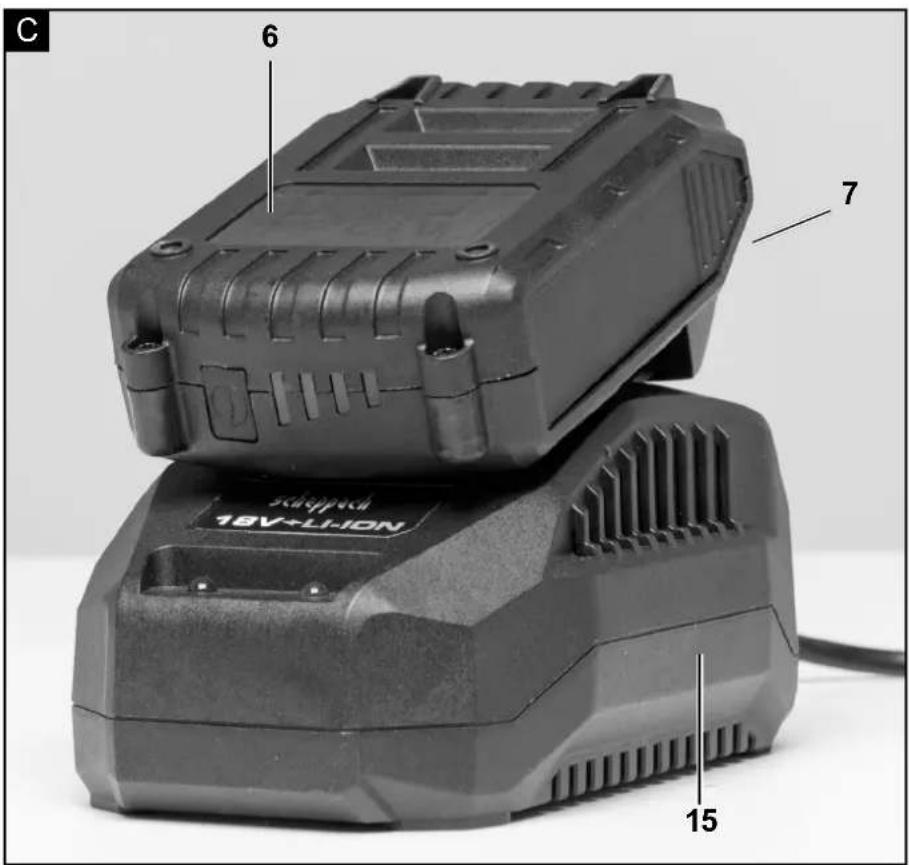

6 Rechargeable battery pack
