Brand	Audizio
Model	RP340
Type	Belt-driven turntable
Speeds	33 and 45 RPM
Cartridge	Pre-installed cartridge (magnetic type)
Anti-skate adjustment	Adjustable from 0 to tracking force
Counterweight	Adjustable for tonearm balance
Audio outputs	RCA line and phono sockets (switchable)
Mode selector	PHONO/LINE
Power supply	220-240 V~, 50 Hz (power adapter included)
Pitch control	Yes, stepped
45 RPM adapter	Included
Tonearm	Straight tonearm with lift lever and lock clip
Maintenance	Clean with a soft, dry cloth
Safety	Do not open the casing; avoid moisture
Included accessories	RCA cables, power adapter, 45 RPM adapter
Repairability	Use original parts; consult a technician

Frequently Asked Questions - RP340 Audizio

How to adjust the anti-skate on the Audizio RP340 turntable?

Set the anti-skate control to the same value as the tracking force (usually between 1.5 and 2.5 grams). For example, if the tracking force is 2 g, set anti-skate to 2.

How to replace the turntable belt?

Remove the platter from the spindle. Place the belt on the motor pulley as shown in the manual. Make sure it is not twisted or oily. Replace the platter.

What is the required power supply voltage?

The device requires 220-240 V~ at 50 Hz. Use the supplied power adapter and plug it into a grounded wall outlet.

How to connect the turntable to an amplifier?

Use the supplied RCA cables. Connect the red plug to the red socket (right) and the white plug to the white socket (left). Select PHONO or LINE mode according to your amplifier's input.

Why is the platter not spinning?

Check that the belt is properly placed on the motor pulley. Make sure the power adapter is plugged in and the speed button (33/45) is pressed.

How to balance the tonearm?

Hold the tonearm at the headshell and turn the counterweight until the tonearm is parallel to the record. Then, set the tracking force by turning the ring to the recommended value (1.5-2.5 g for the supplied cartridge).

Can I play a 45 RPM record without an adapter?

No, to play a 45 RPM record, use the included 45 RPM adapter. Place it in the center of the platter before putting on the record.

How to clean the stylus and cartridge?

Use a soft anti-static brush or a lint-free cloth. Avoid any chemicals. Gently remove the stylus guard before use.

What to do if the turntable produces a hum?

Check that the RCA cables are properly connected and the PHONO/LINE selector is in the correct position. Move the turntable away from interference sources such as unshielded speakers.

Where can I find spare parts for the RP340?

Contact your Audizio dealer or an authorized technician. Always use original parts to avoid damaging the device.

USER MANUAL RP340 Audizio

Black and white photo of a vintage typewriter with a flat tab and open lid (no visible text or symbols)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

ENGLISH 4

UNPACKING INSTRUCTION ....4

PRODUCT OVERVIEW....5

TONE ARM WEIGHT ADJUSTMENT 5

ANTI-SKATING CONTROL 5

OPERATION....6

DRIVE BELT ASSEMBLY....6

NEDERLANDS....7

UITPAKKEN....8

OVERZICHT....8

TOONARM CONTRAGEWICHT 8

ANTI-SKATING REGELAAR 8

WERKING 9

AANDRIJFRIEMASSEMBLAGE 9

DEUTSCH 10

AUSPACKEN 10

BEDIENELEMENTEN 11

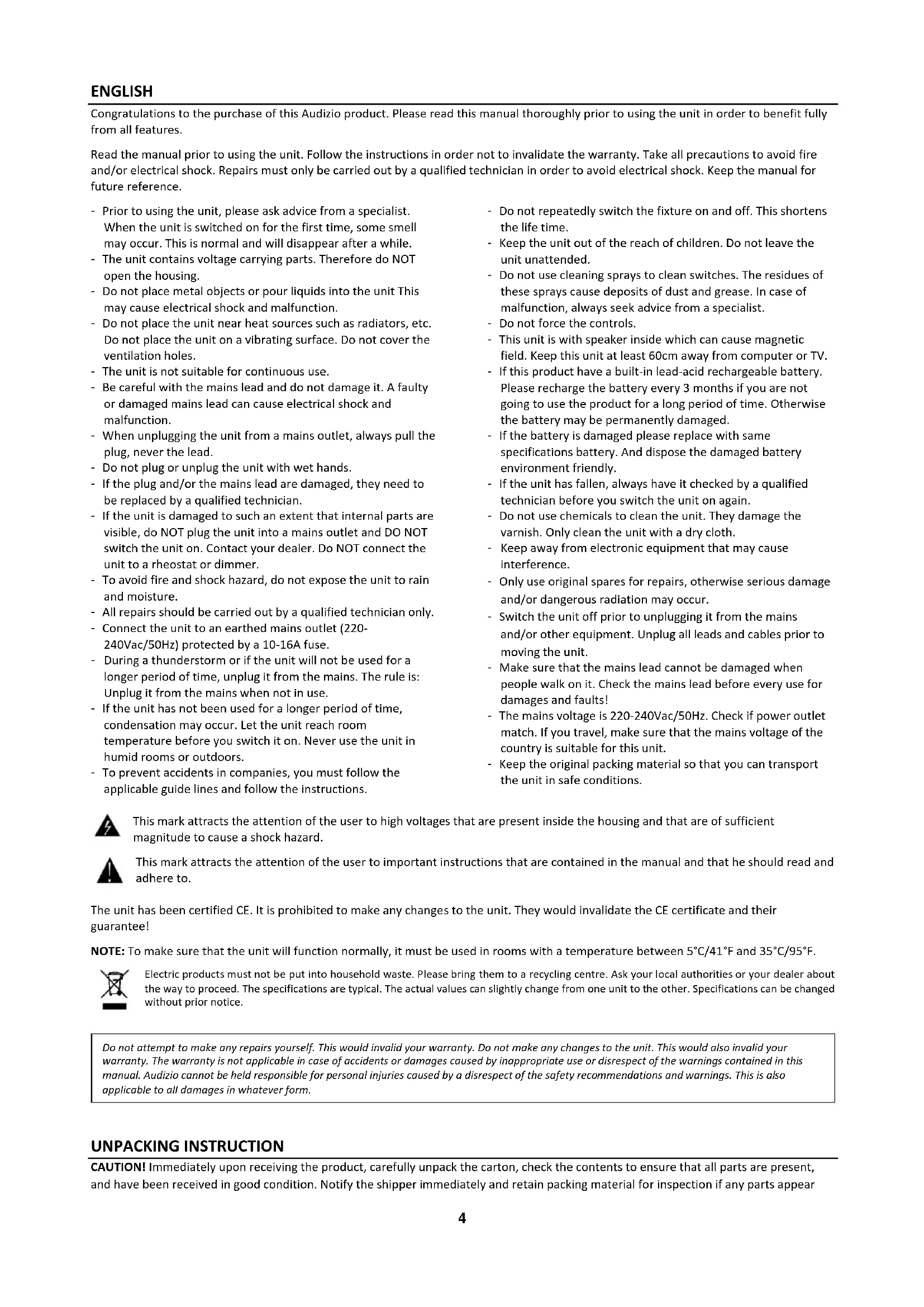

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear

damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

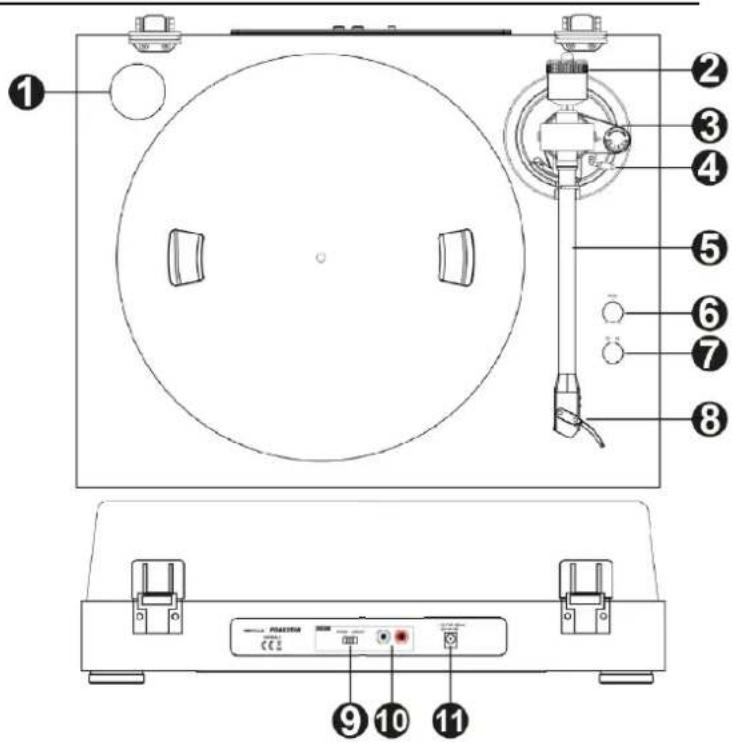

PRODUCT OVERVIEW

1. 45rpm adapter for 7" vinyl record
2. Counterweight Used to level out the tone arm.
3. Anti-skating control The anti-skate feature applies a small outward force to the tonearm, counteracting the tendency of the arm to move inward (skate) toward the center of the record, as the tonearm approaches the end of the record.
4. Lift lever Operate to lower or raise the tone-arm.
5. Tone-arm clip This specially designed arm clip secures the tone-arm while at rest or when not in use.
6. Pitch control Turn to adjust the speed of the platter little by little.
7. Speed button This switch controls the RPM (33/45rpm) of the record player platter.
8. Headshell
9. Mode switch Switch to select phono- or line-out -mode.
10. RCA line output Line signal RCA connectors to connect the record player to a mixer or an amplifier.
11. DC input Connect the power adapter.

Technical diagram of a radio driver with numbered parts and control panel labels

TONE ARM WEIGHT ADJUSTMENT

1. Remove the needle protector carefully.
2. Set the anti-skating control at 0 (zero).
3. Push the lift lever in the down position
4. Release the tonearm from the clip and position it in the free space between the platter and the tonearm rest/clip. Note: be careful not to damage the needle.
5. Hold the tonearm at the headshell and level it by turning the counterweight to the left or to the right. The adjustment is done correctly if the tonearm is parallel to the record above the platter and does not lean towards counterweight- or headshell side when released.
6. Place the tone arm on the tone arm rest and secure it with the clip.

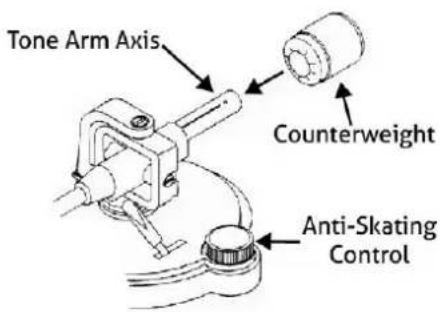

Tone Arm Axis Counterweight Anti-Skating Control

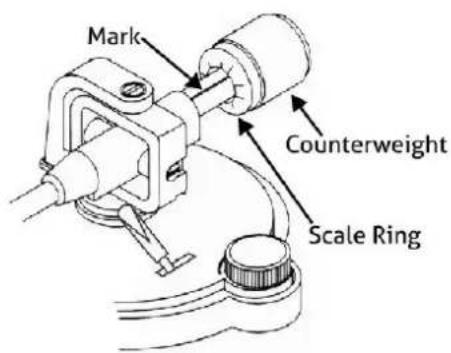

Mark Counterweight Scale Ring

1. Keep the counterweight in the set position. Turn the scale ring until the 0 mark is in line with the mark printed on the axis of the tone arm. The zero base setting has been determined.
2. Turn the scale ring to correspond to the characteristics of the used cartridge. If the provided cartridge is being used, the scale ring must be adjusted to 1.5 - 2.5 grams.

ANTI-SKATING CONTROL

Place the anti-skate control at the same value as selected on the scale ring, so it corresponds to the weight of the used needle. If the weight of the needle is 2 grams, the control must be set at value 2.

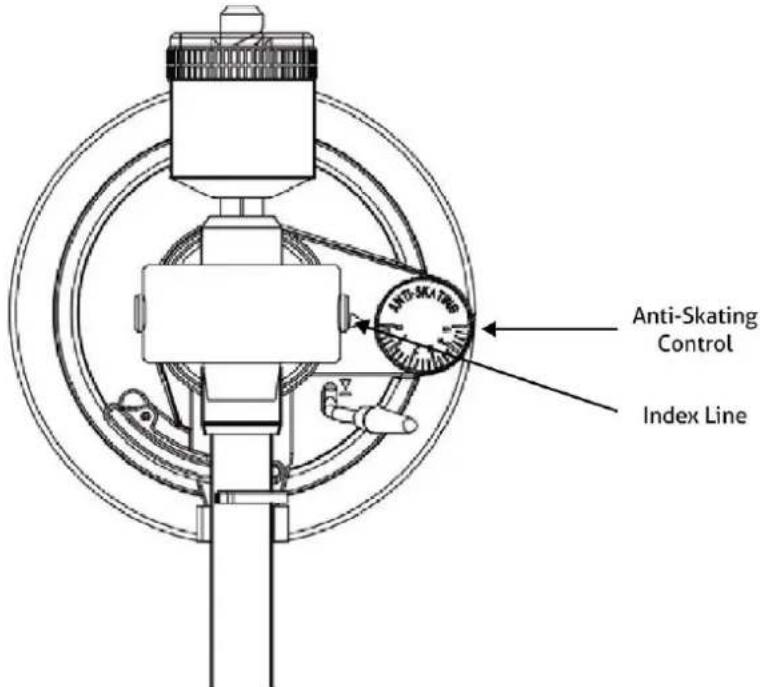

Anti-Skating Control Index Line

OPERATION

1. Connect the turntable output (2 x RCA connectors) to the input of a device with phono level or line level. Set the PHONO/LINE switch in the appropriate position depending on the type of input to be connected to the turntable.

NOTE: the RCA cables are color coded. The red plug cable must be plugged into the red connector on both the record player and external amplifier or speaker system. The white plug cable must be plugged into the white connector on both the record player and external amplifier or speaker system.

1. Connect the record player with the power adapter and plug the other end into a wall power outlet.
2. Place a vinyl record on the record player platter and select the required speed (33/45RPM) according to the record. NOTE: when playing a 45RPM record, use the supplied 45RPM adapter.
3. Gently remove the protective needle cover.
4. Raise the lift lever and place the arm over the record. This will automatically activate the rotation of the plate.
5. Put the needle at the start of the record and lower the lift lever. The tonearm will gently lower itself, the record player will start playing.

DRIVE BELT ASSEMBLY

Although the best care has been put into the production of this record player and it's mechanical components, the situation can occur that the drive belt could come loose (for example during transport). If so, please follow the below steps to put the belt back onto the motor pulley.

A. Remove turntable platter from the turntable shaft. The belt is located underneath the turntable platter location.
B. Hold the belt with your fingers and place the belt onto the motor pulley as shown in the drawing.
C. Reposition/refit the turntable platter over the shaft.

Note: avoid oil on the belt as the oil will make the belt slippery. Please make sure that the belt is not distorted or twisted.

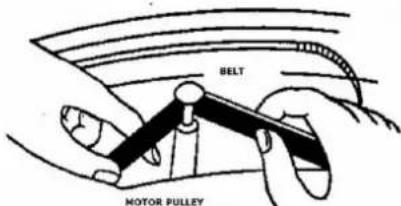

BELT MOTOR PULLEY

NEDERLANDS

Diagram of a CD or DVD drive with numbered parts and labeled ports, showing front and back views.

Tone Arm Axis Counterweight Anti-Skating Control

Mark Counterweight Scale Ring

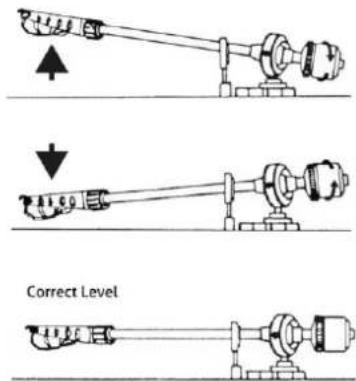

Correct Level

Anti-Skating Control Index Line

WERKING

Diagram of a vintage CD or DVD drive with numbered parts and labeled buttons

TONARM GEGENGEWICHT

Anti-Skating Control Index Line

BETRIEB

Technical diagram of a radio driver with numbered parts and control panel labels

AJUSTE DEL PESO DEL BRAZO

Tone Arm Axis Counterweight Anti-Skating Control

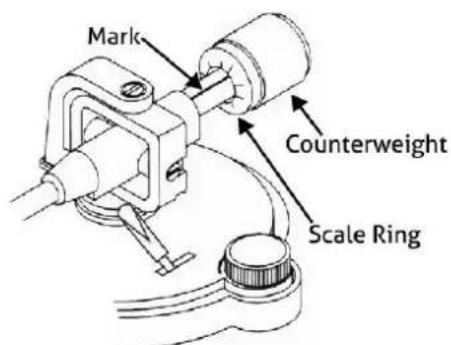

Mark Counterweight Scale Ring

Mechanical assembly diagram showing two configurations of a shaft with levers and bearings (no text or labels)

Correct Level

Anti-Skating Control Index Line

OPERACIÓN

Diagram of a CD or DVD drive with numbered parts and labeled ports, showing front and back views.

REGLAGE POIDS DU BRAS

Tone Arm Axis Counterweight Anti-Skating Control

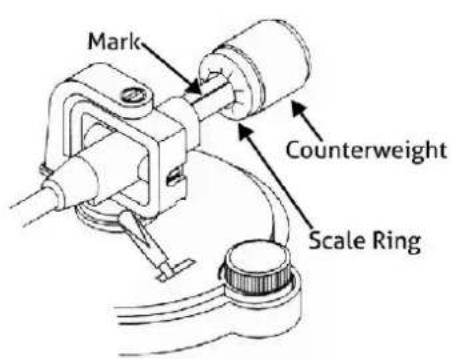

Mark Counterweight Scale Ring

Correct Level

Anti-Skating Control Index Line

FONCTIONNEMENT

Output Connections : RCA

Speed Settings (RPM) : 33, 45

Power Supply : 100-240VAC 50/60Hz (12V Adapter)

Dimensions Record Player (L x W x H) : 350 x 432 x 140mm

Weight (per unit) : 4,35 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by Tronios The Netherlands
