Product Type	Vinyl record player with built-in speaker and Bluetooth receiver
Brand	Audizio
Model	RP330D
Dimensions (approx.)	420 x 350 x 120 mm
Weight (approx.)	4 kg
Power supply	220-240 V AC / 50 Hz via power adapter (DC 12 V, 500 mA)
Playback speeds	33 ⅓, 45, 78 rpm
Technologies	Bluetooth (receiver), RCA line output, built-in speaker
Functions	Vinyl playback, Bluetooth streaming, switchable auto-stop, volume control, PH/BT mode selector
Connectivity	RCA line output (L/R), DC input, external speakers via binding posts
Included accessories	45 rpm adapter, speaker cables, power adapter
Care and cleaning	Clean with a soft dry cloth. Do not use chemicals. Protect the stylus with the provided cover.
Safety	Do not open the casing, avoid humidity, unplug during storms or prolonged non-use, keep 60 cm away from screens.
Spare parts and repairability	Replaceable cartridge with stylus. For repairs, contact an authorized technician and use original parts.

Frequently Asked Questions - RP330D Audizio

How to connect a smartphone via Bluetooth?

Set the mode selector to BT. The indicator flashes blue. On your smartphone, enable Bluetooth and search for Audizio recordplayer. Select it to pair. The indicator becomes solid blue. You can then play music from your smartphone on the turntable.

How to play a 45 rpm vinyl record?

Place the record on the platter. Use the provided 45 rpm adapter by inserting it into the center of the platter. Set the speed to 45 using the speed button.

How does the auto-stop function work?

The autostop on/off switch activates or deactivates the function. When set to ON, the platter starts rotating as soon as the tonearm is moved toward the record and stops automatically at the end of the record. If the record stops prematurely, set the switch to OFF.

What to do if the record does not spin?

Check that the device is turned on and the mode selector is set to PH (phono). Make sure the autostop switch is set to ON (if you want automatic rotation). Gently move the tonearm over the record; the platter only rotates when the tonearm is positioned above the record.

How to adjust the volume?

Turn the volume knob clockwise to increase sound. When using Bluetooth, your smartphone volume may also affect the overall sound level.

Can I use external speakers?

Yes. Connect your speakers to the binding posts on the back (red to +, black to -) using the provided cables. You can also use the RCA output to connect to an amplifier or hi-fi system (cable not included).

How to maintain the stylus?

When the turntable is not in use, place the removable cover on the stylus. Clean it gently with an anti-static brush if necessary. Avoid touching the stylus tip.

What are the important safety precautions?

Never open the casing (risk of electric shock). Do not expose to moisture or rain. Unplug the device during thunderstorms or if not used for extended periods. The device should be used indoors, between 5°C and 35°C.

How to clean the turntable?

Use a soft dry cloth. Never use chemicals, aerosols, or liquids that could damage the coating or penetrate the inside.

What to do if the sound is low or distorted?

Check the volume setting. Ensure the stylus is clean and in good condition. If using the RCA output, check the connections. In Bluetooth mode, move away from interference sources. If the problem persists, contact a technician.

USER MANUAL RP330D Audizio

RP330 Series Set Record Player + Speakers BT

Ref. nr.: 102.178; 102.179

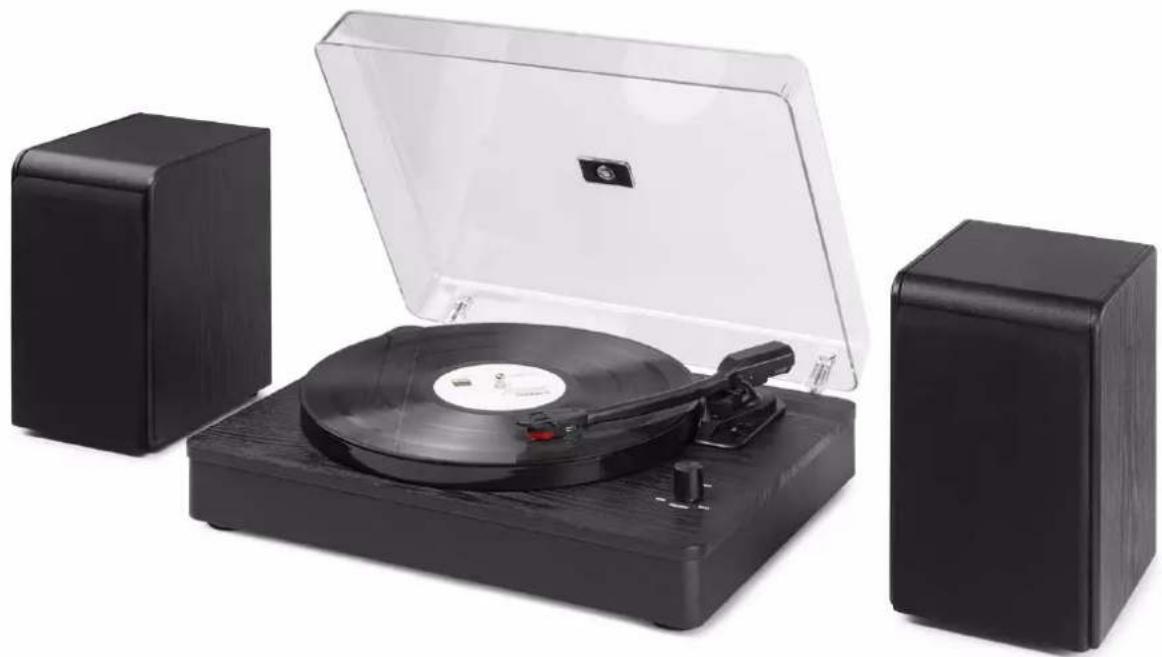

Black vinyl record with open lid and two black square speakers (no visible text or symbols)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

ENGLISH 4

UNPACKING INSTRUCTION ....4

PRODUCT OVERVIEW....5

GETTING STARTED 5

PHONO OPERATION....5

BT CONNECTION 6

RCA OUTPUT MODE....6

NEDERLANDS....7

UITPAKKEN....8

OVERZICHT....8

AAN DE SLAG 8

PHONO....9

BT VERBINDING 9

RCA UITGANG 9

DEUTSCH 10

AUSPACKEN 10

BEDIENELEMENTEN 11

ERSTE SCHRITTE....11

PHONO BETRIEB....11

BT ANSCHLUSS....12

RCA AUSGANG 12

ESPAÑOL 12

INSTRUCCIONES DE DESEMBALAJE....13

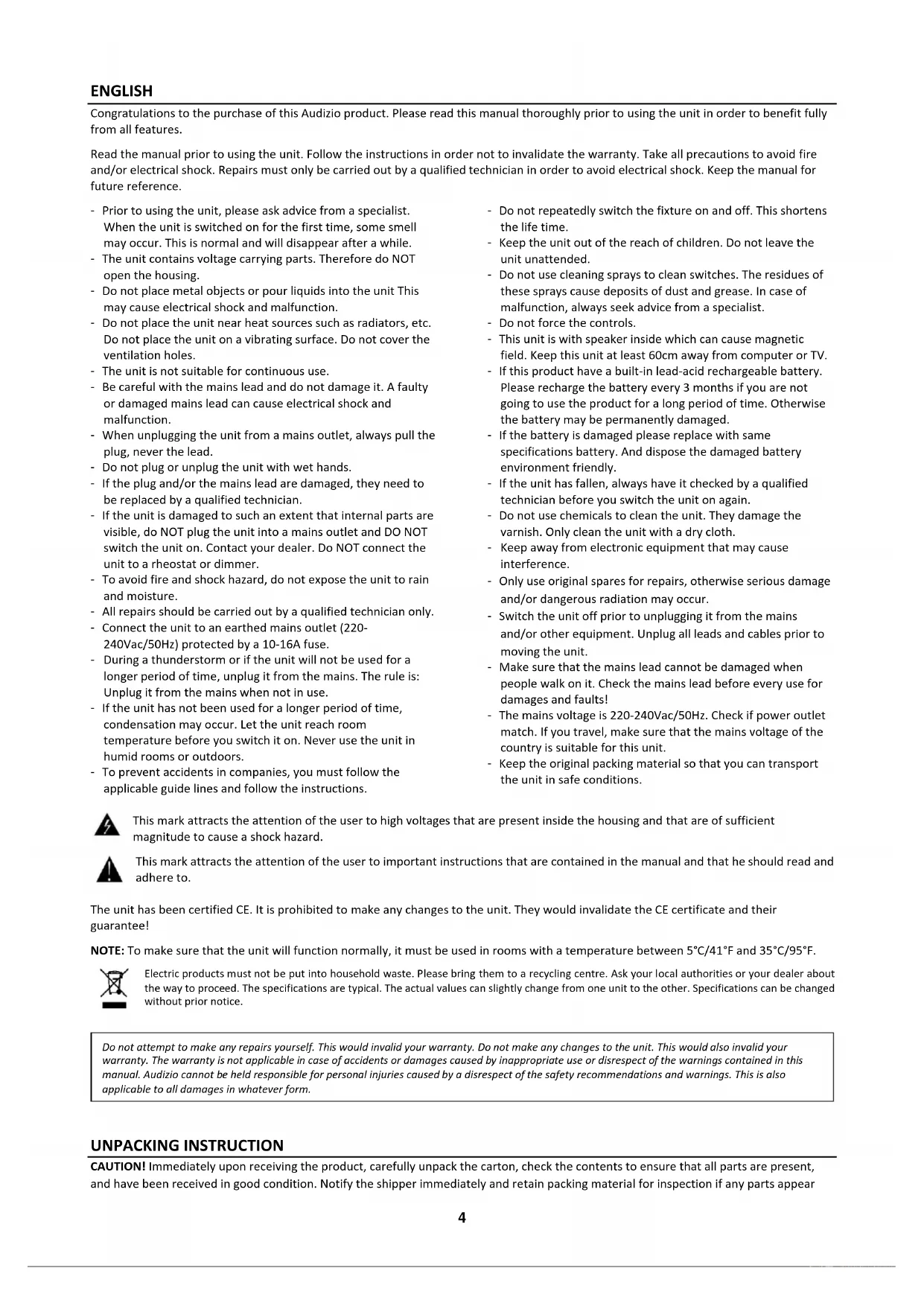

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear

damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

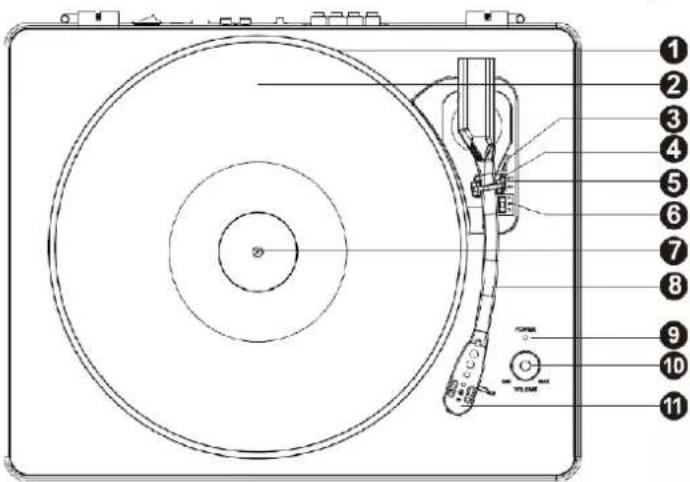

PRODUCT OVERVIEW

1. Platter

Place your record here.

2. Slip mat

3. Lift lever

Push the lift lever backwards to be able to raise the tone-arm. Gently move the tone-arm to the desired position over the record. The platter will begin to spin when the arm is moved towards the record. Push the lift lever forwards to be able to lower the tone-arm slowly onto the desired position on the record to begin playing the record. Please note: The record will only begin to spin when the tone-arm is moved towards the record if the Auto Stop function is turned on.

4. Tone-arm clip

This specially designed arm clip secures the tone-arm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked.

5. Autostop Switch ON/OFF

This switch turns auto stop on or off. When the automatic stop is enabled, the platform will start rotating as soon as the tone arm is placed over the record and will stop rotating when it has reached the end of the record. Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop function to OFF.

6. Speed button

This switch controls the RPM (33/45/78rpm) of the record player platter.

7. Platter shaft

8. Tone arm

9. Status indicator

10. Volume control knob

Turn the knob to set the volume of the record player.

11. Cartridge with needle

When the record player is not in use, it is recommendable to place the removable protection cover over the stylus.

12. External speaker output

13. Mode switch

Switch to select phono- or BT-mode.

14. RCA line output

The sound signal from long-playing record is sent to this line output. Connect this signal to the line input of an such as an amplifier or a line input of a CD/DVD player.

15. DC input

Connect the power adapter.

16. Power ON/OFF button

Push the Power On/Off button on the unit to turn on/off the record player.

17. Speaker input connector

GETTING STARTED

Connect the external speakers to the record player by using the supplied speaker cables (red cable to red connectors; black cable to black connectors). Firmly and securely insert the DC plug of the power adapter in the DC input connector on the back of the record player.

Technical diagram of a radio receiver with numbered parts for identification

12 13 14 15 16 17

PHONO OPERATION

1. Connect the record player with the power adapter and plug the other end into a wall power outlet.
2. Turn on the power and set the mode switch to PH. The indicator will light up in red.

3. Place a vinyl record on the record player platter and select the desired speed (33/45/78RPM) according to the record. NOTE: when playing a 45RPM record, use the supplied 45RPM adapter.

4. Gently remove the white protective needle cover.

5. Open the tone arm clip to release the tone arm. Push the lift lever backwards to raise the tone arm and gently move the tone arm to the desired position over the record. The record player will begin to spin when the tonearm is moved towards the record (when the AUTO STOP switch is ON). Push the lift lever forwards to lower the tone arm slowly onto the desired position on the record to start playback.
6. Turn the volume control knob to adjust the volume.

Noted: If the AUTO STOP ON/OFF Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control is turned OFF, record will NOT stop automatically when finished.

BT CONNECTION

Set the function switch to BT mode. The LED indicator will flash in blue color.

Turn on the BT-function on your mobile phone or tablet PC on and search for the record player (Audizio recordplayer). After pairing, the LED will light up continuously in blue color and you can play your music from your mobile phone or tablet PC on this record player. Turn the volume control to adjust the volume. (The volume control of the mobile phone, tablet or PC can also affect the total volume).

noted: this device does not have a bt transmitter, this means that it is not possible to send sound via bt to, for example, a bt speaker

when the unit is used as a bt speaker, all other playback functions cannot be used at the same time.

RCA OUTPUT MODE

Connect your own speaker system to the RCA port of the record player with an RCA-3.5mm audio cable (not included).

NOTE: the RCA cables are color coded. The red plug cable must be plugged into the red connector on both the record player and external amplifier or speaker system. The white plug cable must be plugged into the white connector on both the record player and external amplifier or speaker system.

NEDERLANDS

Technical diagram of a radio receiver with numbered parts for identification

12 13 14 15 16 17

PHONO

Technical diagram of a radio receiver with numbered parts for identification

12 13 14 15 16 17

PHONO BETRIEB

Technical diagram of a radio receiver with numbered parts for identification

12 13 14 15 16 17

Technical diagram of a radio receiver with numbered parts for identification

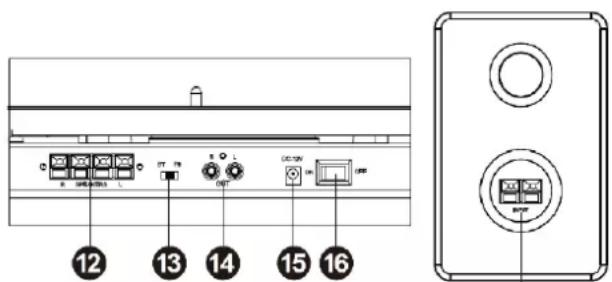

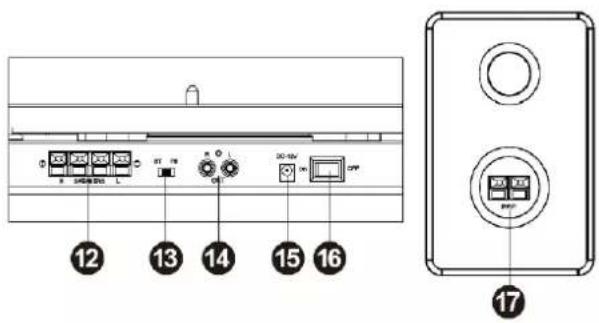

Diagram of a device rear panel with labeled ports and buttons, numbered 12 to 16 pointing to specific components.

17

Output Connections : RCA

Speed Settings (RPM) : 33, 45, 78

Output Power : 100W

Power Supply : 100-240VAC 50/60Hz (12V Adapter)

Dimensions Record Player (L x W x H) : 330 x 407 x 120mm

Dimensions Single Speaker : 180 x 142 x 235mm

Weight : 6,80 kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.
