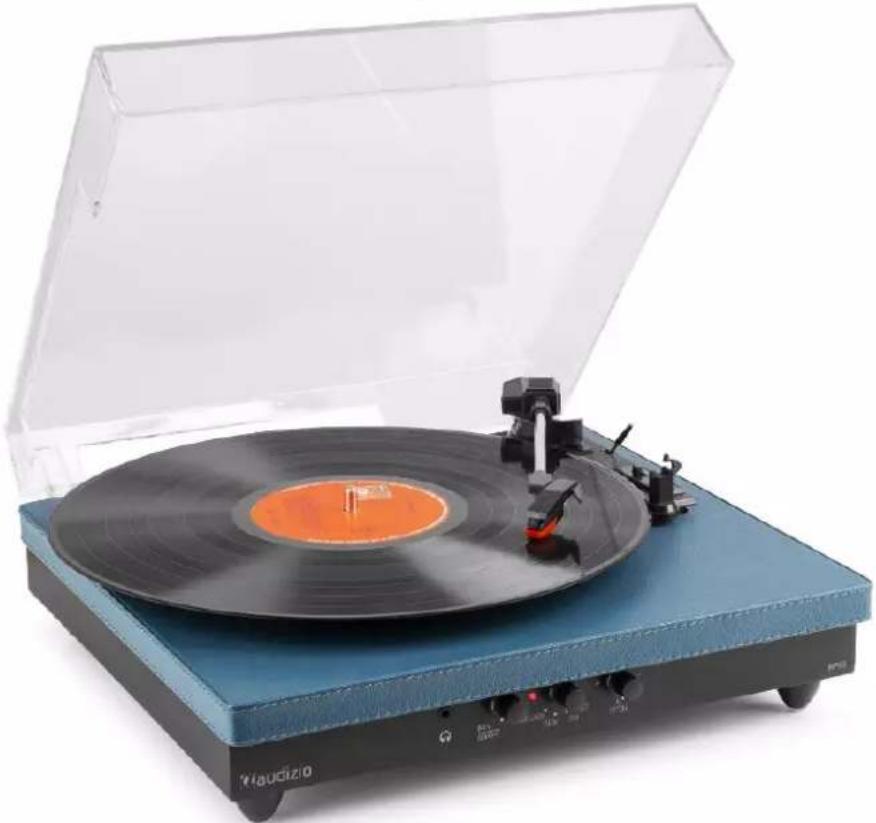

USER MANUAL RP113 Audizio

MANUEL D'INSTRUCTIONS

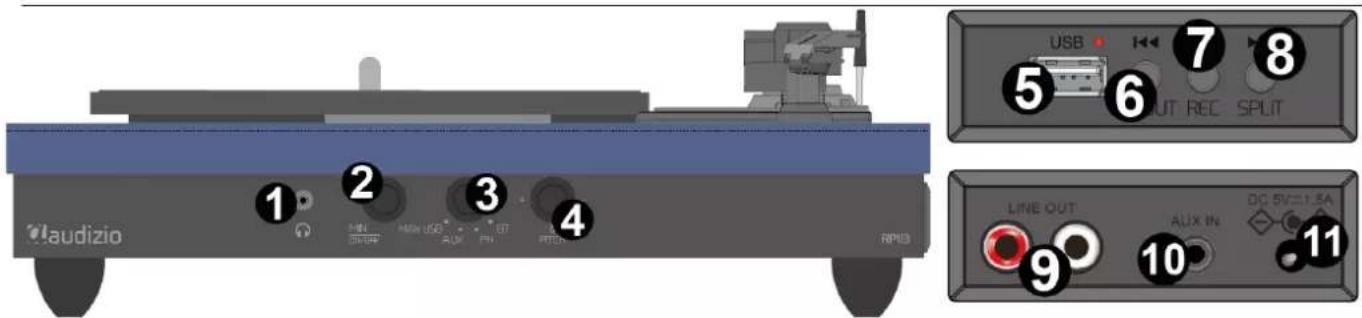

3.5mm headphone output jack

2. On/off and volume control

Rotate to turn the device on/off and to adjust the volume level

Rotate to change modes (USB, AUX, Phono, BT streaming)

Rotate to control the pitch (turntable speed)

6. Previous / BT out

Press to change to the previous track when in USB-, AUX- and BT mode Press in Phono mode to enable a connection with a BT speaker or -headphones

Press to (re)start or pause play in USB-, AUX- and BT mode Press in Phono mode to record the vinyl play on a USB stick (when inserted)

Press to skip to the next track when in USB-, AUX- and BT mode. Press when recording vinyl play on a USB stick to cut off and save the current file and generate another save file

RCA connector line output to connect external speakers (not included)

5V power socket for connecting the supplied power adapter

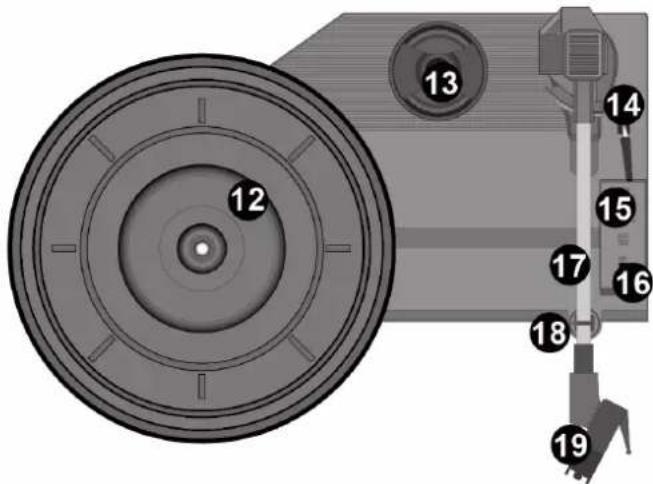

This adapter allows you to play 45RPM records

Use to raise/lower the tone arm

15. 33 / 45 / 78 RPM switch

Use to adjust the RPM of the turntable platter

16. Autostop switch ON/OFF

This switch turns the auto stop-function on/off. When the automatic stop is enabled, the platform will start rotating as soon as the tone arm is placed over the record and will stop rotating when it has reached the end of the record. Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop to OFF

This arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position whilst unlocked6

19. Stylus cartridge

Cartridge containing the stylus/needle

• Remove the radio record player from the package box.

• Plug in the power adapter and turn on the device. Caution: Use only the adaptor supplied with the unit. Connecting a power supply with a different rating can cause permanent damage to the unit and may be hazardous.

• Rotate the mode switch to select Phono mode.

• Place the record on the turntable. If required, place the 45rpm adapter on the record spindle.

• Choose the desired playing speed using the speed selection switch (33-, 45- or 78rpm).

• Rotate the on/off and volume control clockwise to turn on the unit.

• Make sure that any protective cover is removed from the stylus.

• Unlock the tone arm by releasing the tone arm clip.

• Raise the arm by using the tone arm lever.

• Place the stylus vertically over the first track of the record, the turntable will start turning automatically.

• Lower the stylus slowly onto the record by using the tone arm lever.

• When a record comes to the end, the turntable will stop automatically if the auto-stop switch is in the ON position. If the switch is in the off position then it will keep turning until the switch is set in the ON position.

• Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop to OFF.

• Lift up the tone arm and put it on the rest when finished, always using the tone arm lever.

• Lock the tone arm by closing the tone arm clip.

• Re-attach the stylus cover.

• Turn off the power. Before transmission between your BT device and the radio is possible, both devices must be coupled. This process is called "pairing". The radio is served as a receiver, to receive the music stream to be played on the radio. If you have already coupled to a BT device before, this connection will be restored automatically when both devices are in range and BT operation has been selected on the radio. "Pairing" does not have to be repeated. This function may need to be activated in your BT device, however.

• Set the mode switch to BT mode. The LED indicator will blink in blue color.

• Turn on the BT streaming function on your device. The device will scan for pairable BT devices in the reception range.

• Select “Audizio RP113” from the list with found devices.

• After pairing, the LED will light up continuously. You can now play your music from your device, using the turntable player as speaker. This device also features a BT transmitter, meaning that it is possible to play sound from the turntable player via BT to, for example, a BT speaker or wireless headphones. When in phono mode, press the “previous” button: the indicator light will blink in red color. Then, turn on the BT streaming function of the speaker or headphones and start pairing. If the connection is successful, the indicator stops blinking. Now, the vinyl playback will be transmitted to the speaker or headphones wirelessly. Turn the volume control knob of the speaker or press the volume control buttons of the headphones to adjust the volume. The volume control knob of the record player is now blocked. Note: When the turntable is being used as a BT speaker, all other playback functions cannot be used at the same time. You can listen to the music stored in other audio device or smart phone via the radio, through the connection to the 3.5 mm aux-in jack on the front side. Use a cable with 3.5 mm pins at both ends, one end connected to the aux-in jack on the radio, the other end connected to the earphone jack on the audio device (or line out socket if available). Set the mode switch to AUX mode. Play music on the connected device, the sound will be emitted from the radio. Playback: Insert your USB drive in the USB slot. The device will automatically start playing the files. Press “previous” or “next” to choose the previous/next track. Press play/pause to (re)start/pause playback. Record:

• Insert your USB drive in the USB slot.

• Start vinyl playback in Phono mode.

• During the vinyl records playback, press “REC”. The indicator will blink in red and blue colors.

• Press “split” when recording, the current record will be cut off and stored in a file automatically. Press “split” again and another file will be generated.

• Stisknutím tlačítka "REC" zastavíte nahrávání.3031 Playback options : BT streaming, USB Input connections : 3.5mm Jack, USB Output connections : 3.5mm Jack, RCA Speed settings (RPM) : 33, 45, 78 Power supply : 100-240VAC 50/60Hz (5V Adapter) Dimensions (L x W x H) : 335 x 305 x 120mm Weight : 2,65 The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032 2014/53/EU S.I. 2017:120632

Specifications and design are subject to change without prior notice. www.audizio.com Copyright © 2023 by Tronios The Netherlands
