USER MANUAL RP310S Audizio

Ref. nr.: 102.170; 102.171

MANUEL D'INSTRUCTIONS

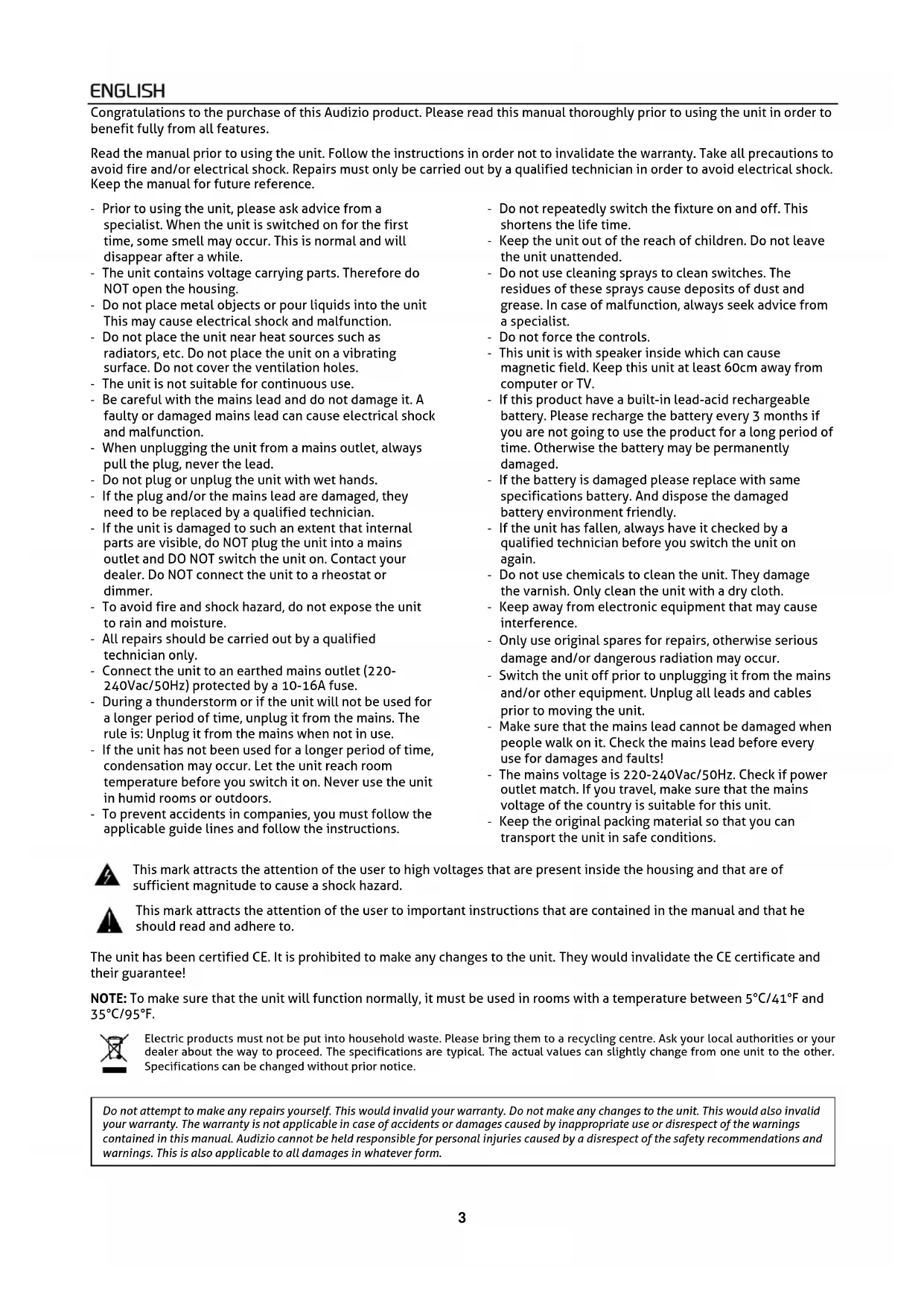

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.4 CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

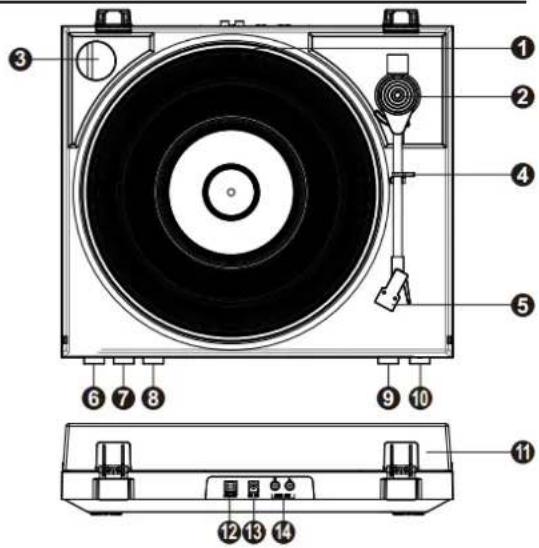

Place your record here.

This adaptor allows you to play 45RPM records.

This specially designed arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked.

5. Cartridge with needle

When the turntable is not in use, it is recommendable to place the removable protection cover over the stylus.

6. Power ON/OFF button

Push the Power On/Off button on the unit to turn on/off the turntable.

This switch controls the RPM of the turntable platter.

8. Start/Stop button

Press the START/STOP button to start the turntable ; push it again to stop it.

Press to force the tonearm to return to the arm-rest position.

Press to lift the tonearm. Move the tonearm gently to the desired position above the vinyl record. Push the lift button again to lower the tonearm slowly onto the record to begin playback.

Use the included USB cable to connect your turntable to your computer. The USB connection will send audio from the turntable to your computer.

Connect the power adapter.

The sound signal from long-playing record is sent to this line output. Connect this signal to the line input of an such as an amplifier or a line input of a CD/DVD player. 1. Connect an external amplifier or speaker system via the RCA output connector. NOTE: the RCA cables are color coded. The red plug cable must be plugged into the red connector on both the record player and external amplifier or speaker system. The white plug cable must be plugged into the white connector on both the record player and external amplifier or speaker system. 2. Insert the DC plug of the adapter firmly and securely in the DC IN connector on the back of the unit. Connect the other end of the adapter cable to a power outlet.

3. Before use: remove the needle protection cover.

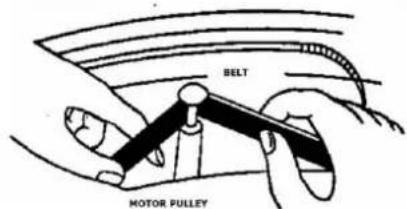

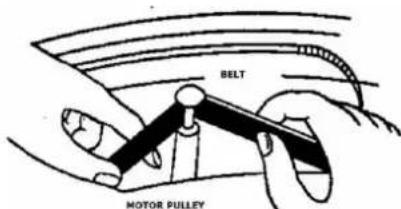

Although the best care has been put into the production of this record player and it’s mechanical components, the situation can occur that the drive belt could come loose (for example during transport). If so, please follow the below steps to put the belt back onto the motor pulley. A. Remove the rubber mat from the turntable platter and the E ring from the turntable shaft. Release the turntable platter from the shaft. B. Put the drive belt on the inner rim of the turntable platter and put the platter back over the shaft. C. Hold the belt with your fingers and place the belt onto the motor pulley as shown in the drawing. D. Clip the E ring back on the shaft and place the rubber mat onto the turntable platter.5 Note: avoid oil on the belt as the oil will make the belt slippery. Please make sure that the belt is not distorted or twisted. Before you connect the turntable to a computer, unplug it from your mixer or Hi-Fi system. The included software is a third party application and therefore Audizio does not handle any questions or problems regarding the software.

1. Turn the computer on

2. If the computer is booted, connect the turntable. The computer will now install the drivers.

3. After the drivers are installed, you must now install the Audacity software.

Windows users: insert the CD or download the newest software via http://audacity.sourceforge.net MAC users: download the newest software via http://audacity.sourceforge.net To Install Software (PC)

1. Plug in your turntable to an power supply and connect the USB port on the Turntable to the USB port of your computer.

2. Turn on the power switch to your turntable.

3. The Windows system will detect a new device and indicate that it is available to use.

4. Insert the CD that came with your USB turntable.

5. Run the file to install the Audacity software. Once installed, run the Audacity program.

To Install Software (MAC)

1) Insert the included CD.

2) Open the CD icon on the desktop.

3) Drag the installation folder for audacity to your hard drive. We recommend that you move the folder to your “Applications” folder.

4) A window will come up which shows the files copying.

6) Open “Audacity” from where you moved it to on your hard drive.

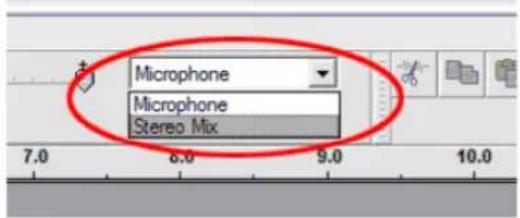

1. Click on Microphone in the drop down menu and select “Stereo Mix”.

2. Select the “Edit” menu and then “Preferences”

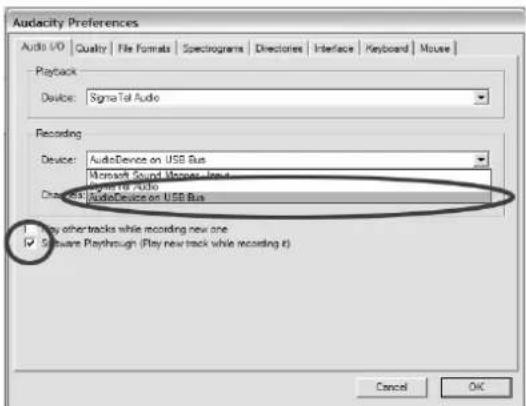

Select the USB audio device under the “Recording” selection as shown. Select “Software Playthrough” to hear the audio while recording.

European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032Specifications and design are subject to change without prior notice. www.tronios.com Copyright © 2022 by Tronios The Netherlands
