Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

SPEAKER CONTROLS

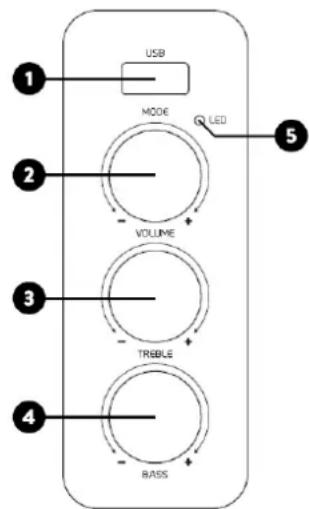

Active Speaker side panel

1. USB slot

Connect your USB devices to this slot to play music with MP3
2. Volume/mode

Rotate this button to adjust the volume

Press this button to switch between different audio sources

(BT, Line 1, Line 2, OPT and USB)

1. Treble
   Rotate this button to adjust the high tone control
2. Bass

Rotate this button to adjust the low tone control

1. LED indicator

USB MODE LED VOLUME TREBBLE BASS

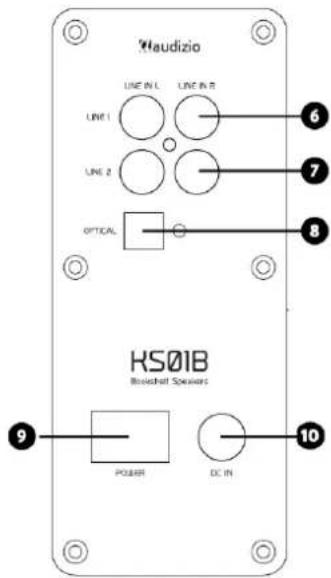

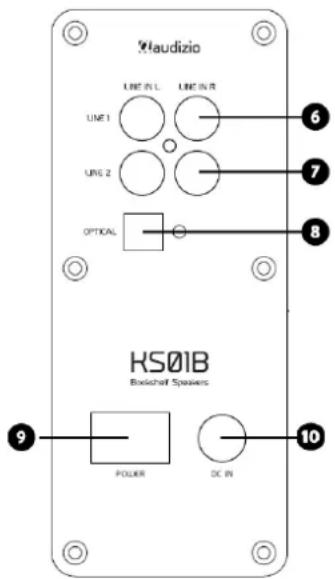

Active speaker rear panel

1. Line1

RCA jack inputs for connecting audio units

1. Line2

RCA jack inputs for connecting audio units

1. Optical

Optical input port

1. Power switch

Switch to turn the device on

1. DC IN

Connect the included power adapter to this input and connect the other end of the cable to the correct power source

Haudizio LINE IN L LINE IN R LINE 1 LINE 2 OPTICAL KS01B Boisehoff Speakers POUER DC IN 9 10

Passive speaker

1. SPK IN

Connection ports for the main and secondary speakers

Simple line drawing of a two-wheeled vehicle (no text or symbols)

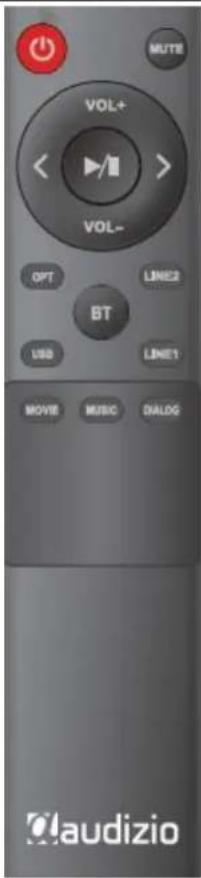

REMOTE CONTROL

1. ⏻ Press this button to turn the device on/off
2. Mute Press this button to (un)mute the device
3. Vol + Press this button to increase the volume
4. Press this button to change to previous track (only in BT/USB mode)
5. ▶ Press this button to start/resume or pause (only in BT/USB mode)
6. ▶ Press this button to change to next track (only in BT/USB mode)
7. Vol- Press this button to decrease the volume
8. OPT Press this button to enter Optical mode
9. Line1 Press this button to enter line1 mode
10. BT Press this button to connect to BT-devices Press and hold this button to disconnect BT-devices
11. USB Press and hold this button to enter USB mode
12. Line2 Press this button to enter line2 mode
13. Movie Press this button to enter Movie mode
14. Music Press this button to enter Music mode
15. Dialog Press this button to enter Dialogue mode

MUTE VOL+ VOL- OPT LINE2 BT USB LINE1 MOVE MUSIC DIALOG laudizio

GETTING STARTED

• Remove the speaker from the package box.
• Plug in the power adapter and press [POWER].
  Caution: Use only the adapter supplied with the speaker. Connecting a power supply with a different rating can cause permanent damage to the speaker and may be hazardous.

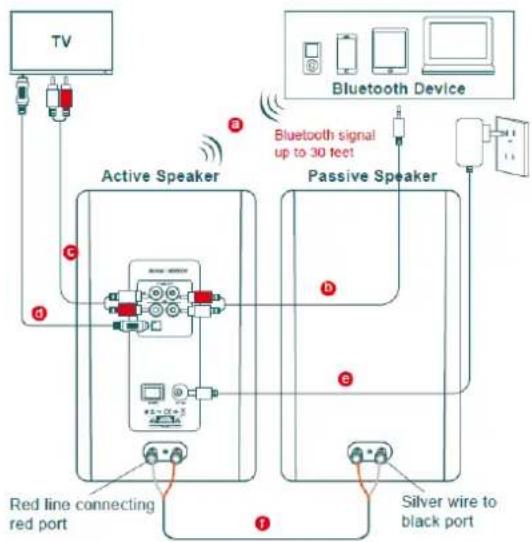

CONNECTIONS

a) BT
b) Stereo RCA to 3,5 mm audio cable
c) RCA to RCA audio cable
d) Digital Optical cable
e) Power adapter
f) Speaker connecting cable

LINE IN

1. Press the [Mode/Volume] button on the active speaker or press the [line1/line2] button on the remote control to select LINE IN input. The indicator turns to Light Blue (Line1) or Yellow (line2).
2. Using audio cable to connect audio source to the speaker.
3. Play from your device and adjust the volume.by rotate the [Mode/Volume].

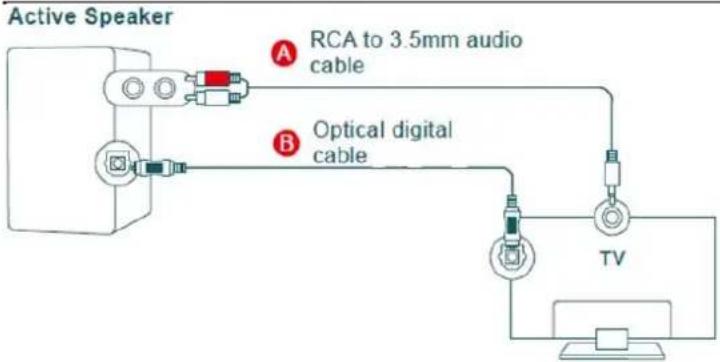

Active Speaker A RCA to 3.5mm audio cable B Optical digital cable TV

A. Method 1: Connecting using a RCA to 3,5 mm audio cable. Select LINE mode.
B. Method 2: Connecting using an Optical cable. Select mode and set the TV's audio output to "PCM".

SETTING "PCM" ON YOUR TV

When all cables are connected properly, and the LED indicator lights and there is no sound from TV or Soundbar, please setting your TV as below:

1. Press "Menu" on the TV's remote control.
2. Press the arrow keys on the remote to scroll to "Audio Settings".
3. Press "OK" on the remote control.
4. Scroll to "Advanced Audio" and press "OK". Some televisions may not have an "Advanced Audio" menu and may list various audio settings instead.
5. Scroll to "Audio Output Mode" or "Digital Audio Output Mode" and press "OK".
6. Scroll until "PCM" is displayed as the current audio output.
7. Press "OK" to save the settings.

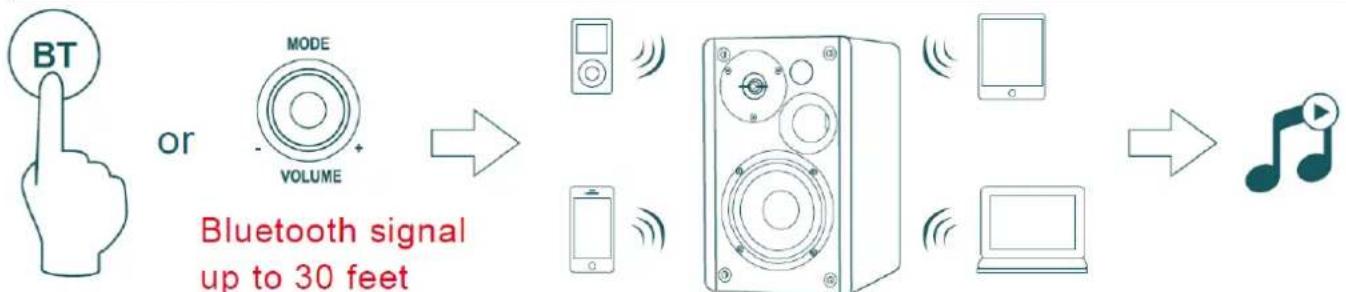

CONNECTING WITH BT

1. Press the [BT] button on the remote control or press the [Mode/Volume] button on the back panel of the active speaker, the LED indicator blinks blue.
2. Turn on BT on the BT device.
3. Select "Audizio KS01B" and connect. When you BT device is connected, the LED indicator blinks blue slowly.
4. Play music files from the device, connected via BT, through the bookshelf speaker.
5. Press and hold the [Mode/Volume] button or the [BT] button on the remote control to disconnect BT.

Simple line drawing of a two-port device with no text or symbols
