OSM 102W - Croque monsieur clip OK - Free user manual and instructions

Brand	OK
Model	OSM 102W
Product type	Sandwich press
Power supply	220-240 V ~ 50/60 Hz
Power	750 W
Protection class	I
Plate material	Non-stick coating
Light indicators	Red (power on), Green (ready/cooking)
Locking system	Handle lock
Dimensions (approx.)	28 x 22 x 10 cm
Weight (approx.)	1.5 kg
Intended use	Preparation of sandwiches (croque-monsieur)
Cooking temperature	Regulated, ready in 2-3 min
Cleaning	Damp cloth, no abrasives
Maintenance	After each use, cool before cleaning
Safety	Do not immerse, do not use with external timer, hot surfaces
Repairability	Power cord only by authorized service center
Warranty	Not specified, domestic use

Frequently Asked Questions - OSM 102W OK

How to use the OK OSM 102W croque-monsieur maker?

Plug in the appliance, the red and green lights come on. Wait for the green light to turn off (temperature reached). Open, place bread slices, add filling, close and lock. After 2-3 minutes, the croque-monsieur are ready. Unlock and remove with a wooden or heat-resistant plastic spatula.

What types of bread to use?

Use bread slices shaped to fit the plates. Bread with high sugar content can burn and cause a fire. Avoid them.

How long to cook a croque-monsieur?

Cooking takes about 2 to 3 minutes. The green light turns off when the temperature is reached. Do not leave unattended.

How to clean the appliance?

Unplug and let it cool completely. Clean the exterior with a damp cloth. Plates: wipe with absorbent paper or a soft damp cloth. For stubborn residue, pour a little cooking oil, wait 5 minutes, then remove. Never immerse in water.

Can metal spatulas be used?

No, use only wooden or heat-resistant plastic spatulas. Metal or sharp objects would damage the non-stick coating.

What to do if the appliance does not heat?

Check that the plug is connected and the red light is on. If the problem persists, do not attempt to repair yourself. Contact an authorized after-sales service.

Is it safe to leave the appliance unattended?

No, never leave the appliance unattended while it is on. Risk of fire, especially with bread.

Can you prepare something other than croque-monsieur?

The appliance is designed exclusively for preparing sandwiches (croque-monsieur). Any other use may damage the appliance or cause injury.

How to maintain the non-stick coating?

Avoid sharp or abrasive objects. Use wooden or plastic spatulas. Clean gently with a soft cloth. Do not pour liquids inside.

Where to find spare parts?

The damaged power cord can only be replaced by an authorized service center. Contact the retailer or manufacturer for any parts.

USER MANUAL OSM 102W OK

White disposable water heater with a circular vent and handle, no visible text or symbols on the device itself.

Close-up of a white electrical plug with a black arrow pointing to its socket (no text or symbols visible)

1

Two irregularly shaped objects, labeled 2 and 3, placed side by side on a plain background (no text or symbols on the objects themselves)

2

Close-up of a sandwich with two rectangular plates, one being cut open by a tray (no visible text or symbols)

3

Close-up of two rectangular food items on a white plate, possibly a cheese or pastry, with no visible text or symbols.

4

White disposable toilet with a small outlet and arrow indicator (no text or symbols)

5

White disposable toilet with a black arrow pointing to the lid area (no text or symbols visible)

6

Close-up of a griddle being cut with a knife, showing three slices and a flat blade (no text or symbols visible)

7

Close-up of a white electrical plug with a black arrow pointing to its side (no text or symbols visible)

8

Close-up of a white electrical outlet plug with a black arrow pointing to the socket (no text or symbols visible)

1

Two textured, gray objects with circular markers labeled 2 and 3 (no text or symbols on the objects themselves)

2

Two rectangular food items on a white plate, one partially covered by a bag (no visible text or symbols)

3

Stacked rectangular food items on a white plate, no visible text or symbols

4

White disposable toilet with a small outlet and arrow indicator (no text or symbols)

5

White disposable toilet with a black arrow pointing to the lid area (no text or symbols visible)

6

Close-up of a griddle being cut with a knife, showing four pieces (no text or symbols visible)

7

Close-up of a white electrical outlet plug with a black arrow pointing to the socket (no text or symbols visible)

8

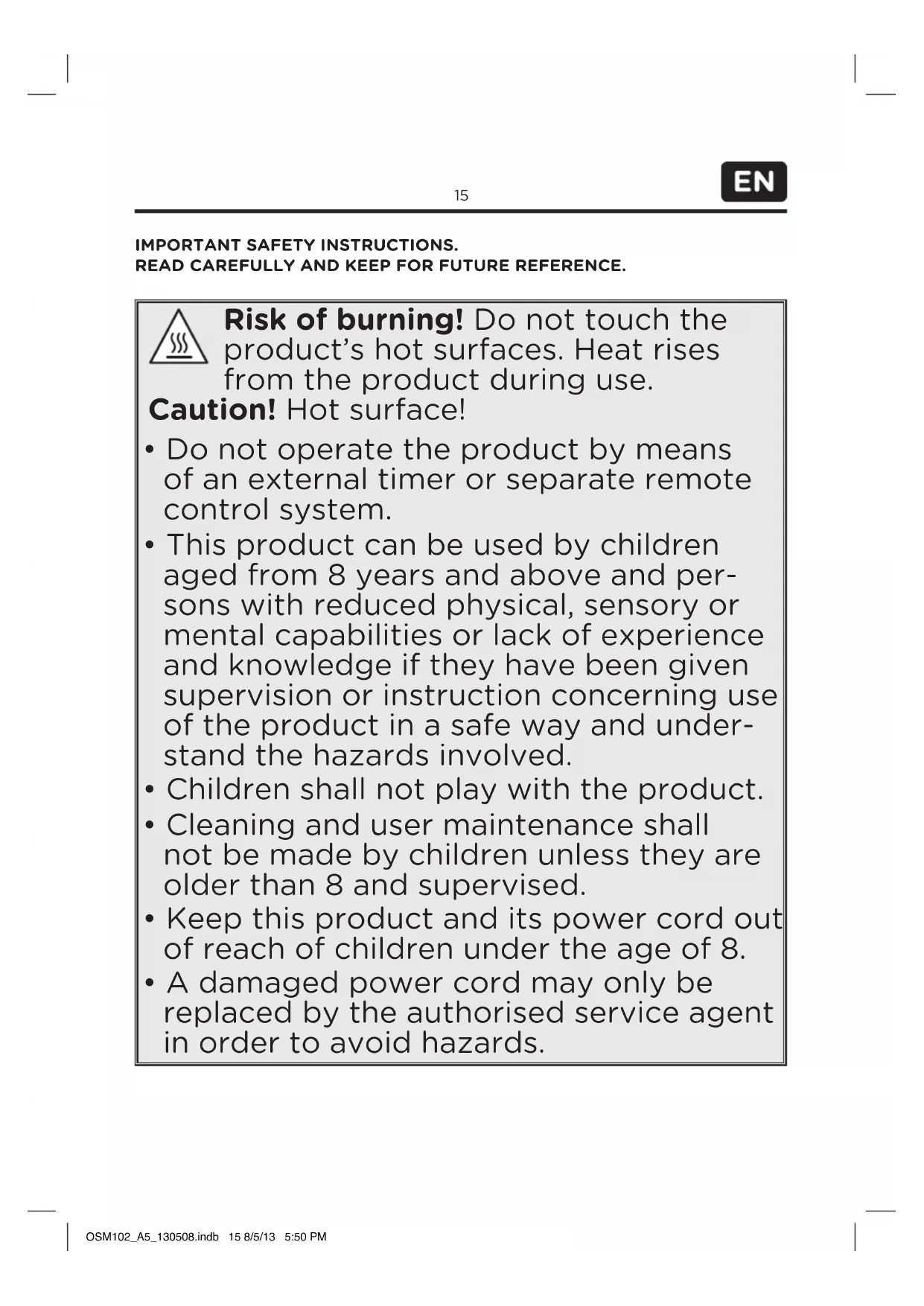

IMPORTANT SAFETY INSTRUCTIONS.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.

Caution! Hot surface!

• Do not operate the product by means of an external timer or separate remote control system.
• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep this product and its power cord out of reach of children under the age of 8.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

- Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

- Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards. We do not accept any liability for resulting damages.

• Never leave the product unsupervised while it is switched on.

• Do not place heavy objects on top of the product.

- Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

- Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

- The mains voltage must match the information on the rating label of the product.

- Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

- Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

- Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...

• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.
- Place the product on a flat, sturdy and slip-resistant surface.
- Never use, expose or put the product near to:

- direct sunlight and dust;

- fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

• This product is not suitable for commercial use. It is designed for household use only.
• Use heat-proof or wooden spatulas with the product to prevent damage to the heating plates' nonstick coating. Make sure that the spatulas used do not have any pointy or sharp edges.
• Do not place the product on hotplates (gas, electric, coal stoves, etc.).
• Fire hazard! Bread and other foodstuffs can burn! Do not use bread with a high sugar content since this may cause fire. Never leave the product unattended.
• Risk of burning! Do not touch the product's hot surfaces. Touch the product only by its handle.
• Clean the product and all other accessories after each use.
• Follow the instructions in the chapter Cleaning and care.

CONGRATULATIONS

Thanks for your purchase of ok. product. Please read this manual carefully and keep it for future reference.

INTENDED USE

The product is intended only for the preparation of sandwiches. Any other use can lead to damages of the product or injuries.

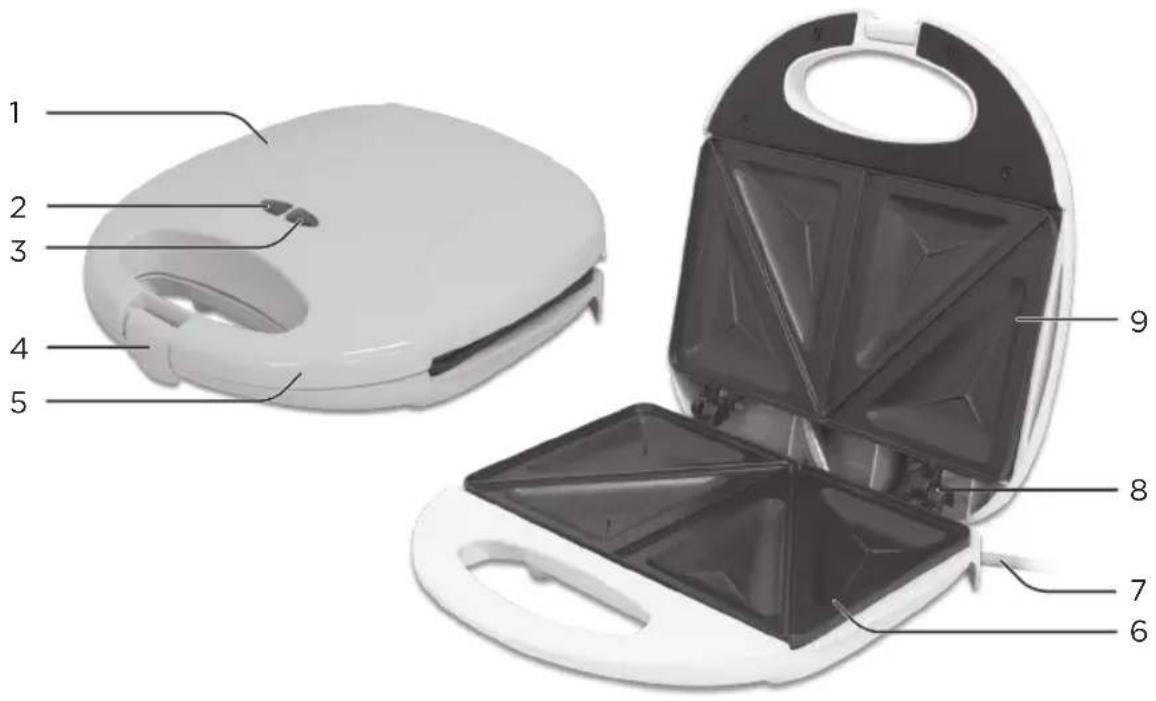

COMPONENTS

The product may be available in different colors.

1 2 3 4 5 9 8 7 6

1. Lid
2. Red indicator (power-on)
3. Green indicator (heating or ready)
4. Handle latch

5. Handle

6. Bottom hotplate

7. Power cord with plug
8. Hinge
9. Top hotplate

BEFORE FIRST TIME USE

During manufacturing, parts of the product are coated with a thin oil film for their protection. To remove production residue, run the product for approx. 10 minutes without foodstuffs. Make sure there is sufficient ventilation as a slight odor and some smoke may occur. This is normal and will disappear shortly.

Close-up of a white electrical plug with a black arrow pointing to its socket (no text or symbols visible)

1

Connect the power plug to a suitable power outlet.

Two gray, textured objects labeled 2 and 3 on a plain background (no text or symbols on the objects themselves)

2

The red (2) and green (3) indicator lights turn on when the product is connected. Green light will turn OFF when the temperature is reached.

Close-up of a sandwich with two rectangular plates, one being cut off by a tray (no text or symbols visible)

3

Open the product and place slices of toast on hotplates.

NOTE

While the product heats up, you can butter the toast and prepare the fillings. We recommend using only slices of toast, which have the same shape as the hotplates of the product.

Close-up of a sandwich with two rectangular blocks, one partially open and one closed, placed on a white plate (no text or symbols visible)

4

Add the filling and the top toast slices.

White disposable toilet with a small outlet and arrow indicator (no text or symbols)

5

Close the product firmly and locking it with the handle latch.

CAUTION

Surfaces get hot during operation.

Never touch the plates with sharp or abrasive items, as this would damage the plate surfaces.

NOTE

After about 2-3 minutes the sandwiches are ready.

White disposable toilet or shower device with a black arrow pointing to the outlet (no text or symbols visible)

6

Unlock the handle latch and open the lid carefully by using the handle.

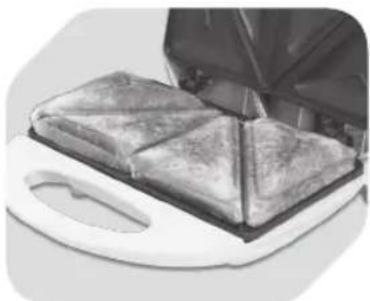

Close-up of a griddle being cut with a pan, showing three pieces (no text or symbols visible)

7

Use a heat-resistant plastic or wooden spatula to take out the finished sandwich.

Close-up of a white electrical outlet plug with a black arrow pointing to the socket (no text or symbols visible)

8

Unplug the power plug from the power outlet.

CLEANING AND CARE

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
  • Make sure that no water enters the product interior.
• Wipe the hotplates with paper towels or a soft damp cloth. If there are difficult to remove food residues, pour a little bit of edible oil on the hotplates and remove the residues after 5 minutes of exposure time.
• Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children.

SPECIFICATION

Rated voltage: 220-240 V\~, 50/60 Hz / Rated power input: 750 W / Protection Class I

DISPOSAL

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
