USER MANUAL OSM 1111 OK

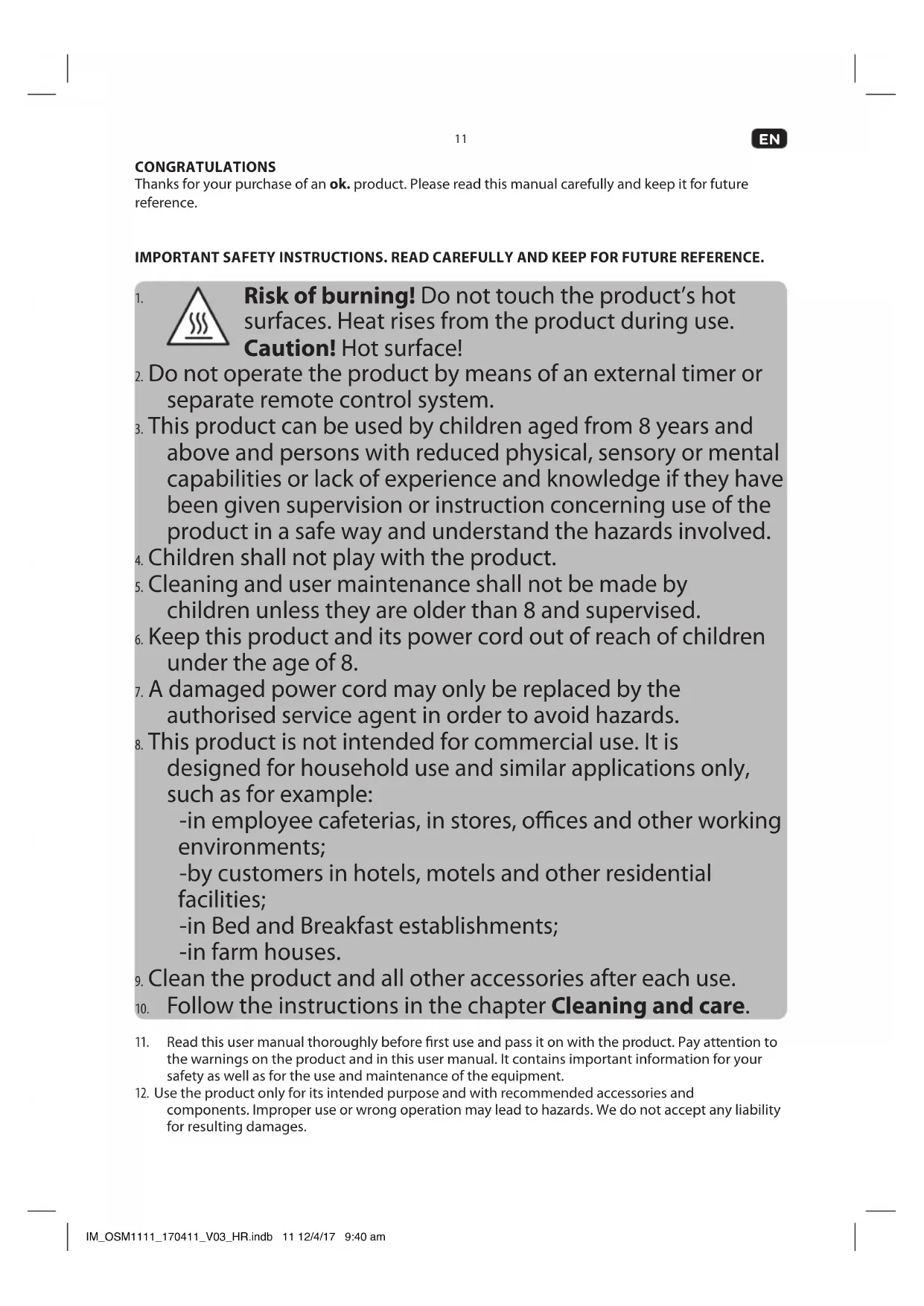

CONGRATULATIONS Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Risk of burning! Do not touch the product’s hot surfaces. Heat rises from the product during use. Caution! Hot surface!

2. Do not operate the product by means of an external timer or

separate remote control system.

3. This product can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

4. Children shall not play with the product.

5. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

6. Keep this product and its power cord out of reach of children

7. A damaged power cord may only be replaced by the

authorised service agent in order to avoid hazards.

8. This product is not intended for commercial use. It is

designed for household use and similar applications only, such as for example: -in employee cafeterias, in stores, oces and other working environments; -by customers in hotels, motels and other residential facilities; -in Bed and Breakfast establishments; -in farm houses.

9. Clean the product and all other accessories after each use.

10. Follow the instructions in the chapter Cleaning and care.

11. Read this user manual thoroughly before rst use and pass it on with the product. Pay attention to

the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

12. Use the product only for its intended purpose and with recommended accessories and

components. Improper use or wrong operation may lead to hazards. We do not accept any liability for resulting damages. IM_OSM1111_170411_V03_HR.indb 11 12/4/17 9:40 am12

13. Never leave the product unsupervised while it is switched on.

14. Do not place heavy objects on top of the product.

15. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the

product under running water.

16. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to

repair the product yourself. For servicing and repairs, please consult an authorised service agent.

17. The mains voltage must match the information on the rating label of the product.

18. Only unplug from the power socket can separate the product completely from the mains. Please be

sure that the power plug is in operable condition.

19. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

20. Keep this product including power cord and power plug away from all heat sources like for

example, ovens, hot plates and other heat-producing products/objects.

21. Only unplug from the power socket by the plug itself. Do not pull on the cord.

22. Unplug the product ...

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

23. Use this product in dry indoor areas only and never outdoors.

24. Place the product on a at, sturdy and slip-resistant surface.

25. Never use, expose or put the product near to:

- direct sunlight and dust; - re (replace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

26. Use heat-proof or wooden spatulas with the product to prevent damage to the heating plates‘

nonstick coating. Make sure that the spatulas used do not have any pointy or sharp edges.

27. Do not place the product on hotplates (gas, electric, coal stoves, etc.).

28. Fire hazard! Bread and other foodstus can burn! Do not use bread with a high sugar content since

this may cause re. Never leave the product unattended.

29. Risk of burning! Do not touch the product’s hot surfaces. Touch the product only by its handle.

INTENDED USE The product is intended only for the preparation of sandwiches. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specied purpose. IM_OSM1111_170411_V03_HR.indb 12 12/4/17 9:40 am13

COMPONENTS The product may be available in dierent colors. A. Lid B. Green indicator (ready) C. Red indicator (power on) D. Handle E. Handle latch F. Bottom hotplate G. Power cord with plug H. Hinge

During manufacturing, parts of the product are coated with a thin oil lm for their protection. To remove production residue, run the product for approx. 10 minutes without foodstus. Make sure there is sucient ventilation as a slight odor and some smoke may occur. This is normal and will disappear shortly.

Connect the power plug to a suitable power outlet.

The red indicator turns on when the product is connected to the mains and heating up. When the operating temperature is reached, the red light turns o and the green indicator lights on.

Open the product and place slices of toast on hotplates. Note: While the product heats up, you can butter the toast and prepare the llings. We recommend using only slices of toast, which have the same shape as the hotplates of the product.

Close the product rmly by pressing down the upper handle until the latch snaps in. Note: After about 2-3 minutes the sandwiches are ready. The baking time can vary because of the thickness of the bread and the desired browning level. Caution: Surfaces get hot during operation. Never touch the plates with sharp or abrasive items, as this would damage the plate surfaces.

Unlock the handle latch and open the lid carefully by using the handle. Caution: When opening the cover, steam will occur. Protect your hands with cloth or kitchen glove.

Use a heat-resistant plastic or wooden spatula to take out the nished sandwich.

TROUBLESHOOTING If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer. Problem Possible Causes Solution Product does not work • Interrupted power supply • Check the power supply Sandwiches too brown • Baking time too long • Shorten the baking time

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior.

• Wipe the hotplates with paper towels or a soft damp cloth. If there are dicult to remove food residues, pour a little bit of edible oil on the hotplates and remove the residues after 5 minutes of exposure time.

• Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children. SPECIFICATION Rated voltage : 220 - 240 V~, 50/60 Hz Rated power input : 750 W Protection Class : I DISPOSAL Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. IM_OSM1111_170411_V03_HR.indb 14 12/4/17 9:40 am15
