USER MANUAL OFK 34411 A3 OK

IM_OFK34411-A3_190520_V06_HR.indb 1 20/5/2019 16:34Folded Size = A5 Folded Size = A5

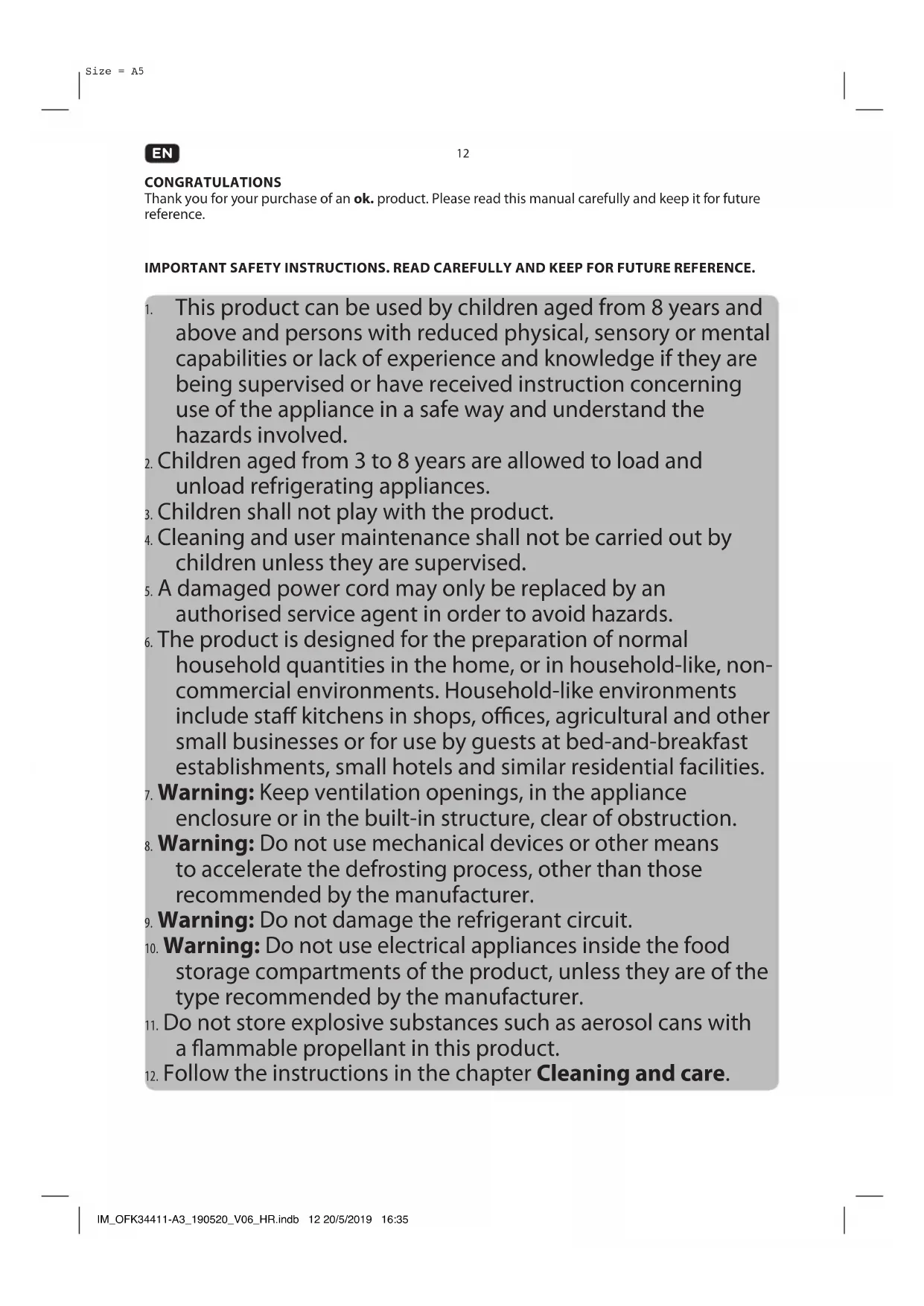

CONGRATULATIONS Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

3. Children shall not play with the product.

4. Cleaning and user maintenance shall not be carried out by

children unless they are supervised.

5. A damaged power cord may only be replaced by an

authorised service agent in order to avoid hazards.

6. The product is designed for the preparation of normal

household quantities in the home, or in household-like, non- commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

7. Warning: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

8. Warning: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those recommended by the manufacturer.

9. Warning: Do not damage the refrigerant circuit.

10. Warning: Do not use electrical appliances inside the food

storage compartments of the product, unless they are of the type recommended by the manufacturer.

11. Do not store explosive substances such as aerosol cans with

a ammable propellant in this product.

12. Follow the instructions in the chapter Cleaning and care.

13. Warning: The refrigerant and insulation blowing gas are

ammable. When disposing of the product, do only at an authorized waste disposal center or contact the service agent.

14. To avoid contamination of food, please respect the following

instructions: -Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance. -Clean regularly surfaces that can come in contact with food and accessible drainage systems. -Clean water tanks if they have not been used for 48 h; ush the water system connected to a water supply if water has not been drawn for 5 days. -Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. -Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. -One-, two- and three-star compartments are not suitable for the freezing of fresh food. -If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

15. Read this manual thoroughly before rst use. It contains important information for your safety as

well as for the use and maintenance of the equipment.

16. Do not place any objects on top of the product.

17. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the

product under running water.

18. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs,

please consult an authorised service agent.

19. The mains voltage must match the information on the rating label of the product.

20. Only unplugging from the power socket can separate the product completely from the mains.

21. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

22. Keep this product including power cord and power plug away from all heat sources such as ovens,

hot plates and other heat-producing products/objects.

23. Only unplug from the power socket by the plug itself. Do not pull on the cord.

24. Unplug the product …

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product. IM_OFK34411-A3_190520_V06_HR.indb 13 20/5/2019 16:3514 Size = A5

25. Use this product in dry indoor areas only and never outdoors.

26. This product is not intended for commercial use. It is designed for household use only.

27. Make sure that electrical components, live parts and the power cord do not become wet.

28. Use accessories supplied with the device or recommended by the manufacturer only!

29. Do not cover the product while in use. Fire hazard!

30. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

31. WARNING! Do not locate multiple portable socket-outlets portable power suppliers at

the rear of the appliance.

32. Caution: Risk of re! Flammable materials.

33. WARNING! During using, service and disposal the appliance, please pay attention to the

symbol which is located on rear of appliance (rear panel or compressor).

34. It’s risk of re warning symbol. There are ammable materials in refrigerant pipes and compressor.

Please be far away re source during using, service and disposal. INTENDED USE This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries. The product is only intended to be used in private households and shall not be used for commercial purposes. The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specied purpose. IM_OFK34411-A3_190520_V06_HR.indb 14 20/5/2019 16:3515

A. Temperature control B. Light C. Refrigerator interior D. Glass shelf (3 x) E. Vegetable compartment (fresh food compartment) F. Freezer G. Freezers boxes (3 x) H. Power cord with plug (not shown)

I. Adjustable feet, front

J. Freezer door K. Bottle shelf L. Refrigerator door M. Door shelf (1 x large, 2 x small) DELIVERY CONTENTS 1 x Fridge and freezer combination 2 x Egg holder for 6 eggs each 1 x Ice cube tray 1 x User manual ACCESSORIES

• 2 x egg holder for 6 eggs each (not shown)

• Ice cube tray (not shown)

BEFORE FIRST TIME USE

• Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care. Warning If the refrigerator has been stored, transported or tipped sideways during transport or installation, it must be upright for 12 hours before being connected to the mains. INSTALLATION Fig.

Place the unit on a level and stable surface. Keep the minimum distances to all sides. Fig.

Unevenness can be compensated with the adjustable front feet. Fig.

The refrigerator is equipped with three glass shelves which, if desired, can be removed by pulling them forward. The upper two glass shelves can be used at dierent heights. IM_OFK34411-A3_190520_V06_HR.indb 15 20/5/2019 16:3516 Size = A5

Plug in the power plug into an appropriate mains socket outlet. Note: Allow the product to precool for about 2-3 hours before storing food in it. Setting the refrigerator temperature Fig.

Set the temperature with the temperature control. Levels 1-7 do not correspond to any particular temperature. In position 0 the appliance is switched o. The lower the setting, the higher the inner temperature. Note:

• To check the temperature, insert a commercially available thermometer into the device.

• The temperature in the unit depends on the ambient temperature and the setting of the temperature controller.

• Make sure the door of the product is properly closed and not blocked by food. Replace the light bulb Warning! Disconnect the power plug before replacing the light bulb. Fig.

To change the light bulb of the interior lighting, rst remove the screw and then the cover. Unscrew the defective bulb and replace it with an equivalent model E14-5 (max. 10 W). Install cover and screw again.

• If necessary, and if the premises require it, the mounting of the doors can be changed. To do this, follow all the following instructions in the given order.

• The following tools are required: 10 mm wrench and Phillips screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

• For this work a dierent cover is needed, which is provided with the unit.

• For safety, remove the door trays to prevent them from being damaged. Top door

35. Remove the four caps in the upper plastic cover and unscrew all four screws. Remove the

plastic cover. Store all parts safely. Unscrew the upper hinge plate. When unscrewing, be sure to hold the refrigerator door rmly, otherwise it will be damaged.

36. Pull out the door and place it on a soft and clean surface.

1. Hold the freezer door and remove the two screws on the middle hinge.

2. Pull the freezer door upwards and place it on a soft and clean surface.

3. Remove the two blind caps above the freezer compartment and the blind plug on the top of the

freezer door and insert them into the holes on the opposite sides. Refrigerator bottom Caution! Pull out the mains plug!

1. Tilt the refrigerator so you can work at the bottom or place the refrigerator fully on its back. Make sure

the back is placed on a soft and clean surface. Unscrew the feet on both sides using a hex-wrench. Loosen the screws and remove lower hinge plate.

2. Remove the door hinge bolt, turn the hinge plate over and screw the door hinge pin in the same hole

from the other side.

3. Attach the turned hinge plate onto the left side by screws. Screw the feet into the plates on both sides.

Place the refrigerator back on its feet and adjust them if necessary. IM_OFK34411-A3_190520_V06_HR.indb 16 20/5/2019 16:3517

Mounting the door Caution! After you have placed the refrigerator upright on its feet, wait for 2 hours before you connect it to the mains to permit the cooling system to regain full capacity.

1. Place the freezer door on the lower hinge. Turn the middle hinge and insert the bolt into the left hole

of the freezer door and screw in the hinge rmly. The freezer door is now xed. Check for correct function and tting.

2. Unscrew the bolt from the top hinge. Turn the hinge, insert and screw in the bolt from the other side

again through the hole.

3. Remove the screw on the left side and screw it in on the right side.

4. Place the hole provided on the left side of the refrigerator door onto the bolt of the middle hinge and

hold the door rmly. Insert the top hinge bolt into the left hole provided on the top of the refrigerator door. Screw the upper hinge plate to the refrigerator. Check for correct function and tting. Insert the plug on the left side into the switch on the underside of the left cap. Place the cables so that they cannot be squeezed.

5. Put the plastic cover back on the refrigerator and x it with the four screws. Close the four holes with

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).

• Ensure unobstructed air ow around the refrigerator and freezer.

• If a layer of ice has built, defrost the unit. A thick layer of ice aects the transmission of the cold, thus the energy consumption will be increased.

• When opening the door and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.

• Select the temperature regulator setting according to the lling amount of the product.

• Use drawers, baskets or shelves to store the food. If the energy of the product is used eciently, the energy consumption can be minimized.

• Unplug the product before cleaning.

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).

• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Wipe the door seal with clean water only, and dry it thoroughly afterwards.

• Removable parts e.g. glass shelves, can be taken out for cleaning. DECOMMISSIONING If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Clean the interior of the freezer compartment and let it dry.

• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)

• Let the door open to avoid the formation of unpleasant odors and mold. IM_OFK34411-A3_190520_V06_HR.indb 17 20/5/2019 16:3518 Size = A5

TECHNICAL DATA Voltage : 220 - 240 V~ Frequency : 50 Hz Rated current : 0.4 A Energy Consumption kWh/24h : 0.293 kwh kWh/year : 107 kwh Ambient temperature : 16 °C - 43 °C Net capacity of refrigerator : 98 L Net capacity of freezer : 52 L Measurement : 520 x 560 x 1470 mm Depth with door open : 1060 mm Bulb/ type : E14-5 (max. 10 W) This product is intended to be used in climate classes from N to T. Climate class Ambient temperature N +16 to +32 °C ST +16 to +38 °C T +16 to +43 °C TROUBLESHOOTING If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer. Problem Possible causes Solution Product does not work • Interrupted power supply • Check the power supply Temperature in the compartments is not low enough.

• The door is not closed rmly or it is opened to often

• Re-arrange the food so that the door can be closed rmly

• The ambient temperature is lower than 16 °C or higher than 43 °C

• The product is intended to be operated in an ambient temperature of 16 °C to 43 °C Water gathers in the lower part of the compartment

• The food comes in contact with the rear wall of the compartment

• Move away the food or container from the rear wall The interior lamp doesn’t shine • Lamp is defect • Replace the bulb DISPOSAL Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Refrigerants must be evacuated and disposed of by a qualied specialist in accordance with federal and local regulations before the appliance is scraped. IM_OFK34411-A3_190520_V06_HR.indb 18 20/5/2019 16:3519

EU Product Data Sheet OFK 34411 A3 1/1 The information in this product data sheet is presented in accordance with Article 3, letter b) in connection with Appendix III of delegated regulation (EU) No. 1060/2010 of the Commission on completing Council Directive 2010/30/ EU of the European Union and of the Council with regard to the labelling of household cooling appliances relating to energy consumption. a Supplier’s trademarks OK b Model identier OFK 34411 A3 c Household cooling appliance models

A+++ e Community eco-label in accordance with Council Regulation (EEC) No. 66/2010 n/a Symbol Value Unit f Annual energy consumption

Storage volume and if necessary Star rating each compartment

n/a L Cellar Compartment

n/a L Wine storage compartment

98 L Chill compartment

n/a L Ice cube making compartment and zero-star compartment n/a L One-star compartment V* n/a L Two-star compartment V** n/a L Three-star compartment V*** n/a L Freezer compartment (four-star compartment) V**** 52 L h Design temperature (other compartments) n/a

Information regarding frost-free conditions for each compartment: Other Compartment n/a Cellar Compartment n/a Wine storage compartment n/a Storage area for fresh comestibles n/a Chill compartment n/a Ice cube making compartment and zero-star compartment n/a One-star compartment n/a Two-star compartment n/a Three-star compartment n/a Freezer compartment (four-star compartment) n/a j Storage time in the event of breakdown (temperature increase time) 13 h k Freezing capacity

Household refrigerating appliance categories: 1 = Refrigerator with one or more storage areas for fresh comestibles; 2 = Refrigerator with cellar zone, cellar compartment, cooling appliance and wine cabinet; 3 = Refrigerator with chilling zone and refrigerator with a zero-star compartment; 4 = Refrigerator with a one-star compartment; 5 = Refrigerator with a two-star compartment; 6 = Refrigerator with a three-star compartment; 7 = Cooling units and freezers; 8 = Upright freezer; 9 = Chest freezer; 10 = Multi-purpose cooling units and other cooling appliances.

Range: A+++ (highest eciency) to D (lowest eciency)

On the basis of standard testing results over a 24-hour period. Actual consumption depends on the use and location of the appliance.

• = compartment -6°C or colder; *** = Deep-freeze storage area -18°C or colder; **** = Freezer and deep-freeze storage areas -18°C or colder and with a minimum freezing capacity

“other compartment” is a compartment that is not a wine storage area and which is intended for the storage of certain comestibles at a higher temperature such as + 14 °C.

Climatic class SN: This appliance is intended for operation at a surrounding temperature between + 10°C and +32°C; Climatic class N: This appliance is intended for operation at a surrounding temperature between + 16°C and +32°C; Climatic class ST: This appliance is intended for operation at a surrounding temperature between + 16°C and +38°C; Climatic class T: This appliance is intended for operation at a surrounding temperature between + 16°C and +43°C IM_OFK34411-A3_190520_V06_HR.indb 19 20/5/2019 16:3520 Size = A5
