Pro Curl Color - Hair Straightener Wella - Free user manual and instructions

Product type	Professional curling iron for colored hair
Brand	Wella
Model	Pro Curl Color
Available diameters	24 mm and 32 mm
Operating voltage	220-240 V ~ 50/60 Hz
Power	35 W (24 mm) / 43 W (32 mm)
Temperature range	130 °C to 190 °C in 10 °C increments
Color Save function	Automatic temperature setting for colored hair
Ionic function	Reduces static electricity and improves hair hydration
Typical preheating time	Approximately 45-60 s at 120 °C, 160-180 s at 175 °C
Automatic safety shut-off	After approximately 45 minutes of inactivity
Heating surface material	High-quality anodized aluminum
Insulated tip	Yes, remains at moderate temperature
Swivel connector	Prevents cable twisting
Digital display	Blue/red screen indicating temperature and Color Save mode
Dimensions (L x W x H)	Approximately 36 x 4 x 6 cm (24 mm) / 37 x 4 x 6.5 cm (32 mm)
Cable length	2.8 m
Weight (without cable)	Approximately 230 g (24 mm) / 260 g (32 mm)
Protection class	II
Color	Black
Maintenance	Clean with a slightly damp cloth after cooling
Warranty	2 years

Frequently Asked Questions - Pro Curl Color Wella

How to activate the Color Save function?

Press the COLOR SAVE button. The device automatically sets the optimal temperature for colored hair. The + and - buttons are deactivated in this mode.

What temperature should I choose for my hair type?

Refer to the table in the manual: colored hair: use Color Save; bleached/very porous: max 150 °C; permed/porous: max 170 °C; normal: max 180 °C; thick/resistant: max 190 °C.

How long does it take for the device to heat up?

Preheating is fast: approximately 45 to 60 seconds to reach 120 °C, and 160 to 180 seconds for 175 °C depending on the diameter.

What does the slight crackling sound on startup mean?

This noise is normal and comes from the ionic function that releases ions to reduce static electricity and improve hair hydration.

How to clean the Pro Curl Color?

Always unplug the device and let it cool down. Wipe with a slightly damp cloth. Never use harsh or flammable products.

The device turns off by itself during use, is that normal?

Yes, it's a safety feature: if no button is pressed for approximately 45 minutes, the device automatically turns off. To reactivate, press the on/off switch.

Can I use the curling iron on wet hair?

No, use it only on dry hair. Using it on wet hair presents a risk of electric shock and can damage hair.

What is the maximum heating time on a strand?

Do not leave the iron on each strand for more than 10 to 15 seconds to avoid damaging hair. Do not treat the same strand multiple times at high temperature.

How to store the device after use?

Unplug it, let it cool, then store it in a dry place. Do not wrap the cable around the device to avoid damage.

Is the iron suitable for short hair?

Yes, the Pro Curl Color is suitable for both short and long hair. For short hair, use variant 3 (strand in the middle, horizontal rotation).

USER MANUAL Pro Curl Color Wella

1 Features of the Pro-Curl Color 25
2 Safety 26
3 Operation 29
4 The right temperature - the best protection for your hair ... 32
5 Styling 32

5.1 General procedure 33
5.2 Styling techniques 33

6 Cleaning 34
7 What should I do if ... 35
8 Disposal 35
9 Technical data 36
10 Two-year guarantee 37

Pro-Curl Color - shining curls for coloured hair

Pro-Curl Color is the new professional hair curling tongs developed by Wella specially for coloured hair.

Coloured hair displays very sensitive reactions to the application of heat, even if the hair structure itself is basically strong and healthy. If the temperature is too high the hair structure can easily suffer: the hair turns brittle and the colour fades. That is why coloured hair needs to be treated with special care.

The Color Save function offers you an excellent styling without compromise on color results. Pressing the COLOR SAVE button automatically sets the appliance to the ideal temperature.

The precise temperature settings for every hair type permit extremely gentle treatment of the hair.

The ion function reduces static charging and improves the hair's moisture balance. This makes the hair easier to style and helps keeping its healthy natural shine.

The Pro-Curl Color is available in two different diameters (24 and 32 mm) for medium and large curls. In a matter of seconds you will conjure up expressive natural-looking curls or waves and create greater volume.

We are sure you will enjoy styling with the Pro-Curl Color.

Your

Wella Team

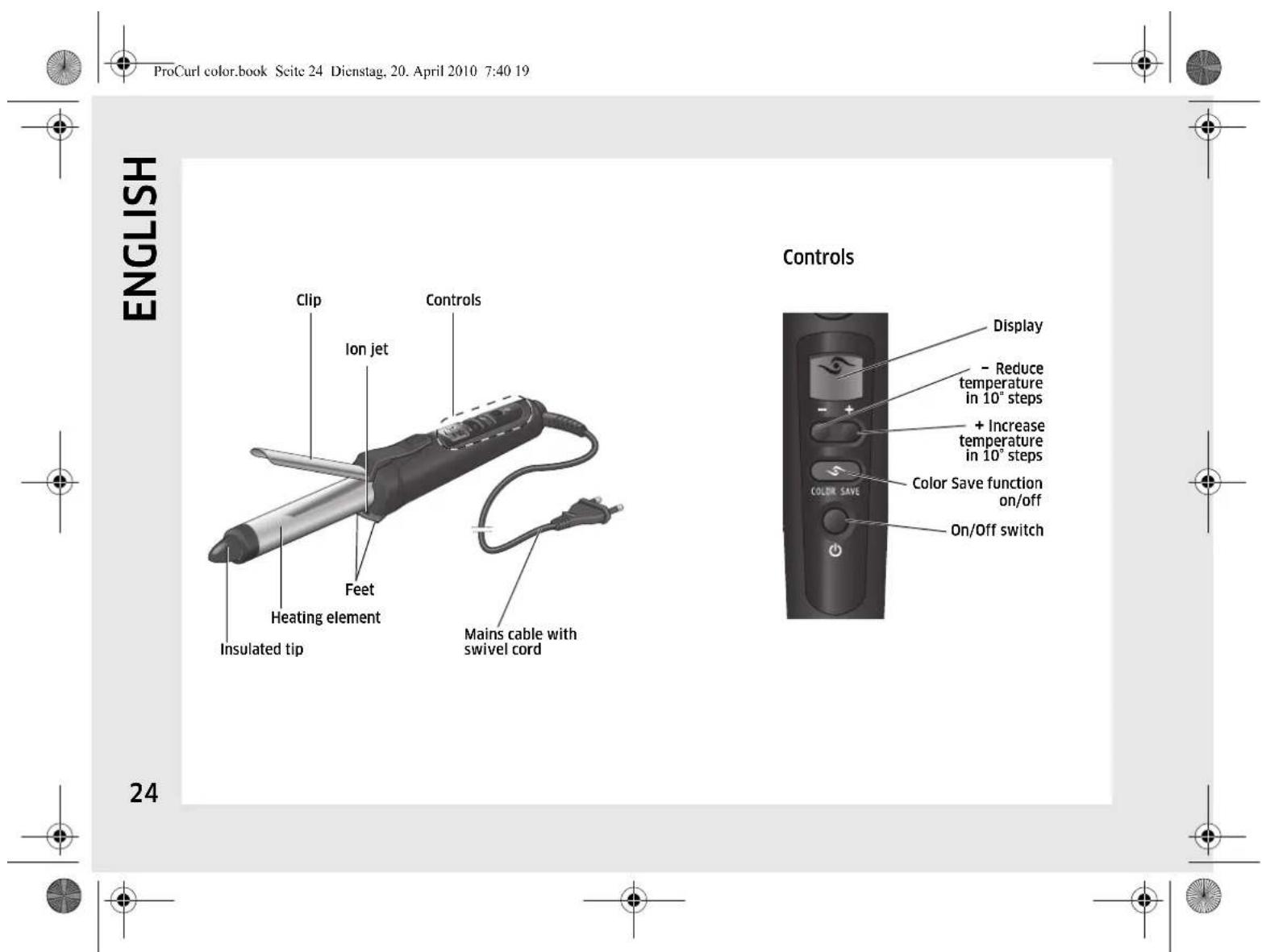

1 Features of the Pro-Curl Color

Easily styled, silky smooth hair

The ion function provides a steady flow of ions that reduce static charge in the hair. This makes the hair easier to style and helps it regain its healthy natural shine.

Optimum temperature for coloured hair

For styling of coloured hair the Color Save function offers you maximum protection with excellent styling conditions. Pressing the COLOR SAVE button sets the appliance to the ideal temperature.

High-grade surfaces

Thanks to their smooth high-quality anodised aluminium surface, both the heating element and the clip of the Pro-Curl Colorslide smoothly and gently through the hair. They are extremely resistant to high temperatures and haircare cosmetics.

Rapid heating and constant temperatures

The short initial heating time of only about 2 to 3 minutes means you never have to wait long to use your Pro-Curl Color. The appliance maintains the temperature constant at the selected level and ensures uniform heat transfer to the hair.

Precisely adjustable temperature for every type of hair

You can also use the temperature buttons for precise adjustment of the recommended temperature (see page 32) in 10°C steps from 130°C to 190°C to suit every other hair type.

Safe working

• The clear display shows the set temperature and the Color Save function.
• The insulated tip remains moderately warm and is safe to touch.
• The swivel connection prevents the power cord from getting tangled, thereby making for easier working.
• If no button is pressed for about 45 minutes, the appliance switches off automatically (see page 31).

Please read the instructions carefully, especially the chapter on "Safety", before using the Pro-Curl Color. This will protect you from possible dangers and the appliance from damage due to incorrect operation.

Keep these instructions in a safe place for future reference. If you pass on the appliance to someone else, be sure to hand over these instructions as well.

Explanation of warnings

In these instructions you will find the following warnings:

DANGER: High risk. Failure to observe the warning can cause serious injury.

CAUTION: Medium risk. Failure to observe the warning may cause damage to property.

NOTE: Low risk. Points that you should observe when using or handling the appliance.

Intended use

• Use yPro-CwrkColor for styling real hair only.
• The appliance is designed for indoor use only. Do not use outdoors (garden, patio etc.).
• The appliance was developed for professional use by hairdressers. Provided the safety information is observed, it can also be used in the home.

Warning against improper use

- Do not use on artificial hair or animal hair. Do not dry objects with the heating element!

Important information about dangers

DANGER:

Danger of electric shock!

- Do not use this appliance close to baths, showers, washbasins or other receptacles containing water.

• Do not operate the appliance with wet hands.
• Never immerse the appliance in water or rinse it under running water.
• Do not use the appliance on wet hair.

• If you use the Pro-Curl Color in a bathroom, always pull out the mains plug afterwards because of the safety risks when it is close to water, even if the appliance is switched off.
  • Additional protection is afforded by installing a residual current device with a rated tripping current of less than 30 am in your home electrical system. We recommend you get an electrician to install a residual current protection system to protect the circuits.

DANGER:

Fire risk!

- Never leave the Pro-Curl Color unattended when it is switched on.

• Never place the Pro-Curl Color on paper wipes, towels or similar items when it is switched on; always place it on a firm, level and heat-resistant surface.
• In view of the risk of overheating and fire, never place towels or similar items on top of the appliance.
• Do not use the appliance close to flammable gases, e.g. the spray from an aerosol. Do not allow any aerosols or flammable gases to get near the heating element.

General safety information

DANGER:

- Never use the appliance if:

• the appliance or cord are damaged.
• the appliance has fallen or been dropped, shows signs of damage or is not functioning properly.
• the appliance is so badly damaged that electrical parts are exposed.
• the appliance has fallen into or been dropped into water or other liquids.
• foreign bodies have entered the appliance. In all such cases, disconnect from the mains immediately and inform Technical Customer Service.

- Check whether the mains voltage agrees with the voltage specified on the rating plate (on the underside of the appliance).

- This appliance is not intended for use by persons (including children) who have limited physical, sensory or mental capabilities or who lack the necessary experience and knowledge, unless they receive appropriate

supervision or instruction in the use of the appliance from a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. Take care that children cannot burn themselves on the hot appliance. Keep the appliance out of reach of children.
- Also keep the packaging material, e.g. plastic film, away from children. There is a risk of suffocation!
- Protect the power cord from damage. Never pull on the power cord. When pulling the mains plug out of the power socket, always grasp the plug itself.
• To avoid risks, repairs must only be carried out by authorised Wella Customer Service Centres.
- If the power cord to the appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service or similarly qualified persons in order to avoid risks.

NOTE:

• The safety of Wella electrical appliances is in line with the recognised state of the art and the German Equipment Safety Act.

• Given the present state of the art, components of electrical appliances are subject to a certain degree of wear over time. To ensure perfect functioning and safety, we therefore recommend regular inspection by Wella's Technical Customer Service.
• Given the variety of chemical substances in use today, one cannot rule out the possibility that constituents of cleaning products, for example, may attack and soften the plastic material of the appliance feet. This may occasionally result in damage to sensitive furniture surfaces.

Safety during operation

DANGER:

- Risk of burns! Do not touch the heating element or clip during operation.

• The cord must not come into contact with the hot parts of the appliance.
  • Use ArchColor for dry hair only.
• To avoid damaging, e.g. breaking, the hair:
• do not set the temperature higher than recommended for your hair structure (see page 32);
• do not leave the Pro-Curl Color in the hair for longer than 10 - 15 seconds;
  • Use ArchColor for dry hair only.
• To avoid damaging, e.g. breaking, the hair:
• do not set the temperature higher than recommended for your hair structure (see page 32);
• do not leave the Pro-Curl Color in the hair for longer than 10 - 15 seconds;

(No text)

- especially at high temperatures, you should not treat the same strand more than once.

• If a problem occurs during use, pull out the mains plug immediately and send the appliance to the Technical Customer Service.
• Lay the power cable so that nobody can trip over or tread on it.

Cleaning and storage

DANGER:

- Disconnect the Pro-Curl Color from the mains after every use, and also before cleaning.

• Let ProbCueI Color cool off before you clean it or put it away.
• Caution: fire risk! Never use petrol, methylated spirit or aggressive cleaning products.
  • Always clean your Pro-Curl Color with a slightly moistened cloth only. Do not use any pointed or sharp-edged objects.
• Do not wind the power cable round the appliance (risk of breaking the cable).

30 operation

Connecting the appliance

1. Check that the mains voltage agrees with the voltage specified on the rating plate. The rating plate is on the underside of the appliance.
2. Insert the mains plug in a power socket.

Switching on

Risk of burns! Do not touch the heating element or clip during operation.

• Always stand the Pro-Curl Colorsafely on its feet.

• To switch on, press the On/Off switch for approx. 1 second.

The display lights up in blue, and °C or the Color Save symbol flashes. The display changes to red once the appliance reaches 130°C.

If you do not change the setting, the appliance heats up to the temperature last selected.

°C or the Color Save symbol stays on continuously once the appliance has reached its working temperature.

Ion function

When the Pro-Curl Color is switched on, you will hear a slight crackling sound.

This is due to the ion function, which provides a steady flow of ions onto the hair to reduce static charging.

Setting the temperature

When selecting the correct temperature, please observe chapter 4 on page 32 as well.

- Use the temperature buttons to set the desired temperature in 10°C steps from 130°C to 190°C.

• Every time you press the + button, the temperature is increased by 10°C.
• Every time you press the - button, the temperature is reduced by 10°C.

°C continues flashing in the display until the appliance has heated up or cooled down to the set temperature.

When ^ C stays on continuously, the set temperature has been reached.

If you use the Color Save function, the appliance automatically sets the ideal temperature for coloured hair.

Press the COLOR SAVE button to switch the Color Save function on.

The + and - buttons do not have any effect now.

The Color Save symbol continues flashing in the display until the appliance has heated up or cooled down to the ideal temperature.

When the Color Save symbol stays on continuously, the ideal temperature has been reached.

To switch off the Color Save function, press the COLOR SAVE button again.

The display then shows the temperature last selected. You can once again set the temperature with the + and - buttons.

Switching off

• To switch off, press the On/Off switch for approx. 1 second.

Until the appliance has cooled down to about 60°C, the display flashes red to warn you not to touch the hot surfaces.

• After use, pull out the mains plug.

Automatic cut-out

• If the appliance remains switched on for 45 minutes without any button being pressed, the display flashes alternately red and blue. If you want to carry on working, press any button.

• After a further 2 minutes without any button being pressed, the appliance switches off completely. This is a safety function.

4 The right temperature - the best protection for your hair

CAUTION: Note that only a few types of hair require the highest temperature setting.

Always use the lowest temperature necessary for good styling results.

You can damage the hair by using too high a temperature, keeping the appliance in contact with the hair for too long or curling it too frequently. You should not treat the same section more than once, especially at high temperatures. - Note: Risk of hair breakage!

The following table shows you what temperatures we recommend for different hair structures:

Hair structure Temperature
Coloured	Color Save function
Blonded, very porous max. 150°C
Permed, porous max. 170°C
Normal (not treated with chemicals)	max. 180°C

Hair structure Temperature
Strong, resistant(not treated with chemicals)	max. 190°C

5 Styling

Use for curling dry hair only.

Please note that fine and sensitive hair reacts especially fast to treatment.

The Pro-Curl Color is suitable for hair of all lengths.

The curls last longer in thick sections than thin ones. If the hair is long and thick, separate it into smaller sections. If it is fine, treat fairly thick sections.

Make sure you do not break off any hair tips! Any tips of hair must not be left sticking out, but must be wound round the curling tongs.

5.1 General procedure

• Wash hair, dry and comb well.
• Separate a section of the desired width and thickness.

- Wind the section into place. When doing so, maintain a minimum distance of 1 cm from the scalp or place a comb underneath. Risk of burns!

• After about 10 to 15 seconds the curl has been formed. Do not leave the curling tongs on the hair for longer, as this could damage the hair.
- To remove, carefully unwind the Pro-Curl Color away from the head and open the clip.
- Repeat the process with the next sections.
- Before finishing, allow the hair to cool briefly.
- Unplug the power cord when you have finished the treatment.

5.2 Styling techniques

To create curls, waves and volume with the Pro-Curl Color, you can choose between different techniques:

Option 1

Open the clip and insert the section at the lower end of the tongs while angling up the Pro-Curl Color.

Close the clip and roll up the section in a spiral towards the hairline. This will produce curls in medium to long hair.

Option 2

Open the clip and position the curling tongs at the hairline (Caution: Risk of burns!).

With the other hand, wind the section of hair in a spiral around the tongs. Close the clip to hold the hair in place.

This will also produce curls in medium to long hair.

This option produces curls and movement in medium to short hair.

Option 3

Open the clip and position the section in the middle of the curling tongs.

Close the clip and roll up the hair towards the hairline, holding the Pro-Curl Color parallel to the head.

Tip: After rolling up the hair, you may wish to insert a comb under the curling tongs. This will protect the scalp from becoming too hot.

6 C l e a n i n g

To ensure perfect functioning and full performance from your Pro-Curl Color, clean the appliance regularly. Do not use flammable or aggressive cleaners or abrasive scourers.

Important: Before cleaning the appliance, always pull out the mains plug. Allow the appliance to cool down before cleaning it.

Cleaning the appliance

From time to time, wipe all parts of the appliance with a slightly moistened cloth, then rub dry.

7 What should I do if ...

... the appliance switches off automatically during use?
- If you leave the appliance on for about 45 minutes without touching any of the buttons, it switches off automatically as a safety precaution. Use the On/Off switch to switch the appliance on again.
... I can hear a slight crackling when the appliance is switched on?
- This slight crackling is perfectly normal. It is due to the ion function.

8 Disposal

If the electrical appliance is no longer to be used, it must be handed over to the relevant local public waste authorities for disposal.

As a rule these waste disposal authorities run special reception units for electrical appliances (recycling centres, materials recovery centres etc.).

The electrical appliance does not belong in household waste disposal bins.

This also applies to electrical appliances that were last used in the non-private sector, e.g. in branches of trade or industry. In cases where public waste disposal authorities do not accept electrical appliances that have been used for non-private purposes, their waste advisory services can provide information on environmentally sound disposal.

Product	Pro-Curl Color
	24 mm diam.	32 mm diam.
Operating voltage 220 - 240 V ~ 50/60 Hz
Power output 35 W 43 W
Typical heat-up time	approx. 45 seconds to 120°C approx. 160 seconds to 175°C	approx. 60 seconds to 120°C approx. 180 seconds to 175°C
Safety cut-out after about 45 minutes
Temperature settings 130°C - 190°C in 10°C steps
Dimensions (L x W x H)	approx. 36 cm x 4 cm x 6 cm approx. 37 cm x 4 cm x 6.5 cm
Length of power cord	2.8 m
Weight (excl. power cord)	approx. 230 g approx. 260 g
Protection class II
Colour black

Subject to technical change without notice.

10 Two-year guarantee

Dear Customer,

Thank you for deciding to purchase one of our products. For decades now the name Wella has stood for tested quality and first-class service. We offer our customers innovative and efficient products.

Wella manufactures high-quality appliances and warrants the use of high-grade materials and careful workmanship. We give two years' guarantee from the date of purchase (invoice date) in the event of defects in the quality of the product.

In addition to your contractual and statutory guarantee rights, Wella offers you a manufacturer's guarantee on the following terms:

This manufacturer's guarantee applies for two years from the date of purchase. It applies to deficiencies (errors, defects) that are due to faults in materials or workmanship.

Our manufacturer's guarantee excludes: deficiencies caused by incorrect operation, normal wear and tear, incorrect interference with the product by unauthorised persons, or use of thirdparty products during assembly which do not fit or do not function perfectly. Also excluded are deficiencies which have little or no significant effect on the value or serviceability of the appliance.

In the event of a deficiency covered by our manufacturer's guarantee occurring within our guarantee period of two years from the date of purchase, we will, at our option, either repair the faulty product or provide a replacement.

It is a precondition for our manufacturer's guarantee that you send or bring the product and proof of purchase (invoice) to us within the guarantee period, in other words to the national sales companies of Wella or the relevant national Customer Service centre. You will find the addresses of our Customer Service Centres at the end of these instructions.

Independently of our manufacturer's guarantee, you may of course assert guarantee rights in relation to the vendor – e.g. subsequent performance (remediation of defects, repair or replacement), withdrawal from the contract or reduction in purchase price – insofar as you possess such contractual or statutory rights. Such rights are not affected by our manufacturer's guarantee.

Close-up of a black handheld device with control buttons and a display screen (no visible text or symbols)

Prestige and Professionals

BVBA Intercosmetic SPRL

Building S

Temselaan 100

B-1853 Strombeek Bever

Tel: [phone]

Fax: [phone]

Česká Republika

Wella C7

Servis - Mechanika Praha

Lukášova 5

CZ-130 00 Praha 3

Tel.: [phone]

Danmark

Wella Danmark A/S

Teglholm Allé 15

Wella Professional Finland

PL 296, Lars Sonckin kaari 10

FI-02601 Espoo

Tel.: [phone]

Fax: [phone]

www.wella.fi

United Kingdom / Ireland

Salon Care Ltd

Unit 7 Hassocks Workshops

Stroudley Road

GB-Basingstoke

RG24 8UQ

Tel:[phone]

Fax: [phone]

Email: [e-mail]

America

Argentina

Wella Argentina

Ondabel SA

Quito 2618 - 2do biso

Edificio Uruguay

B1543HBH - Beccar

RA Buenos Aires

Tel: [phone]

Fax: [phone]

Bolivia

Belmed Ltda.

5800 Avebury Road, Unit 1

Mississauga, Ontario

L5R 3M3

Tel. [phone]

Chile

Wella Chile S.A.

Avda. Vitacura 2736 Local 103

Las Condes

Woodland Hills, CA 91367

USA

Phone:[phone]

Uruguay

Sigma Cosmética International S.A.

Av. Italia 5558 CP

11400 Montevideo - Uruguay

Tel. [phone]

Fax. [phone]

Venezuela

Pacific Beauty Care Pte Ltd 3 Anson Road

210-01 Springleaf Tower

Singapore 079909 Tel: (-65) 6510 1930 Fax: [phone]

Taiwan

Wella Taiwan Co. Ltd. 12F, No. 150, Tunhua North Road, Taipei 105, Taiwan, R.O.C Tel: (-886) 2-2712-9927 Fax: [phone]

Thailand

Wella Trading (Thailand) Co., Ltd. 84/1 Soi Ramkhamhaeng 9 (Thara Rom) Ramkhamhaeng Road, Khwaeng Wangthonglang, Khet Wangthonglang. Bangkok 10310 Thailand. Tel: [phone]

Australia

Wella (Australia) Cosmetic Suppliers Pty Ltd Level 4, 1 Innovation Rd AUS - Macquarie Park NSW 2113 Tel.: [phone] Fax: [phone]

New Zealand

Wella New Zealand 15 Sultan Street Ellerslie NZ-AUCKLAND 1542 Tel.: [phone]

South Africa

Modern Hairdressing Supplies (Pty.) Ltd. 65 Bofors Circle Epping P.O. Box 2951 ZA-Cape Town 8000 Tel.: [phone] Fax: (-27) 21 5342830
