USER MANUAL Contura Wella

1 Safety 23
2 Preparation 27

2.1Charging 27
2.2 Storing the power cord 28

3 Operation 29

3.1 Switching On and Off 29
3.2 Comb attachment 29

4 Cleaning and care 29
5 What should I do if ... 31
6 Disposal 32
7 Technical data 33
8 Two-year guarantee 34

Thank you

for choosing the Contura, the professional trimmer from Wella.

The Contura utilises state-of-the-art technology, is innovative and has a strong emphasis on design. When developing the Contura, the requirements for a professional trimmer used in a hair salon were taken into consideration. The Conturais specifically designed for precision cutting of hair contours.

In addition to optimum cutting performance, the Contura provides the following advantages:

Light weight
- Quiet, low-vibration motor
- Fast charge within one hour
- Battery operation
4-stage cutting length adjustment with comb attachment
- Cable storage compartment

We hope you enjoy working with the Contura.

Your Wella Team

ENGLISH

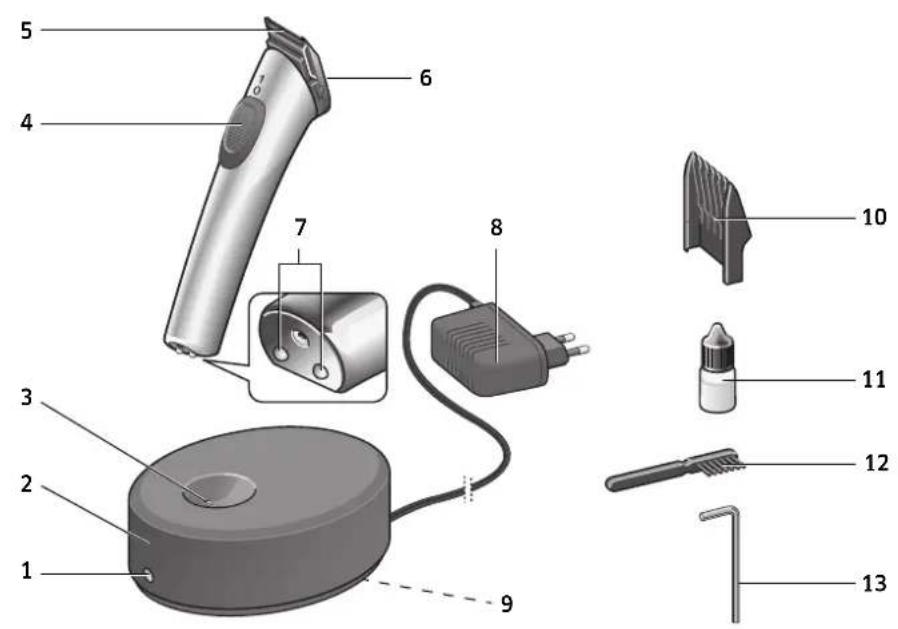

1 Charging indicator
2 Charging unit
3 Charging contacts
4 On/Off switch
5 Blade head
6 Blade head fixing screw
7 Charging contacts on trimmer
8 Mains adapter
9 Cable storage compartment
10 Comb attachment
11 Oil bottle
12 Cleaning brush
13 Allen key (in base of charging unit)

1 Sa fety

Please read the instructions carefully, especially the chapter on "Safety", before using the Contura. This will protect you from possible dangers and the appliance from damage due to incorrect operation. Keep these instructions in a safe place for future reference. If you pass on the appliance to someone else, be sure to hand over these instructions as well

Explanation of warnings

In these instructions you will find the following warnings:

DANGER: High risk. Failure to observe the warning can cause serious injury.

CAUTION: Medium risk. Failure to observe the warning may cause damage to property.

NOTE: Low risk. Points that you should observe when using or handling the appliance.

Intended use

The Contura must only be used for cutting human hair.
The appliance is designed for indoor use only. Do not use outdoors (garden, patio etc.).
- The appliance was developed for professional use by hairdressers. Provided the safety information is observed, it can also be used in the home.

Important information about dangers

DANGER:

Danger of electric shock!

• Do not use this appliance near bath tubs, showers, wash basins or other containers filled with water.

• Keep the appliance, charging unit and power cable away from moisture, water and other liquids, and do not operate with wet hands.

• Do not immerse the appliance, charging unit or power cable in water or rinse them off under running water.

If the appliance has fallen into water, it must not be used after that.
Additional protection is afforded by installing a residual current device with a rated tripping current of less than 30mA in your home electrical system. We recommend you get an electrician to install a residual current protection system to protect the circuits.

General safety information

DANGER:

• Never use the appliance if:

• the appliance, charging unit or power cable are damaged.

• the blade head is damaged or breaking up, as this could cause injuries to the skin.
• the appliance has been dropped, shows signs of damage or is not functioning properly.
• the appliance is so badly damaged that electrical parts are exposed.

In all such cases, disconnect from the mains immediately and inform Technical Customer Service.

• Check that the mains voltage agrees with the voltage specified on the rating plate.
• Unplug the mains adapter if a fault occurs during charging.

• This appliance is not intended for use by persons (including children) who have limited physical, sensory or mental capabilities or who lack the necessary experience and knowledge, unless they receive appropriate supervision or instruction in the use of the appliance from a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance out of reach of children.

• Also keep the packaging material, e.g. plastic film, away from children.

• Lay the power cord so that nobody can trip over or tread on it.

• Protect the power cord from damage. Never pull on the power cord. When pulling the mains adapter out of the power socket, always grasp the adapter itself. Keep the power cord away from hot surfaces. Check the power cord regularly for damage.
• The blade head is a precision part. Take care to protect it from damage.
• Do not expose the appliance to temperatures below 0^ or above + 40°C for any length of time. Avoid exposure to direct sunlight.
• To avoid risks, repairs must only be carried out by authorised Wella Customer Service Centres. This also applies to replacing the rechargeable battery.
• If the power cord to the appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service or similarly qualified persons in order to avoid risks.

The blade head must not be dismantled.

NOTE:

• The safety of Wella electrical appliances is in line with the recognised state of the art and the German Equipment Safety Act.
  Light-emitting devices such as LEDs or infrared light do not exceed Laser class 1 of IEC 825-1.
  Given the present state of the art, components of electrical appliances are subject to a certain degree of wear over time. To ensure perfect functioning and safety, we therefore recommend regular inspection by Wella's Technical Customer Service.

Safety during operation

CAUTION:

• When the appliance is switched on, do not touch the inside or surface of the blade.

The appliance must be switched off whenever:
- you put it down, e.g. to recharge it or stop cut
ting hair for a short period.
- you fit or remove the comb attachment.
- Use the Contura only in combination with the original Wella accessories (charging unit, comb attachment etc.).

NOTE:

• To maintain the charging capacity of the rechargeable battery we recommend occasionally running the battery down until the motor stops.

Cleaning, care and storage

DANGER:

• The appliance must be switched off and unplugged if:

• you want to clean or oil the appliance.

• Never attempt to remove dust or foreign bodies from inside the appliance with pointed objects (e.g. with the tail of a comb).

CAUTION:

• To avoid excessive wear on blade head and motor, clean the blade head regularly and apply oil to the appropriate points (See "Cleaning and care" on page 29).
• Do not use aggressive or abrasive cleaning products to clean the appliance.
• In view of the many different care and cleaning products used in hairdressing salons, we cannot rule out the possibility that the rubber feet under the charging unit may be affected by one of these products and may leave traces where the unit has been standing.

2 Preparation

2.1 Charging

The appliance as supplied is not yet ready for operation.

Before plugging in the Contura, make sure that the mains voltage agrees with the voltage specified on the rating plate.

The appliance should be charged for 2 hours before being used for the first time.

It is not possible to "overcharge" the appliance.

NOTE:

If your salon uses the previous model as well as the new Contura:

• You can also recharge the new trimmer in the older charging unit. It will however take 16 hours to charge up fully.
• You can recharge the old trimmer in the new charging unit. The charging time is 16 hours.

• Insert the mains adapter 8 in a power socket.

• Place the charging unit 2 on a flat surface.

• Place the appliance in the charging unit. It positions itself and starts charging. The red charging indicator 1 is always on when the appliance is charging. Make sure the On/Off switch 4 is in the O position when charging.

To maintain the charging capacity of the rechargeable battery we recommend occasionally running the battery down until the motor stops.

2.2 Storing the power cord

If you do not need the full length of the power cord, part of it can be stored in the cable storage compartment 9.

1. Pull out the mains plug.

2. Turn the charging unit upside down.

3. Wind the excess cable round the holder in the base, then run the cable through the small recess in the housing to the outside.

3 Operation

3.1 Switching On and Off

• To switch the appliance on, slide the On/Off switch 4 forward.
• To switch the appliance off, slide the On/Off switch to position 0.

3.2 Comb attachment

• Switch off the Contura and slide the comb attachment onto the blade head until it snaps into place.
• You can now start trimming hair with the Contura in the usual way.

• The comb attachment can be adjusted to 4 different cutting lengths (approx. 3 to 6 mm). To do so, push it to the required position on the blade head.

The further you push the comb attachment onto the blade head, the shorter the cutting length.

4 Cleaning and care

To ensure proper functioning and full performance from your Contura, clean and oil the appliance regularly.

Cleaning the blade head

If used regularly, the blade head 5 should be thoroughly cleaned once a day.

• Switch the appliance off.
• Remove the comb attachment if fitted.
• Use the cleaning brush 12 to remove any hairs.

Oiling the blade head

To maintain the high-quality cutting performance of the blade head as long as possible, it must be oiled regularly - preferably daily.

Remove the comb attachment if fitted.

• Oil the positions where the top and bottom cutting blades meet (see also the figure on the left).

Replacing the blade head

The blade head is subject to wear. Even if you look after the appliance properly, the cutting performance will deteriorate. Replace the blade head when it is worn. The blade head can be ordered separately as a spare part from Wella Customer Service.

• Make sure the On/Off switch 4 is in the O position.
• Remove the Allen key 13 from the base of the charging unit and use it to loosen the blade head screw 6.

• Loosen the screw fully and remove it.
• Push the blade head upwards with your thumb.
• Push the new blade head on until it snaps into place and secure it using the screw.

While the blade head is removed, you can use the cleaning brush 12 to remove residual hair carefully from inside the appliance.

Cleaning the appliance

• Clean your appliance occasionally with a damp cloth, then wipe it dry.

Cleaning the charging contacts

If the charging contacts 7 on the appliance or the charging contacts 3 on the charging unit are dirty, charging may not be possible or may be interrupted.
- Clean the contacts using a cloth or wad of cotton wool soaked in alcohol or spirit.

Care of the NiMH rechargeable battery

To maintain the charging capacity of the rechargeable battery we recommend occasionally running the battery down until the motor stops.

If the battery is run down (motor stops), be sure to switch the On/Off switch 4 to 0 and place the appliance in the charging unit.

• Make sure you do not leave the appliance switched on when putting it aside if the battery is run down.
• Make sure the appliance is switched off (On/Off switch to 0) when you place it in the charging unit.

5 What should I do if ...

... the appliance will not switch on?

Is the battery low? Plug in the mains adapter for the charging unit and recharge the Contura. Make sure the On/Off switch is in the O position.
- Is the blade head dry? The blade head needs oiling. Proceed as described on Page 30.

... the blade head "sticks"?

• The blade head needs oiling. Proceed as described on Page 30.

... the charging indicator does not light up when charging?

• Clean the charging contacts.
• The appliance may not be positioned correctly in the charging unit. Position it correctly.
• Is the charging unit properly connected?

... the charging indicator flashes during charging?

The appliance is in the charging unit of the previous model. The appliance will take 16 hours to charge up. You can recognise the new charging unit by its darker colour.

... the appliance switches itself off? - The battery is low. Charge the Contura.

6 Disposal

This electrical appliance contains a built-in rechargeable battery.

If the electrical appliance is no longer to be used, return it to the place where you bought it or hand it in to the special collection centre run by your local public waste disposal authority (recycling centre, materials recovery centre etc.).

The appliance must not be disposed of as household rubbish.

This also applies to electrical appliances that were last used in the non-private sector, e.g. in branches of trade or industry. In cases where public waste disposal authorities do not accept electrical appli

ances that have been used for non-private purposes, their waste advisory services can provide information on environmentally sound disposal.

7 Technical data

Product	Contura
Mains adapter: Input: Output:	100-240 V ~ 50/60 Hz 4 V DC, 700 mA
Attachment 1 comb attachment
Dimensions 140 x 30 x 36	mm
Weight 120 g

Information according the Machinery Directive 2006/42/EC

Sound pressure level at working place in 1 m distance, Lpa ≤ 70 dBA

measured maximum noise emission value, including the measurement uncertainty according to EN ISO 4871. Determination according to EN 60704-2-9, with reference to the EN 60704-1

Human vibration aggregate value, ah = 2,76 m/s2

measured maximum vibration emission total value, including the measurement uncertainty. Determination according to EN ISO 5349-1/2

Subject to technical change without notice. Illustrations in these instructions may differ slightly from the product.

8 Two - year g u

Dear Customer,

Thank you for deciding to purchase one of our products. For decades now the name Wella has stood for tested quality and first-class service. We offer our customers innovative and efficient products.

Wella manufactures high-quality appliances and warrants the use of high-grade materials and careful workmanship. We give two years' guarantee from the date of purchase (invoice date) in the event of defects in the quality of the product.

In addition to your contractual and statutory guarantee rights, Wella offers you a manufacturer's guarantee on the following terms:

This manufacturer's guarantee applies for two years from the date of purchase. It applies to deficiencies (errors, defects) that are due to faults in materials or workmanship.

Our manufacturer's guarantee excludes:

a deficiencie caused to incorrect operation, normal wear and tear, incorrect interference with the product by unauthorized persons, or use of third-party products during assembly which do not fit or do not function perfectly. Examples of typical parts that are regularly subject to wear and are thus not covered by our manufacturer's guarantee include in particular the rechargeable battery and the blade head.

• Also excluded are deficiencies which have little or no significant effect on the value or serviceability of the appliance.

In the event of a deficiency covered by our manufacturer's guarantee occurring within our guarantee period of two years from the date of purchase, we will, at our option, either repair the faulty product or provide a replacement.

It is a precondition for our manufacturer's guarantee that you send or bring the product and proof of purchase (invoice) to us within the guarantee period, in other words to the national sales companies

of Wella or the relevant national Customer Service centre. The current addresses of our customer service centres can be found at www.wella.com in the device section.

Independently of our manufacturer's guarantee, you may of course assert guarantee rights in relation to the vendor - e.g. subsequent performance (remediation of defects, repair or replacement), withdrawal from the contract or reduction in purchase price - insofar as you possess such contractual or statutory rights. Such rights are not affected by our manufacturer's guarantee.

FRANÇAIS

Sommaire

Hapnyc onTnmaJIbHOJ 3ΦΦeKTHBHOCTbIO CTpNXKContura OTINuAeTCa:

MaJIbIM BECOM
- Hn3Km ypoBHeM Bn6paun N Wyma DnBaTaeJIa
- 6bICTpoToN3aPAnKnBTeYeHne Yaca
- BO3MOXHOCTbOpa60TbOtAKKMyJnTopa
- 4-cTyneHauToI peryInpoBkoI dInHbI cTpNkN C rpe6HeBoH hacaDkoI
HannuemKa6eJbHOroOTceKa

MblKeJaem Bam ydoBoJbCTBnBa pa6oTe c Contura.

Baw

KoJIneKTnB ΦIrpMbI Wella

PYCCKN

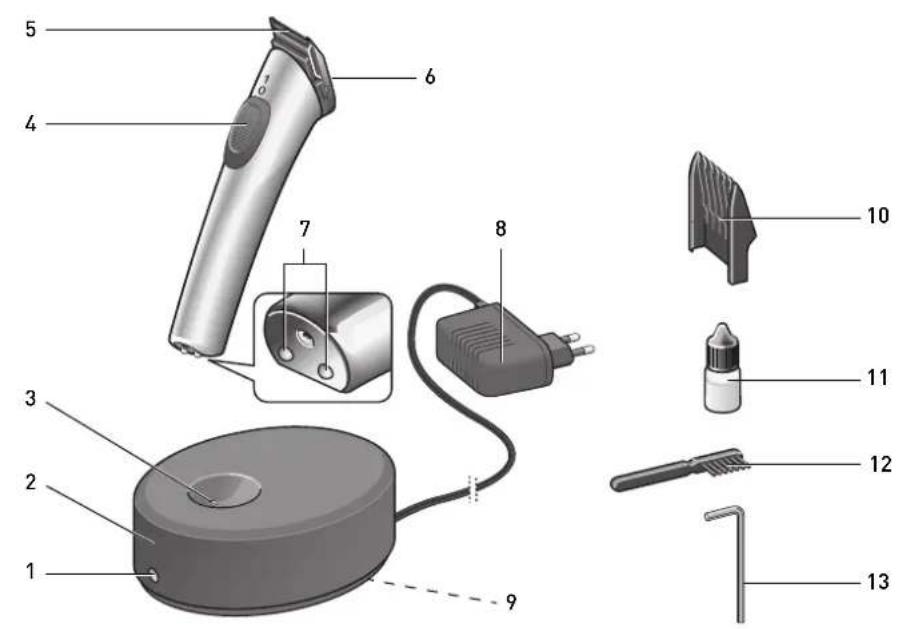

HaMeHOBaHne KOMTOHeTOb

1 INHdkaTop 3aprakn
23apnna cTanhua
3 3apnHbIe KOHTaKtbl
4 KhoIIKa BkIIOueHry/ByIKIOueHry
5 HoKeBa rOIOBka
6 Kpeenexhbl BnHT HOKeBOI rOIOBkn
7 3apnHbke KOHTaKbI npu6opa
8 WTeKepehbln 6Jok nTahnn
9 Ka6eJIbHbI oTcEi
10「pe6HeBaHa cαKa
11 Nyzbipek c macnIOM
12 甲Tka nla uCTkn
13 KInu C BHyTpEHHM WecTnRpaHHNKOM (B DHe 3apAHO CTaHcN)

1 Be 3 o n a c h o c

Ppexde, yem hauTaB nCnoJb3oBaT Bontura, BnMaTeIbHO npOHTe HNCTpyKcHIO NO 3KcnIyatauH,OC6eHNO pa3dEIN "Be3oNaChocTB". 3To no3BOJNT Bam u36ExKaTb BO3MOxHBIX onaChocTe N ppeDoxpaHtB npIn6Op OT NobpeXJeHn BCJeDCTBne HEnpaBnHOro 6paueHn.

CoxpaHnTe daHHyIO nHCTpyKuIO NO kcnnyataunn DnnoCneJeUoIero NoJb3ObaHna.Bcnyae nepeaun npnbopa npryromy BnaJeBtu nepeaTe Bmecte C Hm 3Ty INHCTpyKuIO NO kcnnyataunn.

TepMNHOJOrn

B daHHo HnHCTpyKuIN No 3KcPnyatauIN Bbl BCTpeTNTe cIeNyUOuNE TepMNbI:

ONACHO: BbocKa CTeneHb Pncka. Heco6IIOJeHne npdeynpeXdEHHa MoKet npBBeTc K TAnKeJIbIM TpaBMam.

BHIMAHNE: CpeHnA cTeenb pncKa. Heco6JIouHeHne npdynpexdeHn Moket npBecTu K MaTePn aIbHOMy yuepe6y.

YKA3AHNE:MaNaIcTeNHeB pUcKa.Yka3aHnI, KOToPbIe Bam cIeNyET co6JIIOdaT npu 6paueHnn C npn 6opom.

IcnoJb30BaHne no Ha3HaueHnIO

Contura pa3pewaaetcNcNoIb30BaTb TOnbKO dNnCTpnKNeJeNoBeeCckNX BOLOC.
- Pnp6op npEHa3HaueH nIy nCnOJb3OBaHnTOnbKO BO BHyTpEHHN X NOMeUeHNx! He BKIO-ayTB BHe NOMeUeHn [B CaNy, Ha Teppace n T.n.].
- PpI60p43pa6oTah IJnIpofoeccnoHaJIbHOrO npIMeHeHnB CaNoHE. PpIco6JIooDeHnI npABnI 6e30NaCHOCTN BO3MOxHO TaKKe eTo npIMeHHe Hn Da My.

Baxnha nHΦopMaζησoNacHoCTN

ONACHO:

Onachoctb 3neKtpnueckoro woka!

He noIb3yIeTcB 3TmIM np60pOM B6n3nOT BaHH, dyWe, yMbBaJIbHN-KOB IN dpynx EMKoCTe C BOIO.

-Дерхитepn6bp，3apdHyo cTaHcNIO u coeHHTeIbHbI Ka6JIb NOaJIbWe OT BnaR,BOblI nDpyrnx XnKocTe H He NOnb3yTEcb NM MOKpbIMPykam.
He norpykaTe np60,3apnHyIO cTAnuio coeHNHTbHbIKa6BbBOy Hne npombl BaTe nOc Tpye BObl.
- Ecni npnbop ynaB B Ody, daIbHeuue noIb3oBaHne nI 3anpeeHo.
-Донон'teьнэаиnta obecneuBaetc nopeCTBOM yCTAHOBKN B DOMaHNO 3JIeKTPoceTB yctpoiCTBa 3aunTHOrO OTKIOUeHnC HOMHaNb HBIM TOKOM OTKIOUeHn Mehee 30 mA. Mby pekomeHdyem Bam npuyHTb BaWeMy cneuaIInCTy

3JIeKTPnky yCTaHOBnTB yCTpOoiCTBO 3aunTHoTO OKIIOUHeHn.

06üne npabnla 6e3oNaChocTn

ONACHO:

• HNKoIa He BkIouaTe np6Op, ecN:

• npn60p, 3apnHnA cTaNur, aKKyMnyTop nNcoeHNHTbHbI Ka6eJb NOBpeXdeHbl.
  -HOKeBaIroIOBkaIOBpeKJeHaNINCLOMaHa, TAK KaK BO3MOXHbI TpaBMbl KOKn.

• npnbop ynpal, nmeet BnIMbIe noBpeXdHna, nn eropexm pa60tbo orpaHueh.
• np60p HacToIbko NoBpeXeH, YTO o6hKnLncb 3JIeKTPnueckNe y3JIb.

Bo Bcex TaKnx Cnyaax HeMeIeHHO OToeHNHTepn6opOT 3JeKtpocetN IN pOnHΦOpMpyTe cepBnchyCnyk6y!

• PpOBePbTe, COBnadaet nn CeteBoe HAnpJxHHe nC HAnpJxHHeM, yKa3aHHbIM HaΦnpMeHHoT Ta6- JNueKe.

-OTcoeHNHTe 7TeKepHbI 6nK nTahn,ecn BO Bpem3apAKn pOun3oJET HeNCnPpABHOCTb.

• 3T0 npnbop He npedHa3NaueH dIy nCnOlb3OBaHNJIObMn (BKNIOUayA DeTei) CfN3NuYeCKMN, CeHCOPbIMn NnINcXNUeCKMN HEOCTaTKAMn, a TaKKeJIIObMn C HeoCTaTOHbIM ONbITOM IN3HAHnMn NO erO NCNOlb3OBaHNIO KPOMe cIyuaEB, KOgda OHn HaxOJaTcN OIdNAH3OpOM OTBeCTBEHHORo 3aNX6e30NaCHOCTb Iuca NIN NOnyauKOT OT HeroYkAsAHNOr O TOM, KaK NOb3OBaTbcrnpbOpom. Detn DOnjKnbl HaxOJNTbcrNOd HA3OpOM, YTo6bl NckJIOUHTbNCnOlb3OBaHNHe MM npnbopa dIy nRpbl.

XpaHnTe npu6op B MeCTe, HeoctynHom dIa Tei.
-BeperntaKKeOTdTeynaKOBouhMy MaTePnAn, HanpMep, nactKOByIOJIeHky.
PacnoaraiTe coeHNHTbHbKabJIb Takm 06pa3OM, YTO6bI HIKTO He MoCnOTKHytcRHa HAcTyNtB Ha Hero!

-Bepernte coeHHTeBHy npOBod OT nobpeKdeHn. Hn B KOem Cnyae He TAHNTe 3a coeHNTeBHy npOBOD. BbHMma WTEKePbH 6Iok nITAHn I3 po3ETKn, BcERda 6epTECb 3a 3TOT 6Iok. JepXHTe npOBoND oanbIe O TROPHX NOBepxHOCTe. PerynpHO npOBepraTe coeHNHTeBHy npOBoHa OTCYCTBne NobpeXDeHn.
HoxeBa rOIOBkA rBnEeTc npeU3NHOHHbIM KOM- noHeHTom. BepeIte ee ot nobpeKdHn.
He noBepraTe np6Op dnteHbHomy Bo3eNcTBIO TempeTp Hxke 0^ nIN Bblue +40^ N36eraTe npMbx conHeuHbix nyue.
YTO6bI 36EkaTb OaCHOCTe, pEmoTHbIpepaObTb pa3peWaaTeBbINOJHrTaToJIbKO aBTOpN30BaH HoI cepBnCHOn cnyXBe fmpbl Wella. 3To oTHocuTcra TaKke K3ameHe aKKyMyJrTopa.
Bcnyae nobpexkdenna coeHHntelbHoro npoB0da np60pa BO n36ekaHne onacHocTe OHdoJxH 6bTb 3aMeHn pOn3BOAnTeMe,ero cepBNCHOI cLyX60nnn nnuamn, mEIOUmm COOTBeTCTBYIOUYKBAINNOKAUNO.
3aPpeaaetcpa3bnpaTb HOKeByo rOIOBky.

YKA3AHNE:

-Be3oNaChocTb 3JIeKTpOpnp6OpOB Wella coOTBecTByET 06UePnHrTbIM npaBnAm TexHKn nNoLoJxHnM 3aKoHa o 6e3oNaChocTn np6OpOB uYCTpoNCTB.
CBeTOBbIe HnDnKaTOpbl, B Tom YnCne CBeToNDnOdbI nnHnΦpakpaChbIe NaMnOuKn, He npeBbIaHaOT Hopm dIy Ia3epoB KnaCa 1 corNacho IEC 825-1.
B COOTBETCTBnC COBpeMeHHbIM ypOBHeM TexHNKOMPOnHeHTb 3JNEKTPOTEXHueccknx np60poB B ONpeJeHHO CTeHEn NoBepKeHbI HOCy C TeeHHeM BpeMeHH. NoTOMy, Yo6bI ObecneuTH NCnpaBHOCTb pa60tI N 6e3onac HOCTb, Mbl peKomeHdyem peryIpaHno npuyatb erOpOBepKy texHueckO cnJx6e fupMbI Wella.

B30nacHocTB Bo Bpempa60TbI

BHIMAHINE:

• PnB KJIIOHcHOM pNbOpe depKnte NaIbCuI NOaJIbWe OT HOxa.

• Pp66opdoJKeH 6bTb BbKIOueH,ecn

BbI nepectaeteepxat Hnnpmep,JIraero3apJknNpKaTkoBpeMeHHoro NepepbBa B ctpnxke.
-BbBCTaBnTeHIN BbHnMaTe rpe6HeByHacaKy.

• IcnoJb3yIte Contura ToIbko B KOMnJIeKTe c opINrHaJIbHbIMn rpe6HeBbIMn HacaIaKaMn (3apIaHaCTAHzIa, rpe6HeBaHacaIaKa nT.I.).

YKA3AHNE:

-ⅡIa coXpaHHeH 3apAHHo EMKocTn AKKMyJrTopaMbI peKOMeHnyEM BpeMOTBpeMeHn pa3pKaTb aKKMyJrTOP DO OCTaHOBKn DBrarTeJI.

Ynctka, yxoN xpaHHeHne

ONACHO:

• Pnp60pdoJoxhen6bItbBbIKIOueHnOTcoeINHeHOTcETn,ecIn Tpe6yeTcAaNN CMA3bBAHne MacJOM np60pa.

HnB KOem cnyae He nbTaTecb ydaNTb nbIb nnnoctopOHnne npedmetb n3 BHyTpehne

auctn np6o4 octpokoehybIM npedmetam

pHappkepe,pykOpaeeKn).

BHIMAHNE:

YTO6bI npEOiBpAITb NOBIIeHHHn3HOC HOXeBOI rOIOBKN I DBNrAteJIa, Heo6xOIMOperyIpaHO ONUsATb HOXeByIO rOIOBky n Cma3bl BAtb MaCJOM B COOTBeTCTBYIOuNX MecTx (CM. "UcTKaN yxo"Ha cTp.94).
He nCnoJb3yIte IJIyI cIcTK npIb6pa arpeccNB HbIe IIN a6pa3nBbIe YIcTgUe CpeCTBa.
BcneCTBnMHOO6pa3nNcNoIb3yeMbIX B napKmaxepckom caIOHe npOyKTOB NO yXoY u YNCtKe, HeIb3a NCKJIOHTb, TTo pe3HNOBbIe HOKKn NOd 3apAHOH CTAHueN IOBepRHyTbc8 BO3DeICTBnO ODHOr N3 3TNx PpOyKTOB 6yDyT OCTABJIaTb CJeDbHa ONOPHO NOBepxHOCTN.

2 Пождг отовka

2.1 Ppoecc 3apAkn

B coctoHHn noCTaBKn npnbop eue He roTOB K pa-bote O aKKyMylrTopa.

IpeTeM, KaN NOKJIouHtB Contura K ceTeBoi po-3eTKe, yIOCTOBepbTEcB B TOM, YTO ceTeBOe HApJxKeHne COOTBeTCTByET HApJxKeHnO, yKa3aHHOMy HaPhiMpMeHHo Ta6nUKe.

Ipeep nepBbIM noB3oBaHnem HxKHO 3apAHTb np6op B TeueHne 2 yacob.

Ipeperpy3ka npi6opa „nepe3apjdko" HeBO3MOxHa. YKA3AHNE:

Ecnn BbI nCnOJIb3yeTe B BaWem caIOne HApAyn C HOBbIM Contura TaKke npEdbIyUy moJeB:

-BbMoKeTe 3apKaTb HOBbI np6Op TaKke N B CTapo3apAnHO CTaHcN. BpeMa 3apAKnB 3tOM Cnyae, Ondako, CoCTaBnRe16 yacob.

-BbMoKeTe 3apKaTb CTapBn npu6op TaKxe N B HOBO cTAHcNn. BpeM 3apAKn COCTaBnre16 YacOB.

• BCTaBbTe WTeKepeHbI ceTeBOI 6JOK8Bpo3eKy.
  -YcTaHOBNTe 3apJdHyo CTaH2o 2Ha poBHyIO NOBepx-HOCTb.
  BCTaBbTe npn6op B 3apJHyIO CTaHcIIO. OH nO3n- CIOHOHPyETc CaMOCToTJeBHO N HAChET 3ap JKaTbC. KpaCHb INDkAToP 3apJDKN I rOpNT NOCToHNO pnpnoTEKAHIN 3apJHOrTO Ka. PocJIeIte 3a TeM, YTObI BbIKIOvATEb 4 npn 3apJKe cTOrJ Ha O.

Ila coxpaHHeHna 3apAHOeMKOCTn aKKyMyJrTopaMbI peKoMeHdyEeBpeMaOT BpeMeHn pa3pXKaTb aKKyMyJrTopdoOctaHOBKn DBuRaTeJIa.

2.2 YKlaKa coeHnHTeJbHoro Ka6eJra

EcnBamHe Tpe6byTcnoHnHa nnHaKa6eJa,MOxHOyloXHTb 1acThcoeHNHTeJIbHorO Ka6eJBA Ka6eJbHbIOTcK9.

1.BbHbTe ceTeBOn WTeKepe n3 po3eTK.
2.ПepeBepHnTe 3aPnHyO cTaN
3. 06MotaTe n3nHn H Ka6eB BOKpydepKaTeHa dHe N BbBeDnTe Ka6eB Ype3 He 6oIbSyu npope3b KOpnyce HApxy.

3Повьоване

3.1 BkIIOueHne N BbIKIOueHne

-4To6bI BKNIOUHTb npn6Op, nepeBnHbTe BbIKIOUaTeIb 4 Bnepe.
-4T06bI Bbl Knluq nepeBnHbTe BkIouaTeIb B noLoKeHne 0.

3.2 Ppe6HeBaHaCaaKa

• BbIKIOHTe npn6op Contura n BCTaBBte rpe6HeByIO Hacdky B HOKeBYIO TIOBKy Do 0Kcun.
• Pocne 3Toro BmyoKeTe CTPNb BOIOcb np6Opom Contura o6bHbIM cnOco6OM.

Ipn 3aMeHe HOKeBOI rONOBKN MOxHO OCTOpOxHO ydaHnB OCTATKN BOIOC H3 BHyTpeHHe IIOIOCTN C IOMOIIbIO IIETKN DJIY NCHTK 12.

UHCTKa IIpH6opa

-Perynphno npotpnte pnpbop BlaJXHOI MaTepuaToi caTefKoi H 3aTeM BbITPte HAcYxo.

UHCTKa 3apJHbIX KOHTAKTOB
ECn 3apAHyIe KOHTAKTb7 Ha npH6ope Hn 3apAHyIe KOHTAKTb3 Ha 3apAHOH CTAHIN 3aRp3HeHb, pueccpaKnnmoket6nbpebaHn npekpa Hn.
OHTHe KOHTaKbI BaTHbIM TaMIOHOM HIN MaTepuAtoCaJIΦeTKOc PpONHTKOc CnHPtOM.
Yxod3a NiMH-akkymyIANTOPOM
IIO COxpaHeHH 3apJHOH eMKoCTn aKKMyJIHTopa MblpeKOMeHdyem BpEm O T BpeMeHH pa3pKaTb aKKMyJIHTOP IO OCTaHOBKN DBHrAteJI.
EcnAkkymyIaTOp pa3pIINcra (OCTAHOBKa IBnTaTeJI), 063aTeJbHO IIpeEKIOHHTe BbIKIOHATeJIb4 Ha O uYctaHOBHTepN6OpB a3apIHyTO cTAHIHO.
- CJIeHrTe 3a TeM, YTO6bI PnH6Op He OTKlaIbIBaICB KJIIOUeHHbIM IIN pa3PjKeHHOM aKKyMyJITope.
-CIeHTe 3a TEM, yTO6bI npH6Op 6bl BbIKIOueH (BbIKIOHaeJIb Ha 0), KOrJa BbI yCTaHaBJIINBaTe erO B 3apAHyIO CTAHIO.

5 YuTo DeJaTb, ecn ...

...np6op He BkIOUaTeC?

-AkkymyIaTOp pa3pIeKeH? IOncoeHNHTe WTeKepHbI 6Iok NITaHnI 3apAHOI CTaHUNI 3apAInTe npNbOp Contura. IpocJeNTe 3a TEM, UTo6bl BbIKNoHaTeJIcSTOrn Ha O.
-HoxeBa rOIOBka cyxara? Heo6xoDnmo Cma3aTb MacIOM HOKeByIO rOIOBky. BbINOJHnTe DeNC- TBnA, ONuCAHHbHe Ha cTp. 94.

HOKeBa rOJIOBka „depraer"?

• Heo6xOIMMo Cma3aTb MacnOM HOKeByIO rOIO Bky. BblonHInTe DeiCTBn, OINcaHHbIe Ha cTp. 94.

...npu3apjKe HndkaTOp 3apjKn He ropnt?

• Oyntte 3apnHbIe KOHTaKtbl.
  -Bo3MOxHNO, np6op HnnpaBnIbHO BCTaBHeN B 3apAHyO CTAHIO. YcTaHOBInTe erO B npaBnIbHOe NOLOXKeHne.
  -Правьнлбно Ли подкючеса зардная санця?

... npn 3aprKe Hndnkatop 3aprKn Mnaer?
-Пибор установен BЗардуну CTанцюпpe Бдушей мо徴л. Пибор заржaelc 16 Часов.Новая зардага CTaнця IMeet 60onee Темну Okpackу.
... np6op oTKIouaetc cam?
-AkkymyIaTOp nonHocTBOp pa3pJKeH.3apAInTe np6op Contura.

6 TexHnueckne daHHbIe
