USER MANUAL BTR Evolution 5.0 Oehlbach

Bluetooth Transmitter/Receiver

BTR Evolution 5.0

Use only power supplies listed in the user instructions, page 76 and following.

GER 6
ENG 16
FRA 26
NLD 36
ITA 46
ESP 56
POL 66
GRE 76
RUS 86

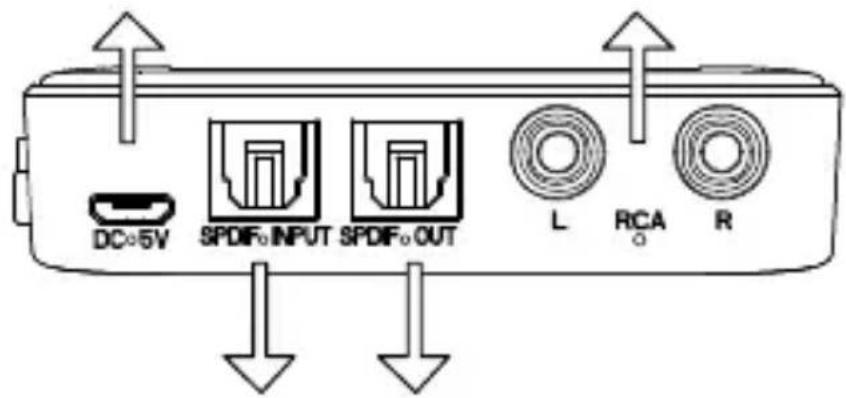

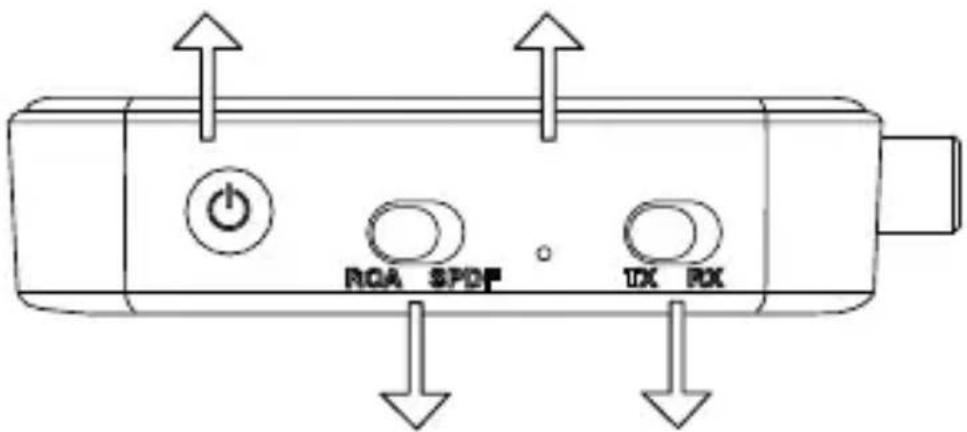

Bedienelemente / Operating Elements

Stromanschluss

Power port

Cinch Anschluss

RCA port

Optischer Eingang

Optischer Ausgang

Optical input

Optical output

AN/AUS Schalter

LED

ON/OFF Switch

Audio Umschalter

Bluetooth Version: 5.0 - aptX, Aptx-LL HD,

Low Latency, SBC

Reichweite: bis 10m

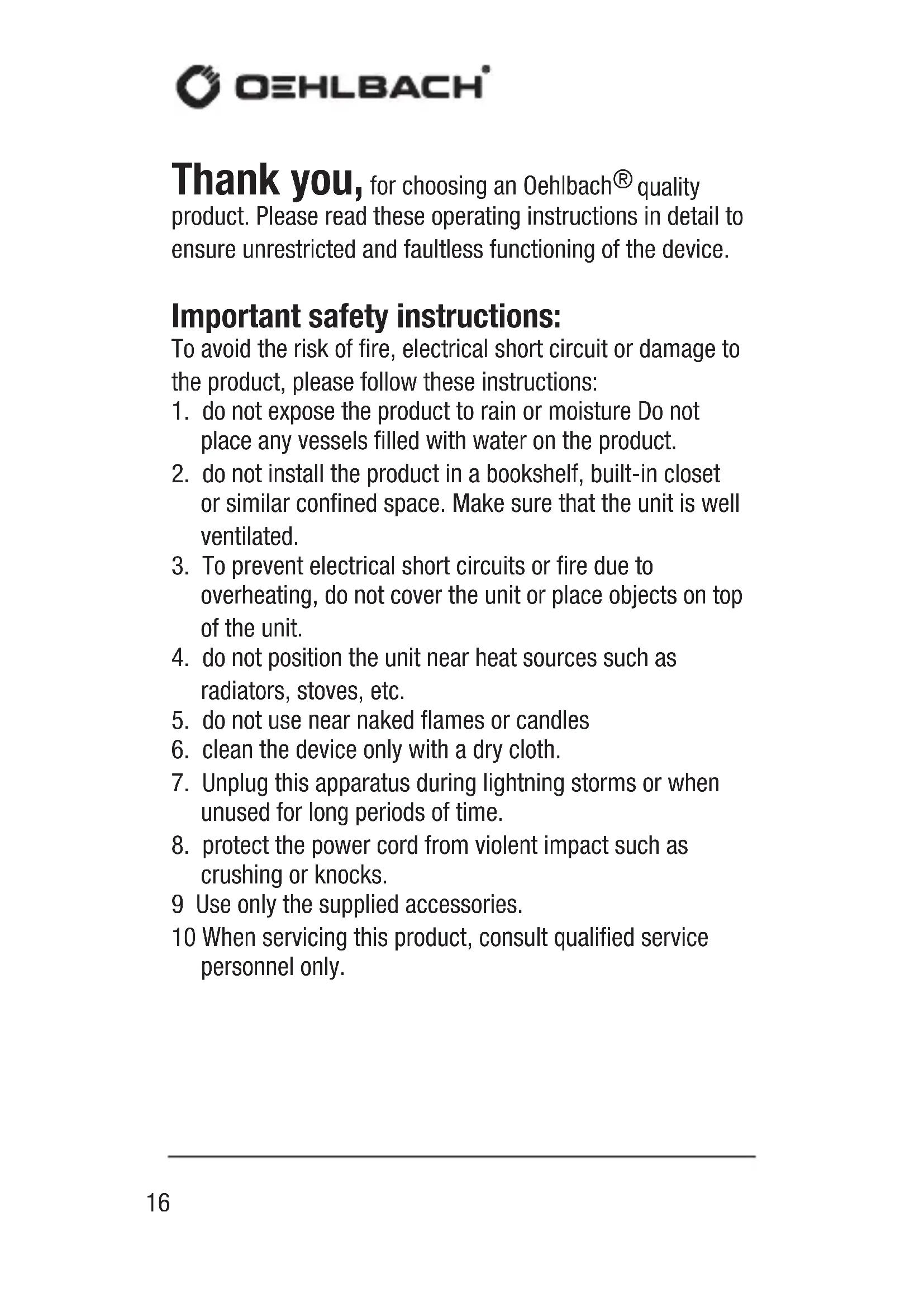

Thank you, for choosing an Oehlbach® quality product. Please read these operating instructions in detail to ensure unrestricted and faultless functioning of the device.

Important safety instructions:

To avoid the risk of fire, electrical short circuit or damage to the product, please follow these instructions:

1. do not expose the product to rain or moisture Do not place any vessels filled with water on the product.
2. do not install the product in a bookshelf, built-in closet or similar confined space. Make sure that the unit is well ventilated.
3. To prevent electrical short circuits or fire due to overheating, do not cover the unit or place objects on top of the unit.
4. do not position the unit near heat sources such as radiators, stoves, etc.
5. do not use near naked flames or candles
6. clean the device only with a dry cloth.
7. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. protect the power cord from violent impact such as crushing or knocks.
   9 Use only the supplied accessories.
   10 When servicing this product, consult qualified service personnel only.

Compliance with EU directives

This product may bear the CE mark. It complies with the EU Low Voltage Directive 2014/35/EU; EU Directive 2014/30/EU on Electromagnetic Compatibility; EU RoHS Directive 2011/65/EU; EU Directive on Waste Electrical and Electronic Equipment (WEEE) 2012/19/EC.

ENG

Oehlbach Kabel GmbH hereby declares that the Oehlbach BTR Evolution 5.0 device complies with the essential requirements and other relevant provisions of Directive 2014/53/EU.

You can obtain a free copy of the Declaration of Conformity by contacting your dealer, the sales department or the headquarters of Oehlbach Kabel GmbH. The contact information can be found at:

http://www.oehlbach.com.

The declaration of conformity can be found under: http://www.oehlbach.com/compliance/6052.

Operating frequency: 2402-2480 MHz Maximum radiated power according to EN 62479: 3.7 dBm

Disposal instructions

According to the European Directive 2012/19/EC, all electrical and electronic equipment must be disposed of separately via local collection points. Please observe the local regulations and do not dispose of your old devices with normal household waste.

Package contents

• Oehlbach BTR Evolution 5.0
• Toslink Cable

-2xRCA/3.5 mm jack adapter cable

• USB cable for power supply
• Power supply unit (see page 76 and following)
• Operating instructions

The Oehlbach BTR Evolution 5.0 is a Bluetooth 5.0 2in1 adapter. In transmitter mode, audio signals can be received via the RCA interface or the SPDIF interface and sent wirelessly from the BTR Evolution 5.0 to other Bluetooth enabled devices. In receiver mode you can easily send music or audio content from your smartphone, tablet or computer wirelessly to the BTR Evolution 5.0 and output it in analogue via the RCA or SPDIF interface. Both is done in CD quality thanks to aptX HD support. Due to the low latency feature the BTR Evolution 5.0 achieves an extremely low latency of less than 40~ms and transmits the sound without noticeable delay.

Functions

• 2in1 Bluetooth adapter enables sending and receiving in one device
• Can be coupled with two devices simultaneously in transmitter mode as well as in receiver mode
• Bluetooth version 5.0
  RCA and SPDIF interface for analog signals
• aptX HD guarantees audio transmission in CD quality
• Very low latency of less than 40~ms

Specification

Bluetooth version: 5.0 - aptX, Aptx-LL HD,

Low latency, SBC

Range: up to 10m

Temperature range: -10 to +55 °C

Admissible relative humidity:5 to 90

Power supply: 5V 100mA

Dimensions: 75 × 75 × 19 (W x H x D in mm)

Weight: 0,145 ~kg

Frequency band: 2.402GHz-2.480Ghz

Connections: 2 x Cinch, 2 x Toslink, USB-micro

B 5V 100mA

Control elements: On/Off switch, TX/RX selection

AUX/SPDIF

selection

finish: silver, red

Chipset: CSR BC8675

Operation

Preparation

Before using the BTR Evolution, make sure that the mobile phones or computers you use with this product are sufficiently charged or connected to the mains.

BTR Evolution 5.0 as Bluetooth transmitter

In transmitter mode, the BTR Evolution 5.0 can be connected to other Bluetooth enabled devices that use a Bluetooth receiver to receive audio signals wirelessly. Here the BTR Evolution 5.0 acts as a Bluetooth transmitter:

1. Before pairing the BTR Evolution 5.0 with devices, other Bluetooth enabled devices should be turned off. This will ensure a problem-free pairing of devices.
2. Set the selector switch of the BTR Evolution 5.0 to "TX". Note that the BTR Evolution 5.0 is not connected to a power supply.
3. Now connect the BTR Evolution to a power supply and press and hold the on/off switch of the BTR Evolution 5.0 for 3 seconds to switch it on. Then press the on/off switch twice in quick succession to enter pairing mode. The function light should now flash rapidly.
4. the BTR Evolution 5.0 can now be found by other Bluetooth enabled devices and pairing is possible
5. When pairing is complete, the LED is lit continuously and audio signals can be transmitted.
6. to switch off the BTR Evolution 5.0, press and hold the on/off button for 3 seconds The LED will light up red twice.

BTR Evolution 5.0 as Bluetooth receiver

In receiver mode, the BTR Evolution 5.0 can be connected to other Bluetooth enabled devices that use a Bluetooth transmitter to send audio signals wirelessly. Here the BTR Evolution 5.0 acts as a Bluetooth receiver. To use the BTR Evolution 5.0 in receiver mode, set the selector switch of the BTR Evolution 5.0 to "RX" and follow the above instructions from point 3 onwards.

Functionality

Switch on

Press the On/Off button for at least 3 seconds. The blue LED lights up 3 times.

Switch off

Press the On/Off button for at least 2 seconds. A red light will flash once.

Automatic switch off

If no connection is established within 5 minutes in pairing mode, the BTR Evolution 5.0 will automatically switch off. If the power supply of the unit is too low, the unit will automatically switch off and/or cannot be switched on.

Change mode TX/RX

Remove the unit from the power supply and change the switch from TX to RX (or vice versa).

Changing the mode RCA/SPDIF

Change the switch from RCA to SPDIF (or vice versa)

Transmission Quality

The BTR Evolution 5.0 can display the Bluetooth transmission quality. In TX mode the:

Blue LED for SBC

Green LED for APTX

White LED for APTX-LL

Red and blue LED for APTX HD

Even in RX mode, the transmission quality is as follows:

Blue LED for SBC

Red LED for AAC

Green LED for APTX

White LED for APTX-LL

Red and blue LED for APTX-HD

As soon as no audio signal is transmitted, the LED lights up blue.

Coupling 2 devices (RX)

Select the RX mode and then connect the BTR Evolution 5.0 to the power supply and switch it on. Pair the mobile phone or other Bluetooth device with the BTR. After successful pairing, press the on/off button twice. This will disconnect the connection and search for a new device. From the second Bluetooth device, switch on the Bluetooth search mode and connect to the BTR Evolution. After successful pairing of the second Bluetooth device, turn on the first Bluetooth device and select the BTR Evolution from the paring list. After this step both Bluetooth devices are successfully connected. Note: Only one audio file can be transferred at a time and it can take several seconds to switch between different audio sources.

Pairing 2 devices (TX)

Set the BTR to TX mode. Now proceed as for pairing in RX mode.

Troubleshooting

The BTR Evolution 5.0 cannot be switched on

a) Please make sure that the BTR Evolution 5.0 is connected to a sufficient power source.
b) Check if you press and hold the on/off button for at least 2 seconds

ENG

The BTR Evolution 5.0 cannot be connected to another device

a) Make sure that the Bluetooth device is not more than 1m away during pairing mode.
b) Make sure that the device to be paired has Bluetooth enabled and is in search/pair mode.
c) Check that you have selected the correct Bluetooth (Receiver/Transmitter) mode.

The BTR Evolution 5.0 is connected to a device but it is not possible to play music

a) Make sure that both devices are coupled. Please note that the maximum range is 10m . If there are walls or objects between the units, the range will be reduced.
b) Make sure that the volume control of the player is set between 50 and 100% .

Guarantee

We congratulate you! By your wise choice you have become the owner of an OEHLBACH® product. OEHLBACH® products enjoy an excellent reputation worldwide due to their high quality. This high quality standard makes it possible to provide a 2-year guarantee for this OEHLBACH® product. OEHLBACH® products are continuously monitored and tested throughout the entire manufacturing process. In case of service please note the following:

1. the warranty period begins with the purchase of the product and is only for the first owner.
2. during the warranty period we will remove any defects, which can be proved to be defective in material or workmanship at our discretion by exchange or subsequent delivery. Improvement of the defective parts. Further claims, in particular for reduction, rescission, damages or Consequential damages are excluded. The warranty period is covered by of a warranty service by us is not affected.
3. the product must not be tampered with improperly have been taken.
4. if you wish to make a claim under the warranty, please contact first to your specialist dealer. Should it prove necessary to send the product to us, please make sure that you have pray for the fact that

· the product is shipped in its original packaging ,
- the purchase receipt is attached.

1. are excluded from the warranty:

2. Illuminants
   Wear parts

3. Transport damage, visible or invisible (complaints for such damage must be reported immediately to the

transport company, (rail or post).

• Scratches in metal parts, front covers, etc. (These Defects must be reported within 5 days after purchase directly to your dealer).
• faults caused by incorrect installation, incorrect connection, improper operation (see operating instructions), or external violent influence, the device was not that are.
• Improperly repaired or modified equipment that has been on a side other than the one we opened.
  Consequential damage to third-party equipment
• Reimbursement of costs for damage repair

Aεukó LED γia APTX-LL

Kokko kai LED yia APTX HD

Aεukó LED γia APTX-LL

Kokko kai LED yia APTX-HD

3.Bo n36eXaHHe 3JIeKTPnueCKNX KOpOTKnx 3aMbIkaHNI B03rOpaHnI n3-3a nepeRpeBa He HaKpbIbAteYCTPOIcTBO I He CTaBbTe Ha Hero ppeIMetbl.

1. He pa3MeaTe yCTPOcTBO B6JIa3n IcTOHKnOB TeIJa, TaKx KaK paHaTOpbl, Neu n T.I.

2. He nCnoB3yIte yCTpoIcTBO B6JIIM3N OTKpbITOrO OrHn JIN CBeuei.

3. OuIaIte yCTpoIcTBO TOnbKO cyXoI TkaHbIO.

4. BbIKIouaTe np6Op n3 p03eTKn BO BpeMra rpo3bl nn npn dJIteJbHOM HeNCIOJIb3OBAHN.

5. 3auntntb shhyp nntanry OT cnIbHbIX ydapOB, Hnprimep, pa36nBaHnIy ydapOB.

9.Испοлььзуг Te Tолько BXODЯшne B KOMПЛeKT NOCTaBKN

PnHaJNeXHOCTN.

CnHn CBeToaNoI dJa SBC

3eJeHbI CBeToIDNoD Ia APTX

Белы CBetodnoДЯ APTX-LL

KpacbHn n cHn CBeToaNoDbI dIg APTX HD

Дажевсяме RX kauectBO nepedaun cJe duuiee:

CnHn CBeToaNoD Ira SBC

KpacHbI CBeToDnOd IJIy AAC

3eIeHbI CBeToIDNoI APTX

Белы CBetodnoДЯ APTX-LL

Kpacbni n cHn CBeToaNoDbI Ira APTX-HD

Kak Tolsko aydnocnHaJ He nepedaetc, CBeToND3aropaeTc CnHIM CBETOM.

CoprajkeHne 2 yctpoiCTB (RX)

Bb6epnte pexim RX, a 3aTe m noKIOUHTe BTR Evolution 5.0 K 6IOK nITAHn y BKIOUHTe erO. CoeHNITE BAuMo6NbHbI TelefoH nII npyroe ycTPOINCTBO Bluetooth C BTR. NocLe ycNeSHoI napbl, DBAxDbl HaXkaTb KNOpKy BKIOUHeHry/BbIKIOUChEHHy. 3TO OTCoEINHT COeINHEHne. INCKaTb HOBoe ycTPOINCTBO. Co BTOPoro Bluetooth ycTPOINCTBO, BKIOUHTe pexim noncKa Bluetooth nNoKIOUInTeC b K BTR 3BOJIOZn. NocLe ycNeSHoro CoeINHeHry BTOPoro YcTPOINCTBO Bluetooth, BKIOUHTe nepBoe ycTPOINCTBO Bluetooth n Bb6epnte npHKr BT REvolution n3 cnncka paccblkn. NocLe 3TOrO shara n To, n dpyroe YcTPOINCTBa Bluetooth ycNeSHo NOKIOUChBi. PpIMeuaHne: TolbKO oDN h aydno faiM MoKeT 6bITb nepeDaH 3a ODN H pa3 N MOKeT nOTpe6OBaTB HeCKOJIbKO CeKHyD Ha nepeKIOUChE Hc ODNHO nCTOUnHkA 3ByKa Ha dpyroi.

CoprajkeHne 2 yctpoiCTB (TX)

YctaHOBtE BTR BpeKIM TX. Tepeb BblOnHInTe cOpJxKeHne B peKIme RX.

Понь устараенье несправност

SNH

3Bolnoz BTR 5.0 He moXeT 6bITb BKJIIOUyeHa.

a) Y6eIntecb, yTo BTR Evolution 5.0 noKJIOueH K DOCTaTOUHOMy IcTOUHkU pNTaHnA.

6) Y6eIITecb, YTO Bbl HaXIMaeTe n ydepxnBaTe KHOKNy BKJIIOUeHnra/BbIKJIIOUeHnra He MeHee 2 ceKyHd.

BTR Evolution 5.0 He moxet 6bITb NOdkJIOUeH K pyromy yctpoiCTBy.

a) Y6eIntecb, yTo yCTpoiCtBO Bluetooth haxoIITcHa paCCTOHm He 6OJIee 1 MeTp a B pexnme cOpJxKeHn.
b) Y6eIntecb, yTO Ha NOdkJIIOyAemOM yCTpOINCTBe BKJIIOUeHa ΦyHKzIa Bluetooth n OHO hAXoITcB B peXnme noncKa/ napnpOBaHna.
c) Y6eIntecb, yTO Bbl6paH npaBnIbHbI peXm Bluetooth (PpneMHNK/PepeDaTnuK).

BTR Evolution 5.0 nodkloucen K yctpoiCTby, HO Bocnpo3BedeHne My3bIKn HeBO3MOXHO.

a) Y6eIITecb, yTO o6a yCTPOiCTBa coEiHHeHb. O6paTITe BHIMaHHe, yTO MaKcImaJIbHbI paINyC DeiCTBnA COCTaBJIeT 10 M. EcIn MeJxNy yCTPOiCTBaMn IMeIOTcA CTehbl INI NObBeKTbl, paINyC DeiCTBnA 6yJeT yMeHbWeH.
b) Y6eIITecb, yTO peRyIaTOp rPOMKoCTn PIIeepa yCTaHOBJIeH B dHa3OHe ot 50 do 100%.

TapaHTn

1. nckJIIOUeHbI n3 rapaHTn:

-CBETNJIbHNIKU
- - ɪЗншиВаюшпеся ча'tn
- - Повржденья по Транспортукове, ВДИМьIE ИЛНЕВДИМьIE (Жалобы)
O TaKHX IOBpeJdeHnX Heo6xOIMo HEmeJIeHHO COo6uNTb TpaHCnOpTHoN KOMnaHn (no JKeJe3HOJ DOpore IIN NO NoYTe).
- LapaHbI Ha MeTaNluecknX DeTaJax, NpeDnX KpbIkwax n T.I. (3TN O deΦeKtax Heo6xOIMo COo6aTb B TeueHne 5 dHei nopCle NOKyIKN HeNOCpeICTBcHNO Ha aDpec BaW dInep).
HeNCpPaBHOCTN, Bbl3BaHHbIe HePpaBnIbHOY yCTaHOBKOJ, HEnpaBnIbHbIM NOKJIIOyeHNEM, HEnpaBnIbHaJ 3KcIIyatau (CM. INHCTpyKcIIO NO 3KcIIyatau), IJI N BHeUHe HaCINbCTBeHHOE BO3dEInCTBVE, YcTPOInCTBO He 6blIO TO eCTb.
He npabnblho OTPeMOHTnpOBaHHoe nnn MoNcnpOBaHHoe 6opyIOBaHne, KOTOpoe 6bIIO Ha pyroCTopoHe, KpOMe Toi, KOtOpYIO Mbl OTKpbIIN.
- PocleyuOee NOBpeKdEHne O6OpUOBaHnC TOpOHnX npOn3BODnteJe
·Bo3meueHne 3aTpaT Ha nobpeXdeHHbI peMOHT

RUS

Technical documentation for external power supplies for REGULATION (EU) 2019/1782 according to the directive 2009/125/EG

EN Value Unit
Manufacturer's name or trade mark, commercial registration number and address	Baoli 91441900MA53651CX2 201 Room, Building 2, No. 146, Chashi Road, Chashan Town, Dong- guan, Guangdong, China
Model identifier 209U
Input voltage 100 - 240 V
Input AC frequency 50 - 60 Hz
Output voltage 4,75-5,25 V
Output current 2,00 A
Output power ≤0,3 W
Average active efficiency 81,3 %
Efficiency at low load (10 %)	70,0 %
No-load power consump- tion	0,07 W
