USER MANUAL Scope Vision Outdoor Oehlbach

User manual | Warranty information

Scope Vision Outdoor

MONTAGE

Diagram of a wall-mounted device with a central hub and two screw holes, showing light rays (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Thank you for choosing an Oehlbach ^® quality product. Please read these instructions carefully; this will ensure the full and error-free functioning of the product.

IMPORTANT SAFETY NOTICE

Please observe the following instructions in order to prevent any risk of fire, short-circuits or damage to the product:

1. Do not expose the product to rain or moisture. Do not place any containers filled with water on the product.
2. Do not install the product in a bookcase, fitted cupboard or similarly enclosed spaces. Please ensure that there is sufficient ventilation for the product.
3. You should not cover the product or place items on the product in order to prevent short-circuits or fire due to overheating.
4. Do not place the product in proximity to sources of heat, e.g. heaters, stoves, etc.
5. Do not use the product in proximity to naked flames or candles.
6. Only use a dry cloth to clean the product.
7. Disconnect the power plug during a thunderstorm or if the device is not used for a longer period of time.
8. Protect the power cable against external forces such squeezing, crushing or impact.
9. Use the accessories provided only.
10. Please only use qualified service personnel to carry out repairs or servicing work.

COMPLIANCE WITH EU DIRECTIVES

This product is eligible to bear the CE mark. It complies with the EU Low Voltage Directive 2014/35/EC; EU Directive 2014/30/EC on electromagnetic compatibility; EU RoHS Directive 2011/65/EC; EU Directive on Waste Electrical and Electronic Equipment (WEEE) 2012/19/EC.

You can obtain a free copy of the Declaration of Conformity by contacting your retailer, distributor or the headquarters of Oehlbach Kabel GmbH. Contact information can be found at:

http://www.oehlbach.com.

DISPOSAL ADVICE

In accordance with the European Guideline 2012/19/EC all electrical and electronic equipment must be disposed of separately at local collection points. Please observe local rules and do not dispose of your old equipment in the normal household waste!

PACKAGING CONTENTS

• Oehlbach SCOPE VISION OUTDOOR
- Amplifier
- Mainsadapter
- wall/mast mounting bracket
- foot
- 10m antenna cable
- F connector
- User guide

Scope Vision Outdoor

The Oehlbach Scope Vision Outdoor has been specifically designed for outdoor use and it accommodates a low-noise amplifier that has been specially developed for the antenna. This guarantees the best possible reception of DVB-T2 HD signals. The antenna is also flexible in terms of its installation and can be mounted on a mast or a wall, or it can be simply positioned on its base on a horizontal surface. The waterproof and UV-resistant housing protects the high-quality internal components in adverse weather conditions.

This waterproof and UV-resistant housing makes the Oehlbach Scope Vision Outdoor the perfect DVB-T2 antenna for outdoor use. Optimum HD reception is guaranteed thanks to an amplifier that has been specially developed for the antenna.

FUNCTIONS

• Outdoor antenna specially developed for DVB-T2
• Waterproof and UV-resistant housing
• Compact design for flexible set-up options
• Can be mounted on a wall or mast
• Very low-noise booster technology for high-resolution reception quality
• UHF (470-790MHz)

SPECIFICATION

Reception modes: DVB-T2, DVB-T

Frequency range: UHF: 470-790 MHz

Temperature range: 5 to +50 °C

Permissible relative humidity: 5 - 90%

Voltage supply: 6V/150mA, 0.9W

Dimensions: 190 x 120 x 45

(w x h x d in mm)

Weight: 0.182 kg

INSTALLATION

NOTE:

For the best possible reception, please check the following conditions:

1. There is a sufficient distance to sources of interference and large power consumers such as air conditioning units, lifts, hairdryers, microwave ovens, etc.
2. Installation is as high as possible. In case of digital terrestrial reception: Interruptions between the antenna and radio tower can cause temporary loss of the signal. These types of interruption can be reduced by installing the antenna as high as possible.

OEHLBACH®

INSTALLATION

Internal/external wall mounting (Fig. 1)

Technical line drawing of a mechanical device with mounting flange and threaded fasteners (no text or symbols)

Step 1. Mark the mounting position with a pen or pencil (use the mounting bar for this purpose).
Step 2. Use the supplied screws to screw the mounting bar to the wall.

You may need to use wall plugs depending on the wall. Use a 6 mm drill bit to drill a hole approx. 35 mm deep.

Step 3. Secure the antenna to the mounting bar.
Step 4. Connect the antenna cable to the antenna and then run the cable to your set-top box or TV.
Step 5. Proceed as described in the section entitled "INITIAL OPERATION".

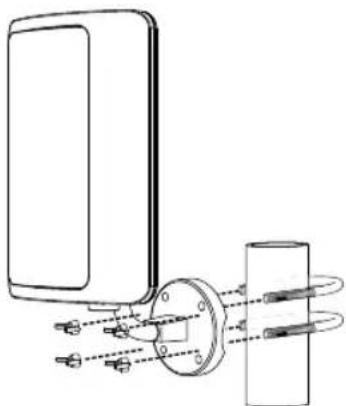

Mounting the mast (Fig. 2)

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 1. Secure the mounting bar to a suitable mast by using the threaded brackets and wing nuts.
Step 2. Secure the antenna to the mounting bar.
Step 3. Connect the antenna cable to the antenna and then run the cable to your set-top box or TV.
Step 4. Proceed as described in the section entitled "INITIAL OPERATION".

Scope Vision Outdoor

INITIAL OPERATION

The antenna can be supplied with power in two different ways

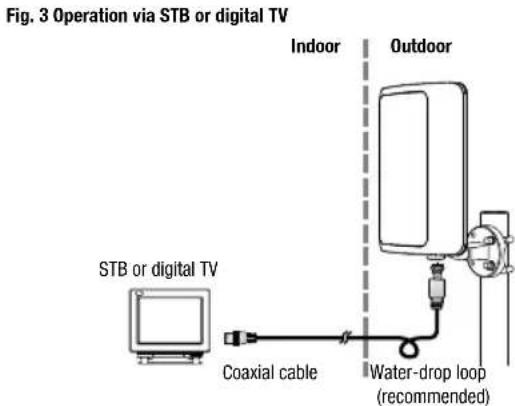

Variant 1: Operating the antenna via an STB or digital TV (Fig. 3)

Fig. 3 Operation via STB or digital TV Indoor Outdoor STB or digital TV Coaxial cable Water-drop loop (recommended)

ENG

1. Secure the antenna in place as described in the mounting section.
2. Connect the IEC connector of the supplied antenna cable to a set-top box or TV.
3. Connect the F-connector of the antenna cable to the antenna itself. The antenna cable can be shortened to the required length and reattached with the supplied F-connector.
4. Align the antenna to achieve the best signal/image quality.

Variant 2: Operating the antenna via a power supply unit (this method is necessary if your set-top box or TV does not have a DC output) (Fig. 4)

1. Follow the steps specified for Variant 1 above, but connect the supplied amplifier between the antenna cable and your set-top box or TV. When doing this, connect the antenna cable to the "Antenna" input on the amplifier.
2. Then connect the output of the amplifier to the antenna input on your set-top box or TV.
3. Now connect the amplifier to the supplied power supply unit.

OEHLBACH®

Please note: All connections should be fixed. It is recommended that you establish a water-drop loop at the end of cable before it enters your home (when mounting the device outdoors).

When you have finished the installation process, you can use your set-top box or TV to check the strength and quality of the signal. If the quality is not sufficient for a good picture, you can try moving the antenna until you find the best reception position.

Warranty

Congratulations! Thanks to your intelligent choice you are now the proud owner of an OEHLBACH® product. OEHLBACH® products enjoy an excellent reputation around the world due to their high quality. This high quality standard allows us to provide a 2 year warranty for this OEHLBACH® product. OEHLBACH® products are continuously inspected and checked throughout the entire manufacturing process. If service is necessary, however, please observe the following:

1. The warranty period starts with the purchase of the product and only applies to the original owner.

2. During the warranty period we will rectify any defects that are due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damage or subsequent damage, are excluded. The warranty period is not affected by any work we provide under the warranty.

3. The product should not be tampered with.

4. In the event of a warranty claim please contact your authorised dealer first. Should it prove necessary to return the product to us, please ensure that

- the product is sent in its original factory packaging in good condition,

- your proof of purchase is enclosed.

1. The following are excluded from the warranty:

2. Illuminants

3. Wear parts
4. Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with the shipping agent, the railway express office or the post office).
5. Scratches in metal components, front panels, etc. (You must notify your authorised dealer directly of such defects within 5 days of purchase).
6. Defects caused as a result of incorrect installation, faulty connection, improper operation (see user manual), overloading or external force.
7. Improperly repaired or modified devices that have been opened by a party other than us.
8. Subsequent damage to other devices.
9. Reimbursement of costs for repairing damage that has been caused by a third party without our prior conse.

Scope Vision Outdoor

Scope Vision Outdoor

MONTAGE

Technical line drawing of a mechanical component with mounting holes and threaded fasteners (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Scope Vision Outdoor

Scope Vision Outdoor

Technical line drawing of a mechanical component with mounting flange and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Scope Vision Outdoor

INGEBRUIKNAME

Scope Vision Outdoor

Scope Vision Outdoor

MONTAGGIO

Technical line drawing of a mechanical component with threaded fasteners and a flanged base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Scope Vision Outdoor

Scope Vision Outdoor

Technical line drawing of a mechanical device with mounting flange and threaded fasteners (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Scope Vision Outdoor

Scope Vision Outdoor

Technical line drawing of a mechanical device with mounting flange and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Scope Vision Outdoor

Scope Vision Outdoor

Technical line drawing of a mechanical device with mounting holes and a central hub (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Scope Vision Outdoor

МОНТАЖ

Technical line drawing of a mechanical device with mounting holes and force arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Scope Vision Outdoor

Technical documentation for external power supplies for REGULATION (EU) 2019/1782 according to the directive 2009/125/EG

EN Value Unit
Manufacturer's name or trade mark, commercial registration number and address	ROOM 10-11,6/F KWONG SANG HONG CENTRE, 151-153 HOI BUN ROAD,KWUN TONG,KOWLOON,HONG KONG
Model identifier S003ATV0600015
Input voltage	230 V
Input AC frequency 50 Hz
Output voltage	6,0 V
Output current	0,15 A
Output power	0,9 W
Average active efficiency	>61 %
Efficiency at low load (10 %)	NA	%
No-load power consumption	<0,1	W
