Product type	Safety harness for fall arrest, restraint and work positioning
Brand and model	Silverline 251483
Standards	EN361:2002, EN358:2018, PPE 2016/425
Maximum resistance	16 kN
Operating temperature	-40°C to +80°C
Maximum user weight	140 kg
Net weight of harness	1,3 kg
Adjustable waist circumference	79 cm to 120 cm
Belt width	45 mm
Attachment points	Dorsal (A), sternal (A/2), lateral (2)
Main material	Polyester webbing, metal buckles
Maximum service life	5 years after first use
Maximum storage life	10 years from date of manufacture
Warranty	3 years (upon registration within 30 days)
Maintenance	Clean with warm water (30-60°C) and mild detergent, dry naturally away from heat
Compatible accessories	Energy-absorbing lanyard, carabiners, restraint lanyard (min. strength 22 kN)
Use	Fall arrest, work positioning, restraint (lateral points)
Notified body	CCQS UK Ltd (n°1105)
Manufacturer	Toolstream Ltd, United Kingdom

Frequently Asked Questions - 251483 SILVERLINE

How to properly adjust the Silverline 251483 harness?

Start by putting on the shoulder straps, close the chest strap at the sternum level, then adjust the leg loops by passing them between the legs and tightening until a comfortable fit. Finally, buckle the waist belt. Make sure the dorsal attachment point (A) is on the outside and the webbing is not twisted. See the images in the manual.

What is the maximum lifespan of this harness?

The service life is a maximum of 5 years from first use, subject to regular maintenance and inspections. If stored in its original packaging, the total lifespan can reach 10 years from the date of manufacture.

Can I use this harness for rappelling?

No, this harness is designed for fall protection, work positioning and restraint. It is not suitable for rappelling. Use a specific descent harness.

How to maintain and clean the harness?

Clean the webbing with warm water (30-60°C) and a mild neutral detergent. Gently brush with a soft brush. Rinse and let dry naturally away from any heat source. Do not use solvents, acids or abrasive products. Disinfect with a suitable product if necessary.

What to do if the harness has stopped a fall?

The harness must be immediately taken out of service and destroyed. It is not designed to be reused after sustaining a fall. Also inspect all other components of the system.

Which attachment points to use for a fall arrest system?

Use only the dorsal (A) or sternal (A/2) attachment point for connection to an energy absorber and lanyard. Lateral points are reserved for work positioning and must not be used to arrest a fall.

Is this harness compatible with other brands?

It is recommended to use only compatible Silverline accessories. Connectors must have a minimum strength of 22 kN. Always check compatibility in terms of size and shape to prevent accidental disengagement.

What clearance height under the user is required?

The clearance height must be sufficient to avoid hitting the ground or an obstacle in case of a fall. Take into account the lanyard length, the absorber and the deformation. Refer to the diagram in the manual (Fig. II). In case of a swing fall, the required height increases.

How to store the harness when not in use?

Store it in a dry place, protected from UV rays, extreme temperatures and chemicals. Use a UV-resistant bag or container. Do not place heavy objects on it. Humidity and heat can damage the fibers.

Can I repair the harness myself?

No, any repair or modification is prohibited. If the harness is damaged, it must be taken out of service and destroyed. Only the manufacturer or an authorized agent can carry out repairs.

USER MANUAL 251483 SILVERLINE

Fall Arrest & Restraint Harness 4-Point

FR Harnais de retenue anti-chutes
DE Auffang- und Haltegurt
ES Arnés anticaída y cinturón de sujeción
IT Imbracatura di arresto caduta e imbracatura di ritenuta
NL Valbeveiligingsharnas
PL Uprzej przytrzymujaca i zabezpieczajca przyzed upadkiem

Register online: silverlinetools.com

C∈1105

silverlinetools.com

A

B

C

D

E

F

G

H

Fig.1

FR Fig.1 1. Protection anti-chutes / 2. Système de retenue / 3. Maintien au travail
DE Abb.1 1.Auffangen/2.Halten /3. Positionieren
ES Fig.1 1.Arnés anticaida /2.Arnés de sujeccion/3.Arnés de posicionamiento
IT Fig.1 1.Arresto caduta /2.Ritegno caduta/3.Posizionamento
NL Fig.1 1.Valbeveiliging /2.Restrictie /3-positiorering
PL Rys.1 1.Wyhamowanie updaku /2.Zapobieganie updkom/3.Pozycjonowanie

Fig. II Fig. III

FR Fig. II 2 m Maximum
DE Abb. II 2 m Maximum
ES Fig. II 2m Maximo
IT Fig. 2m Massimo
NL Fig. II 2m Maximum
PL Rys. II Maksimum 2 m

FR Fig. III Risque de chute avec balancement
DE Abb. III Gefahr eines Pendelsturzes
ES Fig. III Riesgo de caida en pendulo
IT Fig. III Caduta dondolante
NL Fig. III Zwaalvalgevaar
PL Rys. III Efekt wahadla

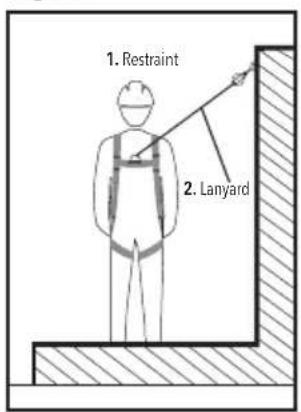

Fig. IV

FR Fig. IV
1. Retenue
2. Élingue
DE Abb. IV
1. Rückhaltesicherung
2.Verbindungsmittel
ES Fig. IV
1. Sujection
2. Cuerta de sujeción
IT Fig. IV
1.Ritenuta
2.Cordino
NL Fig. IV
1. Restrictive
2.Vallijn
PL Rys. IV
1.Ogranizenie
2. Lonza

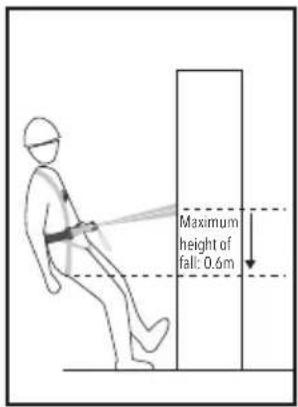

Fig. V

FR Fig. V Risque de chute avec balancement
DE Abb.V Max. Absturzhe:0,6m
ES Fig.V Altura maxima de caía:0,6 m
IT Fig.V Massimo altezza di caduta 0.6 m
NL Fig.V Maxima valhoogte:0,6 m
PL Rys.V Maksymalna wysokosc updku:0.6m

Fig. VI

English 06
Français 12
Deutsch............18
Espanol. 24
Italiano.........30
Nederlands .36
Polski 42

Introduction

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Read instruction manual

Caution!

Conforms to relevant legislation and safety standards

Notified body number

Carefully read and understand these instructions and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with these instructions.

Specification

Model: 251483

Applicable standards: EN361:2002 (Full Body Harness)

EN358:2018 (Work Positioning Systems)

2016/425/EU

Purpose: ...Fall arrest, restraint & work positioning

Material: Polyester

Maximum strength: 16kN

Temperature range: 40 to +80^

Attachment points: EN361:Dorsal(A),Sternal(A/2) EN358:Lateral(x2)

Max. user weight: 140kg*

Belt size (min. waist): 79cm (31")

Belt size (max. waist): 120cm (47")

Belt width 45mm

Net weight: 1.3kg

As part of our ongoing product development, specifications of Silverline products may alter without notice.

*The operator must be able to achieve a safe and comfortable fit, using the adjustment options provided. The Lateral Attachment Points (11) must be located at waist level on the user's sides, opposite each other. The equipment must not be used if it cannot be adjusted to fit the operator comfortably and securely.

Safety Instructions for Height Safety Equipment

WARNING: Activities involving the use of this equipment are inherently dangerous. ALWAYS carry out a risk assessment before work commences, including rescue arrangements.
WARNING: Specific training is essential before using this equipment. It must only be used by competent and responsible individuals, taking care not exceeding the limitations of the equipment.
WARNING: Failure to adhere to any warnings and recommendations given in these instructions may result in severe injury or even death! When using this equipment you personally assume all risks and responsibilities for all damage, injury or death which may occur during or following incorrect use of this equipment. You are responsible for your own actions and decisions. If you are unable, or not in a position to assume this responsibility or to accept these risks, DO NOT USE THIS EQUIPMENT.
a) NEVER use equipment that has exceeded its shelf and/or service life.
b) This product MUST NOT be stressed beyond its strength rating.
c) DO NOT use components of fall arrest gear outside its limitations, or for applications for which they were not specifically designed.
d) Avoid impacts and rubbing against abrasive surfaces during use, transport and storage.
e) DO NOT use connectors with manual locking mechanisms in areas where they are frequently opened and closed.
f) Ensure locking mechanisms and safety devices engage securely and connectors are fully closed and locked before use.
g) NEVER combine components that are not recommended by the manufacturer as being compatible. One item may interfere with the safe function of another, jeopardising the function of the system as a whole.
h) NEVER attach a fall arrest system to an anchorage if you are unsure about the strength and condition of the anchorage.
i) Take into account the length of every single component of a fall arrest system, including the connectors, when determining the total length of the system.
j) The clearance under the user must be sufficient to prevent him from striking an obstacle in the event of a fall.
k) DO NOT allow any part of a fall arrest, work positioning or restraint system to come into contact with sharp edges or abrasive surfaces during use. Reposition if necessary or choose an alternative anchorage.
I) Any component of a fall arrest system must be individually inspected according to the manufacturer's recommendations and procedures. After assembly, the system must be inspected as a functional unit.
m) Any kind of repair or modification of this equipment is strictly PROHIBITED.
n) DO NOT tie knots in harnesses, lanyards and ropes. DO NOT allow equipment to become tangled.
o) Equipment that has been exposed to extreme conditions, failed an inspection, or has been used to arrest a fall, must be retired and destroyed. Never expose items made with synthetic fibre components to direct flames.
p) DO NOT use shock absorbers that have been partially deployed, or when the plastic sheath is damaged.
q) Destroy retired equipment immediately to prevent further use.
r) All users of fall arrest gear must be medically fit for activities at height and must wear appropriate personal protective equipment for the environment, work carried out, and tools used.
s) Carry out a risk assessment for every activity, and define a rescue plan that can be safely and rapidly executed in case of emergency.
t) All product markings must remain intact and clearly legible for the entire service life of this equipment.
u) Store the equipment with its dedicated service record and usage instructions. Gear with uncertain service history must be removed from service and destroyed.
v) Before using this equipment, ensure that it complies with local federal regulations and other applicable safety standards.

w) Textile products, including webbing and ropes, MUST NOT be marked using ink from marker pens or paint, as these substances may potentially lead to chemical damage of the material.
x) Store in accordance with the manufacturer's instructions.

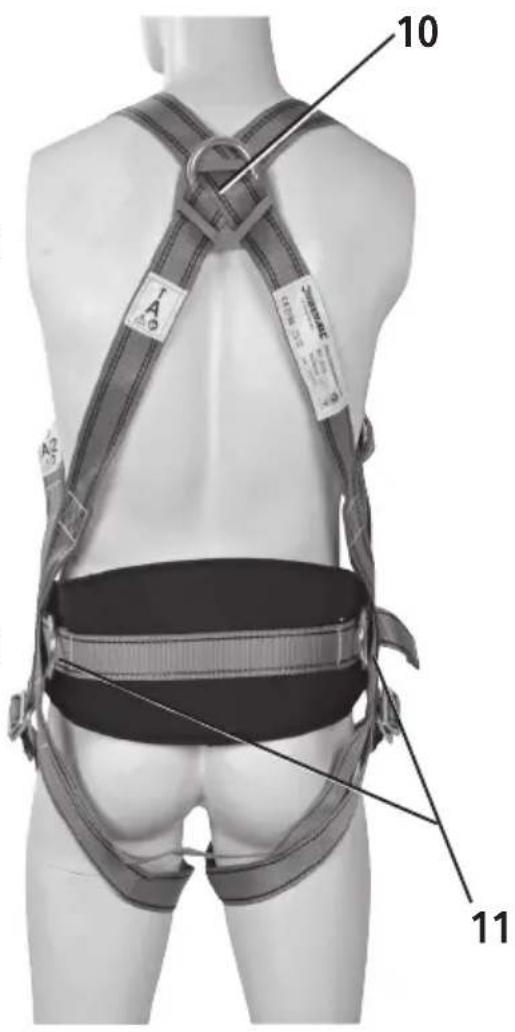

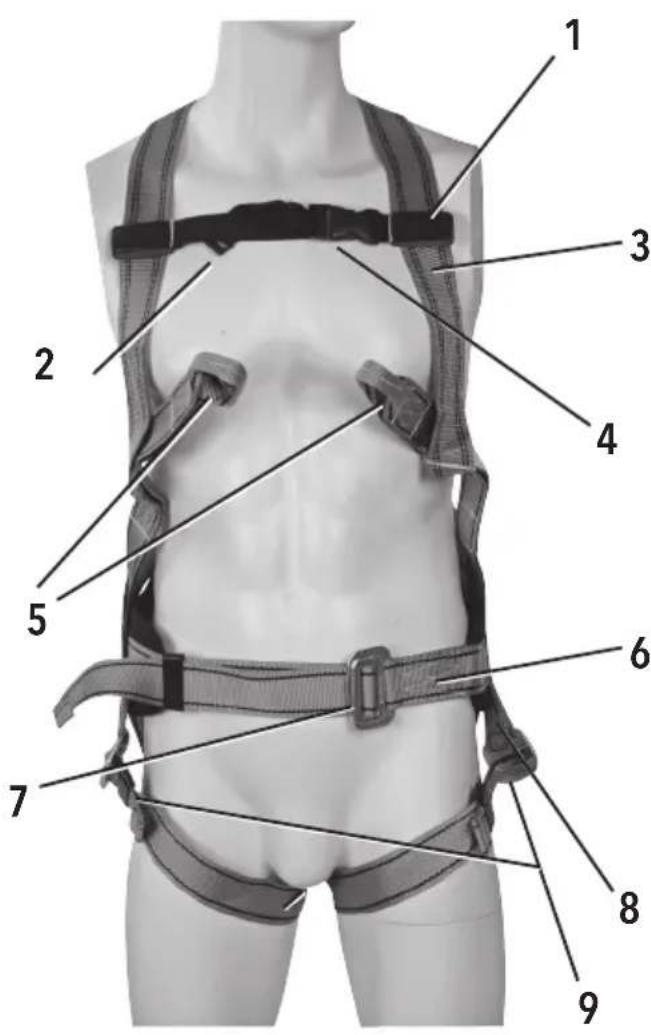

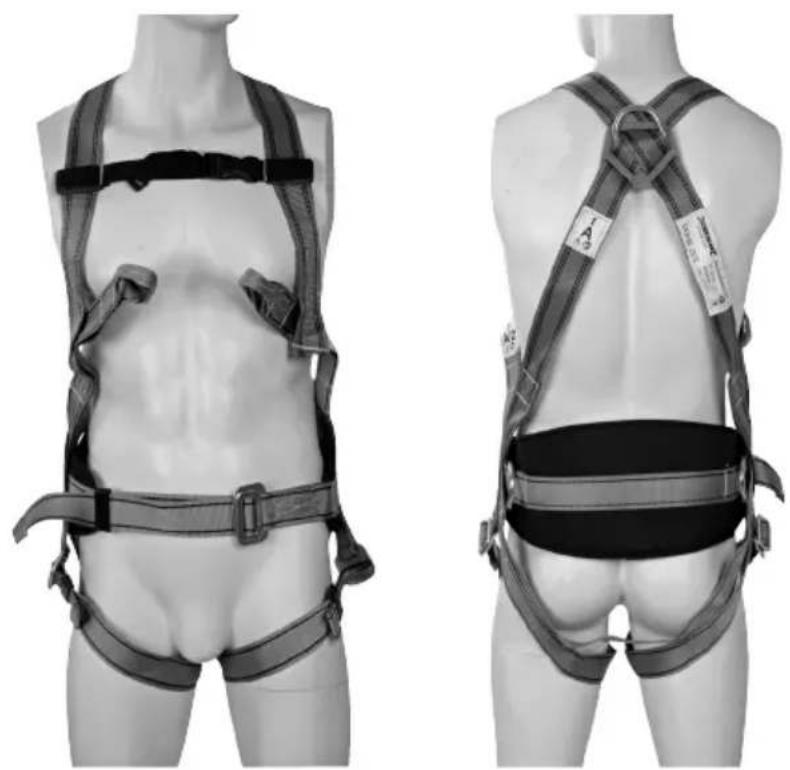

Product Familiarisation

1 S houlder Straps

2 Chest Strap

3 Chest Strap Sliders

4 Chest Buckle

5 Sernal Attachment Point (A/2)

6 Waisl Belt Strap

7 Waist Belt Buckle (three-bar slide & square link connections)

8 Leg Straps

9 Leg Strap Buckles (three-bar slide & square link connections)

10 Dorsal Attachment Point (A)

11 Ateral Attachment Points (EN358)

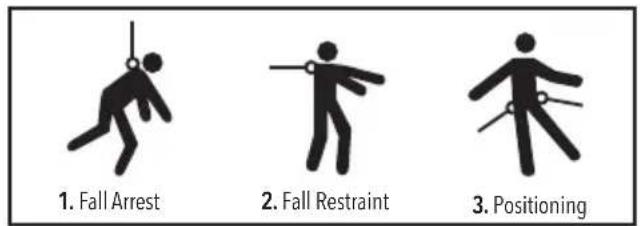

Intended Use (See Fig. 1)

This harness is designed for use in a fall arrest system, where, used in combination with a suitable lanyard, shock absorber and anchorage, it prevents the user from going into a free fall. It can also be used as part of a restraint/work positioning system, combined with a suitable lanyard.

Usage Limitations

WARNING: Do not use a work positioning or restraint belt if there is a risk of becoming suspended or exposed to unintended tension by the belt.

WARNING: Only use the harness Dorsal (A) and Sternal (A/2) attachment points for fall arrest purposes. The lateral belt attachment points must not be used for fall arrest.

WARNING: Fall arrest gear is designed to arrest a fall from height ONLY ONCE! If subjected to an arrested fall, the gear must be withdrawn from service and rendered unusable.

This equipment is designed for use by one person with a combined total weight no greater than 140kg including clothing, tools, and other user-borne objects
- Acidic, alkaline, or other environments with harsh substances, may damage the equipment. DO NOT expose to corrosive environments for prolonged periods of time. Organic substances and salt water are particularly corrosive to metal parts
DO NOT use in environments with temperatures lower than -40^ or greater than 80^
- Avoid contact with rough, abrasive surface, sharp edges, cutting tools etc.
- Equipment must be shielded when used near welding, metal cutting, or other activities that produce large amounts of heat
- Use extreme CAUTION when working near energised electrical sources. Metal hardware conducts electric current. Maintain a safe working distance (at least 3m ) from all electrical hazards
This harness is NOT suitable for applications where the user is going to be suspended for extended periods of time. Use a suspended work seat or a seat sling instead
- A full body harness is the only acceptable body holding device that can be used in a fall arrest system

Unpacking your Product

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
• Ensure all parts of the product are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this product

Before Use

Pre-use checks

• A visual and tactile (i.e. by sense of touch) inspection must be carried out before every use. All parts of the gear must be inspected in an area with appropriate light conditions

• Slowly pass webbing, belt or rope through your hands to detect small cuts of 1mm or more in material edges, abrasions and twist damage. Feel for softening and hardening of fibres and look for ingress of contaminants

• Inspect all stitching for visual damage
• Check all hardware and connectors for damage and confirm functionality. Confirm safety devices (such as gates on karabiners etc) are functioning properly

Note: Refer to the 'Maintenance' section for further advice on fault conditions.

Fitting and adjustment

• Preparation (see Image A):

• Identify all parts and straps (see 'Product Familiarisation')

• Open and release the Chest Buckle (4) and both Leg Strap Buckles (9)

Note: Loosen all three-bar slide and square link type connections fully, in order to retighten during fitting.

1. Lift the harness on the D-ring of the Dorsal Attachment Point (A)(10), and ensure all straps are hanging straight

Fitting shoulder and chest (see Image B-D):

1. Fit the Shoulder Straps (1) of the harness over your shoulders
2. Place your arms through the Shoulder Straps, so the Dorsal Attachment Point (A)(10) is located on the back

Note: Ensure the harness is not twisted 'inside out', by checking that the D-ring of the Dorsal Attachment Point (A) (10) is located outermost.

1. Close the Chest Strap (2) by inserting the male end into the female connector, and adjust by pulling or releasing the open end of the webbing material
2. Adjust the Chest Strap Sliders (3) up or down the harness

Note: The Chest Strap must run squarely over the sternum. It must not run diagonally or close to the throat region.

Fitting legs (see Image E-F):

1. Stand upright and straight, locate the Leg Straps (8) and ensure they are not twisted
2. Reach behind and pass the first Leg Strap in between your legs from back to front
3. Fasten the Leg Strap Buckle (9), by inserting the three-bar slide through the square link, so both parts sit flat on top of each other and interlock
4. Repeat on the other side
5. Adjust the Leg Straps by pulling the end of the webbing through the belt slider, until a snug fit is achieved and the webbing material sits comfortably, as high as possible, between the inside leg and groin. Release and readjust if necessary, until a safe fit has been achieved

WARNING: Correct fitting of the Leg Straps (8) is of paramount concern for the safe and effective function of the harness. Severe injury can occur during an arrested fall, if the webbing material is twisted, or if the Leg Straps are not adjusted properly in the groin region.

Fitting waist belt (see Image G-H):

1. Stand upright and straight, locate both ends of the Waist Belt Strap (6) and ensure they are not twisted
2. Fasten the Waist Belt Buckle (7), by inserting the three-bar slide through the square link, so both parts sit flat on top of each other and interlock
3. Adjust the Waist Belt Strap by pulling the end of the webbing through the belt slider, until a snug fit is achieved

Note: Confirm comfortable yet snug fit of the harness by squatting down and moving your arms above your head. The user must be able to comfortably move around and reach his working position, without the harness restricting movement.

Connecting to other fall arrest system components

WARNING: Karabiners and other connectors must ALWAYS be used with the gate closed and securely locked. Refer to the connector manufacturer's instructions for verification and inspection procedure.

WARNING: The total length of a lanyard connected to an energy absorber should NOT exceed 2m.

• Use the Dorsal Attachment Point (A) (10) to connect to the shock absorber or shock absorber/lanyard combination using a suitable karabiner
• Use the Sternal Attachment Point (A/2) (5) to connect to a mobile fall arrester and other rope access systems according to EN 363

Clearance

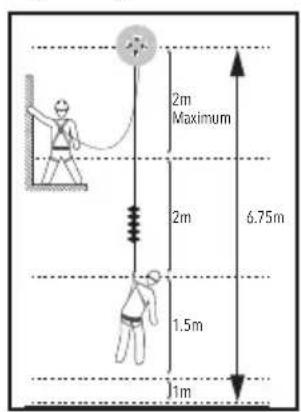

Fall clearance (Fig. II):

• Before use, it is essential to verify the clearance required beneath the user. This clearance must be sufficient to prevent the user from hitting the ground or another obstacle, in the event of a fall

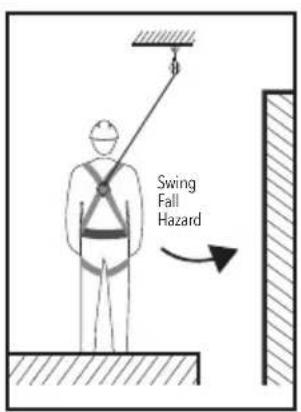

Swing falls (Fig. III):

WARNING: The force of striking an object in a swing fall may cause serious injury or death.

• Swing falls occur when the anchorage is not located directly above the point where a fall occurs.
• Minimise swing falls by working as close as possible to the anchorage
• DO NOT enter a situation where a swing fall could occur, if it is likely to result in an injury

Note: The risk of swing falls significantly increases the clearance required when using a self-retracting lifeline or another variable length connecting system.

Connecting to work positioning or restraint systems

Note: This harness is fitted with a Waist Belt Strap (6) and Lateral Attachment Points (11) that enable its use in work positioning systems to provide support. Use a back-up fall arrest system if working at height.

• The Lateral Attachment Points (11) are designed to either hold the user in a certain position whilst working (work in suspension), or to prevent the worker from entering a zone where a fall is possible (travel restraint, leash principle, see Fig. IV)
• The Lateral Attachment Points must ONLY be used to attach to a work positioning system. DO NOT connect to a fall arrest system
• ALWAYS use the two lateral D-rings together by clipping a suitable positioning lanyard between them
• There should be a supporting surface for the feet for comfortable work positioning
• Movement must be restricted to a maximum of 0.6m , and the lanyard must be kept under constant tension (see Fig. V)

WARNING: When connectors are poorly positioned, the attachment D-rings could act as a lever on the gate of a karabiner and subsequently damage it when sudden tension comes on to the rope. ALWAYS ensure connectors remain safely positioned during use.

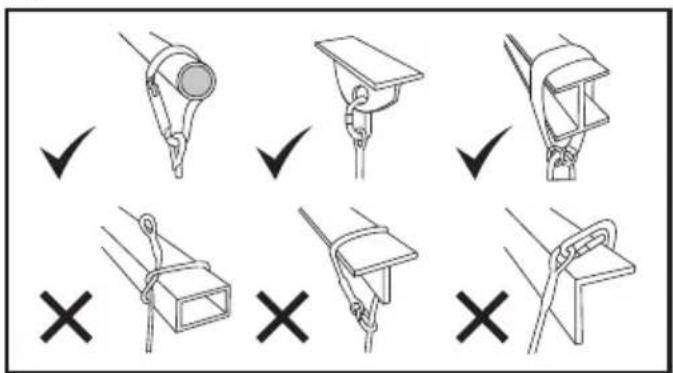

Anchorage requirements (Fig. VI)

The minimum strength of any anchorage must be 10kN according to EN795
- Check anchorage for signs of deterioration
- As with all fall arrest gear, anchorages must be subjected to regular inspections by a competent person. Inspect at least once every three months and record findings in a dedicated service record
- Check that the karabiner is the correct size for the anchorage to be used. If the karabiner is too small, use an anchor sling to connect to the anchorage

Anchorage position

WARNING: The anchorage for work positioning must be positioned at or above waist level.
The anchorage of the fall arrest system should preferably be located above the user's position

Use as part of a fall arrest system

• Anchorages selected for fall arrest systems should be capable of sustaining a static load, applied in the directions permitted by the system of at least:

22kN for non-certified anchorages
- 2 x the maximum arrest force for certified anchorages

• If more than one system is attached to one anchorage, the required strength should be multiplied by the number of systems attached

Compatibility

• This harness is compatible with miscellaneous fall arrest systems and safety gear, including but not limited to the following Silverline products:
• Shock Absorbing Lanyard
  Karabiner
• Restraint Positioning Lanyard

Notes:

• Connecting hardware must be compatible in size, shape, and strength. Non-compatible connectors may accidentally disengage and lead to serious injury or even death
• Only use connectors, such as D-rings, snapshots, karabiners and other equipment with a minimum rating of 22kN

WARNING: Always verify that all components used in combination with each other are compatible.

Removing the harness

1. Ensure you are located in a safe place, away from any fall hazards
2. Open both Leg Strap Buckles (9) by passing the three bar slide through the square link
3. Open the Chest Strap (2) buckle
4. Remove your arms from the harness

Note: Inspect the harness after use, and follow instructions for cleaning, disinfection, transport and storage as outlined in 'Maintenance'.

Operation

Note: This equipment must ONLY be used by competent operators. All users must be trained in its safe use. Inexperienced users must receive instruction prior to using this equipment. A risk assessment must be carried out before undertaking any operations requiring fall arrest equipment.

WARNING: ALWAYS wear personal protective equipment appropriate for the work area and type of activity, including but not limited to, eye protection, gloves, hard hat, protective shoes and hearing protection.

Note: Check the correct fitting and adjustment at least every 2 hours during use. This may save your life! Regularly check connections with other equipment in the system and ensure various system components are correctly positioned with respect to each other.

Rescue plan

WARNING: A suitable and sufficient risk assessment must be carried out before commencing with any kind of work at height, or any work that requires the use of personal protective equipment (PPE) as a control measure.

• The user must have a rescue plan and the means at hand to implement it
  The plan must take into account the equipment and special training necessary to effectively conduct prompt rescue under all foreseeable conditions

Accessories

Additional fall arrest gear, workwear and other personal protection equipment is available from your Silverline stockist

Maintenance

Note: All fall arrest equipment must be regularly inspected, cleaned and maintained by a competent person, in accordance with local laws and regulations. Maintenance must be recorded in a dedicated service record (see end of this manual).

WARNING: Carry out a visual and tactile inspection of all components every time the equipment is used. Carry out a detailed examination if the equipment has not been used for some time.
Note: A thorough, detailed examination of the equipment must be carried out at regular intervals, at least once annually, or more frequently depending on use.
WARNING: It is ILLEGAL to carry out any kind of repair or modification to this equipment.
WARNING: Should any damage be detected, remove the equipment from service immediately. It must then be rendered unusable and discarded.

Visual/tactile inspection

The following defects potentially result in degradation and/or weakening of equipment components:

• Cuts of 1mm or more at the edges of webbing
• Surface abrasion across the face of the webbing, at webbing loops and around the edges
• Damage to stitching
• Knots other than those intended by the manufacturer
• Chemical attack potentially resulting in local weakening and softening (often indicated by flaking of the surface). Discolouration of the fibres may also be present
• Heat or friction damage indicated by fibres with a glazed appearance which may feel harder than surrounding fibres
  UV-light degradation which can be difficult to identify, particularly visually, but there may be some loss of colour (if dyed) and a powdery surface
• Partially deployed energy absorber (e.g. short pull-out of tear webbing)
• Contamination (e.g. with dirt, grit, sand etc.) which may result in internal or external abrasion
• Damaged, oxidised or deformed fittings (e.g. karabiners, screw link connectors, scaffold hooks)
• Damage to the sheath and internal damage to the core of a rope

Note: See 'Service life and product obsolescence' if such damage or other defects are detected during inspection.

Cleaning

Note: Correct cleaning is essential to ensure integrity of this equipment. Follow the cleaning instructions below without deviation.

• Clean webbing straps and buckles in warm water (30 - 60^) with a mild pH neutral (pH7) household detergent. In the event of minor soiling, wipe with a cotton cloth or carefully clean using a soft brush
  DO NOT under any circumstances use any abrasive materials, acids, basic detergents or solvents
• Disinfect parts that come into contact with the operator's skin, using a disinfectant suitable for the material of the equipment (see 'Specification').
• Strictly follow the disinfectant manufacturer's recommendations and procedures
• ALWAYS allow the equipment to dry naturally, and keep it away from open fire or any other heat source

Note: This also applies to equipment that has become wet during use.

Transport

• ALWAYS transport this equipment inside a dedicated bag or suitable container that protects it from mechanical damage and shields the equipment from high temperatures, humidity, UV rays and chemicals

Storage

• Store this tool carefully in a secure, dry place out of the reach of children
• Store at moderate temperature and humidity, away from direct sunlight or chemicals, inside a dedicated, UV-proof bag or container
• Never place heavy objects on top of this equipment

Disposal

Service life and product obsolescence

WARNING: Fall arrest gear is designed to arrest a fall from height ONLY ONCE! If subjected to an arrested fall, the gear must be withdrawn from service and rendered unusable.

Note: The date on which the product is removed from the original packaging for the first time becomes the 'date of first use', which should be recorded on the Inspection Record (see end of this manual). The specified working life begins from this point.

• Due to the ingress of dirt and grit, chemical contamination, edge and surface damage, UV-light degradation and general wear and tear, all fall arrest, work positioning and restraint equipment manufactured from synthetic fibres (webbing and/or rope) is subject to a manufacturer's statement of obsolescence, which is a requirement of BS EN365:2004
• This equipment is subject to a maximum working life of 5 years from the recorded date of first use, providing the product has been correctly stored, maintained and subjected to regular inspections by a trained and competent person
• New equipment may be stored for a maximum of 5 years from the date of manufacture, as indicated on the product, and will still give the potential 5-year working life - providing it remains in the original manufacturer's packaging and is used and stored in accordance with the instructions provided
• If the new product is stored for longer than 5 years unopened from the date of manufacture, the maximum remaining working life will be reduced up until 10 years from the date of manufacture, as indicated on the product. For example, if the product is stored new and unopened for 7 years then it is opened and used, the maximum working life of the equipment will be the remaining 3 years

Note: Other reasons why the product may be considered obsolete include, but are not limited to, changes of applicable standard, regulations or legislation, development of new techniques, or incompatibility with other equipment.

WARNING: Remove fall arrest equipment from service if:

• it has been used to arrest a fall
• any damage is present
• identification is not evident (permanent markings are not legible or have been damaged/removed)
• it exceeds its specified service life
• its full service history is unknown
  you have any doubt as to its integrity

Contact

Legal Manufacturer: Toolstream Ltd

For Declaration of Conformity please visit www.silverlinetools.com

For technical or repair service advice, please contact the helpline on (+44) 1935

382 222

Web: silverlinetools.com/en-GB/Support

Address:

Toolstream Ltd

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Notified body:

CCQS UK Ltd

5 Harbour Exchange

London

E14 9GE, United Kingdom

Notified body number:

1105

WARNING: If the product is re-sold outside the original country of destination, it is essential the reseller shall provide instructions for use, periodic examination, maintenance and repair in the language of the country in which the product is to be used.

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:

• Your personal details
  Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components. Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declaresthat

This declaration has been issued under the sole responsibility of the manufacturer.

The object of the declaration is in conformity with the relevant Union harmonisation Legislation.

Identification code: 251483

Description: Fall Arrest & Restraint Harness

Conforms to the following directives and standards:

PPE Regulation 2016/425
EN 361:2002
EN 358:2018

Notified body: CCOS UK Ltd (1105)

The technical documentation is kept by: Silverline Tools

Date: 29/11/19

Signed:

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Toolstream Ltd, Company No. 04281144. Registered address: Toolstream, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Introduction

Port de protections auditives.

Port de protections oculaires.

Normes applicables: EN361:2002 (Harnais complete)

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU,GB

Toolstream, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ

Verenigd Koninkrijk

Wprowadzenie

Poducent: Toolstream Ltd.

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

GB Guaranteed Forever. Register online within 30 days. Terms and Conditions apply.
