Product Type	Portable battery inverter
Brand	EGO
Model	PAD1501E
Input voltage	56 V --- (range 37.8 - 58.8 V)
USB output	5 V, max. 4.2 A (two combined ports)
AC output	220-240 V ~ 50 Hz, max. 150 W
Optimal charging temperature	0 °C - 40 °C
Storage temperature	-20 °C - 70 °C
Weight	0.53 kg
Main functions	Powering USB and AC devices (max. 150 W) via EGO POWER+ battery
Number of USB ports	2
Integrated AC outlet	Yes, 1 female outlet
LED indicator	Power button with green/red LED
Overload protection	Automatic shutoff if output current exceeds nominal
Thermal protection	Automatic shutoff in case of excessive temperature
Recommended use	Indoor only, dry environment
Battery compatibility	EGO 56 V batteries (see list Fig. B in manual)
Maintenance and cleaning	Clean with a dry cloth; do not use solvents
Spare parts and repairability	Use only original EGO parts; repair by qualified technician
Warranty	Visit egopowerplus.com for full terms
General information	Read the manual carefully before use; keep for future reference

Frequently Asked Questions - PAD1501E EGO

Which devices can I power with the EGO PAD1501E inverter?

You can power small USB devices (up to 4.2 A combined) and AC devices up to 150 W (220-240 V). Examples: phone, MP3 player, laptop.

Which batteries are compatible with the PAD1501E?

The inverter works with EGO 56 V POWER+ batteries. See the specific list in the manual (Fig. B).

Can I use the inverter outdoors?

No, the inverter is designed for indoor use only, in a dry place. Do not expose it to rain or humidity.

What should I do if the inverter stops during use?

This may be due to a low battery or overheated battery. Recharge the battery or let it cool below 67 °C.

How to clean the inverter?

Remove the battery, then clean with a clean, dry cloth. Do not use solvents, gasoline, or chemicals that could damage plastic parts.

The red LED is flashing on the power button, what should I do?

If the red LED flashes for 1 minute then turns off, the connected device exceeds the rated power. Disconnect the device and reactivate the inverter by holding the button.

Can I use the inverter with a non-EGO battery?

No, use only specified EGO batteries. Using other batteries may cause risk of injury or fire.

How to store the inverter when not in use?

Remove the battery, clean it, then store in a dry, well-ventilated place, out of reach of children and away from chemicals.

Is the inverter compatible with EGO lawn mower batteries?

Yes, as long as the battery is a compatible EGO 56 V POWER+. Check the list in the manual.

What to do if the inverter does not turn on?

Make sure the battery is properly attached and charged. Check that the power button is pressed. If problem persists, contact an authorized repair service.

USER MANUAL PAD1501E EGO

Technical line drawings of two identical 3D-printed mechanical components with no visible text or symbols

OPERATOR'S MANUAL

56-VOLT POWER INVERTER

MODEL NUMBER PAD1500E

EN 56 Volt power inverter	3	RO	Invertor de energie 56 volti	67
DE 56 Volt-spannungswandler	7	SL	56-V pretvornik napajanja	71
FR Onduleur 56 volts	11	LT	56 Voltu srovès inverteris 75
ES Cargador de 56v 15		LV	56 Voltu invertors	79
PT Inversor de potência de 56 volts 19		GR	Аvtiotropeas peupatoç 56 volt	83
IT Alimentatore a batteria 56 volt 23		TR	56 Volt güç invertörü	88
NL 56V lader 27		ET	56-Voldine inverter	92
DK 56 Volt vekselretter 31		UK	56-Вольтний інвертор	96
SE 56 Volt transformator 35		BG	56 V Електрически преобразувател	100
FI 56 Voltin virtainvertteri 39		HR	Pretvarač napajanja od 56 volta	105
NO 56 Volt strømomformer	43	KA	56 змфбосбо огболу обзббюмбо	109
RU Инвертор 56B	47	SR	56 Volti invertor struje	114
PL Przetwornica 56 v	51	BS	Akumulatorska motorna žaga	118
CZ Napájecí měniČ 56 v	55	HE	56 нрн нрн	122
SK 56 Voltový menič napätia	59	AR	م NHL جهد لکهربتی 56 فولت	126

A

EGO 1 2 3 4 5 6 7 8

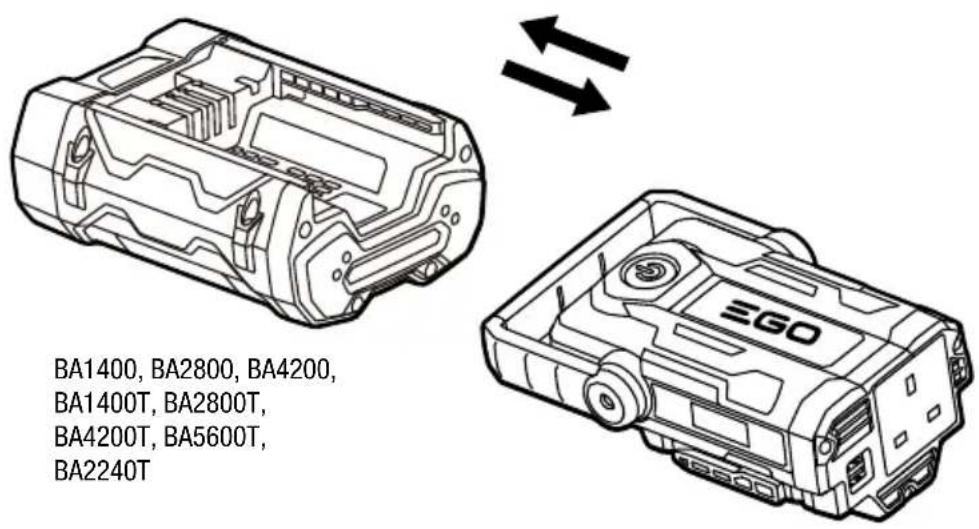

B

BA1400, BA2800, BA4200, BA1400T, BA2800T, BA4200T, BA5600T, BA2240T EGO

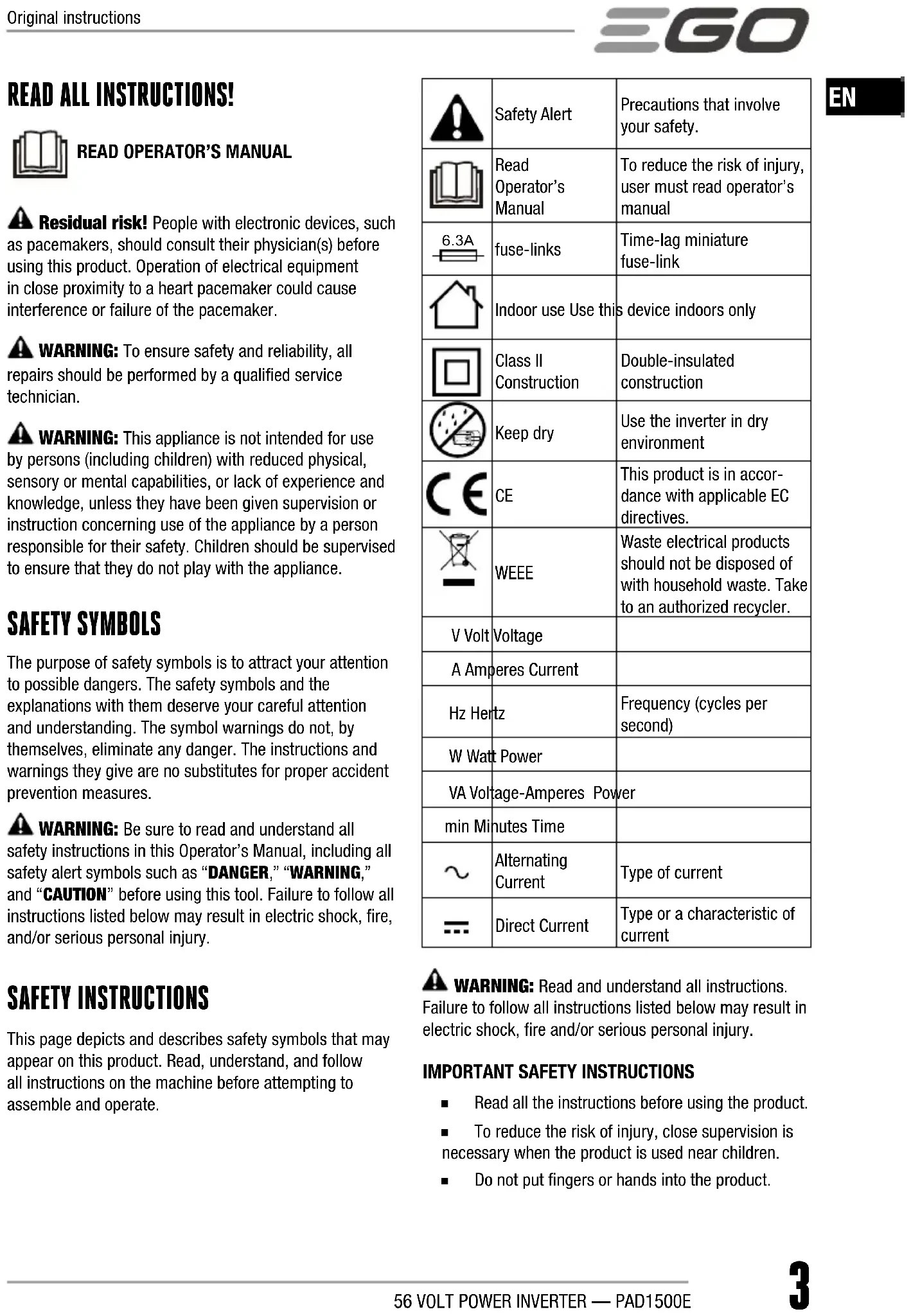

READ ALL INSTRUCTIONS!

READ OPERATOR'S MANUAL

⚠️ Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all repairs should be performed by a qualified service technician.
WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

	Safety Alert	Precautions that involve your safety.
	Read Operator's Manual	To reduce the risk of injury, user must read operator's manual
	fuse-links	Time-lag miniature fuse-link
	Indoor use Use this device indoors only
	Class II Construction	Double-insulated construction
	Keep dry	Use the inverter in dry environment
	CE	This product is in accordance with applicable EC directives.
	WEEE	Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.
V Volt	Voltage
A Amperes Current
Hz Hertz		Frequency (cycles per second)
W Watt Power
VA Voltage-Amperes Power
min Minutes Time
~	Alternating Current	Type of current
---	Direct Current	Type or a characteristic of current

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS

■ Read all the instructions before using the product.
■ To reduce the risk of injury, close supervision is necessary when the product is used near children.
■ Do not put fingers or hands into the product.

EN

■ Use of an attachment not recommended or sold by the manufacturer may result in a risk of fire, electric shock, or injury to persons.
■ Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
■ When charging the battery, work in a well ventilated area and do not restrict ventilation in any way.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
■ Do not expose the battery pack to fire or excessive temperature. Exposure to fire or temperature above 100^ C may cause explosion.
■ Do not expose the power inverter to rain or wet conditions. Water entering the power inverter will increase the risk of electric shock.
■ The power inverter is not intended for any use other than charging small (up to 4.2 Amp for two USB ports combined) USB electronics or small (up to 150W) AC devices. Any other use may result in damage.
■ Switch off the power inverter when not in use.
■ Use the power inverter only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
■ Do not disassemble the power inverter, take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
■ Have your power inverter serviced by a qualified repairperson using only identical replacement parts. This will ensure that the safety of the power inverter is maintained.
■ Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possible injury.
■ Only for class II appliance.
■ Use only with batteries listed in fig. B

SAVE THESE INSTRUCTIONS!

SPECIFICATIONS

Input Voltage	56V
Range of rated values 3	7.8-58.8V
USB Output	5V, Max.4.2A (two USB ports combined)
AC Output 220V-240V ~	50Hz Max.150W
Optimum Charging Temperature	0°C-40°C
Storage Temperature -20°C-70°C
Weight 0.53 kg

DESCRIPTION

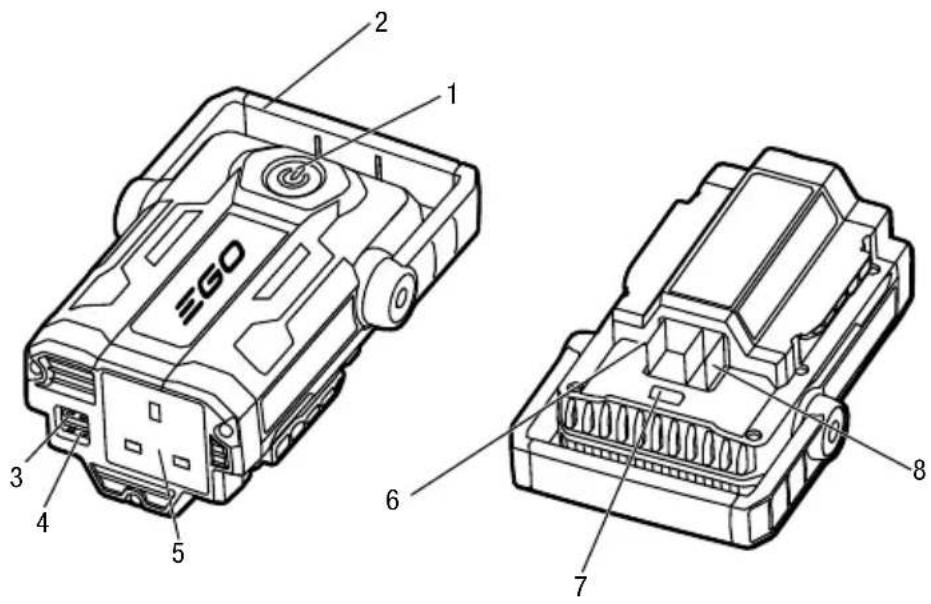

KNOW YOUR POWER INVERTER (Fig. A)

1. Power Button
2. Handle
3. USB Port2
4. USB Port1
5. AC Port
6. Negative Electric Contacts
7. Spring Latch
8. Positive Electric Contacts

OPERATION

⚠ WARNING: This device is intended to be used indoors only. Use the inverter in dry environment.

WARNING: Do not modify or attempt to repair the power inverter except as indicated in the instructions for use and care.

The power inverter provides two USB ports and one AC port. The two USB ports combined supply a maximum of 5V DC, up to 4.2 A output to power small USB devices, like your cell phone, MP3 player, etc. The AC port supplies a 220V-240V AC, max.150W output to power the small AC devices, such as a laptop computer.

NOTE: Fully charge your EGO POWER+ battery pack before first use. The battery should be charged in a location where the temperature is greater than 5°C and less than 40°C.

1. Align the mounting slots on the power inverter with the ribs on the battery pack, then move the power inverter towards the battery pack until it snaps into position (Fig. B).
   NOTE: Make sure that the spring latch on the power inverter snaps into place and the battery pack is secured to the tool before beginning operation.

2. Connect the small USB or AC device to the power inverter.

3. Press and hold the power button until the green light in the button illuminates. The power inverter will begin charging the device.
4. When not using or after charging, disconnect the device from the power inverter, then press and hold the power button until the green light turns off.
5. Hold the battery pack with one hand and pull the power inverter with the other hand to separate them.

WARNING: Do not insert a nail, wire, etc. into the AC power supply port, or the risk of electric shock may occur.

NOTE:

■ The product may not supply power to some USB devices.
■ Do not insert a nail, wire, etc. into the USB power supply port. Otherwise a circuit short may cause smoke and fire.
If the devices connected to the power inverter draw more than the rated output of the ports (Total 4.2A for USB ports and maximum 150W for AC port), the power inverter will shut off automatically and the power button will flash red. In this situation, devices should be removed. To reactivate the power inverter, press and hold the power button until green light is illuminated.
■ When switching on the power inverter, if the USB output current is less than 500mA and the AC output power is less than 5W, the system will shut off automatically in 1 minute.
■ When switching on the power inverter, if the USB output current is beyond 500mA or the AC output power is beyond 5W, but then the USB output current is less than 500mA and the AC output is less than 5W for 3 hours, the system will shut off automatically.

MAINTENANCE

WARNING: To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance.
WARNING: When servicing, use only identical EGO replacement parts. Use of any other parts may create a hazard or cause product damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc. come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

STORING THE UNIT

■ Remove the battery pack from the power inverter.
■ Clean the tool thoroughly before storing it.
■ Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the unit on or adjacent to fertilizers, gasoline, or other chemicals.

Protecting the environment

Do not dispose of electrical equipment, used battery and charger into household waste! Take this product to an authorized recycler and make it available for separate collection. Electric tools must be returned to an environmentally compatible recycling facility.

EN TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The power inverter stops working during use.	■ Battery capacity is depleted.■ The battery pack is too hot.	■ Charge the battery.■ Cool the battery pack until its temperature drops below 67°C.
Red LED light on the power button flashes for 1 minute, then shuts off.	■ The device(s) you are powering draws more than the rated output of the ports.	■ Remove the device and reactive the power inverter.
Red LED light on the power button shines for 1 minute, then shuts off.	■ The device is too hot.	■ Cool the power inverter until its temperature drops below 105°C.

WARRANTY

EGO WARRANTY POLICY

Please visit the website egopowerplus.com for full terms and conditions of the EGO Warranty policy.

SAVE THESE INSTRUCTIONS!
