IAN 380114 - Lighting Livarno Lux - Free user manual and instructions

Product type	Decorative LED light strip
Brand	Livarno Lux
Model	IAN 380114
Length	3 meters
Number of LEDs	96 (model 14161000L) / 90 (model 14161106L)
Rated power	6.5 W (14161000L) / 6 W (14161106L)
Supply voltage	230-240 V~, 50 Hz
Power supply	Mains adapter included
Protection rating	IP20 (dry indoor use)
Protection class	II
Color temperature	Neutral white (14161106L) or 4 changeable colors (14161000L)
LED lifespan	25,000 hours
Shortenable	Yes, at marked cut points (between the pads)
Switch	Pull switch on the cable
Mounting method	Double-sided adhesive on clean, dry, and degreased surface
Delivery contents	LED strip, mains adapter, 2 connectors, 4 end caps, 2 cable holders, adhesive tape, instruction manual
Maintenance	Unplug then clean with a dry lint-free cloth
Warranty	36 months from date of purchase
Intended use	Light decoration in dry indoor areas, do not use as main lighting or nightlight
Dimmer compatibility	Not compatible with external dimmers or electronic switches

Frequently Asked Questions - IAN 380114 Livarno Lux

Can I shorten the LED strip?

Yes, you can shorten the LED strip at the marked cut points (black line with scissors symbol). Cut with scissors and use the provided connectors for the ends. Observe polarity (+/-).

How to install the LED strip?

Choose a clean, dry, and degreased surface. Remove the protective film from the back of the strip, then stick it on pressing firmly. Use the cable holders to secure the power cable. Plug in the mains adapter after installation.

Can I use this LED strip as main room lighting?

No, this LED strip is designed exclusively as light decoration. Do not use it as room lighting or nightlight. It does not replace functional lighting.

What to do if the LED strip does not light up?

First check that the mains adapter is properly plugged in and that the socket works. Make sure the connectors are correctly inserted and that polarity is observed. If the problem persists, contact customer service.

Can I connect multiple LED strips together?

No, this LED strip must not be electrically connected to another LED strip. Each strip must be powered individually via its own mains adapter.

Is the LED strip compatible with a dimmer?

No, this LED strip is not suitable for external dimmers or electronic switches. Use only the provided pull switch.

How to clean the LED strip?

Before any cleaning, unplug the mains adapter from the socket. Use a dry, lint-free cloth to gently wipe the strip. Do not use solvents or abrasive products.

Can the LED strip be used outdoors?

No, the protection rating IP20 means this strip is only designed for indoor use in dry rooms. Do not expose it to moisture or weather.

What is the lifespan of the LEDs?

The LEDs have an estimated lifespan of 25,000 hours. They are not individually replaceable. In case of failure, the strip must be replaced.

What to do if a connector is defective?

The provided connectors are consumable parts. If a connector is damaged, you can replace it with a new one of the same type. If the problem persists, contact customer service for spare parts.

USER MANUAL IAN 380114 Livarno Lux

Black-and-white photo of a modern sofa with a spiral patterned rug on the back, placed beside a floral pillow and potted bed (no text or symbols visible)

LED-LICHTBAND, 3 M/3 M LED LIGHT STRIP/RUBAN LUMINEUX LED, 3 M

DE AT CH

LED-LICHTBAND,3M

LED LYSBÅND, 3 METER

Assembly, operating and safety instructions

NL BE

LED-LICHTBAND,3M

Before reading, unfold the pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Assembly, operating and safety instructions Page 17

Scope of delivery....Page 20

Parts description......Page 21

Technical data ...... Page 21

Safety......Page 21

Safety instructions....Page 21

Initial use......Page 24

Trimming/connecting the LED tape Page 24

Installing the LED strip......Page 24

Maintenance and cleaning Page 25

Warranty and service Page 26

Warranty Page 26

Service address Page 26

Declaration of conformity....Page 27

Manufacturer Page 27

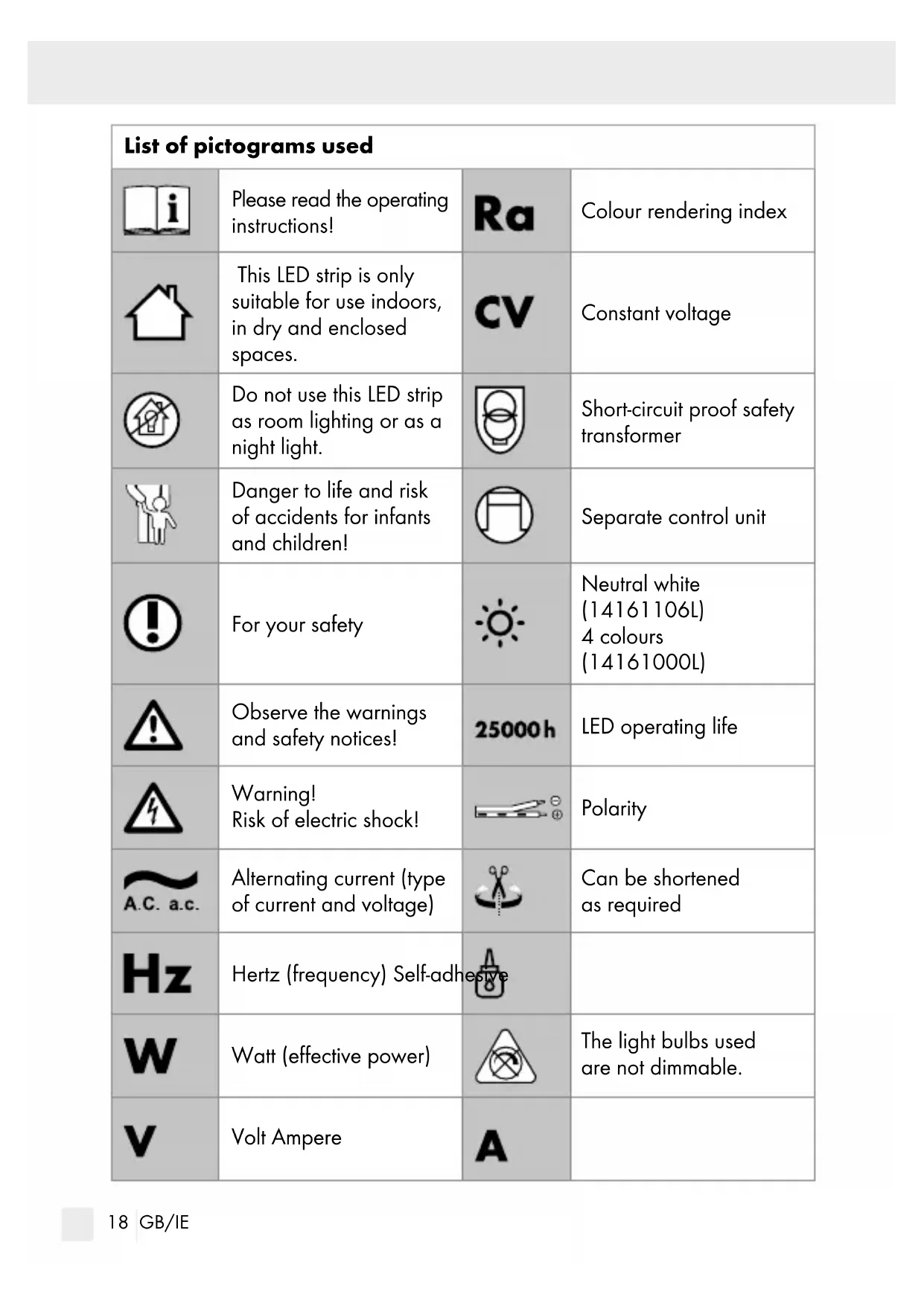

List of pictograms used
	Please read the operating instructions!		Colour rendering index
	This LED strip is only suitable for use indoors, in dry and enclosed spaces.		Constant voltage
	Do not use this LED strip as room lighting or as a night light.		Short-circuit proof safety transformer
	Danger to life and risk of accidents for infants and children!		Separate control unit
	For your safety		Neutral white (14161106L)4 colours (14161000L)
	Observe the warnings and safety notices!	25000h	LED operating life
	Warning!Risk of electric shock!		Polarity
	Alternating current (type of current and voltage)		Can be shortened as required
	Hertz (frequency) Self-adhe
	Watt (effective power)		The light bulbs used are not dimmable.
	Volt Ampere14161106L: To prevent hazards, if an operating unit on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.	A	14161106L: To prevent hazards, if an illuminant on this product is damaged, it must be replaced by the manufacturer, its service representative or an equally qualified professional.
	Protection class II Light temperature in Kelvin
	Direct current (type of current and voltage)		The packaging is made from 100 % recycled paper.
	Safety extra-low voltage		Dispose of the packaging and device in an environmentally friendly manner!
	Milliampere		Polyethylene (low density)
	This light has protection level "IP20" and is only intended for residential use indoors.		Other plastics such as polycarbonate (PC), polyamide (PA), acrylonitrile butadiene styrene (ABS), polymethylmethacrylate (PMMA), polylactide (PLA), etc.
	Ambient temperature Corru	cardboard
	Housing temperature at stated point

3 m LED Light Strip

- Introduction

Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions.

Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intended use

This LED strip is only suitable for use indoors, in dry and enclosed spaces. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc. This product is intended for normal operation.

Only for 14161000L:

This product is a decorative light. Do not use this LED strip as room lighting or as a night light.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Light Strip

2 connectors

4 end caps

2 cable holder

1 adhesive strip

1 set of instructions for use

Parts description

1 Mains cable
2 Mains adapter
3 LED strip
4 Cable holder

5 Plug connection
6 End cap
7 Adhesive strip
8 In-line switch

- Technical data

Model no.: 14161000L/14161106L

LED Strip:

Operating voltage: 230-240V \~ 50Hz

Protection class: II/

Protection type: IP20

Rated power: 14161000L: max. 6.5 W, 96 LED, max. length 3 m

14161106L: max. 6 W, 90 LED, max. length 3 m

Only for 14161106L:

This product contains illuminants from energy efficiency category "F" (corresponding to Regulation (EU) 2019/2015).

- Safety

Safetyinstructions

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

- Check the LED strip for damage before every use. Never use the LED strip if any damage is detected.

WARNING!

A damaged mains cable poses a risk of fatal injury from electrical shock. In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician. The supply cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.

■ Make sure before use that the available supply voltage corresponds to the required operating voltage of the item (see "Technical data").
- Never allow the live power leads and contacts to come into contact with water or other liquids.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
- Do not install the LED strip on damp or conductive surfaces.
This LED strip must not be connected electronically with other LED strips.
The illuminant in this light must be replaced by the manufacturer or by an authorised technician or a similarly qualified person.
- Avoid excessive bending of the LED strip.
To prevent hazards, if the external flexible lead on this lamp is damaged it must be replaced by the manufacturer, its service representative or an equally qualified professional!
■ Protect the product from sharp edges, mechanical loads and hot surfaces.
- Do not secure with sharp staples or nails.

■ Always unplug the mains plug from the socket before assembly, disassembly or cleaning.
■ Never catch hold of the mains plug or the LED strip with wet hands.
■ Only use the individual parts supplied, otherwise all warranty claims will become invalid.
■ Never connect the LED strip to the power supply while it is in the packaging. Lay out the item completely before you connect it to the power supply.
- Do not open or cut open/slit open the light strip.
- Do not use the LED strip if it is covered with objects or is inlaid in a surface.

Prevent fire and injury hazards

This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.

The installed LEDs are not suitable for dimmers or electronic switches.

- Do not look into the LED from a close distance during operation. - Do not look at the LED with an optical instrument (e.g. magnifier)

Safe working

• Do not leave the LED strip or packaging material lying unattended. The packaging material presents a suffocation hazard and there is a risk of loss of life from strangulation.
• Install the light so that it is protected from dirt and excessive heating.
  ■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well.
  Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself.
  To completely disconnect the LED strip from the power supply, the mains adapter must be removed from the mains socket.

- Initial use

☐ Remove all packaging materials before first use.

☐ Never connect the LED strip to the mains power supply whilst in the packaging.

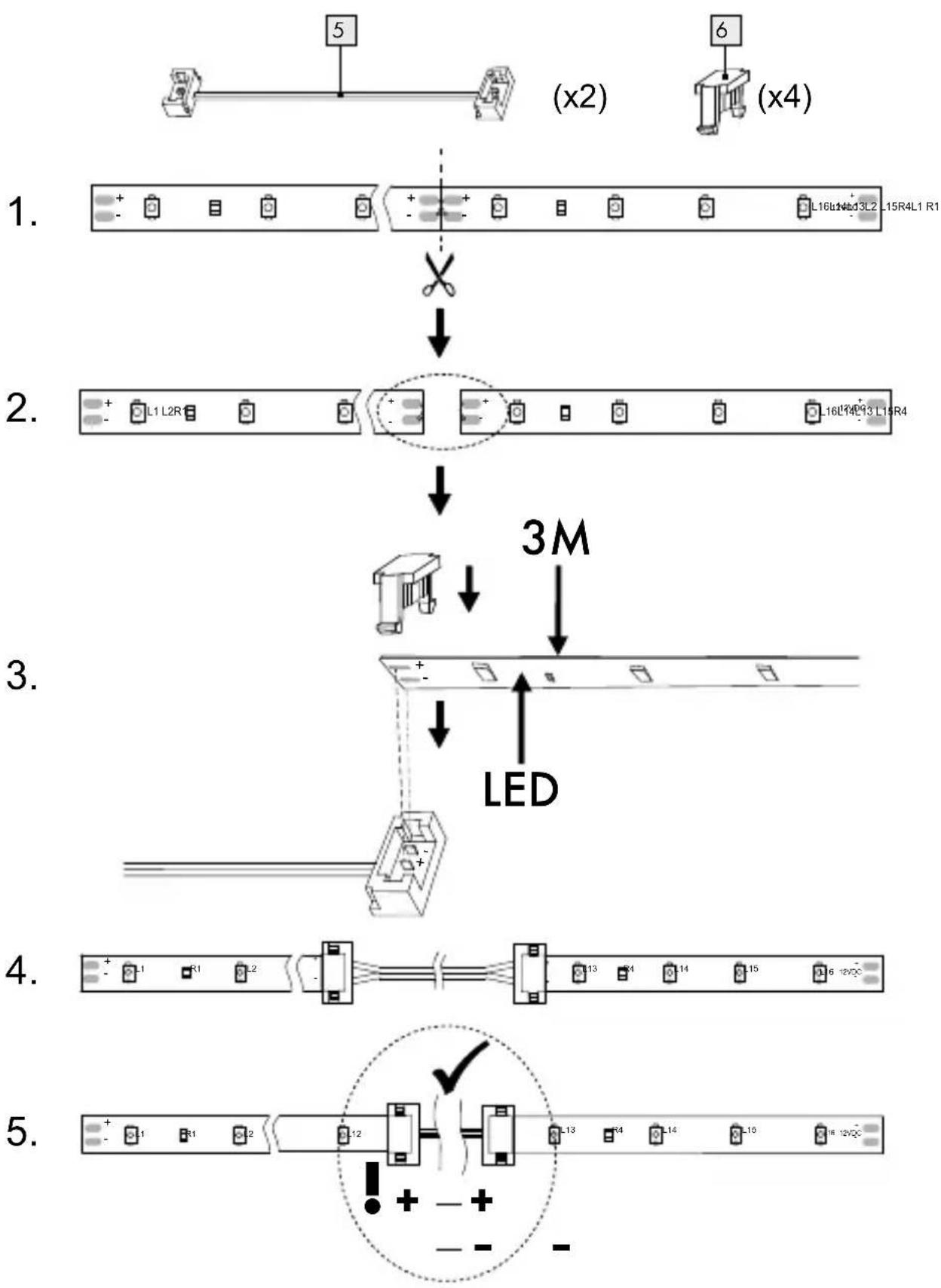

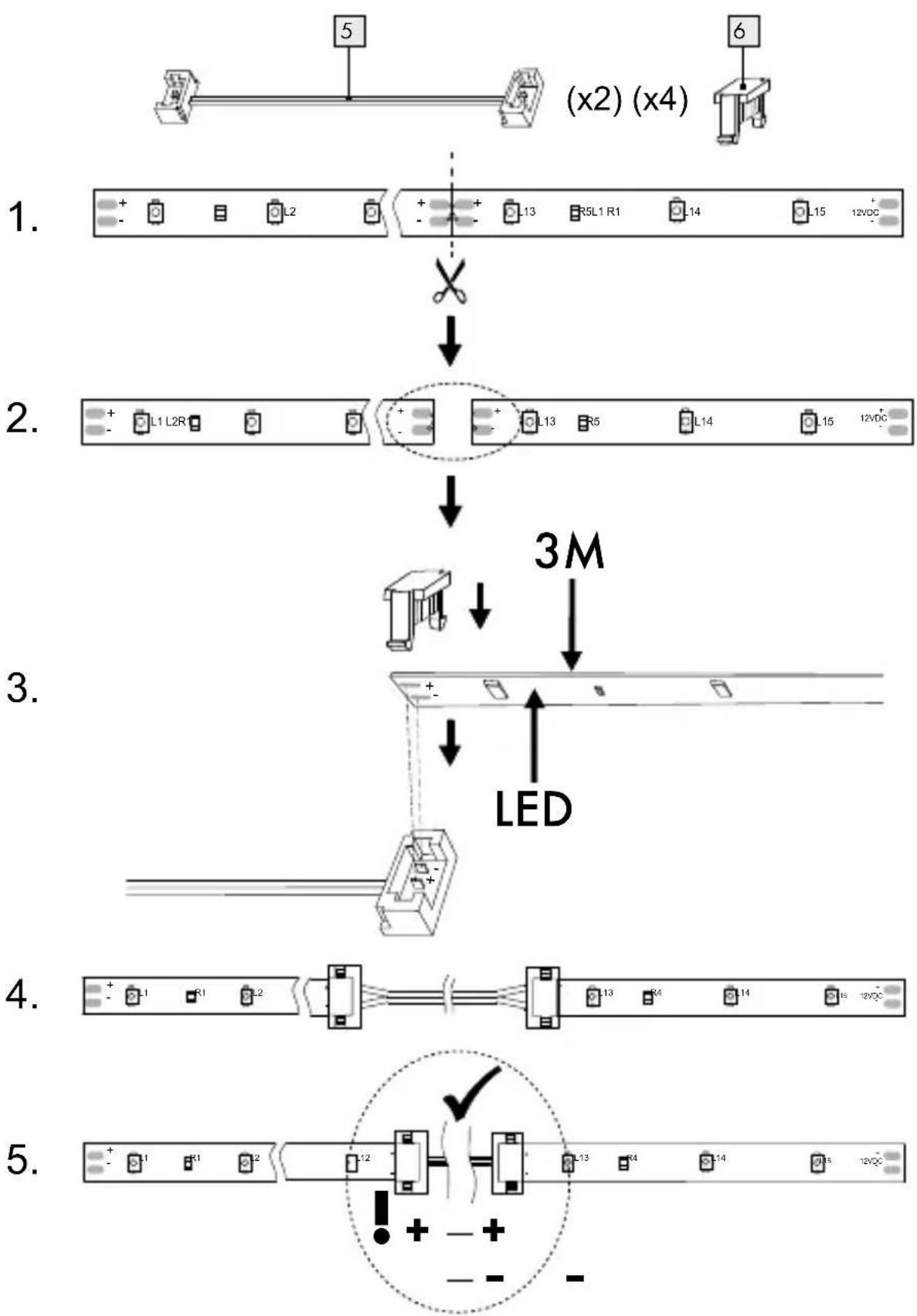

● Trimming/connecting the LED tape

The LED tape may be trimmed to size or connected.

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Disconnect the LED strip from the power supply before performing any work on the LED strip 3. Unplug the mains adapter 2 from the socket to do so.

☐ Choose the desired LED strip length.

Note: Ensure that you trim the LED strip in the right place. The cutting point lies exactly between the plus and minus pole and is marked with a black line and a scissors icon (see Fig. B).

☐ Shorten the LED strip 3 using a pair of scissors.

Remove the protective film from the connection area on the back of the LED strip 3.

Then place the two ends of the LED strip with the copper-colored contacts (see Fig. C1/C2, inscription "LED") on the cutting contacts of the plug connection 5. These are located on the opposite side of the adhesive strip (see Fig. C1/C2, inscription "3M"). Pay attention to the correct polarity (+ to +/- to -).

☐ Then press one end cap 6 at a time onto the ends of the plug connection 5 (see Fig. C1/C2).

☐ Check the correct positioning.

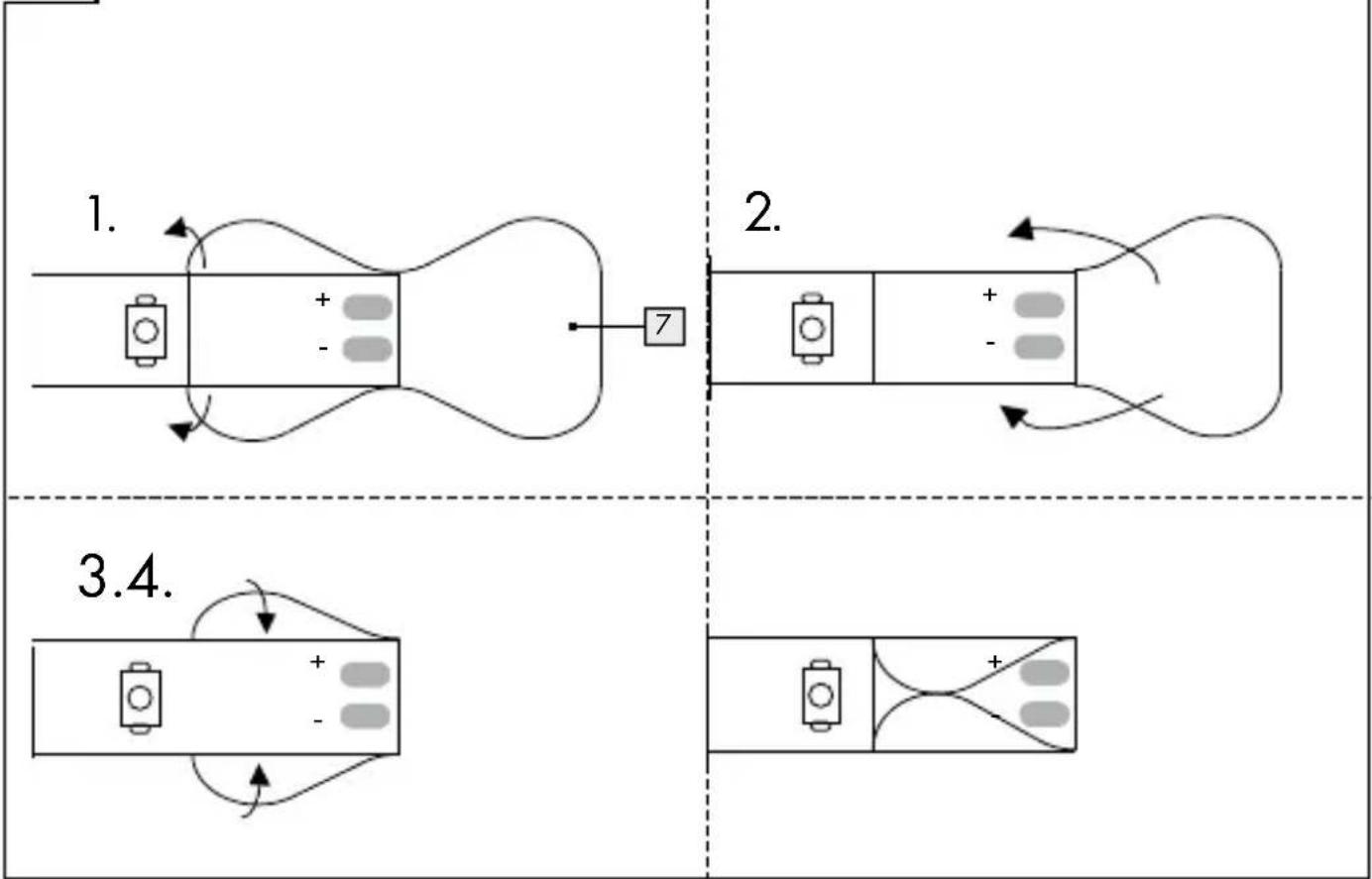

☐ Be sure to cover the open end of the LED tape 3 with the adhesive strip 7 if you do not wish to connect the end after trimming the tape (see Fig. E).

- Installing the LED strip

Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.

Note: Ensure that a plug socket is located in close proximity to the installation area.

Note: Avoid excessive bending of the LED strip 3

☐ Choose a suitable installation area (window etc.).

☐ Remove the protective foil from the reverse side of the LED strip 3 (see Fig. B). Note: Be sure to start removing the protective film at the supply cable end. When removing the protective film, be careful not to remove the adhesive film.
☐ Stick the LED strip 3 with the adhesive strip onto the installation area and press it on firmly.

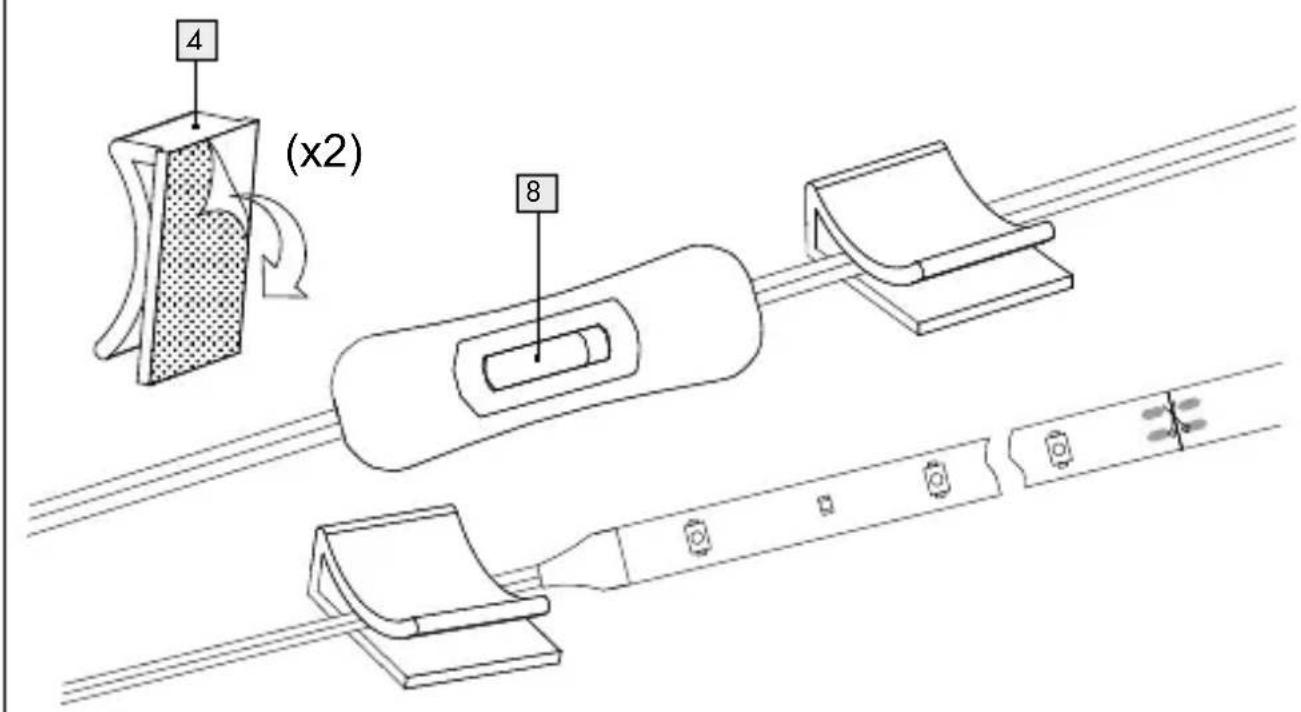

☐ Remove the protective foil from the reverse side of the cable hold 4 (see Fig. D).
Stick the cable hold 4 onto the desired position.
☐ Squeeze the mains cable 1 into the cable hold 4
☐ Insert the mains adapter 2 into the plug socket.
☐ Switch the LED strip on or off using the in-line switch 8

Your LED strip is now ready to use.

● Maintenance and cleaning

WARNING! DANGER TO LIFE FROM ELECTRIC SHOCK!

Disconnect the LED strip from the power supply before performing any work on the LED strip ③. Unplug the mains adapter ② from the socket to do so.

• Do not use solvents, petrol, etc. This would cause damage to the luminous LED strip.
  ☐ Use a dry, lint-free cloth to clean the LED strip 3

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following model number: 14161000L/14161106L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Service address

Free service number:

Tel.: [phone]

IAN 380114\_2110

Please have your receipt and the product number (IAN 380114_2110) available for all queries as proof of purchase.

Declaration of conformity €

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

1 cinta luminosa led

2 conectores

4 tapones

2 soportes de cable

1 cintas adhesivas

Pooblaščeni serviser:

3M 3M 3M 3M 3M L12 L13 L4 L14 L15 L16 12VDC 125mm 14161106L 100mm

C1

14161000L

C2

14161106L

    subgraph 1.
        F["+ L2"] --> G["×"]
        H["+ L13"] --> I["○"]
        J["+ R5L1 R1"] --> K["○"]
        L["+ L14"] --> M["○"]
        N["+ L15"] --> O["○"]
        P["+ 12VDC"] --> Q["○"]
    end

    subgraph 2.
        R["L1 L2R"] --> S["○"]
        T["L13"] --> U["○"]
        V["R5"] --> W["○"]
        X["L14"] --> Y["○"]
        Z["+ 15"] --> AA["○"]
        AB["+ 12VDC"] --> AC["○"]
    end

    subgraph 3.
        AD["LED Array"] --> AE["3M"]
        AE --> AF["LED Array"]
    end

    subgraph 4.
        AG["L1"] --> AH["○"]
        AI["L1"] --> AJ["○"]
        AK["L2"] --> AL["○"]
        AM["L13"] --> AN["○"]
        AO["L14"] --> AP["○"]
        AQ["+ 16"] --> AR["○"]
        AS["+ 12VDC"] --> AT["○"]
    end

    subgraph 5.
        AU["L1"] --> AV["○"]
        AW["L1"] --> AX["○"]
        AY["L2"] --> AZ["○"]
        BA["L13"] --> BB["○"]
        BC["L14"] --> BD["○"]
        BE["+ 15"] --> BF["○"]
        BG["+ 12VDC"] --> BH["○"]
    end

D

14161000L/14161106L

4 (x2) 8

E

14161000L/14161106L

BRILONER LEUCHTEN GMBH & CO. KG

Im Kissen 2

59929 Brilon

GERMANY
