USER MANUAL HG07376 ZOOFARI

Operation and safety notes

SET PER LA TOELETTATURA DI

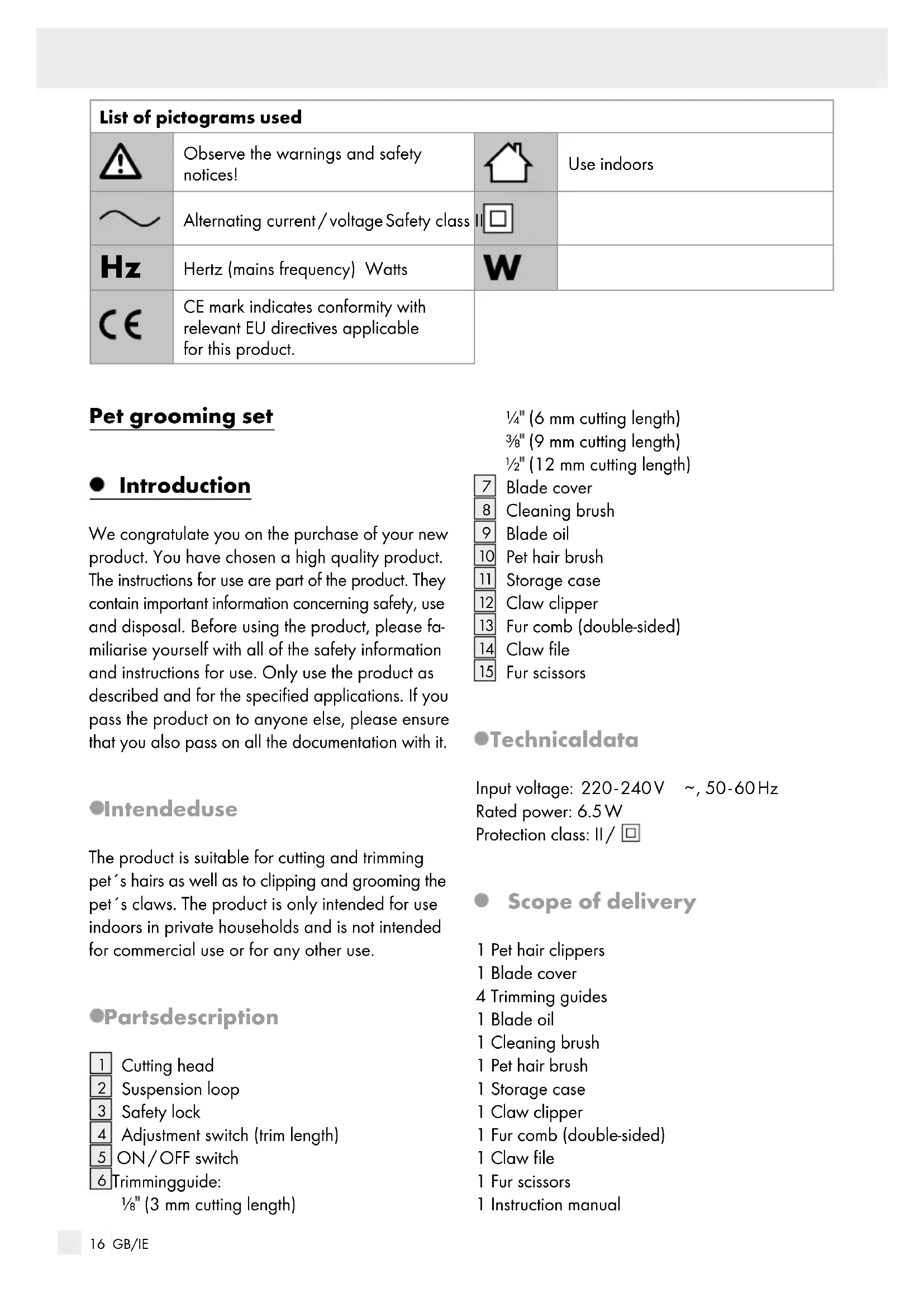

Hertz (mains frequency) Watts CE mark indicates conformity with relevant EU directives applicable for this product. Pet grooming set Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please fa- miliarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Intended use The product is suitable for cutting and trimming pet´s hairs as well as to clipping and grooming the pet´s claws. The product is only intended for use indoors in private households and is not intended for commercial use or for any other use. Parts description

Adjustment switch (trim length)

(3 mm cutting length)

(6 mm cutting length)

(9 mm cutting length)

(12 mm cutting length)

Fur comb (double-sided)

, 50 - 60 Hz Rated power: 6.5 W Protection class: II / Scope of delivery 1 Pet hair clippers 1 Blade cover 4 Trimming guides 1 Blade oil 1 Cleaning brush 1 Pet hair brush 1 Storage case 1 Claw clipper 1 Fur comb (double-sided) 1 Claw file 1 Fur scissors 1 Instruction manual17 GB/IE Safety notices

KEEP ALL SAFETY NOTICES

AND INSTRUCTIONS FOR

DREN! Never leave children unsupervised with the packag- ing materials. The packaging ma- terial poses a suffocation hazard. Children frequently un- derestimate the dangers. Always keep children away from the packaging material. CAUTION! This product is not a toy for children! Children are not aware of the dangers asso- ciated with handling electrical products. This product can be used by children aged from 8 years and

bove and persons with reduced physical, sensory or mental capa- bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision. The product can be used by children aged from 3 years under supervision. Use only the original accessory parts for this product. Check the cutting head

for proper function before using the product. Never use the product with a damaged or broken trimming guide. The absence of teeth on the trimming guide can lead to injury. Switch the product off before you put it down. The product is intended exclu- sively for the cutting and trim- ming of animal hair. Avoid the risk of fatal injury from electric shock Connect the product only to correctly installed and earthed mains sockets that are easily accessible. Ensure that the rating of the local power supply tallies18 GB/IE completely with the details given on the rating plate of the product. Ensure that the power cable does not become damaged. Protect the power cable from sources of heat and ensure that it cannot be damaged. If the plug and / or supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified per- sons in order to avoid a hazard. Keep the prod- uct dry. The product is suitable for use only in dry areas. Do not use this product near bathtubs, showers, basins or other vessels containing water. The proximity of moisture presents a danger, even when the product is switched off. Never immerse the product in water or other liquids when it is connected! Should the product be dropped into water, ABSOLUTELY disconnect the plug from the mains socket before extracting the product. After use or when cleaning it, ALWAYS remove the plug from the mains power socket. Do not pull on the power cable directly, pull the plug. Never touch the plug with moist or wet hands, especially when you plug it into the socket or pull it out of the socket. Never sub- merge the product or the supply cord in water or any other liquid and never rinse this/these under running water. Do not use the product while the animal is being bathed or when the fur is wet. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice. Remove the plug from the socket - if a malfunction occurs, - before you clean the product, - if you have not used the product for a long time, - during a thunderstorm and - after each use. When doing so, remove the plug directly from the socket and do not pull it out using the supply cord.19 GB/IE Avoid risk of injury Do not change the accessories while the product is switched on. Do not use the product if you detect any kind of visible, external damage. Never use a damaged product. If liquid gets into the product, check before using the product once more. If you notice that the supply cord, plug, housing or another part has become damaged, the product can no longer be used. Repairs should only be carried out by a specialist. Improper re- pairs may result in considerable danger to the user. This will also make any warranty claims void. Do not use defective attachments with the product as these could have sharp corners. Defective components must always be replaced with original spare parts. Only by using origi- nal spare parts can you ensure that safety requirements are met. Connect plug to an outlet which is well within reach. Never use the product unsu- pervised and only use it in accordance with the information stated on the type plate. The tips of the attachments are sharp. Switch off the product before attaching or switching the attach- ments, as well as before cleaning. Lay the supply cord so nobody will step on or trip over it. Do not use the product on open wounds, cuts, sunburns and blisters. Avoid the danger of damage to property Electrical products may pose a hazard to animals. Animals can also damage the product. Always keep animals away from electrical products when it is not in use. Protect the product from moisture, drops of water and splashing water. Ensure that the supply cord does not get stuck in cupboard doors and that it is not pulled over hot surfaces. This could damage the supply cord‘s insulation. Use the original accessories only. Do not place the product on hot surfaces, near hot surfaces or near an open fire.20 GB/IE To prevent impermissible heating do not cover the plug and the product during use. Do not use any corrosive or abrasive cleaning agents. Keep the blade oil out of reach of children. Do not ingest the blade oil, do not get it into your eyes. Keep it in a safe place if it is not being used. Caution! It is normal for the product to have temperature increase during clipping. Occasionally turn off the product while trimming and check to see if product has possibly gotten too hot for your pet. If so, let the prod- uct cool off; otherwise the hot shaving head may hurt your pet. As a rough guide, you should start dipping behind the shoulders and slowly work your way backwards and downwards. Work very carefully when clip- ping / trimming your pet’s sensi- tive body parts such as face, stomach, legs or hindquarters. Cut in the natural direction of growth of your pet’s coat. If you cut against the direction of growth, your pet’s hair stands up and is cut shorted as a result. Before use Remove all parts from the package. Oiling the blades It is recommended that you oil the blades before first use and after cleaning to guarantee complete functionality. Apply one or two drops of blade oil

be- tween the blades and distribute them evenly (see Fig. I). Wipe away any excess oil using a cloth. You can also use any acid-free oil such as sewing machine oil. Operation Changing the attachments (Fig. C‒E) Remove the blade guard

from the cutting head

with the prongs facing upwards on the cutting head

and thereby press the flap of the trimming guide

down firmly onto the lower metal edge of the cutting head

(see Fig. C and D). Ensure that the trimming guide

has properly engaged with “click“ sound before starting to c ut / trim the fur (see Fig. E1). Setting the trim length To set different trim lengths, hold the main body of the product, press and hold the safety lock

and slide the adjustment switch

into the desired position (0.9‒1.8 mm). The set trim length will be displayed on adjustment switch

1. Select a shorter trim length: Press and hold

and slide the adjustment switch

upwards. The shortest trim length is 0.9 mm (see Fig. A).21 GB/IE

2. Select a longer trim length: Press and hold

and slide the adjustment switch

downwards. The longest trim length is 1.8 mm (see Fig. A). It is suggested to start with fine adjustment switch

at 1.2 mm to experience the optimal handling. Trimming fur Note: The fur being trimmed should be clean, dry and untangled. Carefully comb the fur to disentangle any potential knots. Begin by using the longer trimming guides

and trim the fur gradually to the desired length. It is advisable to first trim a small area so as to test the individual trimming guides

Avoid making sudden movements when trimming. Switch the product on by sliding the ON / OFF switch

to the position with the marking “I“ is shown. Slowly run the product through the fur. Hold the product so that the trimming guide

is as flat as possible against the animal. You can graduate the desired trim length of the trimming guides

more accurately by sliding the adjustment switch

. These gradations differ by 0.3 mm. Through removal of the trimming guide

, i.e. using only the cutting head

itself, you can cut clean contours. After use, switch the product off by sliding the ON / OFF switch

to the position with the marking “0“ is shown. Example: Use the trimming guide 3.0 mm

with the following settings of adjustment switch

(trim length 3.9‒4.8 mm): On adjustment switch

The shorter trim length (0.9 mm): short hair (3.9 mm) Middle trim length (1.2 mm / 1.5 mm): mid-length hair (4.2 mm / 4.5 mm) The longer trim length (1.8 mm): long hair (4.8 mm) (See the table below for all the length adjustments.) Trimming guide

(mm) Trim length with accurate trim adjust- ment by adjustment switch

Use accessories Pet hair brush

is suitable for grooming long- haired dogs and cats after using the fur comb

Use the pet hair brush

regularly to carefully brush your pet’s dry coat and remove loose and knotted hair from the undercoat, especially before cutting. This will prevent the fur from becoming tangled. Regularly remove hair from the pet hair brush

during use.22 GB/IE Storage case

Keep all accessories of the pet grooming set neatly and space-saving in the storage case

to trim pet claws. The locking mechanism secures the claw clipper

in the closed position. Release the lock when using the claw clipper

Note: It is recommended that 2 people shorten the claws. Fur comb (double-sided)

After bathing your pet, first use the coarse side of the fur comb

and then the fine side to comb your pet’s guard hair and remove knots from the fur. Claw file

after you have trimmed your pet’s claws with the claw clipper

to remove cracks and damage. Note: It is recommended that 2 people file the claws. Fur scissors

to cut your pet’s fur even in places that are difficult to reach with pet hair clippers. Cleaning and care DANGER! ELECTRIC SHOCK! Before cleaning, remove the plug from the mains power socket. CAUTION! PROPERTY DAMAGE! NEVER submerse the product in water or other liquids. Do not use any corrosive or abrasive cleaning agents. Clean the housing using a damp cloth and a mild detergent. Switch the product off by sliding the ON / OFF switch

to the position with the marking “0“ is shown. Remove the plug from the mains socket. Remove the trimmer guide

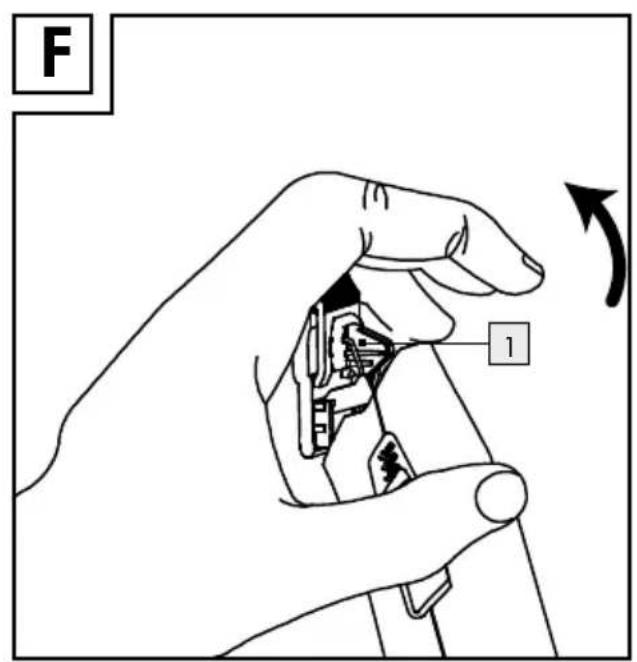

from the product (see Fig. E2 and F). Note: Put the blade cover

before removing it from the product. Note: Never untighten the screws on cutting head

with running water if necessary. Dry the trimmer guide

Remove any remaining bits of hair from the cutting head

and product by using the cleaning brush

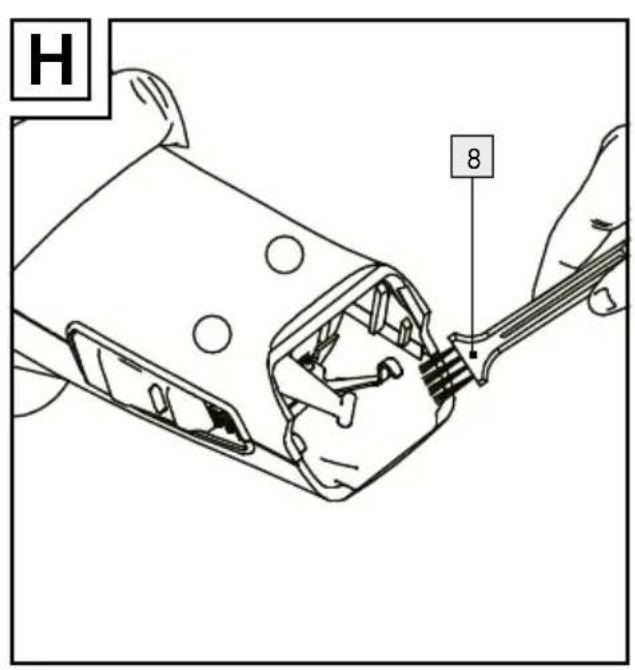

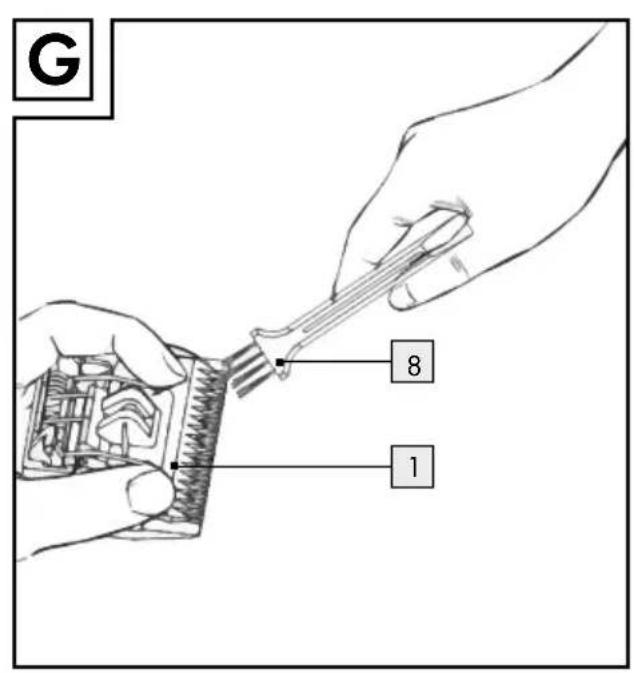

provided (see Fig. G and H). Apply one or two drops of blade oil

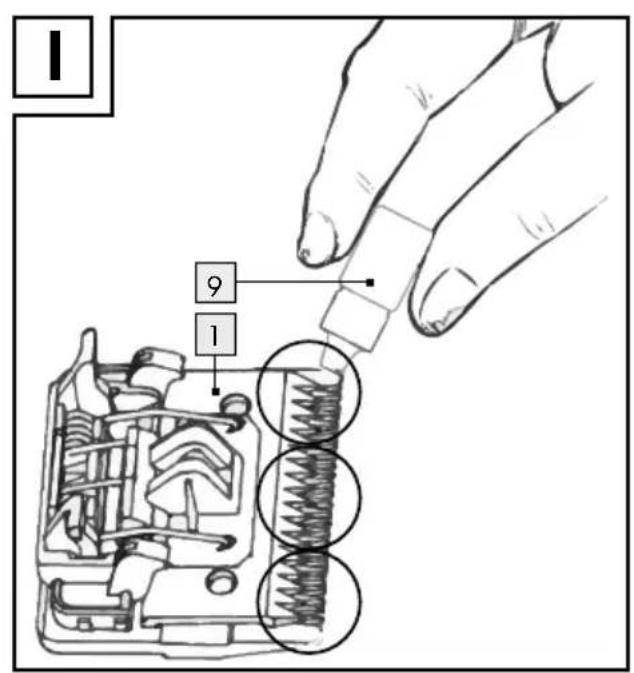

between the blades and the moving parts (see Fig. I). Adjust the adjustment switch

to 1.8 mm after you have finished cleaning the product, before install back the cutting head

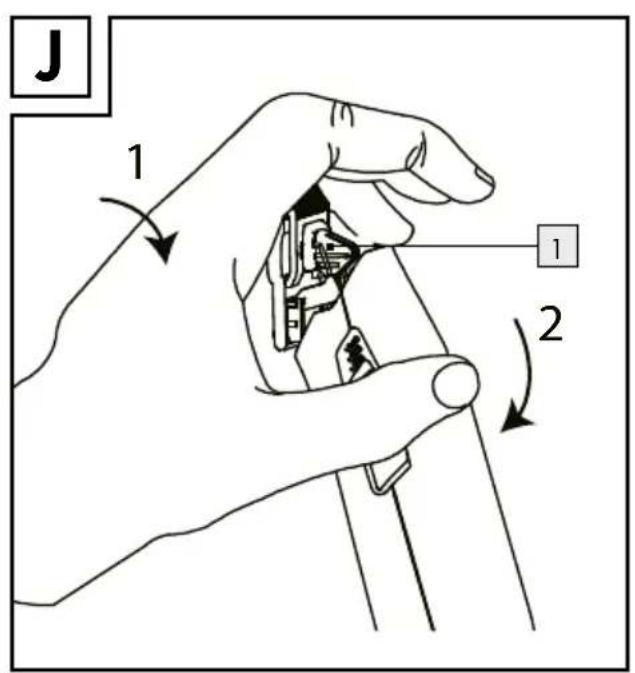

to the product with click sound (see Fig. J). Note: Clean the cutting head

after every use. Troubleshooting Error Cause Solution Trimming is difficult. Hair may be stuck inside the blades. Clean the cutting head

and the product and oil it if necessary. Disposal The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
