TMF1501B - Milk frother Tomado - Free user manual and instructions

Product type	Milk frother
Brand	Tomado
Model	TMF1501B
Power supply	220-240 V ~ 50/60 Hz
Maximum capacity (heating)	300 ml
Maximum capacity (frothing)	150 ml
Minimum capacity	100 ml
Warm temperature	~38 °C
Hot temperature	~68 °C
Functions	Heat, hot froth, cold froth
Function indicator lights	Green (38°C), Red (68°C), Purple (hot froth), Blue (cold froth)
Automatic shut-off	Yes
Heating time	310 to 550 seconds depending on quantity
Hot froth time	Approximately 270 seconds
Cold froth time	Approximately 110 seconds
Pot material	Stainless steel
Handle	Yes
Lid	Pouring spout and silicone ring
Included accessories	Whisk (frothing) with spring, stirrer (heating) without spring
Cleaning removable parts	Dishwasher
Cleaning the base	Damp cloth, do not immerse
Safety	Do not immerse base, automatic shut-off
Warranty	24 months

Frequently Asked Questions - TMF1501B Tomado

How to clean the milk frother?

Before cleaning, unplug the appliance and allow it to cool. Remove the milk pot, whisk, and stirrer. Wash the removable parts (pot, lid, whisk, stirrer) by hand or in the dishwasher with hot water and dish soap. Wipe the power base with a damp cloth; never immerse it in water.

Why is the milk foam not forming?

Several possible reasons: use whole milk for better foam. Make sure you are using the whisk (with spring) and not the stirrer. Check that the milk quantity is between 100 and 150 ml. Milk that is too skimmed or certain milk brands may produce less foam.

How much milk to use for frothing?

For frothing, pour between 100 and 150 ml of milk into the pot. Do not exceed the MAX ⚙️ mark as the milk expands and may overflow. For heating without frothing, you can use up to 300 ml (MAX Ⓐ mark).

Can I heat milk without frothing it?

Yes, use the stirrer (without spring) and select the warm function (green indicator) or hot function (red indicator). The milk will be heated and slightly stirred, with no foam.

How long does it take to heat milk?

The heating time varies from 310 to 550 seconds depending on the milk quantity and selected temperature. The appliance shuts off automatically once the temperature is reached.

Can I use plant-based milk (soy, almond, etc.)?

The milk frother is designed primarily for cow's milk. Plant-based milks can be heated, but the foam quality is often not as good. For better foam, choose plant-based milks specially formulated for coffee frothing.

How do I know which function is selected?

The function button T allows you to scroll through the modes. The color of the indicator light in the button indicates the function: green (warm 38°C), red (hot 68°C), purple (hot foam), blue (cold foam).

Does the appliance turn off by itself?

Yes, the milk frother has an automatic shut-off. It turns off automatically after the heating or frothing cycle (approximately 110 to 550 seconds depending on the function). The control light on the on/off button then goes out.

Is the milk pot dishwasher safe?

Yes, all removable parts (milk pot with lid, whisk, stirrer) can be washed in the dishwasher. Make sure to dry them thoroughly before reuse. The power base must never be immersed.

What to do if the frother does not work after turning on?

First check that the plug is properly inserted and that the power outlet works. If the circuit breaker has tripped, this may indicate an overload or fault. Do not attempt to repair the appliance yourself; contact technical support or your retailer.

USER MANUAL TMF1501B Tomado

Black and silver TOMADO water heater with control panel (no visible text or symbols on body)

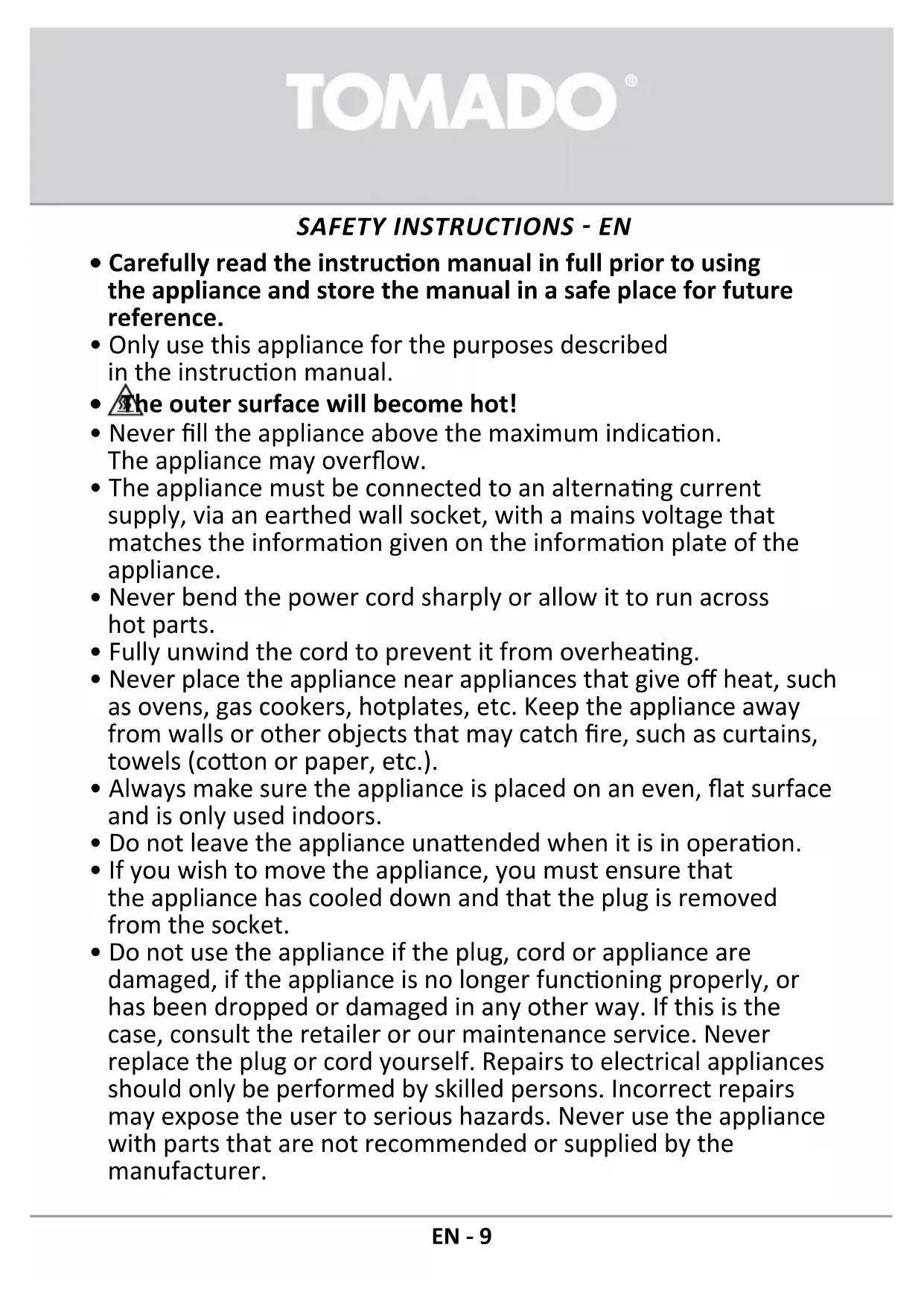

• Carefully read the instruction manual in full prior to using the appliance and store the manual in a safe place for future reference.
• Only use this appliance for the purposes described in the instruction manual.
  • The outer surface will become hot!
• Never fill the appliance above the maximum indication. The appliance may overflow.
• The appliance must be connected to an alternating current supply, via an earthed wall socket, with a mains voltage that matches the information given on the information plate of the appliance.
• Never bend the power cord sharply or allow it to run across hot parts.
• Fully unwind the cord to prevent it from overheating.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that may catch fire, such as curtains, towels (cotton or paper, etc.).
• Always make sure the appliance is placed on an even, flat surface and is only used indoors.
• Do not leave the appliance unattended when it is in operation.
• If you wish to move the appliance, you must ensure that the appliance has cooled down and that the plug is removed from the socket.
• Do not use the appliance if the plug, cord or appliance are damaged, if the appliance is no longer functioning properly, or has been dropped or damaged in any other way. If this is the case, consult the retailer or our maintenance service. Never replace the plug or cord yourself. Repairs to electrical appliances should only be performed by skilled persons. Incorrect repairs may expose the user to serious hazards. Never use the appliance with parts that are not recommended or supplied by the manufacturer.

TOMADO®

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or damp hands.
• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance may be used by children of 8 years and older and by persons with restricted physical, sensory or mental capacities or a lack of experience or knowledge, provided that they use the appliance under supervision and are instructed about the safe use of the appliance, and understand the associated hazards.
  • Children must not play with the appliance.
• The appliance must not be cleaned or maintained by children, unless this is done under supervision.
• If the appliance is not in use or is being cleaned, the plug must be removed from the wall socket.
• If you decide to cease using the appliance due to a defect, we recommend cutting off the cord after removing the plug from the wall socket.
• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group may be overloaded or an earth leakage current may have occurred.
• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.
• Never rinse the appliance under the tap.
• Never submerge the power base, appliance, cord or plug in water.

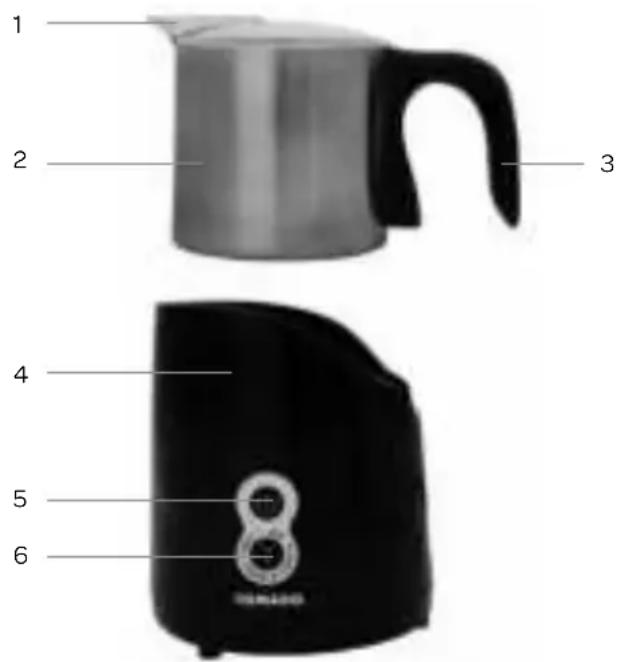

PRODUCT DESCRIPTION

1. Lid with spout and silicone ring
2. Milk jug
3. Handle
4. Power base
5. On / off button with indicator led
6. Function button with indicator light
7. Mixer for warming - without spring
8. Whisk for frothing - with spring

7 8

PRIOR TO FIRST USE

Before using the appliance for the first time, please proceed as follows: carefully remove the milk frother from its packaging and remove all the packaging material. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport. The whisk is packed at the bottom of the appliance. Take note to unpack it from the power base. Place the milk frother on a flat, heat-resistant surface.

Clean the milk jug, lid, whisk and mixer with warm water and mild detergent. Dry these components thoroughly. Only clean the base unit with a damp cloth, and dry thoroughly. The milk frother is only suitable for frothing and warming milk. Never fill the milk frother with other liquids.

WARMING MILK

Check that the voltage corresponds with what is stated on the information plate. Insert the plug into the socket. Place the mixer (without spring) at the bottom of the milk jug onto the drive shaft. Fill the milk jug with the required quantity of milk. Take note of the upper maximum indication for warming milk only - MAX◎ - 300 ml. The minimum capacity is 100 ml. Place the cover and place the milk jug on the power base. Press the function button T repeatedly to select the correct function / temperature. The colour of the indicator light in the function button corresponds to the selected function.

WARM ± 38°C - green indicator light

HOT ± 68°C - red indicator light

Press the on/off button to switch on the milk frother. The indicator led in the on/off button will light and the mixer will start to turn.

Depending on the quantity of milk, the milk frother will stop automatically after approximately 310 to 550 seconds. Once the selected programme is finished, the indicator led in the on/off button will turn off.

When the drink is ready to serve, remove the milk jug from the power base and pour the warm milk into a mug or cup via the spout. Remove the plug from the socket after each use.

After use, the milk frother should be cleaned as described in the chapter CLEANING & MAINTENANCE.

Allow the milk frother to cool for 2 minutes before using it again, or pour some cold water into the milk frother. This will allow it to be used again sooner.

FROTHING MILK

Check that the voltage corresponds with what is stated on the information plate. Insert the plug into the socket.

Place the whisk (with spring) at the bottom of the milk jug onto the drive shaft. Fill the milk jug with the required quantity of milk.

Take note of the lower maximum indication for frothing milk - MAX - 150 ml. Frothing milk expands and the milk frother may overflow when using too much milk. The minimum capacity is 100 ml.

Making warm frothed milk

Place the cover and place the milk jug on the power base.

Press the function button T repeatedly to select the correct function / temperature.

WARM FROTHING - purple indicator light

The colour of the indicator light in the function button corresponds to the selected function.

Press the on/off button to switch on the milk frother. The indicator led in the on/off button will light and the whisk will start to turn. Depending on the quantity of milk, the milk frother will stop automatically after approximately 270 seconds. Once the milk frother is ready, the indicator led in the on/off button will turn off.

Making cold frothed milk

Place the cover and place the milk jug on the power base.

Press the function button T repeatedly to select the correct function / temperature.

COLD FROTHING - blue indicator light

The colour of the indicator light in the function button corresponds to the selected function.

Press the on/off button to switch on the milk frother. The indicator led in the on/off button will light and the whisk will start to turn. Depending on the quantity of milk, the milk frother will stop automatically after approximately 110 seconds. Once the milk frother is ready, the indicator led in the on/off button will turn off.

When the milk frother is ready, remove the milk jug from the power base and pour the frothed milk into a mug or cup via the spout. Remove the plug from the socket after each use.

After use, the milk frother should be cleaned as described in the chapter CLEANING & MAINTENANCE.

Allow the milk frother to cool for 2 minutes before using it again, or pour some cold water into the milk frother. This will allow it to be used again sooner.

TIPS

• You will get the best milk froth result with full milk.
• If there is too little milk in the milk frother (less than 100 ml), the result will be poorer.
• The quality of the milk froth may differ significantly between different brands of milk. Experiment with other brands, if necessary, for a better result.

CLEANING AND MAINTENANCE

Remove the plug from the wall socket and allow the milk frother to cool prior to cleaning.

Clean the milk frother after every use.

Remove the milk jug from the base and remove the whisk or mixer from the milk jug by lifting it directly upwards. Rinse the milk jug with hot water and detergent (if required) to remove all milk residue.

Ensure that no milk residue remains in the milk jug. This is unhygienic and may be harmful to your health. Clean the cover, silicone ring of the cover, whisk and mixer with warm water and mild detergent. Dry these components thoroughly. The loose components, the milk jug with lid and the whisk/mixer may be cleaned in the dishwasher.

Never immerse the power base in water and/or other liquids. Do not rinse it under the tap. Regularly wipe the outside with a damp cloth.

Never use detergents and/or abrasives or sharp objects that could damage the coating!

TOMADO®

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU).

Observe the applicable rules in your country for the separated collection of electric and electronic products. By disposing of the product correctly, you prevent negative consequences for the environment and for public health.

The packaging material of this product can be recycled 100%, return packaging material separately.

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is offered with this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. The original proof of purchase, with the date of purchase, the name of the retailer and the item number of the product must also be presented. For extensive warranty information, please consult our website: www.tomado.com/support
