Xeneon 32UHD144 - Monitor CORSAIR - Free user manual and instructions

Product type	Gaming monitor
Brand	Corsair
Model	Xeneon 32UHD144
Screen size	32 inches (diagonal)
Native resolution	3840 x 2160 (UHD 4K)
Refresh rate	144 Hz (DisplayPort/USB-C)
Panel technology	IPS with Quantum Dot
Brightness	400 nits (SDR) / 600 nits (HDR)
Static contrast ratio	1000:1
Response time	1 ms (MPRT) / 5 ms (GtG)
Viewing angles	178° horizontal / 178° vertical
Connectivity	2x HDMI 2.0, 1x DisplayPort 1.4, 1x USB-C (DP Alt Mode), 2x USB-A 3.0, 1x 3.5mm audio output
VESA compatibility	100 x 100 mm (M4 screws, length 14-16 mm)
Dimensions (with stand)	732 x 553 x 270 mm
Weight (with stand)	8.4 kg
Power supply	150 W AC adapter (Asian Power Devices DA-150E19)
Power consumption (on)	40 W typical
Main features	AMD FreeSync Premium, NVIDIA G-Sync compatible, HDR600 (VESA DisplayHDR), height/tilt/rotation adjustment, RapidRoute cable management, local dimming
Maintenance and cleaning	Use a soft, lint-free cloth; do not spray directly onto the screen; unplug before cleaning
Safety	Unplug before cleaning; do not expose to water or liquids; do not block ventilation openings
Spare parts and repairability	AC adapter included; HDMI, DisplayPort, USB-C cables included; VESA mount and screws not included; do not disassemble yourself
General information	Complete manual and quick start guide available at corsair.com/xeneon-quickstart; compatible with Corsair iCUE software (version 4.24+)

Frequently Asked Questions - Xeneon 32UHD144 CORSAIR

The power LED indicator is off, what should I do?

Make sure the power button on the back of the monitor is pressed. Ensure the power cable is properly connected to the monitor and the adapter. Also check in the OSD menu (System Settings > LED) that the LED option is enabled.

No image appears on the screen

Check that the monitor is turned on. Ensure the video cable (HDMI, DisplayPort, or USB-C) is firmly connected to the monitor and the source. Test with another cable or source. If automatic detection is disabled in the OSD, manually select the correct input.

The image is too bright or too dark

Use the joystick to access the OSD menu and adjust Brightness, Contrast, and Gamma settings in the Image menu. You can also reset the monitor to factory settings via the System Settings menu.

The message 'Signal not supported' appears

Check the video output settings of your source (graphics card, console). The monitor supports standard resolutions up to 3840x2160. Consult the list of supported modes in the manual. Reduce the resolution or refresh rate if necessary.

The image has color problems (distorted, washed out)

Test with another quality video cable. Reset the monitor to factory settings. Adjust the image settings (color temperature, saturation, gamma) in the OSD Image menu.

What to do in case of a dead pixel?

Corsair offers a 'zero dead pixel' policy: if you notice 1 or more bright pixels, or 6 or more dark pixels, the monitor will be replaced under warranty (3 years). Contact Corsair support.

What types of VESA mounts are compatible?

The monitor supports the VESA 100x100 mm standard. Use the four mounting holes on the back. Mounting screws are not included; use M4 screws with a length of 14 to 16 mm depending on the mount thickness.

My monitor is not detected by Corsair iCUE software

Make sure you have installed iCUE version 4.24 or later. Connect the USB-C cable (upstream port) directly to a USB 3.0 port on your PC, without a hub. Preferably use the provided USB-C cable.

How to enable FreeSync or G-Sync?

In the OSD menu, go to 'System Settings' and enable AMD FreeSync Premium. For G-Sync, connect via DisplayPort or USB-C, then in the NVIDIA control panel, enable G-Sync and select the monitor. A restart may be required.

I am not getting the 144 Hz refresh rate

Check your system display settings: select 3840x2160 and 144 Hz. Use a quality DisplayPort 1.4 or USB-C cable (avoid HDMI 2.0 cables, limited to 60 Hz at 4K). Make sure FreeSync/G-Sync is disabled if it causes issues.

USER MANUAL Xeneon 32UHD144 CORSAIR

Precautions 2
Package Contents 3
Assembly 4
Tilt, Swivel and Height Adjustment 5
Cable Management, Camera Mount (optional) & Other Mounting options 6
Connectivity 8
Operation 9
Controls 9
On-Screen Display (OSD) 9
OSD – Picture Settings 10
OSD – OSD Setting 12
OSD – System Setting 13
OSD – Audio 15
OSD – Input Select 16
OSD – Information 17
Frequently Asked Questions / Troubleshooting	18
Specifications	21
Technical Specifications 21
Supported Display Modes	22

Scan QR code for Quick Start Guide and Setup Videos

Product Setup, User Information, and Warranty/Dead Pixel policy can be found at https://www.corsair.com/xeneon-quickstart Landing Page

PRECAUTIONS

• Only use the accessories that are provided with the monitor or that are recommended by the manufacturer.
• Keep the plastic packaging bag for the product in a place that cannot be reached by children.
• Before connecting the monitor to the power outlet, make sure that the voltage rating of the power cable is compatible with the power specification in the country where you are located.
• The power cord plug must be connected to a properly wired and grounded power outlet.
• Do not touch the plug with wet hands, otherwise can easily cause electric shock.
• Place the monitor in a stable and well-ventilated place.
• Do not place the monitor near any heat sources such as electric radiators or direct sunlight.
• The holes or openings on the monitor are for ventilation. Do not cover or block the ventilation holes with any objects.
• Do not use the monitor near water, drinks, or any type of liquids. Failure to do so may result in electric shock or damage to the monitor.
• Make sure to unplug the monitor from the power outlet before cleaning.
• As the screen surface can be easily scratched, avoid touching the surface with any hard or sharp object. Use a soft lint-free cloth instead of a tissue to wipe the screen. You may use a glass cleaner to clean the equipment if required. However, never spray the cleaner directly onto the screen.
• Disconnect the power cable if the equipment is not being used for a long period of time.
• Do not attempt to disassemble or repair the monitor yourself.

XENEON 32QHD240 DISPLAY CONTENTS

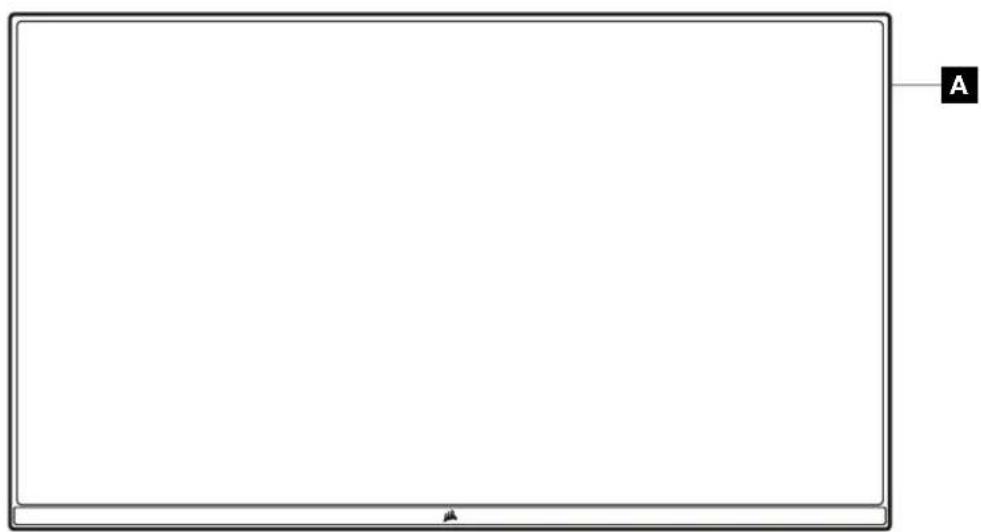

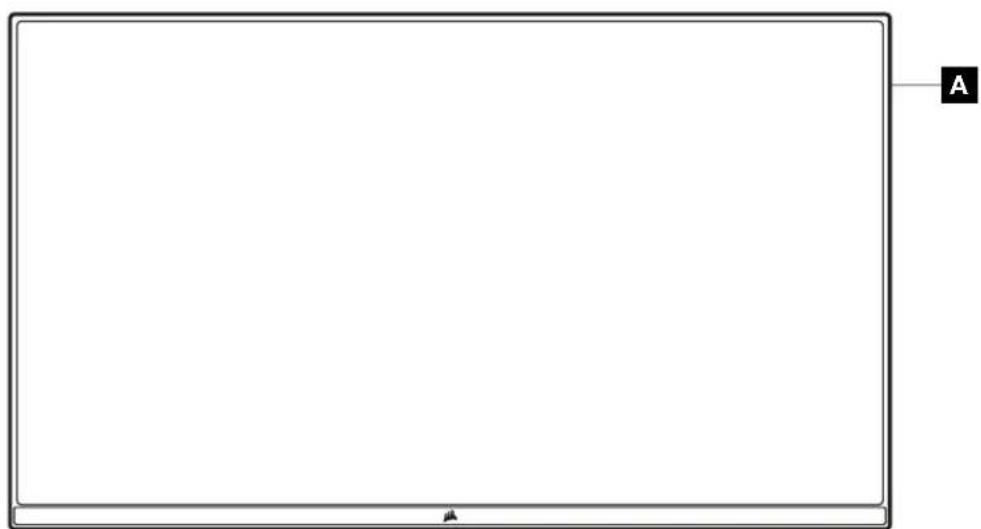

A XENEON 32QHD240 DISPLAY PANEL
B MOUNTING POST (For CM-9020002 Only)
C STAND (For CM-9020002 Only)
D MOUNTING SCREWS (x4)

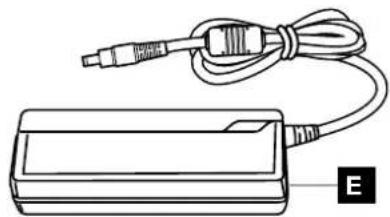

E AC ADAPTER

F AC POWER CABLE
G DISPLAYPORT CABLE (1.5M)
H HDMI CABLE (1.5M)
USB-C CABLE (1.5M)
J USB-A TO USB-C CABLE (1.8M)

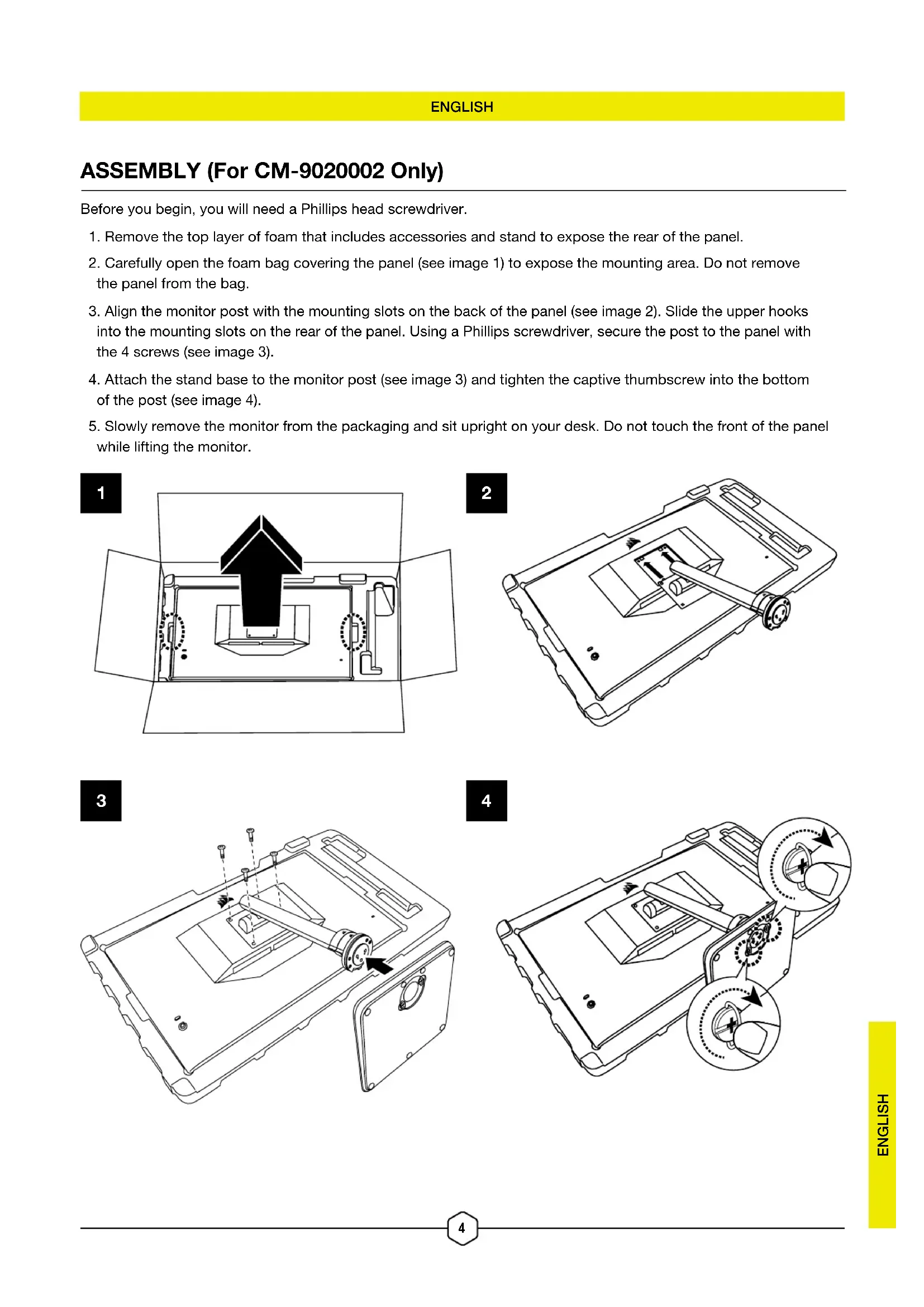

ASSEMBLY (For CM-9020002 Only)

Before you begin, you will need a Phillips head screwdriver.

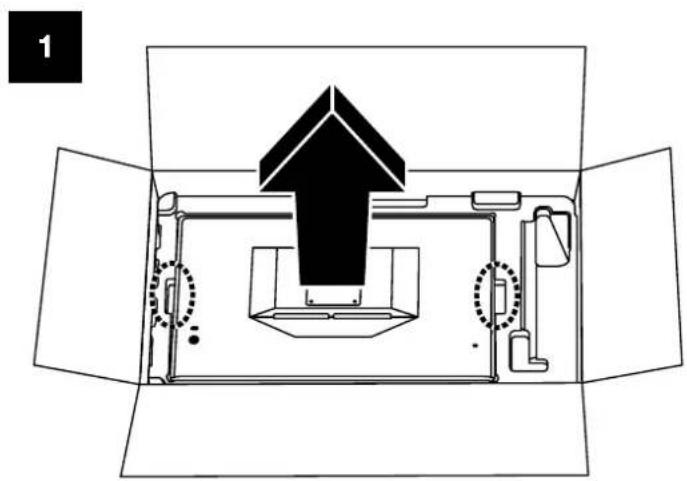

1. Remove the top layer of foam that includes accessories and stand to expose the rear of the panel.
2. Carefully open the foam bag covering the panel (see image 1) to expose the mounting area. Do not remove the panel from the bag.
3. Align the monitor post with the mounting slots on the back of the panel (see image 2). Slide the upper hooks into the mounting slots on the rear of the panel. Using a Phillips screwdriver, secure the post to the panel with the 4 screws (see image 3).

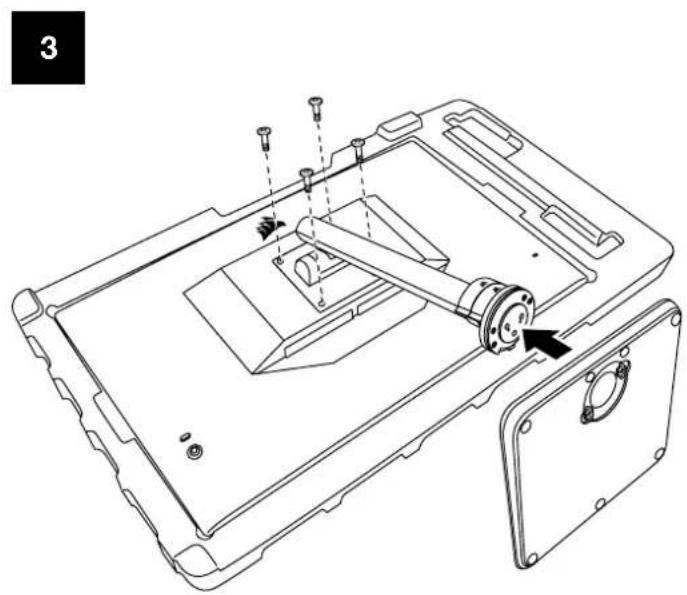

4. Attach the stand base to the monitor post (see image 3) and tighten the captive thumbscrew into the bottom of the post (see image 4).
5. Slowly remove the monitor from the packaging and sit upright on your desk. Do not touch the front of the panel while lifting the monitor.

TILT, SWIVEL AND HEIGHT ADJUSTMENT (For CM-9020002 Only)

Your Xeneon display features a sturdy and stylish stand that offers tilt, swivel, and height adjustment.

• Tilt -5 / +20 degrees
• Swivel ± 30 degrees
• Height Adjust Range 68mm

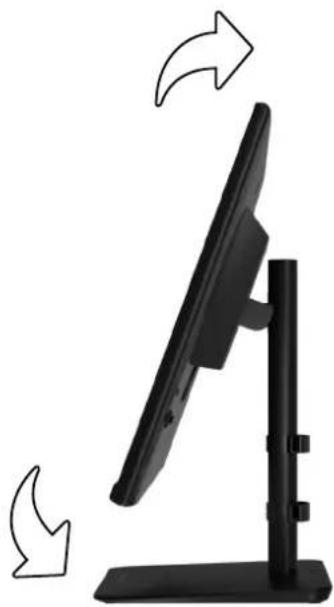

TILT

SWIVEL & HEIGHT ADJUSTMENT

RAPIDROUTE CABLE MANAGEMENT (For CM-9020002 Only)

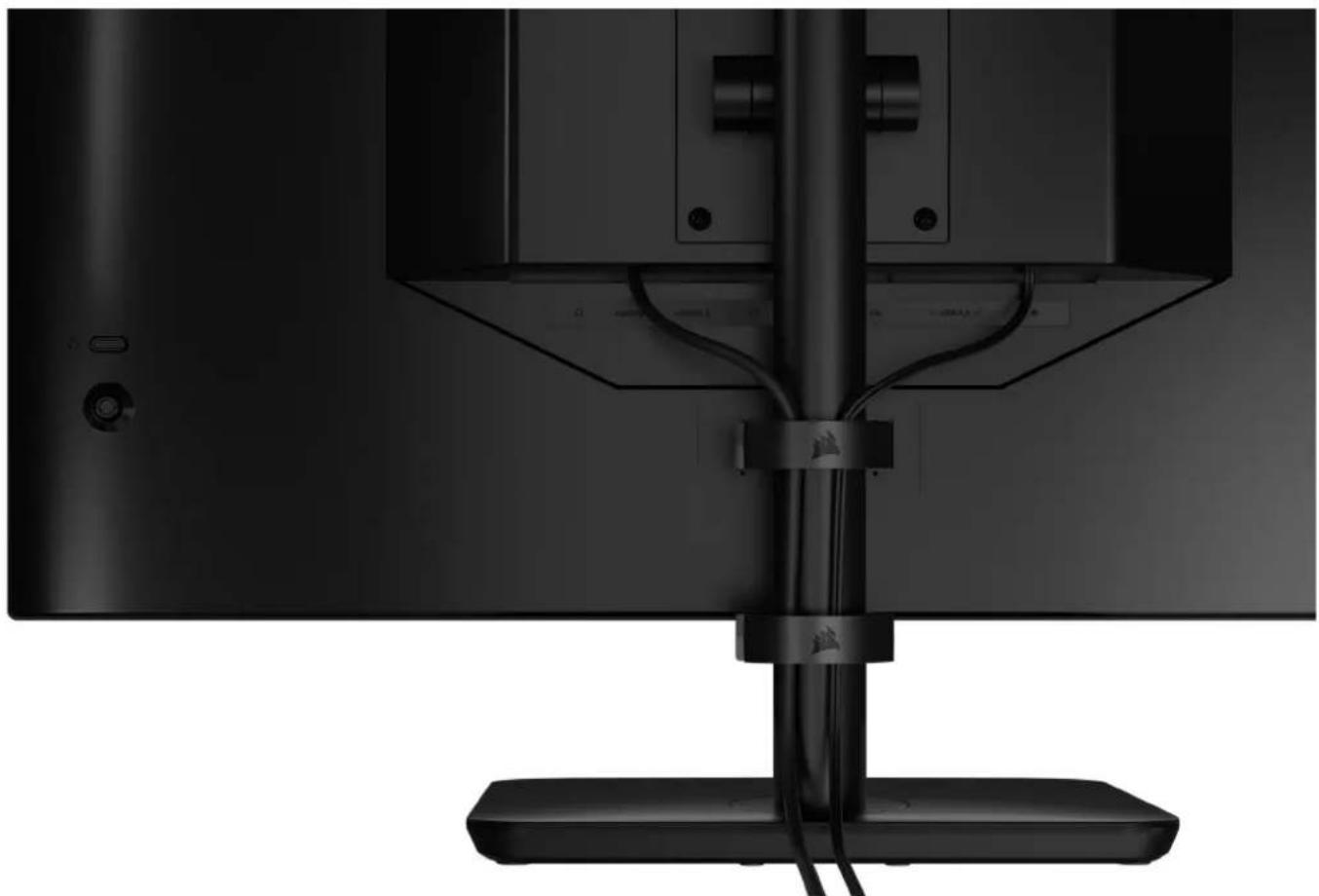

Your Xeneon display has built-in RapidRoute cable management to keep your desktop tidy. There are 2 adjustable cable clips that slide up and down the monitor post to allow for customizing your cable management needs. Open each cable clip by pressing the thumb clasp to the left and pulling out on the cable clip.

WALL MOUNT COMPATIBILITY

Before mounting your display with compatible wall mount (VESA 100mm x 100mm), make sure that:

• You have removed the stand from the display with a Phillips screwdriver
• The wall mount bracket that you purchased supports the weight of this display

Review the instructions that came with your wall mount for more information about how to correctly mount your display.

WARNING: Your display has four VESA mounting holes on the back. You must secure a wall mount bracket to all four holes. If you do not use all four holes, your display may fall and cause property damage or personal injury.

Note: Wall-mount screws are not included. Screws: type M4, 14mm to 16mm length depending on wall mount.

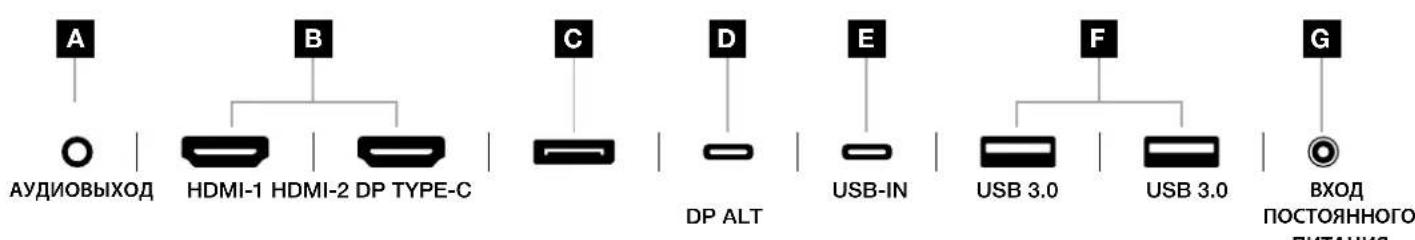

CONNECTIVITY

AUDIO OUT

HDMI-1 HDMI-2 DP TYPE-C

DP ALT

USB-IN USB 3.0

USB 3.0

DC IN

A. 3.5mm Audio Jack

Audio output from connected HDMI, DisplayPort, and USB-C Alt Mode devices.

B. HDMI 2.0 Ports

Dual HDMI inputs correspond to "HDMI-1" and "HDMI-2" inputs.

C. DisplayPort 1.4 Port

DisplayPort input corresponds to "DisplayPort" input.

D. USB Type-C Port

Supports DisplayPort Alt Mode and upstream USB input (connects to USB 3.0 ports). Corresponds to "TYPE-C" input. This port or the USB Upstream Port must be connected to a USB-capable port on your host device to support CORSAIR iCUE functionality and downstream USB 3.0 ports.

E. USB-IN Port

Upstream USB input port. This port or the USB Type-C Port must be connected to a USB-capable port on your host device to support CORSAIR iCUE functionality and downstream USB 3.0 ports.

F. USB 3.0 Ports

Dual Type-A 5Gbps USB ports.

G. DC In

Connects to included AC adapter.

OPERATION

Controls

——POWER ON/OFF

PRESS - Open Display Settings

UP - Open Brightness Slider

DOWN - Open Picture Mode Select

LEFT - Open Volume Slider

RIGHT - Open Input Source Select

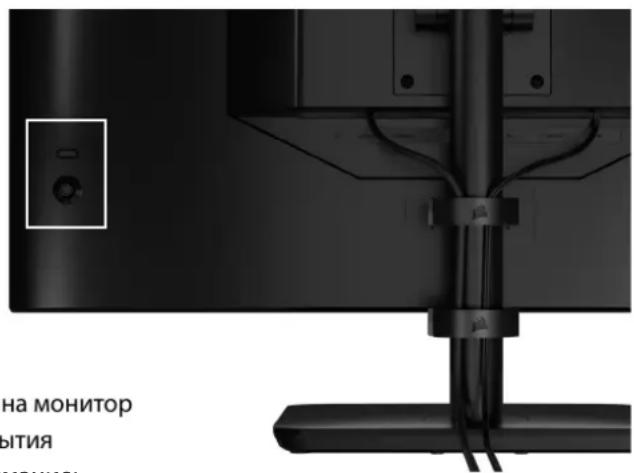

Your monitor includes a joystick on the rear, right facing side for opening shortcuts and navigating display settings. Note that many of these settings can also be controlled in CORSAIR iCUE software if you have the USB hub connected to your computer via USB IN port. Please install the latest version of iCUE (4.24 or later) available at https://www.corsair.com/us/en/icue.

On-Screen Display (OSD)

By pressing the joystick inward, you can access your monitor's display settings. You can use the joystick to navigate the settings and pressing the joystick inward will confirm your selection.

OPERATION

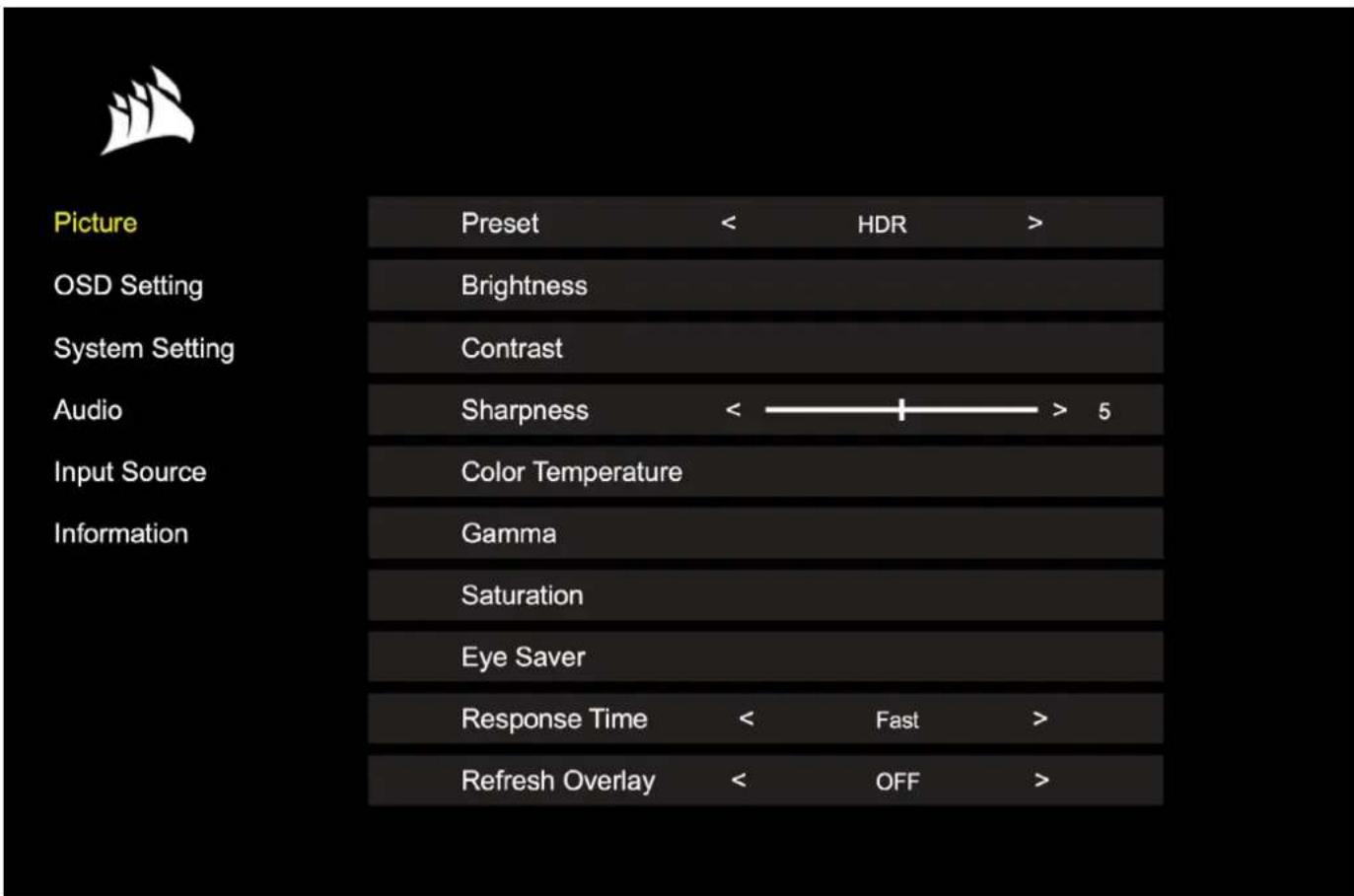

OSD - Picture Settings

The first menu, labeled "Picture", contains the following settings for adjusting the overall picture quality.


Preset

HDR

OSD Setting

Brightness

System Setting

Contrast

Audio

Sharpness

+

Input Source

Color Temperature

Information

Gamma

Saturation

Eye Saver

Response Time

Fast

Refresh Overlay

OFF

OPERATION

OSD - Picture Settings

SETTING OPTIONS DESCRIPTION
Picture Mode	Standard	Selects a display preset factory calibrated for general use and best power savings
	Movie Selects a display preset optimized for watching movies
	Text Selects a display preset optimized for reading text
	sRGB Selects a display preset factory calibrated to the sRGB color space
	Creative Selects a display preset factory calibrated for content creation tasks
	Game Selects a display preset optimized for playing fast moving games
	DCI-P3 Selects a display preset optimized for HDR content in DCI-P3 color space
	AdobeRGB Selects a display preset optimized for HDR content in AdobeRGB color space
	HDR Selects a display preset that is VESA DisplayHRD600 Certified
Brightness 0-100 Adjusts the intensity of the display backlight
Contrast 0-100 Adjusts the display's contrast
Sharpness 0-10 Adjusts the display's sharpening filter, increasing edge detail
Color Temperature	Cool Sets the display's color temperature to 9300K
	Normal Sets the display's color temperature to standard 6500K
	Warm Sets the display's color temperature to 5000K
	Custom	Allows you to manually set the display's color temperature with sliders controlling the red, blue, and green levels
Gamma	2.0, 2.2, 2.4	Adjusts the relationship between color and brightness; default is 2.2
Saturation	0-10 Adjusts the intensity of the display's colors
Eye Saver	ON or OFF Reduces blue light emissions of display when enabled
Response Time	Normal, Fast, Faster, Fastest, Dynamic OD	Let you increase how fast pixels can transition between colors, which can reduce the blurring of fast-moving objects
Refresh Overlay	ON or OFF	Toggles an overlay in the top right corner which displays the monitor's current refresh rate, useful for tracking frames per second when Adaptive Sync is enabled
MPRT	ON or OFF	Toggles the "Moving Picture Response Time" setting, which can reduce blurring of moving objects when set to "On"
Local Dimming	ON or OFF	To turn off specific portions of the backlight for deeper black and better contrast ratio
Crosshair	OFF, Dot, Cross, Angle	Enable Crosshair function

OPERATION

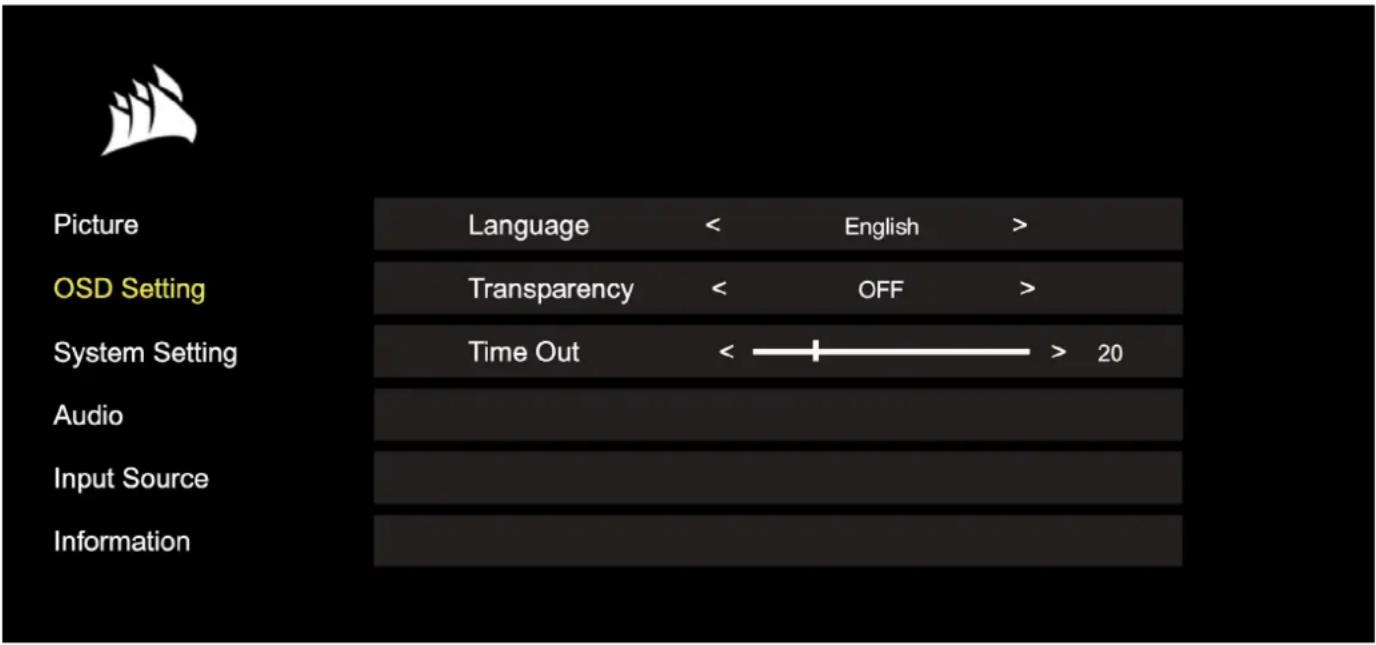

OSD - OSD Setting

The second menu, labeled "OSD Setting", contains the following settings for adjusting the on-screen display.

SETTING OPTIONS DESCRIPTION
Language	English français Deutsch Italiano Español Português Yuccskin 繁體中文 日本語 한국어	Selects the OSD's language
Transparency ON or OFF Sets the OSD to be transparent or opaque
Time Out 10-60		Adjusts how long (in seconds) the OSD stays on screen before disappearing

OPERATION

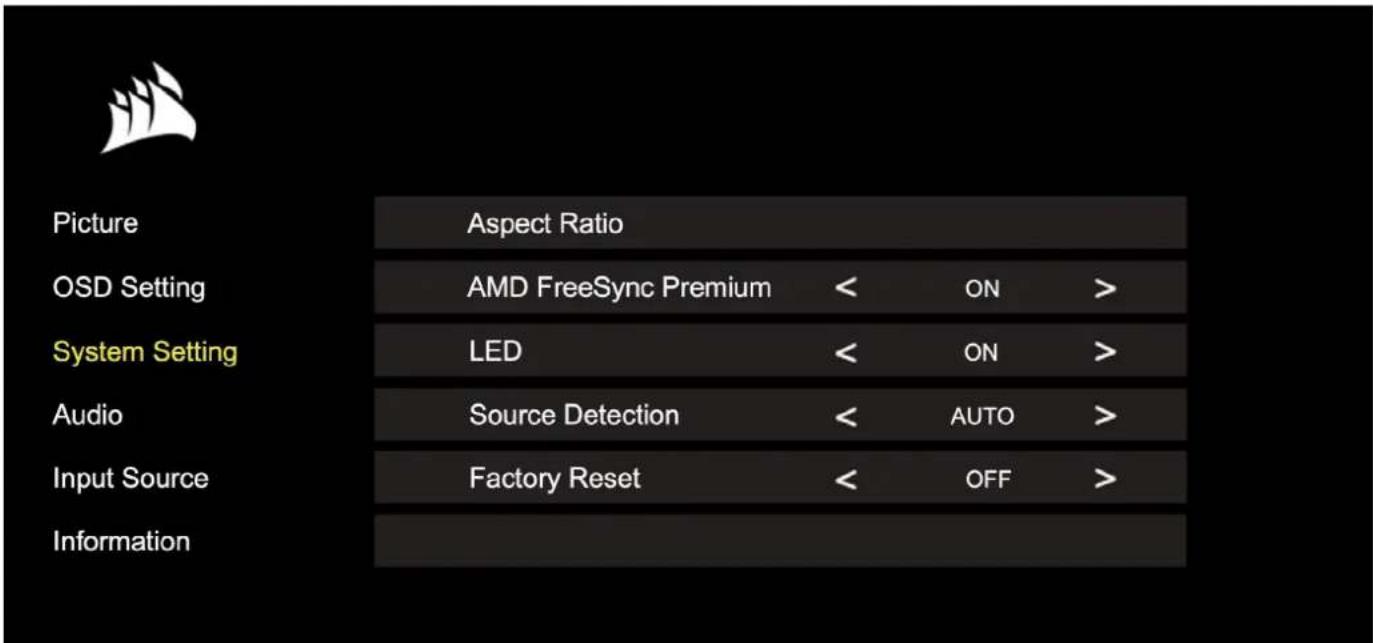

OSD - System Setting

The third menu, labeled "System Setting", contains the following settings for adjusting the display's internal settings.

OPERATION

OSD - System Setting

SETTING OPTIONS DESCRIPTION
Aspect Ratio	Auto, 4:3, 16:9	Selects the display's aspect ratio. "Auto" will try to match the display's aspect ratio to the incoming video signal. Not available with Adaptive Sync enabled
AMD FreeSync Premium ON or OFF	Enables or disables the adaptive sync functionality when connected to a compatible GPU. Select ON to enable Adaptive Sync for AMD FreeSync via HDMINVIDIA G-Sync compatibility is available when connected via DP cable or USB Type-C Alt Mode cable to compatible GPU. For NVIDIA G-Sync functionality:Install/Open NVIDIA Control PanelSelect "Set up G-Sync"Select Enable G-Sync Compatible checkboxSelect the 32QHD240/RDD0020Select the "Enable settings for the selected display model" checkboxMay require a system reboot to access NVIDIA settings
LED ON or OFF Selects front	Power LED indicator ON or OFF
Source Detection	AUTO or MANUAL	Determines whether the display will automatically switch to a different input if it detects a signal, or if you will need to manually switch between inputs
USB-C Alt Mode (only present when the display is connected through USB-C video port)	4-lane 2-lane	Toggles the number of USB lanes to use on the USB-C port for video4-Lane Mode allows up to 2560x1440@240Hz resolution but reduces the speed of the USB Type-A ports to USB 2.02-Lane Mode allows for up to 2560x1440@120Hz but enables USB Type-A at USB 3.0 speed
Factory Reset ON or OFF Resets all monitor settings to their factory defaults

OPERATION

OSD - Audio

The fourth menu, labeled "Audio", lets you control the display's audio.

SETTING OPTIONS DESCRIPTION
Volume 0-100		Adjusts the volume of the audio output from the headphone jack
Audio Input	Auto, HDMI-1, HDMI-2, DisplayPort, USB Type-C	Selects which input the display passes audio to the headphone jack from. “Auto” will use the current input

OPERATION

OSD - Input Select

The fifth menu, labeled "Input Select", lets you switch between the display's different inputs.

SETTING DESCRIPTION
HDMI-1 Switches to the device connected to the HDMI-1 port
HDMI-2 Switches to the device connected to the HDMI-2 port
DisplayPort Switches to the device connected to the “DP” DisplayPort port
TYPE-C Switches to the device connected to the TYPE-C port

OPERATION

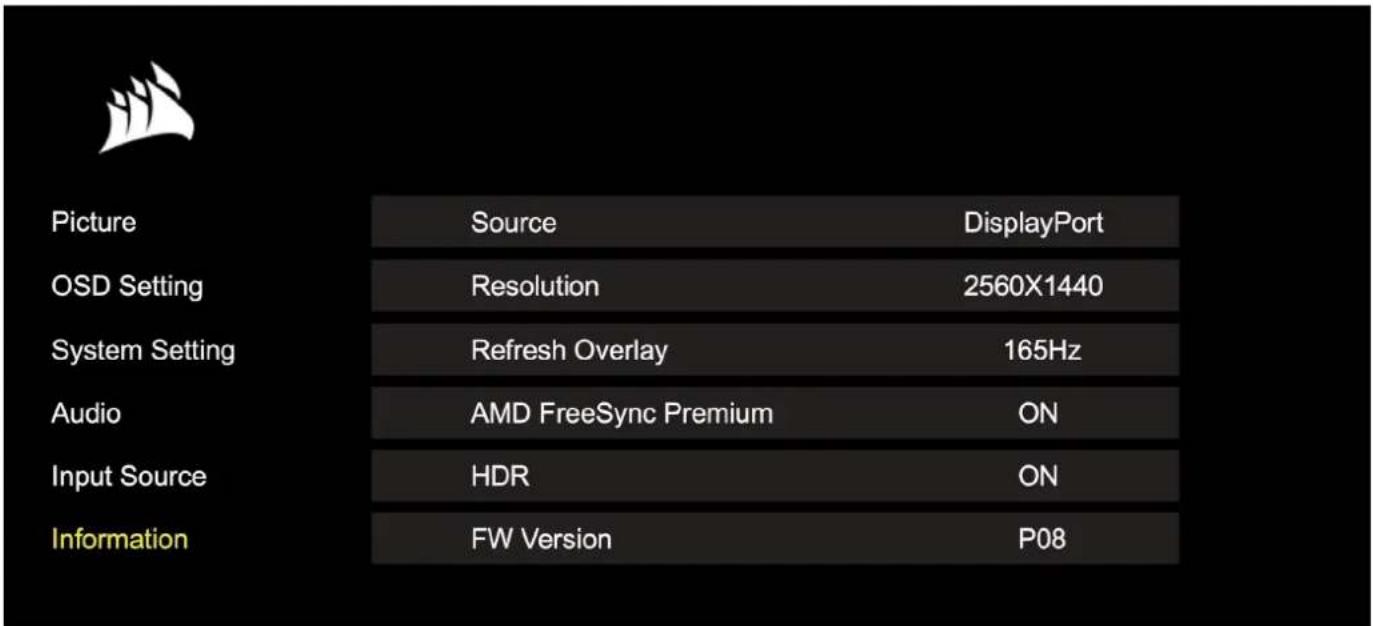

OSD - Information

Provides current settings status for key features.

SETTING DESCRIPTION
Source Display the current input source
Resolution Display the current display resolution
Refresh Overlay Display the current refresh rate
AMD FreeSync Premium AMD FreeSync Premium Status
HDR HDR Status
FW Version Shows the current FW version

OPERATION

CORSAIR XENEON 32QHD240 Gaming Monitor FAQ

QUESTION ANSWER
Power LED not on	Press the power button on the back of your monitor to check if it is set to ON.
	Check to see if the power cable is fully plugged into the monitor as well as the power adapter.
	Check Power LED toggle in OSD System Setting Menu is toggled on.
No image on screen	Check to see if your monitor is on.
	Check to see if the video cable is properly connected to the monitor as well as the source device.
	Check the quality of the video cable and ensure that it isn't damaged. Avoid low quality video cables and extensions.
	Check which video source input your monitor is set to (if the Auto Source feature is disabled in OSD).
	Connect another source device to test monitor video input.
	Connect the source device to another available monitor to test video output.
	Avoid hot-plugging the monitor. Have the monitor connected to the source prior to powering up the source device.
Image too light/dark	Adjust the brightness/gamma/contrast settings via the OSD.
	Reset the monitor to factory settings.
Video signal not supported	Check the video output settings of the source device. Supported input resolutions for the CORSAIR XENEON 32QHD240 Gaming Monitor are:
	RESOLUTION REFRESH RATE
	640x480 60, 67, 72, 75Hz
	800x600 56, 60, 72, 75Hz
	1024x768 60, 70, 75Hz
	1280x1024 60, 75Hz
	1440x900 60Hz
	1680x1050 60Hz
	1920x1080
	60Hz
	144, 165Hz (DP, Type-C)
	60, 120, 144Hz
	165, 180, 240Hz (DP, Type-C)
	3840x2160 30, 60Hz (for Downscaled Console Support)

OPERATION

CORSAIR XENEON 32QHD240 Gaming Monitor FAQ

QUESTION ANSWER
Does the CORSAIR XENEON 32QHD240 support video over USB-C?	Yes, the CORSAIR XENEON 32QHD240 supports DisplayPort over USB-C through the dedicated TYPE-C DP ALT input. Use the included 1.5m Type-C cable or a quality USB Type-C cable that supports USB 3.2 Gen 2 for best results.
I'm unable to use devices connected to the USB-A ports on my monitor when connected to my device that supports USB-C Alt Mode using a single USB-C cable	USB-C Alt Mode, by default will operate in "4 lane" mode which allows for full DisplayPort resolution over USB-C, however this disables the use of the USB Type-A ports. To re-enable the USB Type-A ports when connected solely via the TYPE-C DP ALT input, switch to "2 lane" mode which will limit the supported video output resolution in order to re-enable the USB Type-A ports for peripherals connected to the monitor's USB Type-A ports. Alternatively, you may connect the source device to the USB downstream port as well as the TYPE-C DP ALT port for full video resolution and USB port functionality. Ensure that you're using a quality USB Type-C cable that supports USB 3.2 Gen 2 for best results.
Image is stretched/squished	Check the "Aspect Ratio" setting under "System Setting". By default this is set to "Auto", however in certain instances, you may need to manually set an aspect ratio (ex: certain combinations of adapters and retro game consoles).
Image has color issues	Check the quality of the video cable and ensure that it isn't damaged. Avoid low quality video cables and extensions.
	Reset the monitor to factory settings.
	Adjust the picture settings via OSD.
Artifacts in onscreen image	Check the quality of the video cable and ensure that it isn't damaged.
	Check your source device, a faulty graphics card or game console may require contacting the manufacturer for assistance.
Monitor has a dead pixel	CORSAIR provides a "Zero Dead Pixel" policy for monitor products, if 1 or more bright pixels or 6 or more dark subpixels are found, the monitor will be exchanged during the 3-year warranty period.
What kind of VESA mount is compatible?	CORSAIR XENEON 32QHD240 supports a standard 100mm x 100mm mount, the monitor head must be removed from the stand. Use the mounting screws supplied with your VESA mount.

OPERATION

CORSAIR XENEON 32QHD240 Gaming Monitor FAQ

QUESTION ANSWER
Can I mount a webcam or DSLR/mirrorless camera?	CORSAIR XENEON 32QHD240 supports standard webcams that sit on the top bezel of the display.
My CORSAIR XENEON monitor isn't detected by CORSAIR iCUE	Check to ensure that your PC has the latest version of CORSAIR iCUE installed. The CORSAIR XENEON 32QHD240 is supported in iCUE version 4.24 or newer.
	Check to ensure that the cable connected to the USB-C upstream on the monitor and your PC's USB 3.0 port is properly connected. Avoid connecting the monitor through a USB hub or extension if possible. We strongly recommend using the USB-C cable provided with the CORSAIR XENEON monitor for best results.
What adaptive refresh rate options are available to CORSAIR XENEON?	The CORSAIR XENEON 32QHD240 is certified for AMD FreeSync Premium and is also NVIDIA G-SYNC compatible.
AMD FreeSync / G-SYNC aren't enabled	Check that AMD FreeSync is enabled via OSD.
	Check your graphics card settings and ensure that AMD FreeSync / NVIDIA G-SYNC are enabled. AMD FreeSync functions over any of the video ports. NVIDIA G-Sync compatibility only works over DP or USB Type-C Alt-Mode DP.
I'm not getting the monitor's rated 240Hz refresh rate	Check your graphics card/system display settings and ensure that the 240Hz refresh rate has been enabled. See Supported Display Mode Table in Appendix for available options.
	Check the quality of the video cable and ensure that it isn't damaged. Avoid low quality video cables and extensions.

APPENDIX

Technical Specifications

Product Name XENEON 32QHD240
Part Number	With Stand CM-9020002-XX Without Stand CM-9020004-XX
Device RDD0020
USB Hub ID CORSAIR USB 3.0 Hub
Panel Size 32" Diagonal
Display Surface Non-Glare
Pixels per inch 91.8
Aspect Ratio 16:9
Native Resolution 2560 x 1440 @ 240Hz
Response Time (MPRT) 1ms
Response Time (GtG) 5ms
Display Colors 16.7M colors (8bit RGB)
Panel Technology IPS with Quantum Dot Technology
Flicker Free Yes
Viewing Angles 178° (H) / 178° (V)
Peak Brightness 400 nit (SDR) / 600 nit (HDR)
Static Contrast Ratio 1000:1
HDR Certification	VESA DisplayHDR 600
Color Gamut (CIE 1976)	98% (DCI-P3), 100% (AdobeRGB), 100% (sRGB)
Variable Refresh Rate	AMD FreeSync Premium Certified, NVIDIA G-Sync compatible
HDMI Input	2x HDMI 2.0
DisplayPort Input	1x DisplayPort 1.4
USB-C Input	1x DisplayPort 1.4 (USB-C Alt Mode), 15W Power Delivery, USB 5Gbps Data Upstream
USB-C Upstream Input	1x 5Gbps USB-C
USB-A Output 2x 5Gbps Type-A USB (5V/0.9A *2)
3.5mm Audio	Yes, passthrough from video input

APPENDIX

Technical Specifications

Power Consumption (On) 40W
Power Consumption (Sleep) <0.5W
Power Consumption (Off) <0.3W
VESA Compatibility 100mm x 100mm
Dimensions 732mm x 553mm x 270mm (W x H x D)
Weight 8.4kg
Stand Tilt -5° / +20°
Stand Swivel -30° / +30°
Stand Height Adjustment Range 68mm
AC Adapter 150W
	Note: your device uses the following power supply: Asian Power Devices Inc. / DA-150E19

Supported Display Modes

RESOLUTION REFRESH RATE HDMI DP/TYPE-C
640x480 VGA		60Hz	V	V
		67Hz	V	V
		72Hz	V	V
		75Hz	V	V
800x600 SVGA		56Hz	V	V
		60Hz	V	V
		72Hz	V	V
		75Hz	V	V
1024x768	XGA	60Hz	V	V
		70Hz	V	V
		75Hz	V	V

APPENDIX

Supported Display Modes

RESOLUTION REFRESH RATE HDMI DP/TYPE-C
1280x1024 SXGA		60Hz V V
		75Hz V V
1440x900 WXGA+ 60Hz V V
1680x1050 WSXGA+ 60Hz V V
1920x1080 FHD		60Hz V V
		144Hz V
		165Hz V
2560x1440 QHD		60Hz V V
		120Hz V V
		144Hz V V
		165Hz V
		180Hz V
		240Hz V
480P 60Hz V V
576P 50Hz V V
720P	50Hz V V
	60Hz V V
	120Hz V V
1080P	60Hz V V
	120Hz V V
2160P	30Hz V V
	60Hz V V

The adopted trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

TABLE DES MATIÈRES

F CABLE D'ALIMENTATION CA
G CABLE DISPLAYPORT (1,5M)
H CABLE HDMI (1,5M)
I CABLE USB-C (1,5M)
J CABLE USB-A VERS USB-C (1,8M)

ASSEMBLAGE (Pour CM-9020002 uniquement)

XENEON 32QHD240 DISPLAY, INHALT

A XENEON 32QHD240 DISPLAY, PANEL
B MONTAGEPFOSTEN (Nur fur CM-9020002)
C STANDER (Nur fur CM-9020002)
D MONTAGESCHRAUBEN (4X)
E AC-ADAPTER

F AC-STROMKABEL
G DISPLAYPORT-KABEL (1,5M)
H HDMI-KABEL (1,5M)
USB-C-KABEL(1,5M)
J USB-A-AUF-USB-C-KABEL (1,8M)

PpIMeHHe. BnHTbI dIa HacteHHoro KPOHwTeHa He BXoJrB KOMnJIeKr. BnHTbI: TmN M4, dIHHoN ot 14 do 16MM B 3aBNCMOCn OT Bbl6paHHoro HacteHHoro KPOHwTeHa.

ПОДКЛЮЧЕНЕ

A. Aynopa3bem Ha 3,5mm

BbIOayno nI NOkJIIOUeHbIX yCtpoNCTHDMI,DisplayPort n USB-C (aIbT. peXIM).

B. NopTbHDMI 2.0

ДовионьхдHDMI, cootbetCTbYIOUm BXOdAm HDMI-1 mHDMI-2.

C. Nopr DisplayPort 1.4

BxoD DisplayPort c MapKnupOBko DisplayPort.

D. nopt USB Type-C

Iopndepkka aIb. pekma DisplayPort n BxoJa USB BocxOJgero KaHana (noKIOaTcKa pa3bEmAM USB 3.0). Pa3bEm npomapknpoBaH ka TYPE-C. 3TOT pa3bEm nn pa3bEm BOCXODJgero KaHana cJeMy TNOKJIouHTb K pa3bemy USB Ha rnaBHom yctpoiCTBe - TaK Bbl CMOKeTe o6ecneHTb npabnblHyu pa6O TY CORSAIR iCUE n pa3bEmOB USB 3.0 HncxOJauNX KaHaIOB USB.

E. NopTbI USB-IN

Bxohno pa3bem USB Bocxoadjeero kaHana. 3ToT pa3bem nn pa3bem Type-C cneJeT noKIOHTb K pa3bemy USB Ha rnaBHom ycTroYCTBe - TaK Bbl CMOXeTe o6ecnEHTb npabunbHyO pa60Ty CORSAIR iCUE n pa3bemOB USB 3.0 HcXoJnx KaHaoB.

F. NopTbI USB 3.0

CdBoeHHbIe NopTbI USB Type-A co ckopoocTbIO 5 6nt/c.

G. BxOJ noCToHHoro nHTaHn

IopknioaetcK BXoJauemy B KOMnIeK T NOCTabKn aanTepy nepemehHoro TOka.

3KcPnyATAU

YnpaBneHne

BKKIOUOHEHNE BbIKIOUOHEHNE NITAHNA

HAXATNE - OTKpbItb HactpoiKn dncnneer

BBEPX -OTKpbItb noJ3yHOK npKocTn

BHN3 - OTKpbItb MeHIO Bbl6opa pexnMa n3o6paXKeHn

BJIEBO -OTKpbIb non3yHOK rpomKocTn

BnPABO - OTKpbItb MeHIO Bbl6opa nCTouHnka CnHana

Ha 3aHHe cTOpOHe MOHTopa (B erO npaBoY qactn,ecn CMOTpeTb Ha MOHTOp cnepei) paCNoIooKeH JKOJCTNK, KOTOpb INCNoJIb3YeETcI JIe OTKpbITNARpIbIOB HABuRaUIN NO MeHIO HAcTpoE KMOHTOpA. O6paTIte BHNMaHHe: MHOrIe N3 3TNX HAcTpoE TAKKe MoJHo N3MeHrTb B IO CORSAIR iCUE,ecn DnI POdKnIOueHnB Bbl BOCNoJIb3OBaIIncb USB-KoHcEHTpaTopOM,NOkJIIOueHHbIM K BaWemy KOMNbIoTepy C NOMouBIO pa3bema USB IN. YcTaHOBtE aKTyaJIbHyIO BepCIO iCUE (4.24 nnn 60nee HOByIO), cKaayB ee no CcbJIke https://www.corsair.com/us/en/icue.

3KpaHHoe MeHIO (OSD)

Haxab Jxoyntk, Bbl Noluynte doctyn K hactpoikam dncnne Ira BaIero MOHTopa. C nomoubdo jxoiCTNka MoXHO nepemaeatbcra No MeHIO HAcTpoek; HaximaiTe dxKoNCTNK Ira NOdTBePKeDeHna BblOpa.

3KcπIyATAU

OSD: Hactpoien n306paxeHn

IepBoe MeHIO c H3BaHnEM «N3o6paJxHeH» coepKNT nepeuNCJIeHHbI HIXe npaMeTpbl HaCTpOIKN, KOToPbIE NOMOryT ckopkeTnpOBaTB o6Uee KaueCTBO n3o6paJxHeH.

3KcπIyATAU

OSD: Hac tropon n3o6paXeHnA

HACTPOJOI NIPAMETPBJ ONUNCAHNE

Рек immи ззображени

Стандиръьe

Быбраjet ззовскуюPre徴арителънog установлении и тцатьноotkanлбравоганьуностroyддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддd экошимеээсгеляn

Фильм

БыбраjetPre徴аритelънog установлении ustroyдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд ддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд Тект

БыбраjetPre徴аритelънog установлении ustroyддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд эдддддддддддддддддддддддддддддддддддд sRGB

БыбраjetЗвodskуюPre徴аритelънog установлении ustroyдддддддддддддддддд OTКALN6PBOAHHUO HACTPOJY DcINCLPEJДдддддддддд Тьорочьо

БыбраjetЗвodskуюPre徴аритelънog установлении ustroyдддддддд OTKALN6PBOAHHUO HACTPOJY DcINCLPEJДддддд Ддддддддд Тьорочьо

БыбраjetЗвodskуюPre徴аритelънog установлении ustroyдд OTKALN6PBOAHHUO HACTPOJY DcINCLPEJД Ддддд Тьорочьо

БыбраjetЗвodskуюPre徴аритelънog установлении ustroy OTKALN6PBOAHHUO HACTPOJY DcINCLPEJ, OTNIMM3NIPOBAOHHUO Ддд Тьорочьо

БыбраjetЗвodskуюPre徴аритelънog установлении ustroy OTKALN6PBOAHHUO HACTPOJY DcINCLPEJ, OTNIMM3NIPOBAOHHUO Дд Тьорочьо

БыбраjetЗвodskуюPre徴аритelънog установлении ustroy OTKALN6PBOAHHUO HACTPOJY DcINCLPEJ, OTNIMM3NIPOBAOHHUO Дд Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY DcINCLPEJ, OTNIMM3NIPOBAOHHUO Д Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY DcINCLPEJ, OTNIMM3NIPOBAOHHUO Д Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОТКALN6PBOAHHUO HACTPOJY Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОТКALN6PBOAHHUO HACTPOJY Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьорочьо

БыбраjetЗвodskуюPre德 OTKALM6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьорочьо

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьорочьо

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHU0 Тьорочьо

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHU0 Тьорочьо

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHU0 Тьороч术后 КONTPACT

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHU0 Тьороч后 ПОЛБОВАТСКМ Варант

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьороч后 ПОЛБОВАТСКМ Варант

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьороч后 ПОЛБОВАТСКМ Варант

БыбраjetЗвodskуюPre德 OTKALN6PBOAHHUO HACTPOJY ОЛКALN6PBOAHHUO HACTPOJY Тьороч后 ПОЛБОВАТСКМ Варант

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HAC TOK Тьороч后 ПОЛБОВАТСКМ Варант

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HAC TOK Тьороч后 ПОЛБОВАТС Bakl.

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HAC TOK Тьороч后 ПОЛБОВАТС Bakl.

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HAC TOK Тьороч后 ПОЛБОВАТС

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HAC TOK Тьороч后 ПОЛБОВАТС Bakl.

БубраjetЗвodskуюPre德 OTKALN6PBOAHHUO HAC TOK Тьороч后 ПОЛБОВАТС

Тяр imme nizobpaжени

0-100

Peruginayet InTeHcHbHocStb NpOcBcTKu Dincnpej

0-100

Peruginayet KOnTpaCTHoCtStb Dincnpej

0-100

PeruginayetФильчtr yubeiuehenya rezeKoSTn duicnpej, yubeiueHbA yoteu TcHbTHe 3naueHne 9300 K

Tempepatурацета

0-10

PeruginayetФиьчtr yubeiueHbAet zebTOBtu yobeu Tempepatуru Dincnpej Ha 3naueHne 9300 K

0-10

PeruginayetФиьчtr yubeiueHbA yoteu Tempepatуru Dincnpej Ha 3naueHne 9300 K

0-10

PeruginayetФиьчtr yubeiueHbA yoteu Tempepatуru Dincnpej Ha 3naueHne 9300 K

0-10

PeruginayetФиьчtr yubeiueHbA yoteu Tempepatуru Dincnpej Ha 3naueHne 9300 K

0-10

PeruginayetФиьчtr yubeiueHbA yoteu Tempepatуru Dincnpej Ha 3naueHne 9300 K

0-10

PeruginayetФиьчtr yubeiueHbA yoteu TcHbTHe 3naueHne 9300 K

Tikshma

2.0, 2.2, 2.4

Peruginayet cooTHoHSeHne MeeDu ZebTOBcTbU YarKoCTbU; no yomchukho - 2,2

0-10

Peruginayet cooTHoHSeHne MeeDu ZebTOBcTbU; no yomchukho - 2,2

0-10

Peruginayet cooTHoHSeHne MeeDu ZebTOBcTbU; no yomchukho - 2,2

HacbuiuHooctb

0-10

Peruginayet INTeHcHbHocStb Dincnpej HcTo

0-10

Peruginayet INTeHcHbHocStb Dincnpej HcTo

0-10

Peruginayet INTeHcHbHocStb Dincnpej HcTo

Ззштета ззрени

0-10

Peruginayet INTeHcHbHocStb Dincnpej HcTo

0-10

Peruginayet INTeHcHbHocStb Dincnpej HcTo

0-10

Peruginayet INTeHcHbHocStb Dincnpej HcTo

Верma OТКИнka

Hopmahlblny peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckupen

Hopmahlblny peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemnP

Hopmahlblny peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemnp

Hopmahlblny peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemp

Hopmahlblny peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemP

Hopmahlblny peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemm

Hopmahlblny peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemnm

Hopmahlblry peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn

Hopmahlblry peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemnm

Hopmahlbly peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn

Hopmahlblry peşим, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn, yckopemn,

3KcPnyATAUa

OSD: Hactpoikn OSD

Btopoe MeHIO c HauBaHnEM "HaCtpoKn OSD" coedeXHT nepeuHcJIeHHbI HIXe npaMeTpbl HaCTpOKn, KOtOpbl IOMOTyT CKoppeKTnpoBaTb 3KpaHHoe MeHIO.

OSD (On-Screen Display)

J01sTto anochro nre moNtter dsspalei stgcte aee sht h. oisit to sseh stgcte tchcsh t.

#

OSD - 사enet 죽명

“”


Preset

HDR

OSD Setting

Brightness

System Setting

Contrast

Audio

Sharpness

+

Input Source

Color Temperature

Information

Gamma

Saturation

Eye Saver

Response Time

Fast

Refresh Overlay

OFF

#

OSD - 사enet 죽명

Warranty: corsair.com/support/warranty

Support: support.corsair.com

Blog: corsair.com/blog

Forum: forum.corsair.com

YouTube: youtube.com/corsairhowto
