USER MANUAL TB3HDMIDOCK i-TEC

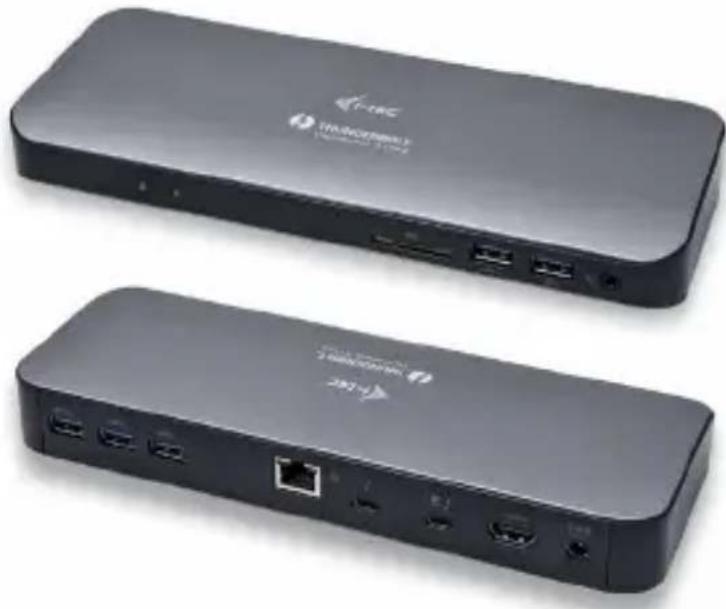

Thunderbolt™ 3 Docking Station + Power Adapter 135W

Power delivery 65.0 W / 2x Thunderbolt™ 3 / 1x 4K HDMI / 1x Gigabit LAN / 5x USB-A 3.0 / 1x SD Card Reader / 1x Combo Audio Jack

User guide · Gebrauchsanweisung · Mode d'emploi Manual de instrucciones · Manuale · Uživotelská príručka Instrukcje obstugi · Uživotelská príručka · Vartotojo vadovas Handleiding

P/N:TB3HDMIDOCK

ENGLISH

Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.cz/en/ in the tab "Manuals, drivers". In case of any issues, please contact our technical support at: [e-mail]

DEUTSCH

Declaration of Conformity 36-37

European Ecodesign Directive. 38-40

INTRODUCTION

Thank you for purchasing the i-tec Thunderbolt™ 3 Docking Station, our product allows you to connect your favourite devices via a single Thunderbolt™ 3 cable to a laptop or tablet with a Thunderbolt™ 3 port. The docking station provides 1x HDMI port and 2x Thunderbolt™ 3 ports (1x Power Delivery 65.0 W), 1x Ethernet GLAN RJ-45 port, 5x USB-A 3.0 ports (one quick-recharging port with BC 1.2 specification), 1x Combo Audio port (headphones and microphone), 1x SD Card Reader

PACKAGE CONTENTS

• i-tech Thunderbolt™ 3 Docking Station + Power Delivery 65.0 W
• Thunderbolt™ 3 cable (70 cm)
  Power adapter (output DC: 20.0V / 6.75A, DC cable 150 cm. AC cable 170 cm)
• Quick Start

SPECIFICATION AND DESCRIPTION

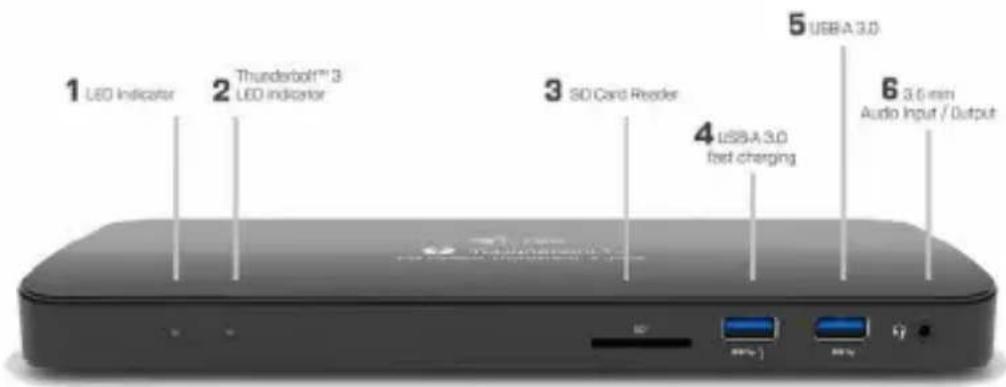

Front panel:

1. LED power - lights with greed color after connection to the power supply line
2. LED Thunderbolt™ 3 - lights with blue color after connection of the docking station to the Thunderbolt™ 3 device
3. SD Card Reader (spec. (SD 4.0 specification)
4. USB-A 3.0 port with quick-recharging, BC 1.2 specification
5. USB-A 3.0 port - super speed data transfer (5 Gb/s), supports USB Hot Swapping function
6. 3.5 mm Combo Audio Jack (2.1 CH)

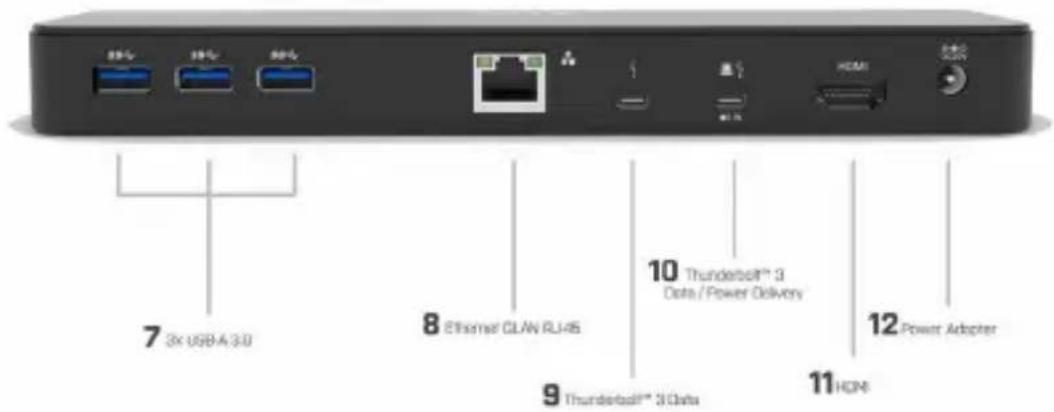

Rear panel:

1. 3x USB-A 3.0 port - super speed data transfer (5 Gb/s), supports USB Hot Swapping function
2. Ethernet GLAN RJ-45 port - supports 10 / 100 / 1000 Mb/s
3. Thunderbolt™ 3 data port - for connection of the Thunderbolt™ 3 / USB-C device to the docking station. Another Thunderbolt™ 3 monitor with resolution of up to 5K can be also connected.
4. Thunderbolt™ 3 data port / Power Delivery - for connection of the docking station to the Thunderbolt™ 3 port of your laptop or for connection of the Thunderbolt™ 3 / USB-C device to the docking station; this port supports a Power Delivery function on profile 5, max. 65.0 W.
5. HDMI port - 4K Ultra HD resolution up to 4096x2160@60Hz
6. Power Jack for a power supply adapter (DC 20.0V / 6.75A) External power supply exclusively for use with TB3HDMIDOCK.

Other specifications:

• Dimensions: 229 × 87 × 27 mm
  Weight: 457 g

SYSTEM REQUIREMENTS

Hardware requirements: Laptop / tablet with a free Thunderbolt™ 3 port

Operating system: Windows 10 32/64 bit, macOS Sierra 10.12 and later Windows 10 and macOS - automatic installation of OS drivers.

CONNECTING THE HDMI / THUNDERBOLT™ 3 MONITOR

For connection of the monitor to the docking station, use a HDMI / Thunderbolt™ 3 cable (for HDMI, we recommend a cable of 2.0 version and higher). During the installation of an additional monitor, the laptop / tablet monitor may blink, this is a normal state. Docking station supports up to two monitors.

Graphic Interface: 1x HDMI and 1x Thunderbolt™ 3 port.

Resolution:

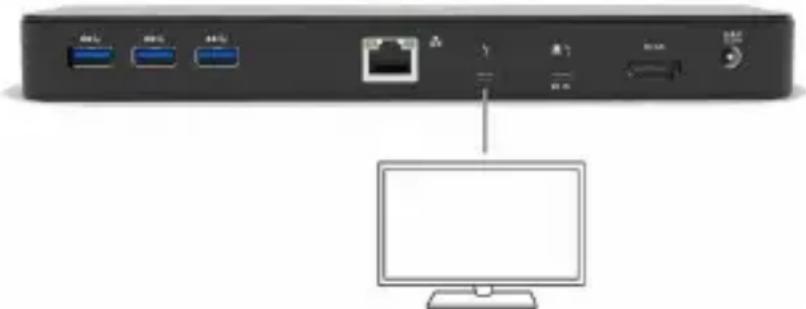

1 monitor connected via a Thunderbolt™ 3 cable - resolution up to 5K 5120x2880@60Hz; HDMI at 5K resolution will be automatically disconnected

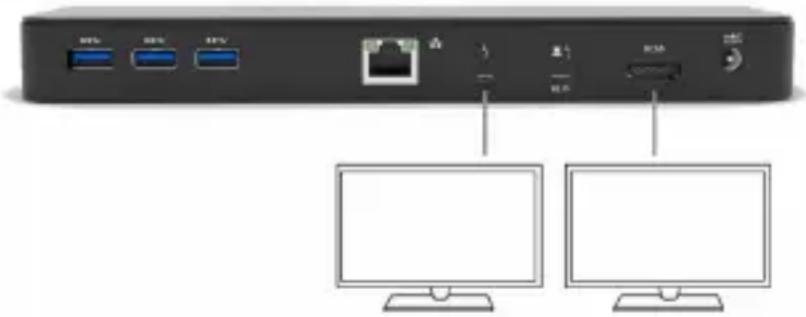

2 monitors connected simultaneously (1x HDMI + 1x Thunderbolt™ 3 port), resolution up to 4K 4096x2160@60Hz

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.
• Use the device on flat surfaces – this will prevent it from slipping and potentially causing damage to the product.
• Keep the user manual for future reference.

In co-operation with the service department:

• Check the functionality if the product receives any damage.
• Send the device back if it does not work in accordance with the user manual.

FREQUENTLY ASKED QUESTIONS

Available on our website www.i-tec.cz/en/ on the "FAQ" tab of this product.

EINLEITUNG

CASTO KLADENE OTÁZKY

CASTO KLADENE OTÁZKY

K dispozicii na našom webe www.i-tec.cz v založke „FAQ" pri tomto produkte.

IVADAS

Dékojame, kas jsigijote dok stotele i-tec, kuri Jums leis patogiai ir greitai prijungti prie nešiojamo kompiuterio, plansetes su Thunderbolt™ 3 prievadu Jusu migstamus irenginius su vieninteliu Thunderbolt™ 3 konektoriumi. Doko stotele turi 1x HDMI prievada, 2x Thunderbolt™ 3 Prievada (1x Power Delivery 65.0 W), 1x Ethernet GLAN RJ-45 prievadas, 6x USB-A 3.0 prievadas (vienes greito jkrovimo prievadas su specifikacika BC 1.2),1x Combo Audio prievadas (ausines ir mikrofonas), 1x isorine nuolatinés srovés jvestis, 1x SD Card Reader.

KOMPPLEKTACIJOJE

• i-tec Thunderbolt™ 3 + Power Delivery 65.0 W doko stotelé
  Kabelis Thunderbolt™ 3 (70 cm)
• Maitinimo adapteris (išvestis DC: 20.0V / 6.75A, DC kabelis 150 cm, AC kabelis 170 cm)
  Quick Start

SPECIFIKACIJA IR APIBUDINIMAS

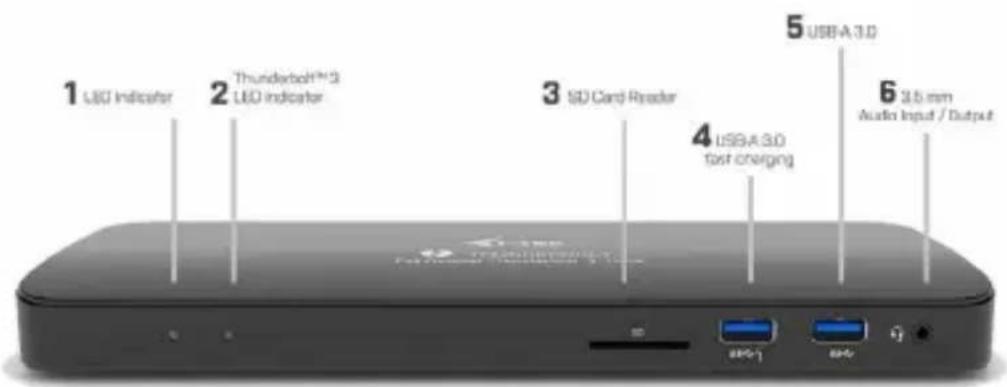

Priekiné dors:

1. LED power - dega zalia prijungus prie maitinimo
2. LED Thunderbolt™ 3 - dega mélyna po doko stoteles prijungimo prie Thunderbolt™ 3 jrenginio
3. SD Card Reader (spec. SD 3.0)
4. Greito jkrovimo USB-A 3.0 prievadas, specifikacja BC 1.2
5. USB-A 3.0 prievadas - super speed data transfer (5 Gb/s), palaiko USB Hot Swapping Funktion
6. 3.5mm Combo Audio Jack (2.1 CH)

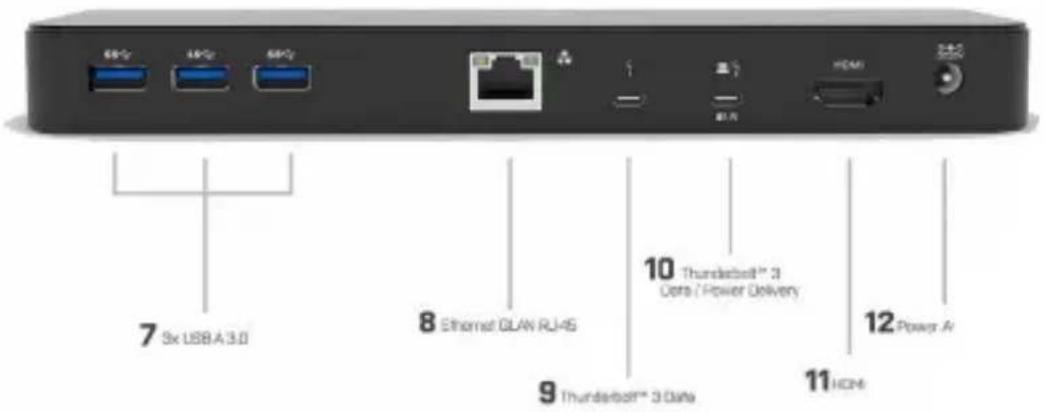

Užpakalé dalis:

1. 3x USB-A 3.0 prievadas - super speed data transfer (5 Gb/s), palaiko USB Hot Swapping fungcija
2. Ethernet GLAN RJ-45 prievadas - palaiko 10 / 100 / 1000 Mb/s
3. Thunderbolt™ 3 data prievas - prijungimui Thunderbolt™ 3 / USB-C jrenginio prie doko stoteles. Galima prijungti ir kitä Thunderbolt™ 3 monitori su raiska iki 5K
4. Thunderbolt™ 3 data prievas / Power Delivery - doko stoteles prijungimui prie nesiojamo kompiuterio Thunderbolt™ 3 prievado arba Thunderbolt™ 3 / USB-C jrenginio prijungimui prie doko stoteles, šis prievadas palaiko Power Delivery funkcjja profile 5, max. 65.0 W.
5. HDMI prievadas - 4K Ultra HD raiska iki 4096x2160@60Hz
6. Power Jack maitinimo adapteriui (DC 20.0V / 6.75A)
   Išorinis energijos šaltinis, skirtas naudoti tik „TB3HDMIDOCK".

Kita specifikacja:

Matmenys: 229 × 87 × 27 ~mm
- Svoris: 457 g

SISTEMOS REIKALAVIMAI

This equipment is marked with the above recycling symbol. It means that at the end of the life of the equipment you must dispose of it separately at an appropriate collection point and not place it in the normal domestic unsorted waste stream. This will benefit the environment for all. (European Union only).

DEUTSCH

This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

EU DECLARATION OF CONFORMITY / EU KONFORMITÄTSERKLÄRUNG / DÉCLARATION EU DE CONFORMITE / DECLARATION UE DE CONFORMIDAD / DICHIARAZIONE DI CONFORMITA UE / EU PROHLÁSENÍ O SHODE / EU PREHLÁSENIE O ZHODE / EU DECLARACJA ZGODNOSCI / ES ATITIKTIES DEKLARACIJA / EU-CONFORMITEITSVERKLARING

Manufacturer, Der Hersteller, Le fabricant, Fabricante, Produttore, Vyrobce, Vyrobca, Producent, Gamintojas, De fabrikant:

i-tec Technologies s.r.o., Kalvodova 2, 709 00 Ostrava - Mariánské Hory, Czech Republic

declares that this product / erklärt hiermit, dass das Produkt / déclare que ce produit / déclarare que este produito / dichiara che il seguente prodotto / tímto prohlasuje, ze vyrobek / tymto prehlasuje, ze vyrobok / deklaruje, ze produit / siuo pareiskia, kad gaminys / verklaart hierbij dat het product

Product, Bezeichnung, Le prénom, Producto, Prodotto, Název, Názov, Nazwa, Gaminys, Naam: i-tec THUNDERBOLT 3 Docking Station

Model, Modell, Modèle, Modelo, Modello, Modelis: TB3HDMIDOCK / DBB1230L1

Determination, Bestimmung, La détermination, Determinación, Determinazione, Určeni, Určenie, Opcje, Ustatymas, Doel:

Product is determined for using in PC as equipment. Das Produkt ist für Austattung und als Zubehör von Computern bestimmt. Le produit est déterminé pour une utilisation sur PC comme équipement. El produit se détermina para usar en PC como equipo. Destinato per essere usato come attrezzatura informatica o come accessorio per computer. Vyrobek je urcen pro pristrojové vybaveni a jako prislušenství do počitaču. Vyrobok je urceny pre pristrojové vybavenie a jako prislušenstvo do počitačov. Produkt jest przyznaczony do wspołpracy z komputerem jako akcesorium. Gaminys yra skirtas jrangai papildyi ir naudojamas kaip priedas kompiuteriams. Het product is bedoeld als uitrusting voor apparaten en als computeraccessaire.

Meets the essential requirements according to / Es entspricht den Anforderungen der Richtlinien / Répond aux exigences essentielles selon / Cumple los requisitos esencias según / Soddisfa i requisiti essenziali secondo / Splnje tyto požadavyk/ Splna tieto požadavyk / Spelnia nastepujace wymagania / Atitinka esminius reikalavimus pagal / Het voldoet aan de volgende vereisten:

EC Directive 2014/30/EU, 2014/35/EU, 2011/65/EU and 2009/125/ES

EMS (For EMC, Für EMC, Pour la CEM, Para EMC, Per la compatibilità elettromagnetica, Pro EMC, Pre EMC, Dla Kompatybilnosci elektromagnetycznej, Skirtas EMC, Voor EMC): EN 55032:2015/AC:2016 (EN61000-3-2:2014, EN61000-3-3:2013) EN 55024:2010+A1:2015 (EN61000-4-2:2008, EN61000-4-3:2010, EN61000-4-4:2012, EN61000-4-5:2014, EN61000-4-6:2013, EN61000-4-8:2009, EN61000-4-11:2004) EN 55032:2012+AC:2013 Class B

For Electrical Safety, Für die elektrische Sicherheit, Pour la sécurité électrique, Para la sécurité elektrica, Per la sicurezza elettrica, Pro Elektrickou bezpečnost, pre Elektricku bezpečnost', dla Bezpieczeniastwa, Elektros saugai, Voor elektrische veiligung: EN 62368-1:2014+A11:2017

RoHS: 2011/65/EU; EU 2015/863

and it is safety under conditions of standard application / und ist sicher bei standardmäßiger Nutzung / et c'est la sécurité dans des conditions d'application standard / y es seguridad bajo conditiones de aplicacion estandar / ed è sicuro in condizioni d'uso normali / a je bezpečný za podminek obvykleho použití / a je bezpečný za podmienok obvykleho použitia / oraz jest produktem bezpiecznym przy standardowym wykorzystwyaniu / ir naudojant jprastomis salygomis yra saugus /en is veilig onder de omstandigheden van normala gebruik.

Additional information, Ergänzende Angaben, Information additionnelle, Información Adicional, Informazioni integrative, Doplñujíci informace, Doplñujúce informácie, Dodatkowe informacea, Papildoma informacija, Aanvullende informatie:

Identification Mark, Identifikationskennzeichen, La marque d'identification, Marca de identificacion, Segno di identificazione, Identificačné značka, Identificačné značka, Znak identyifikacyjny, IdentifikavimoŽenklas, Identificatiemerk:

Ostrava 14.8.2020

Ing. Lumír Kraina

EN Amendment to user manual providing all necessary information required by COMMISSION REGULATION (EU) 2019/1782. (This product meets all the requirements laid down by the above regulation).
