Foodi JC100EU - Juicer NINJA - Free user manual and instructions

Product Type	Juice Extractor with Auger
Brand	Ninja
Model	Foodi JC100EU
Power Supply	220-240 V ~ 50-60 Hz
Power	150 W
Pulp Container Capacity	710 ml
Juice Pitcher Capacity	500 ml
Materials	BPA-free plastic, stainless steel (auger)
Included Filters	3 filters: black (low pulp), gray (medium pulp), orange (high pulp)
Main Functions	Cold extraction, reverse function (REVERSE), anti-drip system
Control Panel	START/STOP and REVERSE buttons
Safety	Automatic shut-off in case of overload, 2-minute timeout
Cleaning	Dishwasher-safe parts (except motor block), cleaning brush included
Warranty	2 years (legal and commercial warranty)
Included Accessories	Cleaning brush, pusher, tray, 500 ml pitcher, 710 ml pulp container
Country of Origin	Not specified in the manual

Frequently Asked Questions - Foodi JC100EU NINJA

What should I do if the appliance stops and beeps?

This indicates an overload. Wait 2 minutes, then press START/STOP to restart.

How to use the REVERSE function?

Hold down the REVERSE button: a beep sounds, then the auger turns in the opposite direction. Release to stop. Repeat if necessary, then press START/STOP to resume.

Why is there pulp buildup in the chute?

Stop the appliance, remove the pulp cap, and use the end of the cleaning brush to dislodge food. Reinstall the cap and resume extraction.

Can I use frozen fruits or vegetables or ice cubes?

No, do not use frozen ingredients or ice cubes. They could damage the appliance.

Do I need to remove pits and seeds from fruits?

Yes, remove pits (cherries, plums, etc.) and seeds from fruits like mangoes before extraction.

Is a grinding noise normal?

Yes, it's normal when pressing fibrous ingredients like apples or celery. Do not worry.

How to get more juice?

Use the gray filter (medium pulp) or orange filter (high pulp) for fibrous fruits. Ensure the extractor presses each ingredient before adding a new one.

How to clean a clogged pulp filter?

Use the provided cleaning brush. For stubborn residue, you can wash the filters in the dishwasher (top rack).

Which filter to use for more or less pulp?

The black filter gives low pulp, the gray medium pulp, and the orange high pulp. Choose according to your preference.

What does the 2-year warranty cover?

The warranty covers defects in design, materials, and workmanship. It does not cover normal wear, accidental damage, or improper use.

USER MANUAL Foodi JC100EU NINJA

DEN TIL FREMTIDIGE OPSLAG.

Tipu: Du kan finde model- og seriernumpe maerkaten med QR-koden pa bagsden at apparater ved siden at stromkabet.

Denne maerknng angiver, at dette produkt icke ma bortskaesammen med andet husholdingsaffald EU. For at forhindre mulig skade

Fremsilling at juice 9

Demontoring 9

8 |ninjakitchen.eu ninjakitchen.eu

7 Vlaig START/STOP, og tilsaet derefter
gradvi ingredienscner gonnem
pafydningstragen. For at opne de
badste resultater skal du lado juiceren
bonendle hvar ingrediens, irden du
haelder mere i pafydningstragen.
Brug lamperpingen tll al skubbe
ingredienscner ncd gonnem
pafydningstragen after behov.
N Nar din juice er faerdig, skal du vaige-START/STOP og dorfer luike antidryphandtaget. Omrar din juice, og servar den. Rester at frugtkd vil ble afjret i frugtkedchohderen.

VIGTIG: UNDGÀ at héde frosne frugter og grontsager erer is i apparatet.

mikitchen.eu/register-guarantee/

20 |ninjakitchen.eu ninjakitchen.eu

PFLEGE UND WARTUNG

REINIGUNG

for purchasing the Ninja' Slow Juicer

REGISTER YOUR PURCHASE

ninjakitchen.eu/register-guarantee/

Scan QR code using mobile device

RECORD THIS INFORMATION

Mode Number

Serial Number

Date of Purchase:

(Keep receipt)

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage 220-240V, 50-60Hz

Power:

150W

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

TIP: You can find the model and serial numbers on the QR code label on the back of the unit by the power cord.

This marking indicates this product should not be disposed of with other household wastes throughout the EU. To prevent possible

harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material sources.To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

CONTENTS

Important Safety Instructions. 28

Parts 30

Before First Use 31

Features 31

Using the Control Panel 31

Using the Filters for Pulp Control 31

Using the Julcer 32

Assembly 32

Juicing 33

Disassembly 33

Care & Maintenance. 34

Cleaning 34

Storing 34

Overloading the Unit 34

Troubleshooting Guide. 35

Product registration 36

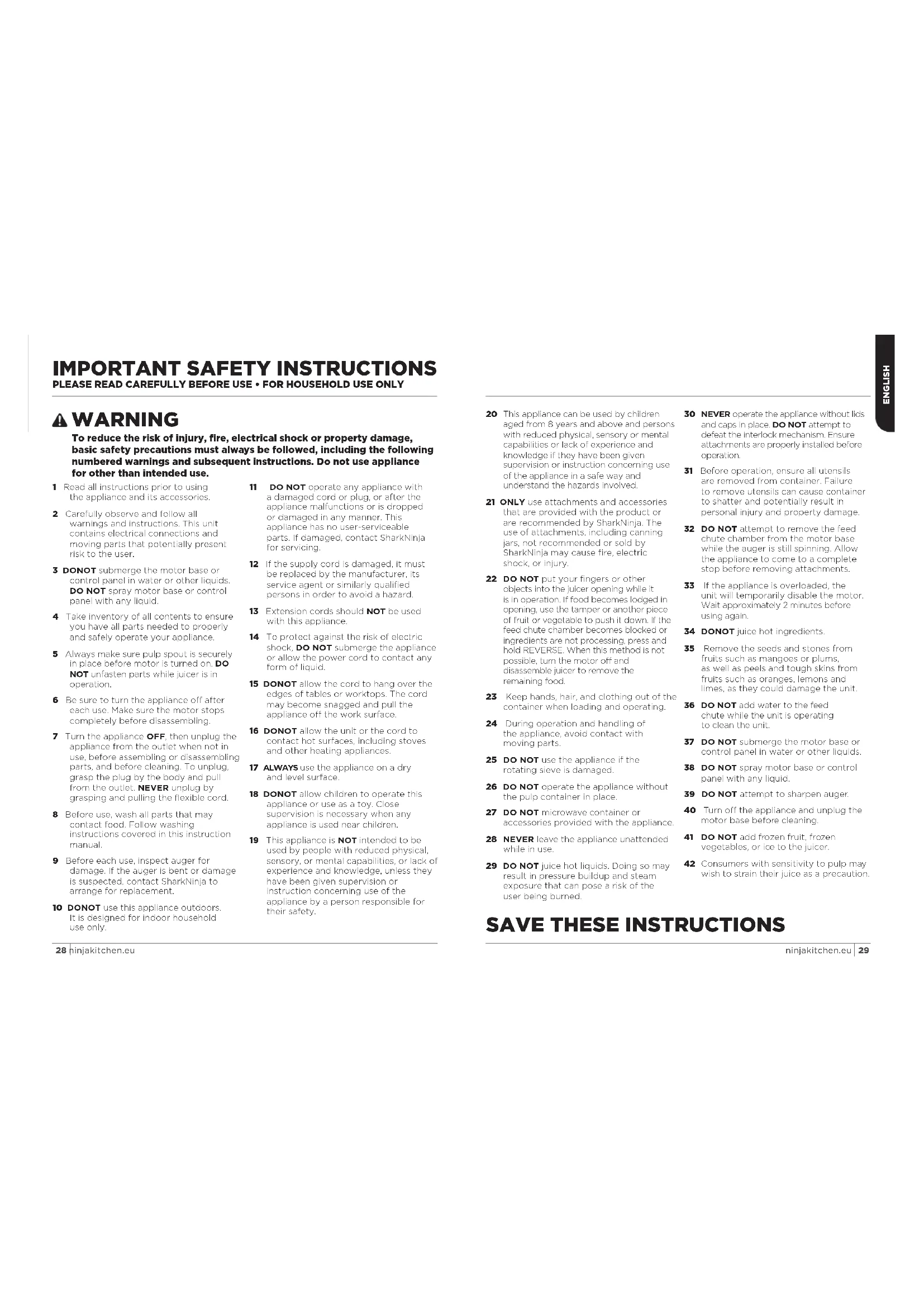

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY

4WARNING

To reduce the risk of injury, fire, electrical shock or property damage, basic safety precautions must always be followed, including the following numbered warnings and subsequent instructions. Do not use appliance for other than intended use.

1 Read all instructions prior to using the appliance and its accessories.
2 Carefully observe and follow all warnings and instructions. This unit contains electrical connections and moving parts that potentially present risk to the user.
3 DONOT submerge the motor base or control panel in water or other liquids. DO NOT spray motor base or control panel with any liquid.
4 Take inventory of all contents to ensure you have all parts needed to properly and safely operate your appliance.
5 Always make sure pulp spout is securely in place before motor is turned on. DO NOT unfasten parts while juicer is in operation.
6 Be sure to turn the appliance off after each use. Make sure the motor stops completely before disassembling.
7 Turn the appliance OFF, then unplug the appliance from the outlet when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp the plug by the body and pull from the outlet. NEVER unplug by grasping and pulling the flexible cord.
8 Before use, wash all parts that may contact food. Follow washing instructions covered in this instruction manual.
Before each use, inspect auger for damage. If the auger is bent or damage is suspected, contact SharkNinja to arrange for replacement.
10 DONOT use this appliance outdoors. It is designed for indoor household use only.

11 DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. This appliance has no user-serviceable parts. If damaged, contact SharkNinja for servicing.
12 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13 Extension cords should NOT be used with this appliance.
14 To protect against the risk of electric shock, DO NOT submerge the appliance or allow the power cord to contact any form of liquid.
15 DONOT allow the cord to hang over the edges of tables or worktops. The cord may become snagged and pull the appliance off the work surface.
16 DONOT allow the unit or the cord to contact hot surfaces, including stoves and other heating appliances.
17 ALWAYS use the appliance on a dry and level surface.
18 DONOT allow children to operate this appliance or use as a toy. Close supervision is necessary when any appliance is used near children.
19 This appliance is NOT intended to be used by people with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

20 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
21 ONLY use attachments and accessories that are provided with the product or are recommended by SharkNinja. The use of attachments, including ceninge jars, not recommended or sold by SharkNinja may cause fire, electric shock, or injury.
22 DO NOT put your fingers or other objects into the juicer opening while it is in operation, if food becomes lodged in opening, use the tamper or another piece of fruit or vegetable to push it down. If the feed chute chamber becomes blocked or ingredients are not processing, press and hold REVERSE. When this method is not possible, turn the motor off and disassemble juicer to remove the remaining food.
23 Keep hands, hair, and clothing out of the container when loading and operating.
24 During operation and handling of the appliance, avoid contact with moving parts.
25 DO NOT use the appliance if the rotating sieve is damaged.
26 DO NOT operate the appliance without the pulp container in place.
27 DO NOT microwave container or accessories provided with the appliance.
28 NEVER leave the appliance unattended while in use.
29 DO NOT juice hot liquids. Doing so may result in pressure buildup and steam exposure that can pose a risk of the user being burned.

30 NEVER operate the appliance without lics and caps in place. DO NOT attempt to defeat the interlock mechanism. Ensure attachments are properly installed before operation.
Before operation, ensure all utensils are removed from container. Failure to remove utensils can cause container to shatter and potentially result in personal injury and property damage.
32 DO NOT attempt to remove the feed chute chamber from the motor base while the auger is still spinning. Allow the appliance to come to a complete stop before removing attachments.
33 If the appliance is overloaded, the unit will temporarily disable the motor. Wait approximately 2 minutes before using again.
34 DONOT juice hot ingredients.
35 Remove the seeds and stones from fruits such as mangoes or plums, as well as peels and tough skins from fruits such as oranges, lemons and limes, as they could damage the unit.
36 DO NOT add water to the feed chute while the unit is operating to clean the unit.
37 DO NOT submerge the motor base or control panel in water or other liquids.
38 DO NOT spray motor base or control panel with any liquid.
39 DO NOT attempt to sharpen auger.
40 Turn off the appliance and unplug the motor base before cleaning.
41 DO NOT add frozen fruit, frozen vegetables, or ice to the juicer.
42 Consumers with sensitivity to pule may wish to strain their juice as a precaution

PARTS

A.Cleaning Brush
B Tamper
Food Tray
Feed Chute Chamber with Anti-Drip Lever
E Augcr
Black Filter (low pulp)
Grey Filter (medium pulp)
H Orange Filter (high pulp)
Inner Pulp Spout
Outer Pulp Spout
K 500ml Juice Jug
710ml Pulp Container
M Motor Base (power cord not shown)

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, visit ninjakitchen.eu

BEFORE FIRST USE

IMPORTANT: Review all warnings on pages 28-29 before proceeding.

NOTE: All attachments are BPA free and dishwasher safe.

1 Remove all packaging materials from the unit.
NOTE: The feed chute chamber (D) auger (F), orange filter (H) and 2-part spout (I,J) are pro-assembled.
2 Disassemble and clean all parts before first use. Wash parts in warm, soepy, water, then thoroughly rinse and air-dry all parts.
3 Who control panel with a soft cloth. Allow it to dry completely before using.
4. Assemble as per instructions on page 32.

FEATURES

USING THE CONTROL PANEL

START/STOP

Press once to start continuous running up to 12 minutes; press again to stop.

USING THE FILTERS FOR PULP CONTROL

Control the amount of pulp by choosing the desired filter.

HIGH PULP

use the orange filter with the largest mesh for juice with lots of pulp.

NOTE: For best results, we recommend using the Grey (Medium Pulp) or Orange (High

Pulp) filter when processing soft fiorous fruits like berries, seeded melons and pineapple.

USING THE JUICER

ASSEMBLY JUICING DISASSEMBLY

IMPORTANT: Review all warnings on pages 28-29 before proceeding.

1 Plug in motor base and place on a clean, dry, level surface such as a worktop or table.

2 Insert the auger into the feed chute chamber, then attach the desired filter onto the auger, with the metal portion of the filter on the bottom of the auger.

3 Attach the inner pulp spout to the feed chute chamber by installing at an angle, on top of the filter, then turning anti-clockwise to lock in place. Ensure the word Ninja is facing upwards. Then attach the outer pulp spout by installing at an angle, on top of the inner pulsopt, and turning anti-clockwise to lock in place.

4 Install the assembled feed chute chamber on the motor base at an angle, then turn anti-clockwise until it clicks into place.

5 Install the food tray on the top of the feed chute.

1. Place the pulp container under the pulp spout, then place the juice jug under the anti-drip lever on the feed chute chamber.

ninjakitchen.eu ninjakitchen.eu

7 Select START/STOP, then gradually add ingredients to the feed chute. For best results, allow juice to process each ingredient before adding more to the feed chute. Use the tamper to push ingredients down through the feed chute, as needed.
8 When juicng is complete, select START/STOP, then close the anti-drip lever. Stir juice and serve. Residual pulp will be deposited in the pulp container.

IMPORTANT:DO NOT add frozen fruits and vegetables or ice to the unit.

NOTE: If the feed chute chamber becomes blocked or ingreciants are not processing, press and hold REVERSE. There will be a beep and a brief pause, then the auger will rotate in the opposite direction. Release REVERSE to stop. Repeat as needed. Press START/STOP to resume normal operation.

NOTE: Refer to the Recipe Guide for ideas of how to use the leftover pulp.

9 To disassembie, press and hold the RELEASE button while turning the feed chute chamber clockwise and remove from motor base.

10 Remove the pulp spout from the feed chute chamoer by turning clockwise to remove the outer pulp spout, then twist the inner pulp spout clockwise to remove. Remove the filter and auger by gently pulling out of the feed chute.
Unpig the unit when finished, if moving the unit, grab from the bottom of the base. Refer to the Care & Maintenance section for cleaning and storage instructions.

CARE & MAINTENANCE TROUBLESHOOTING GUIDE

CLEANING

IMPORTANT: DO NOT add water to the feed chute while the unit is operating to clean the unit.

-Hand-Washing

Rinse clean under running water, or for a deeper clean, wash parts in warm, soapy water. Use the included cleaning brush for hard-to-clean areas, such as the filter.

-Dishwasher

All parts, except the motor base, are dishwasher safe.

- Motor Base

Unolug the motor base before cleaning. Wipe with a clean, damp cloth.

DO NOT use abrasive cloths, pads or brushes to clean the base.

Using the Cleaning Brush

Use the included cleaning brush to clean hard-to-reach places, as well as remove excess residue.

Use the end of the cleaning brush to clear any buildup left over after juicing.

Use the bristle side of the cleaning brush to clean the filter, if needed.

STORING

For cord storage, wrap cord with hook-and-loop fastener near the back of the motor base.

DO NOT wrap the cord around the bottom of the base for storage.

If moving the unit, grab from the bottom of the base. Store the auger and filter assembled in the feed chute chamber with the pulp spout installed. Place the juice jug into the pulp container for easy storage.

OVERLOADING THE UNIT

This unit features a unique safety system that prevents damage to the motor and drive system should you inadvertently overload the motor. If the unit is overloaded, the motor will be temporarily disabled. Should this occur, wait 2 minutes, then press START/STOP to start the unit.

WARNING: To reduce the risk of shock and unintended operation, unplug unit before troubleshooting.

The REVERSE program is not operating.

After pressing and holding REVERSE, there will be a beep and a brief pause, then the augcr will rotate in the opposite direction. Release REVERSE to stop. Roccal as recoced. Press START/STOP to resume normal operation.

There is a build-up of pulp in the feed chute chamber.

• There may be a clog in the pulp spout. Press START/STOP to stop the unit, then remove the pulp spout. Use the end of the cleaning brush to clear the clog, then reinstall the pulp spout to the feed chute chamber. Resume juicing.

• For best results, allow juicer to process each ingredient before adding more to the feed chute. Use the tamper to push ingredients down through the feed chute, as needed.

The unit stopped working and is beeping.

• The unit was overloaded with ingredients. Wait 2 minutes then press START/STOP to start the unit.

Can I juice fruit with seeds and stones in it?

No, Seeds and stones should be removed from the fruit prior to juicing. For example, remove the seeds from cherries and the stone from a plum.

Can I juice frozen fruits and vegetables or add ice?

No, do not use frozen fruit, frozen vegetables or ice with this unit.

The unit makes a squeaking noise when I juice certain Ingredients.

• When the auger is breaking down fibrous ingredients like apples, celery, herbs and loafy greens, the unit will sometimes make this noise. This is normal and not a cause for concern.

There is clogging in the pulp filter.

• When judging solely fibrous ingredients, such as pineapple, you may have to clear the filter of pulp more often, especially when using the low pulp filter.

The unit is producing less juice than I anticipated based on the amount of produce I used.

Extracts up to 75% of the fruit with minimal heat transfer for a cooler juice. Tested with peeled oranges, grapes, pomegranates and watermelons. Yield subject to variety, season & ripeness.

Depending on the seasonality of ingredients, you may experience lower juice and pulp yield when using the Low Pulp Filter. If this occurs, try using the Medium Pulp Filter.

PRODUCT REGISTRATION

TWO (2) YEAR LIMITED GUARANTEE

When you buy a product in Europe as a consumer, you get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these statutory rights against your retailer. However, at Ninja we are so confident about the quality of our products (the "Products") that we give you a manufacturer's guarantee of two years. This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only - your statutory rights as a buyer are unaffected. Please note that the 2 year guarantee is available in all EU countries.

The conditions below describe the prerequisites and scope of our guarantees which are issued by SharkNinja Germany GmbH, c/o Rogus Management GmbH, Excellent Business Center 10. + I/ Stock, Westahafenplatz 1, 60327 Frankfurt am Main (Germany) ("us", "our" or "we"). They do not affect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Ninja.

Ninja* Guarantees

A household kitchen appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Our customer service helpline (0800 000 9063) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Ninja representative. You'll also find online support at www.rinjakitchen.eu.

How do I register my guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

Model no.
Serial Number (only if available)
- Date of purchase of the Product (receipt or delivery note)

To register online, please visit www.ninjakitchen.eu

IMPORTANT

The guarantee covers your Product for 2 years starting on the date of purchase.
Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee.

What are the benefits of registering my guarantee?

When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. I hear the latest news about new Ninja technology and launches. If you register your guarantee online, you'll get instant confirmation that we've received your details.

For details of our privacy policy please visit www.ninjakitchen.eu

How long are our Products guaranteed for?

Our confidence in our design and quality control means that your Product is guaranteed for two years.

What Is covered by the guarantee?

Repair or replacement (at Ninja's discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer.

What is not covered by the guarantee?

Normal wear and tear.
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the kitchen appliance which is not in accordance with the Ninja® Instruction Manual supplied with your machine.
- Use of the kitchen appliance for anything other than normal domestic household purposes
- Use of parts not assembled or installed in accordance with the operating instructions.
Use of parts and accessories which are not NinjaGenuine Components.
- Faulty installation (except where installed by Ninja®).
- Repairs or alterations carried out by parties other than Ninja or its agents, Repairs or alterations carried out by parties other than Ninja or its agents, unless you can show that the repairs or alterations carried out by others are not related to the defect for which you exercise the guarantee.

What happens when my guarantee runs out?

Ninja does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their kitchen appliance after the guarantee has elapsed. In this case please contact our free phone customer service help line and ask about our guarantee program, on 0800 000 9063.

Where can I buy genuine Ninja spares and accessories?

Ninja spares and accessories are developed by the same engineers who developed your Ninja kitchen appliance. You'll find a full range of Ninja spares, replacement parts and accessories for all Ninja machines at www.ninjaikitchen.eu

Please remember that using non-Ninja spares may invalidate your manufacturer's guarantors. However, your statutory rights are unaffected.

GRACIAS

ninjakitchen.eu ninjakitchen.eu

CÓMOSUARELEXPRIMIDOR

MONTAJE LICUADO DESMONTAJE

ninjakitchen.eu ninjakitchen.eu

ninjakitchen.eu ninjakitchen.eu

REGISTRO DEL PRODUCTO

GARANTÍA LIMITADA DE DOS (2) ANOS

mikitchen.eu/register-guarantee/

ninjakitchen.eu ninjakitchen.eu

HVORDAN DU BRUKER JUICEREN

IKKE xveil kapeelen runot bunnen avenheten for oppoevering.

Lag o hold enhelen burnner nu d flyiter den. Oopbevar skruen og filteront monert i materzret med ferutupet installer. Plasser saftmuggen i fiberbdenor den for enkel opbevarying.

OVERBELASTNING AV ENHETEN

Enheten har et unkit sikernethsystem som forhindrkr skade p motoren og cirvssysteme nvis du tifeldigvis skulle overbelaste don. Hivns enheten bil overbelastere, vi motoren deaklvteres miierlalig. Hvles dette skjer, vent 12 minuot erogtrykk oerreter START/STOPA for a starte herten.

FEILSKINGSVEILEDNING

© 2021 SharkNinja Operating LLC. TRYKT I KINA

DEUTSCH

© 2021 SharkNinja Operating LLC. GEDRUCKT IN CHINA

ENGLISH

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.

NINJA is a registered trademark of Shark Ninja Operating LLC.

© 2021 SharkNinja Operating LLC. PRINTED IN CHINA

ESPANOL

© 2021 SharkNinja Operating LLC. IMPRESO EN CHINA

FRANÇAIS

© 2021 SharkNinja Operating LLC. IMPRIMPÉ EN CHINE

ITALIANO

© 2021 SharkNinja Operating LLC. STAMPATO IN CINA

SharkNinja Europe Limited

3150 Century Way

Thorpe Park

Leeds

LS15 8ZB

UK

ninjakitchen.eu

JC100EU_IB_MP_210412_ALL_Mv1

NEDERLANDS

© 2021 SharkNinja Operating LLC.

GEDRUKT IN CHINA

NORSK

© 2021 SharkNinja Operating LLC. TRYKKET I KINA

PORTUGUESE

© 2021 SharkNinja Operating LLC. IMPRESSO NA CHINA

SUOMI

© 2021 SharkNinja Operating LLC. PAINETTU KINASSA

SVENSKA

© 2021 SharkNinja Operating LLC. TRYCKT I KINA

SharkNinja Germany GmbH, c/o Regus Management GmbH Excellent Business Center 10 +11/Stock Westhafenplatz 1 60327 Frankfurt am Main, Germany

ninjakitchen.eu
