USER MANUAL CMG20SMW CANDY

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

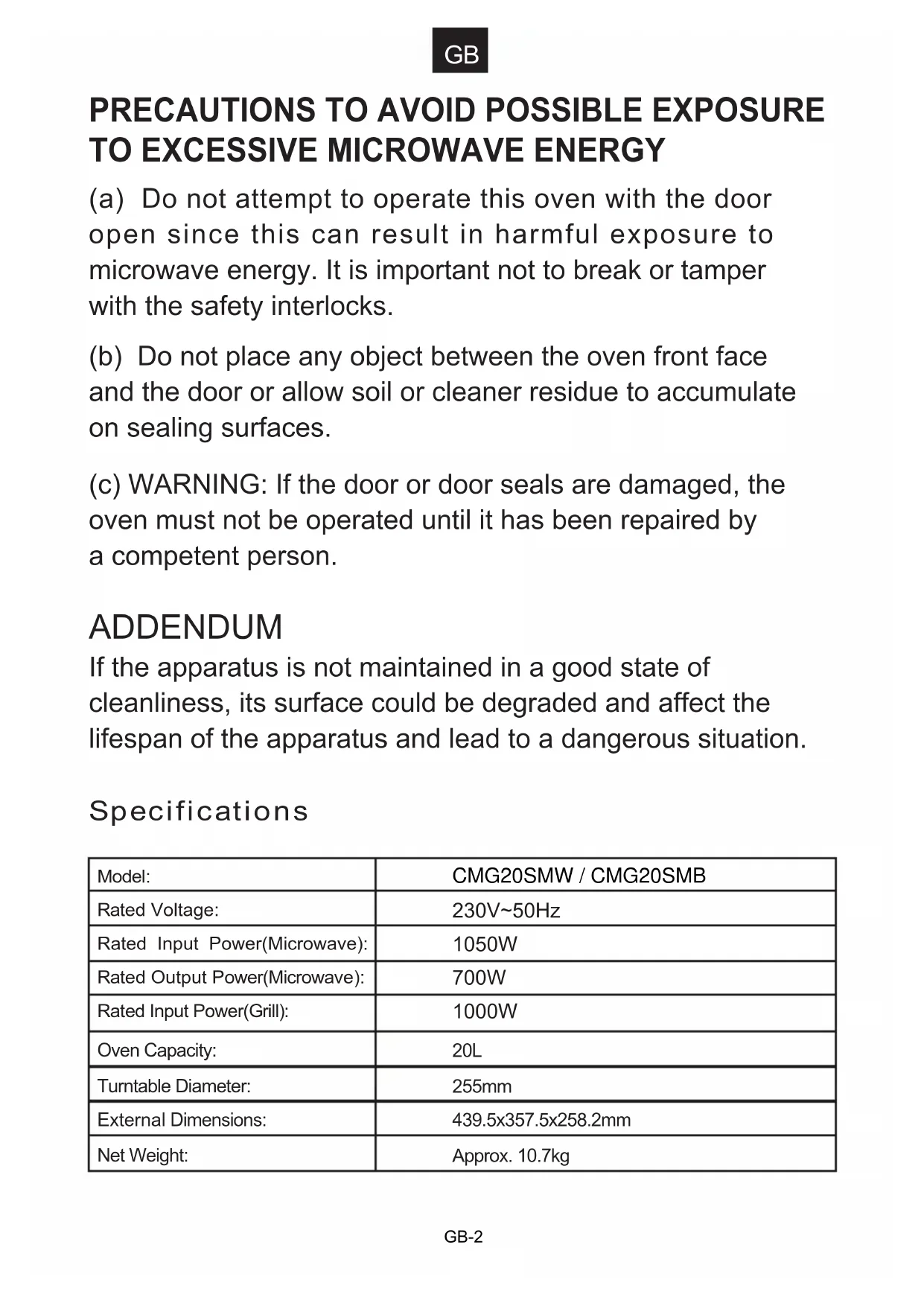

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CMG20SMW / CMG20SMB
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1050W
Rated Output Power(Microwave):	700W
Rated Input Power(Grill):	1000W
Oven Capacity:	20L
Turntable Diameter:	255mm
External Dimensions:	439.5x357.5x258.2mm
Net Weight:	Approx. 10.7kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. Only use utensils that are suitable for use in microwave ovens.
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.
15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

GB

1. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
2. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

3. This appliance is intended to be used in household and similar applications such as:

4. staff kitchen areas in shops, offices and other working environments;

5. by clients in hotels, motels and other residential type environments;
   -farm houses;

6. bed and breakfast type environments.

7. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

8. Metallic containers for food and beverages are not allowed during microwave cooking.
9. The appliance shall not be cleaned with a steam cleaner.
10. The appliance is intended to be used freestanding.
11. The rear surface of appliances shall be placed against a wall.
12. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
13. The temperature of accessible surfaces may be high when the appliance is operating.
14. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified
electrician or serviceman
if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2)The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils

Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils

Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

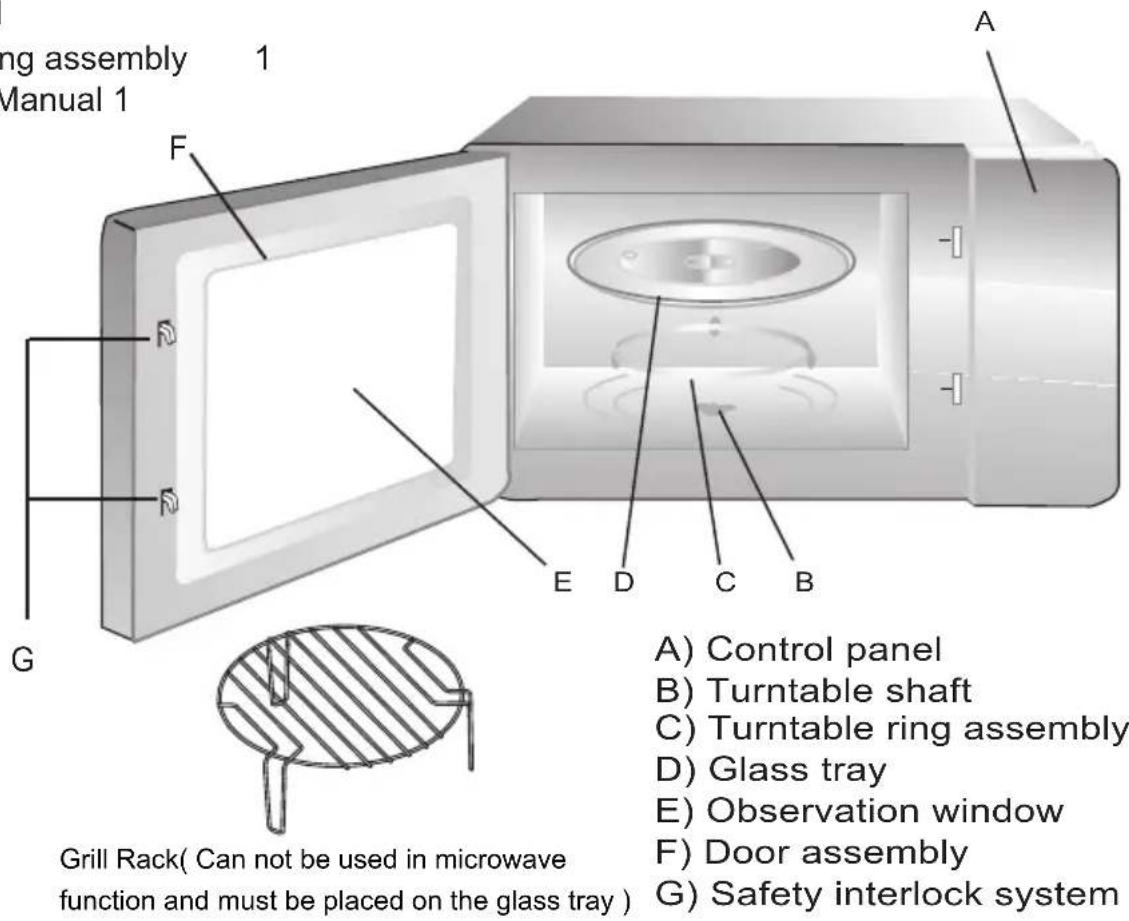

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1
Turntable ring assembly 1
Instruction Manual 1

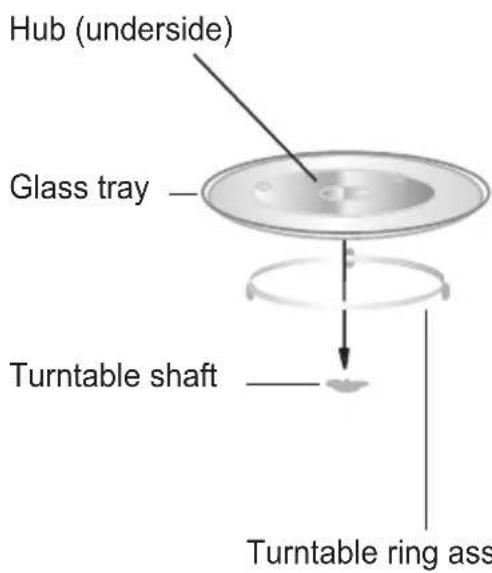

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

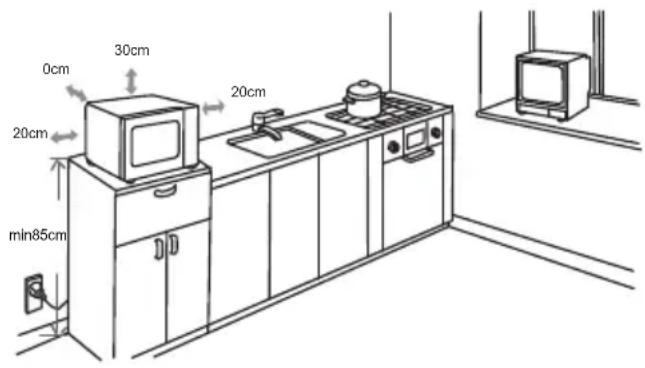

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm .
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during open

OPERATION

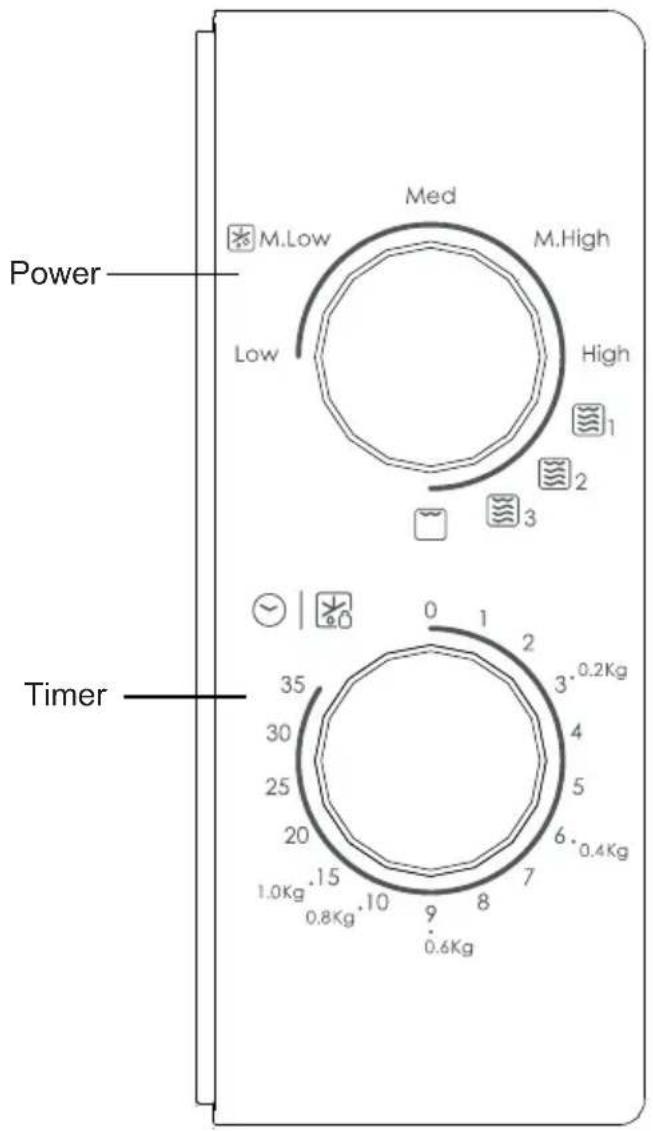

Control Panel and Features

Operation Instructions

1. To set cooking power by turning the power knob to desired level.
   2.To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
2. The microwave oven will automatically start cooking after power level and time are set.
3. After the cooking time is up, the unit will "Dong" to stop.
   5.If the unit is not in use, always set time to "0".

Function/Power	Output	Application
Low	119W	Soften ice cream
M. Low (Defrost)	231W	Soup stew, soften butter or defrost
Med.	385W	Stew, fish
M. High	539W	Rice, fish, chicken, ground meat
High	700W	Reheat, milk, boil water, vegetables, beverage
1	80% grill 20% micro.	Sausage, Lamb, Kabobs, Seafood, Steak
2	70% grill 30% micro.	Chicken pieces, Chicken breasts, Pork chops
3	60% grill 40% micro.	Whole chicken
	100% grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the clock switch to 0 (zero). Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

Horno microondas

MODELO: CMG20SMW CMG20SMB

MANUEL D'INSTRUCTIONS

MODELE:CMG20SMW CMG20SMB

Onachoct ot HapaHЯBaHe

Опасно e 3a BCEKN, KOДTo He e Лицe, obучени Да ИЗВьршВа сервИЗна Или РемоHTHа DeйHOCT, KОТВКЛЮЧВа CBалЯНe Ha KaПak, KOДTO OСИгУРЯВa 3aШNTa cpeшу ИЗларанe Ha MИКРовьЛHOBa eHEprn.

BnKTe HNCTpykUInTe 3a ,MaTePnAnu, KOtO MoKeTe Da n3NoI3BaTe C MmKpOBbHObA cyPha nn Da n36rBaTe da n3NoI3BaTe C MmKpOBbHObA cyPha". Bb3MoXHo e Da cbIeCTByBaT ONpeJeJIeHn HeMeTaJIHn npIbOpn, KOtO He c 6e3Onacn 3a N3NoI3BaHe 3a MmKpOBbHObA cyPha. Ako ce CbMHRBaTe, MOKe Da TectBaTe BbIpoCHn npIbOp, KaTo cNeDbAte PnoueDypaTa No-DoNy.

TeT 3a npnbopn:

1. HanbHHeTe cBd, noDxOJa3a MInKpOBbJHOBa cypha, c obema Ha 1 ya7a cTydeHa B0da (250 ml) 3aeJHo C Bbnpocnna np6op.
   2.BkIIOyTe Ha MaKcIMMaJIHa MOUHOCT 3a 1 MmHyTa.
2. BHIMaTeHNO OINnaiTe np6opa.AKO np6opbTe 3aToPJIeH, He ro n3NoJ3BaIte 3a rotBeHe B MInKpOBoJnHOBaФуPHa.
3. He npeBnIaBaIe BpeMeTo 3a noIrpRbAHe Ha1 1 MInHyTa.

MaTePnAIn, KOnto MoKeTe Da n3NoJ3BaTe B MmKpObJnHOBata cypHa

PbKOBOIDCTBO C INHCTpyKcnn 1

G

PeWetka 3a rpn (He MoKe Da ce n3nO13Ba c fynKuIyTa Ha MmKpOBbHOBa fypHa n Tpr6Ba da Ce NoCTaBn Bbpxv CTbKnEHaTn NoCTaBka)

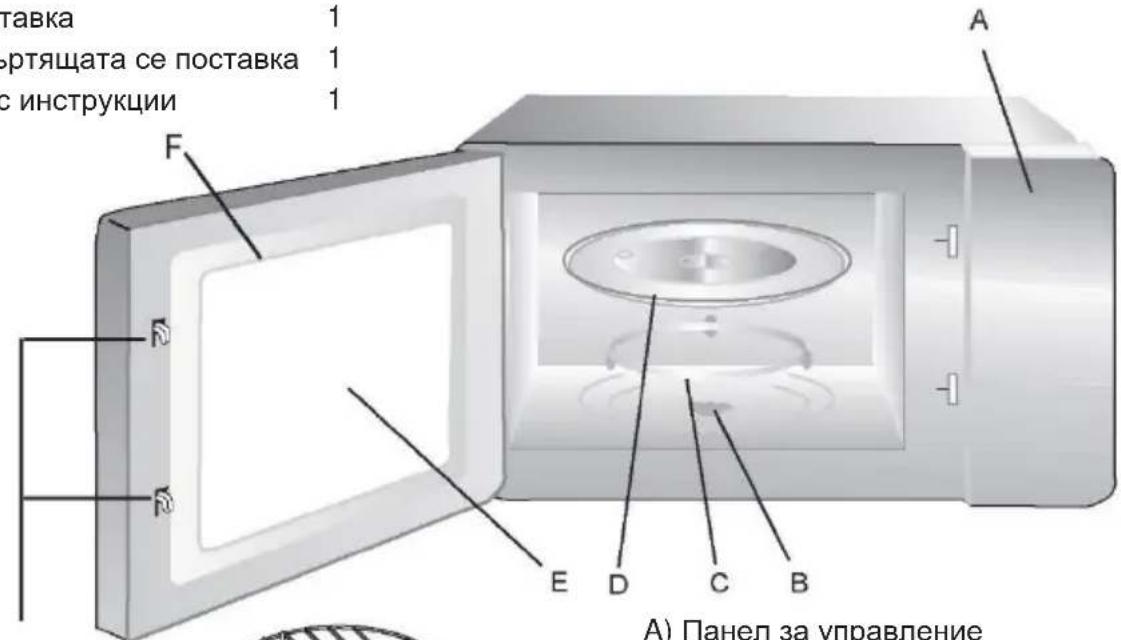

A)ПанелзaynpabneneHne
B) Ban 3a Bbptraata ce noctabka
C)Пьбтейн 3a Вьртуца та ce noctabka
D)CTbKneHa noctaKa
E) PpO3OpEuaHa6JIuDeHne
F)Пинадпекно на Вратata
G) Bloknupaanda cnCTema 3a 6e3onacnoct

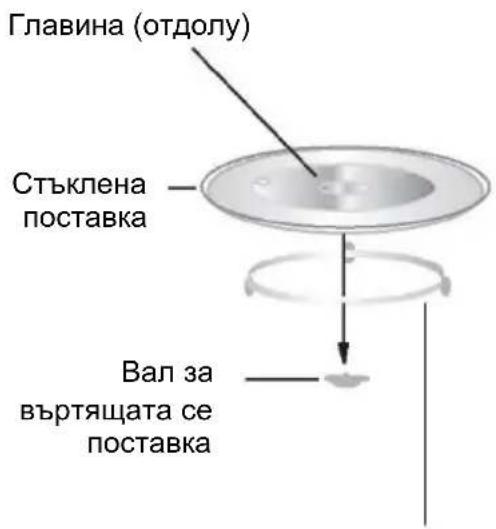

ПринолжноTN 3a MONTaЖ Ha BbptTЯca ce NOCTaBka

PbCTeH 3a BbPTaTa Ce nOCTaBka

a. HNKORA He noctabrIte CTbKJIeHaTa NOCTaBka Ha o6paTHO. DnIXKeHneTo Ha CTbKJIeHaTa NOCTaBka HNKORA He Tp8Ba da ce orpaHnUaBA.
b. ПО ВЕМЕ на ГТBEн ВИН AR TРЯБа Да СЕ ИЗПОЛ3ВАТ KaKTO CTьКЛЕнATA NOCTaBka, Taka И пьсTeHbT 3a ВьрТЯСаТа се NOCTaBka.
c. BcunxpaHn n KOHTeHepn c xpaHa BnHa n Ce noCTaBnT Bbpxy CTbKHeHata NOCTaBkA 3a rotBeHe.
d. Ako CTbKneHaTa NoCTaBka INI npbCTeHbT 3a BbpTiaTa ce NoCTaBka ce cnyka INI CE ChyNt, CBpXeTe Ce C Hai-6n3kn OToPi3npaH cepBn3eH ueHTbp.

Mоntаж ha плota

OTCTpaHete BCNUKOnaKObUHN MaTePnaIIN aKccecoapn. IpoBepTe cypHaTa 3a nobpeNi KaTO BdJIb6HaTHNI INC CyUNBaHn NO BpaTaTa. He nHCTaIInpaIte, ako cypHaTa e nobpeDeHa.

UkaΦ:OTCTpaHete BcraKO 3aunTHO φoNIO OT NOBbpxHOCTTa Ha UkaΦa 3a MmKpOBbJnHOBaTa ΦypHa. He OTCpaHЯBaIte CBeTnOKaΦyBnKa nak Mica, KOIT o 3akpehen KbM BbTpEshOCTTa Ha φypHaTa, 3a da npedna3nte MarHeTpOHa.

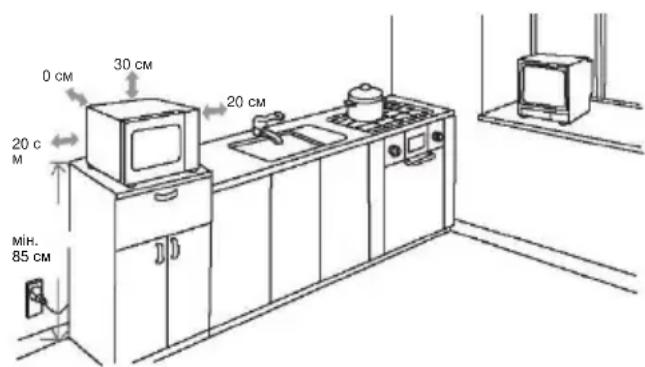

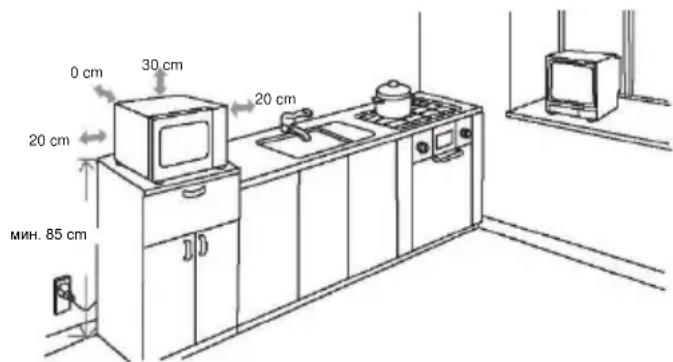

Mонтуранe

1.Изберete paВна ПОБьрхНOCТ,КОЯTO OCSИгPyBa ДОСТаТьЧNO OTВОпЕНО ПЮСТраHCTBO 3a BXODHNTe N/NЛN N3XODHNTe BEHTINJaцноHHN OTBOPN.

(1) МнималнаТа ВиcoуннаHa мотаж e 85 cm.
(2) 3aHaTa cTpaHa Ha ypeDa Tp6Ba Da 6bJe nocTaBeHa KbM CTeHa.

OcTaBeTe MInHmAlHo pa3CToHnE ot 30 cm haD cyPhaT, MnHmAlHo pa3CToHnE ot 20 cm e Heo6xOdIMO mExdy cyPhaTa n BCnUKN CbCeDHN CTeHn.

(3) He cbaJIte KpaYeTaTa OT dbHOTo Ha cyPhaTa.
(4)Блokирано Ha BXODЯNTe N/NJN N3XODHNTe OTBOPN MOKe Дa NOBpeDN Φурнata.

(5)ПoctabeTeФурнata Bb3MOxHNoHa-ДaJIeU OT paIIOCTaHcNnI TeJIeBn3Opn. Pa6OtaTaNMaMkpoBbJIHOBaTaФуPNa MoXe Da IIpruHnCmUeHnA BbB BaIeTo paIINO nII N TeJIeBn3IOHNO pIneMaHe.
2.Включeteфурнata cn B ctaHdapTeH domaшен KOHTaKT.YBepTe ce, Ye HAnpeXeHneToи YecToTaTa Ha TOKa ca CbUnte KaTO HOMHaJIHOTO HAnpeXeHne I YeCTOTA Ha etNKeta.

I P E D U N P E X K D E H N E: He nHcTaI npaIte fypHaT a BbpyrTOBapcKn IIOt nIi I dpyr ypei, rHeepnpaU TOnnHa. Ako ce moHTnpa 6n3O Do nIi HaN i3TouHk Ha ToPnHa, fypHaTa MoKe Da Ce nobpei n rapaHcIyTa ige 6bde HeBaIndHa.

OocTbHnHaTa NOBbpxHOC T MoKe Da ce HaRopeuN No BpeMe Ha pa6ota.

ONEPAÇΥ

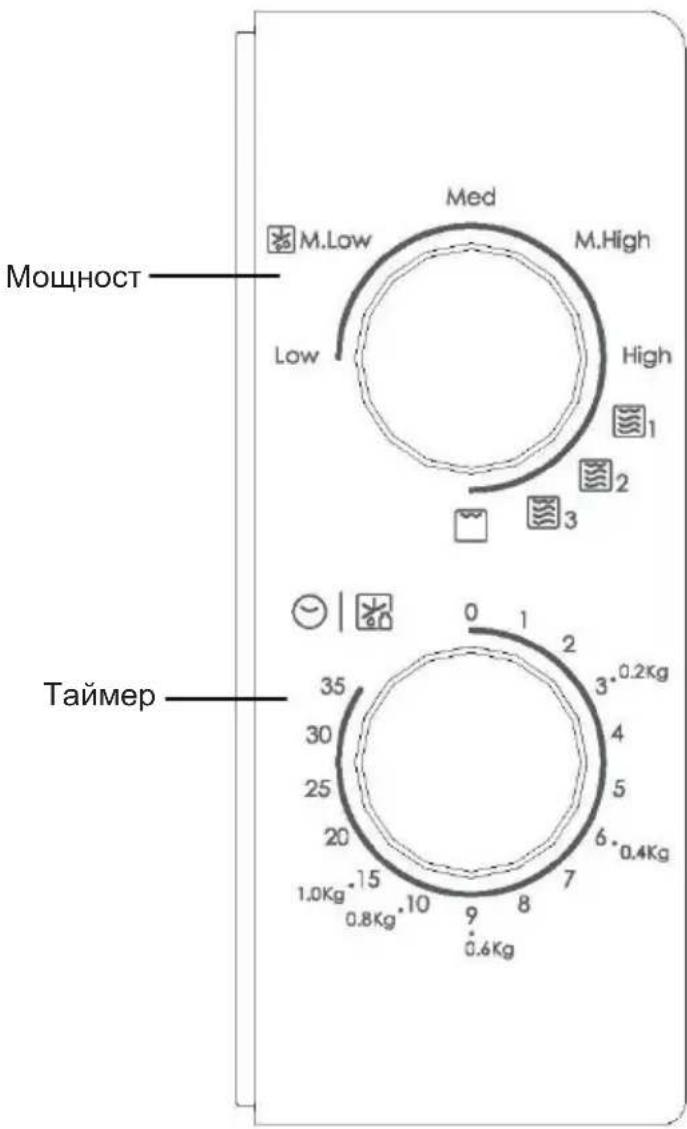

KoHTpOJIeH nAHeI nФункUIn NHCtpyKUIn 3a ekCnloaTaunr

1. 3a Да НachtponTe MOUHOCTTa 3a rotBeHe, 3aBbPTeTe KOnYeTO 3a 3axpaHBAHe Do XeHaHOTO HBO.
   2.3a da 3a anaTe BpeMeTo 3a roTBeHe, 3aBbptete KOnueTo Ha TaMepa Do XeHaHOTo BpeMeTpaeHe Cnopei BaWeTo PbKOBOCTBO 3a roTBeHe.
2. Мнровьлноваразфурна aptamatnoho ице залочпд на harява след Habctpoika Ha HNBOTOИВpeMeTO.
3. CnEi n3TuHaHe Ha BpeMeTo 3a rotBeHe,
   Ie Ce yye cInrHaI OT ypeDa I ToI Je cnp
   5.Ako ypeIbT He ce n3noJ3Ba,BuHaHn 3aDaBaTe BpeMeTpaeHe,0".

MODEL: CMG20SMW CMG20SMB

Pažljivo pročitajte ove upute prise upotrebe mikrovalne pećnice i Čuvajte in pažljivo.

Ako slijedite upute, pećnica ce vam pružiti dugogodišnju dobru uslugu.

PAŽLJIVO SPREMITE OVE UPUTE

MJERE OPREZA ZA IZBJEGAVANJE MOGUÇE IZLOŽENOSTI PREKOMJERNOJ MIKROVALNOJ ENERGIJI

(a) Ne pokušavajte upotrebljavati ovu pećnicu s otvorenim vratima jer to može dovesti do štetnog izlaganja mikrovalnoj energiji. Važno je da ne razbijete ili ne mistrjenate sigurnosne brave.
(b) Nemojte stavljati nikakve predmete izmerodu prednje strane pećnice i vrata niti dopustiti da se prljavstina ili ostaci sredstva za Čišćenje nakupljaju na brtvenim povrsinama.
(c) UPOZORENJE: Ako su vrata ili brte vrata oštećene, pećnica se ne smije upotrebljavati dok je ne popravi ovlaštena osoba.

DODATAK

Ako se urežaj ne odžava Čistim, njegova se povrsina要考虑 ošetiti i utjecati na vijek trajanja urežaja te dovesti do opasne situaciJE.

Specifikacije

Model:	CMG20SMW / CMG20SMB
Nazivni napon:	230 V~50 Hz
Nazivna ulazna snaga (mikrovalna):	1050 W
Nazivna izlazna snaga (mikrovalna):	700 W
Nazivna ulazna snaga (grijac):	1000 W
Kapacitet pećnice:	20 l
Promjer okretne ploče:	255 mm
Vanjske dimenzije:	439,5 x 357, 5 x 258,2 mm
Neto težina:	Pribl. 10,7 kg

VAŽNE SIGURNOSNE UPUTE

MODEL: CMG20SMW CMG20SMB

MODEL:CMG20SMW CMG20SMB

Pred uporabo mikrovalovne pečice natančno preberite ta navodila in jih skrbno shranite.

BEPEKITbI IHCTPYKII!

3ACTEPEXEHNЯ ΣΟДΟ MOЖЛNBOTO BПЛВИ HADMIPHOI MIKPOXBЛьОBOI EHEPRII

(a) He hamaraitecBnKOpNCToByBaTn 10 nIy 3 BiDUnHeHmN DBePzTaMn, OckiNbKn 1e MoKe pIn3BeCTn Do ShKiDiNbBOrO BnINBy mIKPOXBnIbOBoI eHepri. BaxnBO He npuyBaTn CnCTemy 3aNo6ixHoro 6IOKyBaHn Ta He BTPuATncB II po6OTy.
(b) He knai itb jokDiHn ipeDmetn mix nepedhboIO NOBepxHeo nei Ta DBePzTAMN. CTeXTe 3a Tm, uO6 Ha yuIbHIOBaJIbHnx IOBepxHx He hakOnuYBaBCs 6pyd a6o 3aIIuKn 3ac06y dIy UIeHHra.
(c) ПОПЕДЖЕНЯ: якшо деверцята aboixнс ушьнену пошковкено, заборонею ekспунатувати пч, дожи He BiDpeMOHTyec komпет entнй схibeць.

ДОДАТКОВО

Якwo He πiTpmyBaTu HaJIeKHy YIcSTOTy pIncTPOU, cTaH Ioro NOBepxHi MoKe nOriPshITnCS. Ye moKe HeRaTHBHO BpIIInHyTu Na TpINBaJIcTb CnyXbN pIncTPOU N pIpu3BeCTu Do He6e3NeuHoI cnTyauci.

Texhihi xapaKtepncnkn

MaTepiAn, kI He MoXHa BnKOpNCToBvBaTn B MikPoXBnIbOBI neci

IHCpykui3eknlyataui 1

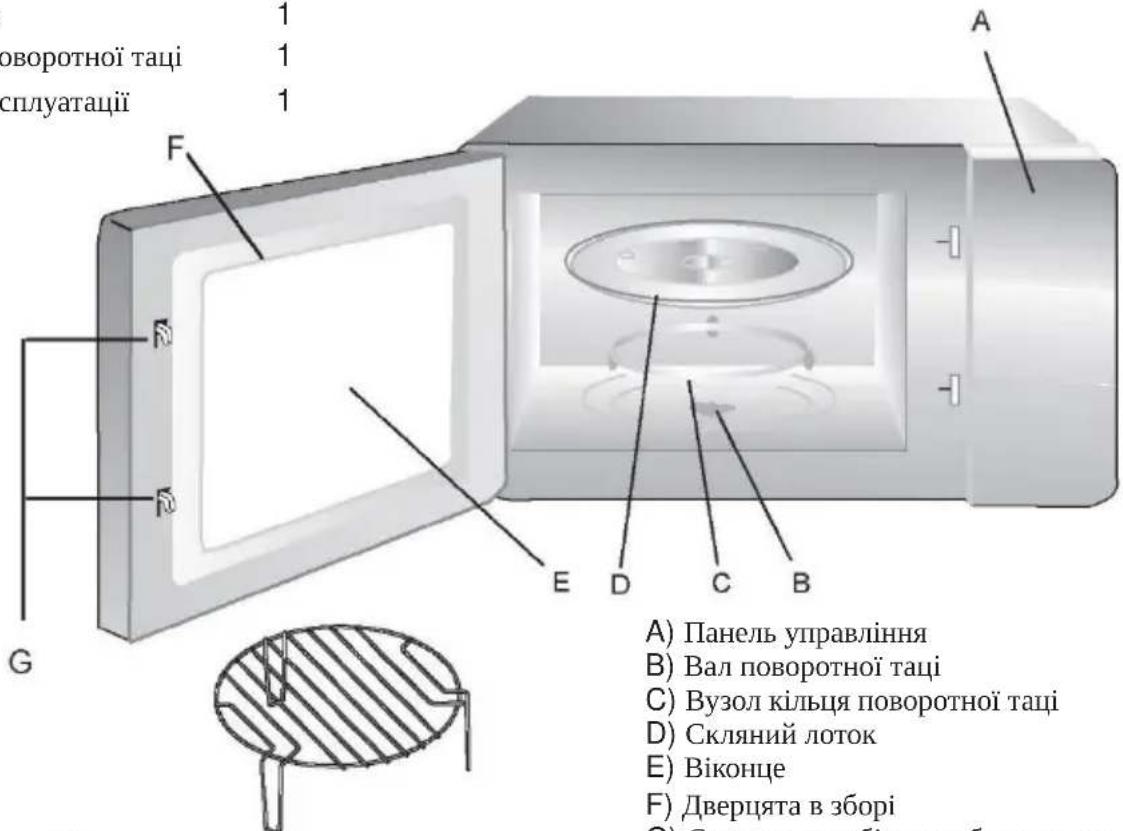

CtIkaIJIrPnHIO（HEMOKeBHKOpHCTOByBaTHc3MikPOXBnJIbOBOIOΦyHKUciIOHMacBCTaHOBIIHOBAHTCHHaCKJIHOMYJOTKy)

A) IaHeJIb yIpaBIIHHA
B) BaI IOBOPOTHOI TaICI
C) By30JI KJIbIa IIOBOPOTHOI TaI
D) CKJIaHHI JIoTOK
E) BikoHne
F)ДВерцЯТВЗборi
G) CnCTema 3aIIO6iXHOrO 6IOKyBaHHr

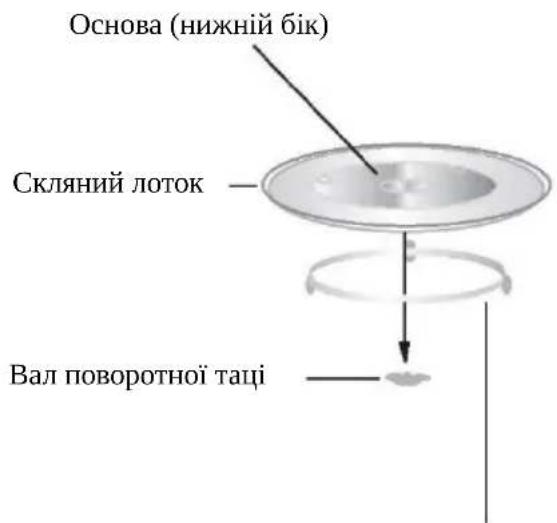

BcTaHOBJIeHHI IOBOpOTHOI TaIi

By30JI KJIbIa IIOBOPOTHOI TaI

a. HiKoJIH He CTaBTe CkJIaHHN JIoTOK DoTOpH dHom. HiKoJIH He o6MeJyIe pyx CkJIaHO rOTka.
b. IIiД qac npHroTyBaHHЯ iXi 3aBXKn CIIД BHKOpHCTOByBaTHЯ CKJIaHn JIoTOK, TAK i KJIbue IOBOPOTHOI Taui.
c. Yca Ika Ta CMHOCTI 3 IKeIO MaIOb 3aBXKn pO3TaIOBvBaTHcH a CKJIaHi TaU dJa IIpHrOryBaHHa IKi.
d. RaKIO cKIAHn IOTOK a6o By30JI KIIbIg IOBOPOTHOI TaI pO3TrpickaBCa 6o 3JAMABc, 3BepHiTbcrdo Ha6JIHKQOrO aBTOPi3OBAHO rcePbICHOrO ceHTpy.

BctaHOBHeHHa CTiJIbHnci

Budaiitb yci nakyBaIbHi MaTepiAIn Ta
DonomixHe npuaJa. NpebeipTe niu Ha
HaBHicThb 6yDb-axn NOxKOJKeHb,3OKpeMa
Ha BM'ATHHa6o NoOMky DBepaT.
He BCTaHOblKoIte NiU, kUO II NOxKOJKeHo.

Y cneiJIbHiI WAsFi: 3HIMITb 6yDb-ryK3axnChy
PiBky, 10 MoKe MICTHTNcHa NOBepxHx
WAsFi DnA MIkPOXBnBOOi Neyi.
He 3HImaIte CbitNo-KOpuHReBy KpnKy MICA,
Jka npKpInnEnHy Do BHyTpiHbOi NOBepxHi neyi:
BOHa 3axnuae MaHrTePOH.

BctaHOBJeHHJ

1. Bn6epitb piBHy noBepxHIO, 50 MaE doCTaTHiB iDkPNTn npocTip dIy BnyckhIX Ta/a6o BnynckhIX OTBOpIB.

(1) Mihimaiha BnCota npi BCTaHOBJIeHHi 85 cm.
(2) 3aДнЯ NOВерхня рпладу NOВИнна рОзMiцУВаТиСя 6iЯ CTiHn.

3aIIIe mIHImaJIbHn 3a3Op

30 cm haad niuqu, a taKoJx
20 cm mix niyu ta 6ydb- kIMN cMIXHMMn CTiHaMn.
(3) He bID'cndHyTe hiXKn BiHnXhBoi YacTnHn Neqi.
(4)БлOKуВаннЯВиUCKHnx Ta/a6o BnPyCKHnx OTBOpiB Mоже пи3BecTиdo NOшКODЖeHHЯ Neqi.
(5) Po3TaIOWByIte nIy KaHaNJI BID paIIO Ta

TeJIeBi3Opa.ФункцioHyBaHnHaMikpoXBnIbOBoI neuMoXeCTBOpHTn IpeewKOdI dJa npInomy paio- a6o TeJIeBi3iHOrO cnHaNy.
2.Пд'сднaite niu do ctaHdapTHoiIOnbYTOBOi po3etkn.IpekeHaNTecra, ⅢO hAnpyra Ta yacToTa mepexi 36iraIOTbcra
3 BiДПОВИДНИМN ПOKa3нИКаМи Ha nacnoptHiI Ta6nUci.

PONEPEJXEHHY:

He BCTaHOBIOHTe nIy HaI nnTOO a6o IHsIM npnAdom, 0o rehepye TenNo. Raio BCTaHOBHTn iUy 6iJa DxKepeHa HarpIBaHHa 6o HaI Nm, iUy MoXe 6uTyN NOxKOJKeHo, 0o npn3BeDe Do anylaui rapaHTII.

DocTyHa NOBepxH MoKe HarpiBaTnca NiJ Yac po6OTn.

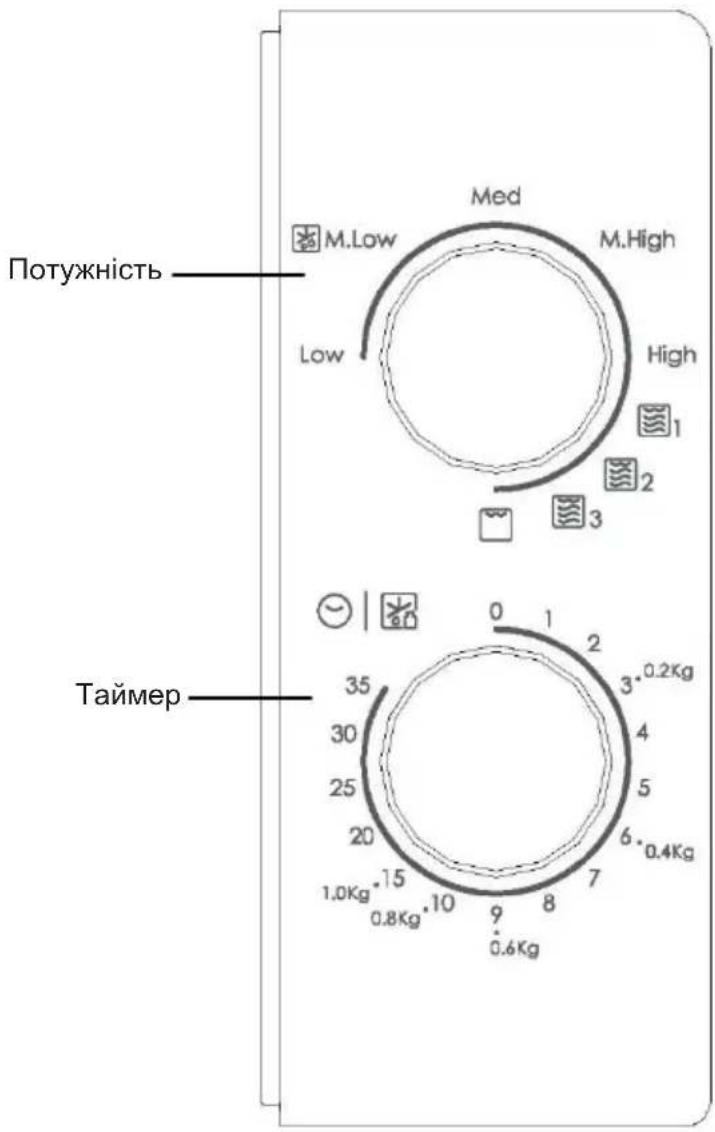

EKCnIyATAUIA Panelb ynpabInHra Ta cyHKuII IHcTpyKci3 ekCnPyatauii

1. 3aTn notyXhictb nI npiroTyBaHH, noBepHt b peryIaTOp notyxKHOCTi Ha notpi6Hm piBeHb.
2. 3aatauac npirotybaHHiaKi, nobepHITb pyky TaMepa do baxaHorO uacy BiNobiIdno do iHCTpykci3 npiroTybaHHiaKi.
3. Nicna BCTaHOBneHH pIBH NOtyXHOCTI Ta Yacy MIKPOXBnboBa NiY ABTomTuHOp03NoUHe npNROTyBaHH.
   4.ПоЗавершеничасупriroтувашипсстрии Вдадь 3ByKOBи Cнгал (ДзЕньКТ) i 3упнHTбя.
   5.Якwo npncptiH He BnKOpNCTOByeTbCra, 3aBXKn BCTaHOBIOHTe Yac Ha «0»

DODATKOWE INFORMACJE
