Product Type	Automatic Battery Charger
Brand	GYS
Model	Gysflash 9.24
Charging Voltages	6V (7.3V/9A), 12V (14.6V/9A), 24V (29.2V/6A)
Charging Current	9 A (6V/12V), 6 A (24V)
Compatible Battery Types	Lead-acid: GEL, AGM, WET, MF, Calcium (6V, 12V, 24V)
Battery Capacity (charge)	6V/12V: 18-220 Ah, 24V: 15-125 Ah
Battery Capacity (maintenance)	6V/12V: up to 300 Ah, 24V: up to 170 Ah
Power Supply	220-240 V AC, 50-60 Hz, single-phase
Number of Charging Steps	8 steps (Analysis, Recovery, Test, Desulfation, Charge, Absorption, Optional Refresh, Maintenance)
REFRESH Mode	Reconditioning of deeply discharged batteries (optional)
Temperature Sensor	Yes, automatic output voltage adaptation according to ambient temperature
Protections	Short-circuit, reverse polarity, spark-free, double insulation, thermal
LED Indicators	Progress and OK indicators (charge complete)
Electrical Class	Class II (double insulation)
Standards	CE, EAC, UKCA, CMIM (Morocco)
Usage	Indoor, avoid heat sources, temperatures >60°C
Maintenance	Unplug before cleaning, dry cloth, no solvents
Cable Replacement	By manufacturer, after-sales service or qualified person only
Warranty	2 years (parts and labor), transport not covered

Frequently Asked Questions - Gysflash 9.24 GYS

What types of batteries can I charge with the Gysflash 9.24?

This charger is designed for lead-acid batteries of type GEL, AGM, WET, MF (Maintenance Free) and Calcium (CA), in 6V, 12V or 24V. It is not suitable for lithium or non-rechargeable batteries.

How to start charging?

First connect the charger to the battery (respect polarity), then to the mains. Select the mode (6V, 12V or 24V) by pressing the button. Charging starts automatically after 5 seconds.

What does the illuminated OK indicator mean?

The steady OK light indicates the battery is fully charged. If it flashes, the battery is ready to start the engine but not yet at 100%.

Can I use REFRESH mode on all batteries?

REFRESH mode (reconditioning) is recommended for heavily discharged batteries. It is not recommended for sealed (maintenance-free) batteries as it may cause water loss. Check the electrolyte level after use.

What to do if the red indicator flashes?

Flashing indicates reverse polarity, battery voltage too high, or short circuit. Check the clamp connections and that the mode matches the battery voltage.

Does the charger get hot normally?

Yes, moderate heat is normal. The charger is equipped with a temperature sensor that adjusts the current to prevent overheating. If the ambient temperature exceeds 60°C, thermal protection may activate (steady red light). Let it cool in a ventilated area.

Can I leave the charger connected permanently?

Yes, the Maintenance charge mode (step 8) maintains the battery at full charge without risk of overcharging. It can remain connected indefinitely for leisure or storage batteries.

What is the typical charging time?

The charging time from 20% to 80% depends on capacity. Examples: 20 Ah: 1h30, 60 Ah: 4h, 120 Ah: 8h (at 9A). For a full charge, allow about 2 to 3 additional hours.

How to maintain the charger?

Always unplug the power cord before cleaning. Use a dry cloth for surfaces. Never use solvents or harsh products. Damaged cables must be replaced by a professional.

What to do if the device does not start?

Check that the battery is connected and the mode is selected. The charger may be in standby: press the button to wake it. If the red light remains steady, a thermal or internal fault may be the cause.

USER MANUAL Gysflash 9.24 GYS

ANOMALIES, CAUSES, REMÉDES

CONDITIONS DE GARANTIE

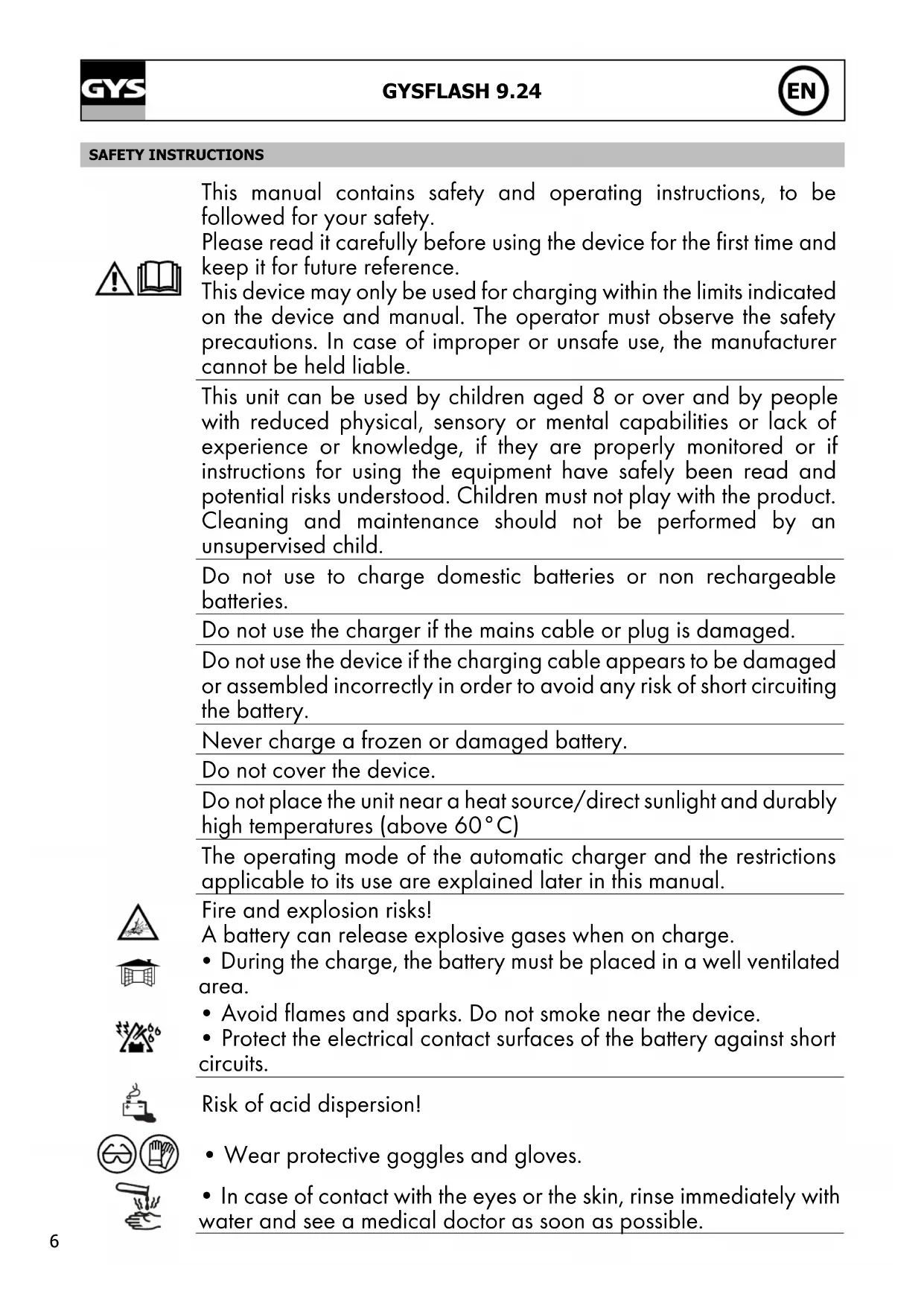

This manual contains safety and operating instructions, to be followed for your safety.

Please read it carefully before using the device for the first time and keep it for future reference.

This device may only be used for charging within the limits indicated on the device and manual. The operator must observe the safety precautions. In case of improper or unsafe use, the manufacturer cannot be held liable.

This unit can be used by children aged 8 or over and by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly monitored or if instructions for using the equipment have safely been read and potential risks understood. Children must not play with the product. Cleaning and maintenance should not be performed by an unsupervised child.

Do not use to charge domestic batteries or non rechargeable batteries.

Do not use the charger if the mains cable or plug is damaged.

Do not use the device if the charging cable appears to be damaged or assembled incorrectly in order to avoid any risk of short circuiting the battery.

Never charge a frozen or damaged battery.

Do not cover the device.

Do not place the unit near a heat source/direct sunlight and durably high temperatures (above 60^ )

The operating mode of the automatic charger and the restrictions applicable to its use are explained later in this manual.

Fire and explosion risks!

A battery can release explosive gases when on charge.

• During the charge, the battery must be placed in a well ventilated area.
• Avoid flames and sparks. Do not smoke near the device.
• Protect the electrical contact surfaces of the battery against short circuits.

Risk of acid dispersion!

• Wear protective goggles and gloves.
• In case of contact with the eyes or the skin, rinse immediately with water and see a medical doctor as soon as possible.

Connection/disconnection:

• Ensure that the charger is not connected to the mains before connecting or disconnecting clamps to the battery terminals
• Always ensure the Red clamp is connected to the «+» battery terminal first. If it is necessary to connect the black clamp to the vehicle chassis, make sure it is a safe distance from the battery and the fuel line. The charger must then be plugged into the mains.
• After charging, disconnect the charger from the mains, then disconnect the negative clamp from the body of the car and then disconnect the positive clamp from the battery, in this order.

Connection :

Class II device
- The connection to the power supply must be carried out in compliance with national standards.

Maintenance:

• If the power supply cable is damaged, it must be replaced by the manufacturer, its service agent or an equally qualified person.
• Maintenance should only be carried out by a qualified person.
• Warning! Always disconnect from the mains before performing maintenance on the device.
• Do not use solvents or any agressive cleaning products.
• Clean the device's surfaces with a dry cloth.

Regulations :

• The Machine is compliant with European directives.
• The declaration of conformity is available on our website.

• EAEC Conformity marking (Eurasian Economic Community).

• Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).

• Equipment in conformity with Moroccan standards.

• The declaration C_ (CMIM) of conformity is available on our website (see cover page).

Waste management:

• This product should be disposed of at an appropriate recycling facility. Do not throw away in a household bin.

GENERAL DESCRIPTION

Your Gysflash is ideal to charge most lead-acid batteries, often used for cars and many other vehicles. The GYSFLASH can be used safely for: GEL (gel electrolyte), AGM (Absorbant Glass Mat), EFB ( Enhanced Flooded Battery)WET, MF (Maintenance Free), CA (Calcium)...

AUTOMATIC

TEMP.SENSOR

The GYSFLASH 9.24 is fitted with an integrated temperature probe that ensures that the voltage output is adapted to the ambient temperature, for an optimal charging performance. This adjustment ensures a highly precise charge, relative to the ambient temperature.

START UP

1. Connect the charger to the battery.

2. Plug the charger to the mains (single phase 220-240Vac 50-60Hz).

3. Select the mode by pressing the button. After roughly 5 seconds, the charge starts automatically.

4. During the charge, the device indicates the charge progress. When indicator OK blinks, the battery is ready to start the vehicle. Once indicator OK stays on, the battery is fully charged.
5. The charge can be interrupted at any time by unplugging the mains plug or pressing the button.
6. After charging, disconnect the charger from the mains, then disconnect the charger's connections from the battery.

CHARGE MODES

• Modes and Options description :

CHARGE Mode 6V (7.3V/9A) :

Mode designed to charge and maintain (floating charge) 6V batteries. 8 step automatic maintenance charge cycle.

CHARGE Mode 12V (14.6V/9A) :

Mode designed to charge and maintain (floating charge) 12V batteries. 8 step automatic maintenance charge cycle.

CHARGE Mode 24V (29.2V/6A) :

Mode designed to charge and maintain (floating charge) 24V batteries. 8 step automatic maintenance charge cycle.

REFRESH Option :

Option which add an extra step (step 7) to the charge cycle to restore deeply discharged batteries.

A : this option is not recommended for charging sealed batteries.

Recommendation : Check the battery's water level and if necessary, perform with a Refresh charge.

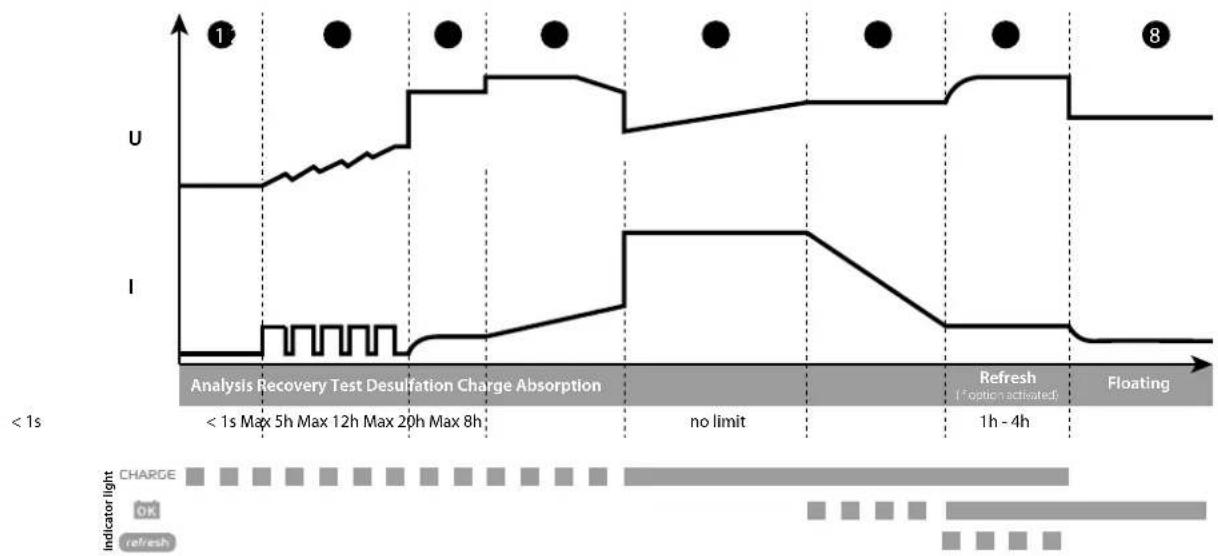

- Charging curve :

The GYSFLASH 9.24 uses an 8 step charging curve which guarantees optimal performance for your battery.

Step 1: Analysis

Analyses the battery state (charge level, polarity inversion, wrong battery...)

Step 2:Recovery (6V 12V 4.5A / 24V 3A)

Damaged elements recovery due to an extended deep discharge algorithm.

Step 5 : Charge (6V 12V 9A / 24V 6A)

Fast charge with maximum current that can reach 80% charge level.

Step 6 : Absorption (6V 7.3V / 12V 14.6V / 24V 29.2V)

Constant voltage charge to reach a 100% charge level.

Step : Test

Sulfated battery test

Step : Desulfation ( 7.9V / 15.8V / 31.6V)

Battery desulfation algorithm.

Step :

Refresh (option 7.9V/15.8V/31.6V)

If the refresh option has been selected, the charger will inject an additional current that will generate some gas, thus reconditioning the battery's cells. During this phase, the battery may lose a bit of water.

Step :

Maintenance/Floating charge ( 6.7V / 13.6V / 27.2V)

Maintains battery charge level at its maximum.

- Estimated charge time

Battery capacity 20Ah 60Ah 120Ah 180Ah 220Ah 20Ah 50Ah 125Ah

Charging time 20% 80% 1h304h8h12h15h2h 5h 13h

- Protections :

The GYSFLASH 9.24 has comprehensive safety features to protect it against short-circuits and polarity reversals. It has an anti-spark feature which prevents sparks whilst connecting the device to the battery. This charger has double insulation and is safe to use with the battery in situ as it will protect the vehicle's on-board electronics.

The GYSFLASH 9.24 is ltted with an integrated temperature probe that ensures that the charging current is adapted to the ambient temperature, for an optimal charging performance.

TROUBLESHOOTING

	Symptoms		Causes	Solutions
1	Indicator	blinks.	· Polarity reversal · Battery voltage is too high · Clamps in short-circuit	· Check that the clamps are properly connected. · Check that the selected voltage matches the battery voltage (6, 12 or 24V).
2	Indicator	is on.	Charge failure, battery non recoverable.	Change the battery and press to restart a charge.
3	Indicator	stays on even after pressing	Thermal protection.	Ambient temperature is too high (>60°C), cool the room and let the charger cool down.
	the	button.
4	Indicator	blinks.	Charger in sleep mode.	Press button or connect a battery to the charger to exit sleep mode.
5	Indicator	stays on.	Charge interrupted by pressing button.	Press again to restart the charge.

WARRANTY

The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).

The warranty does not cover:

• Transit damage.
  Normal wear of parts (eg.: cables, clamps, etc.).
• Damages due to misuse (power supply error, dropping of equipment, disassembling).
• Environment related failures (pollution, rust, dust).

In case of failure, return the unit to your distributor together with:

• The proof of purchase (receipt etc ...)
• A description of the fault reported
