Brand	Roadstar
Model	TRA300D+
Product type	DAB+ / FM clock radio
Mains power supply	AC 230 V ~ 50 Hz (AC/DC adapter 5 V = 1 A)
Battery power supply	DC 6 V (4 LR6 batteries)
Frequency bands	DAB+: Band III 174.928 – 239.200 MHz; FM: 87.5 – 108 MHz
Number of presets	10 (5 direct, 5 secondary level)
Main functions	DAB+, FM, auto scan, dual alarm, sleep timer, LCD display, headphones
Clock setting	Manual or automatic via DAB/FM
Alarm type	Buzz, DAB or FM, settable for one day, daily, weekend or weekdays
Snooze function	5 minutes
Sleep timer	Off / 10 / 20 / 30 / 45 / 60 / 90 / 120 minutes
Dynamic Range Compression (DRC)	Yes
Display	LCD with DLS, PTY, frequency, bitrate, signal strength, time/date info
Headphone jack	Yes (jack)
Safety	Do not open the housing, avoid water and humidity, disconnect during thunderstorms
Maintenance	Clean with a soft, dry cloth
Repairability	Refer to a qualified technician – no user-serviceable parts
General information	User manual available in multiple languages; warranty according to directive 99/44/EC

Frequently Asked Questions - TRA300D+ ROADSTAR

How to turn the radio on and off?

To turn on the radio, press and hold the POWER button (12). To turn off, press the same button for 2 seconds.

How to switch between DAB+ and FM?

Press the DAB+/FM button (2) to switch from one band to the other.

How to store a station as a preset?

Select the desired station, then press and hold the PRESET button (9) for 2 seconds. Use the ◀▶ buttons (8) to choose a number from 1 to 10, then press ENTER (7) to confirm.

How to recall a preset station?

Briefly press PRESET (9), use ◀▶ (8) to select the desired preset, then press ENTER (7). The first 5 presets are directly accessible via the PRESET LOCATIONS 1-5 buttons (10).

How to set the time and date?

Press and hold INFO/MENU (4), select System with ◀▶ (8), press ENTER (7). Choose Time then Set time/date. Use ◀▶ (8) to adjust values and confirm with ENTER (7).

How to set an alarm?

Press and hold INFO/MENU (4), select System then Alarm. Choose Alarm 1 or 2, enable it (ON), set the time, duration, source (Buzz, DAB or FM), days (daily, weekend, etc.), and volume. Confirm with ENTER (7).

How to use the snooze function?

When the alarm sounds, press the SLEEP/TIMER/POWER button (12) to activate snooze mode. The alarm will stop for 5 minutes before sounding again.

How to perform an automatic station scan?

In DAB+ mode, briefly press SCAN (6) for a quick scan. In FM mode, press and hold INFO/MENU (4), choose Full scan or Strong stations only with ◀▶ (8), confirm with ENTER (7), then press SCAN (6).

What to do if the display is not working properly?

Turn off the radio, disconnect the power cord and remove the batteries. Wait a few seconds, then power the device back on. This may resolve an issue related to electrostatic discharge.

How to clean the radio?

Use a soft, dry cloth to clean the exterior of the radio. Never use chemical or abrasive products. Avoid letting liquids enter the interior.

USER MANUAL TRA300D+ ROADSTAR

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank-you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

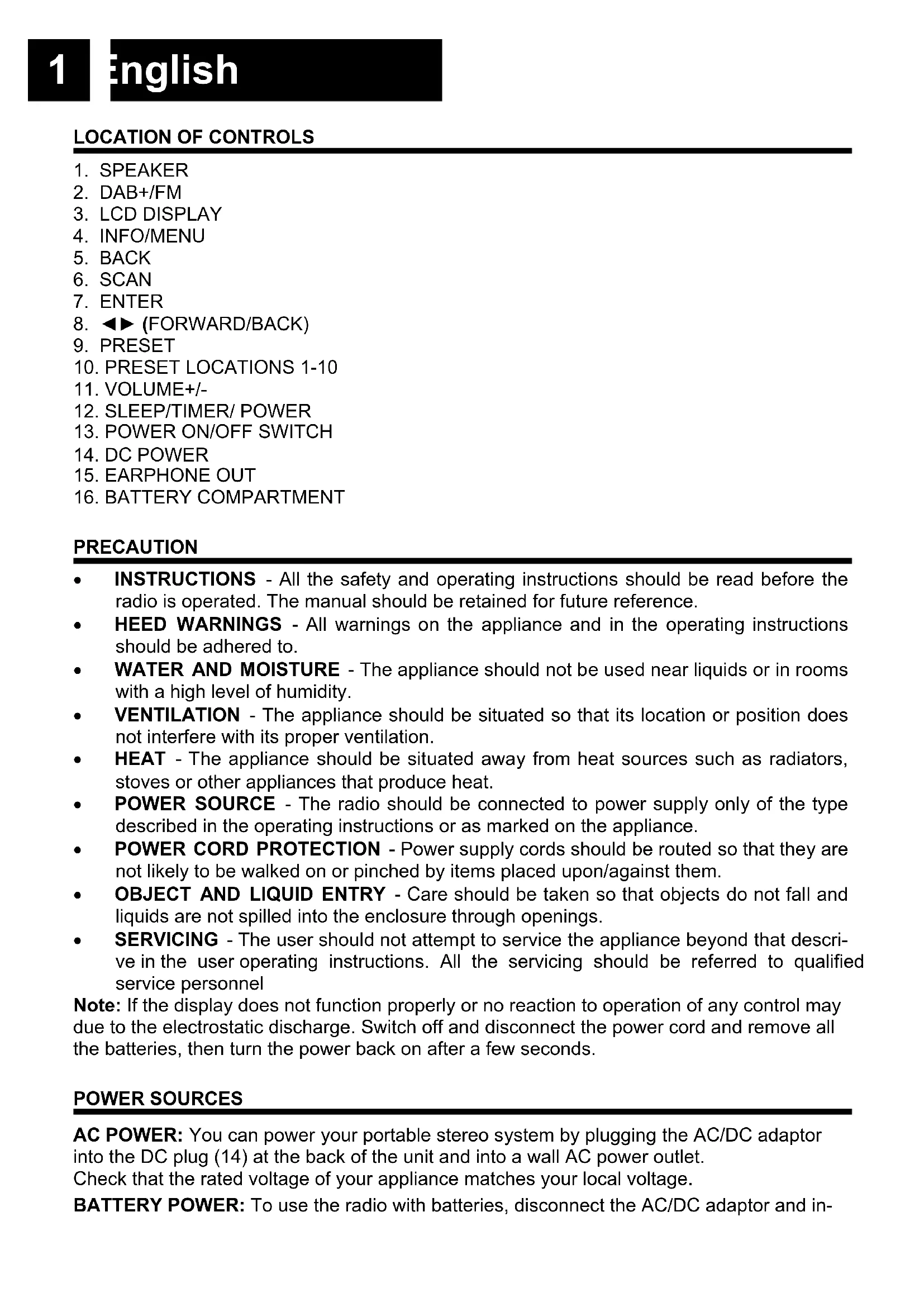

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
• SERVICING - The user should not attempt to service the appliance beyond that describe in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the power cord and remove all the batteries, then turn the power back on after a few seconds.

POWER SOURCES

AC POWER: You can power your portable stereo system by plugging the AC/DC adaptor into the DC plug (14) at the back of the unit and into a wall AC power outlet.

Check that the rated voltage of your appliance matches your local voltage.

BATTERY POWER: To use the radio with batteries, disconnect the AC/DC adaptor and in-

sert 4 × "LR6" batteries into the compartment (16).

Be sure that the batteries are inserted correctly to avoid damage to the appliance.

Remove the batteries when the radio will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your radio.

POWER ON/OFF

1. Switch the [POWER] button (13) to ON to power on the radio.
2. Switch the [POWER] button (13) to OFF to power off the radio.

TO USE THE RADIO

1. Press and hold the [POWER] button (12) to power on;
2. (The first time you power on the radio, the radio will scan the DAB radio stations automatically. It will display and play the first station after the scan is done);
3. Select the band (DAB or FM) by pressing the [DAB/FM] button (2);
4. Adjust radio frequency to your desired station;
5. Adjust the volume with the [VOLUME +/-] (11) to the desired level;
6. To power off the radio, press the [POWER] button (12) for 2 seconds.

Note: For a better reception reorient the antenna.

DAB+ PRESET

To store a preset, select preferred station press [PRESET] button (9) for 2 seconds. The LCD will show "Preset Store", use [◀▶] (8) buttons to choose preset number from 1 to 10 you wish to use. Press [ENTER] (7) to store.

RECALL A PRESET STATION

1. Press the [PRESET] button (9);
2. Select the desired preset by using the [◀▶] (8) buttons
3. Confirm with the [ENTER] button (7).

You can select with [PRESET LOCATION BUTTONS] (10) from 1 to 5 preset stations. To select Preset from 6 to 10, press and hold the relevant button.

FM STATION SCAN

Press and hold the [INFO/MENU] (4) button for 2 seconds. Press [ENTER] button (7) to confirm.
You can choose with [◀▶] (8) buttons STRONG STATIONS ONLY, or ALL STATIONS.
Confirm with [ENTER] button (7).
Press [SCAN] (6) button to SCAN radio.

MANUAL SCAN

Press [◀▶] (8) buttons to scan a station. When station found, the scan will stop.

To fine tune the frequency you can press [◀▶] (8) buttons to advance in 0.05 MHz increments.

DAB SCAN

There are 2 types of scan. Quick scan and Auto scan.

Quick scan: press [SCAN] (6) button

To perform FULL SCAN, press and hold [INFO/MENU] (4) button for 2 seconds.

When the Full Scan option appears press [ENTER] (7) button

INFO

When the radio station is playing, press the [INFO] button (3) repeatedly to cycle through the information broadcasted by the radio as follow:

UNDER DAB

• DLS (Dynamic Label Segmenting): Radio text broadcasted from the DAB station such as the news, songs being played...etc.
• PTY (Programme Type): shows which type of programme you are listening to, "Music", "Talk", "News" etc.
• Channel/Frequency: The frequency of DAB is displayed such as "11C 220.352MHz".
  • Audio info: The display shows the digital audio bit rate of the current reception.
• Signal error: The signal strength is displayed graphically.
• Time/Date: The time and date are set automatically.

UNDER FM

• RT (Radio text): Text broadcasted from the FM station
• Program type: shows which type of programme you are listening to.
• Time/Date: The time and date are set automatically.
• Frequency: the FM frequency for the radio station in playing.
  • Mono / Stereo: Automatic switching between mono and stereo reception.

Note: Time and date accuracy depends on the info broadcasted from the radio station.

SYSTEM SETTINGS

In FM / DAB mode there is an option menu.

1. Press and hold [INFO/MENU] (4) for 2 seconds to access to the options.
2. When the FULL SCAN option appears press [◀▶] (8) buttons and find DRC or PRUNE, press [ENTER] (7) button.

DRC (Dynamic Range Compression): This function reduces the differences between the loudes and quietest audio being broadcast. It makes quiet sounds comparatively louder, and loud sounds comparative quieter (only if offered by the provider).

PRUNE: Removes all invalid stations indicated in the station list with a “?” in front of the station name.

FACTORY RESET: Press and hold [INFO/MENU] button (4) for 2 seconds.

Enter in SYSTEM, FACTORY RESET and choose YES, press [ENTER] (7) button. The software will return to default settings.

BACKLIGHT: select with press [◀▶] (8) buttons BACKLIGHT, press [ENTER] (7) to enter, select with press [◀▶] (8) buttons following info:

• TIMEOUT: you can choose : ON/10/20 etc.
• LANGUAGE: in SYSTEM SETTINGS, select with [◀▶] (8) buttons desired language

CLOCK AND DATE SETTING

When the radio is ON:

1. Press and hold [INFO/MENU] (4) to access to the menu;

2. Use the [◀▶] (8) buttons to select "System";

3. Confirm with the [ENTER] (7);

4. Use the [◀▶] (8) to select "Time";
5. Confirm with the [ENTER] (7) ;;
6. Use the [◀▶] (8) to select "Set Time/Date";
7. Confirm with the [ENTER] (7);
8. Use the [◀▶] (8) to adjust the hour;
9. Confirm with the [ENTER] (7);
10. Use the [◀▶] (8) to adjust the minutes;
11. Confirm with the [ENTER] (7);
12. Repeat steps 10 and 11 to set the date.

You can choose auto update: Use the [◀▶] (8) buttons in INFO/MENU, and select UPDATE FROM ANY, UPDATE FROM DAB, UPDATE FROM FM or NO UPDATE.

SLEEP TIMER

The sleep timer switches the radio off automatically after an adjustable time.

When the radio is ON press repeatedly the [SLEEP] (12) to choose the desired timer.

Note: To remove the sleep timer select "Sleep OFF"

ALARM SETTING

When the radio is ON:

1. Press repeatedly the [INFO/MENU] button (4) for 2 seconds.
2. Press [◀▶] (8) and find SYSTEM, press [ENTER] (7) button;
3. Press [◀▶] (8) and find ALARM, press [ENTER] (7) button;
4. ALARM 1 SETUP will appear on the display.
5. Press [◀▶] (8), to choose ALARM 1 or ALARM 2. Press [ENTER] (7) to confirm.
6. Press [◀▶] (8) to choose ON or OFF, then press [ENTER] (7) to confirm.
7. Once ALARM ON is set, Press [◀▶] (8) and [ENTER] (7) to set hours and minutes.
8. Press [◀▶] (8) to choose duration 15/30/45//60/90/120 and press [ENTER] (7) button to confirm.
9. Choose BUZZER, DAB or FM with [◀▶] (8) and find ALARM, press [ENTER] (7) button;
10. Select WEEKDAYS, DAILY, ONCE or WEEKENDS with [◀▶] (8), press [ENTER] (7) button;
11. Select desired VOLUME level and press [ENTER] (7) button;
12. Once all settings are done, "ALARM SAVED" will appear on display.
13. To disable ALARM, repeat step 1-6 and choose OFF;

SNOOZE MODE

When alarm sounds, you can press [SLEEP/TIMER/POWER] (12) button to activate the snooze mode and deay the alarm for 5 minutes.

TECNICAL SPECIFICATIONS

Power Supply: AC 230V \~ 50Hz (AC/DC 5 V = 1A adaptor).

DC 6V = (4 x "LR6" Batteries).

Radio Frequency Coverage

DAB+ / DAB: BAND III 174.928MHz - 239.200MHz.

FM: 87.5 - 108 MHz.

Speaker

Output Power: 1 x 1 Watt RMS.

General

Earphone Out: 3.5mm jack plug.

Specifications and design are subject to possible modifications without notice due to improvement.

-WARNINGS

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Simple line drawing of a trash bin with crossed diagonals and a black bar at the bottom (no text or symbols)

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

ORT DER BEDIENELEMENTE

1. SPRACHER
2. LCD DISPLAY
3. DAB+/FM
4. INFO/MENU
5. ZURÜCK
6. SCAN
7. ENTER
8. ◀▶ (VORWÄRTS/RÜCKWÄRTS)
9. PRESET (VOREINSTELLUNGEN)
10. PRESET 1-10
11. VOLUME +/-
12. SLEEP/TIMER/ POWER
13. POWER EIN/AUS SCHALTER
14. DC LEISTUNGEN
15. KOPFHÖRERAUSGANG
16. BATTERIEFACH

SICHERHEITSHINWEISE

Simple line drawing of a trash bin with two crossed lines indicating no text or symbols (no text or labels)

KORREKTE ENTSORGUNG DIESES PRODUKTS (Elektromüll)

MISE EN MARCHE/ARRÊT

Simple line drawing of a trash bin with two crossed lines and a solid black rectangle below (no text or symbols)

COMMENT ÉLIMINER CE PRODUIT

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar below (no text or symbols)

CORRECTE AFVALVERWERKING VAN HET PRODUCT (elektrisch en elektronisch afval)

Simple line drawing of a trash bin with two crossed lines (no text or symbols)

MANUÁLNE VYHL'ADÁVANIE

Simple line drawing of a trash bin with two crossed lines and a black rectangular base (no text or symbols)

Hereby, Roadstar Management SA declares that the radio equipment type TRA-300D+ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://roadstar.com/images/ce/TRA-300D+.pdf or by scanning the following QR Code.

TEST REPORT - Energy Efficiency RegulationsEnergy Efficiency of External Power Suppliers
Nameplate Information	Value and precision	Unit	Verdict (PASS/FAIL)
Manufacturer's name or trade mark, commercial registration number and address	DongGuan Obelieve Electronic Co., Ltd/Address: Huazhaoxin industrial Park B-4/F, Golden Phoenix industrial Zone, Fenggan Town, Dongguan, guangdong Province, People'sRepublic of China.	-- --
Model identifier	OBL-0501000E	--	--
Input voltage	100-240V	V	--
Input AC frequency	50/60Hz Hz --
Output voltage	5 V --
Output current	1 A --
Output power	5 W --
Average active efficiency	76,52 % --
Efficiency at load 10%	--	% --
No-load power consumption	0.081 W --

Roadstar®

INTERNATIONAL WARRANTY - INTERNATIONALE GARANTIE GARANTIE INTERNATIONALE - GARANZIA INTERNAZIONALE GARANTIA INTERNACIONAL - GARANTIA INTERNACIONAL ΔΙΕΘΝΗΣ ΕΓΓΥΗΣΗ

Abstract geometric logo design with stylized 'R' letters and circular elements (no text or symbols)

Roadstar

is a registered Trademark of Roadstar S.A. - Switzerland. All rights reserved

FRANÇAIS

Conditions Générales de Garantie Roadstar

Roadstar Warranty Terms and Conditions

Roadstar- by means of its sales organisation, representative or distributor- guarantees its products against manufacturing defects in material and/or workmanship throughout the period warranty.

Should the product fail to work or shows manufacturing defect within the warranty period, Roadstar- by means of its sales organisation, representative or distributor - will take the necessary actions to restore the perfect functioning of the product. To repair or to replace is at discretion of Roadstar or it's representative or distributor. The warranty period is in accordance with directive 99/44/CE of the European Union. For all non EU members, please refer to the local law of each country. This warranty does not cover normal wear and tear of the product and/or its parts, any damage, failure, or loss caused by accident, misuse, and any other failure not directly related to a defect of the product. This warranty does not void consumer's rights in accordance with EU Directive99/44/CE. For further information please visit the website www.roadstar.com, or write to [e-mail].

DEUTSCH

Allgemeine "Roadstar" Garantiebedingungen

Roadstar Management SA, via Passeggiata 7 CH 6883 Novazzano (Switzerland)
