Product type	AM/FM Clock Radio
Brand	Roadstar
Model	HRA-1345US
Dimensions (W x H x D)	20 x 12 x 6 cm
Weight	0.5 kg
Power source	6 UM-2 (C) batteries or 6 V DC power adapter (not included)
Frequency ranges	AM: 520-1710 kHz; FM: 87.5-108 MHz
Main functions	AM/FM radio, dual alarm clock, LED time display, night light, volume control, station selection
Output power	1 W RMS
Antenna	FM telescopic antenna, built-in AM ferrite antenna
Headphone jack	3.5 mm jack
Display	Red LED for time and frequency
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products or solvents.
Safety	Do not expose to moisture, do not open the casing, use only the recommended adapter.
Spare parts and repairability	No spare parts available for sale; device not user-serviceable.
General information	Suitable for household use. 2-year warranty.

Frequently Asked Questions - HRA-1345US ROADSTAR

How to set the time on the Roadstar HRA-1345US radio?

Press the CLOCK SET button until the display flashes. Use the HOUR and MIN buttons to set the desired time. Press CLOCK SET again to confirm.

How to set the alarm?

To set the alarm, press the ALARM SET button. The alarm icon will flash. Use the HOUR and MIN buttons to set the alarm time. Press ALARM SET once more to activate the alarm.

What type of batteries to use?

The radio operates with 6 UM-2 (C) batteries or with a 6 V DC power adapter (not included). Make sure to observe the polarity indicated in the battery compartment.

How to improve FM reception?

Fully extend the FM telescopic antenna and orient it for best reception. Avoid nearby metal obstacles. For AM reception, the ferrite antenna is built-in; rotate the device to pick up the signal.

What to do if the device does not turn on?

First check that the batteries are properly installed or that the power adapter is plugged in. Test with new batteries. If the problem persists, consult a technician.

How to use the night light function?

Press the SNOOZE/LIGHT button to turn on the night light. The LED display will illuminate. Press again to turn it off. The night light automatically turns off after 15 minutes if no action is taken.

Can I connect headphones?

Yes, the device has a 3.5 mm headphone jack. Connect your headphones for private listening. The internal speaker will then be disabled.

How to clean the radio?

Use a soft, dry cloth to wipe the surface. Never use chemicals, alcohol, or solvents. Avoid water entering the device.

What does a flashing display mean?

If the display flashes, it usually indicates that the time is not set or the batteries are low. Replace the batteries and set the time if necessary.

Where can I download the full manual?

The user manual is available for free download on the website notice-facile.com in PDF format. You can also contact customer service to obtain a copy.

USER MANUAL HRA-1345US ROADSTAR

Wooden FM radio with USB, SD and AUX-in

User manual
Bedienungsanleitung
Manuel d'instructions
Manuale d'istruzioni
Manual de instrucciones
Manual de instruções
Gebruiksaanwijzing
Návod k použití
Návod na použitie

INDEX

English Page 1

Deutsch Seite 4

Français Page 7

Italiano Pagina 10

Español Página 13

Portugues Pagina 16

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

FRONT

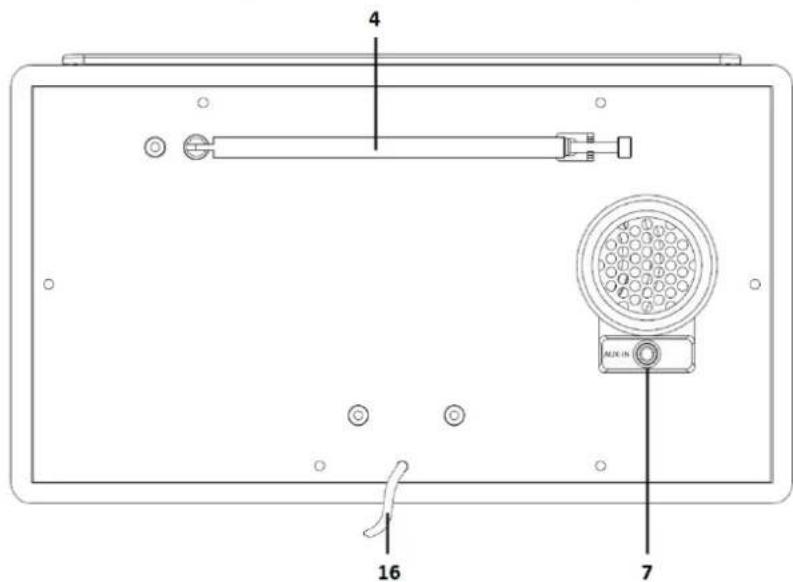

REAR

1 English

LOCATION OF CONTROLS

1. FUNCTION SELECTOR
2. VOLUME KNOB
3. SPEAKER
4. ANTENNA
5. TUNING KNOB
6. DIAL SCALE
7. AUXILIARY INPUT
8. USB PORT
9. SD PORT
10. LED INDICATOR
11. USB/SD - MODE
12. USB/SD - STOP
13. USB/SD - SKIP -
14. USB/SD - SKIP +
15. USB/SD - PLAY / PAUSE
16. AC CORD

PRECAUTION

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
• SERVICING - The user should not attempt to service the appliance beyond that descrive in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord and remove all the batteries, then turn the power back on after a few seconds.

POWER SOURCES

AC POWER: To power your radio, plug the AC power cord into into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage.

TO USE THE RADIO

1. Move the [FUNCTION SELECTOR] (1) to the desired;
2. (Please see detailed instructions for each Source in the following chapters);
3. Adjust the volume with the [VOLUME KNOB] (2) to the desired level;
4. Move the [FUNCTION SELECTOR] (1) to OFF to turn OFF the unit.

RADIO OPERATION

1. Set the [FUNCTION SELECTOR] (1) to "FM" mode;
2. Adjust the frequency to your desired station by using the [TUNING KNOB] (5).
   Note: For a better reception, reorient the antenna (4).

AUX-IN OPERATION

1. Set the [FUNCTION SELECTOR] (1) to "AUX" mode;
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the [AUX-IN SOCKET] (7).
   Note: Music control (play, pause, etc) must be done from your external device.

USB/SD OPERATION

1. Set the [FUNCTION SELECTOR] (1) to "AUX/USB/SD" mode;
2. Plug an USB / SD stick into the [USB/SD PORT] (8/9);
3. Playback will start automatically from the first track.
   Note: Some mp3 player may not be able to play via the usb socket. this is not a malfunction of the system.
   Note: To avoid damage to USB/SD memory, remove it only when the radio is OFF.

TECNICAL SPECIFICATIONS

Power Supply: AC 230V \~ 50Hz.

Radio Frequency Coverage

FM: 88 - 108 MHz.

Speaker

Output Power: 1 x 2 Wrms.

General

AUX-in: 3.5mm jack plug.

USB Port Version: USB 3.0, max 64GB.

SD Port Version: max. 64GB.

Specifications and design are subject to possible modifications without notice due to improvement.

WARNINGS

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

ORT DER BEDIENELEMENTE

1. FUNKTIONSREGLER
2. LAUTSTÄRKEREGLER
3. LAUTSPRECHER
4. ANTENNE
5. ABSTIMMUNG
6. FREQUENZ ANZEIGE
7. AUX EINGANG
8. USB-BUCHSE
9. SD-BUCHSE
10. LED
11. USB/SD - MODE
12. USB/SD - STOP
13. USB/SD - SKIP -
14. USB/SD - SKIP +
15. USB/SD - PLAY / PAUSE
16. NETZKABEL

SICHERHEITSHINWEISE

AUX-in: 3.5mm jack buchse.

Simple line drawing of a trash bin with two crossed lines above and below (no text or symbols)

KORREKTE ENTSORGUNG DIESES PRODUKTS (Elektromüll)

Puissance: 1 x 2 Wrms

Général

Entrée AUX prise 3.5mm jack.

Version Prise USB: USB 3.0, max. 64GB.

Version Prise SD: max. 64GB.

Simple line drawing of a trash bin with two crossed lines and a black bar below (no text or symbols)

COMMENT ÉLIMINER CE PRODUIT

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic discharge (no text or symbols)

Conector AUX: 3.5mm jack.

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Conetor AUX: 3.5mm jack.

Simple line drawing of a trash bin with two crossed lines and a black bar below (no text or symbols)

ELIMINAÇÃO CORRECTA DESTE PRODUTO (Resíduo de Equipamentas Eléctricos e Electrónicos)

AUX-in: 3.5mm jack plug.

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

CORRECTE AFVALVERWERKING VAN HET PRODUCT (elektrisch en elektronisch afval)

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

Hereby, Roadstar Management SA declares that the radio equipment type HRA-1345NUS is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://roadstar.com/images/ce/HRA-1345NUS.pdf

or by scanning the following QR Code.

http://roadstar.com/images/ce/HRA-1345NUS.pdf

http://roadstar.com/images/ce/HRA-1345NUS.pdf

http://roadstar.com/images/ce/HRA-1345NUS.pdf

http://roadstar.com/images/ce/HRA-1345NUS.pdf

http://roadstar.com/images/ce/HRA-1345NUS.pdf

http://roadstar.com/images/ce/HRA-1345NUS.pdf

http://roadstar.com/images/ce/HRA-1345NUS.pdf

http://roadstar.com/images/ce/HRA-1345NUS.pdf

Roadstar®

INTERNATIONAL WARRANTY - INTERNATIONALE GARANTIE GARANTIE INTERNATIONALE - GARANZIA INTERNAZIONABLE GARANTIA INTERNACIONAL - GARANTIA INTERNACIONAL

Serial No.

Serien Nr.

No. de série

No. di serie

No. de serie

No. de série

Type of set

Geräte Typ

Type d'appareil

Tipo d'apparecchio

Tipo de aparato

Tipo de aparelho

Purchase date

Kaufdatum

Date d'achat

Data d'acquisto

Fecha de compra

Data de compra

Dealer's Stamp / Händlerstampel / Timbre du négociant / Timbro del negoziante / Sello del establecimento vendedor / Carimbo da loja de Venda

Abstract geometric logo design with stylized 'BR' letters (no text or symbols)

ENGLISH

Roadstar Warranty Terms and Conditions

Roadstar- by means of its sales organisation, representative ordistributor-guarantees its products against manufacturing defects in material and/or workmanship throughout the period of warranty as defined in the following chapter (4).

Should the product fail to work orshowa manufacturing defectwithin the warranty period asdescribed in chapter(4), Roadstar- by means of its sales organisation, representative or distributor - will take the necessaryactions to restore the perfectfunctioning of the product. To repairorto replace is at discretion of Roadstar.

Should the product fail to work show a manufacturing defect, the consumers shall contact the national Road star sales organisation, representative ordistributor. The list of contacts by country can be found on the internet at the address www.roadstar.com

The warranty period is in accordancewithdirective99/44/CEof the European Union. For all non EU members, please refer to the local law of each country.

This warranty does not cover normal wear and tear of the product and/or its parts, any damage, failure, or loss caused by accident, misuse, and any other failure not directly related to a defect of the product.

This warrantydoes not void consumer's rights in accordance with EU Directive99/44/CE.
