Product type	Hi-fi system with turntable and FM tuner
Brand	Roadstar
Model	TTR8633N
Power supply	230 V ~ 50 Hz
Output power	2 x 1.5 W RMS
FM reception range	87.5 - 108 MHz
Turntable	Yes, belt drive
Platter speeds	33 ⅓ and 45 rpm
Functions	OFF, PHONO, TUNER
Volume control	Rotary
Tuning control	Rotary with analog scale
Automatic stop	ON/OFF selector
Audio output	1 x RCA (AUDIO OUT)
Headphone input	1 x 3.5 mm jack
FM antenna	Built-in, adjustable cable
Included accessories	Adapter for 45 rpm records
Dimensions (approx.)	380 x 200 x 150 mm
Weight (approx.)	2.5 kg
Safety	Do not open, do not expose to moisture, use on a ventilated surface
Maintenance and cleaning	Wipe with a dry soft cloth
Repairability	Call a qualified technician; no user-serviceable parts
General information	Instruction manual available in multiple languages

Frequently Asked Questions - TTR8633N ROADSTAR

How to turn the device on and off?

To turn on, turn the function selector (6) to TUNER or PHONO. To turn off, set it to OFF.

How to listen to FM radio?

Select TUNER with the function selector (6). Use the tuning control (10) to search for stations. Adjust the volume (9) to your liking.

How to improve FM reception?

Orient the FM antenna cable (17) located at the rear of the device to get the best reception.

How to use the turntable?

Open the cover, place a record on the platter, select the speed (33 or 45) with the selector (14), release the tonearm, lift it using the lever (13), position it at the beginning of the record and lower it gently.

The turntable does not stop automatically at the end of the record, what to do?

Check that the Auto Stop selector (18) is set to ON. If the problem persists, see the manual.

Can I connect this system to an external hi-fi system?

Yes, use the AUDIO OUT (16) output with an RCA cable (not supplied) to connect it to the auxiliary input of your system.

What power supply voltage is required?

The device operates on 230 V ~ 50 Hz. Check that your outlet matches before plugging in.

How to clean the device?

Use a soft dry cloth. Do not use solvents or abrasive products.

What to do in case of a breakdown?

Do not attempt to repair it yourself. Call a qualified technician. The device contains no user-serviceable parts.

Where can I find the complete manual?

You can download the manual in PDF format from the site notice-facile.com in the dedicated section.

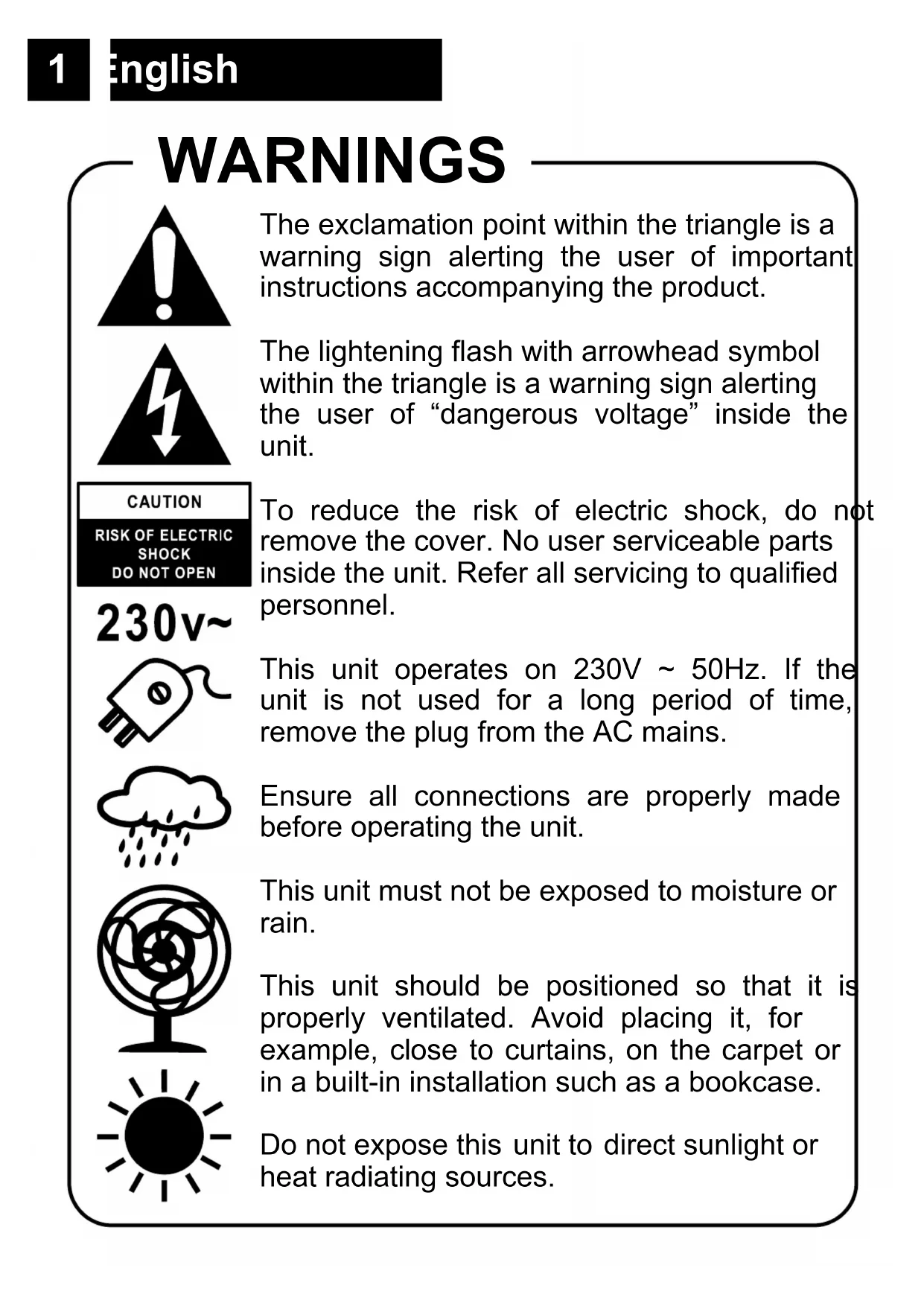

USER MANUAL TTR8633N ROADSTAR

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank-you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

Black triangular warning symbol with exclamation mark (no text or numbers)

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

Black triangular warning symbol with a white lightning bolt symbol (no text or numbers)

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

230v\~

Simple line drawing of a plug with a screw and three leads (no text or symbols)

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Ensure all connections are properly made before operating the unit.

Abstract black-and-white line drawing of a stylized fan or impeller with no text or symbols

This unit must not be exposed to moisture or rain.

Simple black-and-white sun icon with radiating lines (no text or symbols)

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

LOCATION OF CONTROLS

1. DUST COVER
2. LEFT SPEAKER
3. DIAL POINTER
4. 3.5MM HEADPHONE JACK
5. POWER LED INDICATOR
6. FUNCTION SELECTOR (OFF/PHONO/TUNER)
7. RUBBER FEETS
8. RIGHT SPEAKER
9. VOLUME KNOB
10. TUNING KNOB
11. FM-STEREO INDICATOR
12. SPINDLE ADAPTOR
13. TONEARM LEVER
14. 33/45 RPM SPEED SELECTOR
15. PICK-UP HOLDER
16. AUDIO-OUT
17. FM ANTENNA
18. AUTO STOP SWITCH
19. AC CORD

CONNECTING TO POWER

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

For your own safety read the following instructions carefully before attempting to connect this unit to the mains.

FM TUNER

Operation

1. Set the Function Selector (6) to the TUNER position. The red Power Indicator (5) will light up.
2. Tune to the desired radio station by turning the Tuning

3 English

control (10).

1. To switch off the radio set the Function Selector (6) to the OFF position.

ANTENNA

For FM reception there is a built-in FM antenna wire (17) at the rear of the unit. Move the wire around to obtain the best reception.

TURNTABLE OPERATION

Preparation

• Open the Record Player Cover.
• Release the Tonearm Clamp, and remove the stylus protector.

Listening to Records

1. Set the Function Selector (6) to the PHONO position.
2. Place a record on the turntable, over the central spindle. Place the EP adapter over the central spindle when playing 17cm EP records.
3. Set the Speed Selector (14) to 33 or 45 rpm according to the record.
4. Release the tonearm clamp, and remove the protective cap from the stylus.
5. Lift the Tonearm with the Tonearm Lift Lever (13).
6. Move the tonearm to the beginning of the record, or to the start of a particular track.
7. Gently lower the tone arm onto the record with the Tonearm Lift lever to start playing.
8. When the record is finished the tonearm will automatically stop. Lift the tonearm from the record and return it to the rest.

9. To stop manually, lift the tonearm from the record and return it to the rest.

10. To select Auto Stop mode, move the Auto Stop Switch (18) to ON position.

Notes:

• Do not stop or turn the platter manually.
• Moving or jarring the turntable without securing the Tonearm clamp could result in damage to the Tonearm.
• Replace the protective cap on the stylus when not in use.

AUDIO-OUT FUNCTION

You can connect the system to external audio device (amplifier or active speakers) through the Audio out RCA socket (16) with an RCA cable (not included).

SPECIFICATIONS

AC: 230V - 50Hz

FM: 87,5 - 108 MHz

Output Power: 2x 1.5W RMS

Design and specifications are subject to change without notice.

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

SICHERHEITSHINWEISE

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with white lightning bolt symbol (no text)

Simple line drawing of a plug with a screw and three pins (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

KORREKTE ENTSORGUNG DIESES PRODUKTS (Elektromüll)

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text)

Simple line drawing of a plug with a screw and three leads (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Stylized black-and-white illustration of a circular mechanical fan or impeller with no text or symbols

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with white lightning bolt symbol (no text)

Simple line drawing of an electrical plug with a bulb and cable (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with a white lightning bolt symbol (no text or numbers)

Simple line drawing of a plug with a screw and three leads (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a stylized fan or impeller with no text or symbols

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with white lightning bolt symbol (no text)

Simple line drawing of a plug with a screw, no text or symbols present

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.

ELIMINAÇÃO CORRECTA DESTE PRODUTO (Resíduo de Equipamentas Eléctricos e Electrónicos)

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text)

Simple line drawing of an electrical plug with a bulb and cord (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a stylized fan or impeller with no text or symbols

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black rectangle below (no text or symbols)

CORRECTE AFVALVERWERKING VAN HET PRODUCT (elektrisch en elektronisch afval)

Warning symbols: one warning triangle with exclamation mark and another with lightning bolt symbol indicating hazard or failure.

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

Simple line drawing of a plug with a bulb and cable (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Warning symbols: one warning triangle with exclamation mark and another with lightning bolt symbol indicating hazard or failure.

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

Simple line drawing of an electric plug and a cloud with raindrops (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

Black triangular warning symbol with white lightning bolt symbol (no text)

Simple line drawing of an electrical plug with a bulb and cable (no text or symbols)

Simple line drawing of a cloud with raindrops falling (no text or symbols)

Abstract black-and-white line drawing of a circular mechanical fan or impeller (no text or symbols)

Simple black-and-white sun icon with radiating lines (no text or symbols)

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Hereby, Roadstar Management SA declares that the radio equipment type TTR-8633N is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://roadstar.com/images/ce/TTR-8633N.pdf

VER.2

Roadstar Management SA, via Passeggiata 7 CH 6883 Novazzano (Switzerland)
