USER MANUAL RCR3025EBT ROADSTAR

• Your new unit was manufactured and assem- bled under strict ROADSTAR quality control. Thank you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future referen- ces.

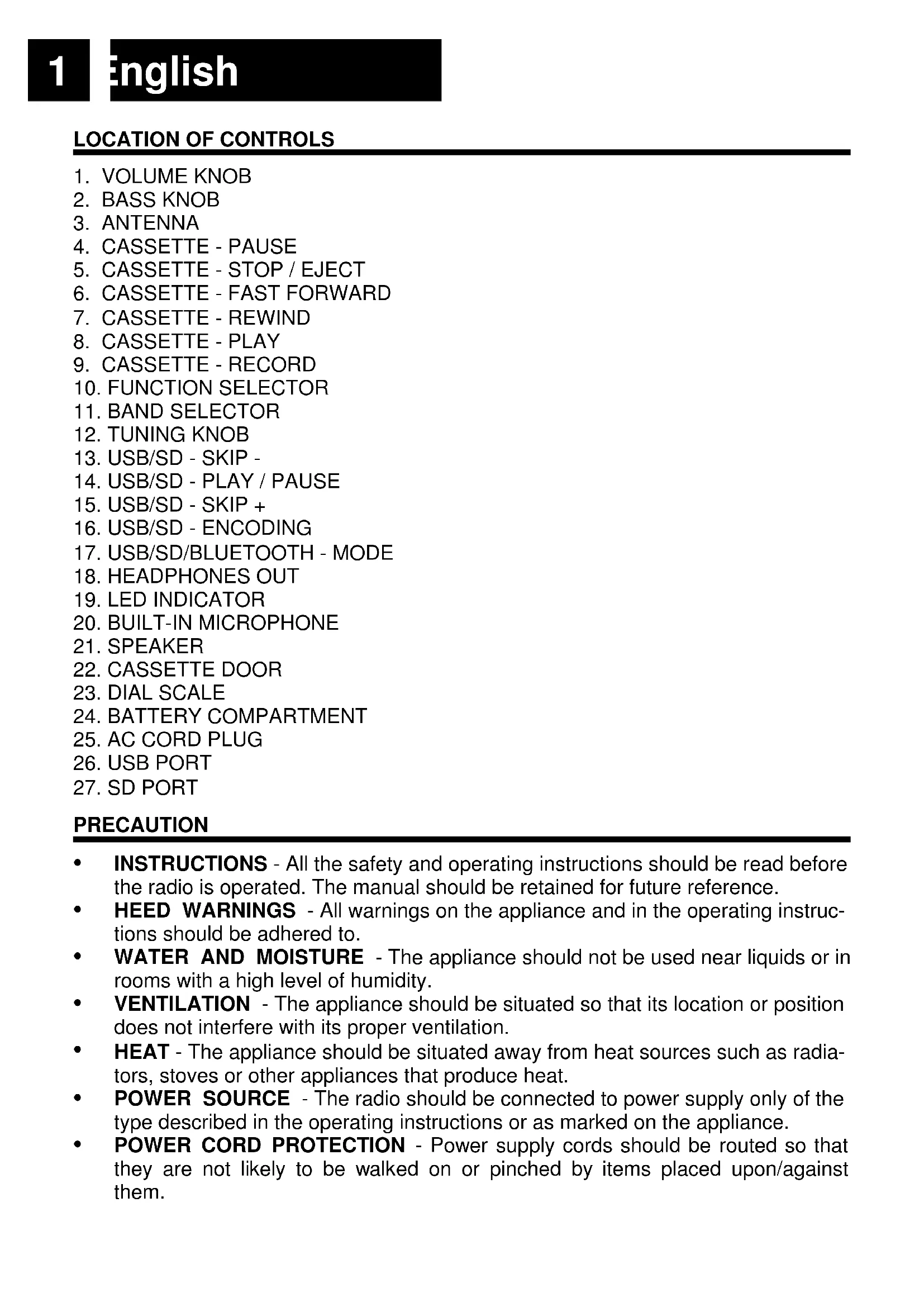

INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.

HEED WARNINGS - All warnings on the appliance and in the operating instruc- tions should be adhered to.

WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.

VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.

HEAT - The appliance should be situated away from heat sources such as radia- tors, stoves or other appliances that produce heat.

POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.

POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.2

OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

The appliance should be serviced by qualified service personnel when: - The power supply cord or plug has been damaged; - Objects have fallen into or liquids has been spilled into the radio; - The appliance has been exposed to rain; - The appliance has been dropped or the enclosure damaged; - The appliance does not appear to operate normally.

SERVICING - The user should not attempt to service the appliance beyond that descrive in the user operating instructions. All the servicing should be referred to qualified service personnel Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord and remove all the batteries, then turn the power back on after a few seconds. POWER SOURCES AC POWER: You can power your portable stereo system by plugging the AC power cord into the AC plug (25) at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance. BATTERY POWER: To use the radio with batteries, disconnect the AC power cord and insert 4 × “LR20” batteries into the compartment (24). Be sure that the batteries are inserted correctly to avoid damage to the appliance. Remove the batteries when the radio will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your radio.

2. (Please see detailed instructions for each Source in the following chapters);

3. Adjust the volume with the [VOLUME KNOB] (1) to the desired level;

4. Move the [FUNCTION SELECTOR] (10) to OFF to turn OFF the unit.

2. Select desired band by using the [BAND SELECTOR] (11);

3. Adjust the frequency to your desired station by using the [TUNING KNOB] (12).

2. Press [STOP/EJECT](5) to open the [CASSETTE DOOR] (22) and insert your

4. Press [PLAY] (8) to start playing tape.

Press [PAUSE] (4) when you want to stop playing tape operation temporarily, press again to resume tape operation.

Press [STOP/EJECT] (5) when finished, press again to open the door.

Press [F.FWD] (6) or [RWD] (7) to start rapid tape winding either forward or re- verse direction. CASSETTE RECORDING The unit can record from Radio, Bluetooth, USB/SD or Built-In microphone.

1. Insert the cassette into the [CASSETTE SLOT] (22);

2. Perform normal playback of the source you want to record;

3. Press the [RECORD] (9) and [PLAY] (8) buttons together to start recording;

4. Once the record is finished, press the [RECORD] button (9) to stop recording.

2. Plug an USB / SD stick into the [USB/SD PORT] (26/27);

3. Playback will start automatically from the first track.

Note: Some mp3 player may not be able to play via the usb socket. this is not a mal- function of the system. Note: To avoid damage to USB/SD memory, remove it only when the radio is OFF.

DIRECT USB/SD ENCODING

The unit can encode from Radio, Tape or Built-In microphone.

1. Plug the USB or SD stick into the [USB/SD PORT] (26/27);

2. Perform normal playback of the source you want to encode & record;

3. Press the [ENCODING] button (16) to start encoding;

4. Once the record is finished, press the [ENCODING] button (16) to stop recording.

2. Press the [MODE] (17) repeatedly to select Bluetooth mode (BLUE LED);

3. Connect your Bluetooth portable device to the ID Bluetooth tagged as “RCR-

4. You can now transfer the music to the RCR-3025EBT.

Note: Music control (play, pause, etc) must be done from your external device.4

English TECNICAL SPECIFICATIONS Power Supply: AC 230V ~ 50Hz. DC 6V = (4 x “LR20” Batteries). Radio Frequency Coverage AM: 520 - 1620 kHz FM: 87.5 - 108 MHz. SW: 3 - 23 MHz. Speaker Output Power: 2 x 1.5 Wrms. General Headphones Out: 3.5mm jack plug. BT Maximum radiated Power: < 4 dBm (2.5 mW). USB Port Version: USB 3.0, max 32GB. SD Port Version: max. 32GB. Specifications and design are subject to possible modifications without notice due to improvement. This marking shown on the product or its literature, indicates that it should not be disposed with other house-hold wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

CORRECT DISPOSAL OF THIS PRODUCT

(Waste Electrical & Electronic Equipment) WARNINGS The exclamation point within the triangle is a warning sign alerting the user of important instruc- tions accompanying the product. The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit. To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel. This unit operates on 230V ~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains. Ensure all connections are properly made before operating the unit. This unit must not be exposed to moisture or rain. This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase. Do not expose this unit to direct sunlight or heat radiating sources.5 Deutsch
