USER MANUAL HTH250 SCHEPPACH

Petrol Hedge trimmer Translation from the original instruction manual

Scope of delivery 20

Safety instructions 21-23

Before starting the equipment 23

Attachment and operation 24

Disposal and recycling 27

Declaration of conformity 91

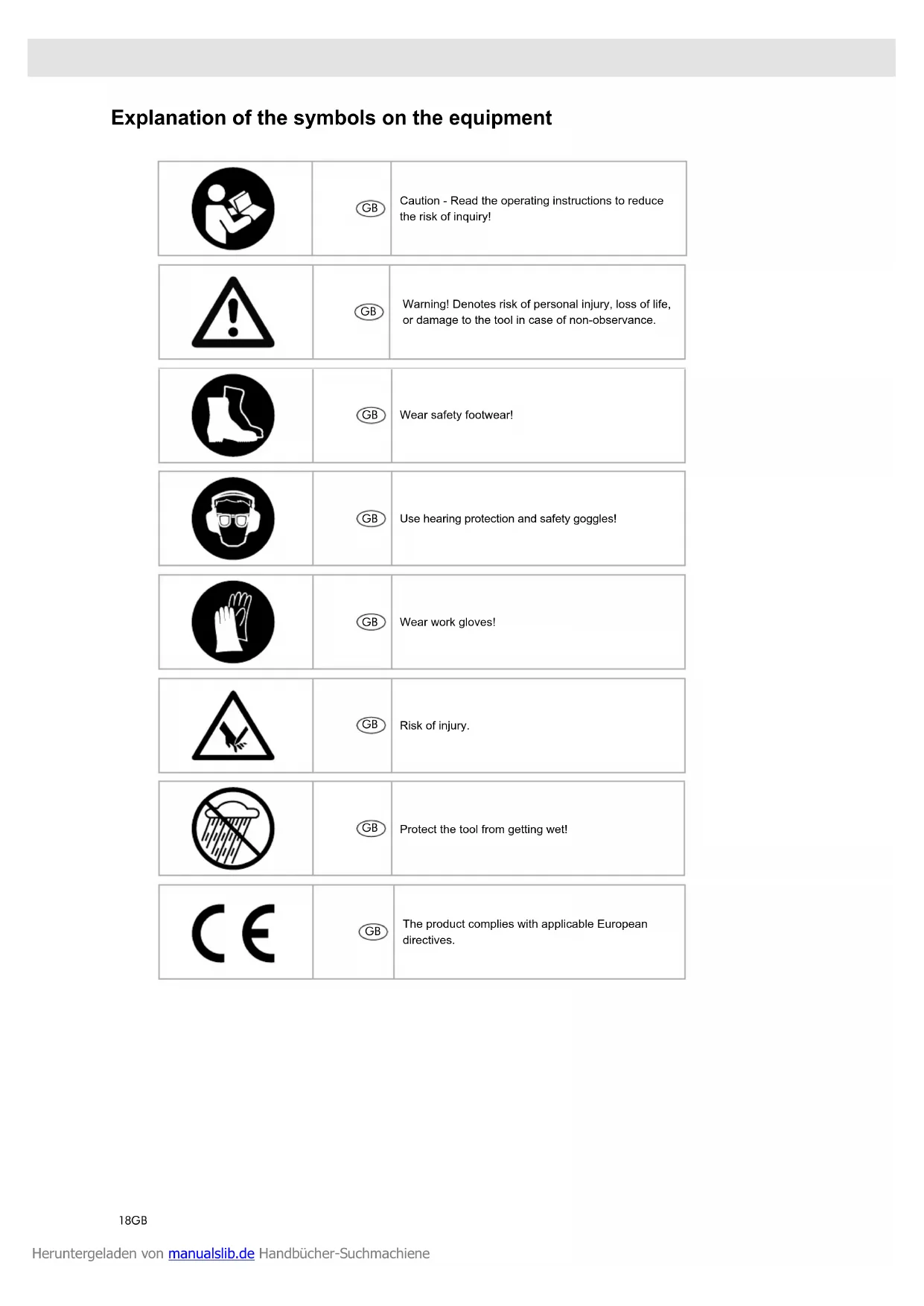

Caution - Read the operating instructions to reduce the risk of inquiry!

Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance.

Use hearing protection and safety goggles!

Wear safety footwear!

Protect the tool from getting wet!

No smoking in the working area!

Start lever (choke) "cold start"

Keep bystanders away!

MANUFACTURER: scheppach Fabrikation von Holzbearbeitungsmaschine GmbH Günzburger Straße 69 D-89335 Ichenhausen DEAR CUSTOMER, We hope your new tool brings you much enjoyment and success. NOTE: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating instructions,

• Repairs by third parties, not by authorized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied, WE RECOMMEND: Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine. In addition to the safety regulations in the operating instructions, you have to meet the applicable regulati- ons that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concer- ning the operation of the machine and who are infor- med about the associated dangers. The minimum age requirement must be complied with.

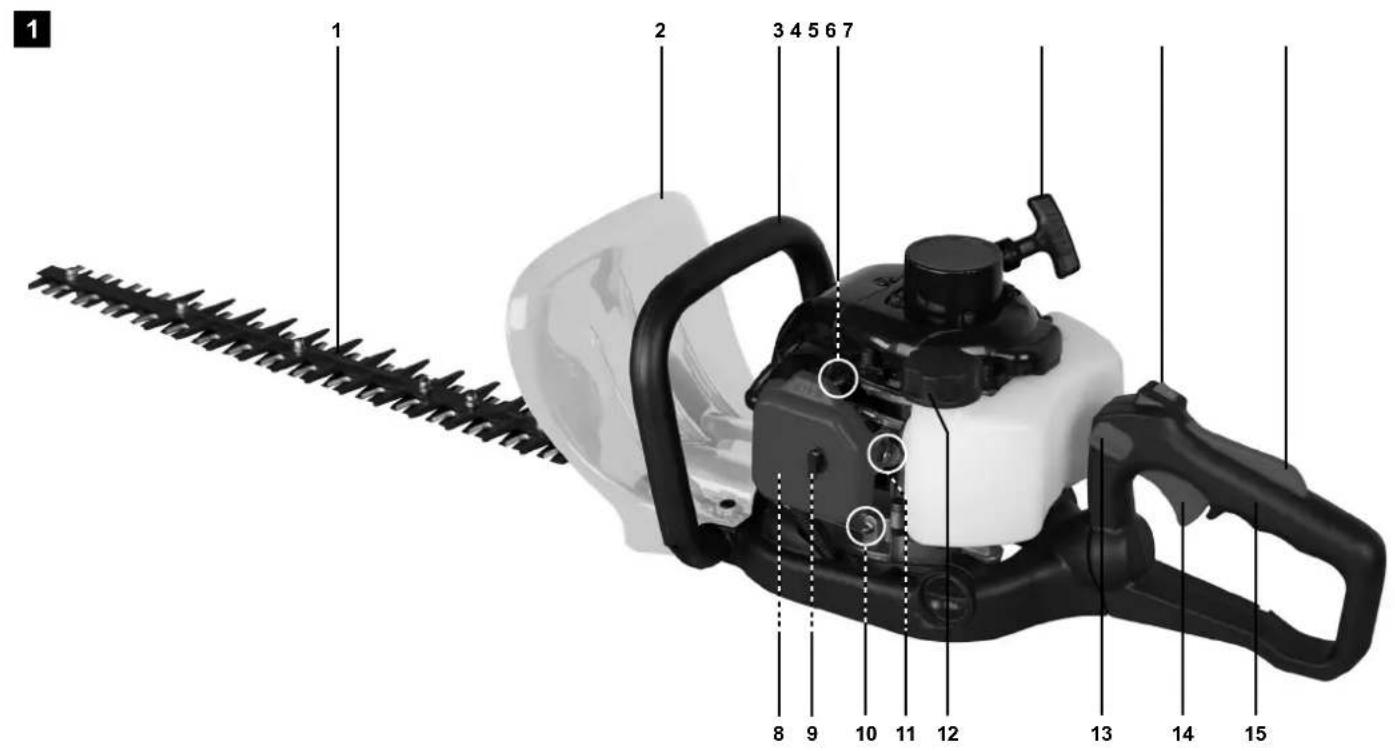

5. Cranking rope with handle

3. Scope of delivery

Open the packaging and remove the device carefully. Remove the packaging material as well as the pa- ckaging and transport bracing (if available). Check that the delivery is complete. Check the device and acces- sory parts for transport damage. If possible, store the packaging until the warranty period has expired.

• Read the operating instructions to make yourself familiar with the device prior to using it.

• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.

• Specify our part numbers as well as the type and year of construction of the device in your orders. m ATTENTION The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, lm and small parts! There is a risk of swallowing and suffocation! Petrol Hedge trimmer Knives protection Spark plug socket spanner Mixing bottle Assembly material Manual Heruntergeladen von manualslib.de Handbücher-Suchmachiene21GB

The machine meets the currently valid EU machine directive. Before starting any work, all protective and safety devices must be in place. These hedge clippers have been designed to cut soft, freshly grown hedge material. They are not suitable for cutting branches, tough wood or other material to be cut. The machine has been designed to be operated by one person. The operator is responsible for third parties in the area of operations. All safety and hazard notices on the ma- chine must be observed. All safety and hazard notices on the machine must be kept in a completely legible condition. Use the machine in a technically awless condition only, as well as for its intended purpose, in a safe manner and being aware of dangers, in compli- ance with the operating instructions! Disruptions which can affect safety in particular must be eliminated straight away! The manufacturer’s safety, operation and maintenance instructions as well as the technical data given in the calibrations and dimensions must be adhered to. Relevant accident prevention regulations and other generally recognized safety and technical rules must also be adhered to. The machine may only be used, maintained or repaired by trained persons who are familiar with the machine and have been informed about the dangers. Unautho- rized modications of the machine exclude a liability of the manufacturer for damages resulting from the modications. The machine is intended for use only with original spare parts and original tools from the producer. Any other use is considered to be not intended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user. The hedge trimmer may be used only for cutting hedges, bushes and shrubs. Alternative use not speci- ed in these instructions can damage the hedge trim- mer or severely injure the user. Therefore, it is explicitly excluded from the list of possible uses. The device must not be used for commercial, technical or industrial applications. If you are not sure whether working conditions are safe or unsafe, do not work with the machine. WARNING! For your own safety, please thoroughly read this manual and the general safety instruc- tions before turning the device on. If you give the device to third parties, always include these instructions. The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manu- facturer will be liable for any damage or injuries of any kind resulting from such misuse.

5. Safety instructions

Working Safely Before starting this device, read and keep to the following advice. Also observe the preventive regula- tions of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury. Keep these security advices (operating instructions) always together with the hedge trimmer. The hedge trimmer shall only be operated by persons with sufcient experience. Give or lend the hedge trimmer only to persons who are familiar with the hedge trimmer and its operation. Give always the operating instruction to take with them. Repair works on the device must be carried out by the manufacturer or by companies appointed by the manu- facturer respectively. Primary users Persons working for the rst time with the hedge trim- mer must obtain a practical instruction to the use of the hedge trimmer and the operator protection equipment by an experienced operating person.

• Be attentive. Be careful what you do. Behave sen- sibly when working. Do not use the device when you are tired or under the inuence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.

• Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions. Insufciently informed operators may put at risk their own and the health of other persons.

• Do not use the machine for unsuitable purposes (see “Normal intended use”).

• Avoid abnormal posture. Provide a safe standing position and keep at any time the balance.

• Wear suitable work clothes: - Do not wear loose-tting clothes or jewellery; they can catch in moving parts. - Gloves and slip-proof shoes - Hairnet in case of long hair

• Wear protective clothing: - ear protection - protective goggles or face protection - protective gloves - safety boots - certicated hardhat in situations where injuries to the head must be expected.

• We recommend to wear a leg protection and a safety jacket.

• Keep your workplace in an orderly condition! Untidi- ness can result in accidents.

• Take into consideration environmental inuences: - Do not expose the hedge trimmer to rain. - Do not use the hedge trimmer in a damp or wet environment. - Delay the work in case of disadvantageous weather (rain, snow, ice, wind) – increased risk of accidents! - Provide for good illumination. - Do not use the hedge trimmer near inammable liquids or gases.

• Familiarize yourself with your environment and pay attention to possible dangers which you may not be able to hear because of the motor noise.

• Never leave the hedge trimmer unattended. Heruntergeladen von manualslib.de Handbücher-Suchmachiene22 GB

• For breaks the hedge trimmer has to be put down in such a manner that no person will be endangered. Assure the hedge trimmer against unauthorised access.

• Persons under the age of 18 must not operate the device.

• Keep other persons away.

• The operator is responsible for accidents or risks which occur to other persons or their properties.

• The operator is resposnible to third persons within the area of operations.

• Do not allow other persons, especially children, to touch the tool or motor. Keep them away from your working area.

• Do not use a blunt, broken or otherwise damaged cutting device.

• Be sure that the cutting device already moves before you start cutting.

• Do not overload the machine! You work better and safer in the given performance range.

• Only operate the machine with complete and cor- rectly attached safety equipment and do not alter anything on the machine that could impair the safety.

• Do not modify the device or parts of the device respectively.

• Do not use any knives which do not comply with the indicated characteristics of this instruction manual. The use of other tools and other accessories can sig- nify a risk of injury for you.

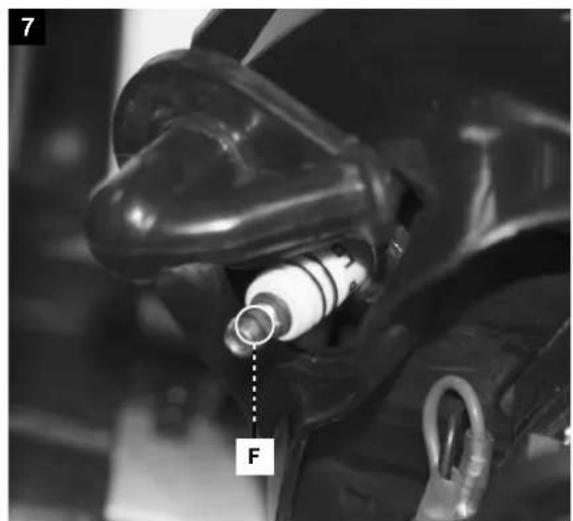

• Stop the machine and remove the spark plug con- nector from the spark plug when - the hedge trimmer had contact with soil, stones, nails or other foreign substances

• checking the device for damages - carrying out repair works - maintenance and cleaning - carrying out servicing and repair works, removal of faults (including blocking of knives) - transport and storage - leaving the hedge trimmer (also for short-term inter- ruptions)

• Maintain your hedge trimmer with care: - Keep your tools sharp and clean in order to be able to work better and safer. - Keep handles dry and free of oil and grease. - Follow the maintenance instructions.

• Check the machine for possible damage: - Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function. - Check whether the movable parts function perfectly and do not stick or whether the parts are damaged. All parts must be correctly installed and full all conditions to ensure perfect operation of the hedge trimmer. - Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the inst- ructions for use. - Damaged or illegible safety labels should be repla- ced immediately.

• Do not allow any tool key to be plugged in! Before switching on, check always that wrenches and adjusting tools are removed. Before switching on, check always that wrenches and adjusting tools are removed.

• Store unused equipment in a dry, locked place out of the reach of children.

• Do not repair the device unless you are qualied for such kind of work. Do not carry out repair operations on the machine other than those described in section “Maintenance” but contact the manufacturer or authorized customer service centres. Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points. Use only original spare parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action. Safe handling with fuels Fuels and fuel vapours are inammable and may cause serious injury on the skin or when inhaled. Therefore be careful and provide sufcient ventilation when handling with fuels.

• Stop the engine and allow the device to cool down before fuelling it.

• Do not smoke and avoid open ames when fuelling.

• Wear gloves when fuelling.

• Do not fuel in closed rooms.

• Avoid spilling of fuel or oil. Clean the hedge trimmer immediately when you have spilled fuel or oil. Chan- ge your clothes immediately when you have spilled fuel or oil on them.

• Make sure that no fuel can come into the soil.

• Carefully close the tank cap after fuelling and check that it does not get loose during operation.

• Check that there is no leakage on the tank cap and fuel lines. If there are leaks this device may not be started.

• Only transport and store fuels in containers approved and identied for this.

• Keep children away from fuels.

• Do not handle and store fuels close to combustible and highly inammable materials as well as sparks and open ames.

• Go away at least three metres from the fuelling place to start the device.

• To reduce the re risk keep the motor and silencer free from cutting remainders, leaves and lubricants. Risidual risks Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose. Residual risks can be minimised if the “Safety informa- tion” and the “Intended usage” as well as the whole of the operating instructions are observed. Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Injury by catapulted parts.

• Breaking or catapulting of knife pieces.

• Carbon monoxide poisioning when using the device in closed or poorly ventilated rooms.

• Burning when touching hot parts. Heruntergeladen von manualslib.de Handbücher-Suchmachiene23GB

• Impairment of hearing when working on the machine for longer periods of time without ear protection. In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Fuel tank capacity l 0,6Mixing ratio (fuel / two-stroke oil) 40:1Cutting length mm 600Max. cutting thickness mm 27Dimension L/B/H mm 1165/230/220Sword length mm 690Weight kg 5,9 Subject to technical changes! Information concerning noise emission measured according to relevant standards: Sound pressure L

= 3 dB(A) Wear ear-muffs. The impact of noise can cause damage to hearing. Vibration (real handle) A

7. Before starting the equipment

The hedge trimmer is supplied without fuel. Fuel the hedge trimmer as described under “Fuelling”. Fuelling

• This device is operated by a mixture from regular petrol (unleaded) and two-stroke engine oil. Utmost care is required when handling fuel and oil. Keep away smoke and open ames (risk of explo- sion). Petrol Petrol: Octane number at least 91 ROZ unleaded

• Do not ll in leaded petrol, diesel or other non-appro- ved fuels.

• Do not use petrol having a smaller octance number than 91 ROZ. This may lead to severe engine dama- ges due to increased engine temperatures.

• If you frequently operate the device at high speeds, you should use petrol with a higher octane number.

• The use of unleaded petrol is recommended for envi- ronment protection reasons. Two-stroke engine oil: acc. to JASO FC or ISO EGD specications Do not use - four-stroke oil or two-stroke oil for water-cooled outboard engines, - mixtures ready for use from petrol stations. Mixing Ratio of mixture: 40:1 Petrol Two-stroke engine oil 2,5% (40:1) 1 litres 0.025 litres 2 litres 0.05 litres 5 litres 0.125 litres 10 litres 0.25 litres

• Measure the oil quantity accurately as a small devi- ation of it has a large effect on the ratio of mixture in particular for small fuel quantities.

• Do not change the ratio of mixture. This will lead to more residues of combustion, a higher fuel consump- tion, a decrease of output or damages to the engine. Mix petrol and oil in a clean container approved for petrol and appropriately identied. Use a fuel container with overll protection.

1. At rst ll in half the quantity of petrol to be mixed.

2. Then ll in the total amount of oil.

3. Shake the fuel mixture.

4. Fill in the remaining quantity of petrol.

Fuels have only a limited shelf-life, they are subject to ageing. Outdated fuels and fuel mixtures may result in starting problems. Therefore, mix only that quantity of fuel which you can use within a month. Only store fuels in containers approved and identied for this. Keep fuel containers in a dry and safe area. Make sure that fuel containers are kept out of the reach for children. Caution! Prior to starting the machine learn how to put it out of action in emergency cases. Fuelling the hedge trimmer

• Stop the engine and allow it to cool down.

• Wear protective gloves.

• Avoid eye and skin contact.

• Strictly follow the instructions under “Safe handling with fuels”.

1. Only fuel the hedge trimmer in the open or in

sufciently ventilated rooms.

fuel mixture into the tank.

4. Carefully open the tank cap (10) to allow possible

overpressure to relax.

5. Carefully ll the fuel mixture up to the lower edge

6. Close the tank cap. Check that the tank cap is

7. Clean the tank cap and the area around it.

8. Check the tank and the fuel lines for leaks.

9. Operate the fuel pump (11) if required.

10. Before starting the engine go away at least three

metres from the fuelling place. Heruntergeladen von manualslib.de Handbücher-Suchmachiene24 GB

8. Attachment and operation

You may not start to operate the machine until you have read these operating instructions, observed all the inst- ructions given and completely and properly assembled the machine! - Make sure that the ON/OFF switch (6), the throttle lock-out switch (7) and the throttle trigger (14) func- tion perfectly. - This hedge trimmer is only allowed to be started after it is completely assembled. - Support the hedge trimmer when starting and hold it rmly. Make sure that the cutting device can move freely. To start the hedge trimmer:

1. Keep a safe distance to ammable materials.

2. Have a safe standing position.

3. Place the hedge trimmer on the ground in front of

you, with the cutting device showing away from your body.

4. Put the right foot tip in the rear handle.

5. Hold the front handle with your left hand.

Starting with cold engine

1. Slide the ON/OFF switch (6) to the position „I„.

2. Carefully press on the fuel pump (11) several times

until fuel comes into the pump.

3. Slide the choke (4) to „cold start“.

4. Slowly pull the cranking rope with its handle (5)

until you feel a resistance.

5. Pull the cranking rope quickly and then guide it

back slowly. Do not fully pull out the cranking rope and do not allow that the cranking handle strikes against the engine.

6. When the engine starts slide the choke (4) to

„warm start and work“.

7. Allow the device to warm up for approx. 1 minute

before starting the work. Stopping the engine

1. Release the throttle trigger (14).

2. Slide the ON/OFF switch (6) to the „0„ position.

Starting with warm engine

1. Slide the ON/OFF switch (6) to the position „I„.

2. Slide the choke lever (4) to „warm start and work“.

3. Hold the cranking handle (5) and pull the cranking

rope until the engine starts. Throttle lock-out switch

1. Hold the hedge trimmer on its rear handle (15) and

press the throttle lock-out switch (7).

2. Hold the front handle (3) with your other hand.

3. Press the throttle trigger (14).

4. The cutting device will start moving.

• If you release the throttle trigger, the cutting device will stop and the engine will idle. If the cutting device runs in spite of non-pressed throttle trigger, you have to reduce the idle speed. (See “Main- tenance”.) Adjustments on the hedge trimmer Adjusting the rear handle (15). To make working with the hedge trimmer easier it is possible to choose one of the 3 working positions of the rear handle.

• When adjusting the throttle trigger (14) can not be pressed.

1. Use your left hand to hold the hedge trimmer on

its front handle (3).

2. Pull the slider (13) and turn the handle to your

3. Release the slider (13). Make sure that the unlo-

cking device engages again and that the handle is secured.

9. Working instructions

Carry out the following checks before starting and regularly during working with the hedge trimmer:

• Is the hedge trimmer assembled completely and properly? Check also that all nuts and screws are tightened. Screws on the cutting device: See “Main- tenance”.

• Is the hedge trimmer in good and safe condition? Do all safety devices properly work?

• Is the fuel tank lled?

• Is the cutting device undamaged and sharpened?

• Are engine and silencer free from deposits, leaves or emerging lubricants.

• Is handhold clean and dry – free of oil, grease and resin?

• Is workplace free of risks to stumble?

• Do you wear the required protective equipment?

• Did you read and understand all advices?

• Is the throttle trigger easy-running and functioning?

• Does the ON/OFF switch properly work?

• Does the cutting device always stop in idle mode? If the cutting device moves during idling the idle speed must be reduced (see “Adjusting the idle speed”).

• Check that the gearbox is sufciently lubricated (see “Maintenance”). General behaviour when working with the hedge trimmer

• Never work alone. Another person should stay close enough to hear calls for help.

• Keep children, bystanders and animals at a distance (15m min.) from your working area.

• Do not work on snow, ice or other slippery ground – slip hazard.

• Do not work under insufcient light conditions (e.g. fog, rain, snow urry or twilight).

• Scare animals off the hedge before starting to cut in order to prevent them from being injured.

• Provide for a safe and cleaned workplace. Remove from the working area objects which might be thrown off.

• Avoid abnormal posture. Keep at any time the ba- lance. Do not work with the upper part of the body leaned forward.

• Operate the hedge trimmer only with safe standing position. Heruntergeladen von manualslib.de Handbücher-Suchmachiene25GB

• At rst cut the sides of the hedge and then the upper edge.

• Cut the hedge from the bottom up.

• Cut the hedge in trapezium shape.

• Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.

• Trim in several passes if you have to cut down a large portion of the hedge. Best time for hedge trimming:

• Leaved hedge: June and October

• Conifer hedge: April and August

• Quickly growing hedge: from May and then every 6 weeks Pay attention to breeding birds in the hedge. If so, put off hedge trimming or leave this area out. At any case pay attention to all safety instructions.

Before each maintenance and cleaning work - Stop the engine. - Wait until the cutting device does not longer move. - Stop the engine and pull off the spark plug connector (with the exception of idle speed adjustment). Do not carry out maintenance work close to open ames. Risk of re. Maintenance and repair work other than those descri- bed in this chapter is only allowed to be carried out by service staff. For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again. Use only original parts. Other parts can result in unex- pected damages and injuries. In order to aviod possible injuries wear gloves. To guarantee a long and reliable usage of the hedge trimmer carry out the following maintainance works regularly. Check the hedge trimmer for obvious defects such

- loose fastening elements - worn or damaged components - deformed, broken or damaged cutting device - leaks from the fuel tank cap or fuel lines Check the hedge trimmer after each application for - wear and tear, in particular sliding play of the cutting device - correct assembly and faultless covers and protective devices. Necessary repair or maintainance operations have to be carried out before the usage of the hedge trimmer. Adjusting the cutting device Readjust the sliding play if cut material is clamped between the blades or the play has increased due to normal wearing of the cutting device after a longer period of use.

• Stop the hedge trimmer when moving to another work place.

• Keep hands and feet away from the cutting device when it moves.

• Hold the hedge trimmer so that you do not inhale exhaust gases. Do not work in closed rooms.

• Do not use the hedge trimmer to pick up or remove wood pieces or other objects.

• Remove unconditionally any foreign objects out of the hedge (e.g. wires) as these can damage the knives of the hedge trimmer.

• Hold the hedge trimmer always rmly with both hands, left hand on the front handhold and right hand on the rear handhold).

• If you release the throttle trigger the cutting device will afterrun for a short time (free wheeling effect).

• Start trimming with the cutting device moving.

• Never touch the cutting device with your hands duri- ng operation.

• Never work - with stretched arms - on hardly accessible places - too far bent forward

• Never work with the hedge trimmer above shoulder height.

• Never get in contact with the running cutting device with metallic fences or the ground.

• Stop the engine and pull the spark plug connector: - when you notice changes in the device’s behaviour, - to remove jammed material, - to check the cutting device after it had contact with stones, nails or other hard objects, - to eliminate faults, - for work breaks, - before leaving the hedge trimmer.

• Do not place a hot hedge trimmer in dry grass or onto inammable objects.

• Before starting your work make sure that: - no other persons or animals stay within the working area, - you can always step back without any barriers, - your standing area is free from foreign objects, brushwood and branches, - you have always a secure standing position. If persons who have blood circulation problems are too often exposed to vibrations damages to the nervous system or to blood vessels may occur. You can reduce vibrations - by thick and warm working gloves, - shorter working time (have longer breaks). See a doctor if your ngers swell, you don’t feel well or your ngers become numb. Working with the hedge trimmer Hold the hedge trimmer with both hands on a safe distance from the body.

• The maximal diameter to cut depends on the wood’s type, age, moisture and hardness.

• Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.

• Due to its double sided knives the hedge trimmer can be guided forward and backward or by oscillating movements from one to another side. Heruntergeladen von manualslib.de Handbücher-Suchmachiene26 GB Cleaning/replacing the fuel lter Check the fuel lter (E) if required. A contaminated fuel lter restricts the fuel supply. Open the tank cap (12) and pull the fuel lter through the opening using a wire hook.

• Slight contamination: - Pull the fuel lter from the fuel line and clean it in petroleum ether.

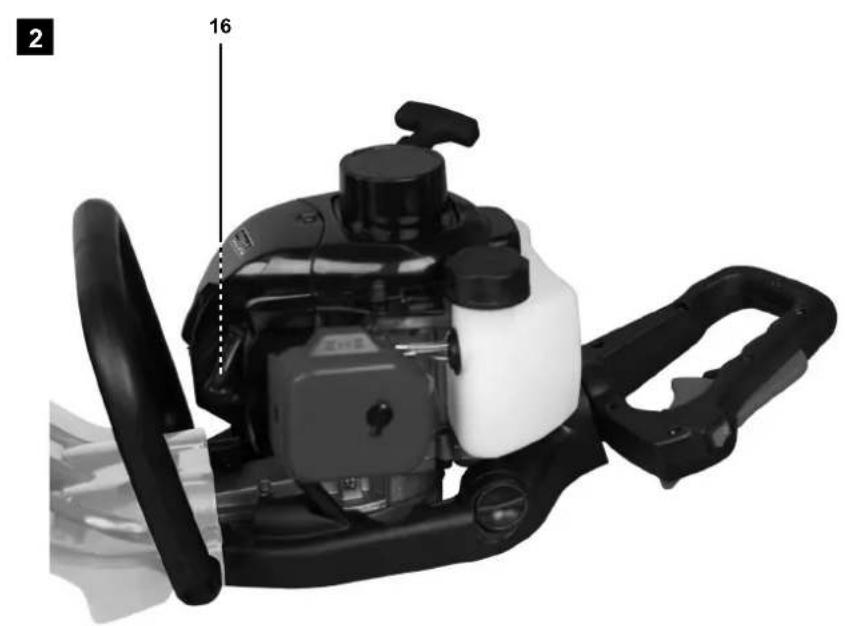

• Bad contamination: - Replace the fuel lter. Checking / replacing the spark plug Do not touch the spark plug (F) or the spark plug con- nector (16) when the engine runs. High voltage! Risk of burning on the hot engine. Wear protective gloves. Check the spark plug and the spark gap on a regular basis. For this proceed as follows:

1. Pull the spark plug connector from the spark plug.

2. Remove the spark plug using the supplied spark

plug wrench. The spark gap must be 0.6 to 0.7 mm. Clean the spark plug when it is contaminated. Replace the spark plug: - once in a month if the device is often used - when the insulating body is damaged, - when the electrodes show excessive erosion, - when the electrodes show excessive dirt or oil. Checking the ignition spark

1. Pull the spark plug connector from the spark plug.

4. Firmly connect the spark plug connector.

5. Use an insulated pair of tongs to press the spark

plug against the engine body (away from the spark plug hole).

6. Slide the ON/OFF switch to the position „I„.

7. Firmly pull the cranking rope on the cranking

• A spark between the electrodes is a sign of proper functioning. Silencer / exhaust outlet Do not retighten the silencer screws when the engine is hot.

1. Check the tight seat of the screws (G) on the silen-

cer (H) on a regular basis. - If they are loose, tighten them hand-tight.

2. Clean the exhaust outlet (K) on a regular basis.

Care Clean the hedge trimmer thouroughly after each appli- cation so that the faultless function is kept. Wear protective gloves when cleaning the cutting device.

• Clean the case with a soft brush or a dry cloth. Water, solvents and polishing agents shall not be applied.

• Check that the ventilation slots for the motor cooling are free (risk of overheating). To obtain good cutting results the free motion between the blades and the sword must be correctly adjusted. For this proceed as follows:

1. Loosen the nuts (A) on the top surface of the

2. Slightly tighten the screws (B) on the underside (if

required loosen them previously).

3. Turn the screw back anticlockwisely by a quarter

4. Use a screwdriver to hold the screw and rmly

tighten the nuts. The sliding play is correctly adjusted if the washer un- der the screw head can just be freely moved back and forth by hand.

5. Lubricate the cutting device using environmental-

compatible lubricating oil. If the play is too small, this may cause a great extent of heating and thus damage to the device. Lubricating the gearbox Lubricate the gearbox every 10 to 20 operating hours.

1. Put the grease gun onto the zerk tting (10).

2. Force some grease into the zerk tting.

Adjusting the idle speed If the cutting device continues to run while the engine idles, you have to correct the idle speed.

1. Allow the engine to run warm for 3-5 minutes (no

2. Turn the adjusting screw (C):

clockwisely - idle speed increases (+) counterclockwisely - idle speed decreases (–) Contact the manufacturer if the cutting device still conti- nues to run in idle mode. Do not continue working with the hedge trimmer in such a condition. Cleaning / replacing the air lter Clean the air lter from dust and dirt on a regular basis to prevent - starting problems, - loss of output, - too high fuel consumption. Clean the air lter every 8 operating hours, or more frequently in dusty environments.

1. Put the choke (4) to „cold start“ to prevent dirt

particles from coming into the carburettor.

2. Remove the air lter cover (8).

3. Remove the air lter (D).

4. Wash the air lter in a luke warm soapy solution.

Do not blow out dirt particles, otherwise there is a risk of eye injury.

5. Clean the air lter interior using a brush.

6. Allow the air lter to dry well and reinsert it.

7. Re-mount the air lter cover.

Replace the air lter on a regular basis. Damaged air lters must be replaced without delay. Heruntergeladen von manualslib.de Handbücher-Suchmachiene27GB Never use any grease! Slide the protective cover on the cutting device. Remove the spark plug connector. Empty the fuel tank completely. Dispose of remaining fuel in an environmentally compa- tible manner. Operate the engine until the carburettor is empty. Transport To transport the device stop the engine and wait until the cutting device does not longer move. Attach the protective cover. Carry the device with the front handle. When transporting the device within a car put it in the boot or on a separate loading area. Secure the hedge trimmer against tipping over, damages and fuel spilla- ge.

12. Disposal and recycling

The disposal instructions are based on icons placed on the appliance or its package. The package protects the appliance against damage during transport. Packing materials are usually chosen depending on their environmental friendliness and dis- posal method and can therefore be recycled. Returning the package to material circulation saves raw materials and reduces waste disposal costs. Parts of packages (e.g. foils, styropor®) can be dangerous to children.Risk of suffocation! Keep parts of packages away from children and dispo- se them as soon as possible.

• Clean the cutting device on a regular basis using a brush or a cloth. Never clean the knives with water (Risk of corrosion!)

• Clean and oil all moving parts regularly.

• Never use any grease!

• Use for instance environmentally acceptable spray oil. Maintenance schedule Operation - Maintenance interval Adjust the cutting device If required Adjust the idle speed If required Tighten the silencer screws If required Clean/replace the fuel lter. If required Clean/replace the air lter Every 8 hours of operation (more frequent in case of dusty environments) Lubricate the gearbox Every 20 hours of operation, at least once in a year

11. Storage & Transport

Storage Store unused devices with attached protective cover in a dry, locked place out of the reach of children. To extend the service life of the hedge trimmer and guarantee smooth operation, before storing for a longer period. Thoroughly clean the device. Treat all movable parts with an environmentally friendly. oil.

Fault Possible cause Remedy Hedge trimmer does not work. • No fuel supply• Fault in the fuel line• Fuel lter clogged• Spark plug defective• Carburettor defective• Internal fault.• Check the fuel quantity• Check the fuel line for kinks or damages• Clean/replace the fuel lter• Replace the spark plug• Manufacturer or responsible customerservice must be called• Manufacturer or responsible customerservice must be calledHedge trimmer cuts with interruptions • Internal fault.• ON / OFF switch defective.• Manufacturer or responsible customerservice must be called• Manufacturer or responsible customerservice must be calledEngine is running, cutting device doesnot move• Cutting device blocked• Internal fault.• Clutch defective• Remove object• Manufacturer or responsible customerservice must be called• Manufacturer or responsible customerservice must be calledCutting device gets hot • Missing lubrication => friction• Not enough play• Cutting blades are blunt• Oil the cutting device• Adjust the sliding play• Have the cutting device sharpened Heruntergeladen von manualslib.de Handbücher-SuchmachieneFR28 Table des matières: Page:

Starthendel (choke) “Koudestart”

2. Drej indstillingsskruen (C):
