BXGR2000E - Grill plate BLACK & DECKER - Free user manual and instructions

Product type	Electric grill plate
Brand	Black & Decker
Model	BXGR2000E
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W
Dimensions (L x W x H)	34 x 30 x 12 cm
Weight	4.5 kg
Plate material	Non-stick coating
Number of plates	2 interchangeable plates (grill and smooth)
Temperature control	Independent for top and bottom plate
Display	LCD with temperature indicator (red/green)
Timer	Yes, adjustable with auto-off and beep
Functions	Grill, flat cooking (180° position), height adjustment of top plate
Grease drip tray	Yes, removable
Safety	Auto-off, insulated handle, heat-resistant surface
Maintenance	Clean with damp cloth and mild detergent; do not immerse; not dishwasher safe
Warranty	In accordance with applicable legislation
Accessories included	Grill and smooth plates, drip tray
Usage	Domestic use only

Frequently Asked Questions - BXGR2000E BLACK & DECKER

How do I change the cooking plates?

Press the release button (I) to unlock the plate, remove it, then insert the new plate by aligning the hooks and pressing until it clicks.

Can I use the appliance as a flat cooking plate?

Yes, move the hinge (J) to the 180° position and lower the handle to obtain a continuous cooking surface.

How do I adjust the temperature?

Press the temperature control (E or F) to activate the display, then turn to select the desired temperature. The display changes from red to green when the temperature is reached.

What if the appliance does not heat up?

Check that the appliance is plugged in and that the On/Off button (G) is pressed. Make sure the temperature is set and the timer is not at zero. If the problem persists, contact an authorized service center.

How do I clean the plates?

Wait for the appliance to cool completely. Clean with a damp cloth and a little mild detergent. Never immerse the plates or appliance in water.

Are the plates dishwasher safe?

No, no part of this appliance is dishwasher safe. Clean them by hand with a damp cloth.

How do I use the timer?

Use the arrows (H) on the LCD screen to set the desired minutes. Once the time has elapsed, the appliance automatically stops with a beep.

Why is there smoke during first use?

This is normal. Some parts are lightly oiled and the smoke will disappear after a short time.

What utensils should I use on the plates?

Use wooden, silicone, or heat-resistant plastic utensils to avoid damaging the non-stick coating.

Where can I find after-sales service?

Visit http://www.2helpu.com/ to find an authorized technical support service near you.

USER MANUAL BXGR2000E BLACK & DECKER

BLACK+ DECKER™

BLACK+ DECKER

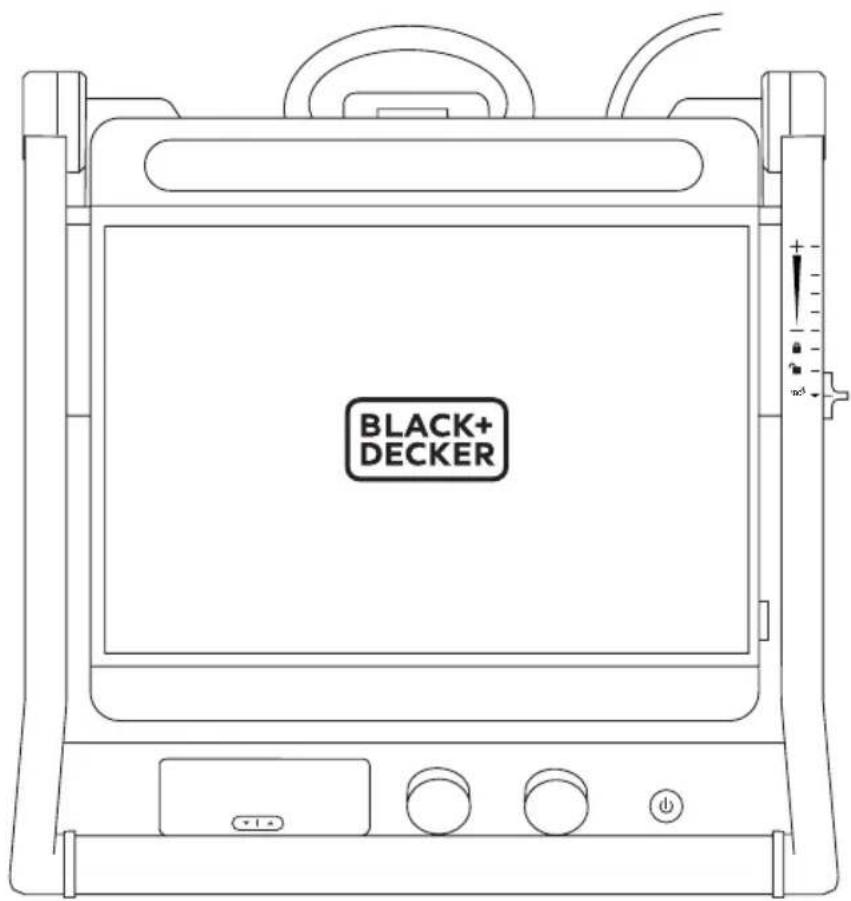

Fig. 01

BLACK+ DECKER 180° 180°

Fig. 02

Technical line drawing of a mechanical lever mechanism with no visible text or symbols

Fig. 03

Technical line drawing of a mechanical device with directional arrows indicating motion or force (no text or symbols)

ENGLISH

(Original instructions)

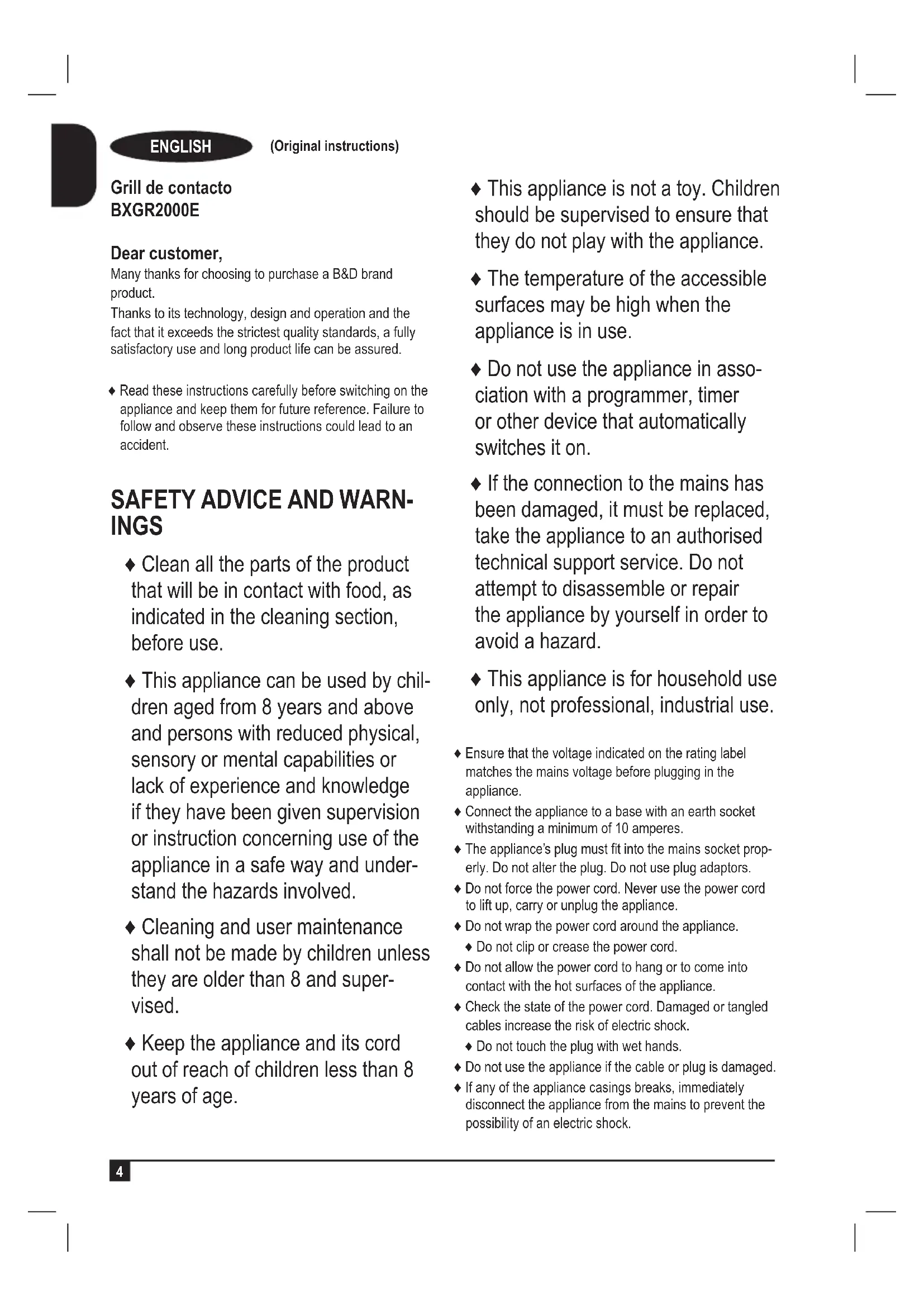

Many thanks for choosing to purchase a B&D brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

◆ Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
◆ Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
◆ Keep the appliance and its cord out of reach of children less than 8 years of age.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  ◆ The temperature of the accessible surfaces may be high when the appliance is in use.
• Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
  If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
  ◆ This appliance is for household use only, not professional, industrial use.

◆ Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
♦ Do not wrap the power cord around the appliance.

◆ Do not clip or crease the power cord.

Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
◆ Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
♦ Do not touch the plug with wet hands.
- Do not use the appliance if the cable or plug is damaged.
If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
◆ The appliance is not suitable for outdoor use.
◆ Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
◆ Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.
◆ Do not use or store the appliance outdoors.
Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
- Do not touch the heated parts of the appliance, as it may cause serious burns.
- Do not touch metal parts or the body when it is operating, as it may cause serious burns.

Use and care:

◆ Fully extend the appliance's power cable before each use.
- Do not cover the cooking surface or food with aluminium foil and other similar materials.
◆ Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
◆ Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
◆ Do not store the appliance if it is still hot.
◆ Do not store or transport the appliance if it is still hot.

Service:

Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
♦ CAUTION: There is a risk of fire if the appliance’s cleaning is not done according to these instructions.
◆ Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Body
B Handle
C Cooking plates flat /griddle
D Box Tray
F Temperature regulator top panel
G Temperature regulator lower plate

H Timer buttons

I Plate release buttons

J Hinge: Lock/Unlock/ Top plate height/180°

K Cable

L Display

INSTRUCTIONS FOR USE

Before use:

◆ Make sure that all products' packaging has been removed.

Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.

Use:

◆ Extend the cable completely before plugging it in.
◆ Move the hinge (J) to unlock the device.
◆ Lightly grease the plates with a little butter oil before the use.
◆ Connect the appliance to the mains.
◆ Press the on / off button (G), you will see that the screen lights up.
◆ To select the temperature:
◆ Push the temperature regulator inwards, the display (L) will activate
◆ Select the desired temperature by turning the regulator
When the plate has reached the desired temperature, the color of the display will change from red to green. This means that it is ready to cook.
◆ Open the griddle, put the meat, the sandwich or the food you want to cook on the lower cooking plate.

◆ Close the handle.

◆ Open the griddle, put the meat, the sandwich or the food you want to cook on the lower cooking plate.

Once the selected time has elapsed, the device will stop automatically. You will hear an acoustic signal and the indicator lights will turn off.

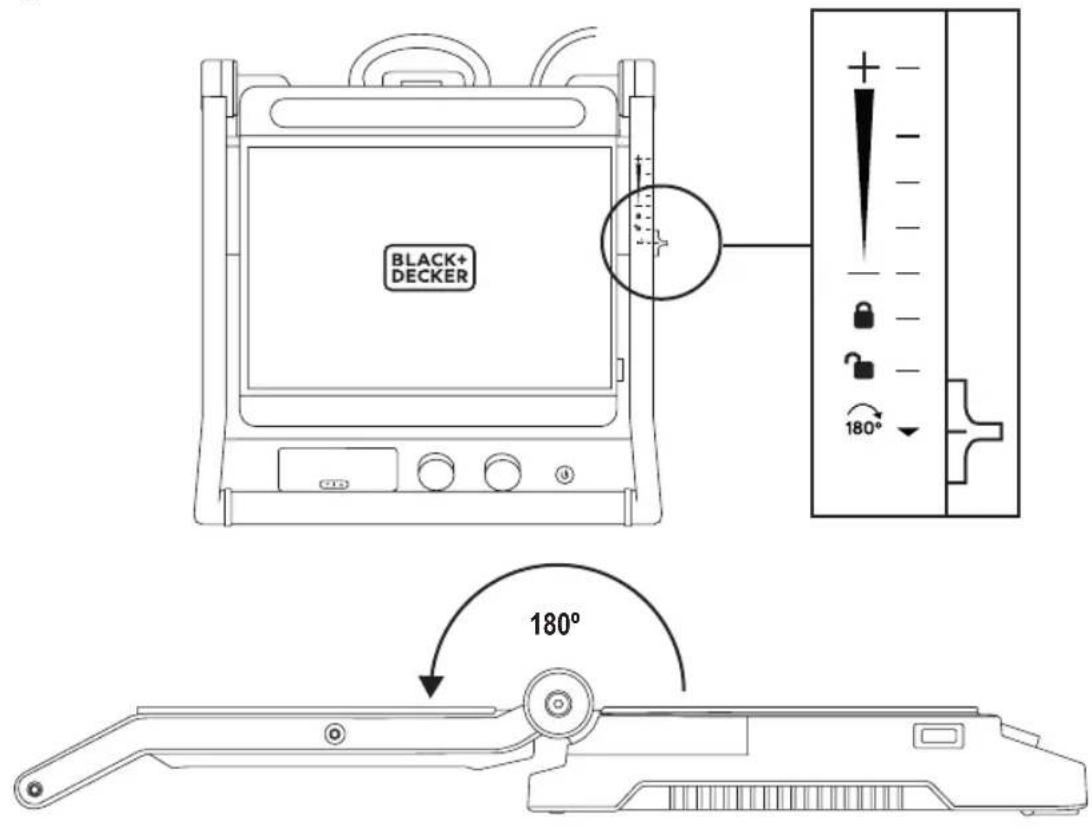

Use as Open grill (Fig. 1):

◆ The top plate/cover is flush with the bottom plate/base. The upper and lower plates align to create a large cooking surface.

ENGLISH

(Original instructions)

With one hand on the handle, use the other to move the hinge (J) to the 180^ position and push the handle backwards maintaining the 180^ position, and push the handle backwards.

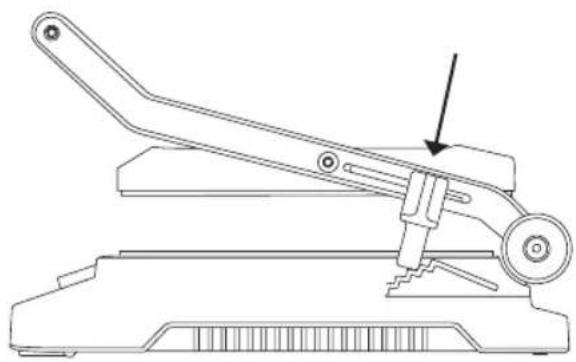

Tilting plates (Fig. 2):

◆ If you want you can adjust the height of the top plate.
◆ To do this, move the hinge (J) to the desired level.

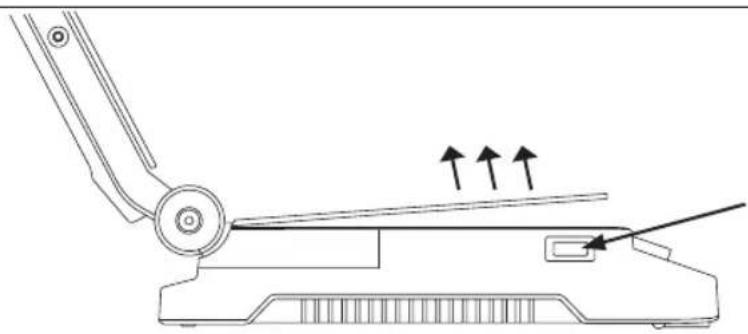

Change the plates (Fig. 3):

- The appliance consists of two plates one grill and the other smooth. To change from one plate to the other follow the instructions:

-1. Press the plate release button (I). You will see that the plates are lifted.
-2. Remove the plate.
-3. Put the other plate, fit the marks with the hooks on the bottom of the appliance and press the plate until you hear the click.

Timer function:

◆ The appliance's operating time can be controlled.
◆ To set a time for operation, select the minutes on the LCD display (L) using the up and down arrows (H).

Once you have finished using the appliance:

◆ Unplug the appliance from the mains.
◆ Clean the appliance.

CLEANING

◆ Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
- Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Never submerge the appliance in water or any other liquid or place it under running water.
If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
◆ Neither parts of this appliance are suitable for cleaning in the dishwasher.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

WARRANTY AND TECHNICAL ASSISTANCE

• This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.
  ◆ You can find the closest one by accessing the following web link: http://www.2helpu.com/.
• You can also request related information, by contacting us (see the last page of the manual).
  You can download this instruction manual and its updates at http://www.2helpu.com/.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
