Feature	Details
Product type	Grill plate
Power	2000 W
Cooking surface dimensions	40 x 25 cm
Plate material	Non-stick coating
Adjustable temperature	Yes, with thermostat
Usage	Ideal for grilling meats, vegetables, and fish
Ease of cleaning	Removable plate and dishwasher safe
Safety system	Automatic shut-off in case of overheating
Included accessories	Silicone spatula and tongs
Warranty	2 years

Frequently Asked Questions - CG200 BLACK & DECKER

How do I clean the BLACK & DECKER CG200 grill plate?

To clean the grill plate, let it cool down, then use a soft sponge with soapy water. Avoid abrasive scouring pads that could scratch the surface.

Why is the plate not heating properly?

Check that the plate is properly plugged in and that the outlet is working. Also make sure the thermostat is set to the desired temperature.

Can I use metal utensils on the grill plate?

It is recommended to use wooden or silicone utensils to avoid scratching the plate surface.

The grill plate emits a burnt smell, is this normal?

A slight burnt smell may occur during the first use, but if it persists, check that the plate is clean and free of food residues.

How do I store the grill plate?

Make sure the plate is completely cooled, then store it in a dry and clean place, preferably away from moisture.

Is the plate dishwasher safe?

No, it is not recommended to put the grill plate in the dishwasher. Clean it manually to preserve its coating.

What should I do if the plate has stubborn stains?

For stubborn stains, soak the plate in warm soapy water for a few minutes, then clean with a soft sponge.

Is the BLACK & DECKER CG200 grill plate covered by a warranty?

Yes, this product is generally covered by a limited warranty. Check the specific conditions in the user manual.

How do I adjust the temperature of the grill plate?

Use the temperature control knob to select the desired heat. Wait a few minutes for the plate to reach the set temperature.

Can I use the grill plate outdoors?

The BLACK & DECKER CG200 grill plate is designed for indoor use. Avoid using it outdoors for safety reasons.

USER MANUAL CG200 BLACK & DECKER

2000/3-10-19E/S/F,ED,HLTHZNE,GR 5/3/00 5:07 PM Page 1

SAVE THIS USE AND CARE BOOK

Line drawing of a device casing with two circular cutouts and a handle (no text or symbols)

U.S.A./CANADA 1-800-231-9786

http://www.householdproductsinc.com

When using electrical appliances, basic safety precautions should always be followed, including the following:

■ READ ALL INSTRUCTIONS BEFORE USING.
■ Do not touch hot surfaces. Use handles or knob.
■ To protect against electric shock, do not immerse cord, plug or grill in water or other liquid.
■ Close supervision is necessary when appliance is used by or near children.
■ Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning the appliance.
■ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
■ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
■ Indoor barbecue only - do not use outdoors.
- Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
■ Do not place on or near a hot gas or electric burner or in a heated oven.
■ Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
■ To disconnect, remove plug from wall outlet. Never yank on cord.
■ Do not use appliance for other than its intended use.

SAVE THESE INSTRUCTIONS

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug fits in a polarized outlet only one way. If the plug does not fit into the outlet, reverse the plug and try again. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

ELECTRICAL CORD

A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord.

An extension cord may be used with care; however, the marked electrical rating shall be at least as great as the electrical rating of this appliance. The extension cord should not be allowed to drape over the tabletop where it can be pulled on by children or tripped over.

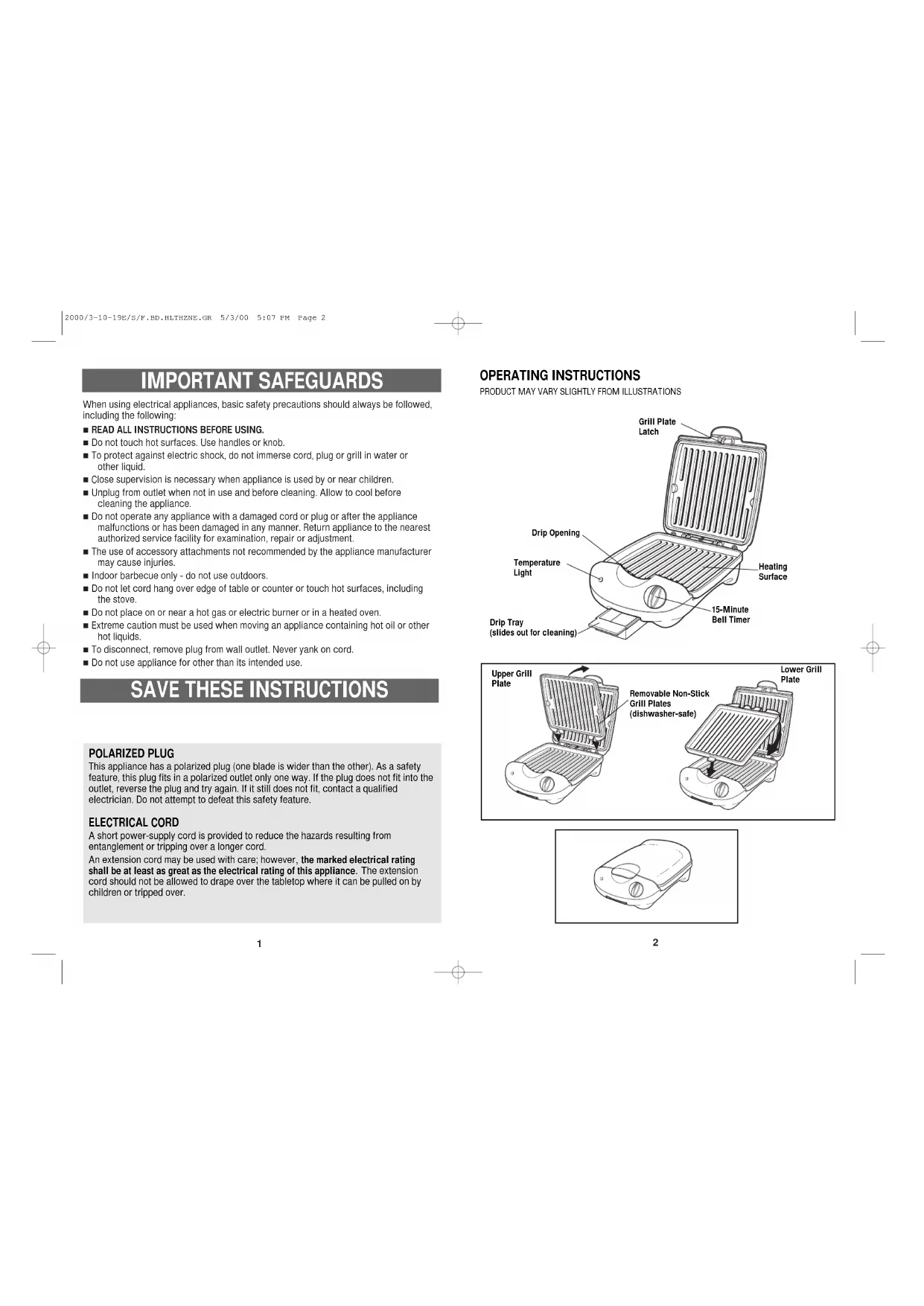

OPERATING INSTRUCTIONS

PRODUCT MAY VARY SLIGHTLY FROM ILLUSTRATIONS

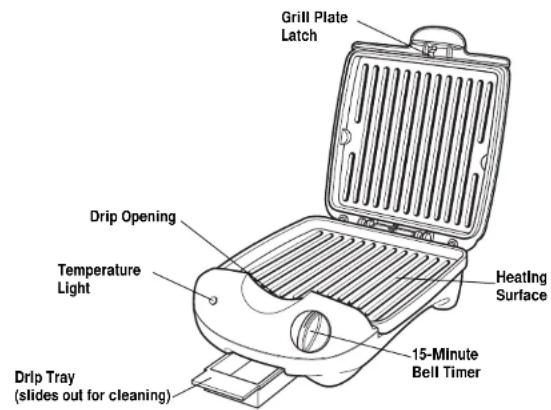

Grill Plate Latch Drip Opening Temperature Light Heating Surface 15-Minute Bell Timer Drip Tray (slides out for cleaning)

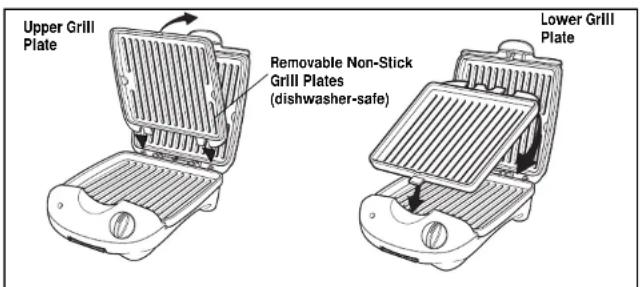

Upper Grill Plate Removable Non-Slick Grill Plates (dishwasher-safe) Lower Grill Plate

Line drawing of a portable electronic device with a flat top and circular vent (no text or symbols)

HOW TO USE

This appliance is for household use and may be plugged into any AC electrical outlet (ordinary household current). Do not use any other electrical outlet.

LINE CORD SAFETY TIPS

1. Never pull or yank on cord or the appliance.

2. To insert plug, grasp it firmly and guide it into outlet.

3. To disconnect appliance, grasp plug and remove it from outlet.

4. Before each use, inspect the line cord for cuts and/or abrasion marks. If any are found, this indicates that the appliance should be serviced and the line cord replaced. Please return it to our Service Department or to an authorized service representative.

5. Never wrap the cord tightly around the appliance, as this could place undue stress on the cord where it enters the appliance and cause it to fray and break. DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE, OR IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.

BEFORE USING GRILL:

• Carefully unpack grill and remove all packaging materials from carton.
• Wipe surface of grill with a clean, damp cloth or sponge, then dry. This will remove any packaging dust.
• Place grill on a flat, dry surface or sturdy table, away from any hot surfaces or other heating appliance. Do not use under kitchen cabinets.
• Always leave unit unplugged when not in use. When using, do not plug it into the same outlet or use it on the same circuit with other appliances. A circuit overload could occur.
• Keep all combustible material such as paper, cardboard or fabric at least three feet away from grill. Do not use in wet or moist locations. Do not use near a sink or laundry area.
• When grill is used for the first time, it is normal for the heating element to give off a small amount of smoke and odor.

ADDITIONAL SAFETY TIPS

• Never touch the metallic parts of unit (body or grill plates) while the appliance is operating, as these can become very hot.
  • To prevent risk of burns, do not move the appliance while it is in operation.
  • Always switch grill off completely and unplug it immediately after using.
• Never place appliance on a delicate surface, such as a tablecloth or a piece of furniture, etc.
• Keep cord away from all heated surfaces, including the stove.
• Never use or leave the appliance outdoors, and always store it in an indoor location.
• Do not place anything between the grill plate and the food (i.e., a dish, aluminum foil, etc.).
• Do not leave appliance unattended while in use.

DRIP TRAY

Grill comes equipped with a slide-out drip tray, which fits below the drip opening in the lower grill plate to collect fats and other cooking residues resulting from the grilling process. It also makes these residues easier to discard when grilling is complete.

USING THE GRILL

Plug the grill into a 120-volt 60Hz AC outlet only.

Be sure that detachable grill plates are correctly attached to unit. TO ATTACH PLATES: Lift lid of grill. To attach, slide lip on front of plate into slot on housing and press into place. To attach upper grill plate, fit horseshoe-shaped slots on lip of plate over screws on rear housing and snap into place.

Grill is now ready to use.

IMPORTANT: Timer must be set for grill to operate.

Close grill cover and set timer to 8 minutes to preheat. Preheat is complete when light goes out. Once grill is heated, open lid and place food on lower plate. Close lid and reset timer according to recipe. Hinge on grill will automatically adjust to accommodate thickness of food being cooked. Grill only with the lid closed.

Carefully lift the lid when timer rings. If food is not done, close the lid and reset timer. When finished grilling, remove food and unplug grill. Do not leave empty grill plugged in. Let grill cool before cleaning and storing.

CAUTIONS:

• Steam may escape from the sides and front of the grill. Use caution when opening and closing the lid and during grilling.
• The grilling plates get very hot. To prevent burns, do not touch grill plates or outside surface of the grilling plates during use.
• Do not cut food on the non-stick grill plates.
• Be sure that grilling plates have cooled completely before attempting to remove them from unit.

HELPFUL HINTS

Use the following easy guidelines for successful grilling:

• Always preheat the grill until light goes off (approximately 6-8 minutes).
- Use boneless fish, meat and poultry for most even browning.
- Marinate meat at least 1 hour in refrigerator before grilling for extra flavor and tenderness, if desired. Use about 1/4 cup (59ml) liquid marinade per pound of meat.
- When grilling chicken with skin, place chicken skin side down for best browning on both sides.
- During multiple use, be sure to check level of grease in drip tray. Remember, it only holds about 1/2 cup.
- Some grease residue may build up under the bottom grill plate around the drip opening. This is normal. When unit is cool, wipe/scrub with a nylon bristle brush or sponge after each use.

HEALTH ZONE INDOOR GRILLING CHART

Note: The degree of browning depends on food thickness, plus fat and moisture content of food. Some foods will brown more than others, and one side of a food may be more brown than the other.

FOOD AMOUNT/SIZE TIME SUGGESTIONS & TIPS
BEEF STEAKS 2 large 6-101" (25mm) THICK about 1-1	Position thicker areas/2 (681gm) minutes to- pounds total	ward outside edges	ges of grill.
BRATWURT 1 pound 15-17FULLY COOKED Up to 5 min1-1/8" (28mm) THICK	Turn to brown on all sides.
CHICKEN 2-3,BREAST HALVES,BONELESS1-1/4" (31mm) THICK	15-17 Small breast sections cook5-7 ounces each	minutes	most evenly. Cook until juices run clear. Brush with favorite barbecue sauce last 2 minutes of cooking.
FISH FILLETS,BONELESS1/2 - 3/4" (12-18mm)THICK	2 pieces, about1/2 pound each	About 6minutes butter	Brush surface with melted sprinkle with herbs.Position skin side down.Note: Sole and flounder are too thin for grilling and would fall apart.
FISH STEAKS 1-2 steaks1-1/4 - 1-1/2" (31-37mm)THICK (TUNA, SALMON)	13-15 Brush with butter if desired.
		minutes Cook	until fish is opaque and flakes easily with a fork.
FRANKFURTERS	Up to 10,1 pound	5-7minutes all sides.	Rotate if desired to brown
GRILLED VEGETABLES(ONIONS, POTATOES,EGGPLANT,MUSHROOMS)	Cover grill surface	5-20minutes(depending on food)	Slice vegetables 1/2" (12mm) thick. Lightly brush both sides with vegetable or olive oil.Sprinkle with your favorite herb or spice. Cook until tender.
HAM SLICE, BONELESS3/4" (18mm) THICK	17" diameter minu	5-7sthick ham slices	If you buy precut 3/8" (9mm)2 together for optimumbrowning and rotate insides to the outside after 3 minutes.
HAMBURGERS3/4" (18mm) THICK	Up to 4, 1/4 (114gm) pound each	About 6minutes	Serve on toasted buns!
PORKCHOPS,BONELESS3/4" (18mm) THICK	Up to 4	9-11 Add your favorite seasoningsminutes prior to grilling. Brush with favorite barbecue sauce and grill 2 minutes longer.
SAUSAGE LINKS, FRESH1-1/8" (28mm) THICK	6 linksUp to 1 pound(454 gm)	About 15minutes	Pierce halfway through cooking for improved browning.
SHRIMP,LARGE, PEELED	Up to 1 pound(454 gm)	3-4minutes lemon	Season with lemon juice and pepper. Do not overcook.

MAINTENANCE INSTRUCTIONS

This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it. Take it to qualified personnel if servicing is needed.

Be sure to unplug the grill and allow it to cool completely before cleaning.

CAUTION: Do not immerse the grill in water or any other liquid. Do not use abrasive cleaners. The grill exterior may be wiped with a clean, damp cloth.

Dry all parts thoroughly before using.

TO CLEAN: Place drip tray in dishwasher.

Unlatch and remove grill plates. Grill plates are also dishwasher-safe. However, before placing plates in dishwasher, allow them to soak in warm soapy water, and use a nylon bristle brush to remove any stubborn cooking residues that may be trapped between the grooves.

Wipe exterior and heating surfaces of grill with a damp sponge or paper towel. DO NOT IMMERSE GRILL IN WATER OR ANY OTHER LIQUID. Be sure all grill surfaces and attachments are COMPLETELY DRY before attempting to use unit again.

TO STORE: Unplug appliance and store in its box or in a clean, dry place. Do not put stress on the cord where it enters the unit, as it could cause the cord to fray and break.

Line drawing of a small electronic device with a circular vent and rectangular body (no text or symbols)

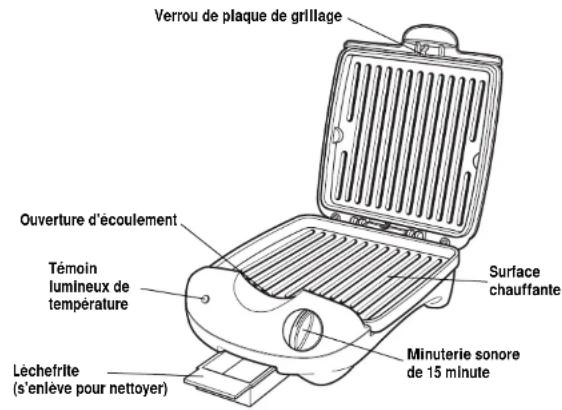

COMO USAR

LE PRODUIT PEUT ÊTRE LÉGÈREMENT DIFFÉRENT DES ILLUSTRATIONS

Line drawing of a microwave oven (no text or symbols)

UTILISATION

Service, if necessary, must be performed by a Black & Decker Company-Owned or Authorized Household Appliance Service Center. The Service Center nearest you can be found in the yellow pages of your phone book under "Appliances-Small" or by calling the appropriate toll-free number on the cover of this book.

If mailing the unit, pack it carefully in a sturdy carton with enough packing material to prevent damage. Include a note describing the problem to our Service Center and be sure to give your return address and phone number. We also suggest that you insure the package for your protection.

FULL ONE-YEAR WARRANTY

Household Products warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of consumer purchase. This warranty does not include damage to the product resulting from accident or misuse.

If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. We will return your product, transportation charges prepaid, provided it is delivered prepaid to any Black & Decker Company-Owned or Authorized Household Appliance Service Center.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

Answers to any questions regarding warranty or service locations may be obtained by calling Consumer Assistance and Information toll free: 1-800-231-9786.

Listed by Underwriters Laboratories, Inc.

Copyright © 2000 Household Products, Inc. Pub No. 175770-00

PUB. NO. 175779-00

Printed in People's Republic of China

Enlistado por Underwriters Laboratories, Inc.

2000/3-10-19E/S/F A82B (UL/SPE)
