DigiFrame 17 - Digital photo frame BRAUN - Free user manual and instructions

Product type	Digital photo frame
Brand	Braun
Model	DigiFrame 17
Screen size	17 inches (diagonal)
Dimensions (approx.)	41.5 x 30 x 2.5 cm
Weight (approx.)	1.2 kg
Power supply	5V DC power adapter (included)
Supported image formats	JPEG, BMP, PNG
Supported audio formats	MP3
Supported video formats	MPEG1, MPEG2, MPEG3, H264, RM, RMVB, MOV, MJPEG, DivX
Internal memory	4 GB
External storage media	SD/SDHC/MMC card, USB flash drive (USB 2.0)
Connectivity	USB 2.0, HDMI (input)
Speakers	Built-in stereo, headphone jack
Motion sensor	Yes, built-in
Main functions	Slideshow with music, clock, automatic on/off, image settings (brightness, contrast, saturation), copy files from USB to SD, calendar
OSD languages	English and other languages
Care and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to moisture. Do not open the case. Use the supplied adapter.
General information	Manufactured by Braun Photo Technik GmbH, Merkurstr. 8, 72184 Eutingen, Germany. Customer service: +49 (0) 7457 / 9465-60

Frequently Asked Questions - DigiFrame 17 BRAUN

How to insert photos into the frame?

Insert an SD card or a USB flash drive containing photos in JPEG, BMP or PNG formats. Turn on the frame, go to the Photo menu, select the source, then browse the files.

Why are my videos not displaying?

Check that the video format is supported: MPEG1, MPEG2, MPEG3, H264, RM, RMVB, MOV, MJPEG, DivX. Make sure the file is not corrupted.

How to set up a slideshow with music?

In photo playback mode, press OK to display the controls. Select the Slideshow option and choose an MP3 audio file as background.

The frame does not turn on, what to do?

Check that the power adapter is properly plugged in and the outlet works. Try another power cable if possible.

How to copy files from a USB flash drive to the SD card?

Go to the Settings menu, select Auto Copy and set to On. Make sure the files are at the root of the USB flash drive.

Can I use the frame as an HDMI monitor?

Yes, connect an HDMI device to the HDMI-IN input of the frame. Press the SOURCE button, select HDMI as the source.

How to set automatic on/off?

In the Setup menu, go to the clock settings to program the on and off times.

How to change the menu language?

In the Setup menu, look for the Language option and select the desired language.

The motion sensor is not working, how to activate it?

The motion sensor is enabled by default. Check in the settings that it is not disabled. It detects presence to turn on the screen.

How to reset the frame to factory settings?

In the Setup menu, look for a Reset option. If not available, unplug and replug the power while holding a button (see manual).

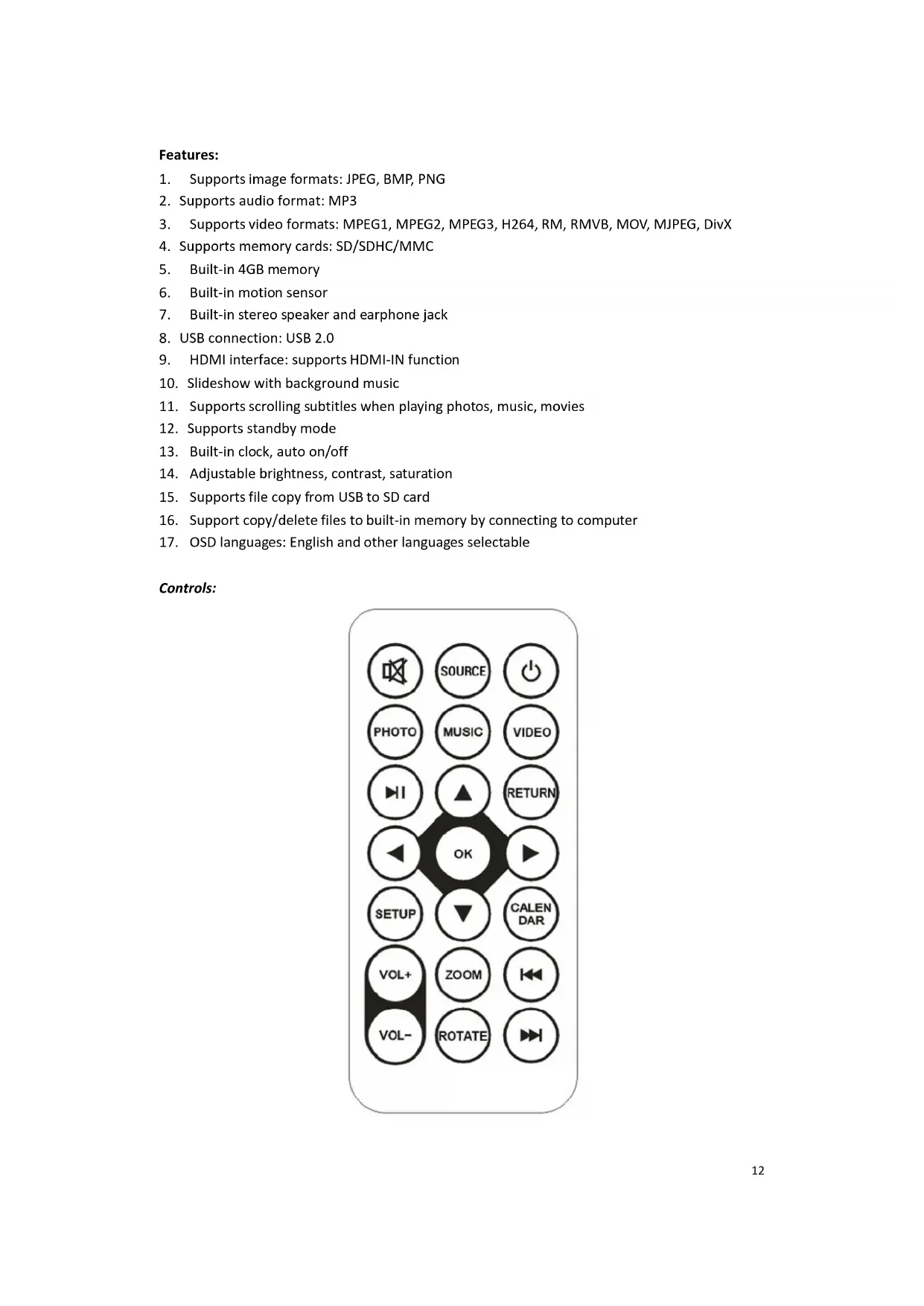

USER MANUAL DigiFrame 17 BRAUN

1. Supports image formats: JPEG, BMP, PNG
2. Supports audio format: MP3
3. Supports video formats: MPEG1, MPEG2, MPEG3, H264, RM, RMVB, MOV, MJPEG, DivX
4. Supports memory cards: SD/SDHC/MMC
5. Built-in 4GB memory
6. Built-in motion sensor
7. Built-in stereo speaker and earphone jack
8. USB connection: USB 2.0
9. HDMI interface: supports HDMI-IN function
10. Slideshow with background music
11. Supports scrolling subtitles when playing photos, music, movies
12. Supports standby mode
13. Built-in clock, auto on/off
14. Adjustable brightness, contrast, saturation
15. Supports file copy from USB to SD card
16. Support copy/delete files to built-in memory by connecting to computer
17. OSD languages: English and other languages selectable

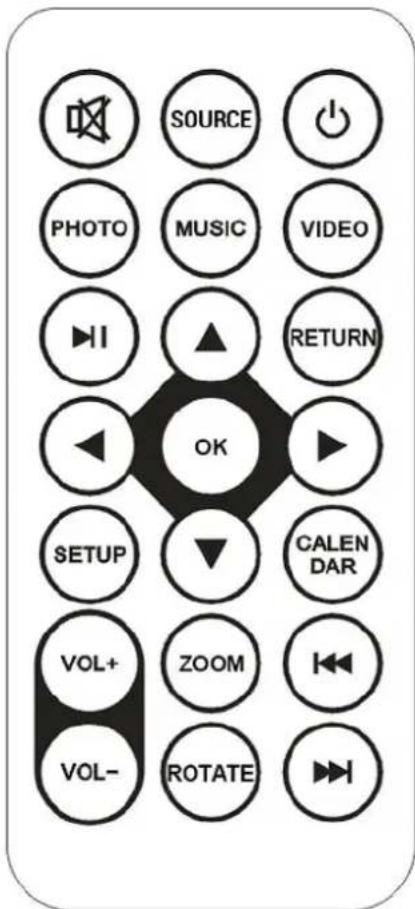

Controls:

POWER	Switch on/off.
MUTE	Mute
SOURCE	Signal input HDMI/AV/DMP
PHOTO	Photo playback mode directly
MUSIC	Music playback mode directly
VIDEO	Video-playback mode directly
■■	Play or pause
RETURN	Back to previous screen
▲▼▲	Move up/down/left/right cursor keys.
OK	Confirmation
SETUP	Setup menu
CALENDAR	Calendar function directly
VOL+ VOL-	Volume adjustment
ZOOM	Enlarge the photo in photo play mode
ROTATE	Rotate the photo in photo play mode
■▲ ▼	Select previous or next file

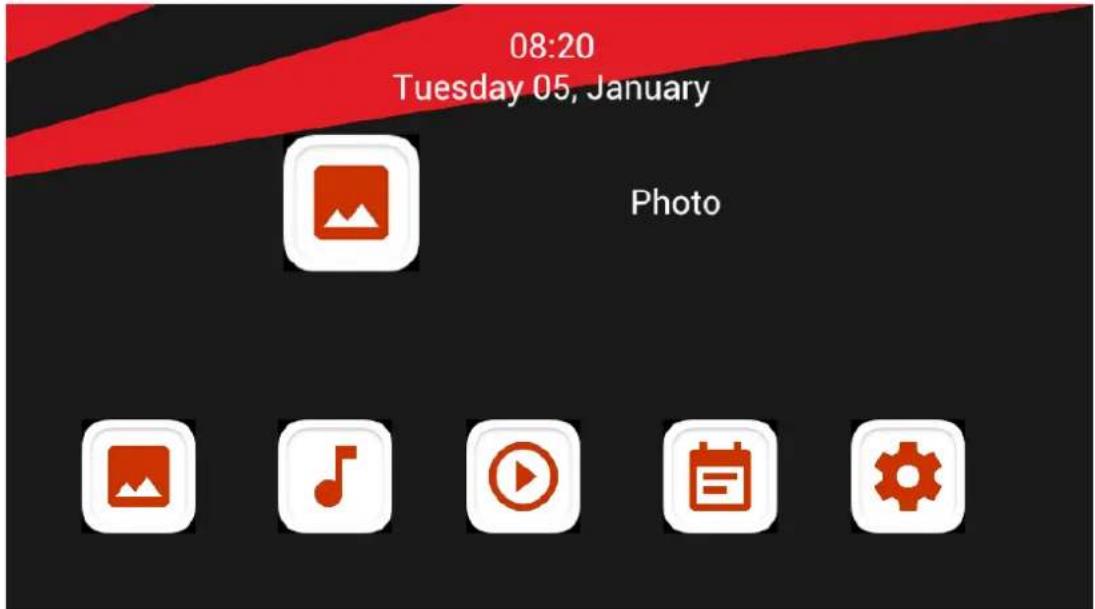

Main Menu:

Supports SD/SDHC/MMC and USB 2.0. Press Access photo, music, video, calendar and settings menus. Press OK button to confirm selection.

Note: Make sure there are supported picture, music or video files on the memory card or USB device.

Picture Mode:

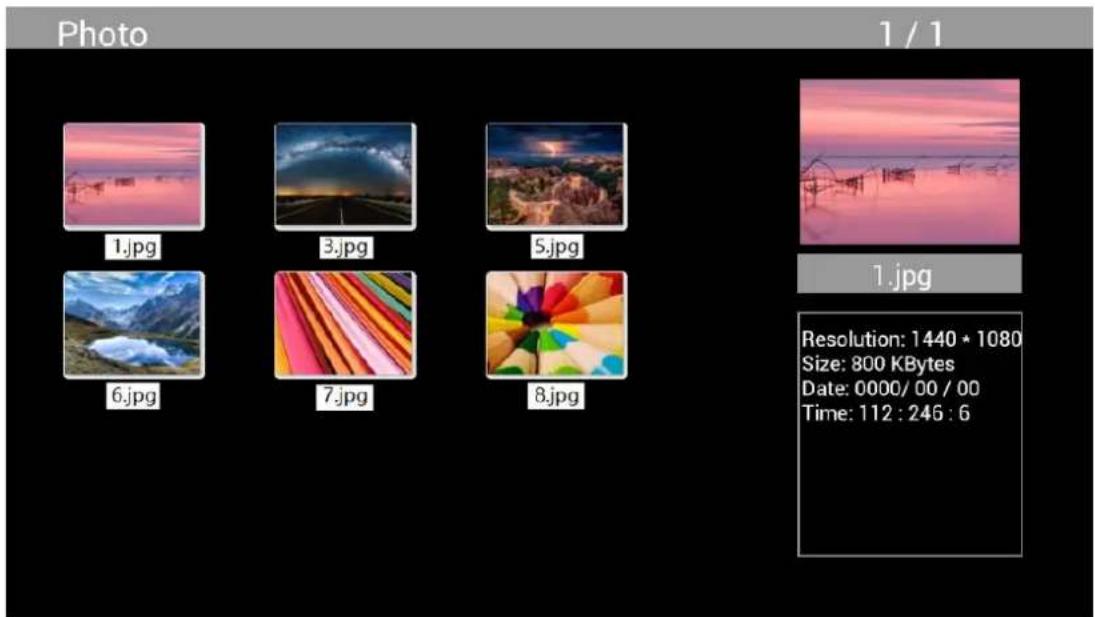

Highlight Photo from the main menu, press OK to select the USB or memory card for playback and press RETURN to access thumbnail mode. Press to select the photo for playback and press OK to confirm.

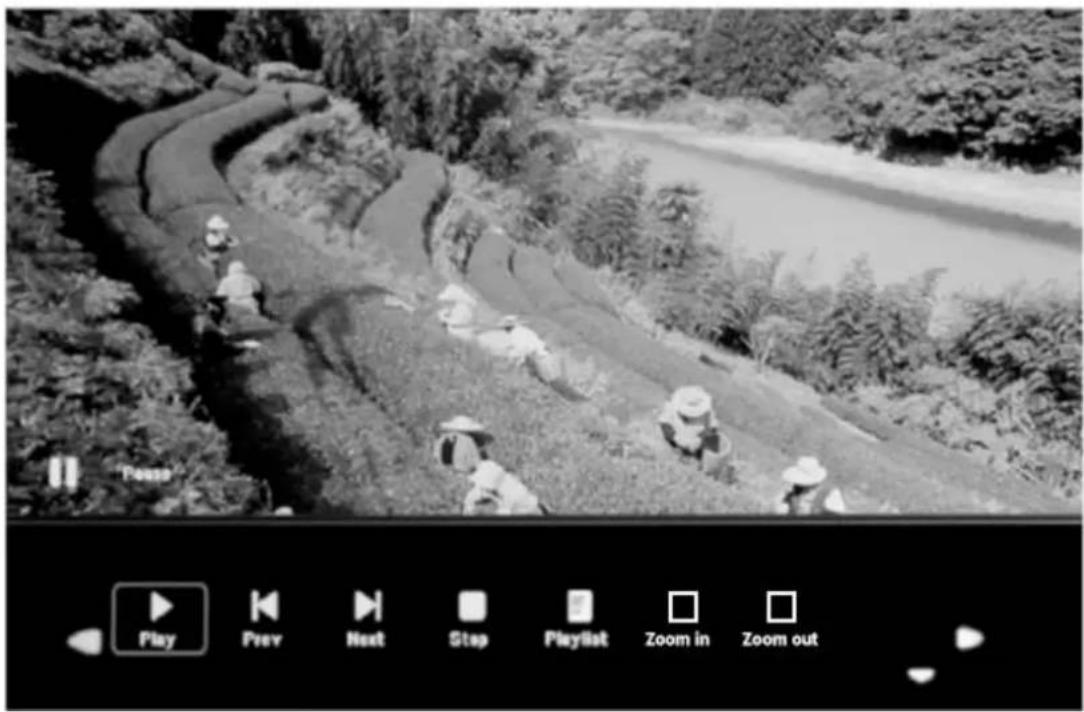

During photo playback, press OK to display the on-screen controls and select the desired function with Play, Previous, Next, Stop, Playlist, Zoom in, Zoom out, Move, then press OK to confirm.

Music Mode

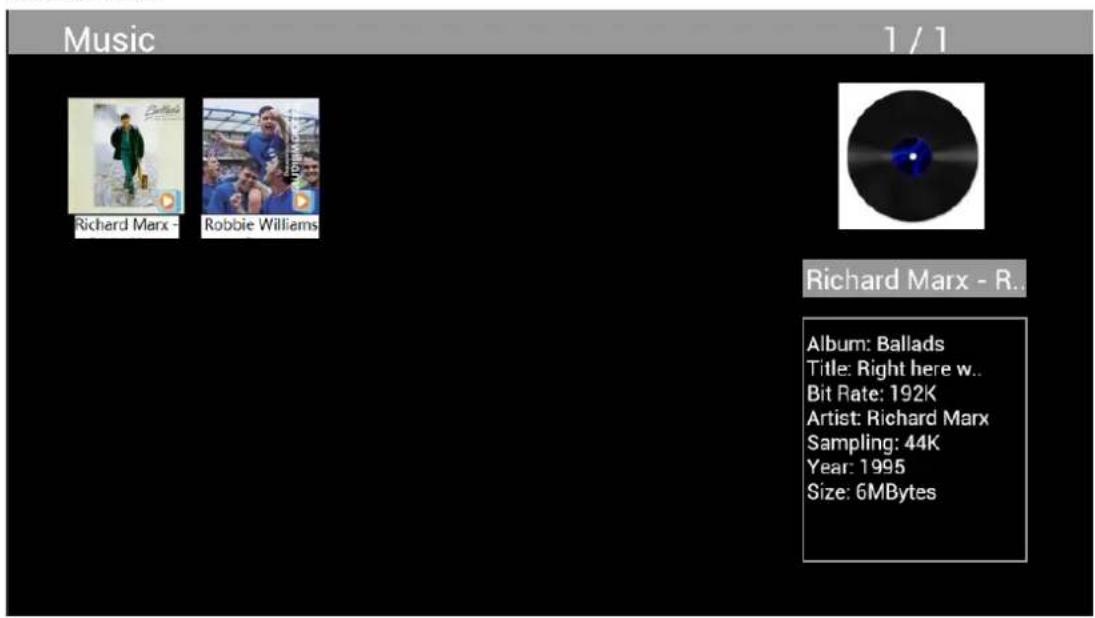

Highlight Music from the main menu, press OK to select the USB 2.0 or memory card for playback and press RETURN to access thumbnail mode. Press to select the music for playback and press OK to confirm.

Music Playback:

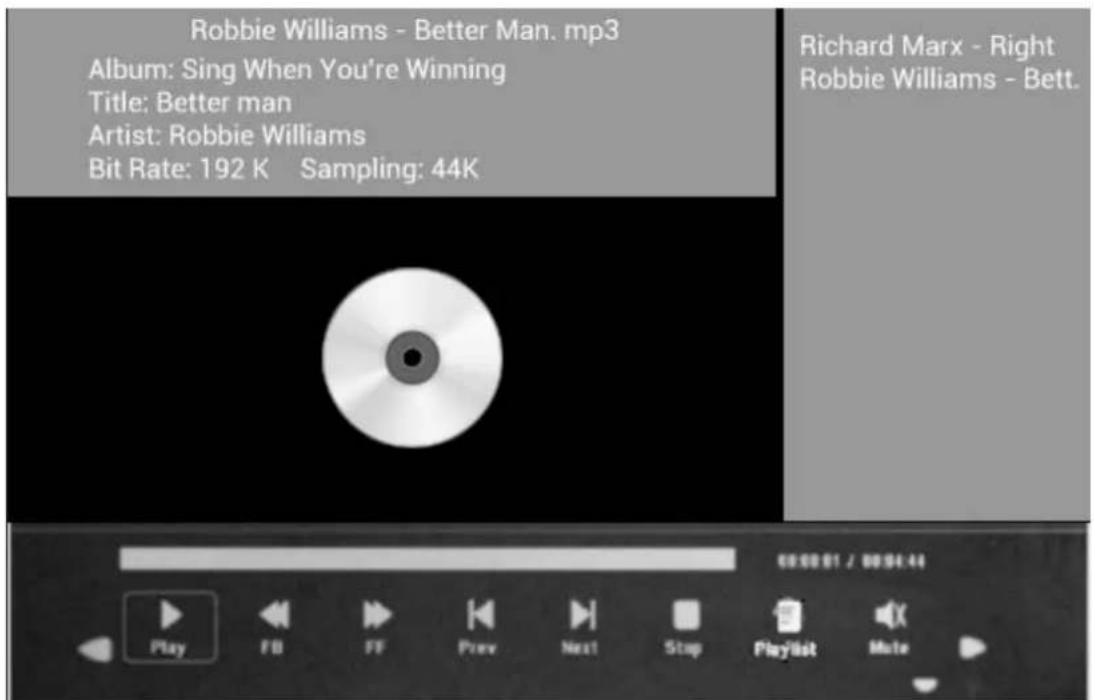

During music playback, press OK to display the on-screen controls and select the desired function with Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Mute, Playlist, then press OK to confirm.

Video Mode

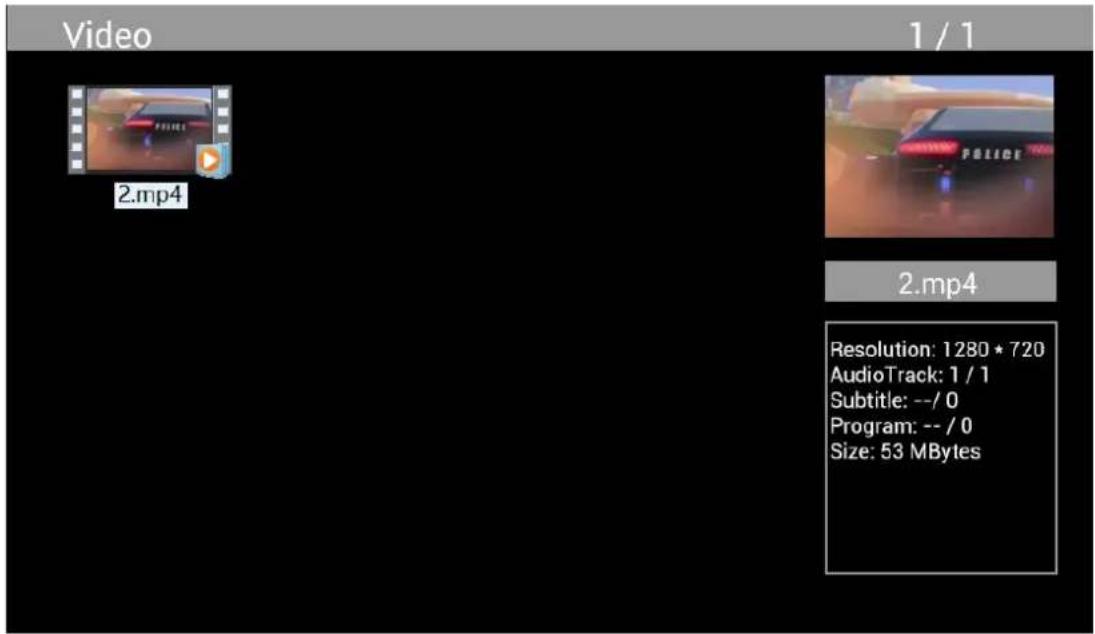

Highlight Video from the main menu, press OK to select USB 2.0 or memory card for playback and press RETURN again to access thumbnail mode. Press to select the movie for playback and press OK to confirm.

Video Playback:

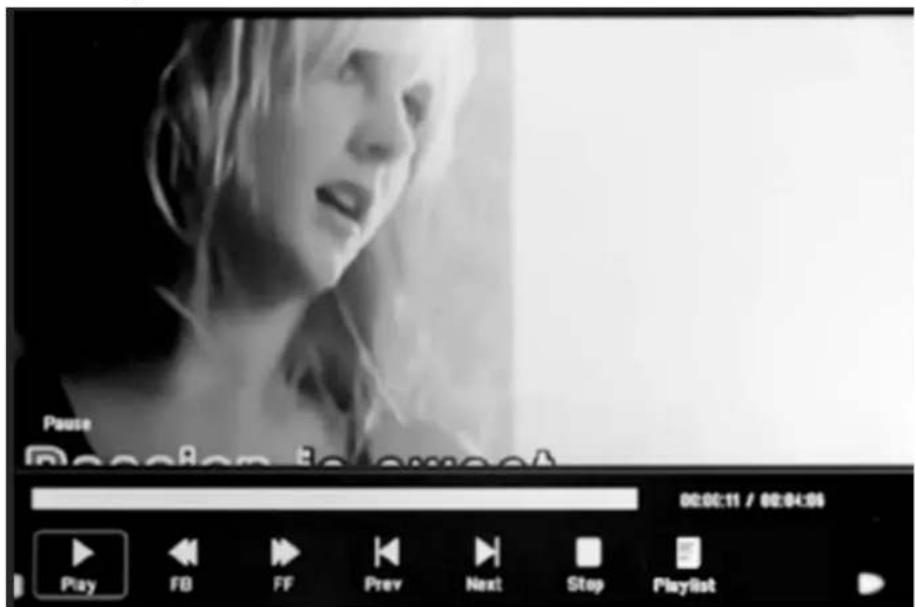

During video playback, press OK to display the on-screen controls and select the desired function with Play, Fast Rewind, Fast Forward, Previous, Next, Stop, Playlist, Aspect then press OK to confirm.

Copy Function for Image, Music and Video Files:

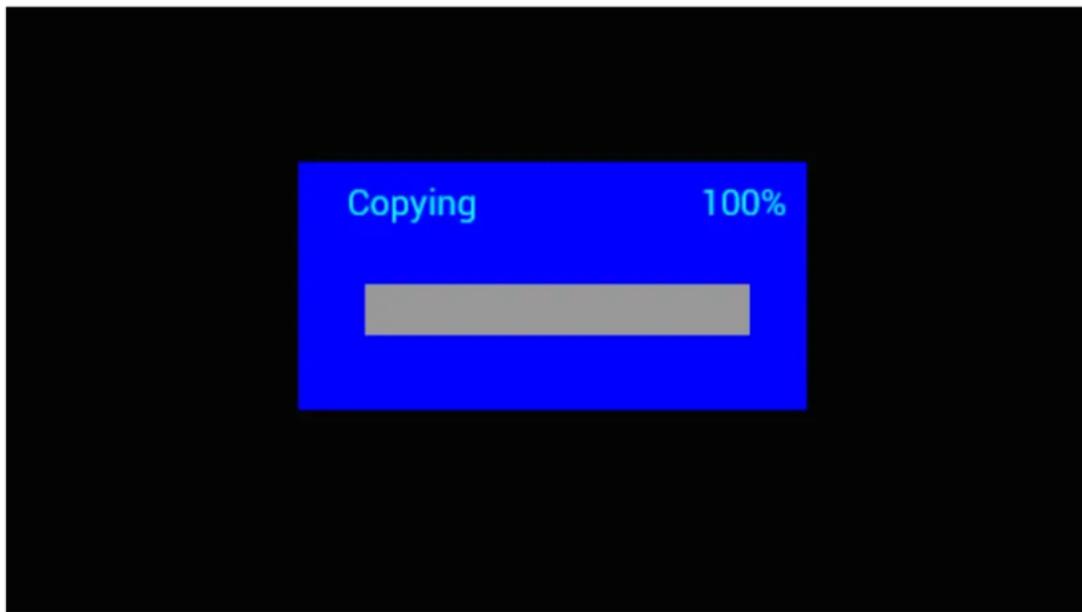

Copying all files from USB device to SD Card is supported. Highlight Setting and press OK to Settings menu, press to select Setting option, press to select and set the Auto Copy in the list, and set the value to On. The progress is displayed.

After successfully copying all files, the slideshow will start automatically.

Note: Make sure the photo/music/videos files are saved in the root directory of the USB device, not in any folder of the USB. Otherwise copying will fail.

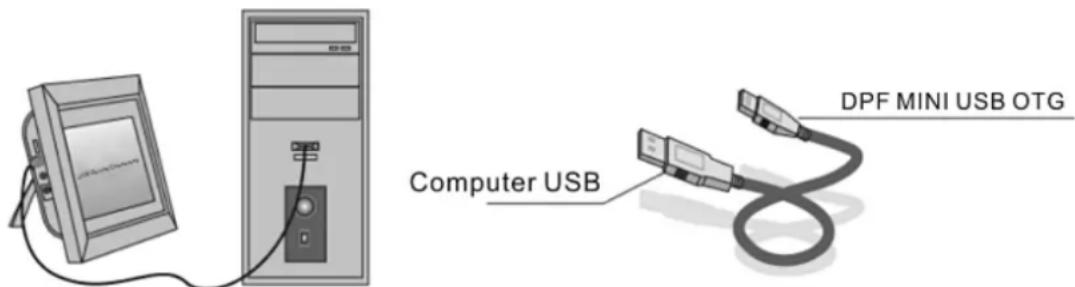

PC Connection:

You can connect the unit to external equipment using USB Cable for file copying, deleting and editing operations.

A. Turn on the digital photo frame, connect it with your Windows2000/XP/Vista/WIN7 PC using a USB cable
B. The unit will be detected automatically and a "Connecting" icon will be displayed. You can then copy, delete, or edit files in the built-in memory or other storage devices. You need to restart the digital photo frame after you finished copying, deleting, editing or inserting a memory card.

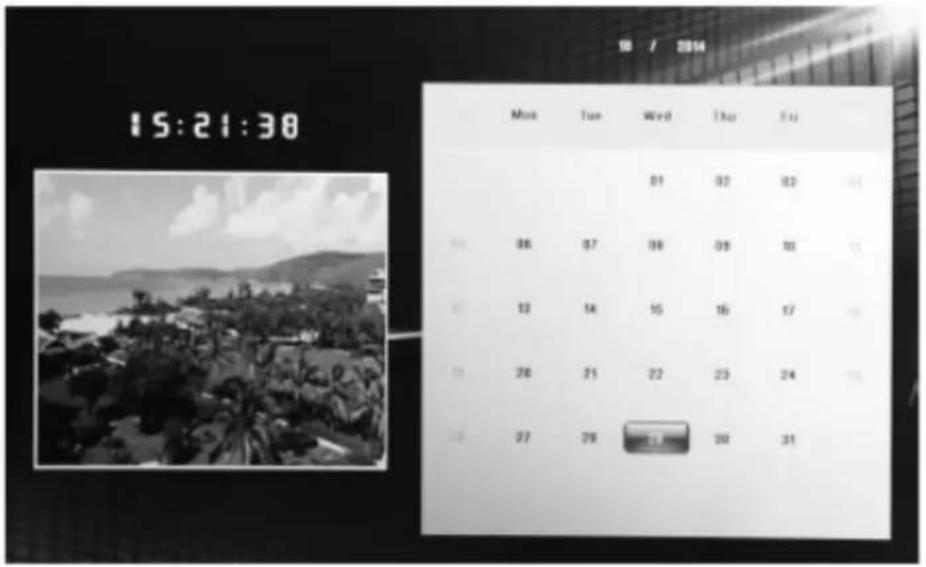

Calendar:

Press the Calendar menu from the main menu. Browse the calendar with

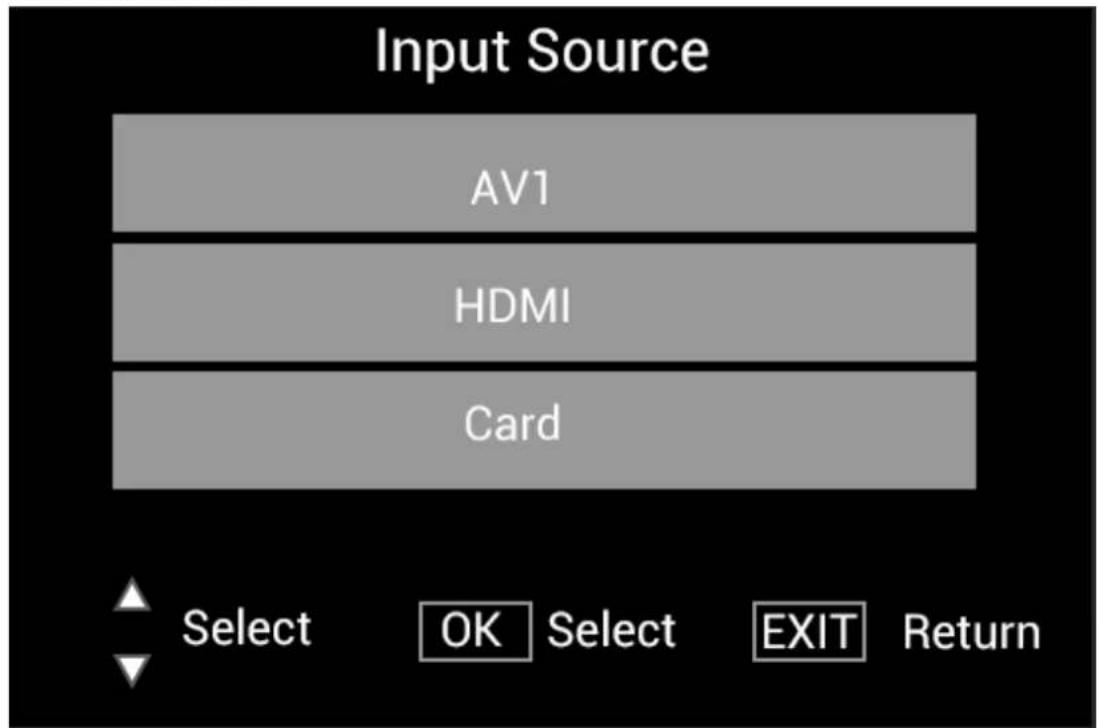

HDMI-IN Function:

Connect the HDMI device at the HDMI-IN interface of the digital picture frame. Press SOURCE, press to highlight the HDMI option, and press OK to select HDMI as input source.

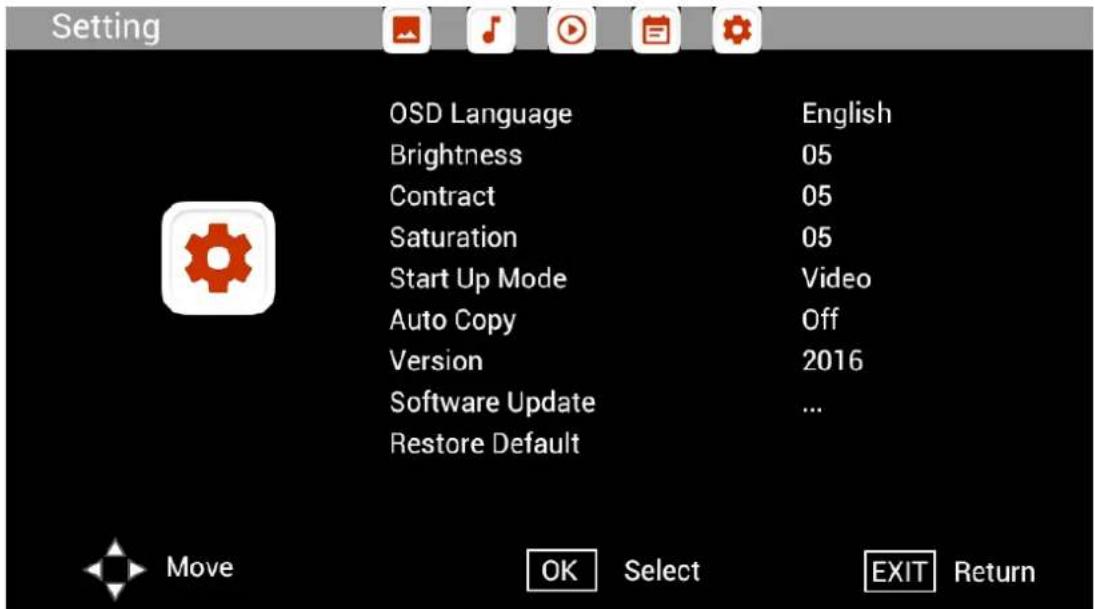

Setup Menu

Select Setting in the main menu, press to select sub-menu Setup list: Photo, Music, Video,

Calendar, Setting, press to highlight the setting option, and press to set the Value.

Technical Support

We are committed to providing the best customer service support. If you need assistance with your BRAUN product, please contact the BRAUN Technical Support department prior to returning this device. Reach out to us in any of the following ways:

This device has been tested and found to comply with the limits for a digital device according to the CE regulations. These limits are intended to provide reasonable protection against harmful interference in home installations. The declaration of conformity is available on our homepage.
