USER MANUAL TPH500 SCHEPPACH

Electric telescope hedge trimmer Translation of the original instruction manual

Explanation of the symbols on the equipment Read the instruction manual. Warning! Denotes risk of personal injury, loss of life, or damage to the tool in case of non- observance. Wear robust footwear when using the device! Wear ear and eye protection. Wear protective gloves when using the device! Warning! Risk of injury! Never put your hands close to the blades. Never touch the blades when turning the tool on or using it. Protect the tool from getting wet. The product complies with the applicable European directives Protection class II Always switch o󰀨 the shredder, disconnect the plug and wait until the cutting disc stops before carrying out maintenance or cleaning work. Warning of falling objects www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Guaranteed sound power level 10m (35ft) Beware of electrical wiring! Keep at least 10 m distance and 15 m to other persons www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Table of contents: Page:

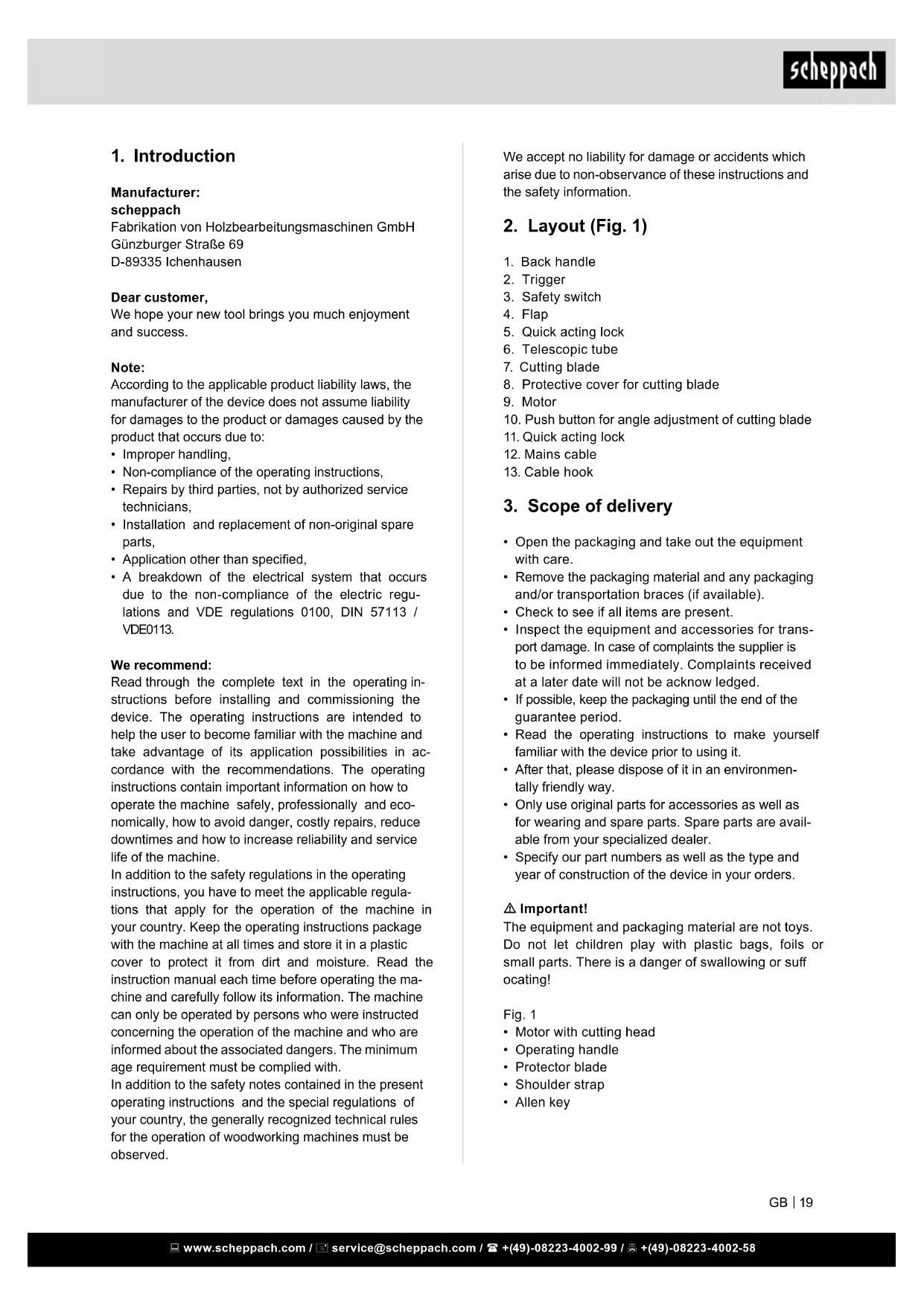

Manufacturer: scheppach Fabrikation von Holzbearbeitungsmaschinen GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear customer, We hope your new tool brings you much enjoyment and success. Note: According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Non-compliance of the operating instructions,

• Repairs by third parties, not by authorized service technicians,

• Installation and replacement of non-original spare parts,

• Application other than specied,

• A breakdown of the electrical system that occurs due to the non-compliance of the electric regu- lations and VDE regulations 0100, DIN 57113 / VDE0113. We recommend: Read through the complete text in the operating in- structions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in ac- cordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and eco- nomically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine. In addition to the safety regulations in the operating instructions, you have to meet the applicable regula- tions that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the ma- chine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with. In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of woodworking machines must be observed. We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

5. Quick acting lock

8. Protective cover for cutting blade

10. Push button for angle adjustment of cutting blade

11. Quick acting lock

3. Scope of delivery

• Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).

• Check to see if all items are present.

• Inspect the equipment and accessories for trans- port damage. In case of complaints the supplier is to be informed immediately. Complaints received at a later date will not be acknow ledged.

• If possible, keep the packaging until the end of the guarantee period.

• Read the operating instructions to make yourself familiar with the device prior to using it.

• After that, please dispose of it in an environmen- tally friendly way.

• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are avail- able from your specialized dealer.

• Specify our part numbers as well as the type and year of construction of the device in your orders. m Important! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or su󰀨 ocating! Fig. 1

• Motor with cutting head

The equipment is allowed to be used only for its pre- scribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the man- ufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

5. Important information

General safety instructions for electric tools m CAUTION: Read all safety regulations and in- structions. Any failures made in following the safety regulations and instructions may result in an electric shock, re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. The term “electric tool” used in the safety instructions refers to electric tools operated from the mains power supply (with a power cable) and to battery operated electric tools (without a power cable). 1 Workplace safety

• Keep your work area clean and well illuminated. Untidy or unlit work areas can result in accidents.

• Do not operate the electric tool in an environment where there is a risk of explosions and where there are inammable liquids, gases or dust. Electric tools produce sparks which could set the dust or vapours alight.

• Keep the electric tool out of the reach of children and other persons. If there is a distraction, you may lose control of the appliance. 2 Electrical safety

• The connector plug from this electric tool must t into the socket. The plug should never be altered in any way. Never use adapter plugs together with earthed electric tools. Unaltered plugs and correct sockets reduce the risk of an electric shock.

• Avoid bodily contact with earthed surfaces such as pipes, heating, ovens and fridges. The risk of electric shock is increased if your body is earthed.

• Keep the tool out of the rain and away from mois- ture. The ingress of water into an electric tool in- creases the risk of an electric shock.

• Do not use the cable to carry the electric tool, to hang it up or to pull it out of the socket. Keep the cable away from heat, oil, sharp edges and mov- ing parts of the appliance. Damaged or entangled cables increase the risk of an electric shock.

• If you are working outdoors with an electric tool, only use extension cables which are designed spe- cically for this purpose. Using specially designed outdoor extension cables, the risk of electric shock is reduced.

The machine meets the currently valid EU ma- chine directive.

• Before starting any work, all protective and safety devices must be in place.

• These hedge clippers have been designed to cut soft, freshly grown hedge material. They are not suitable for cutting branches, tough wood or other material to be cut.

• The machine has been designed to be operated by one person.

• The operator is responsible for third parties in the area of operations.

• All safety and hazard notices on the machine must be observed.

• All safety and hazard notices on the machine must be kept in a completely legible condition.

• Use the machine in a technically awless condition only, as well as for its intended purpose, in a safe manner and being aware of dangers, in compliance with the operating instructions!

• Disruptions which can a󰀨ect safety in particular must be eliminated straight away!

• The manufacturer’s safety, operation and main- tenance instructions as well as the technical data given in the calibrations and dimensions must be adhered to.

• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be adhered to.

• The machine may only be used, maintained or re- paired by trained persons who are familiar with the machine and have been informed about the dan- gers. Unauthorized modications of the machine exclude a liability of the manufacturer for damages resulting from the modications.

• The machine is intended for use only with original spare parts and original tools from the producer.

• Any other use is considered to be not intended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user.

• The hedge trimmer may be used only for cutting hedges, bushes and shrubs. Alternative use not specied in these instructions can damage the hedge trimmer or severely injure the user. There- fore, it is explicitly excluded from the list of possible uses.

• The device must not be used for commercial, tech- nical or industrial applications.

• If you are not sure whether working conditions are safe or unsafe, do not work with the machine. WARNING! For your own safety, please thor- oughly read this manual and the general safety instructions before turning the device on. If you give the device to third parties, always include these instructions. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

• Pull the plug out of the socket and/or remove the battery before making any adjustments to the ap- pliance, changing accessories or put the appliance down. This safety measure prevents starting the electric tool unintentionally.

• Keep unused electric tools out of the reach of chil- dren. Do not allow people who are not familiar with the appliance or who have not read these instruc- tions to use the appliance. Electric tools are dan- gerous if they are used by inexperienced people.

• Clean your electric tool carefully. Check whether moving parts are functioning properly and not jam- ming, whether parts are broken or damaged enough that the functioning of this electric tool is a󰀨ected. Have damaged parts repaired before using the ap- pliance. Many accidents are caused by badly main- tained electric tools.

• Keep your cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges will jam less and are easier to control.

• Make sure to use electric tools, accessories, at- tachments, etc. in accordance with these instruc- tions. Take the conditions in your work area and the job in hand into account. Using electric tools for any purpose other than the one for which they are intended can lead to dangerous situations. 5 Service

• Have your electric tool repaired only by trained personnel using only genuine spare parts. This will ensure that your electric tool remains safe to use. Safety regulations for hedge trimmers

• Make sure you keep all parts of your body away from the blades. Never attempt to remove the cut- tings with the blades running or to hold material you wish to cut. Always switch o󰀨 the equipment before attempting to remove any jammed cuttings. A single moment of carelessness when using the hedge trimmer can result in serious injuries.

• Carry the hedge trimmer by its handle and make sure the blades have stopped. Always t the pro- tective cover when transporting the hedge trimmer or putting it into storage. Careful handling of the equipment reduces the likelihood of injury by the blades.

• Hold the electric tool by the insulated handles, be- cause the blade may come into contact with the tool’s own mains lead. Contact between the blade and a live cable can also make the metal parts of the equipment live and will cause an electric shock.

• Keep the cable out of the cutting zone. During op- eration the cable may be covered by hedges and cut through by accident.

• If operation of the electric tool in a damp envi- ronment can not be avoided, use a earthleakage circuit-breaker. The earth-leakage circuit-breaker reduces the risk of an electric shock. Warning! This electric tool generates an electro- magnetic eld during operation. This eld can im- pair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operat- ing the electric tool. 3 Safety of persons

• Be careful, watch what you are doing and use an electric tool sensibly. Do not use the tool if you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention when us- ing the electric tool can result in serious injuries.

• Wear personal protection equipment and always wear safety goggles. Wearing personal protection (such as dust masks, non-slip safety shoes, safety helmet or ear protection, depending upon the type and use of the electric tool) reduces the risk of injury.

• Make sure that the appliance cannot start up ac- cidentally. Ensure that the electric tool is switched o󰀨 before you connect it to the power supply and/or insert the battery, or pick up or carry the tool. If your nger is on the switch whilst carrying the electric tool or if you connect the appliance to the mains when it is switched on, this can lead to accidents.

• Remove keys and wrenches before switching on the electric tool. A tool or key which comes into contact with rotating parts of the appliance can lead to injuries.

• Avoid abnormal working postures. Make sure you stand squarely and keep your balance at all times. In this way, you can control the electric tool better in unexpected circumstances.

• Wear suitable work clothes. Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair can get trapped in moving parts.

• If vacuuming devices and draining devices can be tted, make sure that these are correctly attached and correctly used. The use of a dust extraction system can reduce the danger posed by dust. 4 Usage and treatment of the electric tool

• Do not overload the appliance. Use the correct tool for your work. You will be able to work better and more safely within the given performance bounda- ries.

• Do not use an electric tool with a defective switch. An electric tool that cannot be switched on or o󰀨 is dangerous and must be repaired. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

19 During transportation and storage of the hedge trimmer, keep the blades covered at all times with the special guard. 20 Take care not to overload the hedge trimmer and do not use it on jobs for which it is not intended, i.e. you are allowed to use the hedge trimmer only to cut hedges, shrubs and perennials. 21 Use only cables and connectors approved for outdoor use: – power cable HO7RN-F 2x1.0 with integral two- plug plug; – extension cable HO7RN-F 3G1.5 with rainwater- protected earthing-pin plug and earthingcontact coupling. – The use of a leakage-current or earth-leakage circuit-breaker is recommended for operating electric tools. Ask your electrician! 22 The hedge trimmer requires regular inspection and maintenance. Always replace damaged blades in pairs. If the hedge trimmer su󰀨ers any damage from impact (falling on hard ground etc.), have it checked immediately by a specialist. 23 Look after your hedge trimmer carefully. Keep it clean and sharp to ensure e󰀩cient and safe cutting. Follow the maintenance and cleaning in- structions. 24 The German Farmers Union, for example, prohib- its the use of electric hedge trimmers by persons aged 17 or less. Persons aged 16 and above may only use electric hedge trimmers if supervised by an adult. 25 Do not use the hedge trimmer with a damaged or excessively worn cutting system. 26 Check your surroundings and take note of any potential dangers which you may not be able hear due to the machine’s noise. 27 Never try to work with an incomplete machine or a machine with unapproved modications. 28 It is advisable not to use the hedge trimmer when other persons, and particularly children, are nearby. 29 Children are not allowed to use the hedge trim- mer. 30 The machine may exceed 85 db (A) at the work- place. The operator will require noise protection measures and ear mu󰀨s if this is the case. 31 Always ensure that all the handles and safety equipment is tted when the hedge trimmer is in use. 32 Examine the hedge for any concealed objects, e.g. wire, before you start your work. 33 This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are su- pervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Specic safety information Please read this safety information and the directions for use carefully and be sure to follow the instructions to the letter. 1 Always remove the power plug from the socket outlet before you perform any work on the hedge trimmer, e.g. – repairing a damaged cable – cleaning the blades – troubleshooting – cleaning and maintenance or before leaving the tool unattended. 2 The hedge trimmer can cause serious injuries! Read the directions for use carefully in order to acquaint yourself with the correct way to handle, set up, service, start and put down the machine. Familiarize yourself with all the machine’s control elements and its proper use. 3 Always handle the hedge trimmer with both hands. 4 When working with the hedge trimmer, wear stur- dy shoes and make sure of your footing. 5 Never work with the hedge trimmer in the rain or on wet hedges and never leave the hedge trim- mer outdoors. The hedge trimmer must not be used if it is wet. 6 We recommend that you wear safety goggles and ear-mu󰀨s when working with the hedge trimmer. 7 Wear suitable working clothes such as rubber gloves and non-slip shoes. Do not wear loose garments. Keep long hair in a hairnet. 8 Avoid abnormal postures and make sure of your footing, particularly when working on ladders and steps. 9 Be sure to hold the hedge trimmer well away from your body when it is switched on. 10 Make sure there are no other persons or animals within your working area (radius of swing). 11 Carry the hedge trimmer only by its guide handle. 12 Keep cables clear of where you are cutting. 13 Before you use the hedge trimmer, examine the power cable for signs of damage and aging. 14 Use the hedge trimmer only when the power cable is in good working order. 15 Do not remove the power plug from the socketout- let by pulling on the cable. Never carry the tool by its cable. Take care not to damage the cable in any way. 16 Protect cables from heat, caustic uids and sharp edges. Replace damaged cables immediately. 17 If the blades become jammed, e.g. due to thick branches or the like, switch o󰀨 and unplug the hedge trimmer immediately. Only then are you to remove the cause of the obstruction. 18 Keep the hedge trimmer in a dry place out of children’s reach. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.

• Maintain and clean the equipment regularly.

• Adopt your way of working to the equipment.

• Do not overload the equipment.

• Have the equipment checked if necessary.

• Switch o󰀨 the equipment when not in use.

• Wear gloves. In these operating instructions we have marked the places that have to do with your safety with this sign: m

7. Attachment and operation

ATTENTION! Before working on the device - clean- ing, inspection, maintenance or other work - always turn o󰀨 the device and separate it from the power supply. ASSEMBLY Assembling the motor casing (Fig. 2)

• Open the quick acting lock (11) from the motor cas- ing (9).

• Insert the telescopic tube (6) into the casing‘s hold- ing xture.

• Close the casing‘s quick acting lock (11) again, Attaching the shoulder strap (Fig. 3) Assembly and use:

• Fix the shoulder strap on the ap (4)

• By changing the adjuster, the length of the shoul- der strap can be altered. Adjust the length of the shoulder strap in such a way that it ensures a com- fortable working posture.

• Put the shoulder strap over your right shoulder.

• Carry the tool‘s motor on the right side of your body. Never put the shoulder strap over your shoulder and across your chest, but put it on one shoul- der. In this way, you will be able to quickly re- move the tool from your body in case of emer- gency. m Warning! Use only original manufacturer‘s re- placement parts, accessories and attachments. Fail- ure to do so can cause poor performance, possible injury and may void your warranty. Never use the machine without the guard assembled! Starting and stopping the telescopic hedge trim- mer (Fig. 4)

• Starting the device: First, press the safety switch (3) on the back handle left, then the trigger (2). Af- ter starting the motor, you can release the safety switch (3). Children must always be supervised in order to ensure that they do not play with the equipment. Do not lose this safety information. Residual risks The machine has been built using modern technology and in accordance with recognized safety rules. Some hazards, however, may still remain.

• Risk of injury to ngers and hands from the tool in operation during improper use.

• Electrical hazards when unsuitable electric con- nections are used.

• Safety hazard from the hedge clippers in case of long hair and loose clothing; Wear personal protec- tive equipment such as a hair net and tight work clothing.

• Although having regarded all considerable rules there may still remain not obvious remaining haz- ards.

• Minimize remaining hazards by following the in- structions in ”Safety Rules”, ”Use only as author- ized” and in the entire operating manual.

Engine output W 500 Weight kg 3.5 Subject to technical changes! Information concerning noise emission measured ac- cording to relevant standards: Sound pressure L

= 3 dB(A) Wear ear-mu󰀨s. The impact of noise can cause damage to hearing. Vibration left hand A

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.

• Kinks where the connection cable has been im- properly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing. Such damaged electrical connection cables must not be used and are life-threatening due to the insula- tion damage. Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use con- nection cables with the marking „H07RN-F“. The printing of the type designation on the connec- tion cable is mandatory. AC motor

• The mains voltage must be 230 V~.

• Extension cables up to 25 m long must have a cross section of 1.5 mm², and over 25 m long must have a cross section of 2.5 mm². Connections and repairs of electrical equipment may only be carried out by an electrician. Please provide the following information in the event of any enquiries:

• Type of current for the motor

INJURY WARNING! Before working on the device, disconnect the mains cable from the socket. Always wear protective gloves when working on or around cutting tools.

• Regularly check the device before starting work.

• Damaged blades have to be repaired or replaced by an authorised service department before you can work with the device.

• Clean the blades with a soft brush after working with the device and spray a thin layer of liquid pro- tective oil on the whole blade.

• Always keep the ventilation holes in the motor cas- ing free and clean.

• Never use water to clean or spray the device. Clean the motor casing with a damp cloth and never use detergents or solvents! This may damage the de- vice‘s plastic parts. Dry the motor casing carefully afterwards.

• Stopping the device: Let go of the trigger (2). Adjusting the telescopic tube (Fig. 5) Disconnect the tool from the electricity supply rst!

• Open the locking handle (5) for length adjustment

• Adjust the telescopic tube (6) to the required length.

• After the adjustment, close the locking handle (5) again, so that the length adjustment is secure. Adjusting the motor head (Fig. 6) Disconnect the tool from the electricity supply rst! Angle adjustment A

• Press the button (10) for the angle adjustment on both sides and rotate the head to the required po- sition (from 0° to 120°). Make sure that the motor head clicks into place again. Make sure that the adjustment buttons return to their initial position after adjustment. Otherwise, the tool will not start. Do not connect the tool to the electricity supply until assembly has been completed. If this is not done, the device could start unintentionally and cause se- vere injuries.

• Find safe footing, operate the device with both hands and turn it on.

• Cut the hedge from both sides and start at the bot- tom. In this way, you can prevent cutting-waste fall- ing into the area that still needs to be cut.

• Guide the device gently through the area of the hedge.

• Do not attempt to cut too deeply.

• Then cut the upper part of the hedge.

• For older hedges which need more pruning, cut stronger branches and twigs with loppers rst be- fore cutting the hedge with the device.

9. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer‘s mains connection as well as the extension cable used must also comply with these regulations. Damaged electrical connection cable The insulation on electrical connection cables is of- ten damaged. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

Improper handling of waste equipment may have negative consequences for the environment and hu- man health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the e󰀨ective use of natu- ral resources. You can obtain information on collec- tion points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electri- cal and electronic equipment or your waste disposal company.

• Always store the machine with the supplied protec- tive cover.

• Only use OEM parts for maintenance work. Using parts other than original parts can cause damage to the machine. The user is responsible for all damages caused by non-compliance with instructions in this manual. This also applies to non-authorized modications of the tool, use of non-authorized spare parts, accessories, working tools, unrelated and not intended use, sec- ondary damages due to use of faulty components. Service information Please note that the following parts of this product are subject to normal or natural wear and that the fol- lowing parts are therefore also required for use as consumables. Wear parts*: carbon brushes, blade

• Not necessarily included in the scope of delivery!

• Disconnect the hedge trimmer from the electricity supply when it is not being used.

• Oil the blades to prevent rust

• Store the device in a dry place beyond the reach of children.

• When the device is not being used, store it so it cannot be started by unauthorised persons. WARNING! Do not store the device without protection out- side or in a damp environment.

12. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equip- ment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council. Old devices must not be disposed of with house- hold waste! This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and elec- tronic equipment (WEEE). This product must be dis- posed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equip- ment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop. Fault Possible cause Remedy Machine does not start Supply voltage not on On/O󰀨 switch faulty Worn carbon brushes Motor faulty Power cable damaged Check the socket or the electricity supply; if required, arrange repair by an authorised electrician. Contact the service centre Contact the service centre Contact the service centre Check the extension lead and have it replaced, if required. Machine works with interruptions Power cable damaged Internal connections are loose On/O󰀨 switch faulty Check the extension lead and have it replaced, if required. Contact the service centre Contact the service centre Poor cutting quality Blades are blunt. Have the blades sharpened or the knife bar replaced. Motor is running but the gears are not engaging The power unit is jammed by a thick branch or other objects. Turn the hedge trimmer o󰀨 immediately, dis- connect the electricity supply and remove the blockage. www.scheppach.com / [e-mail] / +(49)-08223-4002-99 / +(49)-08223-4002-58
