USER MANUAL SS16130 Sogo

• Please read these instructions carefully before use.
  This manual can also be downloaded from our website www.sogo.es
• Keep present instructions for future references.
  Check that your mains voltage corresponds to that stated on the appliance.
• Only use the appliance for domestic purposes and household or similar applications such as:
• Staff kitchen areas, in shops, offices and other working environments;
• By clients in hotels, motels and other residential type environments;
• Environment type like : • Farm Houses • Bed and Breakfast.
• Only use the appliance in the way indicated in these instructions.
• Never use this unit near bathtub, shower, wash-hand basins or other containers with water.
• Never use this apparatus near water projections.
  Never use this apparatus with the wet hands.

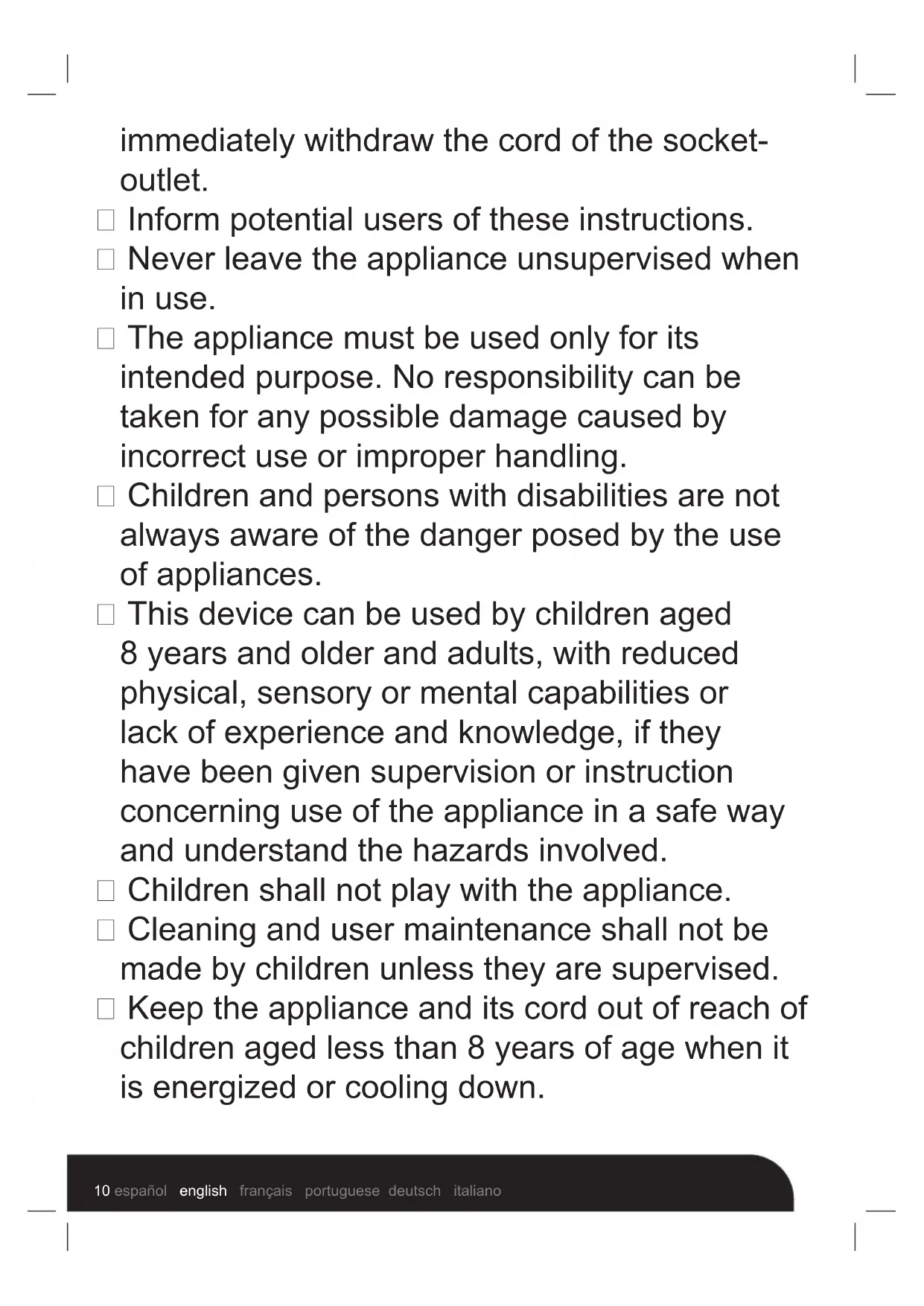

  □ If, unfortunately the apparatus is wet,

immediately withdraw the cord of the socketoutlet.

Inform potential users of these instructions.
- Never leave the appliance unsupervised when in use.
The appliance must be used only for its intended purpose. No responsibility can be taken for any possible damage caused by incorrect use or improper handling.
Children and persons with disabilities are not always aware of the danger posed by the use of appliances.
This device can be used by children aged 8 years and older and adults, with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
□ Cleaning and user maintenance shall not be made by children unless they are supervised.
- Keep the appliance and its cord out of reach of children aged less than 8 years of age when it is energized or cooling down.

This device is not a toy, do not leave small children or people with disabilities to play with.
In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
Caution! Do not allow small children to play with the foil:

THERE IS A DANGER OF SUFFOCATION!

From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
- Never immerse the appliance in water or any other liquid for any reason whatsoever.
- Never use the appliance near hot surfaces.
- Do not operate the appliance with a damaged cord or plug, or after the appliance has been damaged in any manner.
□ If the supply cord or appliance is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- Disconnect the power source cable before any operation of cleaning of maintenance and accessories assembly.
- Never use the appliance outside and always place it in a dry environment.

• Never use accessories, which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
• Never use any other connector than the one provided.
• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.
• Never wind the cord around the appliance and do not bend it
• Ensure that the power cord does not come into contact with hot parts of this unit.
  Make sure the appliance has cooled down before cleaning and storing it.
  The temperature of accessible surfaces may be very high when the appliance is operating. Never touch these parts, of apparatus, to avoid burning itself.
  Make sure the appliance never comes into contact with flammable materials, such as curtains, cloth, etc...& the power cord and plug do not come in contact with water.
  □ Before cleaning, always unplug the appliance from the power supply and let it cool down.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.
□ Always remove the plug from the wall socket when the appliance is not in use.
□ Incorrect operation and improper use can damage the appliance and cause injury to the user.
This device, designed for home use, complies with standards relating to this type of product.
The item is not to be used, if it has been dropped or if there are visible signs of damage or if it is leaking.
This appliance is only intended for household use.

Technical Specification

Model	SS-16130
Voltage AC 220-240V
Frequency 50/60 Hz
Power	1200 W
Tank	20 l
Power Cable	5 m

Preparation

Check that the plug is disconnected from the mains.

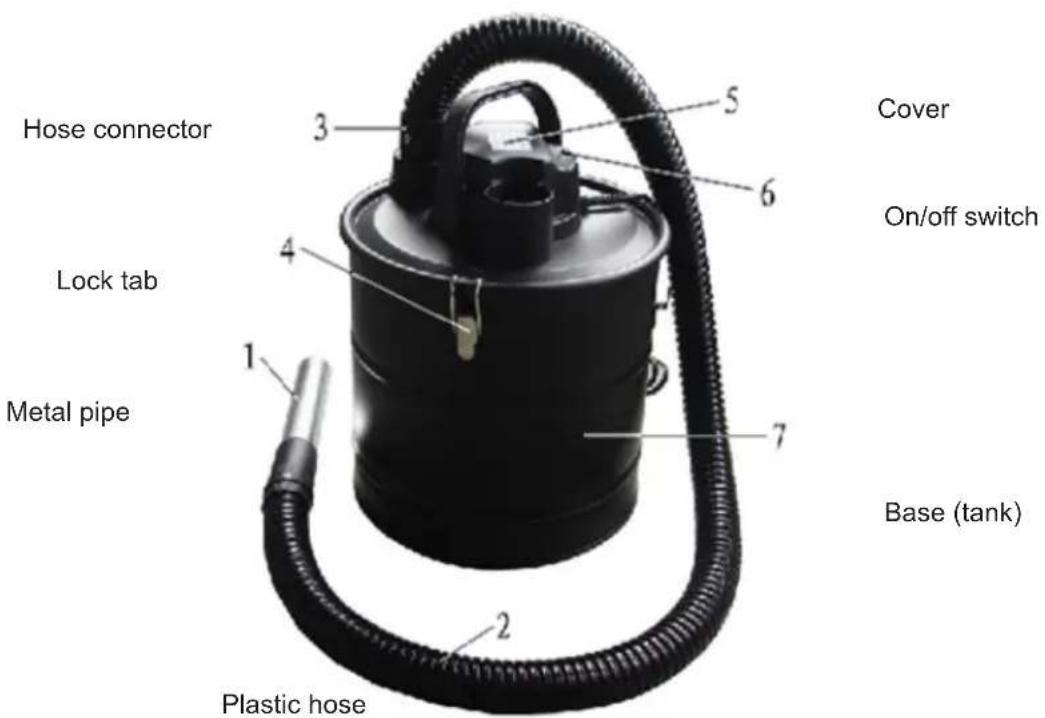

Unfasten the lock tabs(4) on the vacuum base(7)

Lift the top(5) off.

Place the top over the base and fasten with the lock tabs.

Connect the metal pipe (1) with plastic hose (2), fit the plastic hose (2) to the tank (7) at the hose connector (3)

Switch on/off

Insert the plug into a correctly installed mains socket.

To switch on the ash vacuum cleaner, press the switch (6) to "l" position.

To switch off the ash vacuum cleaner, press the switch to "O" position.

Cleaning and maintenance

If the suction strength deteriorates during use, turn off the ash vacuum cleaner.

Once you have finished cleaning, switch off the ash vacuum cleaner and hold the nozzle and hose vertical to allow loose ash to fall into the container.

1) Empty the container

Once the container is full remove the suction hose(2)and unfasten the cover with the lock tabs, empty the container out onto a suitable piece of packaging and dispose of it.

2)Get off the filters

Turn over the appliance onto the ground surface.

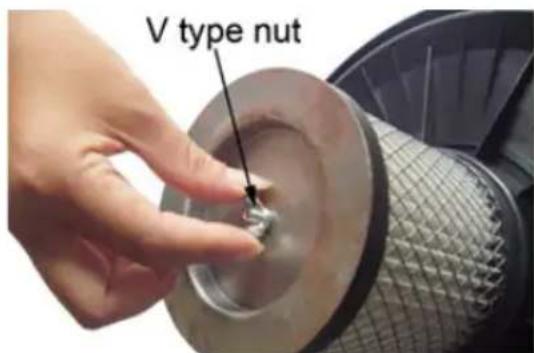

Keep the dust filter hold and loosen the V type nut by hand as the figure 2 shown.

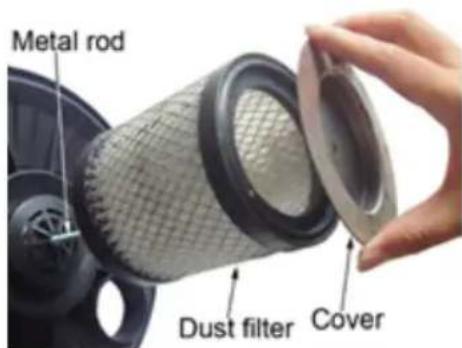

Remove the cover and dust filter from the metal rod. (See Fig. 3)

3)Cleaning

Wash the dust filter by clean and warm water, if necessary, you can use a mild detergent to wash. Dry the dust filter before re-use.

For the appliance itself, you can wipe the surfaces with a dry cloth. It's not allowed to put the appliance into water for cleaning.

MISES EN GARDE IMPORTANTES

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by

SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034 902 222 161
