USER MANUAL SE10x SAMSON

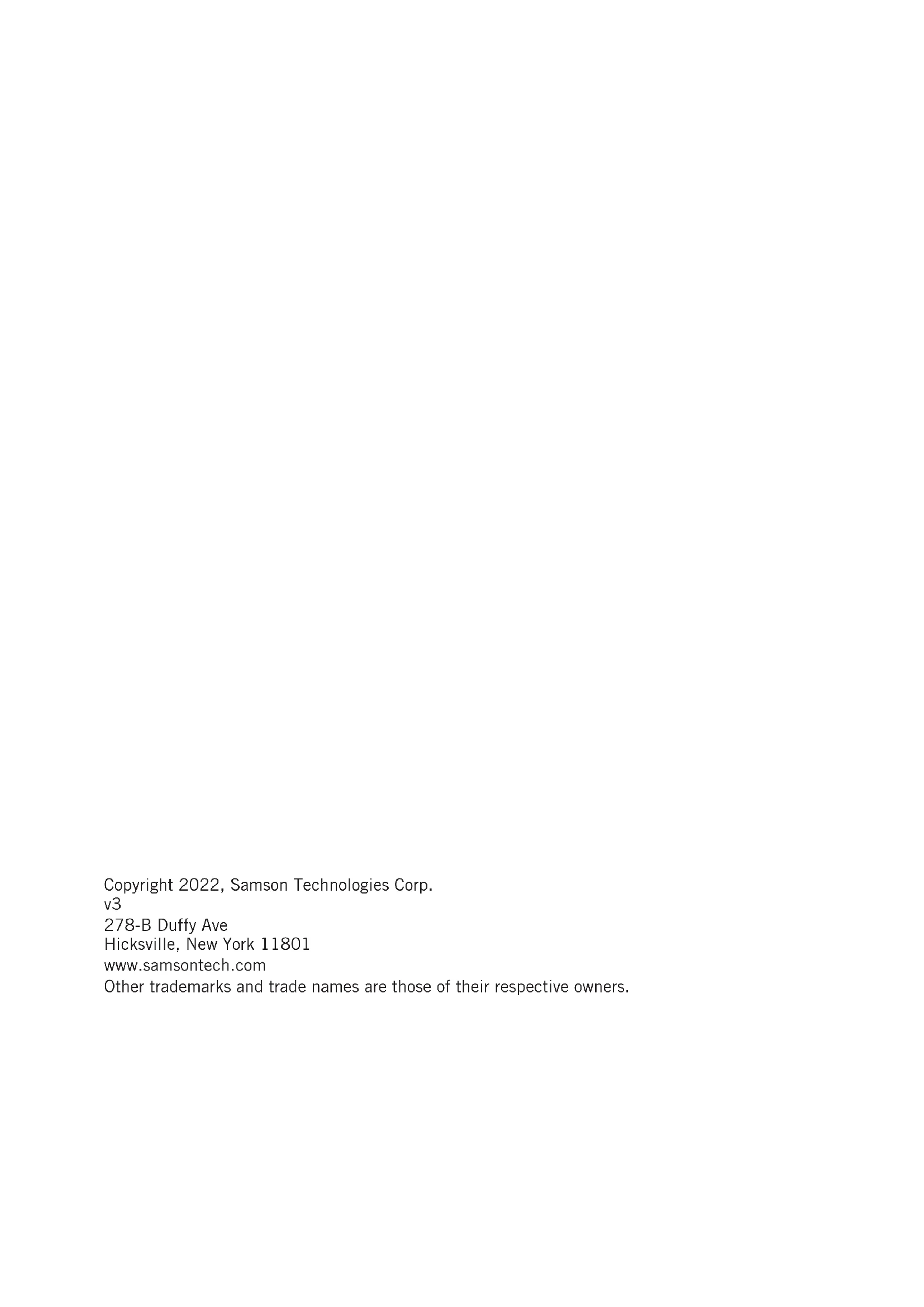

278-B Duffy Ave Hicksville, New York 11801 www.samsontech.com Other trademarks and trade names are those of their respective owners.3SE10x/SE50x/SE60x Earset Microphones ENFRDEESIT Introduction Congratulations on your purchase of the Samson SEx Earset Microphone. The SE10x and SE50x both feature an omnidirectional pickup pattern that delivers linear off-axis frequency response, resulting in a clear and articulate sound perfect for broadcast, worship, presentation, theater and fitness applications. The SE60x has a unidirectional pickup pattern, which provides superb isolation, resulting in more gain before feedback with clear and articulate sound in live sound applications. The SEx Earset microphones includes four detachable adapter cables: 1/8” [3.5mm], Hirose

TA4F for compatibility with Samson wireless as well as most popular wireless transmitters. The pack includes four windscreens, a collar clip and protective carry case. The SEx microphones have gold-plated connectors, moisture-resistant coating and stainless steel mesh grille. They are dust and water/sweat-resistant rated at IP65. In addition, there is a moisture guard drip-ring to further protect the capsule and ensure reliable performance. If you have any questions or comments regarding the SEx Earset Microphone or any other products from Samson, do no hesitate to contact us at [e-mail].4 Switchcraft

TA3F Connector Works with Samson AirLine ATX Series, Concert Series and most AKG

wireless systems Switchcraft

TA4F Connector Works with most Shure

wireless systems 3.5mm Connector Works with Sennheiser

wireless systems Hirose

4-Pin Connector Works with most Audio-Technica

wireless systems The SE10x/SE50x/SE60x include four cables with adapters for some of the most popular wireless microphone body pack transmitters. To connect the cable to the earset:

1. Choose the right cable and connector that works with your wireless system.

2. Line the cable up to the threaded terminal on the back of the SE10x/SE50x/SE60x and screw

the cable into the earset. Do not over tighten the cable.

3. Attach the included collar clip on the back of your shirt collar and run the mic wire from the

SEx earset to the wireless body pack. Leave enough cable to allow you to turn your head from side to side. Connector Cables5SE10x/SE50x/SE60x Earset Microphones ENFRDEESIT Mic Positioning Position the SE60x microphone element about 0.25” –1” behind the corner of your mouth. Since the SE60x is a unidirectional capsule, the low frequency characteristics will change depending on the position of the microphone from the sound source. The SE10x and SE50x are omnidirectional capsules and can be placed further away from your mouth. However, if the microphone is too far away from your mouth you will need to increase the gain and reduce isolation. Do not place the microphone directly in front of your mouth in order to avoid breath noise and p-pops. To minimize additional noise, do not position the microphone tight against your cheek.6 SE10x Element Back electret condenser Polar pattern Omnidirectional Frequency Response 20Hz–20KHz Sensitivity -45dBV/Pa @1kHz ±3dB Output impedance 2kΩ ±30% Maximum SPL 130dB Self-Noise 30dB(A) Dynamic Range 100dB Operating voltage 1.5–12V DC Cable ø1.4mm*1.2m Weight: 0.09oz / 2.5g Dimension ø3mm Included Adapter Cables 1/8” (3.5mm), Hirose

SE50x Element Back electret condenser Polar pattern Omnidirectional Frequency Response 20Hz–20KHz Sensitivity -35 ±3dB 1V/Pa/at1kHz Output impedance 2kΩ ±30% Maximum SPL 140dB Self-Noise 30dB(A) Dynamic Range 110dB Operating voltage 1.5–12V DC Cable ø1.4mm*1.2m Weight 0.09oz / 2.5g Dimension ø2.5mm Included Adapter Cables 1/8” (3.5mm), Hirose
