Product Type	Cassette player with CD player, FM radio and USB
Brand	Soundmaster
Model	SCD5800
Mains Power Supply	AC 230 V ~ 50 Hz
Battery Power Supply	6 LR14 batteries (C size) 1.5 V
FM Range	87.5 – 108 MHz
Preset Stations	30 FM
Audio Output Power	2 x 1.5 W RMS
Supported Audio Formats	Audio CD, MP3 (CD-R, CD-RW), USB playback
Main Functions	Cassette playback and recording, CD, FM radio, USB, microphone, disco light effect
Time Setting	Adjustable 12h/24h format, date included
Care and Cleaning	Clean with a dry cloth; do not use detergents or abrasive cloths
Safety	Class 1 laser product; do not open the device; risk of electrocution; use only in dry indoor environments
Included Accessories	Microphone, instruction manual, power cable
Connectivity	3.5 mm headphone jack, microphone input, USB port, FM antenna

Frequently Asked Questions - SCD5800 Soundmaster

How to set the time on the Soundmaster SCD5800?

Make sure the device is in standby. Press and hold the PLAY/PAUSE/CLOCK button for about 2 seconds. Use SKIP+/TUNING+ and SKIP-/TUNING- to choose the 12h or 24h format, then confirm with PLAY/PAUSE/CLOCK. Then set the hours, minutes, and date in the same way.

How to record the radio onto a cassette?

Insert a blank audio cassette (write protection not removed). Select the radio mode with STANDBY/FUNCTION. Start playback of the desired station. Press the RECORD button on the cassette section to start recording. To stop, press PAUSE or STOP/EJECT.

Why won't my CD play?

Check that the CD is inserted correctly, with the printed side facing up. Make sure the disc is not scratched or damaged. If the display shows NO, it means no disc is detected or it is inserted upside down. Burned CDs (CD-R/CD-RW) may not be compatible.

How to memorize my favorite radio stations?

Select the desired station. Press SCAN/PROG. The free memory location blinks (P01...). You can choose another location with PRE+/FOLDER+. Press SCAN/PROG again to confirm. Repeat for each station. Up to 30 FM stations can be stored.

Can I use rechargeable batteries?

The manual indicates to use non-rechargeable LR14 batteries (size C). Rechargeable batteries have a different voltage (1.2 V instead of 1.5 V) and may not work properly. Use only new alkaline batteries.

How to clean the Soundmaster SCD5800?

Use a dry and soft cloth. NEVER use detergents, alcohol, or abrasive cloths that could damage the surface. Avoid cleaning the inside as there are no user-serviceable parts.

Why does sound no longer come out of the speakers when I plug in headphones?

When you plug in headphones (3.5 mm jack on the back), the speakers are automatically muted. Unplug the headphones to reactivate the speakers.

How to use the microphone with the device?

Plug the microphone into the MIC jack on the back. Turn on the microphone. Adjust the volume with VOLUME+/-. To record, press RECORD on the cassette section. Note: the microphone cannot be used in cassette mode.

How to program the playback order of a CD?

In stop mode, press SCAN/PROG. P_01 blinks. Use SKIP+/TUNING+ and SKIP-/TUNING- to choose a track, then press SCAN/PROG to memorize it. P_02 appears. Repeat for all tracks. Press PLAY/PAUSE/CLOCK to start programmed playback. To cancel programming, press STOP twice.

What does the 'NO' display on the screen mean?

The NO display appears in CD or USB mode if no disc or USB device is detected. Check the CD insertion (printed side up) or the correct connection of the USB device.

USER MANUAL SCD5800 Soundmaster

Gray portable electronic device with a microphone and antenna, no visible text or symbols

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ITALIANO

ESPANOL

PORTUGUÊS

SVENSKA

ČEŠTINA

SLOVENSKÝ

LIETUVOS

LATVIJAS

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

WARNINGRisk of electric shockDo not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind.

Only return fully discharged batteries

*) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.

- A damaged mains cable or plug must immediately be replaced by an authorized service center.

- In case of lightning, immediately disconnect the device from the mains supply.

- Children should be supervised by parents when using the device.

- Clean the device with a dry cloth only.

- Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

- Do not expose the device to direct sunlight or other heat sources.

- Install the device at a location with sufficient ventilation in order to prevent heat accumulation.

- Do not cover the ventilation openings!

- Install the device at a safe and vibration-free location.

- Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.

- Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.

- No naked flame sources, such as lighted candles, should be placed on the unit.

- When you are necessary to ship the unit store it in its original package. Save the package for this purpose.

- In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.

- If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

LOCATION OF CONTROLS

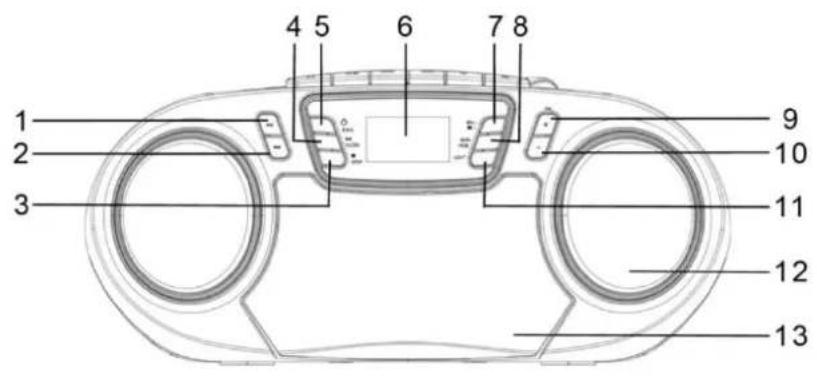

FRONT VIEW

TOP VIEW

BACK VIEW

1 SKIP+ / TUNING+ button
2 SKIP- / TUNING - button
3 STOP button
4 PLAY / PAUSE / CLOCK button
5 STANDBY / FUNCTION button
6 Display
7 PRE+ / FOLDER+ button
8 SCAN / PROG button
9 VOLUME+ button
10 VOLUME-button
11 Disco light effect button

12 Speaker
13 Cassette cover
14 Antenna
15 CD cover
16 Handle
17 Speaker
18 Buttons for Cassette
19 Headphone jack
20 Microphone jack
21 USB jack
22 AC socket

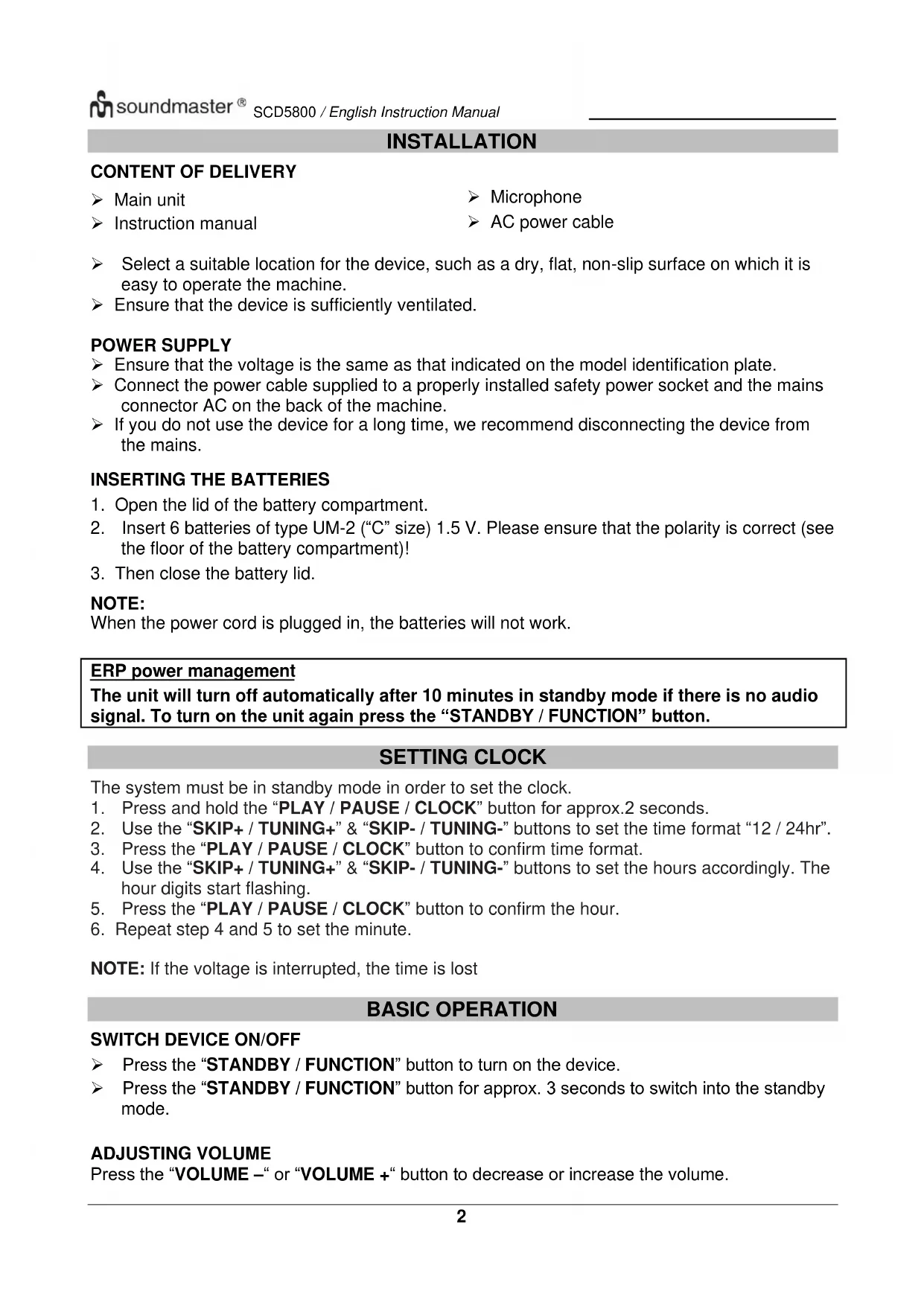

INSTALLATION

CONTENT OF DELIVERY

▶ Main unit

Microphone

▶ Instruction manual

▶ AC power cable

Select a suitable location for the device, such as a dry, flat, non-slip surface on which it is easy to operate the machine.
➢ Ensure that the device is sufficiently ventilated.

POWER SUPPLY

➢ Ensure that the voltage is the same as that indicated on the model identification plate.
Connect the power cable supplied to a properly installed safety power socket and the mains connector AC on the back of the machine.
If you do not use the device for a long time, we recommend disconnecting the device from the mains.

INSERTING THE BATTERIES

1. Open the lid of the battery compartment.
2. Insert 6 batteries of type UM-2 ("C" size) 1.5 V. Please ensure that the polarity is correct (see the floor of the battery compartment)!
3. Then close the battery lid.

NOTE:

When the power cord is plugged in, the batteries will not work.

ERP power management

The unit will turn off automatically after 10 minutes in standby mode if there is no audio signal. To turn on the unit again press the “STANDBY / FUNCTION” button.

SETTING CLOCK

The system must be in standby mode in order to set the clock.

1. Press and hold the "PLAY / PAUSE / CLOCK" button for approx.2 seconds.
2. Use the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons to set the time format "12 / 24hr".
3. Press the "PLAY / PAUSE / CLOCK" button to confirm time format.
4. Use the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons to set the hours accordingly. The hour digits start flashing.
5. Press the "PLAY / PAUSE / CLOCK" button to confirm the hour.
6. Repeat step 4 and 5 to set the minute.

NOTE: If the voltage is interrupted, the time is lost

BASIC OPERATION

SWITCH DEVICE ON/OFF

Press the "STANDBY / FUNCTION" button to turn on the device.
➢ Press the “STANDBY / FUNCTION” button for approx. 3 seconds to switch into the standby mode.

ADJUSTING VOLUME

Press the "VOLUME –" or "VOLUME +" button to decrease or increase the volume.

RADIO

1. Select the radio mode with the "STANDBY / FUNCTION" button, until "RAD" is shown in the display and after that the radio frequency.
2. For FM reception: Completely extend the telescopic antenna. Change its position to improve the reception.
3. There are two options to search for and preset radio stations.

▶ Automatic scan:

Important! All preset radio stations will be overridden.

Press and hold the "SCAN / PROG" button for approx.3 seconds. The system scans the entire frequency band for radio stations. Any stations found will be preset from lowest to highest frequency.

➢ Manual scan for audio stations:

Briefly press the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons, until you have found the radio station which you are looking for. If you keep one of the buttons pressed down, the device will search to the previous, respectively next radio station.

Preset station

1. Select the desired station.
2. Press the "SCAN / PROG" button. The display shows "P ..." and the next free memory flashes. By repeatedly pressing the "PRE + / FOLDER +" button, you can also select a desired memory location yourself. If a station has already been stored on this program station, it will automatically be overwritten.
3. Press the "SCAN / PROG" button again to confirm the station to the program station.

CD

1. Select the CD mode with the "STANDBY / FUNCTION" button, until "CD" is shown in the display.
2. Open the CD compartment by pulling the lid upwards by the tab.
3. Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
4. The CD will play from the first title.
5. In order to remove a CD, please press the "STOP" button, open the CD compartment and lift the CD out carefully.

Always keep the CD deck closed.

For operation, please refer to the section "CONTROL BUTTONS".

NOTE:

If a disc is inserted the wrong way around, respectively if no disc is inserted, then the message "NO" appears in the display.
➢ Playback of self-recorded CDs can not be guaranteed due to the wide variety of available software and CD media.

USB

This device has been developed in line with the latest technical advances in the USB field. The wide range of different USB storage devices of all types which are currently on the market, unfortunately do not allow us to guarantee full compatibility with all USB storage devices. For this reason, in rare cases there may be problems in playing back files from USB storage devices. This is not a malfunction of the device.

1. Select the USB mode with the "STANDBY / FUNCTION" button, until "USB" is shown in the display.
2. Connect a USB storage device directly into the port. The playback will automatically start after a few seconds.

For operation, please refer to the section "CONTROL BUTTONS".

NOTE:

➢ Always directly connect a USB storage medium to the USB port to prevent any malfunctions.
The USB port is not designed for charging external devices.

CAUTION:

Switch the device to a different operating mode before you remove the USB storage device.

CONTROL BUTTONS

NOTE:

Depending on the player, not all features may be supported.

PLAY / PAUSE / CLOCK

➢ You can briefly interrupt and resume playback using this button. The display shows the elapsed playback time flashing. Pressing again continues playback.
➢ Press and hold this button during operation to briefly display the current time.

SKIP+ & SKIP-

With "SKIP+ / TUNING+" button you can jump to the next or previous track etc. If the button is kept pressed down, the machine starts to search through the tracks.

The "SKIP- / TUNING-" button can be used as follows:

Press once = This starts the current track again from the beginning.

Press twice = This jumps back to the previous track.

STOP

The playback is stopped.

SCAN / PROG

In stop mode for programming any order of tracks (see the section on "Programmed Play").

During the playback of an audio CD:

Press once = the current track is repeated continuously. The display will show the "REP" logo.

Press twice = the whole CD is played continuously. The display will show the "REP" logo + "ALL".

Press three times = all tracks will be played in random order. The display will show "RAND".

Press four times = back to the normal play mode.

During playback of MP3 music (Under USB and CD-MP3 mode):

Press once = the current track is repeated continuously. The display will show the "REP" logo.

Press twice = the selected folder is repeated continuously. The display will show the "REP" logo + "ALBUM".

Press three times = the whole CD is played continuously. The display will show the "REP" logo + "ALL".

Press four times = all tracks will be played in random order. The display will show "RAND".

Press five times = back to the normal play mode.

PRE. /FOLDER

Use the "PRE.+ / FOLDER+" button to chose the folder.

Programmed Play

This can be used to program any desired sequence of tracks.

1. Press the "STOP" button.

2. Press the "SCAN / PROG" button. "P_01" will start to flash.. P_01 means the storage space. Use the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons to select the desired track and then press the "SCAN /PROG" button again. The display "P_01" will be changed to "P_02".

3. Select the next track with the "SKIP+ / TUNING+" & "SKIP- / TUNING-" buttons and press the "SCAN /PROG" button again. Repeat the procedure until all the desired tracks are selected.

NOTE: Once the storage capacity of the tracks to be programmed has been reached "PROGFULL" will show in the display.

1. Press the "PLAY / PAUSE / CLOCK" button. The playback starts. The lower-left of the display will show "PROG".

2. Press the button to interrupt the playback while retaining the program.

3. To play the programmed back again, press the "PLAY / PAUSE / CLOCK" button.

4. To delete the program, press the "STOP" button twice. The notification "PROG" will disappear.

Playing back Music in MP3 Format

With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R.

This machine of is able to play MP3 CDs. Up to 99 track scan be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display). If you would like to play one of these CDs, proceed as described under "Playing CDs/MP3". Tracks can be programmed as described under "Playing Back Programmed Tracks".

CASSETTE

Playing Cassettes

1. Select the Tape mode with the "STANDBY / FUNCTION" button, until "TAPE" is shown.
2. Press the "STOP/EJECT" button to open the cassette compartment.
3. Insert a recorded audiocassette into the compartment with the tape opening facing upwards and the side you wish to listen to facing the front (full spool to the right). Then close the cassette compartment again.
4. Press the "PLAY" button to listen to the tape.
5. With the "STOP/EJECT" button you can stop play-back.
6. Wind the tape forwards or backwards if necessary in the direction of the arrow keys.
7. Always press the "STOP/EJECT" key when changing the direction or stopping the tape. This prevents damage to the machine and the tape.
8. If the "STOP/EJECT" button is pressed again the flap of the cassette compartment opens.
9. In order to interrupt playback briefly, press the "PAUSE" button. Pressing again continues playback.

Cassette Record

1. Insert an audio cassette into the cassette compartment. Make sure the cassette write-protect has not been removed.
2. Select the function mode you want to record from and start playback if necessary.
3. Press the "RECORD" button on the cassette section to start recording.
4. If you want to stop recording, press the "PAUSE" button on the cassette part. To resume recording, press the button again.
5. To stop recording, press the "STOP / EJECT" button on the cassette section.

MICROPHONE

1. Plug the microphone into the "MIC" socket on the back of the device.
2. Turn on the microphone.
3. Pressing the "VOLUME-" and "VOLUME +" buttons will change the volume of the selected source as well as the microphone volume.
4. If you press the "RECORD" button on the cassette part, the recording starts.
   Note: In cassette mode, the microphone is not useable.

HEADPHONE

To listen to music privately, use headphones with a 3.5 stereo jack plug and connect to the headphones socket on the back of the system. The speakers will then be muted.

DISCO LIGHT EFFECT

Press the "LIGHT" button to turn the disco light effect on or off.

TECHNICAL SPECIFICATION

Power supply	: AC 230V ~ 50Hz
Battery supply	: 6x LR14, UM-2 (“C” size) 1.5 V
Frequency range FM	: 87.5 – 108MHz
Preset station	: 30 FM
Audio output power	: 2x 1.5W RMS

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH

PROTECTION DE L'ENVIRONNEMENT

SCHAKEL HET APPARAAT AAN / UIT

*) markerade Cd = kadmium, Hg = kvicksilver, Pb = bly

VARNING - OSYNLIG LASERSTRÅLNING NÄR DU ÖPPNAR LOCKET ELLER TRYCKER PÅ SÄKERHETSSPÄRREN. UNDVIK EXPONERING FÖR LASERSTRÅLEN.

7 Knappen FÖRPROG+/MAPP+

Cadolzburg, www.soundmaster.de

1 Tlačidlo PRESKOČIŤ+/LADENIE+
2 Tlačidlo PRESKOČIŤ-/LADENIE-
3 Tlačidlo ZASTAVIŤ
4 Tlačidlo PREHRAŤ/POZASTAVIŤ/HODINY
5 Tlačidlo POHOTOVOSTNÝ REŽIM/FUNKCIA
6 Zobrazenie
7 Tlačidlo PRE+/PRIEČINOK+
8 Tlačidlo VYHL'ADÁVAŤ/PROGRAM
9 Tlačidlo HLASITOST+
10 Tlačidlo HLASITOST-
11 Tlačidlo efektov diskotékových svetiel
12 Reproduktor
13 Kryt kazety
14 Anténa
15 Kryt CD
16 Rukovät'
17 Reproduktor
18 Tlačidlá platné pre kazetu
19 Konektor slúchadiel
20 Konektor mikrofónu
21 Konektor USB
22 Prípojka siet'ového napájania

INŠTALÁCIA

OBSAH DODANIA

Prístroj

Mikrofón

Návod na používanie

MEKLËT/PROGRAMMA (SCAN/PROG)

D 90556 Cadolzburg, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.soundmaster.de

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
