WS 9485 - weather station

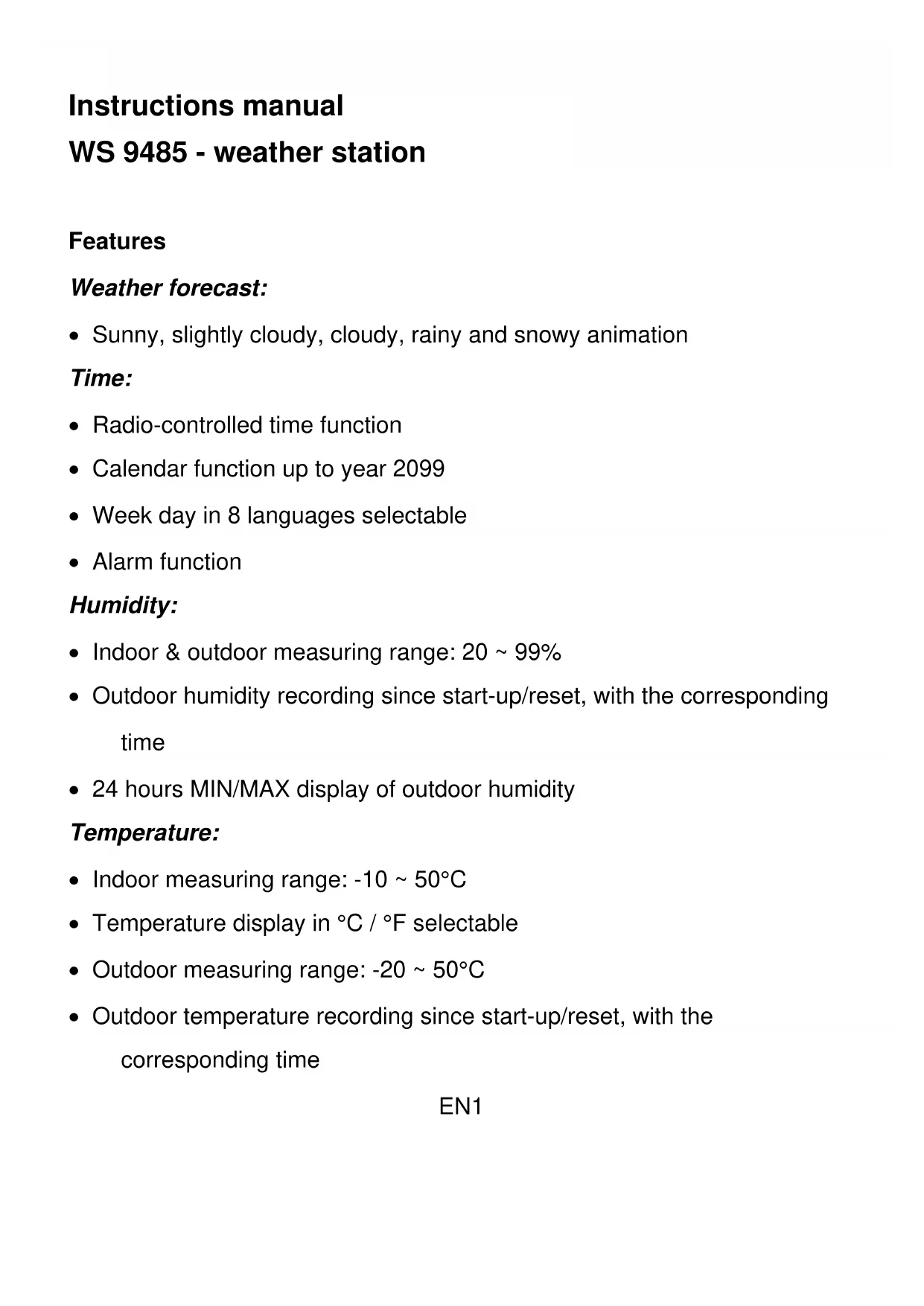

Features

Weather forecast:

- Sunny, slightly cloudy, cloudy, rainy and snowy animation

Time:

• Radio-controlled time function
• Calendar function up to year 2099
• Week day in 8 languages selectable
- Alarm function

Humidity:

• Indoor & outdoor measuring range: 20 \~ 99%
• Outdoor humidity recording since start-up/reset, with the corresponding time
  • 24 hours MIN/MAX display of outdoor humidity

Temperature:

• Indoor measuring range: -10 \~ 50°C
  • Temperature display in °C / °F selectable
  • Outdoor measuring range: -20 \~ 50°C
• Outdoor temperature recording since start-up/reset, with the corresponding time

• 24 hours MIN/MAX display of outdoor temperature

Outdoor sensor

• Low-battery indicator for outdoor temperature sensor
  • Wall mounting or table standing
  • One wireless temperature sensor included
  • 433MHz transmission frequency
• 8dBm maximum transmission power
• 60 meter transmission range in an open area

Main unit overview

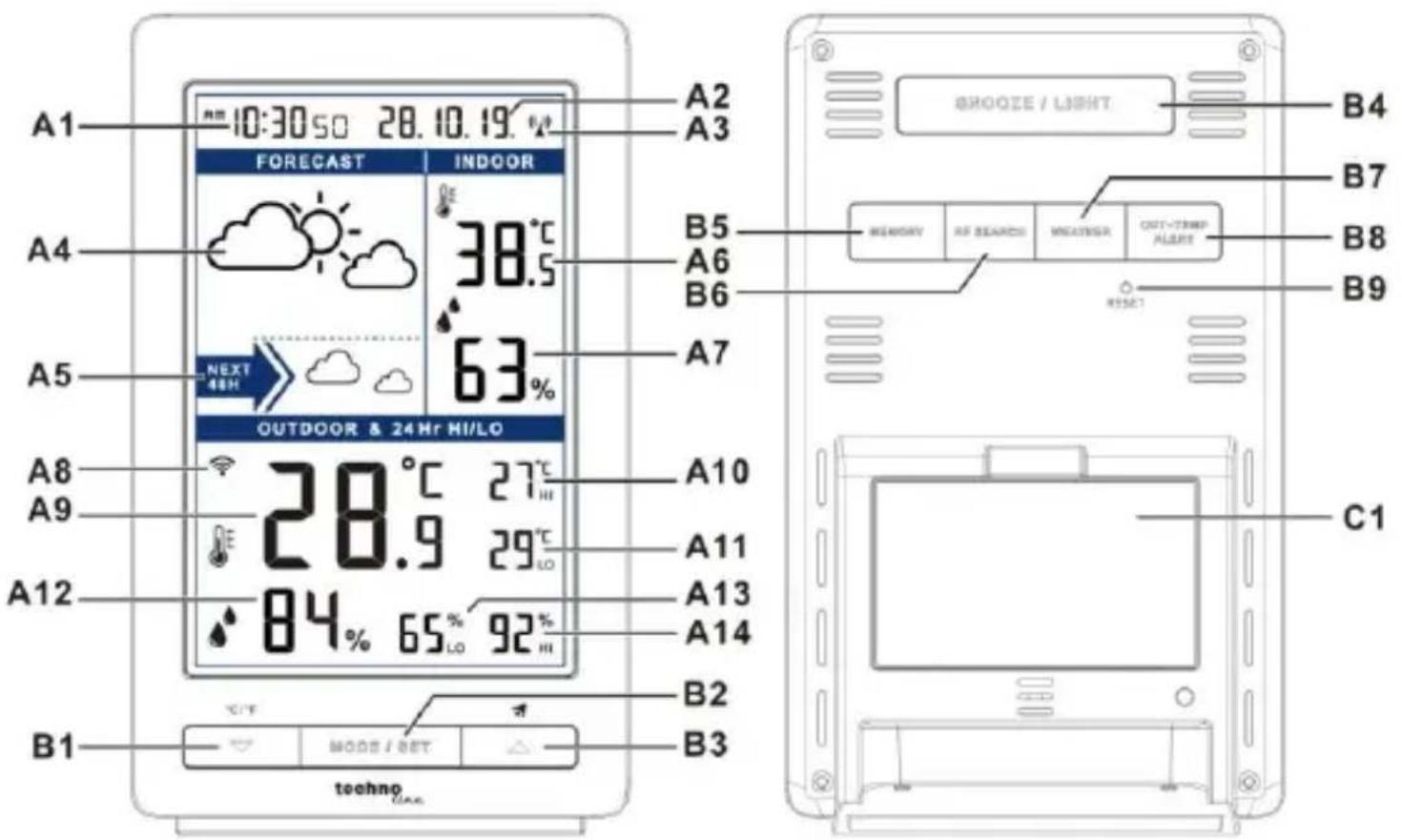

A1 10:30 50 28.10.19 FORECAST INDOOR A4 38.5 B5 A6 B6 A5 63% NEXT 48H OUTDOOR & 24 Hr HI/LO A8 28.9 27°C A9 28.9 29°C A10 A11 A12 84% 65% 92% A13 A14 B1 C1 MODE / SET B2 B3 B4 B7 B8 B9 BROOZE / LIGHT MEMORY RF SEARCHS MEATINGS OUT-TRIMP ALERT RESET C1

EN2

Part A - LCD display

A1: Time
A2: Date
A3: Time reception icon
A4: Current weather condition
A5: Weather forecast
A6: Indoor temperature
A7: Indoor humidity
A8: Sensor reception icon
A9: Outdoor temperature
A10: Past 24 hours highest outdoor temperature recording
A11: Past 24 hours lowest outdoor temperature recording
A12: Outdoor humidity
A13: Past 24 hours lowest outdoor humidity recording
A14: Past 24 hours highest outdoor humidity recording

Part B - Buttons

B1: “▼/ (°C/°F)” button
B2: "MODE/SET" button
B3: “▲/” button
B4: "SNOOZE/LIGHT" button
B5: "MEMORY" button
B6: "RF SEARCH" button
B7: "WEATHER" button

B8: "OUT-TEMP ALERT" button
B9: "RESET" button

Part C - Structure

C1: Battery compartment cover

Outdoor temperature sensor overview

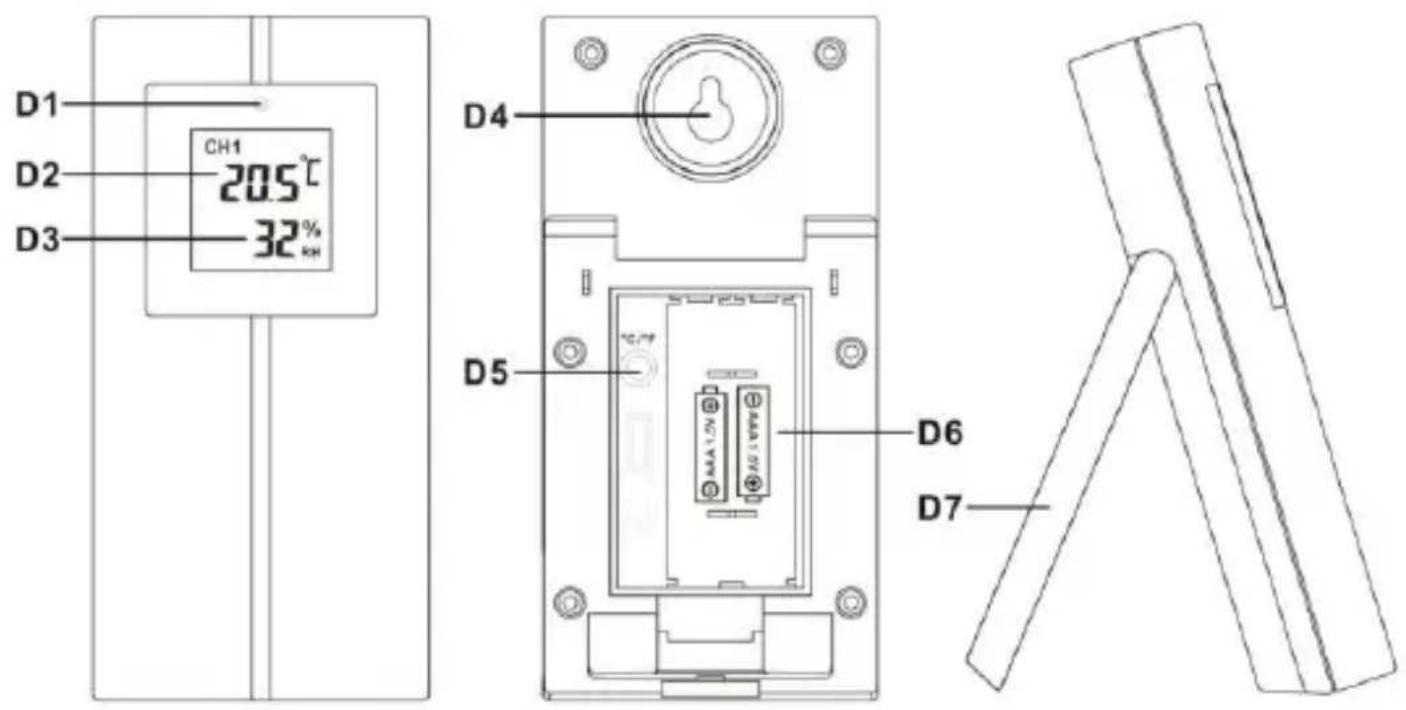

D1 D2 D3 CH1 20.5°C 32% KH D4 D5 D6 D7

D1: Transmission Indication LED
D2: Outdoor temperature display
D3: Outdoor humidity display
D4: Wall mounting hole

D5: “C/F” button
D6: Battery compartment
D7: Stand

Getting started:

• Remove battery compartment cover off the base station and insert 2 x AA size battery. Close the cover on the battery compartment again.
• Battery compartment (D4) of the temperature sensor is located behind the back cover. Insert 2 x AAA batteries while observing correct polarity [ “+” and “−” marks] and close the cover on the battery compartment.
• Place the base station securely on a flat surface.
• The remote sensor should be securely mounted onto a horizontal surface.

Note: Transmissions between receiver (station) and transmitter (sensor) can reach up to 60m in an open area. In open areas there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc.

Weather forecast function

Operation

- After inserting batteries, or holding “WEATHER” button (B7) for 3 seconds, the weather icon flashes on the LCD. Enter the current weather by pressing “▼” or “▲” button. Press the “WEATHER” button to confirm the setting. The weather forecast may not be accurate if the current weather entered is not correct. The weather station will start the

first forecast at 6 hours later after the current weather status is entered.

• The current weather status should be entered again if the altitude of the main unit is changed. (Barometric pressure is lower at higher altitude location. Therefore, altitude change will affect the weather forecast).
• There are two weather icons, the upper one indicates current weather condition, the next day forecasts of the weather in terms of getting better or worse. The weather station will start the first forecast at around 6 hours later after the current weather status is entered.

Weather conditions

There are totally 5 different weather status animations in the weather forecast.

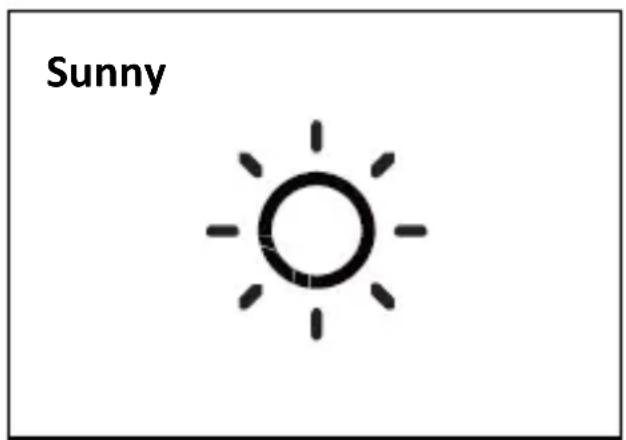

Sunny

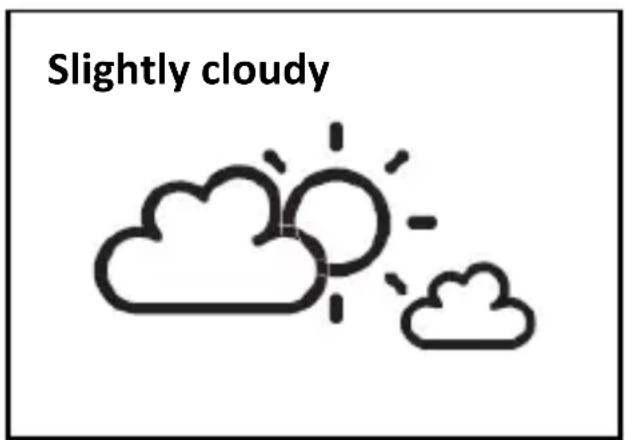

Slightly cloudy

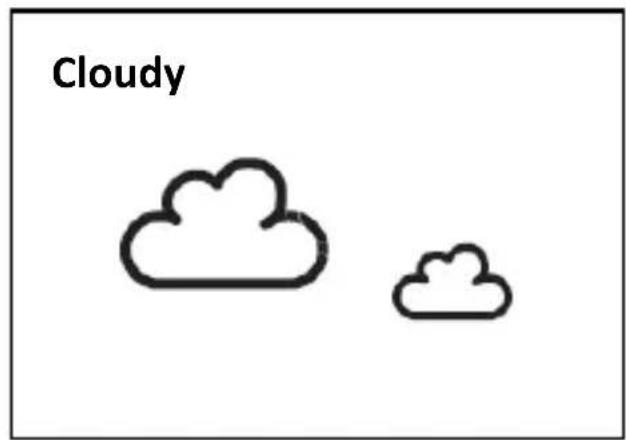

Cloudy

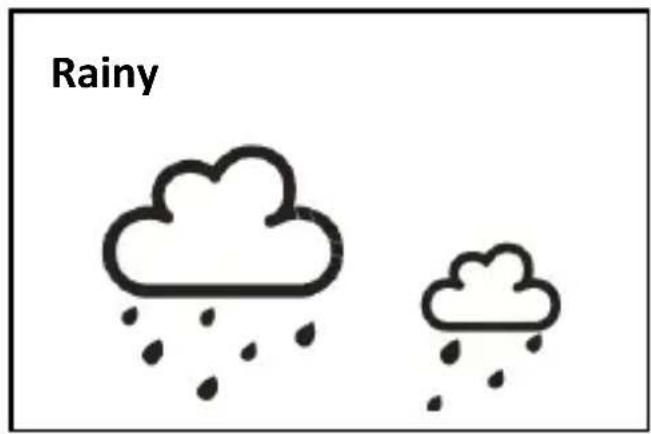

Rainy

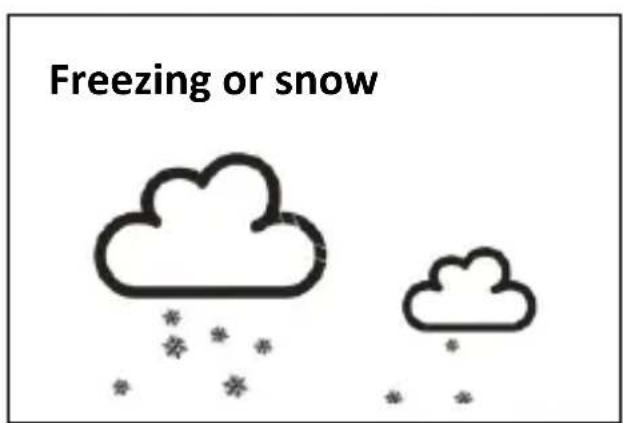

Freezing or snow

Note: “Freezing or snow” is shown if the weather forecast is rainy and outdoor temperature (any channel) under 0^ C.

• Frost alert: “ICE” is shown if the outdoor temperature is between -2^ C +3^ C
• If there is any inconsistency of weather forecast between local weather station and this unit, the local weather station's forecast should prevail. The manufacture will not hold responsible for any trouble that may come up due to wrong forecasting from this unit.

Thermometer

Receiving the sensor signal:

• The main unit automatically starts receiving transmission from outdoor sensor for outdoor temperature & humidity after weather condition setting.
• The outdoor sensor will automatically transmit temperature and humidity signal to the main unit after batteries inserted.
• If main unit failed to receive transmission from outdoor thermo sensor in first 3 minutes after the batteries inserted (“- - . -” display on the LCD), hold the “RF SEARCH” button (B6) for 3 seconds to receive transmission manually. RF icon “ ✉” flashes on the LCD.

Note: For best measuring, place the outdoor sensor outside and protected from rainfall, strong winds and direct sunlight.

Temperature & humidity

Past 24 hours highest / lowest outdoor temperature and humidity

- After start up, the unit automatically shows the past 24 hours of the highest & lowest outdoor temperature and humidity record. "HI" (high) &

“LO” (low) show on the LCD accordingly

Recorded maximum / minimum outdoor temperature and humidity from start-up / reset.

• Press the “MEMORY” button to view the lowest and highest temperature and humidity record from start-up or reset. “”MEM display on the LCD.
• When viewing the memory record, hold the “MEMORY” button for 3 seconds to clear the maximum and minimum record.
• When viewing the memory record, press the “MEMORY” button again to check the corresponded time and date for the memory of highest and lowest temperature & humidity record. The memory record value and corresponded time and date flash. Press the “MEMORY” button select to view:

Time & date for lowest temperature memory recording -> time and date for highest temperature memory recording -> time & date for lowest humidity memory recording -> time and date for highest humidity memory recording.

- Press the “°C /°F” button (B1) to select temperature in Celsius or

EN9

Fahrenheit.

- If the temperature is out of the measurable range, LL.L (beyond the minimum temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD.

Humidity

- The humidity measurable range is 20% \~ 99%. If the current humidity

measurement is lower than 20%, the LCD would display 20%

Outdoor temperature alert function

• Press the “OUT-TEMP ALERT” button (B8) to select to activate or deactivate outdoor temperature alert function.
• Press the "ALERT" button select to:

○ Activate outdoor upper temperature alert, the icon “” besides outdoor temperature digit would display.
○ Activate outdoor upper& lower temperature alert, the icon “ ” besides outdoor temperature digit would display.
○ Activate outdoor lower temperature alert, the icon “” besides outdoor temperature digit would display.
- Deactivate outdoor temperature alert, alert icon disappear.

- Hold "OUT-TEMP ALERT" button (B8) for 3 seconds to enter outdoor

temperature alert setting. Icon “” or “” beside temperature’s digits flash. Press the “▼” or the “▲” button (B1 or B3) to adjust the setting value, press the “OUT-TEMP ALERT” button to confirm the setting. The setting sequence as follow: the upper limit of temperature -> the lower limit of temperature.

- When it's alert, the corresponding icon “▲” or “▼” and temperature digit would flash on the LCD. Press any buttons to stop the alert sound, otherwise, it will sound for 2 minutes, and stop automatically.

Time and alarm setting

Radio controlled clock:

- After batteries inserted and main unit finishes receiving the transmission from outdoor sensor, the clock automatically starts to scan the DCF time signal. Radio Control Icon“” flashes on the LCD.

flashes, indicating active DCF signal reception

stays on, indicating successful signal reception

disappears, Indicating failed signal reception

- The clock automatically scans the time signal at 3.00 a.m. every day to

maintain accurate timing. If reception fail, scanning stops (“ ” on LCD disappear)

• The clock can be set to scan the time signal manually by holding “▼” and “▲” button for 3 seconds. Each reception takes about 5 minutes. If receptions fail, scanning stops.
• Stop scanning by holding “▼” and “▲” button for 3 seconds.
• “DST” shown on the LCD if it is in daylight saving time mode.

Manual time setting:

• Hold the "MODE" button (B2) for 3 seconds to enter time setting mode.
• Press the “▲” or the “▼” button to adjust the setting and press the “MODE” button to confirm each setting. Keep the “▲” or the “▼” button pressed, to accelerate the process and reach the desired value more quickly.
• The setting sequence is shown as follow: 12/24 hour time display -> time zone -> hour -> minute -> second -> year -> month -> Day -> weekday language.
• Time zone setting can be used to set difference from DCF77 time, for example 0 for Germany or -1 for UK.

EN12

• 8 languages can be selected in weekday, they are: German, French, Spanish, Italian, Dutch, Danish, Russian, and English.
• The languages and their selected abbreviations for each day of the week are shown in the following table.

Language	Sunday	Monday	Tuesday	Wednesday	Thursday	Friday	Saturday
German, GE	SO	MO	DI	MI	DO	FR	SA
English, EN	SU	MO	TU	WE	TH	FR	SA
Russian, RU	BC	ПН	BT	CP	ЧТ	ПТ	СБ
Danish, DA	SO	MA	TI	ON	TO	FR	LO
Dutch, NE	ZO	MA	DI	WO	DO	VR	ZA
Italian, IT	DO	LU	MA	ME	GI	VE	SA
Spanish, ES	DO	LU	MA	MI	JU	VI	SA
French, FR	DI	LU	MA	ME	JE	VE	SA

Notes:

• The second can only be adjusted to zero.
• The time setting will automatically exit in 15 seconds without any adjustment from buttons.
• The time zone is used for the countries where can receive the DCF

time signal but the time zone is different from the German time. When the country time is faster than the German time for 1 hour, the zone should be set to 1. Then the clock will set 1 hour faster from the signal time received automatically.

Daily alarm function:

• Press “MODE/SET” button to select to view:
  Time -> time & weekday -> alarm time ("AL" shown on the LCD)
• When viewing the alarm time, hold “MODE” button for 3 seconds to enter alarm time setting. Press “▲” or “▼” button to adjust the alarm time. Press “MODE” button to confirm the setting.
• Press “ 🔥 ” button (B3) to switch alarm on or off. If it is on, “ 🔥 ” shown on the LCD.
• When alarm sounds, alarm icon “” flash. Press “SNOOZE” button to activate the snooze alarm, (“flash on the LCD). The alarm will snooze for around 5 minutes, then it alarms again. This snooze function can be enabled for maximum 7 times.

- Except “SNOOZE” button, press any buttons to stop the snooze alarm. Otherwise, the alarm signal sounds for about 2 minutes, and then stops automatically.

Backlight

Press “LIGHT” button, backlight activates for around 5 seconds.

Low battery indication:

The low battery icon “will appear and indicating that thermo sensor is in low battery status. The batteries should be replaced.

Restart

Use a pin to press the reset button if the unit does not work properly.

Hereby, Technotrade declares that this product WS9485 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665094854

Environmental reception effects

The station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following

circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings
  • inside moving vehicles

- near electrical appliances (computers, TV's, etc) and metallic structures

Place the station at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• The base station is intended to be used only indoor, the outdoor sensor is intended for outdoor use only.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.

- Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-).

• Always replace a complete set of batteries.

- Never mix used and new batteries.

- Remove exhausted batteries immediately.

- Remove batteries when not in use.

- Do not recharge and do not dispose of batteries in fire as the batteries may explode.

- Ensure batteries are stored away from metal objects as contact may cause a short circuit.

- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.

- Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and

collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

EN17

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

Mode d'emploi

B6: Toets "RF SEARCH"

B7: Toets "WEATHER"

B8: Toets "OUT-TEMP ALERT"
B9: “RESET”-knop

Deel C – Structuur
