Product type	Electric salt and pepper mill
Brand	ADE
Model	KG 19001 (KG 1900-1 mint green, KG 1900-2 red, KG 1900-3 black)
Dimensions	57 x 205 mm
Power supply	6 LR/R03 (AAA) 1.5 V batteries
Rated current	900 mA
Container capacity	Fill to 80% maximum (salt crystals or whole peppercorns)
Housing material	Plastic and stainless steel (grinder)
Main functions	Electric grinding, LED lighting, grind setting adjustment (knob)
Grind setting	Continuously adjustable (fine to coarse)
Warranty	2 years
Distributor	Waagen-Schmitt GmbH, Neuer Höltigbaum 15, 22143 Hamburg, Germany
Country of origin	Germany
Included accessories	6 AAA batteries, user manual
Intended use	Household use only
Safety	Do not immerse in water; use only with filled container; replace all batteries at the same time
Care and cleaning	Wipe with a soft slightly damp cloth; container hand-washable
Storage	Remove batteries, empty and clean container, store in a dry, frost-free place
Repairability	Light not repairable; repairs exclusively by a specialist workshop
Standards	Directives 2014/30/EU and 2011/65/EU
Disposal	Electronic device: do not dispose with household waste; batteries: dispose at collection point

Frequently Asked Questions - KG 19001 ADE

How to change the batteries of the ADE KG 19001 mill?

Hold the mill firmly by the lower part, turn the outer sleeve fully counterclockwise to the open lock symbol. Remove the sleeve, take out the used batteries, insert 6 LR/R03 (AAA) batteries respecting polarity (+/-). Put the sleeve back and turn it clockwise to the closed lock symbol.

Why is my mill not working anymore?

Check that the batteries are not discharged or inserted incorrectly. Make sure the cap is removed and the grind setting knob is not in the locked position (turned fully clockwise).

How to fill the container with salt or pepper?

Remove the outer sleeve by turning counterclockwise. Take out the motor unit. Fill the container to 80% maximum with salt crystals or whole peppercorns. Put the motor unit back, ensuring the contact for the light, then replace the sleeve.

How to adjust the grind setting?

Remove the cap, turn the mill upside down and briefly activate it to clear the grinder. Turn the knob at the center of the grinder: clockwise for fine grind, counterclockwise for coarse grind.

The mill stops during use, what to do?

It is likely that grains or crystals have jammed the grinder. Shake the mill gently, turn it over and briefly run it to dislodge the mechanism.

How to clean the ADE electric mill?

Wipe the exterior with a soft slightly damp cloth. Never immerse the mill or its components in water. The container can be hand-washed; dry it thoroughly before reuse.

What type of batteries to use and how to replace them?

Use 6 LR/R03 (AAA) 1.5 V batteries. Always replace all batteries at the same time and respect polarity (+/-). Do not mix different types or brands of batteries.

How to store the mill if I don't use it for a long time?

Remove the batteries, empty and clean the container. Store the mill in a dry, frost-free place.

What to do if the mill's light does not turn on anymore?

The light cannot be repaired or replaced. If it stops working, it does not affect grinding. First check that the batteries are installed correctly and that the contact for the light is properly established.

How to dispose of the mill at the end of its life?

Do not throw the device with household waste. Dispose of it at an electronic waste collection point. Used batteries must be disposed separately at a dedicated collection point.

USER MANUAL KG 19001 ADE

22143 Hamburg, Germany

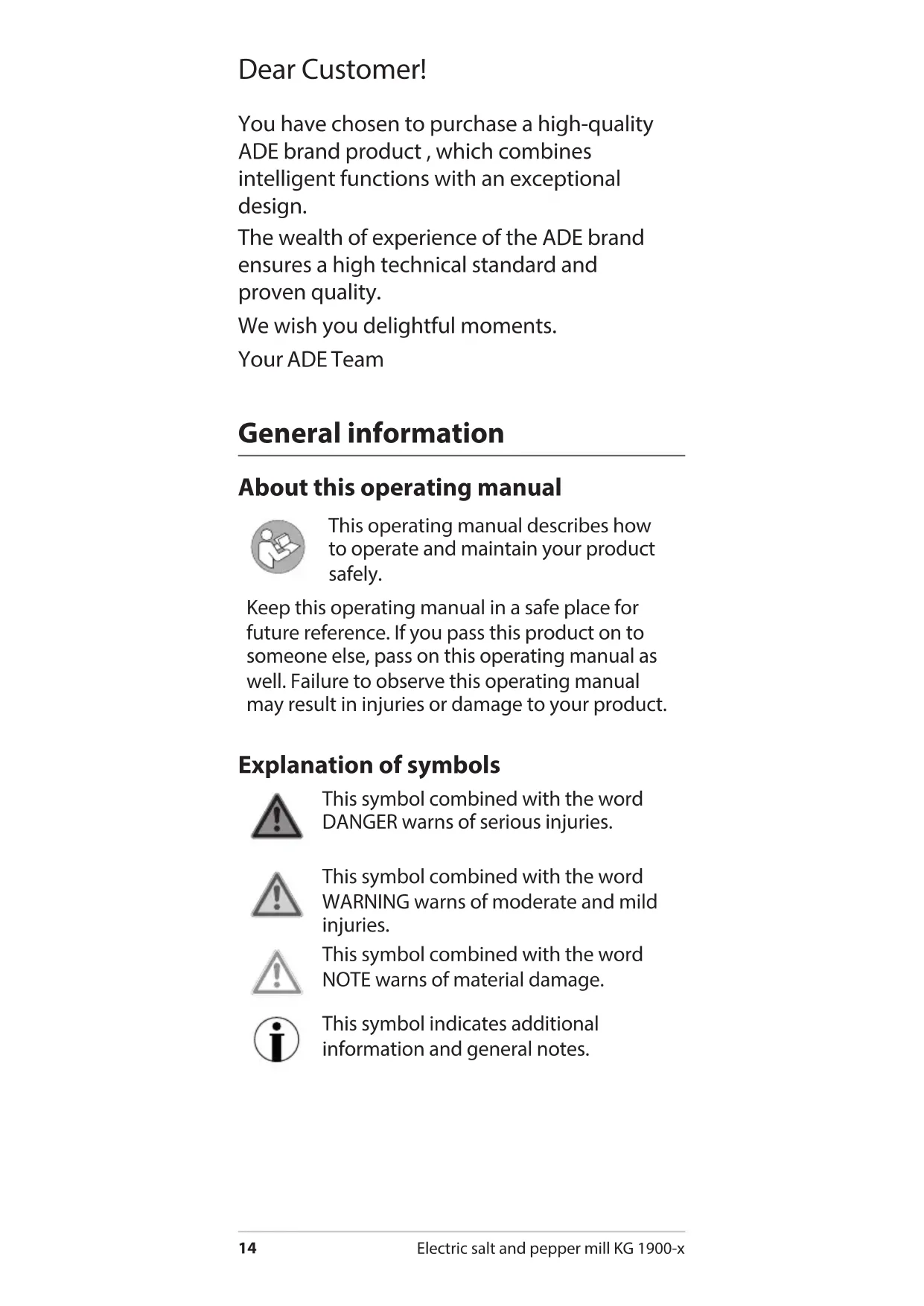

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design.

The wealth of experience of the ADE brand ensures a high technical standard and proven quality.

We wish you delightful moments.

Your ADE Team

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely.

Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information. 14

Scope of delivery 15

Safety. 16

Technical data. 18

Warranty. 18

Overview 19

Inserting/changing batteries. 20

Filling the mill 21

Use 22

Cleaning. 23

Storing. 23

Fault/Remedy 24

Declaration of Conformity 24

Disposal 24

Scope of delivery

Electric salt and pepper mill
Battery type LR/R03 (AAA), 1.5V = (6x)
- Operating Manual

Intended use

This device is intended for private use and for the scope of use normally associated with it.

The device is not recommended for commercial or household-like use in staff kitchens at shops, offices and other commercial areas, in agricultural estates, by customers in hotels, motels or other residential facilities, or in bed and breakfasts.

Safety

• This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.
  Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. You should therefore keep the item and batteries out of reach of children. If a battery has been swallowed, medical assistance must be sought immediately.

DANGER for children

• Keep packaging material away from children. There is a risk of choking if swallowed. Also pay attention that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• There is a risk of explosion if the battery is replaced improperly. Replace the batteries only with those of the same or an equivalent type. Pay attention to the "Technical data".
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!
• Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

BEWARE of material damage

• The mill or its parts must not be immersed in water or other liquids. This will damage the article.
• Remove the batteries from the mill if they are empty or if the mill will not be used for an extended period of time. You will thus avoid damage that may result from leakage of battery acid.
• Do not expose the batteries to any extreme conditions, e.g. by storing them on heaters or under direct sunlight. Increased risk of leakage!
• Ensure the batteries are inserted with the correct polarity (+/-) to avoid damaging the device. Risk of explosion!

• Clean the battery and device contacts, as needed, before inserting the battery. Risk of explosion!
  Always replace all of the batteries at the same time. Do not mix battery types, brands or batteries with different capacities. Risk of explosion!

• The grinding chamber should be a maximum of 80% full. Dampness may cause salt crystals to expand, which might cause the chamber to burst.

• Only turn on the mill when it is filled (with salt or pepper). Otherwise, the grinding gears might get damaged.
• Do not make any modifications to the device. Only allow repairs to be carried out at a specialist workshop and pay attention to the guarantee conditions. Unprofessional repairs can damage the device.
• Do not clean the mill with hard, rough or abrasive cleaning agents. Otherwise, the surface could be scratched.

Technical data

Model: Electric salt and pepper mill

KG 1900-1 (mint)

KG 1900-2 (red)

KG 1900-3 (black)

Batteries: 6x LR/R03 (AAA) / 1.5 V=

Rated current: 900 mA

Dimensions: 57× 205mm

Distributor: Waagen-Schmitt GmbH

Neuer Höltigbaum 15

22143 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Warranty

Dear Customer, Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

4516b

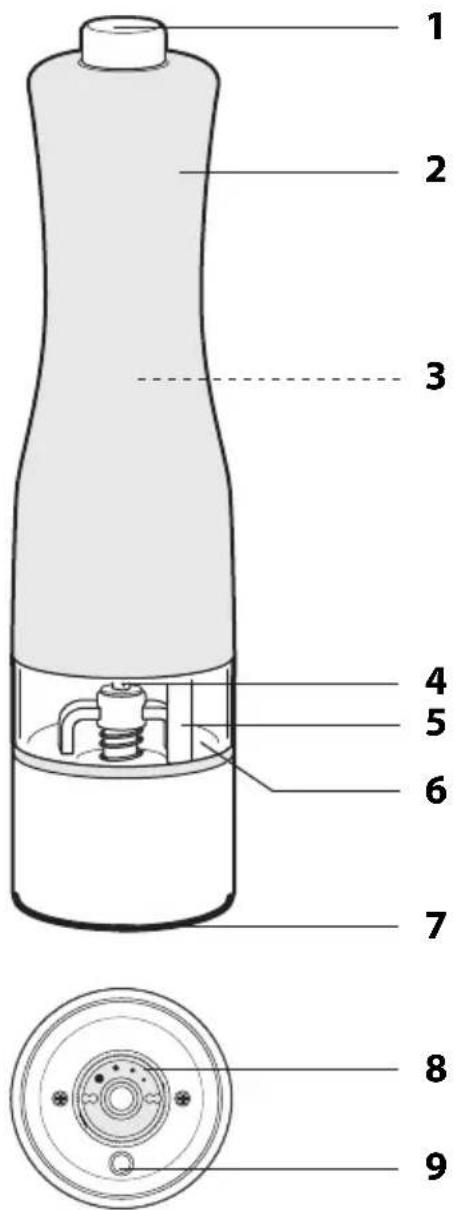

1 On/off switch
2 Case cap
3 Engine block and battery compartment (under case cap)
4 Grinding rod
5 Light guide
6 Grinding chamber for salt or pepper
7 Protective cap
6 Setting knob for coarseness
9 Light

Inserting/changing batteries

Six type LR/R03 1.5 V batteries are required to use the device (these are included).

1. Firmly hold the bottom of the mill.
2. Turn the case cap anti-clockwise as far as it will go with the other hand.

Note the position of the open lock symbol.

3.Pull the cap upwards.

1. Remove the old batteries. Note the information about disposal of batteries.

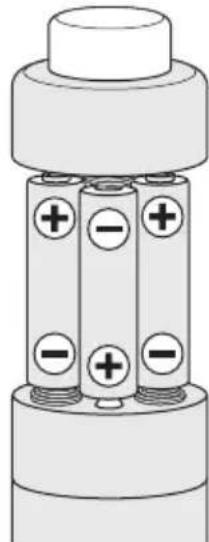

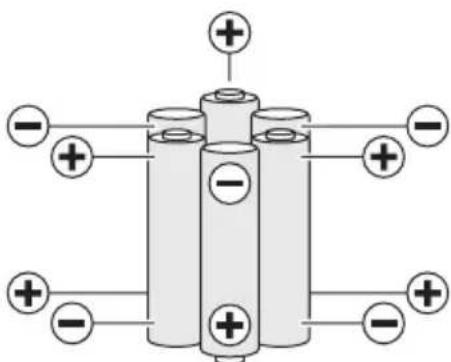

2. Insert six batteries (see "Technical data" for the type) as shown in the diagram. Pay attention to the correct polarity (+/-) .
3. Replace the case cap and turn it clockwise as far as it will go.

Note the position of the closed lock symbol.

If the salt and pepper mill no longer works, the batteries must be changed.
Always change all the batteries at once.
- Only use the type of battery that is specified in the "Technical data".
- Dispose of old batteries in an environmentally appropriate way (see "Disposal").

Filling the mill

1. Firmly hold the bottom of the mill.
2. Turn the case cap anti-clockwise as far as it will go with the other hand.

Note the position of the open lock symbol.

1. Pull off the case cap by pulling up.
2. Pull off the engine block by pulling up.

1. Fill the grinding chamber a max. of 80% with salt crystals or peppercorns.

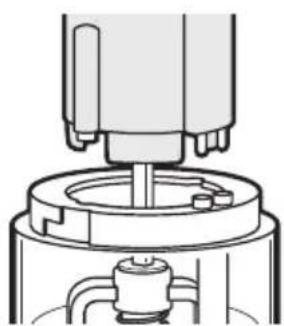

1. Put the engine block back on the grinding chamber. Make sure that the contact for the lighting is in the correct position.

2. Replace the case cap and turn it clockwise as far as it will go.

Note the position of the closed lock symbol.

The mill is now locked and ready-to-use.

Use

WARNING - damage to property

-Only turn on the mill when it is filled (with salt or pepper).

The mill enables you to grind salt or pepper right when you need them. This means that the spices are more aromatic.

1. Remove the protective cap.
2. Hold the mill over the food you want to season and press the on/off switch. The grinding gears and light will operate as long as the switch is held down.
3. After use, replace the protective cap.

If the mill jams, this means the grinding gears are blocked. If this happens, shake the mill a bit, turn it upside-down and turn it on briefly.

Setting the coarseness

1. Remove the protective cap.
2. Turn the mill upside-down and turn it on briefly to clear out the grinding gears.

1. Turn the setting knob in the middle of the grinding gears in the corresponding direction. Pay attention to the marking on the setting knob.

Coarse grind

-Turn anti-clockwise

Fine grind

-Turn clockwise

The grinding gears can be completely closed by turning the setting knob clockwise as far as it will go. In this case, do not press the on/off switch, because doing so will quickly destroy the grinding gears.

Cleaning

WARNING - damage to property

• The mill or its parts must not be immersed in water or other liquids.

• Wipe the mill with a soft, slightly damp cloth.

• The grinding chamber can be cleaned with mild dishwashing detergent in water. Dry thoroughly afterwards.

Storing

If the mill will not be used for a long period of time:

1. Remove the batteries.
2. Remove the contents from the grinding chamber and clean it.
3. Store the mill in a dry, frost-free location.

Fault/Remedy

Fault Possible cause
No function • Are the batteries empty or inserted the wrong way around?
Mill is working, but nothing is coming out.	• Did you remove the protective cap? • Have you accidentally turned the setting knob for coarseness as far as it will go?

If the light stops working, it is not possible to repair or replace it.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the KG 1900-1, KG 1900-2, and KG 1900-3 electric salt and pepper mills conform with 2014/30/EU and 2011/65/EU standards.

This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance.

Hamburg, March 2021

Waagen-Schmitt GmbH

Disposal

Dispose of the product in accordance with the regulations that apply in your country. You will find complete information about disposal in the full operating manual.

Disposing of the packaging

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All standard and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such standard and rechargeable batteries can thus be disposed of in an environmentally friendly way.
