Product type	2-in-1 waffle maker and sandwich press
Brand	ADE
Model	KG 20061 (KG 2006-1 white, KG 2006-2 red, KG 2006-3 black)
Power	600 W
Power supply	100-240 V, 50/60 Hz
Protection class	I
Dimensions (L × W × H)	Approx. 138 × 222 × 92 mm
Weight	Approx. 1.6 kg
Package contents	Appliance, 2 sandwich plates, 2 waffle plates, instruction manual
Functions	Preparation of waffles and sandwiches
Cooking plates	Removable, dishwasher safe (hand washing recommended)
Indicator light	Orange light indicating heating and temperature maintenance
Locking clip	Yes, to secure closure during cooking
Handle	Insulated handle for safe handling
Cable storage	Yes, at the back of the appliance
Safety	Automatic shut-off via thermostat, hot surface indicated
Maintenance and cleaning	Clean plates with warm soapy water (not dishwasher); wipe housing with a damp cloth
Spare parts and repairability	Replacement plates available; repairs by authorized after-sales service
Warranty	2 years (material and manufacturing defects)
Intended use	Household use only, indoors
Available colors	White, red, black

Frequently Asked Questions - KG 20061 ADE

What to do during first use?

Before first use, carefully clean all plates and the appliance. Heat the appliance empty for about 10 minutes to eliminate manufacturing odors. Let it cool, clean again, then the appliance is ready.

How to remove and install the cooking plates?

Push the locking latch upwards to unlock the plate, tilt it and remove it. To install, insert the plate into position and lower the latch until you hear a click. Make sure the plates are securely attached.

How long does it take to cook a sandwich?

Cooking time is about 3 to 4 minutes. Time may vary depending on bread thickness and filling. Monitor until desired browning.

How long does it take to cook a waffle?

Allow about 5 to 6 minutes. Time depends on batter consistency and waffle type. Once desired color is reached, remove the waffle with a spatula.

How to clean the plates after use?

Let the appliance cool completely, then remove the plates. Wash them with warm soapy water and a soft sponge. Do not put them in the dishwasher or immerse in water. Wipe the housing with a damp cloth.

Can the appliance be used with non-matching plates?

No. Use only the plates provided for each function: sandwich plates for sandwiches, and waffle plates for waffles. Never operate the appliance without plates.

What does the orange light turning on and off mean?

The orange light indicates that the appliance is heating or maintaining temperature. It turns on and off regularly, accompanied by clicking sounds, which is normal. This shows that the thermostat regulates the temperature.

Can I prepare other foods besides waffles and sandwiches?

The appliance is designed only for preparing waffles and sandwiches. Any other use is non-compliant and could damage the appliance or pose a safety risk.

How to store the appliance?

After complete cooling, clean the appliance and plates. Put the plates back in place, wind the cable around the cable storage. You can store the appliance vertically to save space, in a dry and frost-free place.

What to do if the appliance does not heat?

Check that the appliance is properly plugged into a working outlet. Ensure the voltage matches the specifications (100-240 V). If the problem persists, contact after-sales service.

USER MANUAL KG 20061 ADE

22143 Hamburg, Germany

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. The wealth of experience of the ADE brand ensures a high technical standard and proven quality for more freshness in your kitchen.

We wish you much pleasure and enjoyment!

Your ADE Team

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well.

Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information 14
Scope of delivery 15
Intended use 16
Safety 16
Overview 19
Start-up 19
Unpacking and checking 19
Cleaning and heating up 20
Use 20
Removing/inserting plates 20
Preparing the device. 21
Preparing toasted sandwiches. 22
Preparing waffles 22
Cleaning. 23
Basic recipe for sweet waffles 24
Fault/Remedy. 24
Technical data. 24
Warranty 25
Declaration of Conformity 25
Disposal. 25

Scope of delivery

2-in-1 waffle iron with four grill plates:
-2x sandwich plates
-2x waffle plates
- Operating Manual

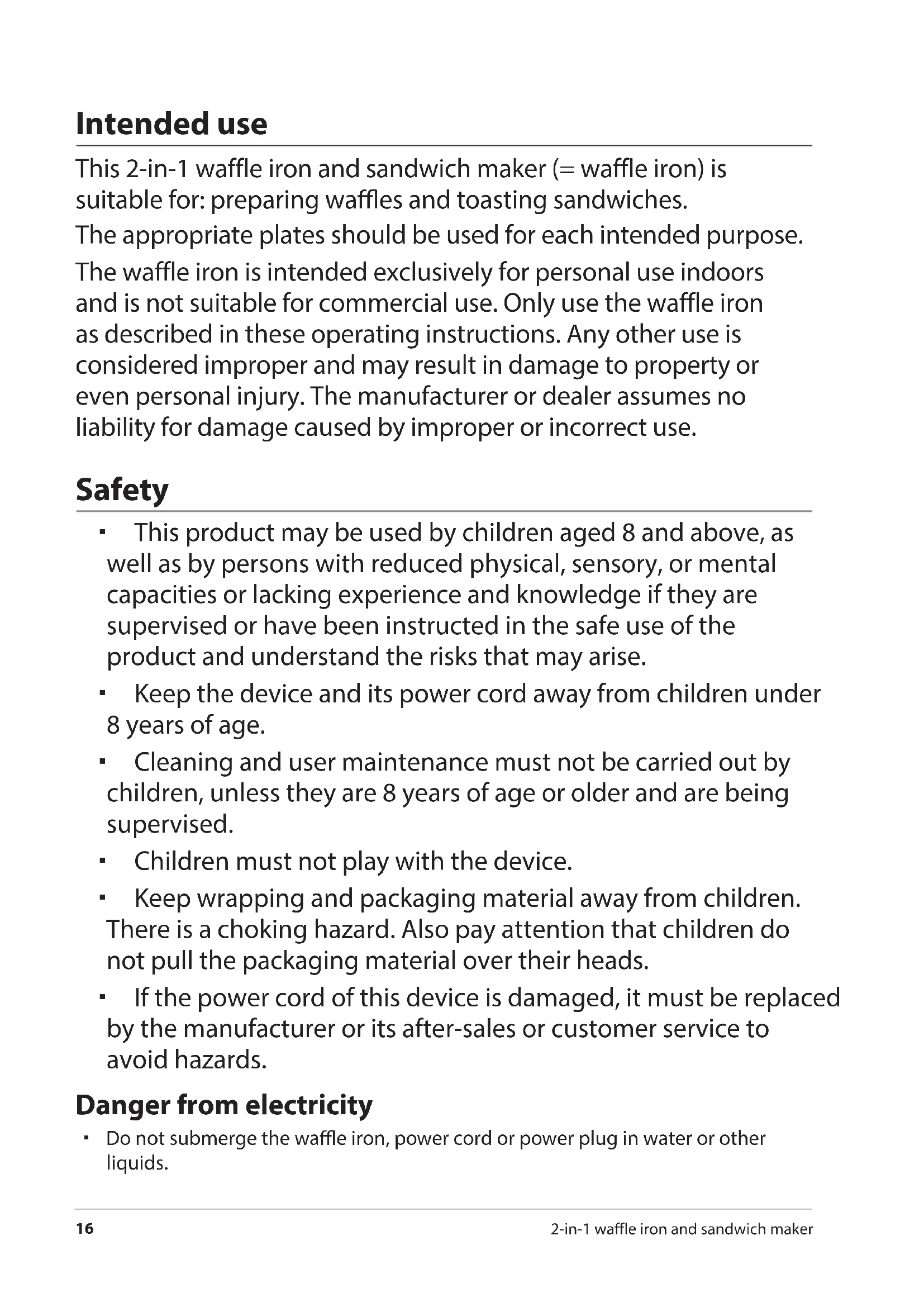

This 2-in-1 waffle iron and sandwich maker (= waffle iron) is suitable for: preparing waffles and toasting sandwiches.

The appropriate plates should be used for each intended purpose.

The waffle iron is intended exclusively for personal use indoors and is not suitable for commercial use. Only use the waffle iron as described in these operating instructions. Any other use is considered improper and may result in damage to property or even personal injury. The manufacturer or dealer assumes no liability for damage caused by improper or incorrect use.

Safety

• This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.
• Keep the device and its power cord away from children under 8 years of age.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
  Children must not play with the device.
• Keep wrapping and packaging material away from children. There is a choking hazard. Also pay attention that children do not pull the packaging material over their heads.
• If the power cord of this device is damaged, it must be replaced by the manufacturer or its after-sales or customer service to avoid hazards.

Danger from electricity

• Do not submerge the waffle iron, power cord or power plug in water or other liquids.

• Position the waffle iron so no liquids come into contact with the plug connection of the device.

• Do not operate the device with wet hands.
• Do not operate the device outdoors.
• Only connect the device to a correctly installed and functioning mains outlet with a voltage that corresponds to the "Technical data".
• Make sure that the mains outlet is readily accessible so that you can quickly unplug the power cord, if necessary.
• Do not use the device:

-if the device itself or its parts are damaged,
-if the power cord or plug is damaged,
-if the device has fallen down.

• Before each use, pull the power cord out of the cable compartment as far as necessary. Make sure that the power cord is not damaged by sharp edges or hot objects.

• Unplug the power cord from the mains outlet:

-when you are not using the device,
-after each use,
-before cleaning or putting away the device,
-if, during operation, there appears to be interference,
-during a storm.
-To unplug, always grasp the power plug; do not pull on the cable.

• Do not modify the device or power cord. Have repairs carried out only by a specialist workshop as improperly repaired devices endanger the user.

• Do not use an extension cable.

Risk of burns, scalds and fire

• Do not leave the waffle iron unattended when it is heating up, cooling down or in use.
• Do not touch the hot parts of the waffle iron with bare fingers when in use. Use suitable oven gloves or cloths when handling the device. Only touch the device using the handles provided. Please note that the device stays hot for some time after it has been switched off. Ensure other users are aware of this risk.
• Hot steam may escape when opening and closing the housing cover and during use. Protect yourself from the hot steam.
• Maintain sufficient safety distance from all highly flammable objects such as curtains and drapes.
• Always allow the waffle iron to cool down before moving, cleaning or storing it.

BEWARE of material damage

• Put the waffle iron on a stable, level and heat-resistant surface. Maintain sufficient distance to high temperature heat sources such as hot plates and heating pipes etc.
• Spillages can always occur when preparing food. Ensure that the surface is easy to maintain and can easily be wiped clean. If necessary, place a suitable underlay under the device.
• Position the waffle iron so that the heat generated during use can easily escape everywhere.
• Do not use the waffle iron under a wall cupboard or in a corner, as your food may burn when cooking. The device should also be kept away from highly flammable materials such as curtains or tablecloths.
• Avoid contact of the power cord with hot parts.
• Never submerge the waffle iron in water or use a steam cleaner for cleaning. Otherwise damage to the device may occur.
• Do not clean the waffle iron in the dishwasher. This would destroy the device.
• The waffle iron should no longer be used if it has been dropped, if it has cracks or splits or if it has been damaged in any way.
• The feet of the device are located on the underside of the waffle iron. As floor and furnishing surfaces are made from a wide variety of materials and are treated with a wide range of care products, it cannot be entirely excluded that these materials may contain ingredients that may adversely affect and soften the feet of the device. If necessary, place a non-slip pad underneath the device.
• Do not clean the waffle iron with hard, scraping or abrasive cleaning products, steel wool or similar.

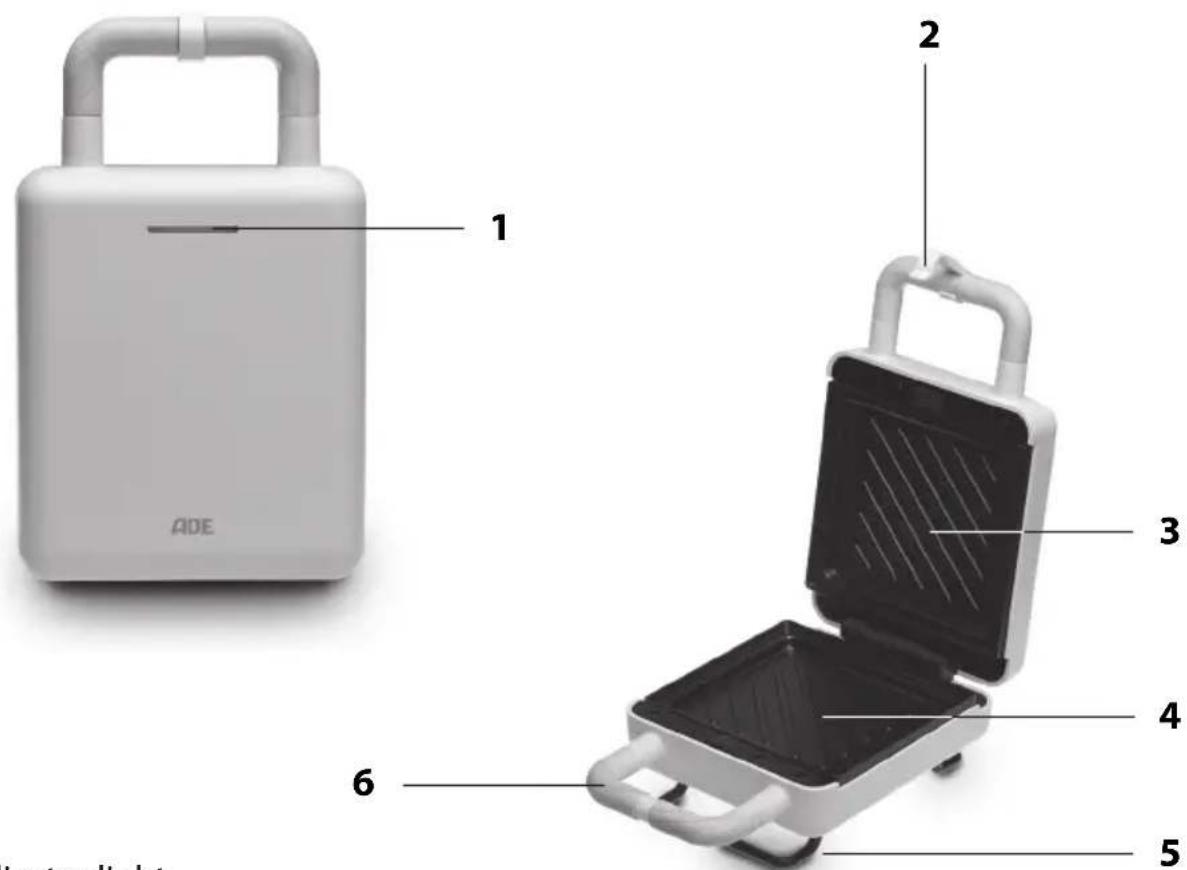

1 Indicator light
2 Locking clip
3 Upper plate
4 Lower plate
5 Cord winder
6 Grip

Start-up

Unpacking and checking

1. Take the waffle iron out of the packaging and carefully remove any remaining packaging material.
2. Check that the delivery is complete.
3. Check whether the waffle iron or any of the individual parts are damaged. If any parts are damaged, do not use the waffle iron. In this case, contact the dealer where you bought the device.
4. Before first use, clean all parts as described in chapter "Cleaning".

Cleaning and heating up

Burns WARNING

-Do not touch the hot surfaces of the sandwich maker.

The device may give off a slight odour and smoke during first use. This is harmless. Ensure there is sufficient ventilation e.g. through an open window.

Before using the waffle iron for the first time, it is recommended to clean the device to remove any production or packaging residues.

After cleaning, heat up the waffle iron without cooking anything in it and clean it again after cooling down.

1. Clean the device as described in the "Cleaning" section.
2. Fully unwind the power cord.
3. Place the waffle iron on a flat, heat-resistant surface.
4. Insert the power plug into a correctly installed mains outlet and let the sandwich maker heat up for approx. 10 minutes.
5. Unplug the power cord from the mains outlet.
6. Leave the waffle iron to cool completely. After cooling, clean the device again as described in the "Cleaning" section.

The waffle iron is now ready for use.

Use

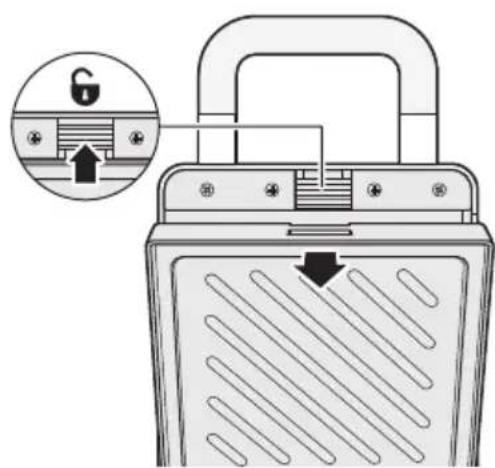

Removing/inserting plates

Each plate is secured in place by a locking catch in the device.

1. Push the locking catch upwards to release the plate.
2. Open the plate away from the device and pull it out of the casing.
3. Repeat the procedure for the second plate.

The plates should be reinserted in reverse order.
- Make sure that the locking catches lock in to place audibly and visibly.
- Always use the appropriate plates for each intended purpose when using the device.

Preparing the device

Risk of burns, scalds and fire

• Do not touch the hot surfaces of the device. Pay particular attention when you open the hot housing cover and when the device is open.
• Do not leave the waffle iron unattended when it is heating up or still cooling down or during operation.

During use, the indicator light goes on and off repeatedly and clicking noises can be heard. This is normal and indicates that the device is always heating up automatically.

1. Insert the plates provided for your intended purpose, see "Removing/inserting plates".
2. Close the device.

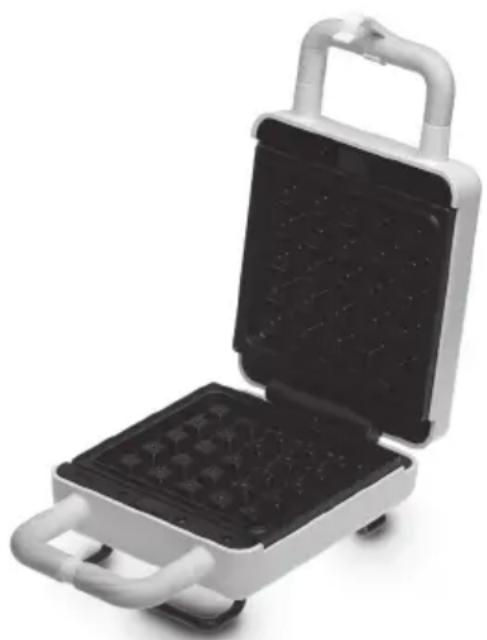

Sandwich plates Waffle plates

1. Unwind the power cord completely and insert the power plug into a mains outlet.

The indicator light turns orange; the device is now heating up.

After approx. 3 minutes the indicator light will go out and the device is ready to use.

Preparing toasted sandwiches

If possible, use normal slices of bread or toasting bread, as this bread is a good fit for the shape of the plate.

1. Make sure the device is ready for use, see "Preparing the device".
2. Put the desired ingredients (e.g. cheese, ham, cucumber, ketchup, onions etc.) on one slice of bread and then place the second slice on top of the first.
3. Put the sandwich in the device.

-Line the sandwich up on the plate as accurately as possible.

• Do not make the sandwich too thick. It must be possible to close the device without too much effort.

• Close the device and press the two parts of the handle together briefly.

• Close the locking clip.

After 3-4 minutes the sandwich is ready.

RISK of burns

• The sandwich and the toppings can get very hot. Be careful when consuming.

• Remove the sandwich when it has reached the desired level of browning. Use a heat-resistant wooden or plastic spatula to do this. Simply close the device again to brown the sandwich more if needed.

• If you want to toast more sandwiches, put the next sandwich in and continue as described previously.

Preparing waffles

1. Make sure the device is ready for use, see "Preparing the device".
2. Prepare the waffle batter. You will find a basic recipe further on in this manual to get started with.
3. Grease the plates lightly with some cooking oil or margarine using a brush.
4. Using a ladle, pour the waffle batter onto the centre of the lower plate. The batter should not touch the rim as it may run out of the gap between the grill plates when the device is closed.
5. Close the device and press the two parts of the handle together briefly.
6. Close the locking clip.

After 5-6 minutes the waffle is ready.

1. Remove the waffle when the desired level of browning has been achieved. Use a heat-resistant wooden or plastic spatula to do this. Simply close the device again to brown the waffle more if needed.

2. After you have removed the waffle, you can cook the next one straight away.

• Making waffles takes a bit of practice. After a few attempts, you should know how long the device needs to achieve the desired level of browning.

• In addition, the level of browning always depends on the type and consistency of the batter.

After use

1. Unplug the power cord from the mains outlet.
2. Leave the device open to cool down completely.
3. Clean the device.

Cleaning

RISK of burns

-Leave the device to cool down before cleaning or storing it.

NOTE on material damage

-Do not use aggressive chemical cleaning agents, abrasives, hard sponges, etc. for cleaning.
- The device must not be cleaned in a dishwasher or submerged in liquids.

Housing

• If necessary, wipe the housing with a slightly damp cloth. Then wipe it to dry thoroughly.

Plates

1. Remove the used plates.
2. Clean the plates thoroughly in hot dishwater.

The plates are not dishwasher safe.

1. Wipe the plates to dry them completely. Only put the plates back in the device when they are completely dry.

Storage

1. Fold up the device once it has cooled down and been cleaned.
2. Wrap the power cord around the cord winder.
3. Keep the device out of reach of children in a dry, frost-free place. The device can be stored vertically to save space.

Basic recipe for sweet waffles

Ingredients

250 g of flour
125 g of butter or margarine
3 eggs
1 tsp of baking powder
1 sachet of vanilla sugar
100 g of sugar
200 ml of milk

Preparation

1. Using a hand mixer, mix all the ingredients together except the butter or margarine to make a batter.
2. Add the softened butter/margarine next and mix well.
3. Cook the waffles as described in these instructions.

Fault/Remedy

Fault Possible cause
No function.	• Check if the power cord is plugged.
During use, the orange indicator light turns off and on again. You may also hear clicking noises during use.	• The device always heats up automatically to maintain a constant temperature. No fault.

Technical data

Model: 2-in-1 waffle iron and sandwich maker

KG 2006-1 (white), KG 2006-2 (red),

KG 2006-3 (black)

Power supply: 100 - 240V 50 / 60Hz

Power: 600 W

Protection class: I

Weight: approx. 1.6kg

Dimensions: approx. 138 × 222 × 92 mm

Distributor (no service address): Waagen-Schmitt GmbH

Neuer Höltigbaum 15

22143 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Warranty

Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the KG 2006-x 2-in-1 waffle iron and sandwich maker complies with the EU directives 2014/30/EU, 2014/35/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, March 2021

Waagen-Schmitt GmbH

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

;Estimada/o cliente/e!

Yepe3 3-4 MInHyTbI 6yTeP6pOd rOtOB.

PnCK OXKOROB

-ByTeP6pOi n HauHnKa MOryT cTaTb OueHb rOpAunMn. ByDbTe oCTOpOxHbI npu yNoTpe6JeHnN.

1. BbInbTe 6yTe6pO, KOrda OH DoCTnHET JKeJaEMoTO yPoBnI NOpymaHbAHnI. IJIa 3TOrO nCNoJb3yIte TepMOCTOnKn DepeBaHHbI NII pNtKOBbI WNaTeJIb. IpcTo 3aKpoIte yCTpoiCTBO eSe pa3, YTO6bl npN Heo6xOIMocTn NOpymaHTb 6yTe6pOd eSe 60nbWe.
2. Ecni Bbl XOTnTe nOJkapntb eue 6yTe6pOdbI, nOJoxnTe cneDyUoUsn 6yTe6pOd n npOdoJkaTte, KaK OnpcaHo paHee.

Пригоровские ваделы

1. y6eIITecb, yTO yCTPOiCTBO rOTOB K IcN0JIb3OBAHnIO, CMOTpnte pa3dJI "NoIrTOBka yCTPOiCTBa".
2. Пи���Бафелбhoe ТсTo. Далee В ATOM pyKOBODCTBe Bbl HaДeTe OCHOBHO pecent, C KOTOPORO можно НачырaboTy.
3. CnErKa cMaXbTe nIaCTnHbI paCTnteHbIM MacNOM nn MaprapnHOM C NOMOuKKnCTOuKN.
4. История постория, Великий Статовский, велейные Бафanelовские ТECTО в центе Нжншев的基础上. ТECTО неdoes not do so, tak Камоно может влгоста влгоста мени. Пл actinaиму греля, korда усточь здкръно.
5. 3akpoTe yctpoiCTBO n HeHaDoIro npJxMITE dBe qactn pyKn dpyrg.
   6.3aKpoTe cTOnOpHbI 3axIM. Upe35-6 MmHyT BaΦn I rTOB
   7.ИЗВЕКИТЕВаФПЮ,ΚΟДАЖЕЛЯЕМБΙΥΡОBEΗΝΟΤΕΜΗΝΑ 6уДETДΟCTИRGHT.DЯ эTORO ИСПОЛБ3УТЕ ТЕРМОСТОЙКИ ДЕРБАНБΙ ΜΙΝ ΠΝΑCTИΚΟВΙ ΜΝΑTEЛБ.

IpocTo 3akpoTe yctpoNCTBO eue pa3, YTO6bI npn Heo6xOIMOCTN NOIpymHHTb BaΦIO eue 60JIbWe.
8. Посné тoro, кak Bbl Bbltauniu BaФлю, Bbl MOжTe cpa3y Jke nprirotobntb cnedyuoyu.

• PnroToBHeHne BafoB Tpe6yET HeKOTOpO npaTnKn. NocHeCKoJIbKx IOnbITOK Bbl DOJXHbI 3HaTb, KaK DoJIrO yCTPOIcTB0doJXHO DOCTNHy JeJaEMOro ypOBHЯ NOTEmHeHna.
  Kpome TORO, CTepeHb NOTemHeHnB BcERda 3aBnCnT OT BnDa IN KOHCnCTeHcHn Tecta.

Pocne nCpOJIb30BaHnA

1. OToCoeHInHe 5Hyp nHTaHnO r cTeBOr po3eTKN.
2. OCTaBbTe yCTPOJcTBO OTKpbITbIM Do NOnHOrO OCTbIBaHnA.
3. OuInCTnTe yctpoNCTBO.

OuNTka

Pnck OXorOB

KG 2006-1 (white), KG 2006-2 (red),

KG 2006-3 (black)

Питане: 100-240 V~, 50/60 Hz

MoHocTb:600W

Klacc 3aunTbI: I

Bec:1.6Kr

Pa3Mepbl:

138 × 222 × 92 MM

ДистрпбьTOTOP:

Waagen-Schmitt GmbH

Neuer Höltigbaum 15

22143 Hamburg, Germany

Haа npodykua nocToaHno pa3BnBaetcN COBepueHCTByeTc. I0 3Toi npuHne KOHCTpyKTNBhIe N TexHnueckNe N3MeHeHn B03MOxHbI B JIO6oe BpeM.

TapaHTn

KoMaHa Waagen-Schmitt GmB rapaHTnpyet B TeueHne 2 let c MOMeHTa NOKyKn 6ecnlaTHoe nCnpaBHeHne DeΦeKToB nyTeM peMOHTa IIN O6MeHa.

B cnyuae npedbIeHnra rapaHTnHOro Tpe6ObaHnna, noKaNyIcTa, BepHnTe np6Op c DOKa3aTeNbCTBOM NOKynKn(ueK) K BaWeMy dInIepy (c yKa3aHnem npuHnbl npeTeH3nn).

3KCKJIIO3INBHyI INCTpN6bIOTop B PΦ OOO «Премуm Koфe CoIIOUH3» [phone].

OΦnuaHbI cepBnchbI ueHtp OOO «DC-CepBnC»

[phone]

YcTpoIcTBa He IOnKHbI Bbl6pacbIBaTbcraB O6blHbIe 6blTOBbl OTXoDbI

B KOHcpe cpoKa cnjX6bl npOdyKT doJxKeH 6bITb yTnIIN3NpOBaH
HaJIeKAsm O6pa3OM. TaKIM o6pa3OM, ceHNbIe MaTePnaJIbI,
coepkaUncEa B UcTPOiCTBe, 6yDyT nepepa6oTaHbI, a Harpy3Ka Ha
OKpykaUou CpeNy NCKIIOyeHa. PpiHecnte CTapoe yCTPOiCTBO
B NyHK T c60pa 3JeKTPoHHbIX OTXODOB IIN Ha CKJaB BTOpNUHO
pepepa6OTKn. IInI NOlyeHnA DONoHNHTeJIbHO INHΦOpMauIN
6bpatNTecb B MeCTHyIO fIpMy No ydaJIeHnIO OTXODOB IIN MeCTHbI
aDMNHnCTpaTINBhI OprAH.
