Product type	Baby monitor
Brand	Switel
Model	BCC60
Package contents	1 transmitter (baby unit), 1 receiver (parent unit), 1 power adapter, 2 USB cables, instruction manual
Battery power	3 AAA 1.5 V batteries (parent) / 4 AAA 1.5 V batteries (baby) - not included
Mains power	Power adapter JF005WR-0500100VU (input 100-240 V, output 5 V / 1 A)
Transmission frequency	864 MHz
Transmission power	10 dBm
Reception sensitivity	-88 dBm
Power consumption (transmitter)	max. 160 mA
Power consumption (receiver)	max. 240 mA
Operating temperature	0 °C to 50 °C
Operating humidity	20 % to 80 %
Storage temperature	0 °C to 50 °C
Features	Audio transmission, voice activation (VOX), channel change, pairing, volume LED indicator
Care and cleaning	Clean with a soft, lint-free cloth. Do not use cleaners or solvents.
Safety	Do not place the transmitter in the baby's crib. Minimum distance of 1 m from baby. Minimum distance of 2 m between units. Do not use near medical devices.
Warranty	24 months
Recommended batteries	AAA alkaline 1.5 V batteries (not included)
Battery type	3× AAA for parent unit, 4× AAA for baby unit

Frequently Asked Questions - BCC60 SWITEL

How to install the Switel BCC60 monitor?

Place the baby unit at least 1 meter away from the baby and the parent unit at least 2 meters away from the baby unit. Insert the batteries or plug in the power adapter. Turn on both devices.

How to change channel in case of interference?

Briefly press the pairing button located in the battery compartment of the baby unit using a pointed object. The device automatically searches for a channel without interference.

What to do if the connection between units is lost?

Perform pairing: turn off both devices, hold down the pairing buttons of both units, turn them on, then release the buttons after 1 second.

Can I use rechargeable batteries?

The manual recommends using AAA alkaline batteries. Rechargeable batteries can be used but their voltage is lower (1.2 V), which may reduce battery life.

What is the range of the monitor?

The range is not specified in the manual. It depends on the environment (walls, obstacles). Generally, 864 MHz monitors have a range of about 100 to 300 meters in open field.

How to clean the monitor?

Clean the surfaces with a soft, lint-free cloth. Never use cleaners or solvents.

Is the monitor water resistant?

No, the monitor is not water resistant. Avoid humidity and direct sunlight.

Can I use the monitor near medical devices?

No, keep a distance of at least 1 meter from electronic devices such as microwaves or hi-fi systems, and do not use near medical devices.

How to pair the devices for the first time?

The devices are already paired at the factory. If necessary, follow the procedure: turn off both, hold down the pairing buttons, turn on, release after 1 second.

What to do if my monitor does not turn on?

Check the batteries (insert them correctly) or plug in the power adapter. Make sure the power switch is set to ON.

USER MANUAL BCC60 SWITEL

JFEC Electronic Technical Product Inc.

Input: 100...240 V, 50/60 Hz, 0,18 A

Output: 5 V, 1000 mA

Diagram of a device rear panel with labeled pins and a numbered arrow pointing to one component (no text or symbols beyond the number 8)

Telgo AG, Route D'Agy 16, 1763 Granges-Paccot, Switzerland

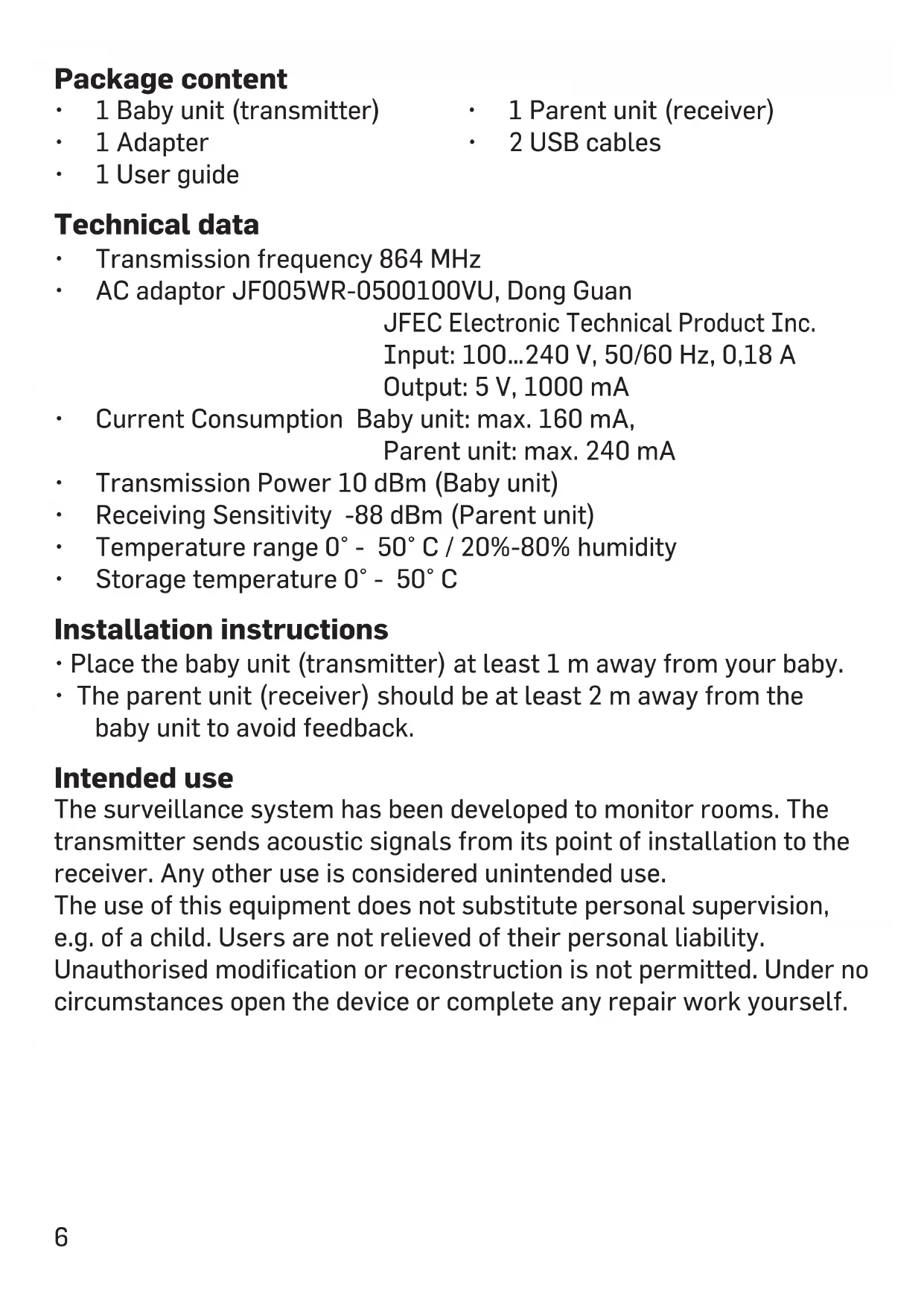

Package content

• 1 Baby unit (transmitter)

• 1 Parent unit (receiver)

• 1 Adapter

- 2 USB cables

• 1 User guide

Technical data

• Transmission frequency 864 MHz

• AC adaptor JF005WR-0500100VU, Dong Guan

JFEC Electronic Technical Product Inc.

Input: 100...240 V, 50/60 Hz, 0,18 A

Output: 5 V, 1000 mA

• Current Consumption Baby unit: max. 160 mA,

Parent unit: max. 240 mA

• Transmission Power 10 dBm (Baby unit)

• Receiving Sensitivity -88 dBm (Parent unit)

• Temperature range 0° - 50° C / 20%-80% humidity

• Storage temperature 0° - 50° C

Installation instructions

- Place the baby unit (transmitter) at least 1 m away from your baby.

- The parent unit (receiver) should be at least 2 m away from the baby unit to avoid feedback.

Intended use

The surveillance system has been developed to monitor rooms. The transmitter sends acoustic signals from its point of installation to the receiver. Any other use is considered unintended use.

The use of this equipment does not substitute personal supervision, e.g. of a child. Users are not relieved of their personal liability.

Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself.

Maintenance

• Clean the housing surfaces with a soft, fluff-free cloth.
• Never use cleaning agents or solvents.

GB

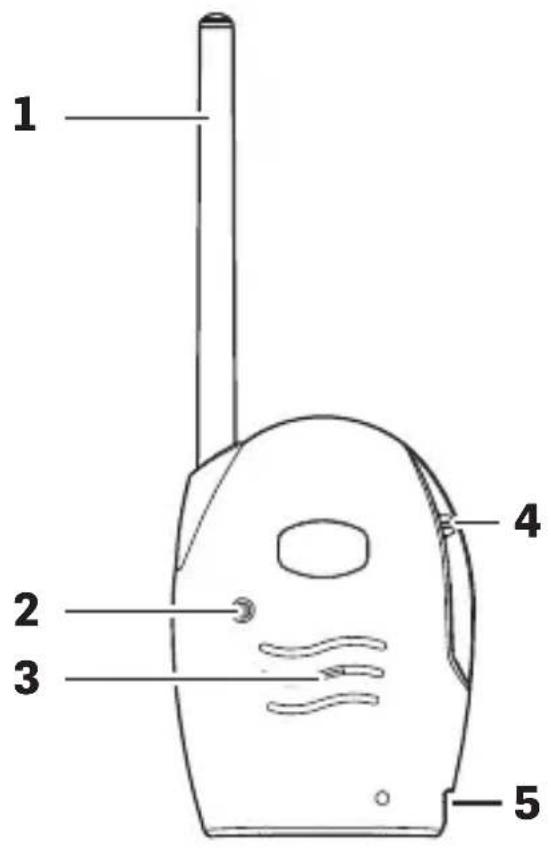

Baby unit

1 2 3 4 5

6 7

Diagram of an electronic device rear panel with labeled pins and connectors (no text or symbols beyond the number 8)

1 Antenna
2 Power LED
3 Microphone
4 On-/Off-switch
5 DC jack

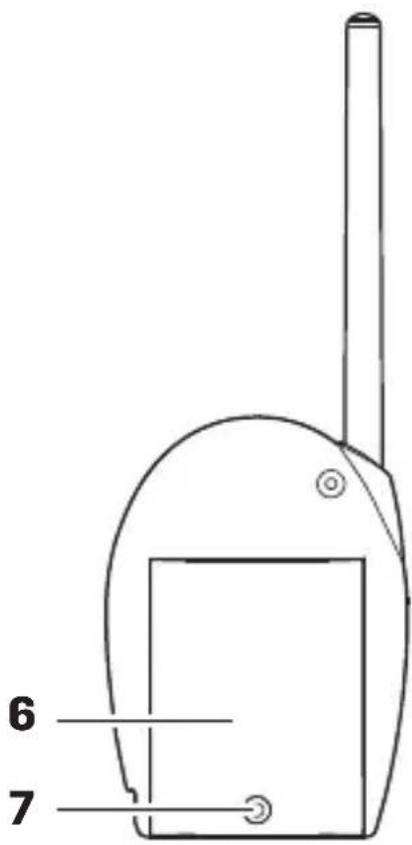

6 Battery compartment cover
7 Securing screw for battery compartment

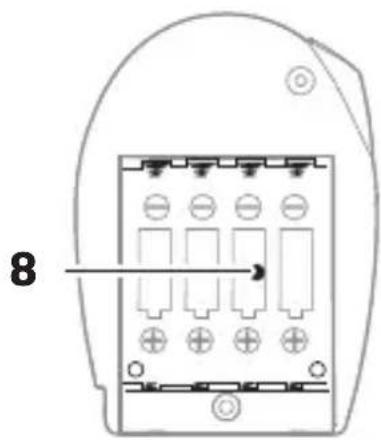

8 Pairing button

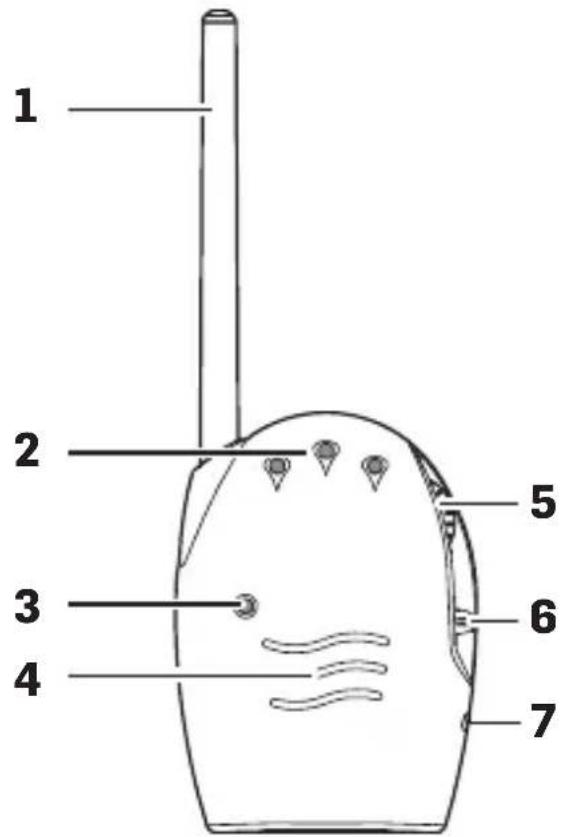

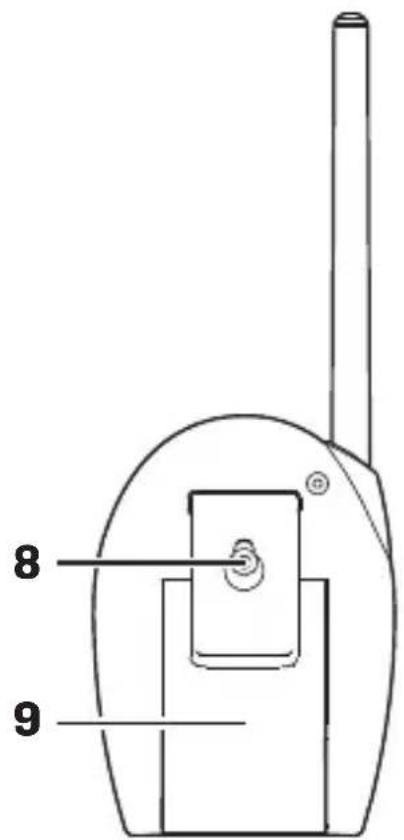

Parent unit

1 2 3 4 5 6 7

8 9

10

1 Antenna
2 Volume LED indicators
3 Power LED
4 Loudspeaker
5 Volume control
6 On-/Off-switch
7 DC jack
8 Securing screw for battery compartment
9 Battery compartment cover

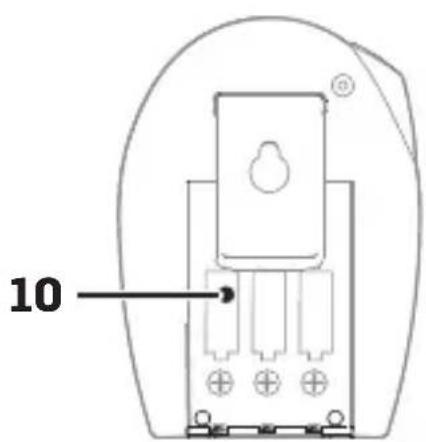

10 Pairing button

Using the units

- Insert batteries into both devices (observe polarity!).

Use 1.5V AAA alkaline batteries (in the parent unit 3 pieces, in the baby unit 4 pieces, not included).

or

Connect the supplied power adapter to one device and plug it into a suitable power outlet.

- Slide the on / off switches on both devices to the "ON" position.

• Wait for about 2 s. When the connection is established, the volume LEDs on the parent unit flash briefly.
• Place the baby unit in the baby room about 2 meters away from the baby.
• Use the volume control on the parent unit to set the desired volume. The volume LEDs indicate the set volume.
• If the baby unit does not detect any sounds in the surroundings, the transmitter is switched off; the parent unit is then in standby mode (VOX). When the baby unit perceives noises again, the transmitter is switched on again and the transmission to the parent unit starts.

Note:

If you notice any noise or interference during the transmission, you can change the channel. During operation, briefly press the pairing button in the battery compartment of the baby unit with a pointed object (eg straightened paper clip). The devices try to find a trouble-free channel and continue operation.

Pairing

When delivered, the devices are already radio-linked (pairing). If this connection is lost at some point, which is very rare, you can do this pairing yourself as follows:

• Turn off both devices.
• Simultaneously press and hold the pairing button in the battery compartment of the parent and baby unit with a pointed object (such as a straightened paper clip).
• Turn on both devices.
• Release the pairing buttons after 1 second.
• If the volume LEDs on the parent unit flash briefly, the pairing was successful and the connection is established again.

Safety Information

- Please read this operating instruction manual thoroughly.

- Never lay the transmitter in a baby's/child's bed or playpen.

- Ensure that the transmitter and power cable are out of reach of babies/children, i.e. they are at least one meter away.

- Pay attention that the components are sufficiently well-ventilated when in operation. Do not lay a cushion, towel or such over the devices.

- The devices are not intended for medical purposes. Warning and signal tones from respiratory or heartbeat monitoring equipment are not transmitted.

- The installation location plays a decisive role in ensuring proper operation. Therefore, maintain a distance of at least one meter from other electronic equipment, such as microwave ovens or hi-fi devices, otherwise they could cause mutual interference/faults.

- Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. Do not use the equipment in potentially explosive areas.

- Only use the power adapter plugs contained in the material supplied since other power adapter plugs could damage the surveillance system. Ensure access to the power adapter plug is not obstructed by furniture or such.

- When using the equipment with a power adapter plug, pay attention that the plug and cable are in perfect condition. Kinked or worn cable represents the risk of a fatal accident!

- Never throw batteries into a fire. Only use batteries of the same type! Pay attention to correct polarity.

- Never use the devices in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste! Batteries represent a hazard to health and the environment! Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of power packs and batteries at the point of sale or

in the corresponding containers provided at collection points provided by local public waste authorities. Disposal is free of charge. The adjacent symbols indicate that the batteries must not be disposed of in normal domestic waste and must be brought to collection points provided by local public waste authorities.

Packaging materials must be disposed of according to local regulations.

Guarantee

SWITEL equipment is produced and tested according to the latest production methods. Carefully selected materials and highly developed technology ensure perfect functioning and a long service life. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase. All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer. If your device does show signs of a defect within the period of guarantee, please contact the sales outlet where you purchased the SWITEL device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

Declaration of conformity

This device fulfils the requirements stipulated in the EU directive: 2014/53/EU. Conformity with the above mentioned directive is confirmed by the CE symbol on the device. To view the complete Declaration of Conformity, please refer to the free download available on our website www.switel.com.

Telgo AG, Route D'Agy 16, 1763 Granges-Paccot, Switzerland

Diagram of a device rear panel with labeled pins and connectors (no text or symbols beyond the number 8)

Telgo AG, Route D'Agy 16, 1763 Granges-Paccot, Switzerland

Diagram of a device rear panel with labeled pins and connectors (no text or symbols beyond the number 8)

Telgo AG, Route D'Agy 16, 1763 Granges-Paccot, Switzerland

Inhoud

• 1 babyunit (zender)
- 1 adapter
- 1 handleiding

• 1 ouderunit (ontvanger)
• 2 USB-kabel

Technische gegevens

• Zendfrequentie 864 MHz
• Adapter JF005WR-0500100VU, Dong Guan

JFEC Electronic Technical Product Inc.

Diagram of a device rear panel with labeled pins and connectors (no text or symbols beyond the number 8)

Telgo AG, Route D'Agy 16, 1763 Granges-Paccot, Switzerland

Telgo AG, Route D'Agy 16, 1763 Granges-Paccot, Switzerland

Service

In the case of technical questions, please use the service form on our website: http://www.switel.com/en/product-information-technical-support/
